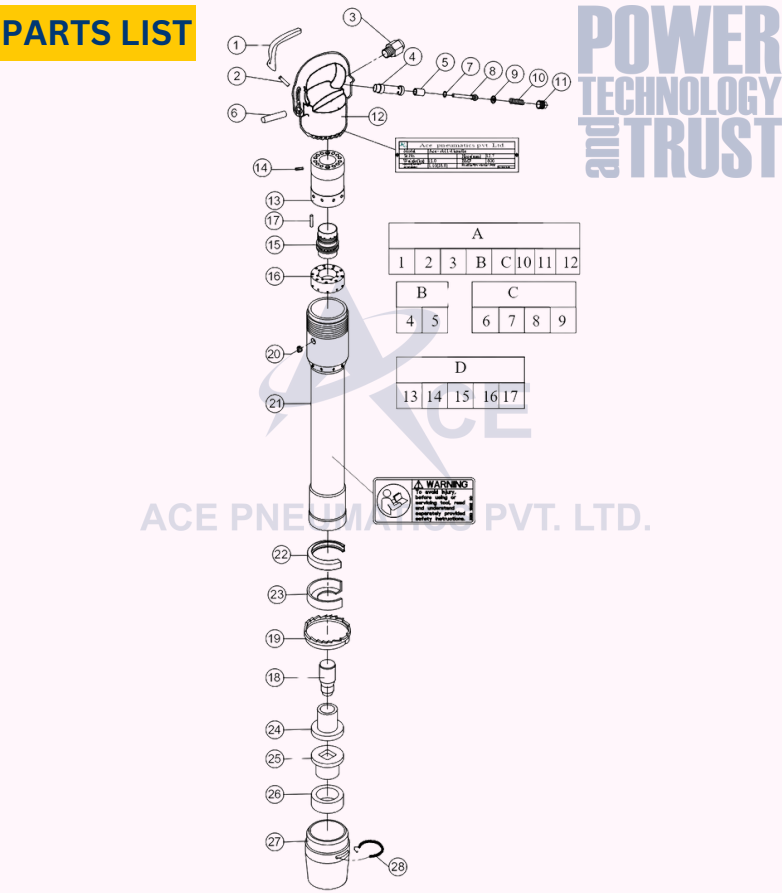

ACE RB 4608 & 4611 DSpares

Throttle Lever

1.Throttle Lever

ACE Part No	OEM REFF NO
111010D	P006137

Pin - Throttle Lever

2.Pin - Throttle Lever

ACE Part No	OEM REFF NO
111015D	P005171

Air Inlet Bush ( 3/8

3.Air Inlet Bush ( 3/8" npt)

ACE Part No	OEM REFF NO
111020D	P001995

Air Inlet Bush ( 1/2

3A.Air Inlet Bush ( 1/2" npt)

ACE Part No	OEM REFF NO
111021D	-

Throttle Valve Tube

4.Throttle Valve Tube

ACE Part No	OEM REFF NO
112010D	-

Throttle Valve Bush

5.Throttle Valve Bush

ACE Part No	OEM REFF NO
112015D	P004839

Throttle Valve Push Pin

6.Throttle Valve Push Pin

ACE Part No	OEM REFF NO
113010D	P006138

Throttle Valve

7.Throttle Valve "O" Ring

ACE Part No	OEM REFF NO
113015D	CA088867

Throttle Valve

8.Throttle Valve

ACE Part No	OEM REFF NO
113020D	-

ORing Cap

9.ORing Cap

ACE Part No	OEM REFF NO
113025D	P092091

Throttle Valve Spring

10.Throttle Valve Spring

ACE Part No	OEM REFF NO
113030D	P001864

Throttle Valve Plug

11.Throttle Valve Plug

ACE Part No	OEM REFF NO
113035D	P001884

Handle

12.Handle

ACE Part No	OEM REFF NO
113040D	-

Valve Case

13.Valve Case

ACE Part No	OEM REFF NO
114010	P006319

Valve Case Plug

14.Valve Case Plug

ACE Part No	OEM REFF NO
114015	-

Valve

15.Valve

ACE Part No	OEM REFF NO
114020	P001538

Valve Case LID

16.Valve Case LID

ACE Part No	OEM REFF NO
114025	P006320

Dowel Pin - Valve Case

17.Dowel Pin - Valve Case

ACE Part No	OEM REFF NO
114030	3303005086

Piston 4611

18.Piston 4611

ACE Part No	OEM REFF NO
114035	3303005093

Piston 4608

18A.Piston 4608

ACE Part No	OEM REFF NO
114040	3303005094

Lock Collar

19.Lock Collar

ACE Part No	OEM REFF NO
114045	P001399

Key - Lock Collar

20.Key - Lock Collar

ACE Part No	OEM REFF NO
114050	P001430

Cylinder 4611

21.Cylinder 4611

ACE Part No	OEM REFF NO
114055	-

Cylinder 4608

21A.Cylinder 4608

ACE Part No	OEM REFF NO
114060	-

Spring Clip

22.Spring Clip

ACE Part No	OEM REFF NO
114065	P001355

Exhaust Deflector

23.Exhaust Deflector

ACE Part No	OEM REFF NO
114070	P001389

Upper Sleeve

24.Upper Sleeve

ACE Part No	OEM REFF NO
114075	P156988

Lower Sleeve

25.Lower Sleeve

ACE Part No	OEM REFF NO
114080	P072333

Rubber Bumper

26.Rubber Bumper

ACE Part No	OEM REFF NO
114085	3303005103

PU Bumper

26A.PU Bumper

ACE Part No	OEM REFF NO
114086	-

Retainer Sleeve

27.Retainer Sleeve

ACE Part No	OEM REFF NO
114090	3303005340

Lock Spring

28.Lock Spring

ACE Part No	OEM REFF NO
114095	P073942

Handle Complete

A (1-12).Handle Complete

ACE Part No	OEM REFF NO
111000D	P007399

Throttle Tube Complete

B (4-5).Throttle Tube Complete

ACE Part No	OEM REFF NO
112000D	P007846

Throttle Valve Complete

C (6-9).Throttle Valve Complete

ACE Part No	OEM REFF NO
113000D	P005153

Valve Complete

D (13-17).Valve Complete

ACE Part No	OEM REFF NO
114000D	P007385
