ACE CH 4125

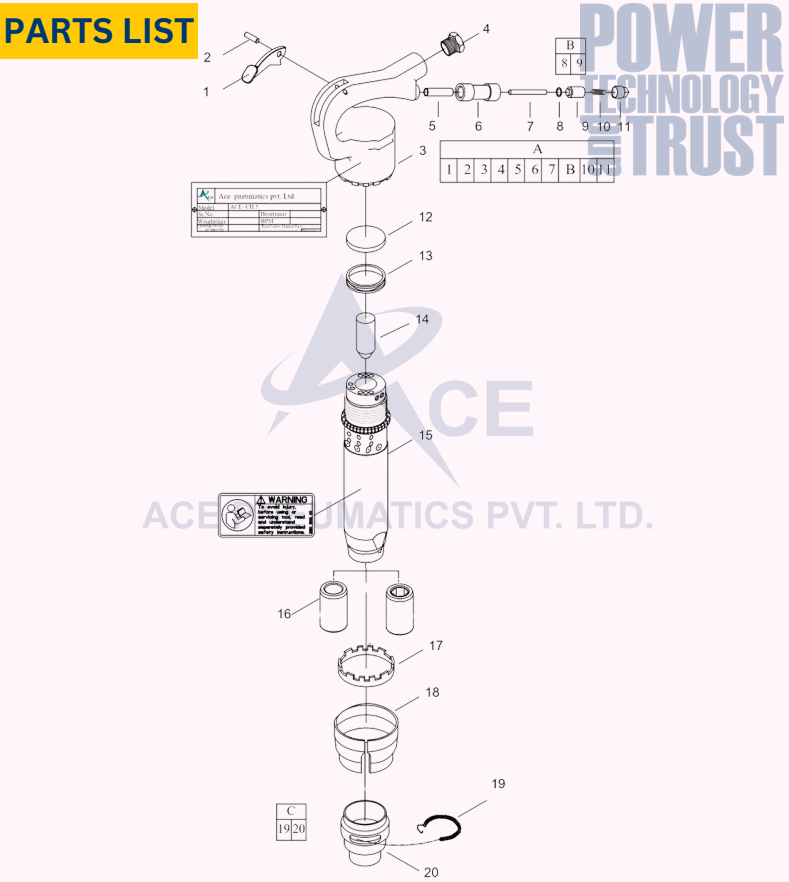

Spares

Chipping hammer spare

1.Throttle Lever

ACE Part No OEM REFF NO
031010 P009818
Chipping hammer spare

2.Throttle Lever Pin

ACE Part No OEM REFF NO
051015 A043627
Chipping hammer spare

3.Handle

ACE Part No OEM REFF NO
051020 -
Chipping hammer spare

4.Air Inlet Bushing

ACE Part No OEM REFF NO
031025 P009585
Chipping hammer spare

.Air Inlet Bushing ( Inside Hex Type)

ACE Part No OEM REFF NO
-
Chipping hammer spare

5.Brass Bush

ACE Part No OEM REFF NO
051030 P070733
Chipping hammer spare

6.Throttle Valve Tube

ACE Part No OEM REFF NO
051035 P071318
Chipping hammer spare

7.Throttle Valve Push Pin

ACE Part No OEM REFF NO
051040 P070719
Chipping hammer spare

8.Throttle Valve 0 Ring

ACE Part No OEM REFF NO
113015 P083071
Chipping hammer spare

9.Throttle Valve

ACE Part No OEM REFF NO
113020 -
Chipping hammer spare

10.Throttle Valve Spring

ACE Part No OEM REFF NO
052020 P001853
Chipping hammer spare

11.Throttle Valve Plug

ACE Part No OEM REFF NO
113030 P001873
Chipping hammer spare

12.LID ( Ring Valve )

ACE Part No OEM REFF NO
052030 P009837
Chipping hammer spare

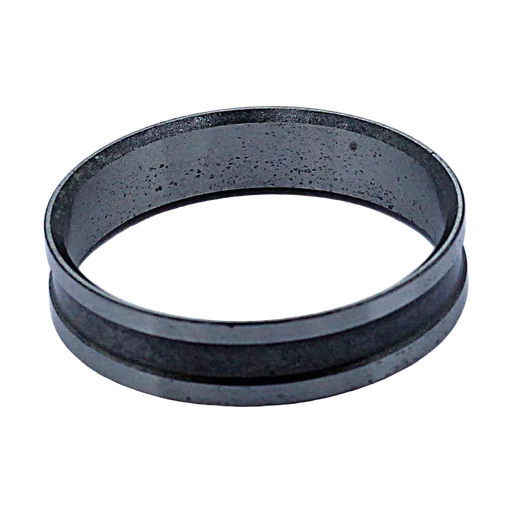

13.Valve (Ring Valve)

ACE Part No OEM REFF NO
052035 P009836
Chipping hammer spare

14.Piston 2

ACE Part No OEM REFF NO
052040 P118662
Chipping hammer spare

14A.Piston 3

ACE Part No OEM REFF NO
052045 P118662
Chipping hammer spare

14B.Piston 4

ACE Part No OEM REFF NO
052050 P118678
Chipping hammer spare

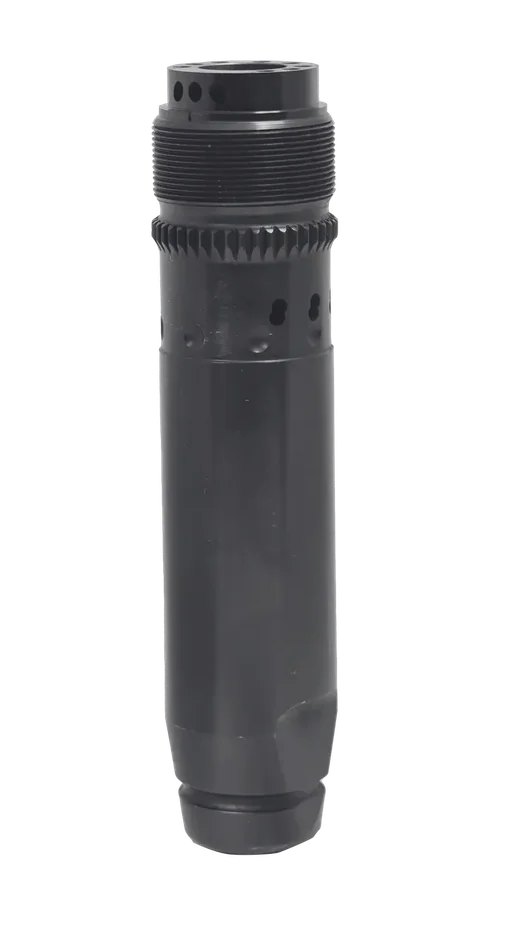

15.Cylinder 2

ACE Part No OEM REFF NO
052055 -
Chipping hammer spare

15A.Cylinder 3

ACE Part No OEM REFF NO
052060 -
Chipping hammer spare

15B.Cylinder 4

ACE Part No OEM REFF NO
052065 -
Chipping hammer spare

16.Chisel Bushing Hex

ACE Part No OEM REFF NO
033075 P001551
Chipping hammer spare

16A.Chisel bushing Round

ACE Part No OEM REFF NO
033080 P001550
Chipping hammer spare

17.Lock Collar

ACE Part No OEM REFF NO
052080 P128247
Chipping hammer spare

18.Exhaust Deflector

ACE Part No OEM REFF NO
052085 P071355
Chipping hammer spare

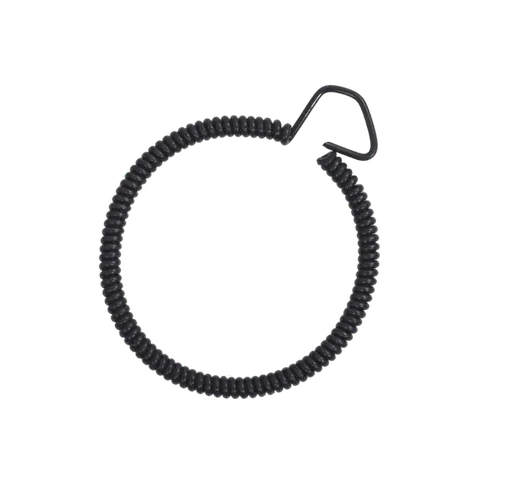

19.Retainer Lock Coil Spring

ACE Part No OEM REFF NO
034010 P070994
Chipping hammer spare

20.Retainer Sleeve

ACE Part No OEM REFF NO
034015 -
Chipping hammer spare

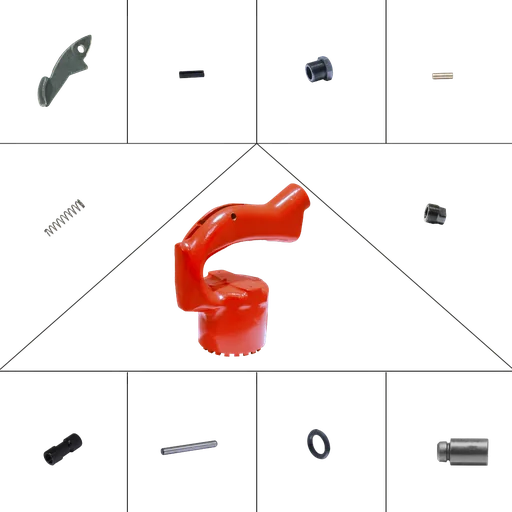

A (1-11).Handle Complete

ACE Part No OEM REFF NO
051000 P130242
Chipping hammer spare

B (8-9).Throttle Valve Complete

ACE Part No OEM REFF NO
052000 P001768
Chipping hammer spare

C (19-20).Retainer Complete

ACE Part No OEM REFF NO
053000 P107243

SPARES AND ACCESSORIES

Accessories can be used for your products & prevents time loss in case of breakdown

0.580 HEX SHANK OVAL COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

0.580 HEX SHANK NON COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

0.680 ROUND SHANK NON COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

0.680 ROUND SHANK OVAL COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

Shank Hex 14.7 – Rd 17.3 x 60 mm (Hex 9/16 – Rd 11/16 x 23/8 in)

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

Shank Rd 17.3 mm (Rd .680 in)

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL
