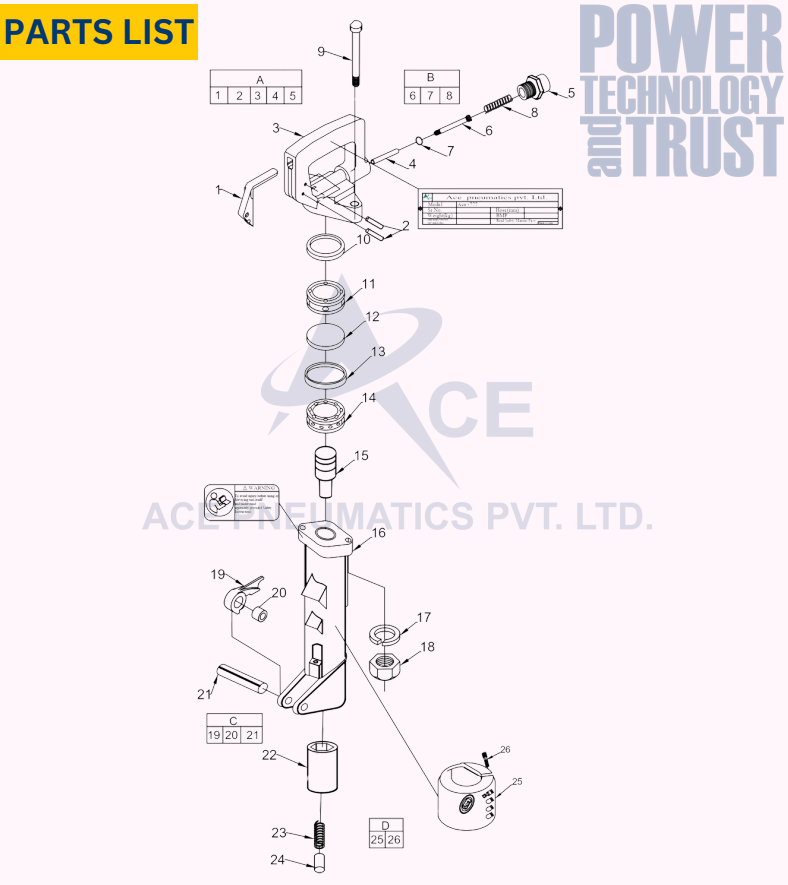

ACE CD 222

Spares

Clay digger spare

1.Throttle Lever

ACE Part No OEM REFF NO
222010 F815 167
Clay digger spare

2.Throttle Lever Pin

ACE Part No OEM REFF NO
224015 R133 757
Clay digger spare

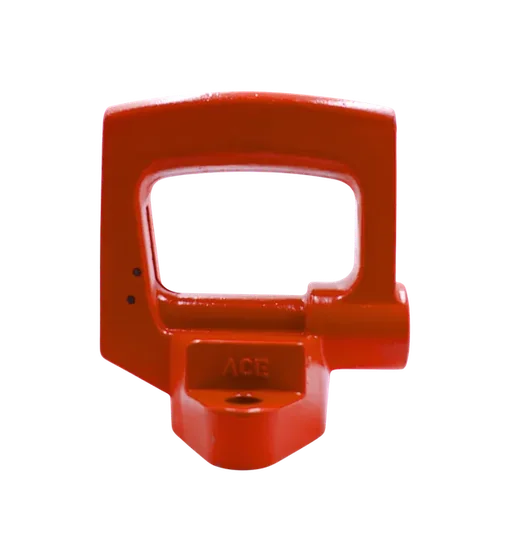

3.Handle

ACE Part No OEM REFF NO
222020 -
Clay digger spare

4.Throttle Valve Bush

ACE Part No OEM REFF NO
222025 F813 910
Clay digger spare

5.Air Inlet Nipple 3/4" Bsp X14 TPI

ACE Part No OEM REFF NO
222030 F814 130
Clay digger spare

6.Throttle Valve

ACE Part No OEM REFF NO
222110 -
Clay digger spare

7.Throttle Valve ORing

ACE Part No OEM REFF NO
222115 P083 071
Clay digger spare

8.Throttle Valve Spring

ACE Part No OEM REFF NO
222120 -
Clay digger spare

9.Bolt Handle

ACE Part No OEM REFF NO
222125 F813 911
Clay digger spare

10.Pad-Valve Case

ACE Part No OEM REFF NO
222130 F813 908
Clay digger spare

11.Upper Valve Case lid

ACE Part No OEM REFF NO
222135 F814 774
Clay digger spare

12.Valve

ACE Part No OEM REFF NO
222140 F012 659
Clay digger spare

13.Valve Case

ACE Part No OEM REFF NO
222145 F814 776
Clay digger spare

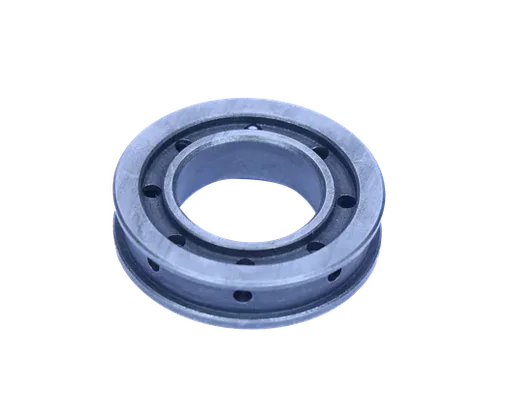

14.Lower Valve Case lid

ACE Part No OEM REFF NO
222150 F814 775
Clay digger spare

15.Piston

ACE Part No OEM REFF NO
222155 F815 015
Clay digger spare

16.Cylinder

ACE Part No OEM REFF NO
222160 -
Clay digger spare

17.Lock Washer 15.9mm

ACE Part No OEM REFF NO
222165 R000 550
Clay digger spare

18.Nut Self locking 5/8"unf-3b

ACE Part No OEM REFF NO
222170 P081 091
Clay digger spare

19.Retainer Latch

ACE Part No OEM REFF NO
222210 -
Clay digger spare

20.Latch Bushing

ACE Part No OEM REFF NO
222215 F815 174
Clay digger spare

21.Latch Pin

ACE Part No OEM REFF NO
222220 R133 758
Clay digger spare

22.Bushing Hexagon 7/8"X3 1/4"

ACE Part No OEM REFF NO
222225 F813 919
Clay digger spare

23.Spring Plunger

ACE Part No OEM REFF NO
295020 R086 982
Clay digger spare

24.Plunger Latch

ACE Part No OEM REFF NO
222235 F813 308
Clay digger spare

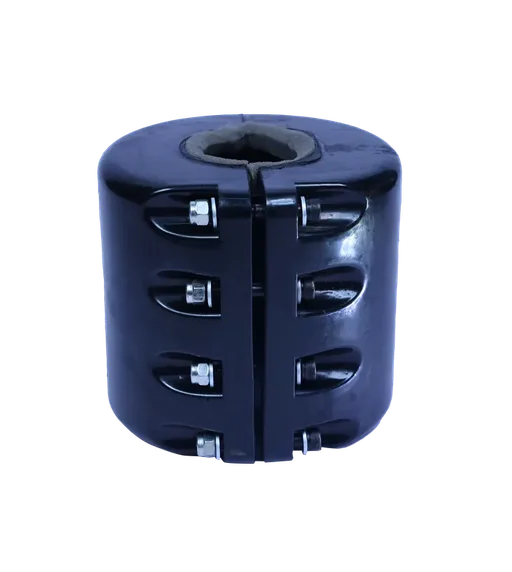

25.Mufler (Optional)

ACE Part No OEM REFF NO
222310 -
Clay digger spare

26.Screw-Hexagon Socket,1/4" X 28 TPI

ACE Part No OEM REFF NO
222315 -
Clay digger spare

A (1-5).Handle Complete

ACE Part No OEM REFF NO
222000 -
Clay digger spare

B (6-8).Throttle Valve Complete

ACE Part No OEM REFF NO
222100 F814 812
Clay digger spare

C (19-21).Retainer Latch Complete

ACE Part No OEM REFF NO
222200 F815 269
Clay digger spare

D (25-26).Mufler Complete

ACE Part No OEM REFF NO
222300 -
