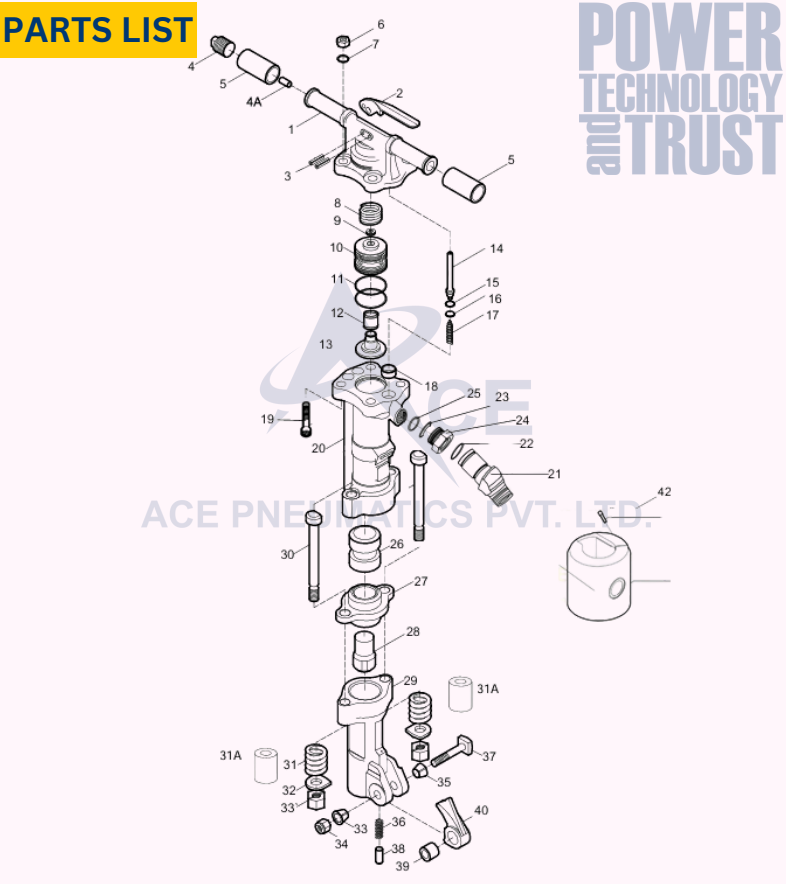

ACE PB 1230

Spares

Paving breaker spare

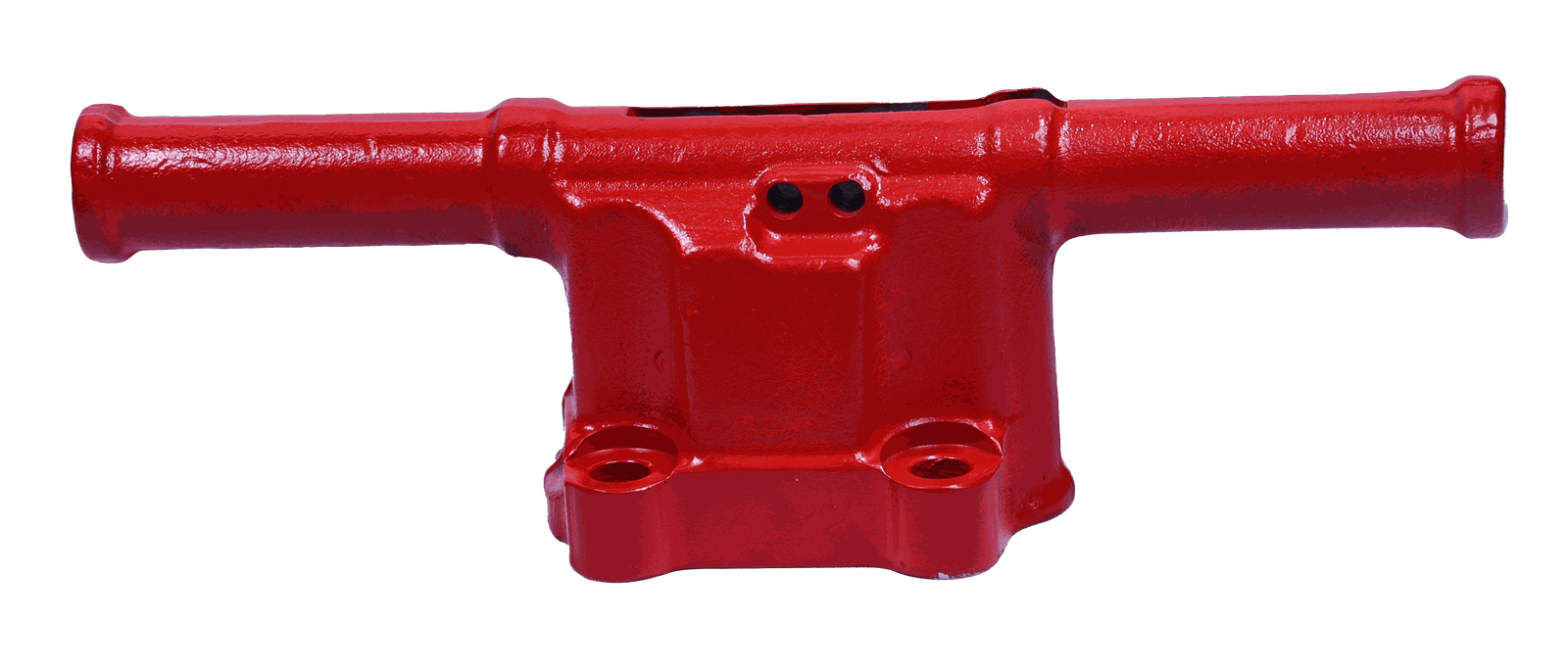

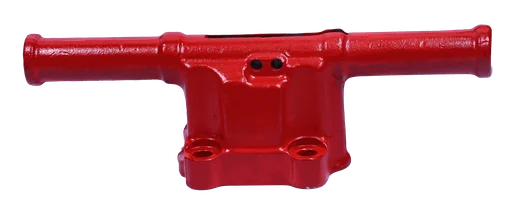

1.Back Head

ACE Part No OEM REFF NO
291010 -
Paving breaker spare

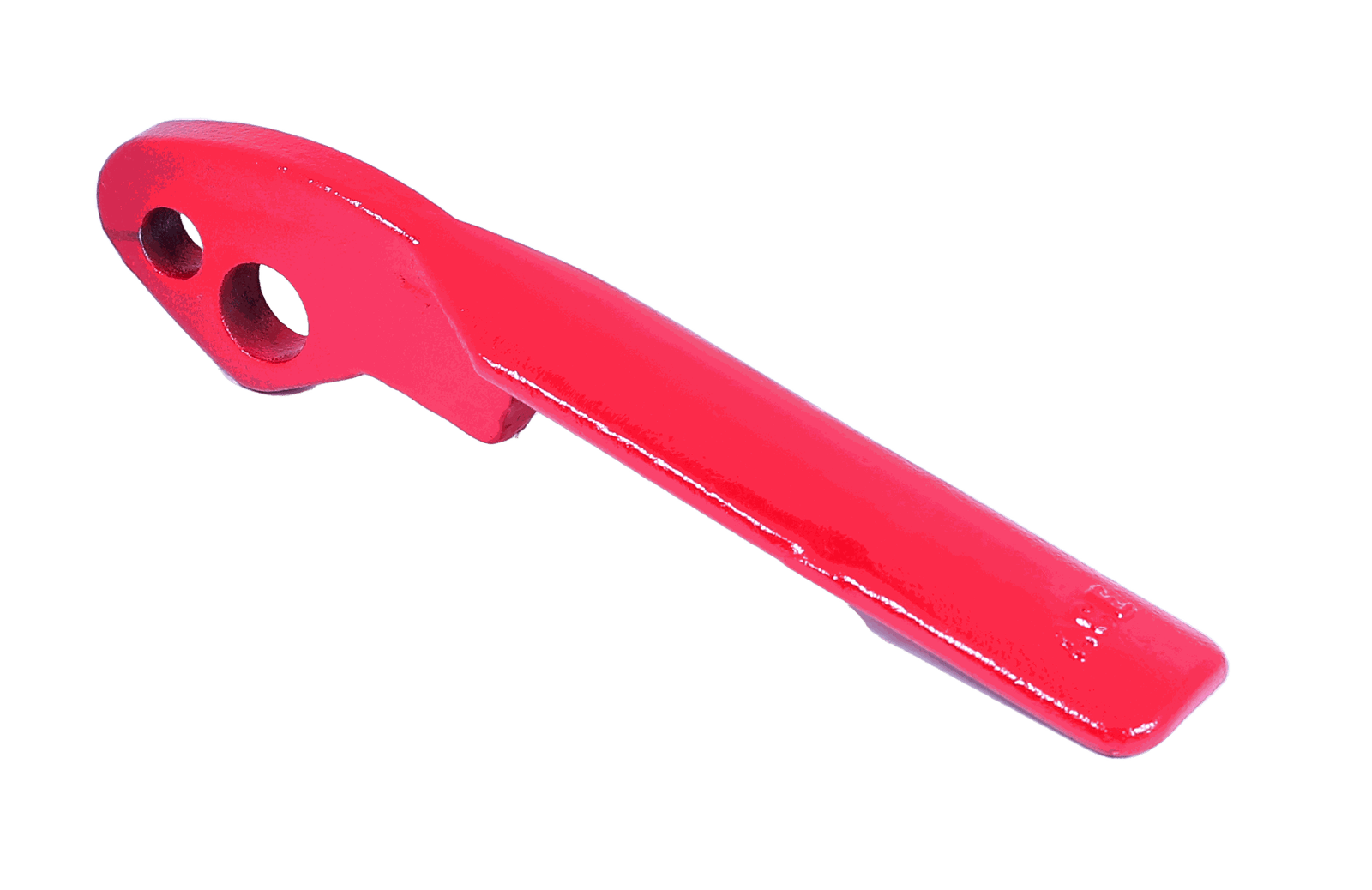

2.Throttle Lever

ACE Part No OEM REFF NO
211025 F814725
Paving breaker spare

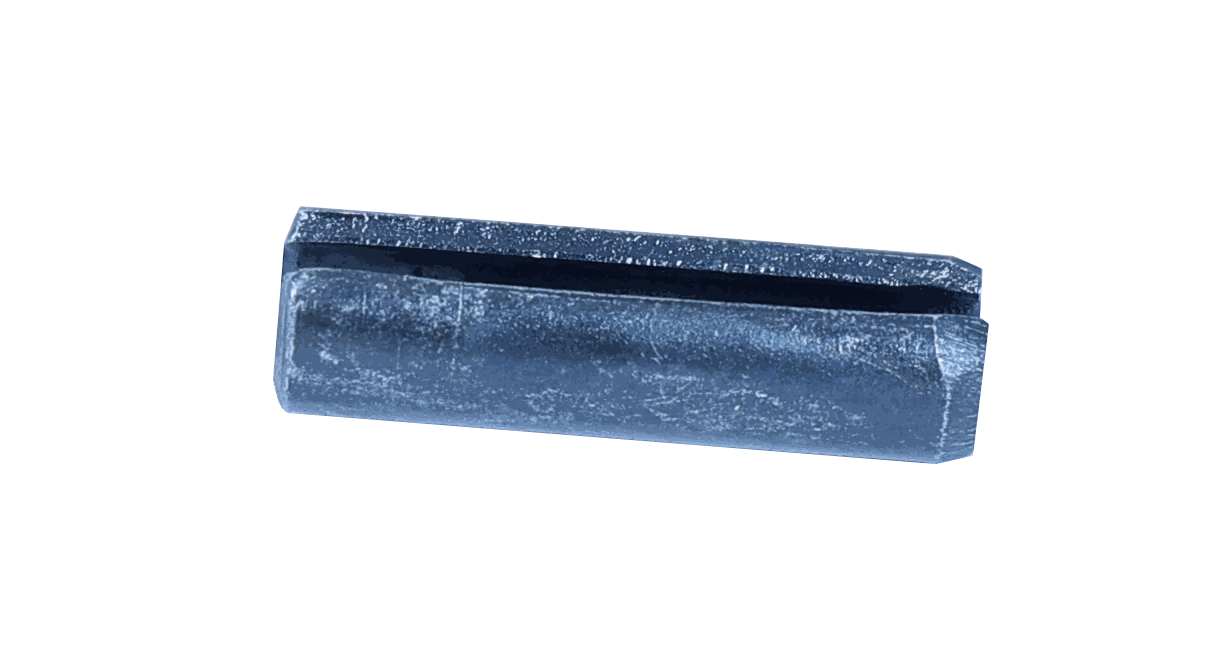

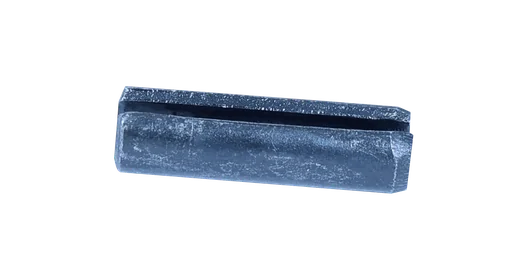

3.Throttle Lever Pin

ACE Part No OEM REFF NO
211030 R133433
Paving breaker spare

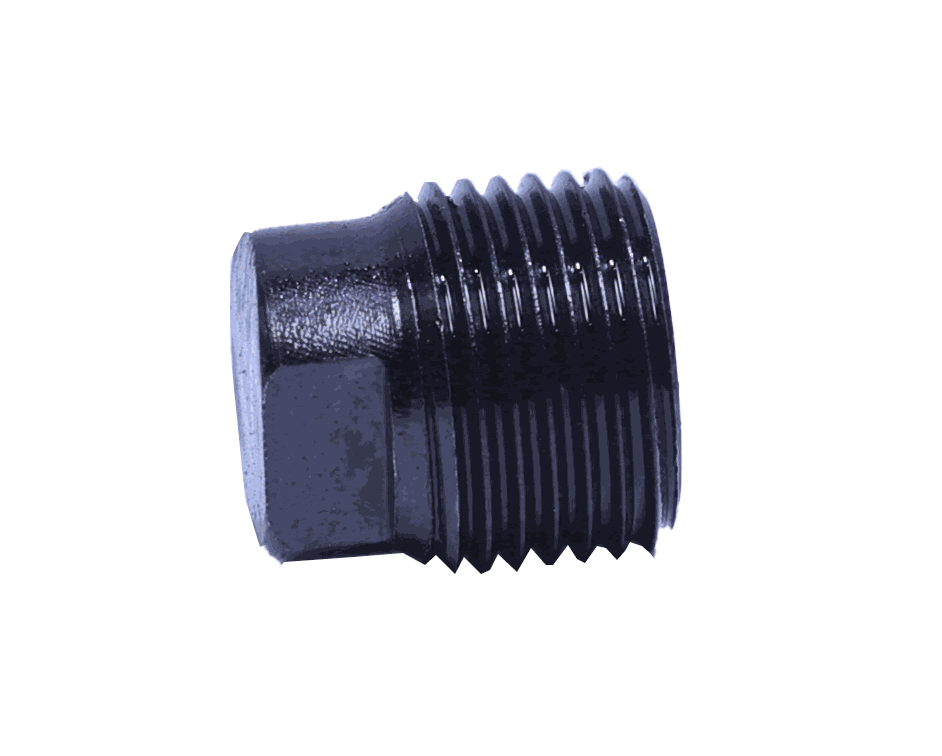

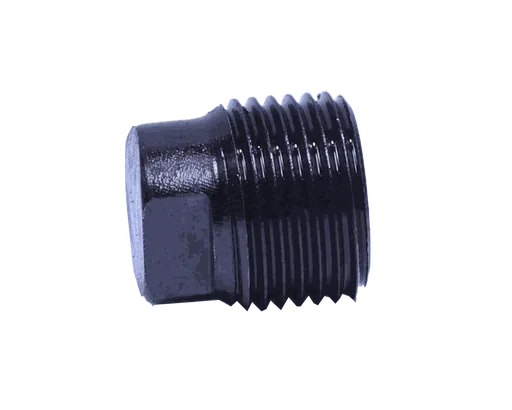

4.Oil Plug

ACE Part No OEM REFF NO
211035 R075031
Paving breaker spare

4A.Oil Plug Regulator

ACE Part No OEM REFF NO
211035A -
Paving breaker spare

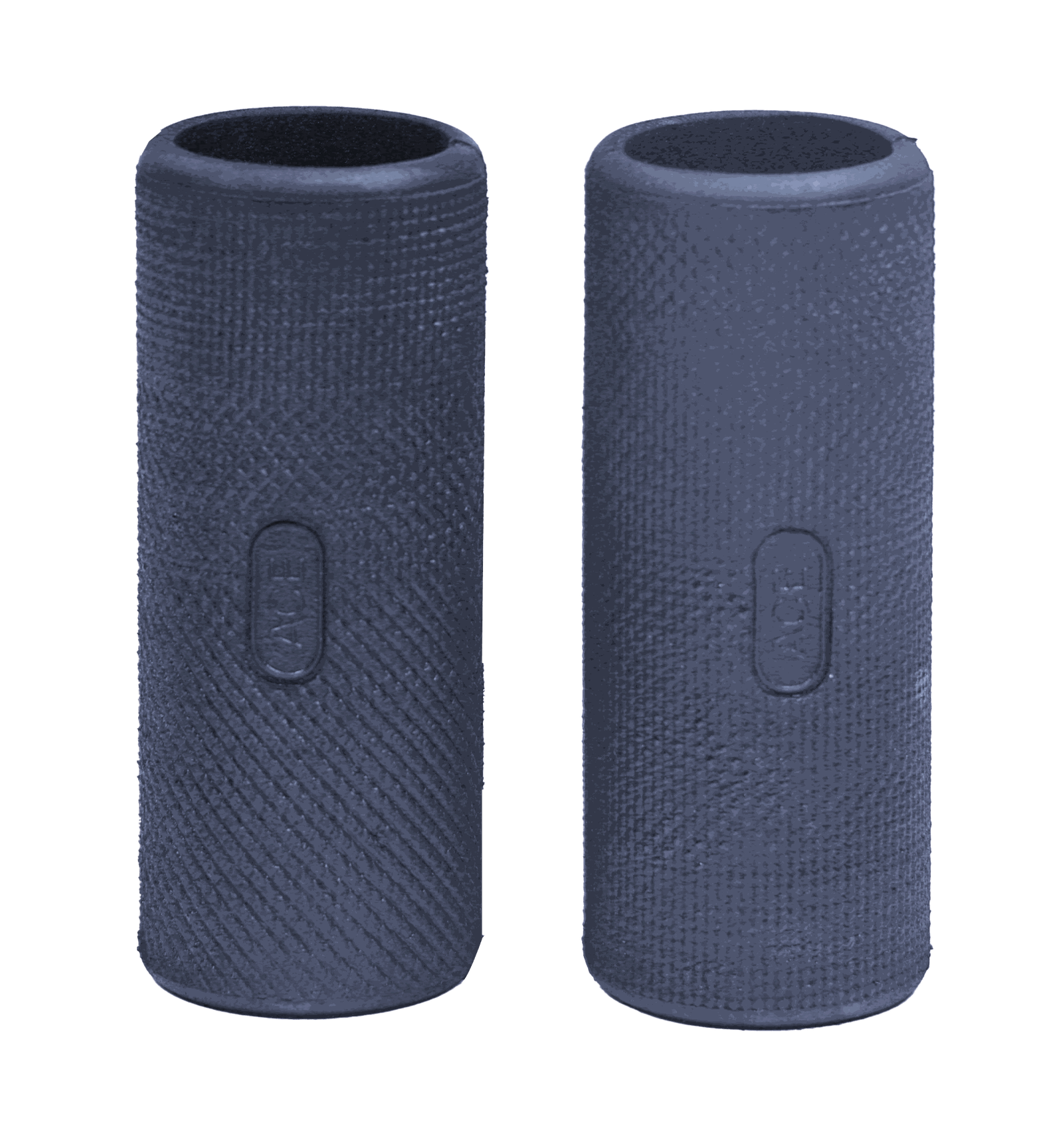

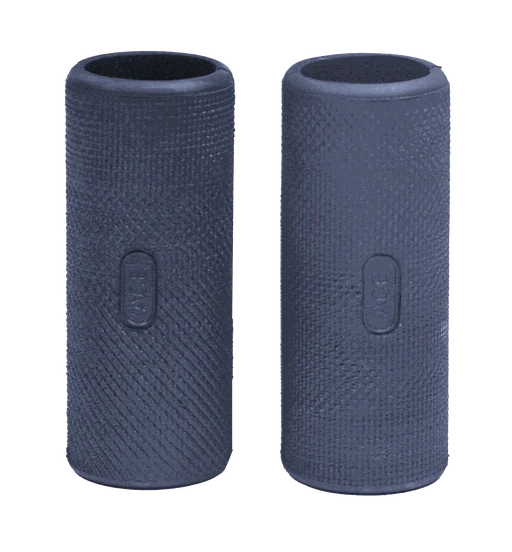

5.Backhead Grip

ACE Part No OEM REFF NO
211020 F816345
Paving breaker spare

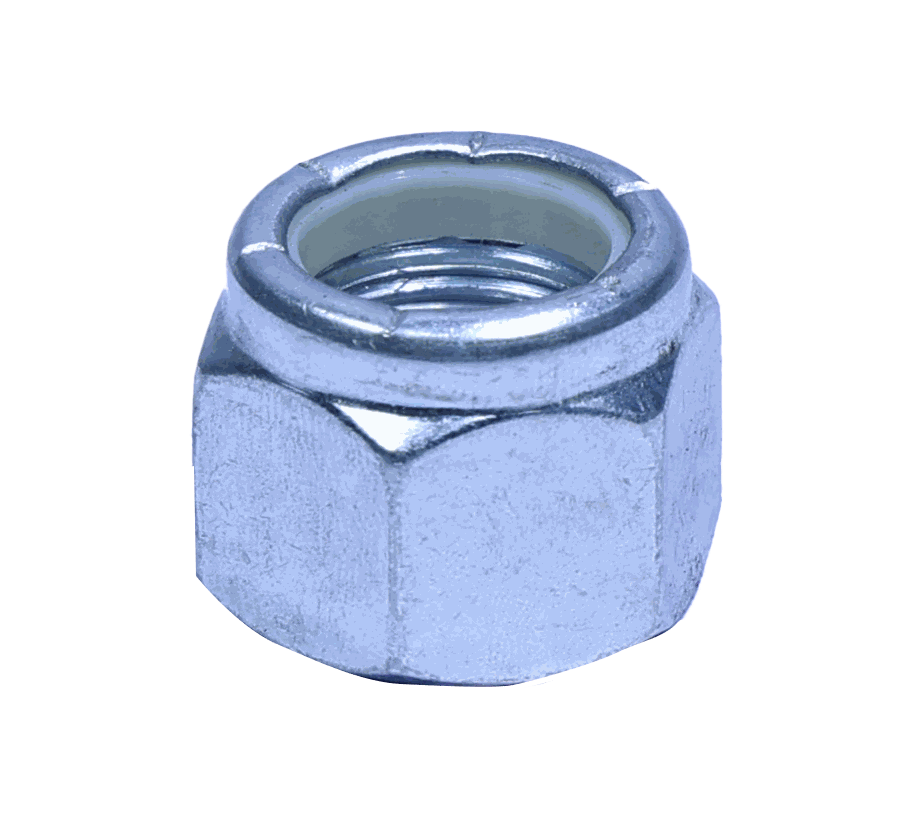

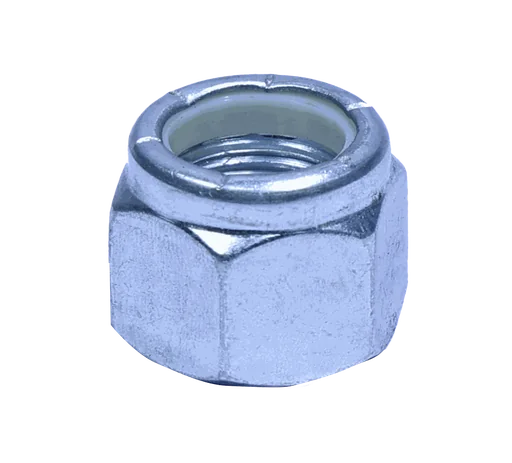

6.Back head Bolt Nut

ACE Part No OEM REFF NO
291035 R006131
Paving breaker spare

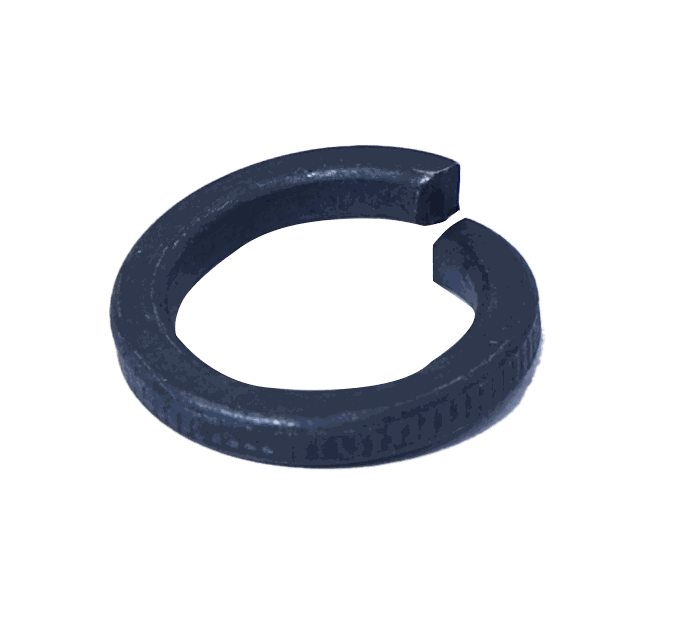

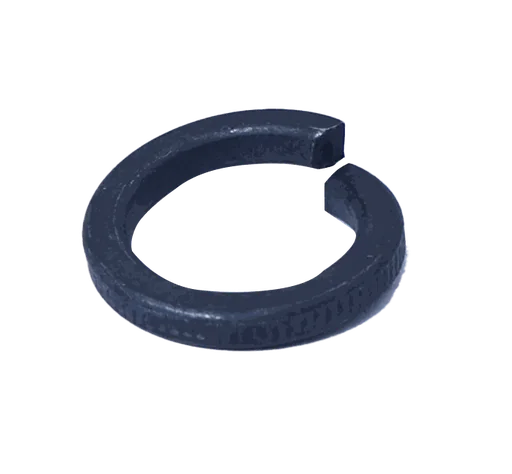

7.Washer Backhead bolt

ACE Part No OEM REFF NO
291040 P006239
Paving breaker spare

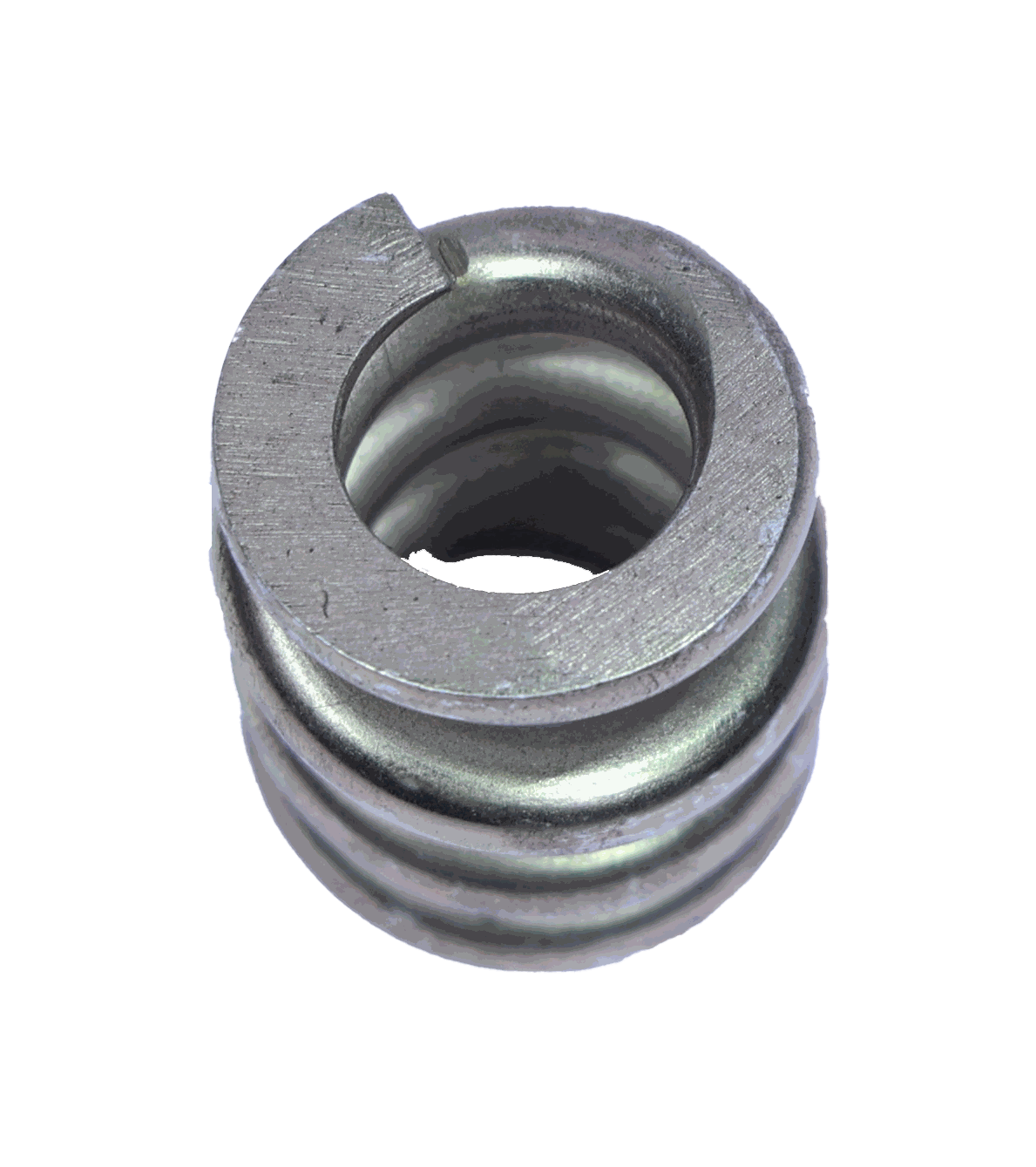

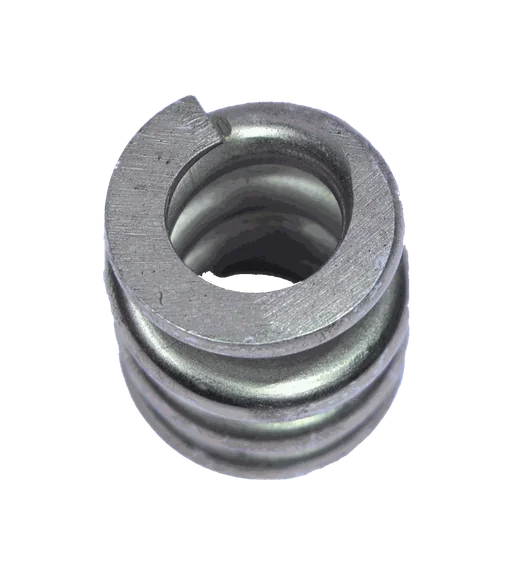

8.Spring- Valve Case

ACE Part No OEM REFF NO
292010 R047961
Paving breaker spare

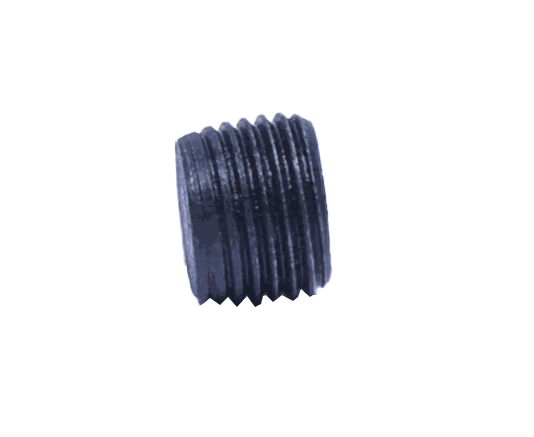

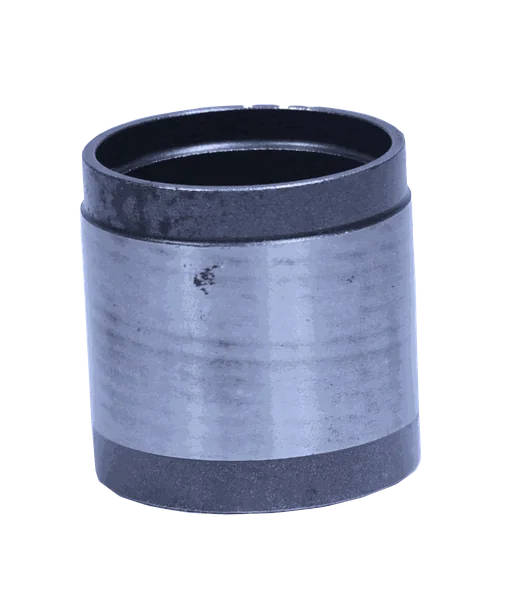

9.Valve Case Plug

ACE Part No OEM REFF NO
292015 P009876
Paving breaker spare

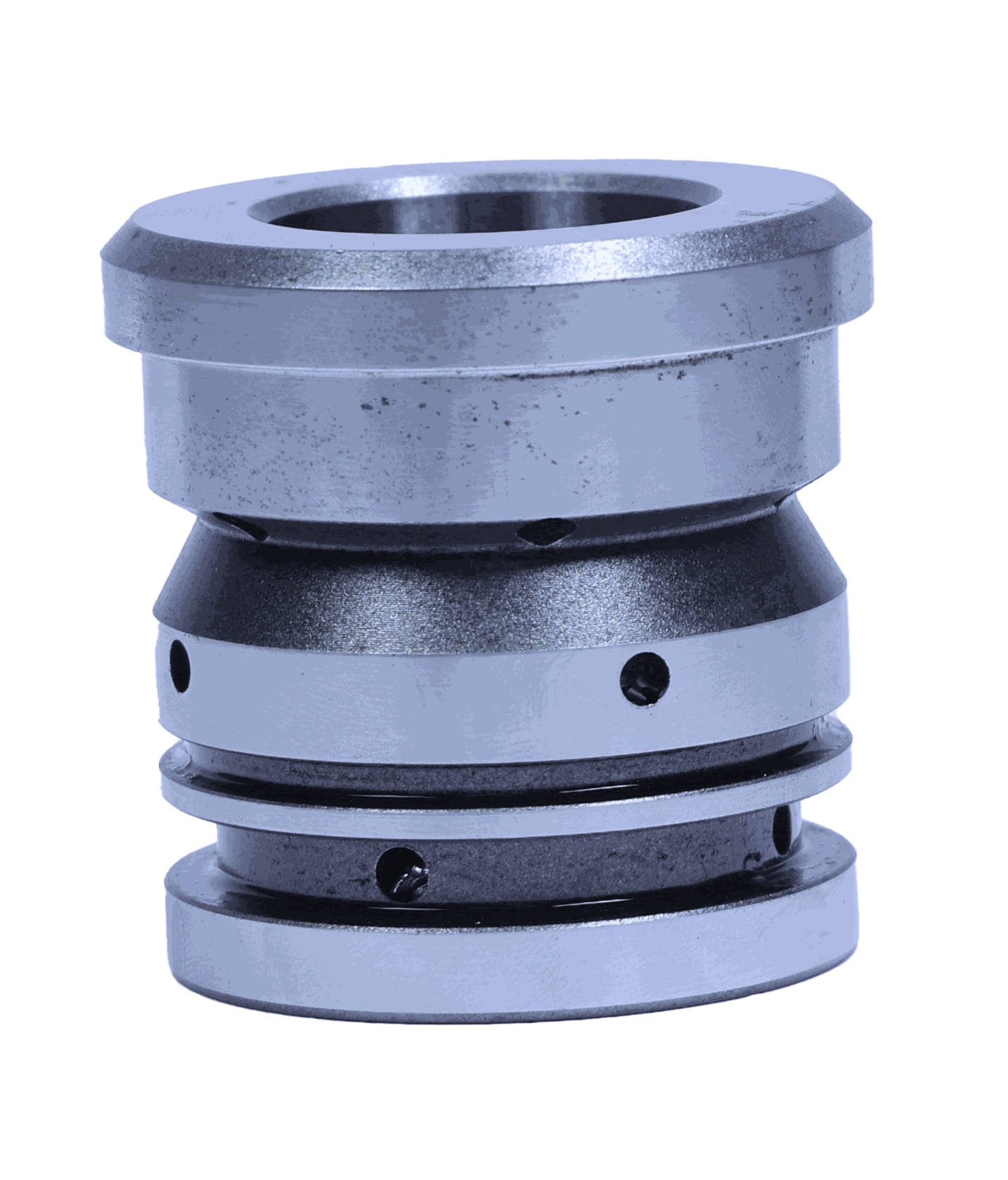

10.Valve Case

ACE Part No OEM REFF NO
292020 R047958
Paving breaker spare

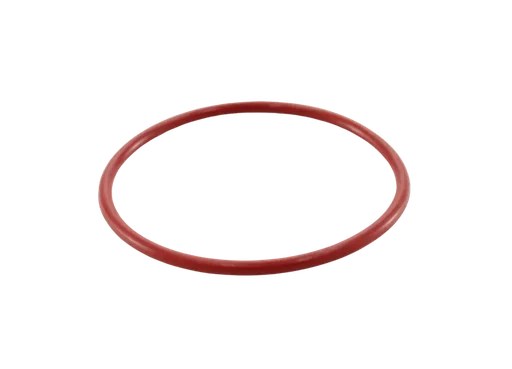

11.O Ring valve (dia.55.56x2.38)

ACE Part No OEM REFF NO
292025 R049854
Paving breaker spare

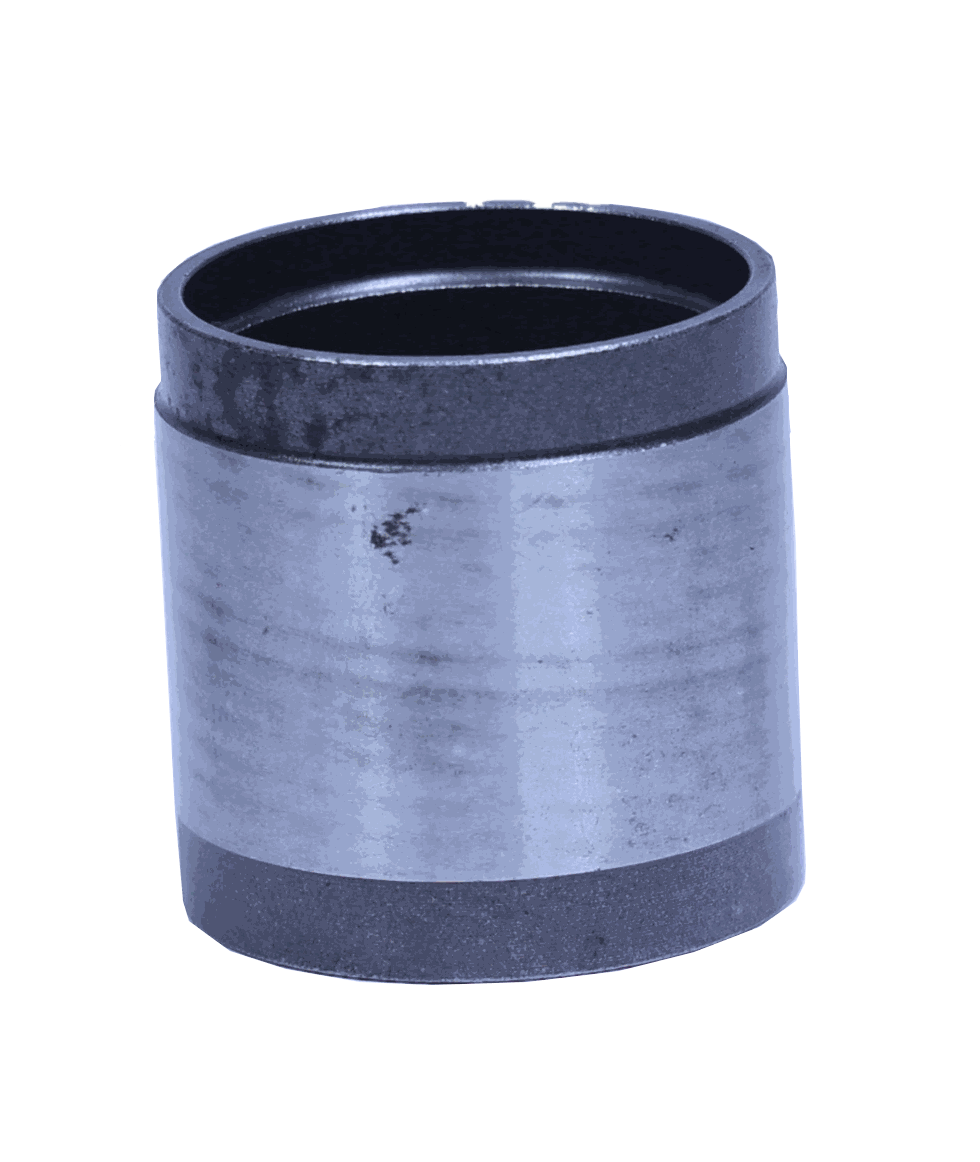

12.Valve

ACE Part No OEM REFF NO
292030 R047959
Paving breaker spare

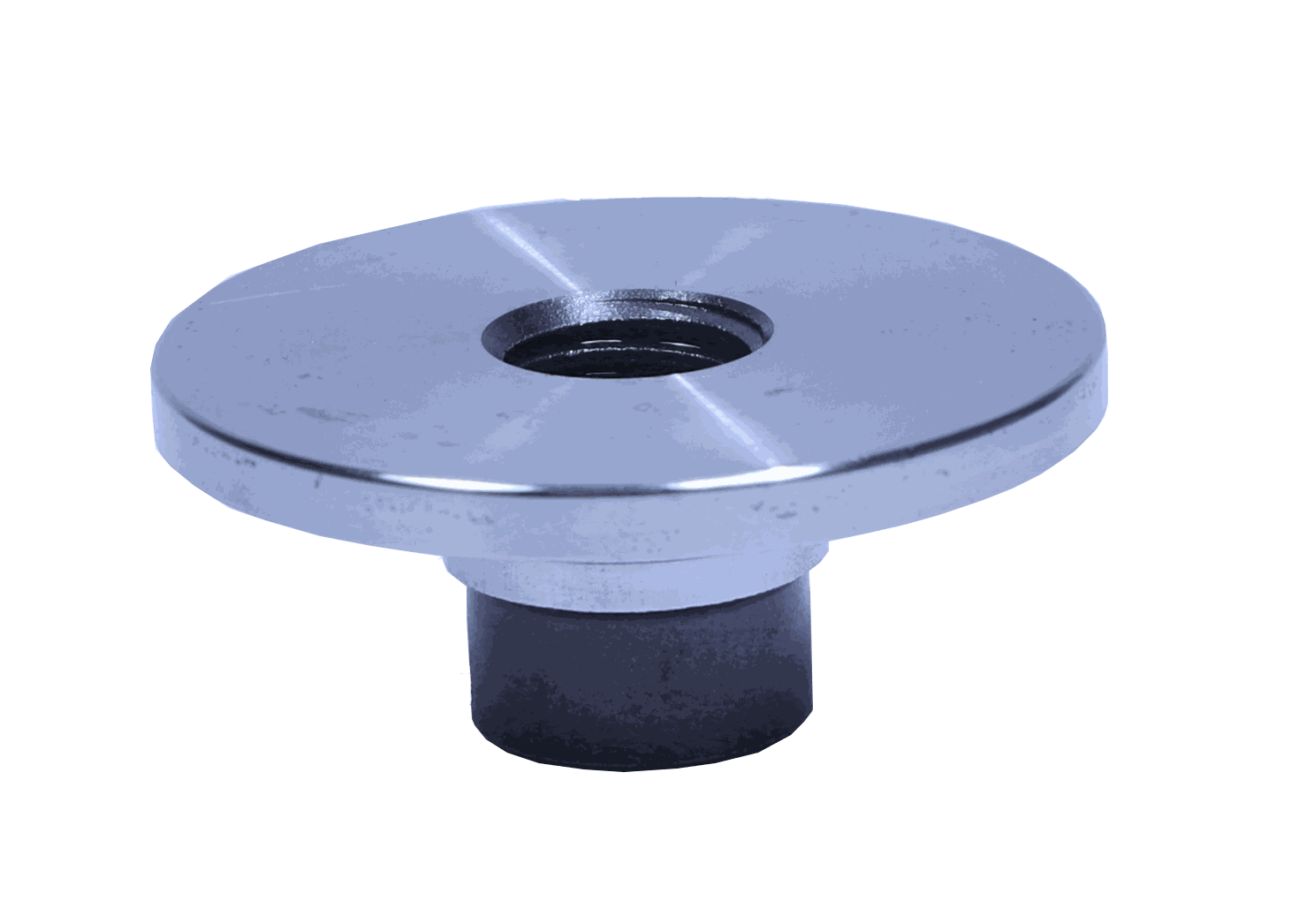

13.Valve Case Lid

ACE Part No OEM REFF NO
292035 R047960
Paving breaker spare

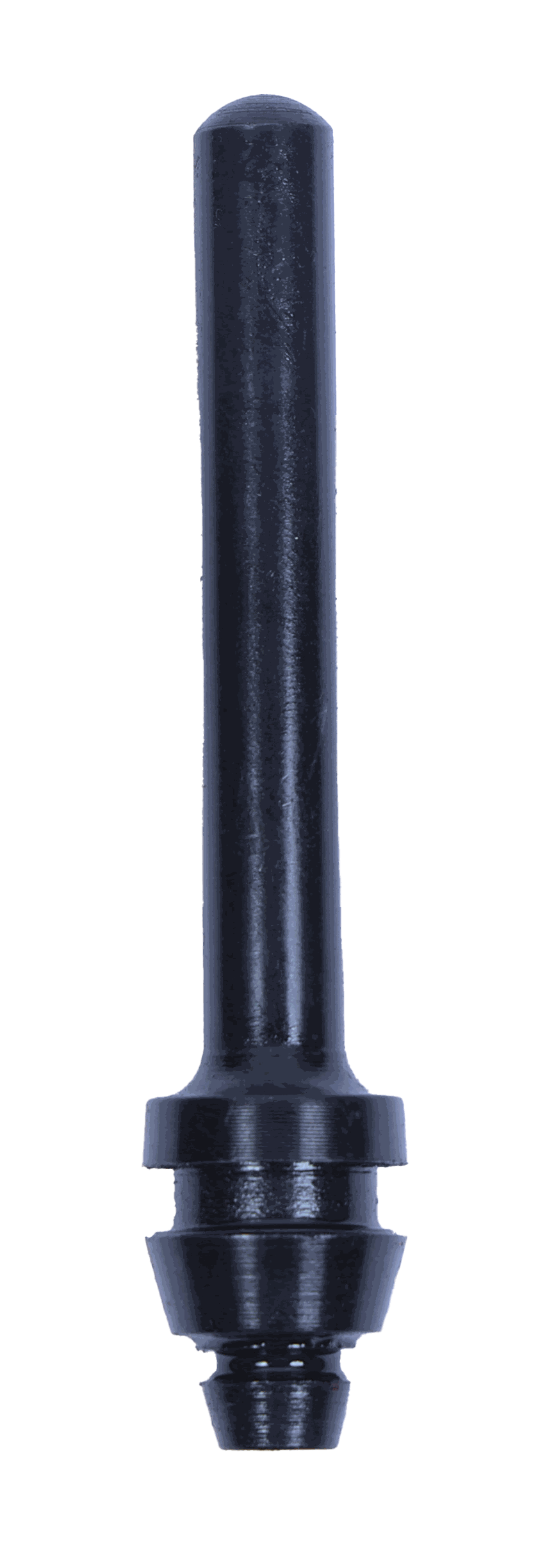

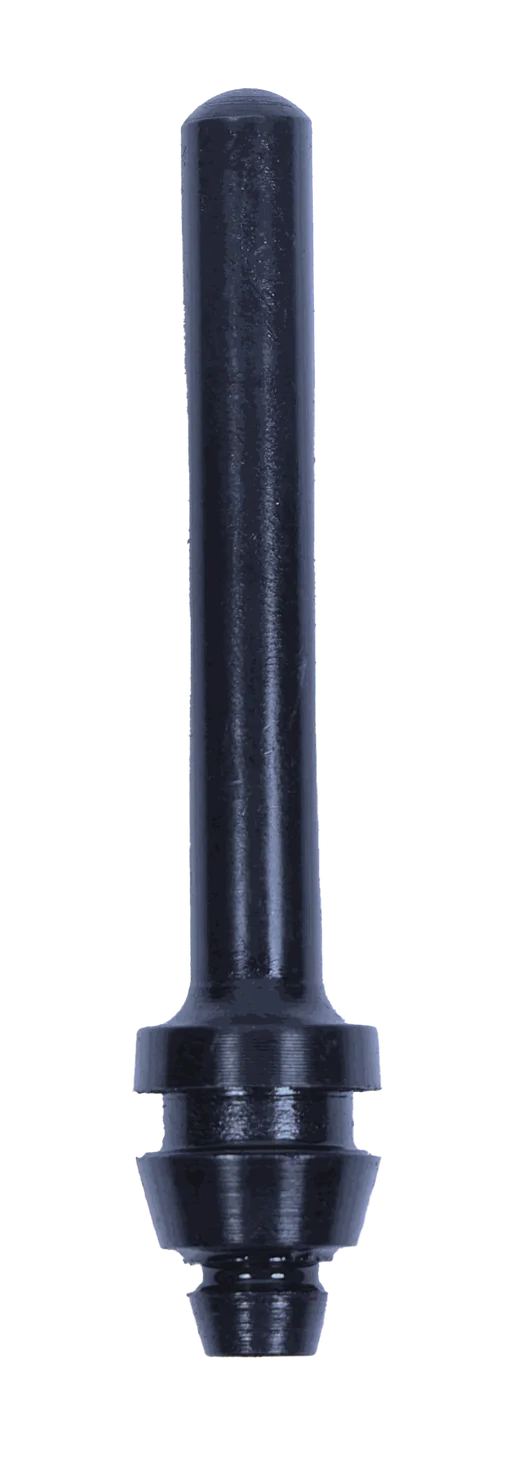

14.Throttle Valve

ACE Part No OEM REFF NO
182010 -
Paving breaker spare

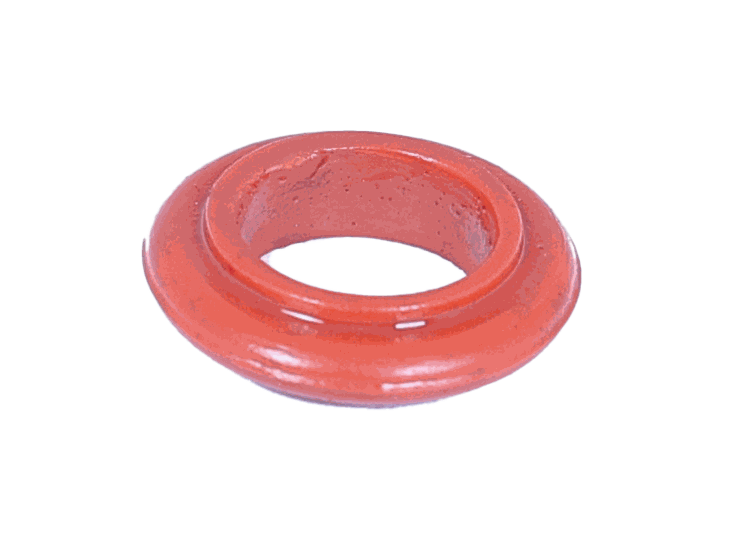

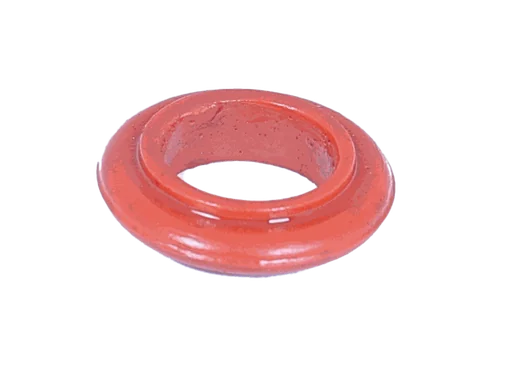

15.Throttle Valve Seat

ACE Part No OEM REFF NO
212015 R098368
Paving breaker spare

16.Throttle Valve Retainer Ring

ACE Part No OEM REFF NO
212020 R098369
Paving breaker spare

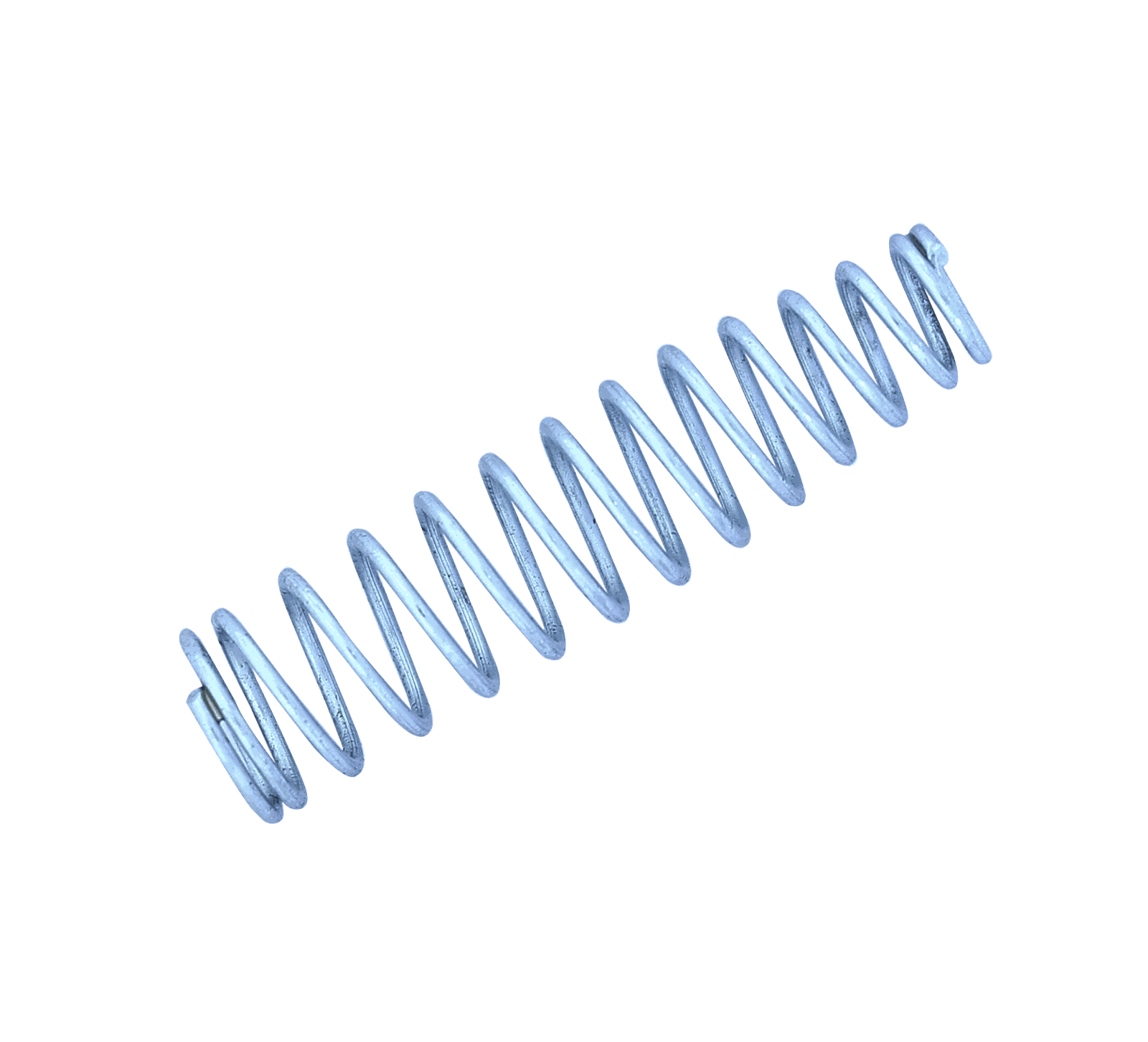

17.Throttle Valve Spring

ACE Part No OEM REFF NO
212025 R005717
Paving breaker spare

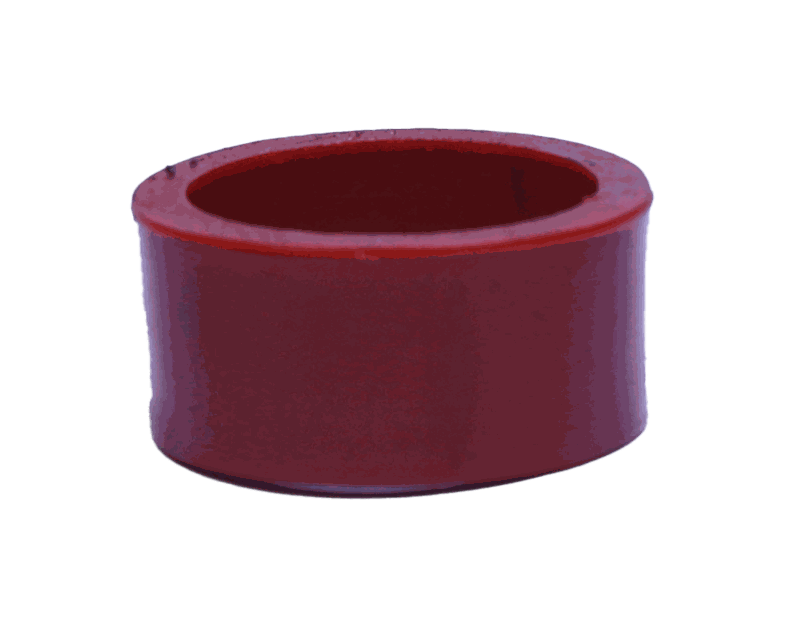

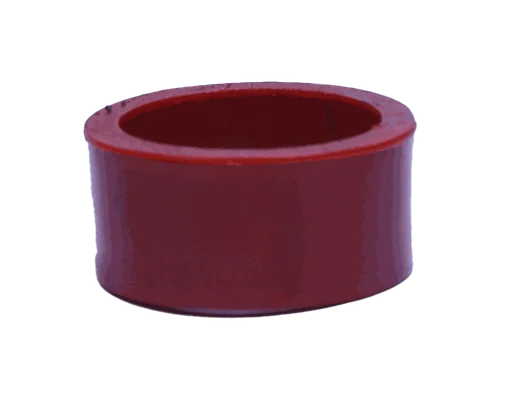

18.Seal - Cylinder

ACE Part No OEM REFF NO
293030 R047965
Paving breaker spare

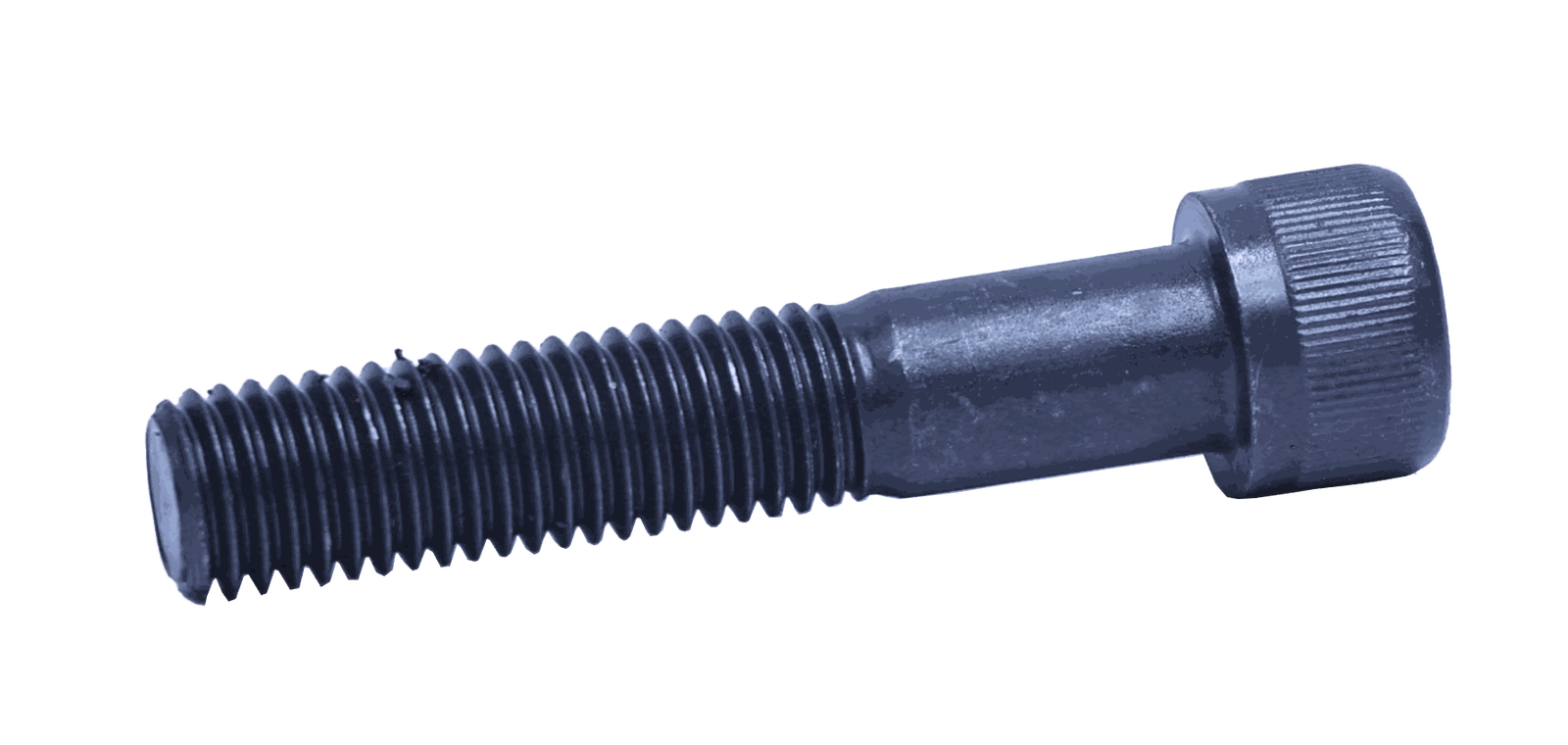

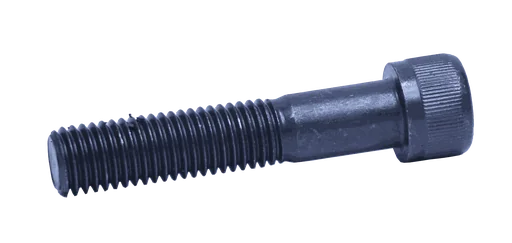

19.Allen Back Head Bolt

ACE Part No OEM REFF NO
293035 R047962
Paving breaker spare

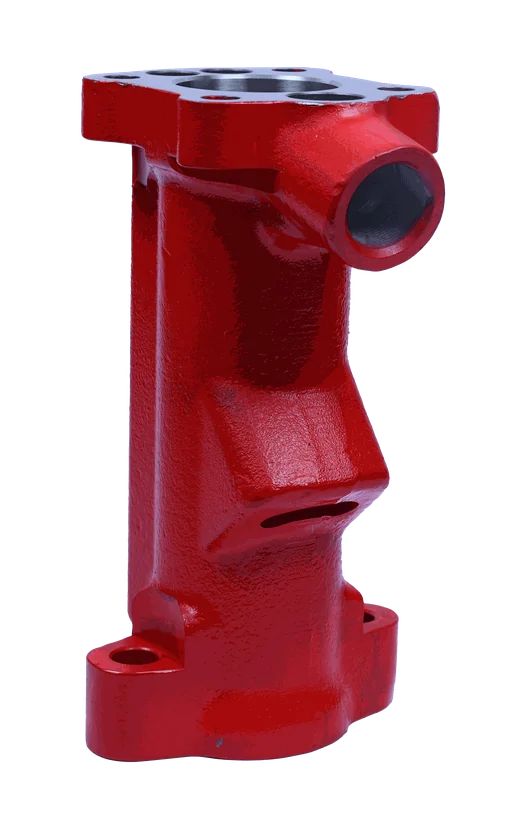

20.Cylinder

ACE Part No OEM REFF NO
293040 -
Paving breaker spare

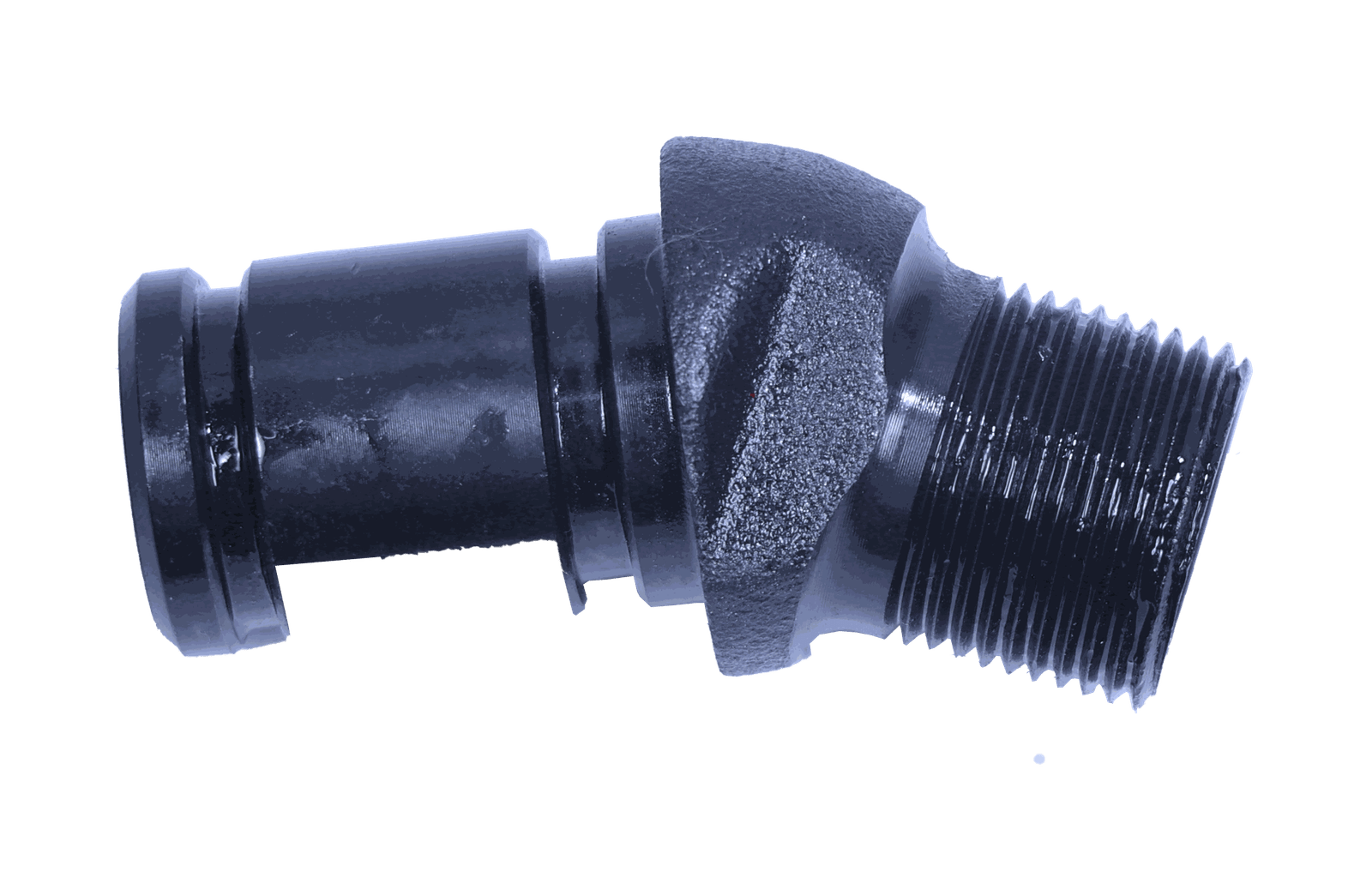

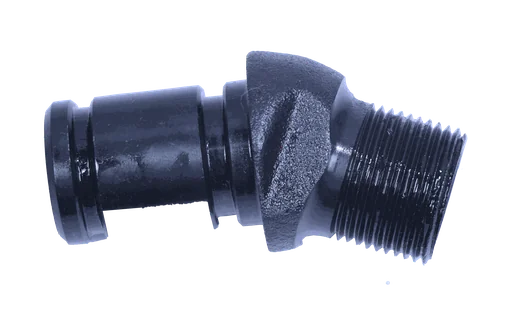

21.Air Inlet Swivel

ACE Part No OEM REFF NO
187030 R085269
Paving breaker spare

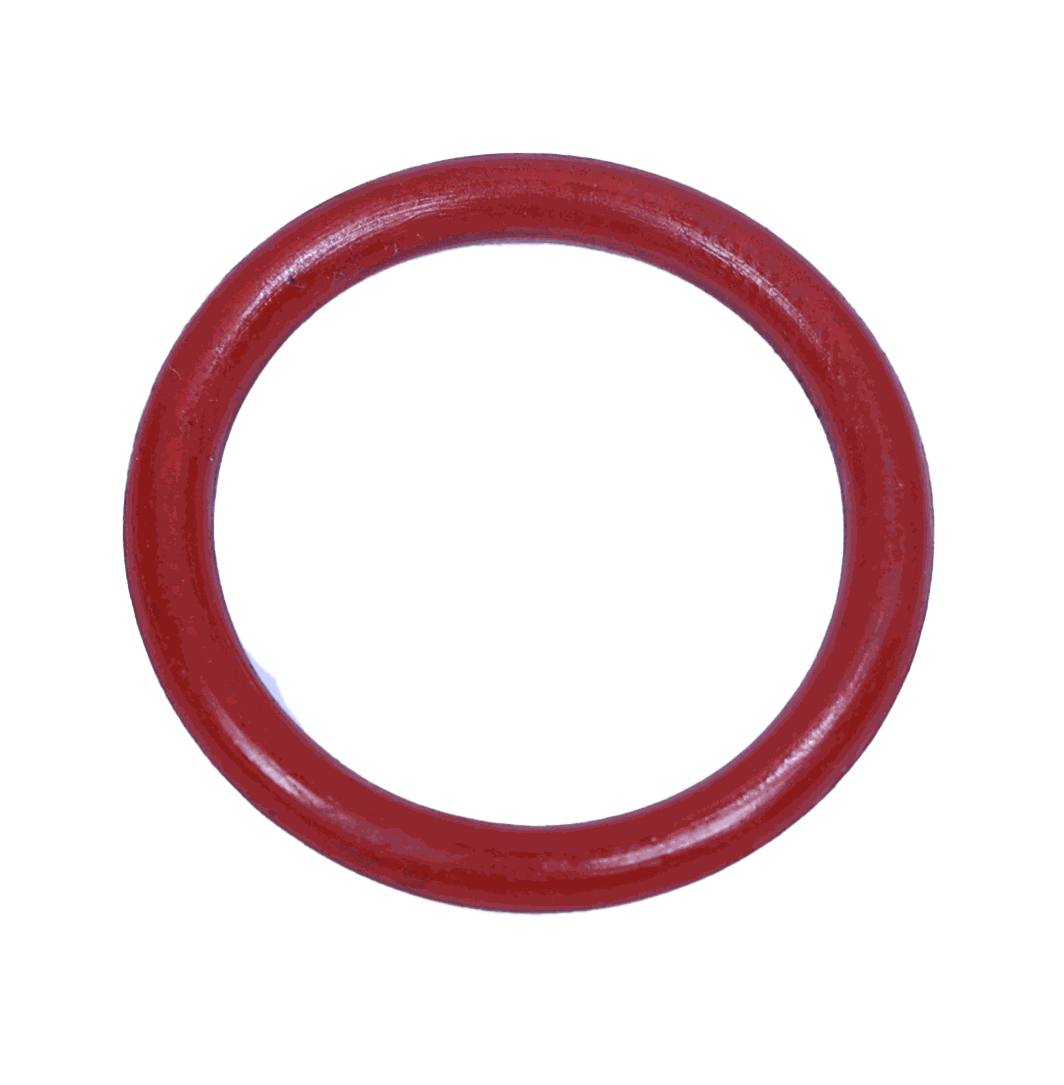

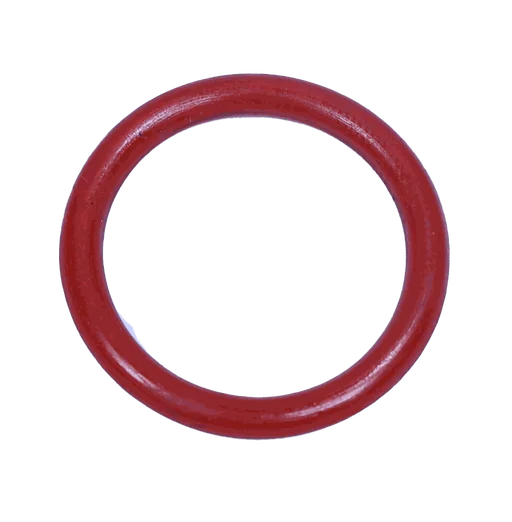

22.O Ring (Air Inlet Swivel)

ACE Part No OEM REFF NO
187025 R110317
Paving breaker spare

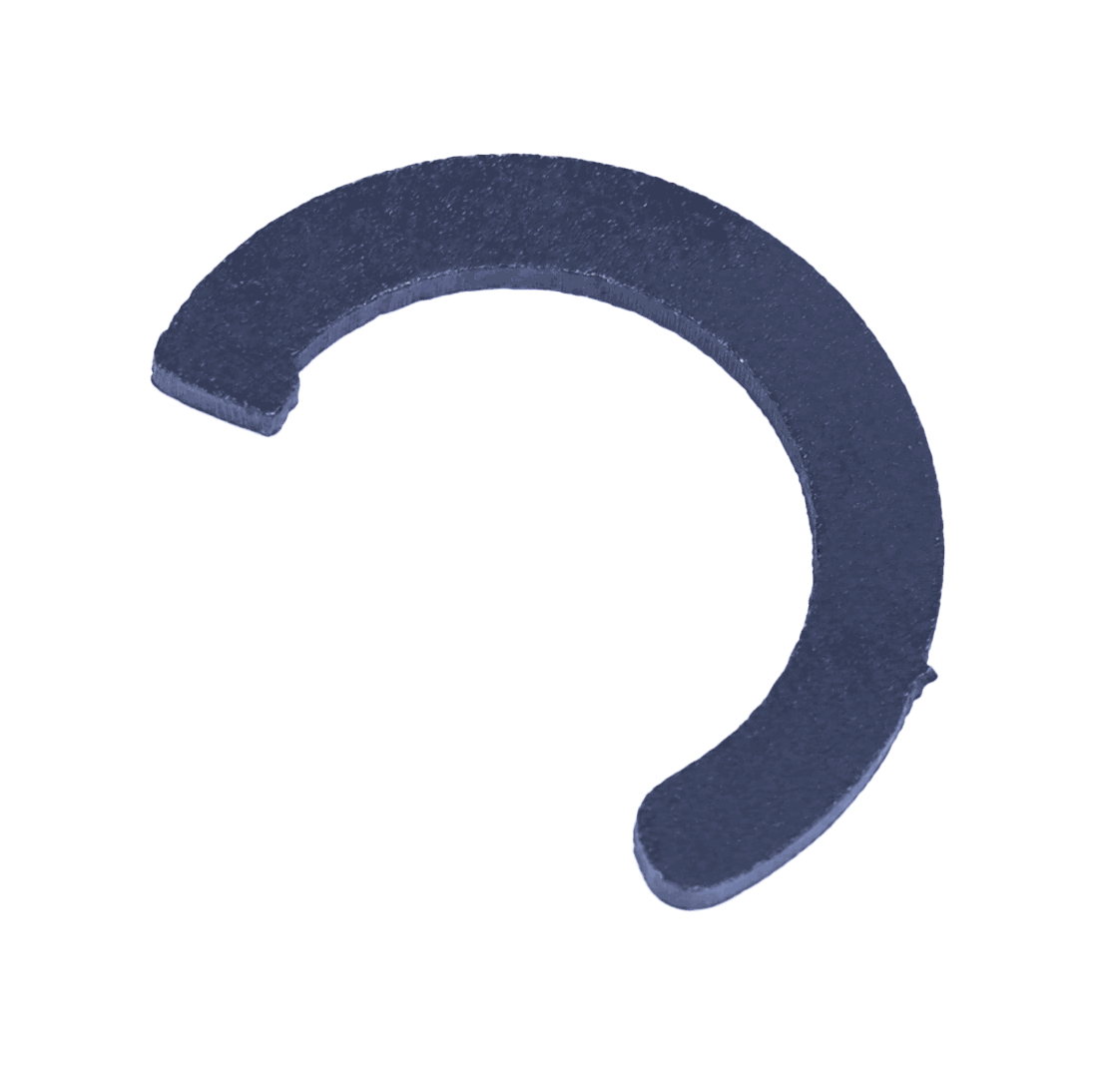

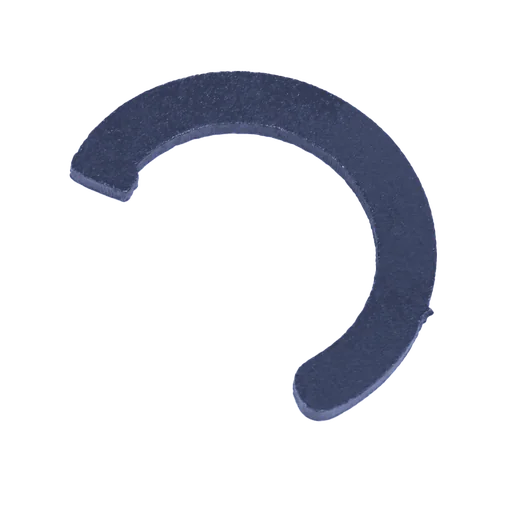

23.Lock Washer ( Air Swivel Nut )

ACE Part No OEM REFF NO
187020 3310 1059 0
Paving breaker spare

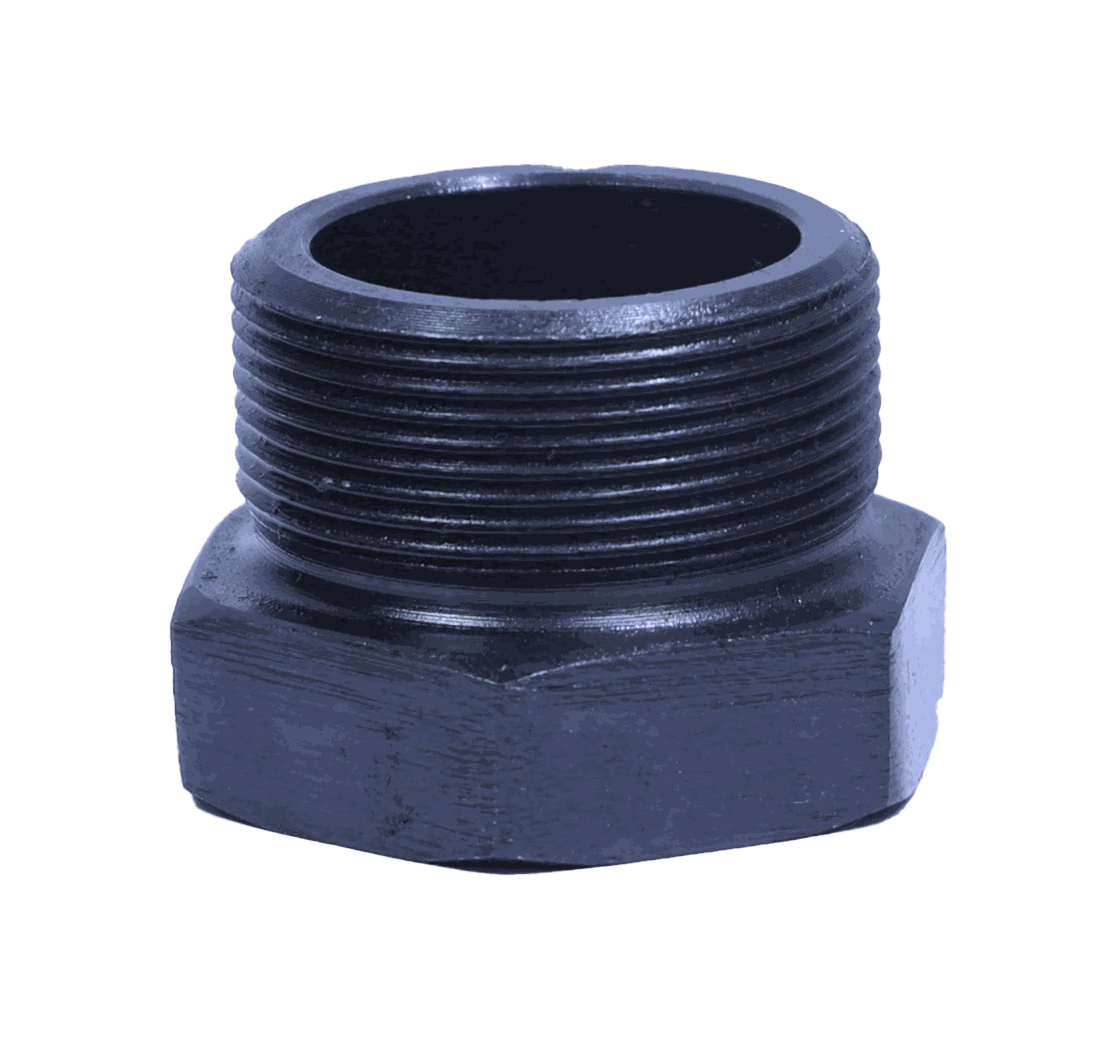

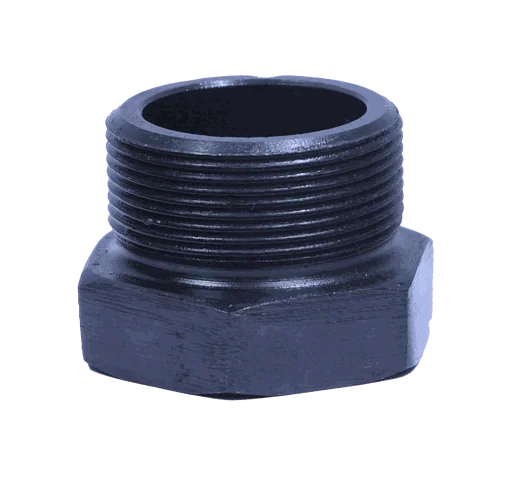

24.Air Swivel Nut

ACE Part No OEM REFF NO
187015 R000530
Paving breaker spare

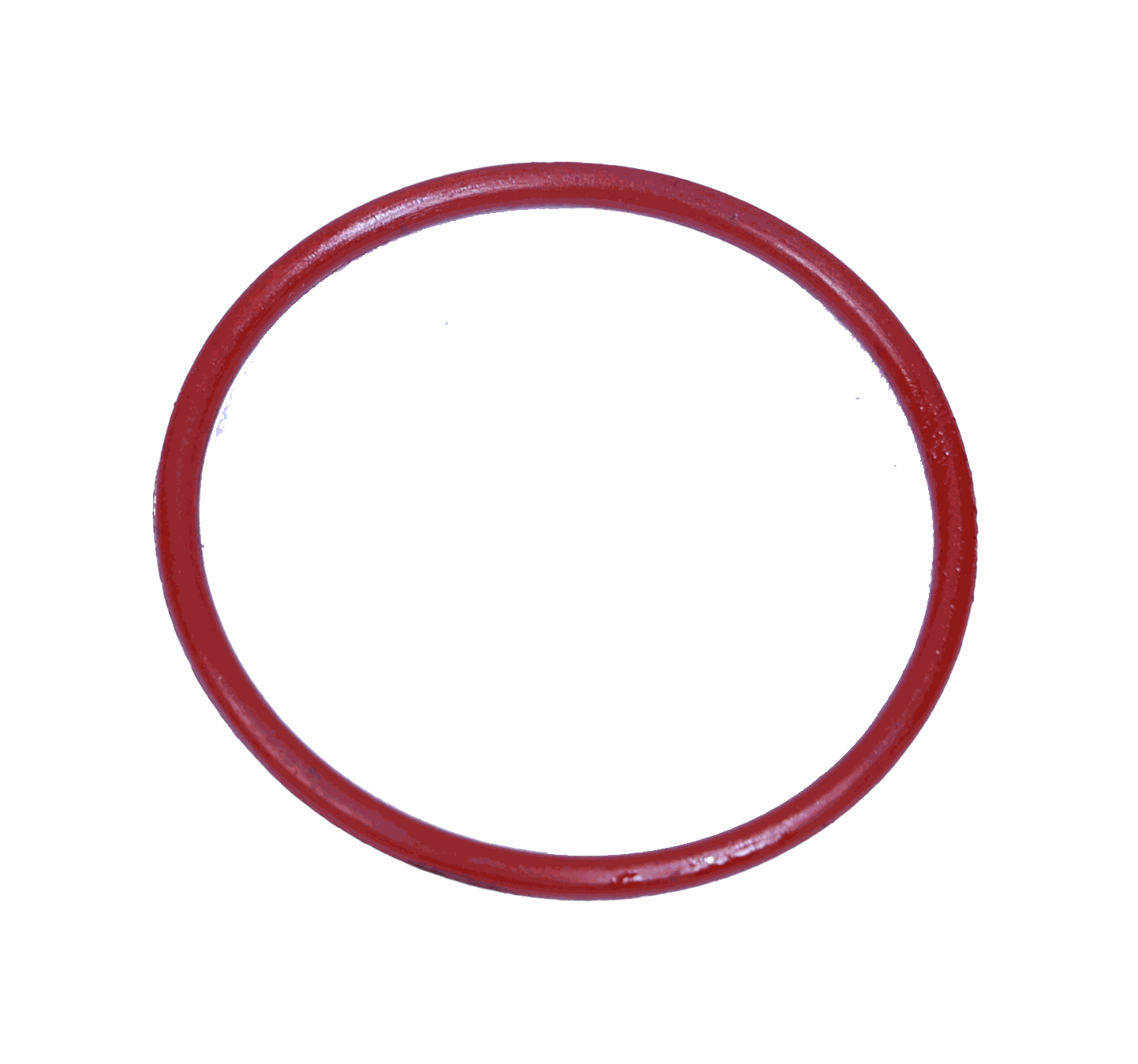

25.ORing (Swivel Nut)

ACE Part No OEM REFF NO
187010 P103521
Paving breaker spare

26.Piston

ACE Part No OEM REFF NO
293070 R047967
Paving breaker spare

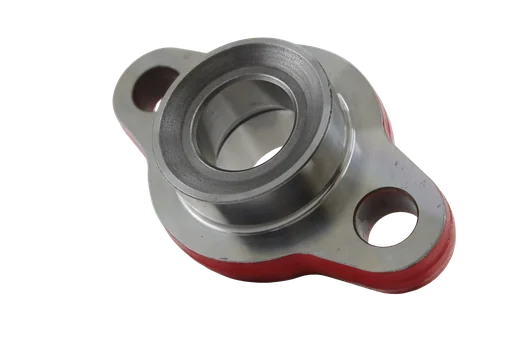

27.Anvil Block Bushing

ACE Part No OEM REFF NO
293075 R047966
Paving breaker spare

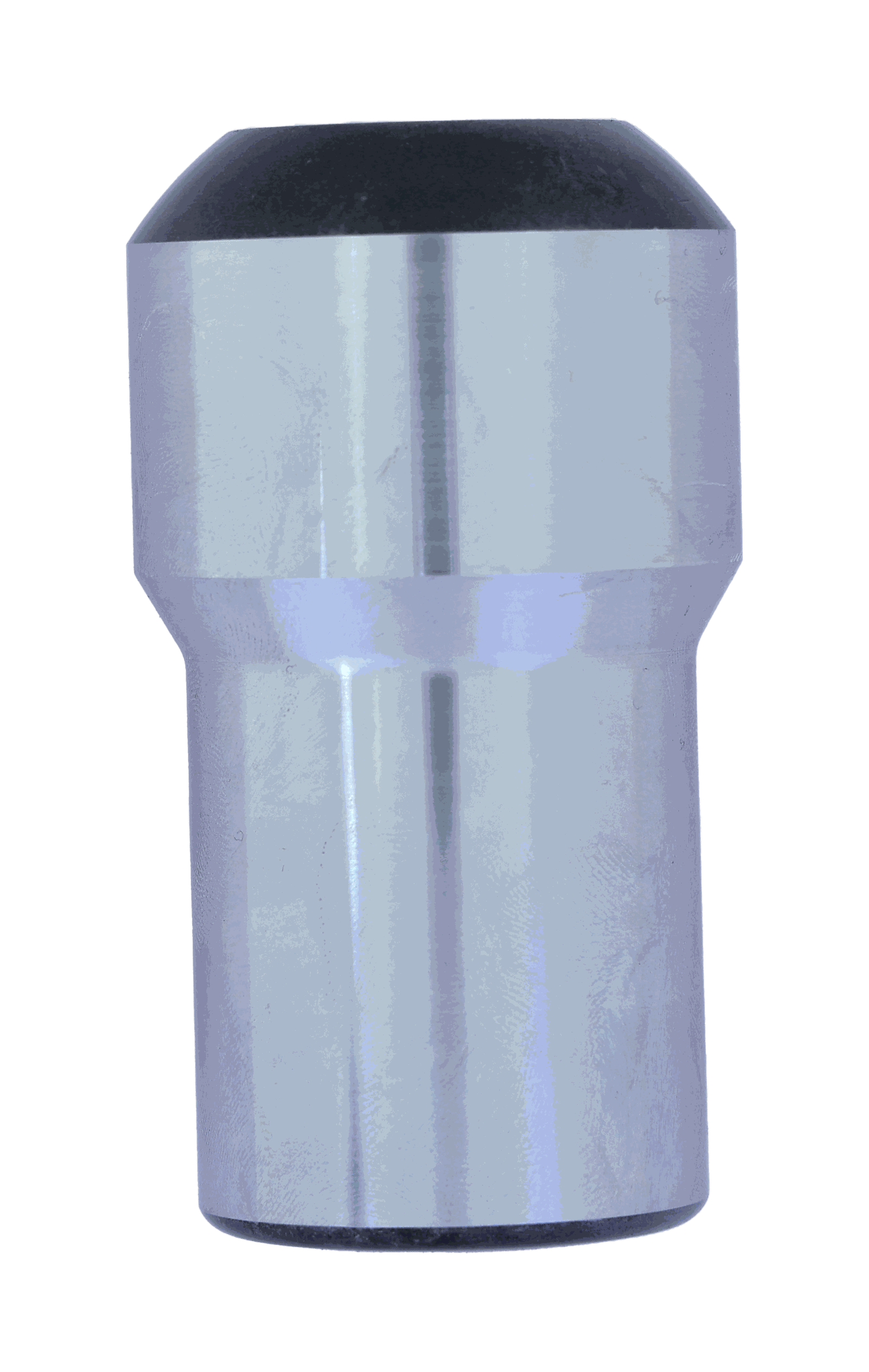

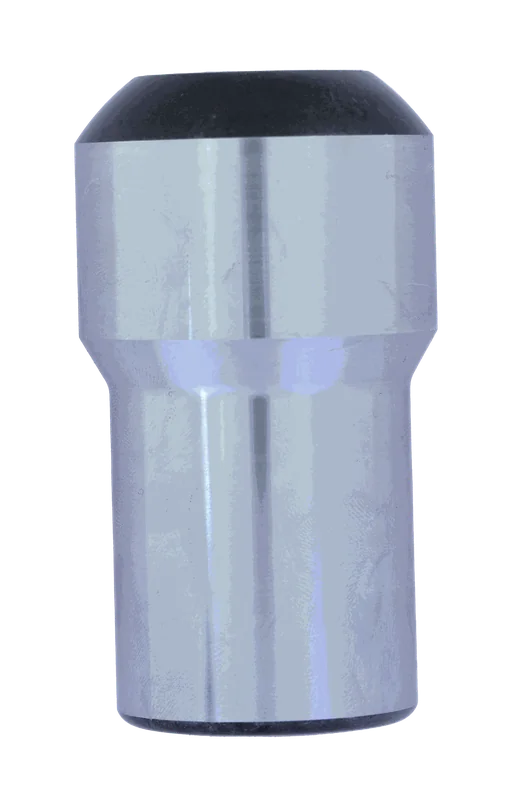

28.Anvil Block

ACE Part No OEM REFF NO
293080 R085260
Paving breaker spare

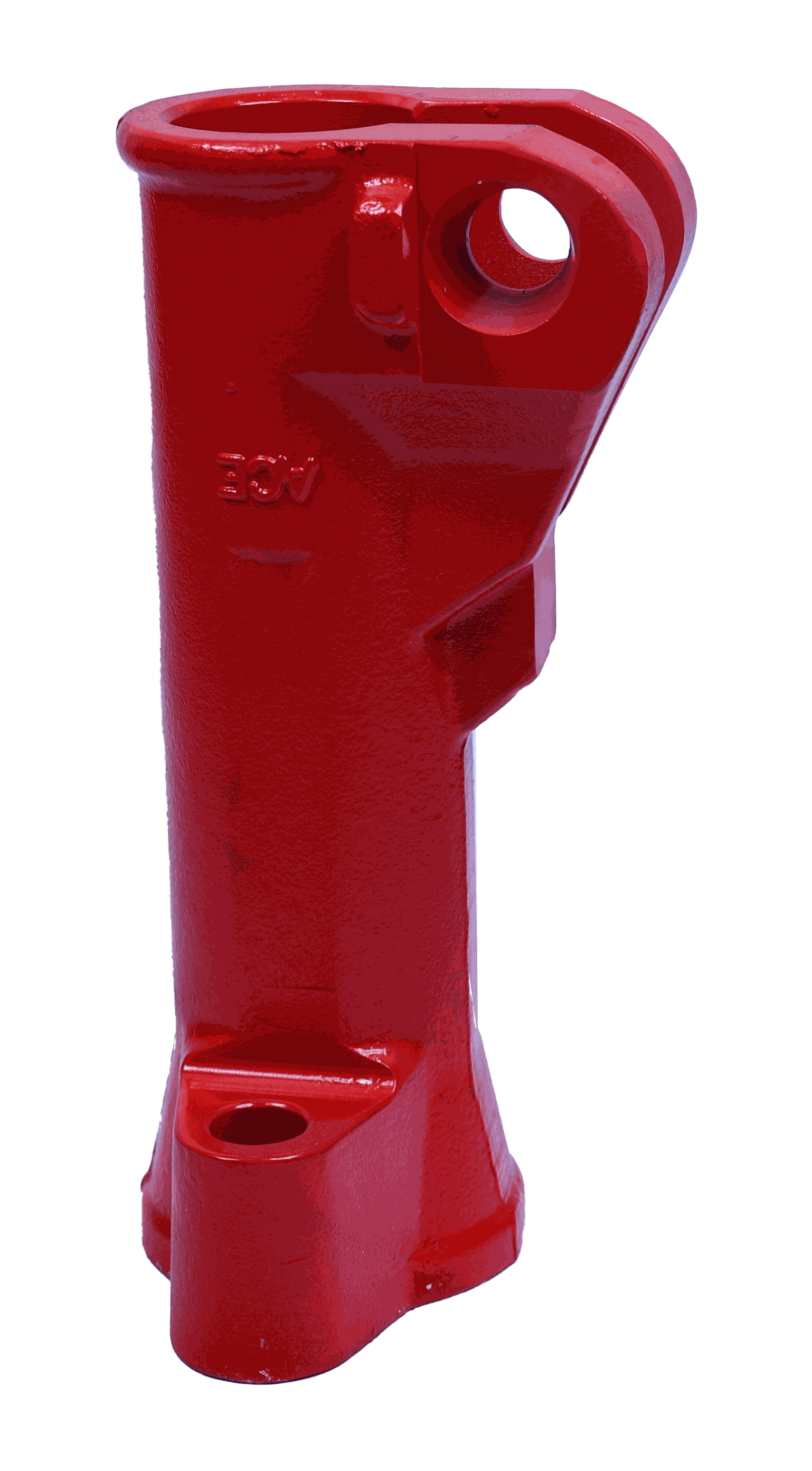

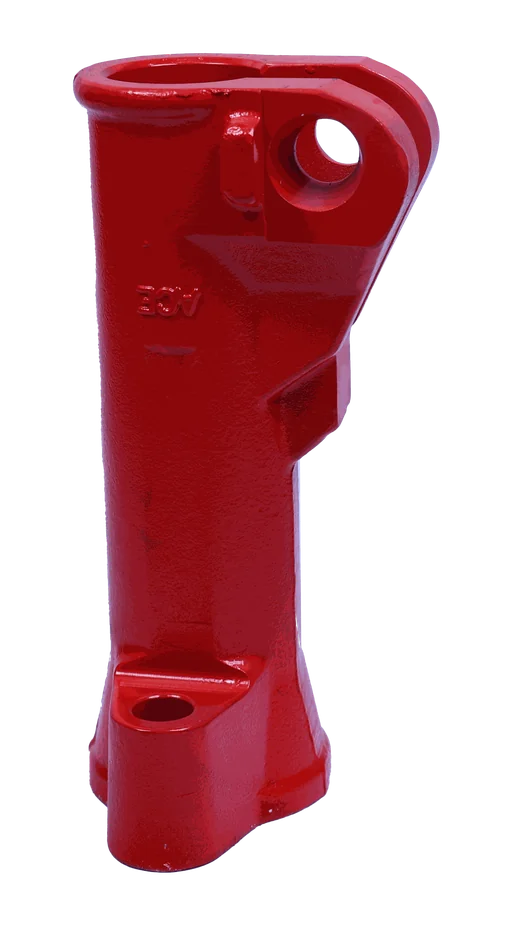

29.Front Head 1 1/4"

ACE Part No OEM REFF NO
293085 R047969
Paving breaker spare

29A.Front Head 1 1/8"

ACE Part No OEM REFF NO
293090 R047968
Paving breaker spare

30.Front Head Bolt

ACE Part No OEM REFF NO
294010 R047970
Paving breaker spare

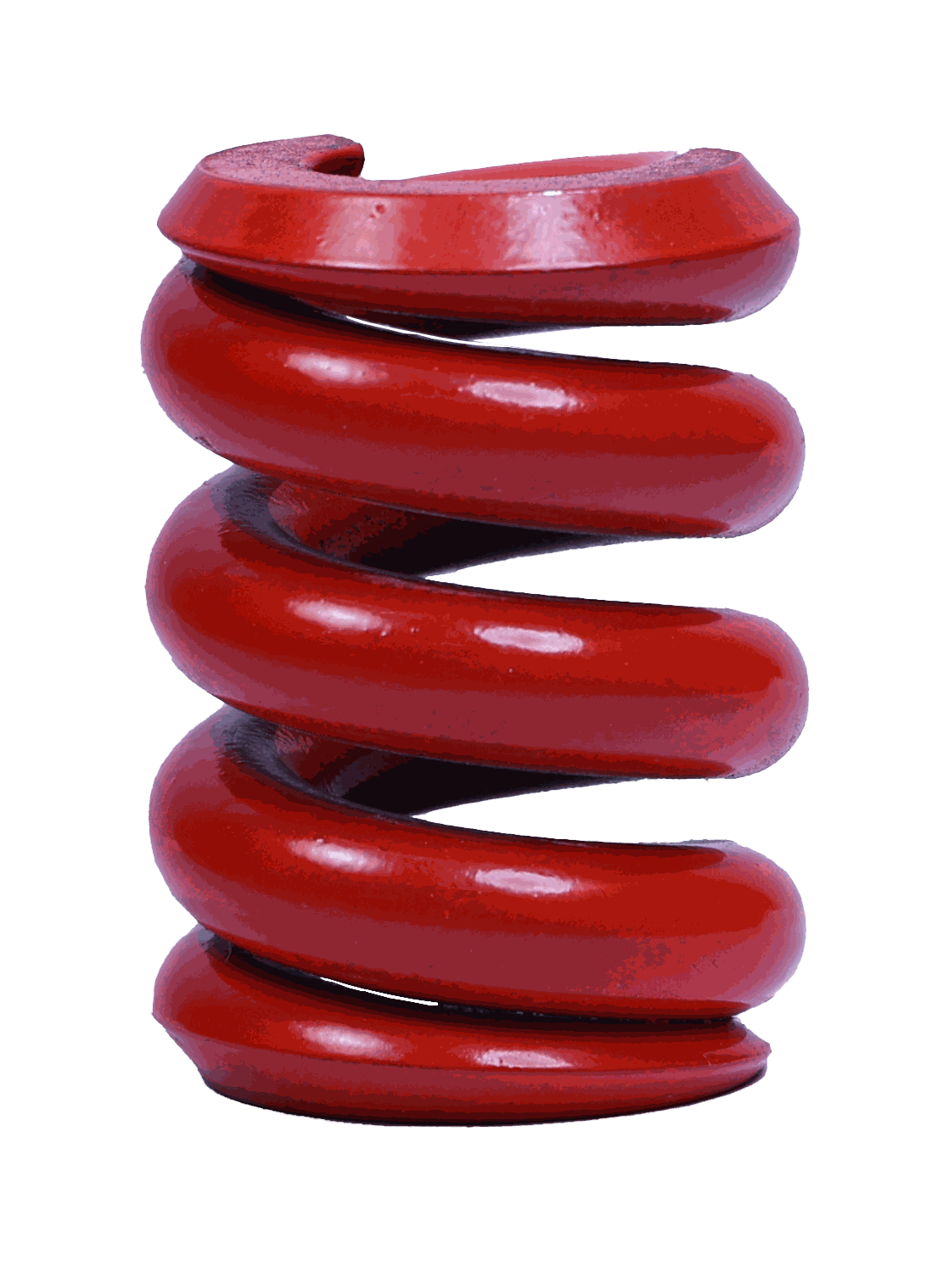

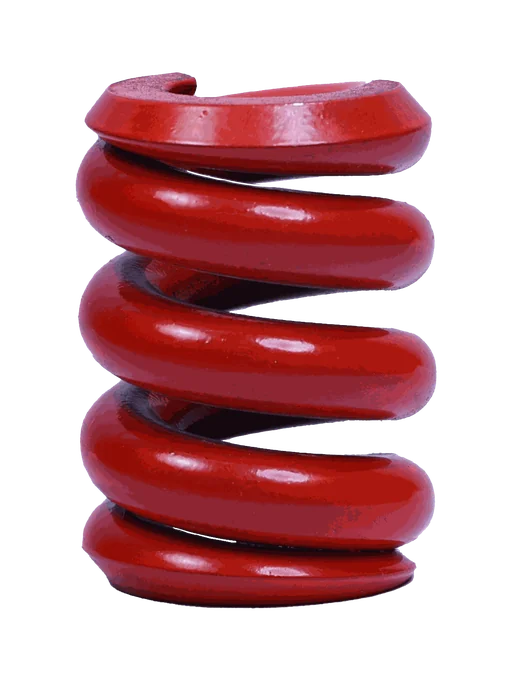

31.Front Head Bolt Spring

ACE Part No OEM REFF NO
294015 R047971
Paving breaker spare

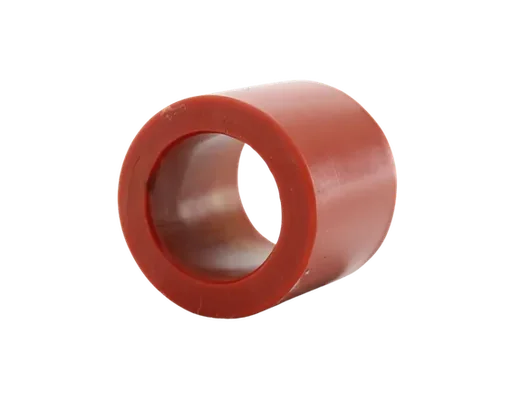

31A.Front Head Bolt PU Bush

ACE Part No OEM REFF NO
294016 -
Paving breaker spare

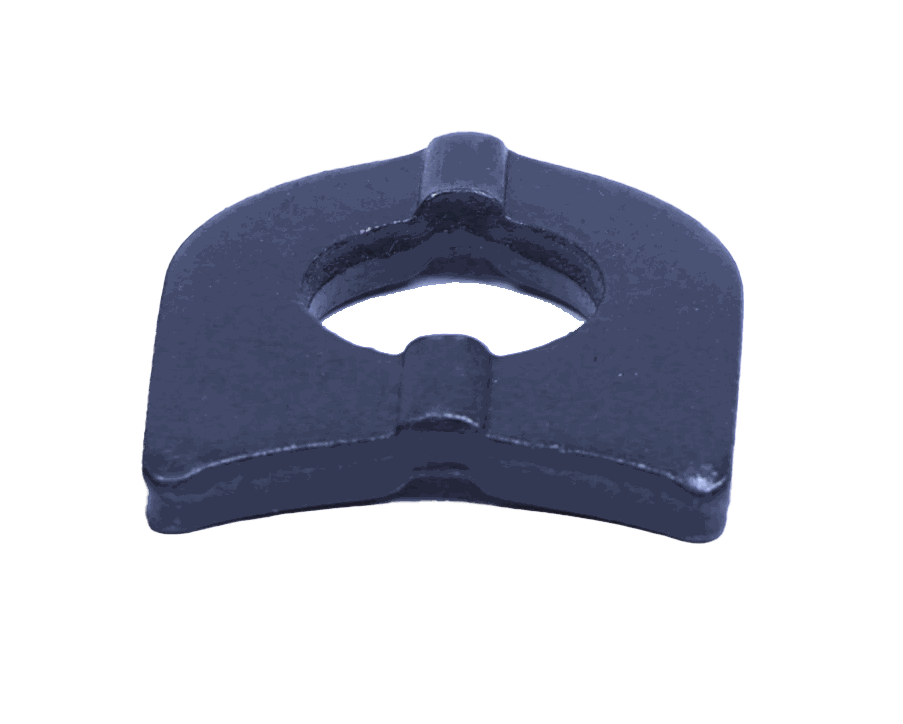

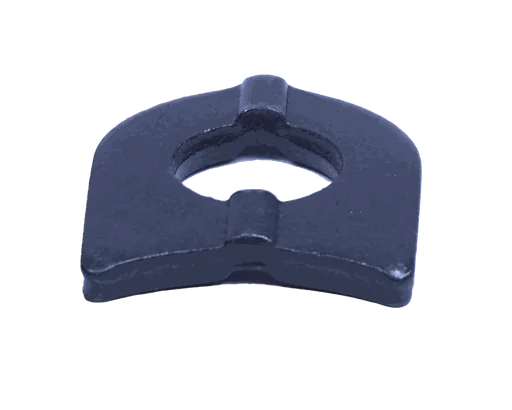

32.Lock Washer Front Head Bolt

ACE Part No OEM REFF NO
294020 R090584
Paving breaker spare

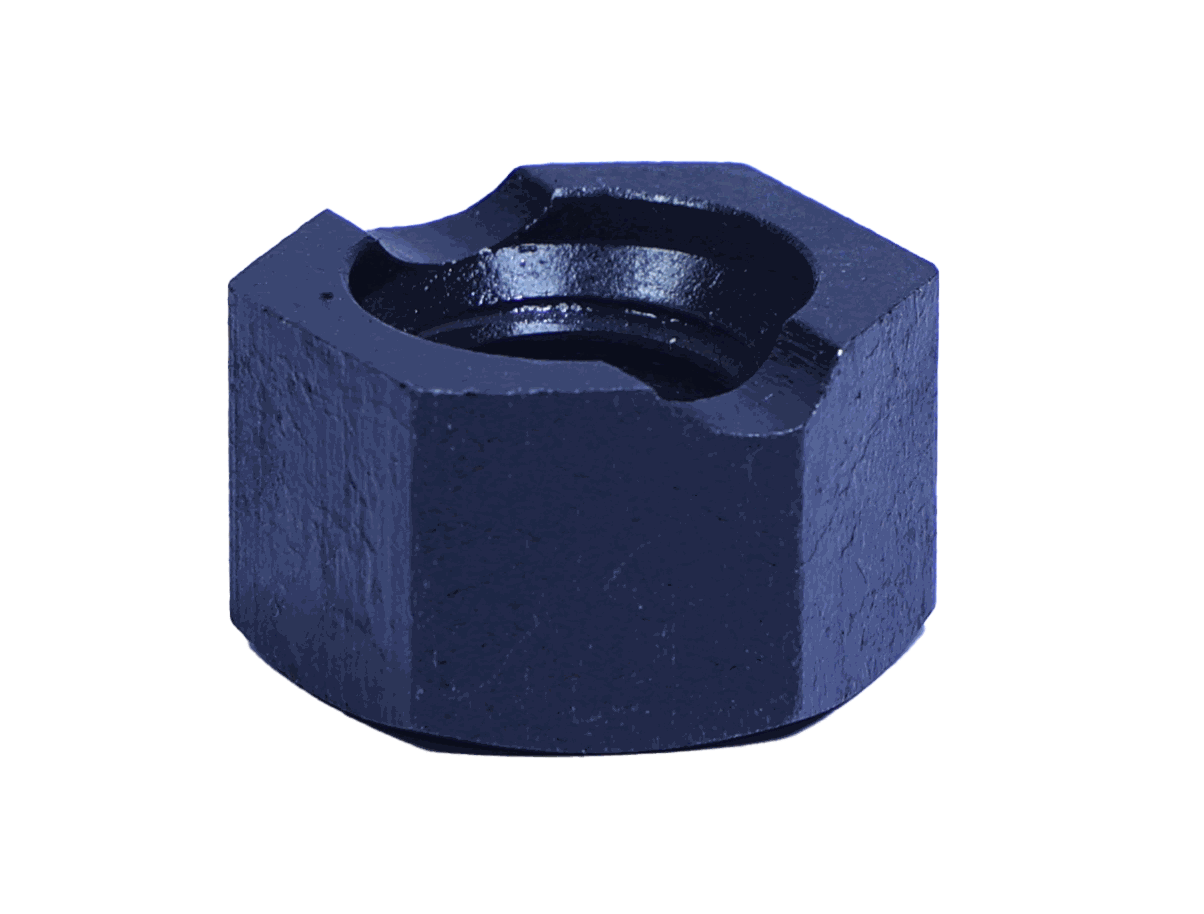

33.Nut Front Head Bolt

ACE Part No OEM REFF NO
294025 R005721
Paving breaker spare

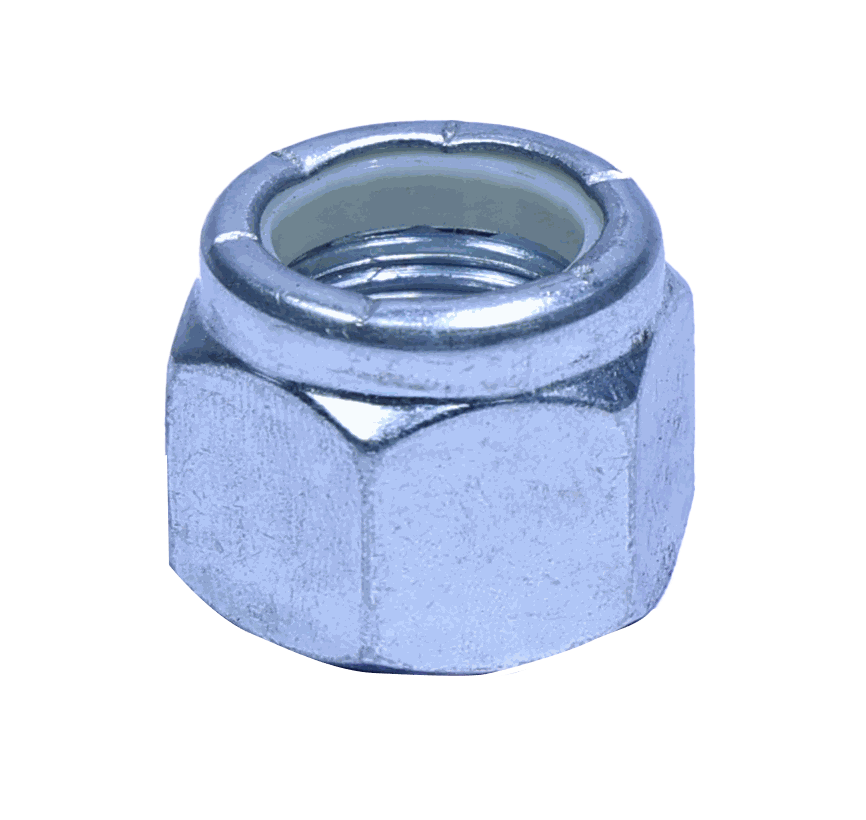

34.Lock Nut

ACE Part No OEM REFF NO
406010 P008999
Paving breaker spare

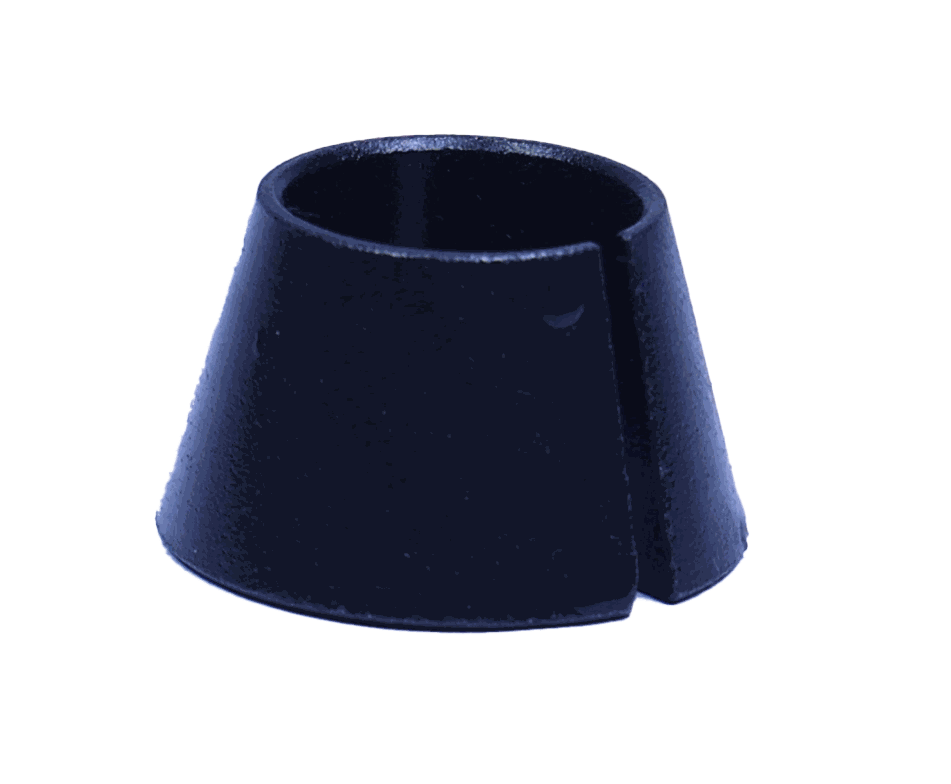

35.Taper Bushing

ACE Part No OEM REFF NO
406015 R076562
Paving breaker spare

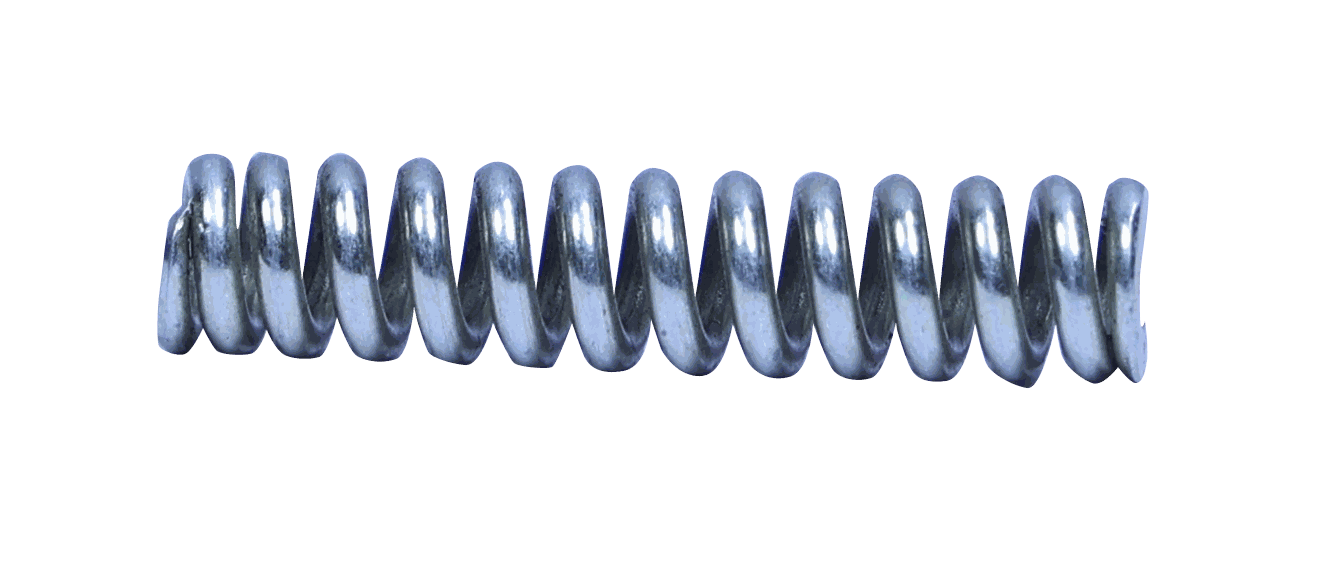

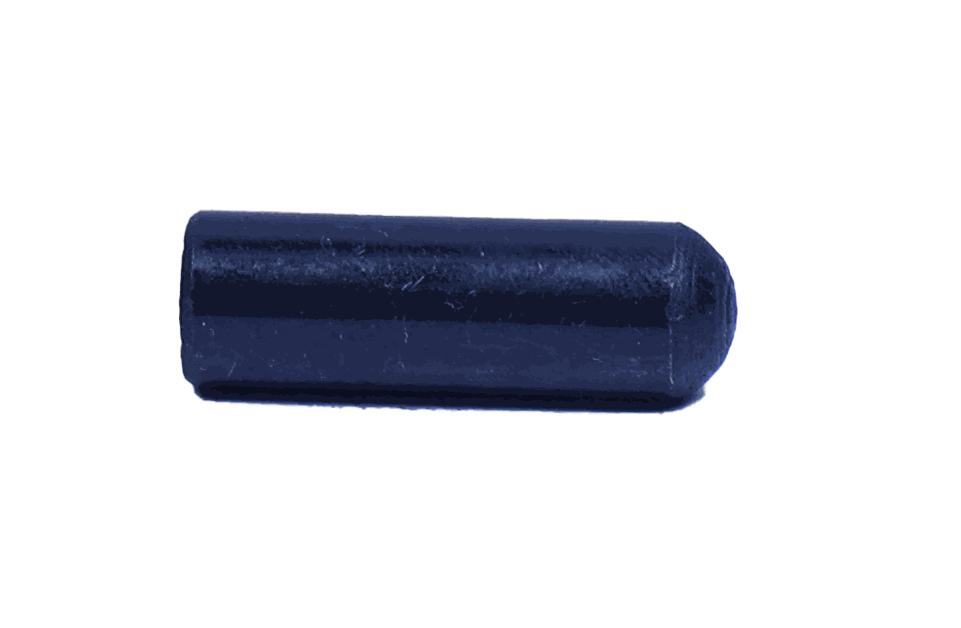

36.Spring -Plunger

ACE Part No OEM REFF NO
295020 R086982
Paving breaker spare

37.Latch Bolt

ACE Part No OEM REFF NO
406020 R076853
Paving breaker spare

38.Plunger Latch

ACE Part No OEM REFF NO
185030 R092497
Paving breaker spare

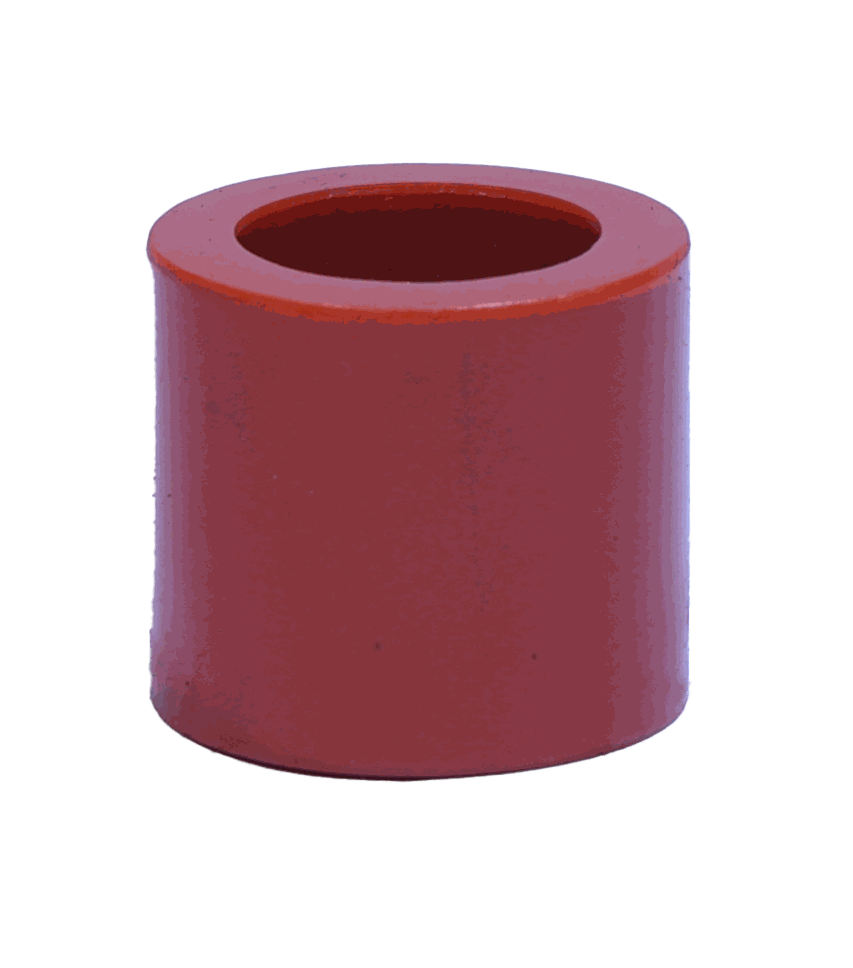

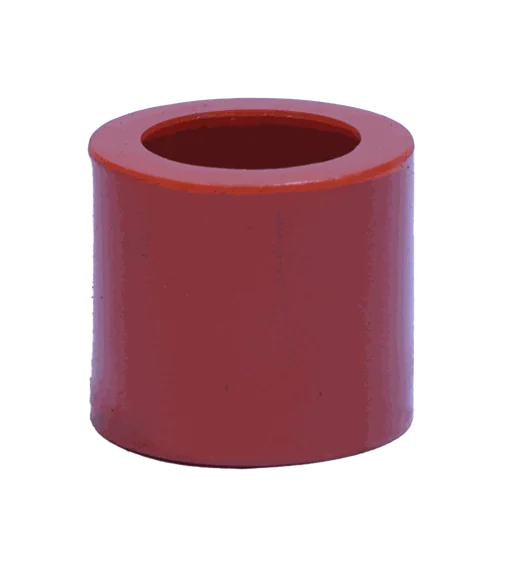

39.Latch Bushing

ACE Part No OEM REFF NO
295035 R055818
Paving breaker spare

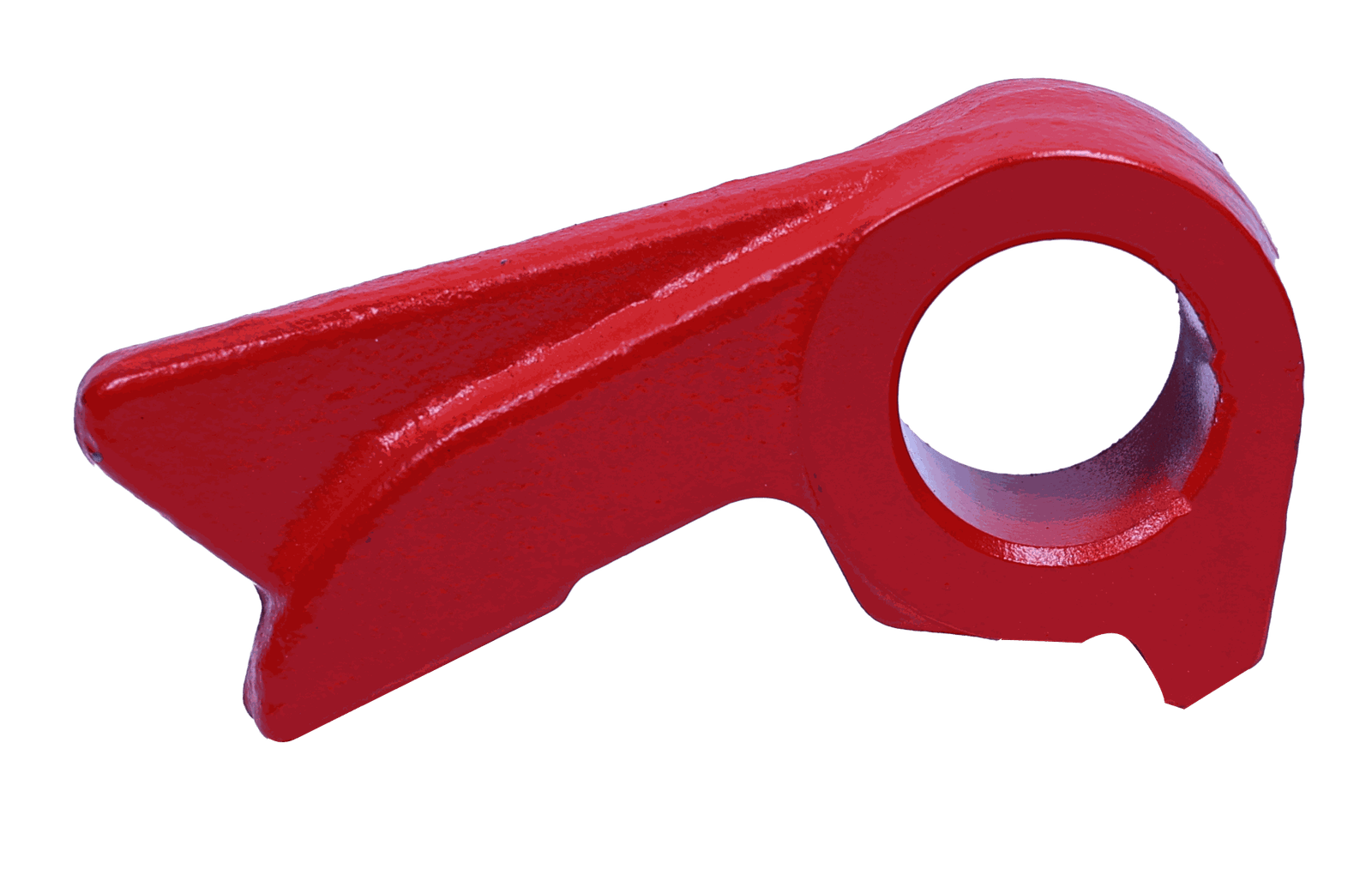

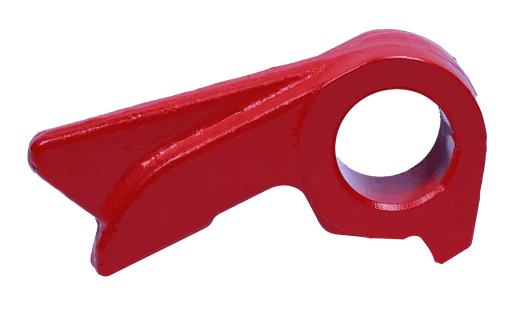

40.Latch Reatainer

ACE Part No OEM REFF NO
185010 R092493
Paving breaker spare

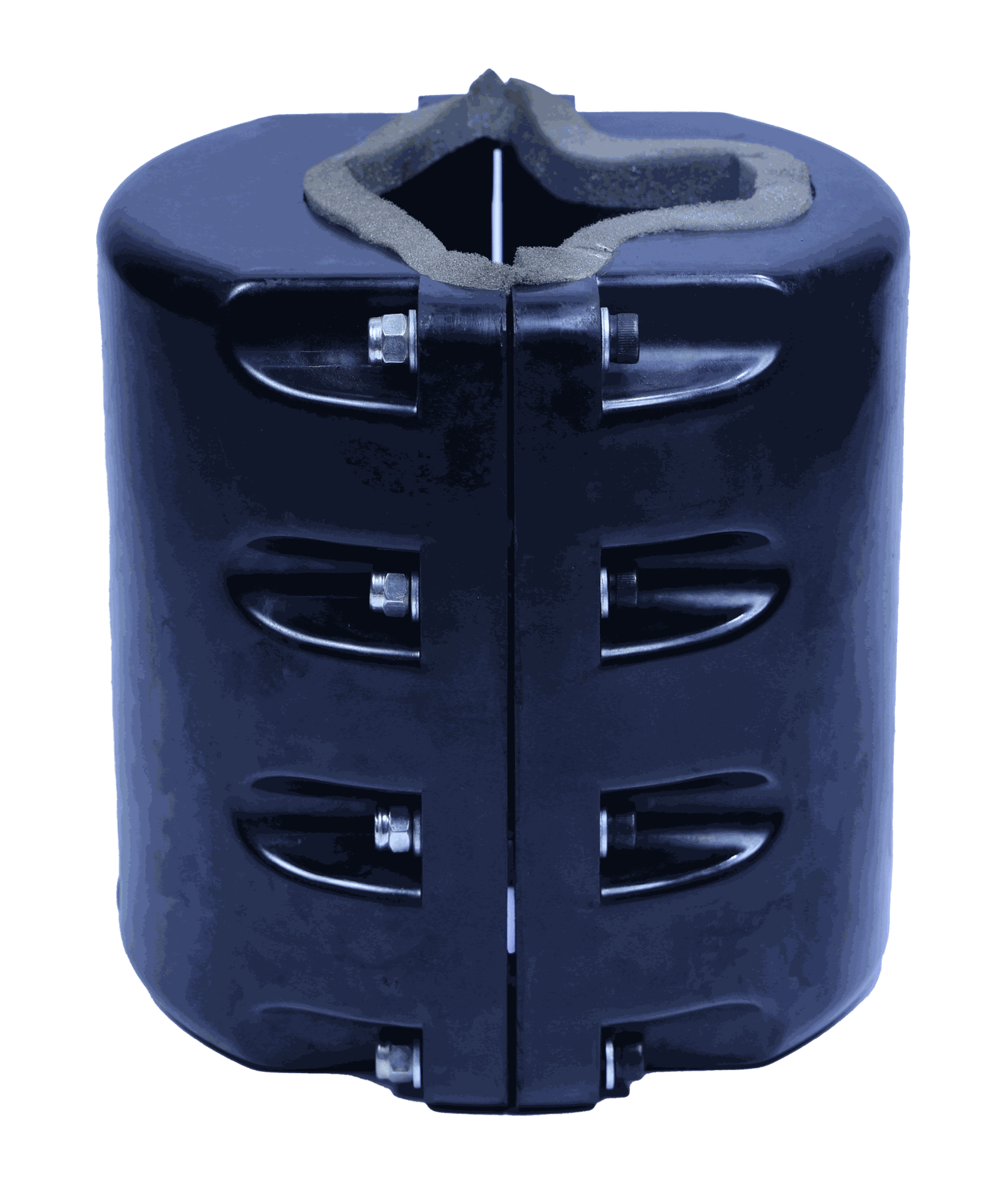

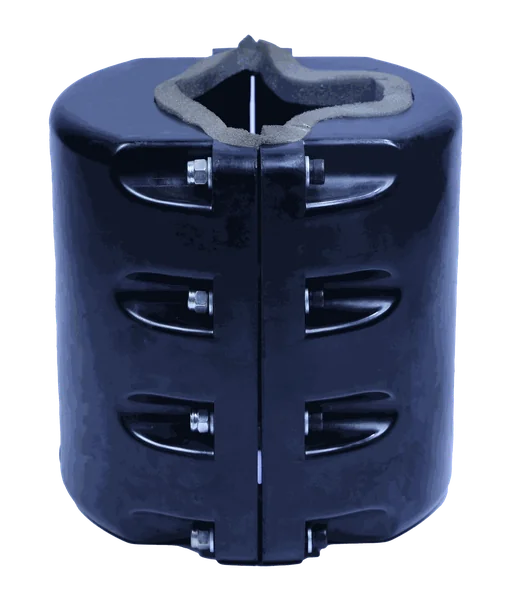

41.Muffler(Optional)

ACE Part No OEM REFF NO
296010 -
Paving breaker spare

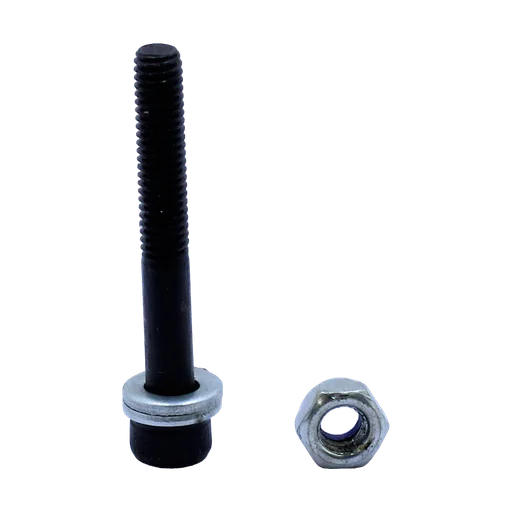

42.Screw (Allen Cap) with nut

ACE Part No OEM REFF NO
296015 -
Paving breaker spare

A (1-5).Backhead Complete

ACE Part No OEM REFF NO
291000 F815390
Paving breaker spare

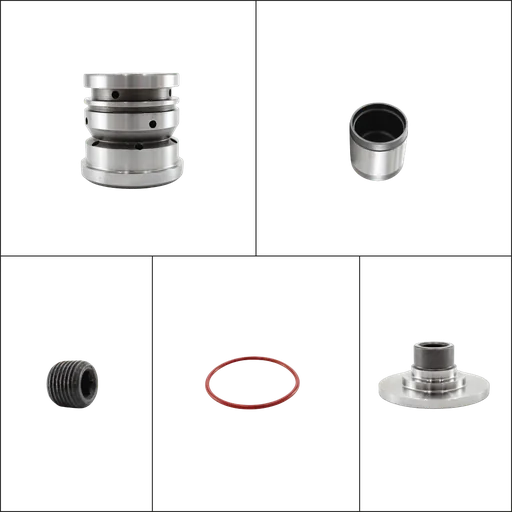

B (9-13).Valve Case Complete

ACE Part No OEM REFF NO
292000 R122157
Paving breaker spare

C (14-17).Throttle Valve Complete

ACE Part No OEM REFF NO
293000 R092894
Paving breaker spare

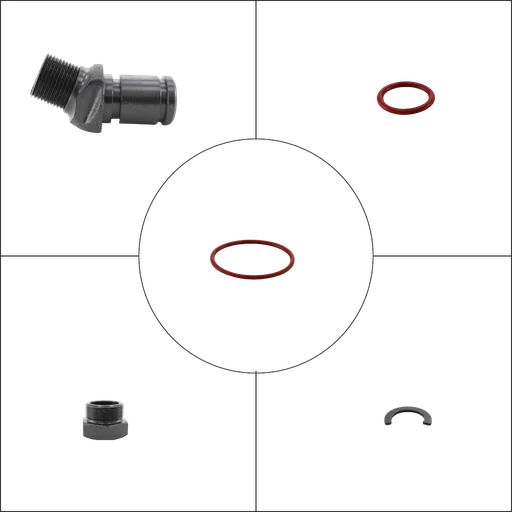

D (21-25).Swivel Complete

ACE Part No OEM REFF NO
187000 -
Paving breaker spare

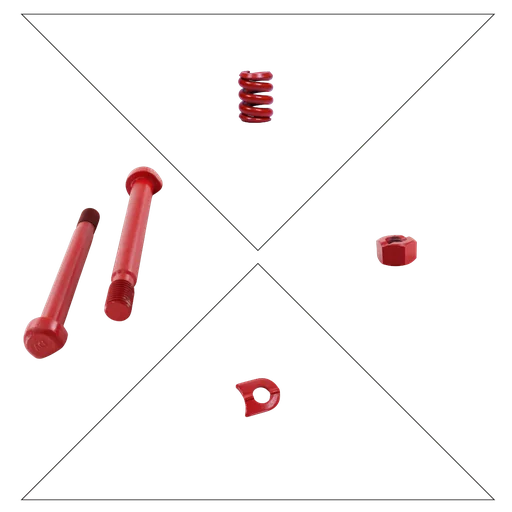

E (30-33).Front Head Bolt Complete

ACE Part No OEM REFF NO
294000 Z3628445
Paving breaker spare

F (34-40).Latch Complete

ACE Part No OEM REFF NO
295000 Z8319445
Paving breaker spare

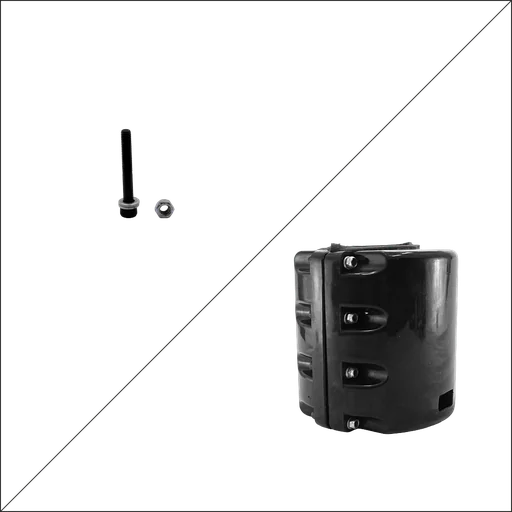

G (42-43).Muffler Complete

ACE Part No OEM REFF NO
296000 -
