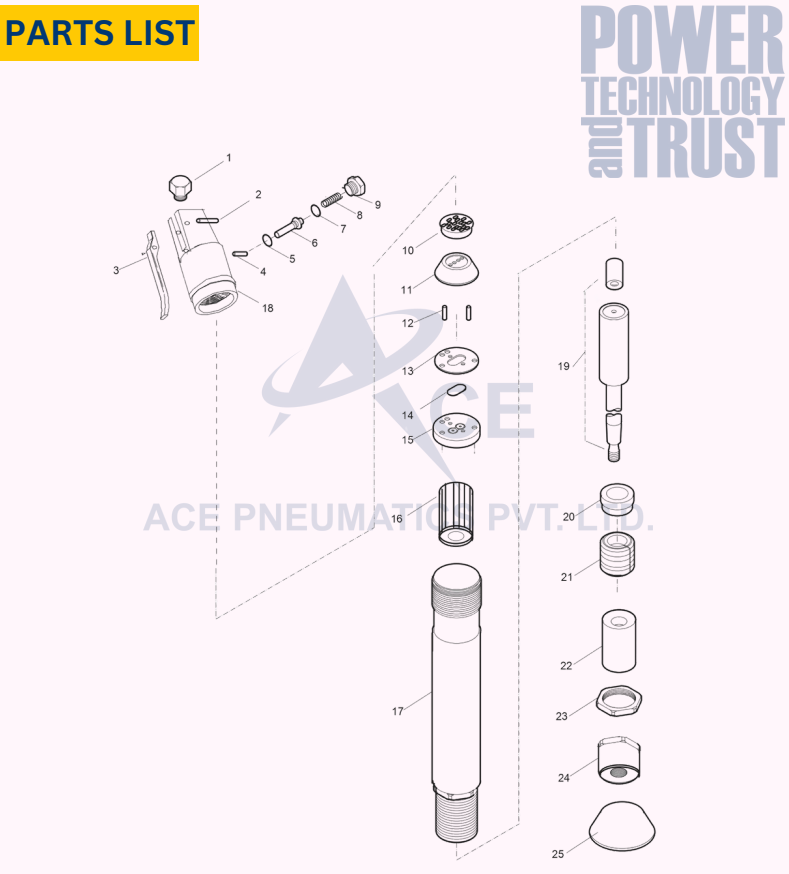

ACE 11

Spares

Rammer spare

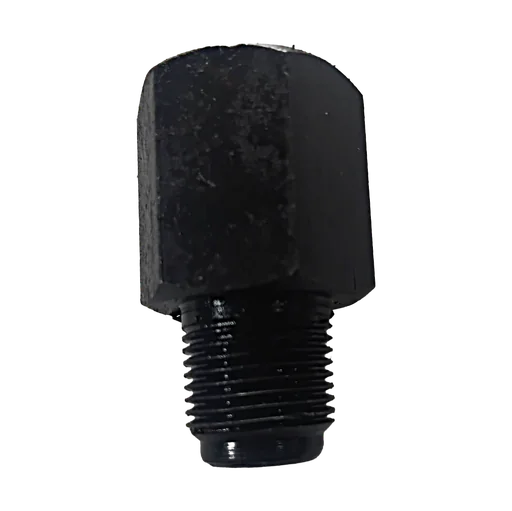

1.Air Inlet Nipple

ACE Part No OEM REFF NO
47119060
Rammer spare

2.Push Pin

ACE Part No OEM REFF NO
47115877
Rammer spare

3.Throttle Valve Lever

ACE Part No OEM REFF NO
47118877
Rammer spare

4.Bushing

ACE Part No OEM REFF NO
47115877
Rammer spare

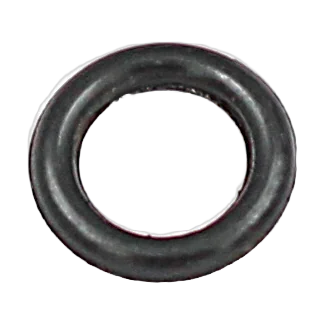

5."O"Ring

ACE Part No OEM REFF NO
47110705
Rammer spare

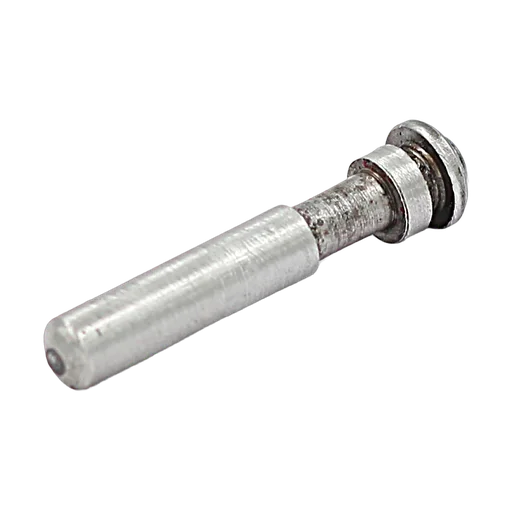

6.Throttle Valve

ACE Part No OEM REFF NO
47119877
Rammer spare

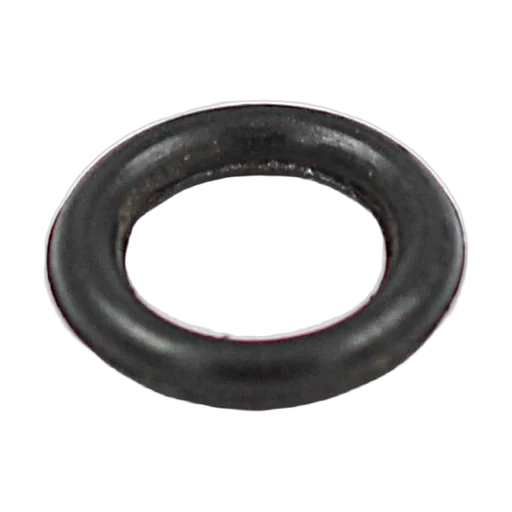

7.O'Ring Cap

ACE Part No OEM REFF NO
47114877
Rammer spare

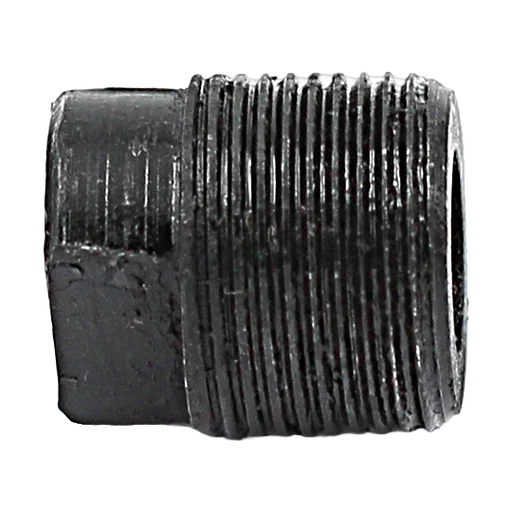

8.Throttle Vahe Plug

ACE Part No OEM REFF NO
47l16093
Rammer spare

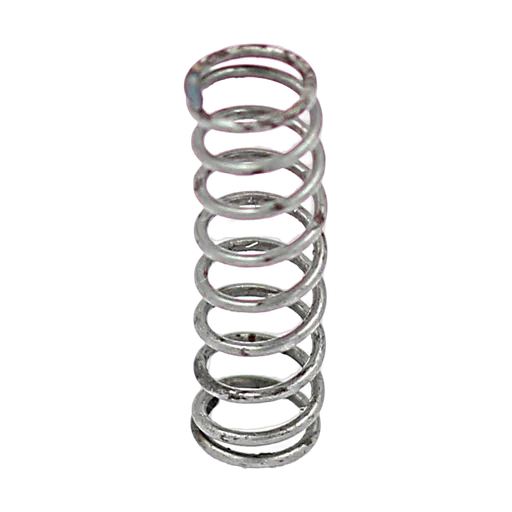

9.Throttle Valve Spring

ACE Part No OEM REFF NO
47117877
Rammer spare

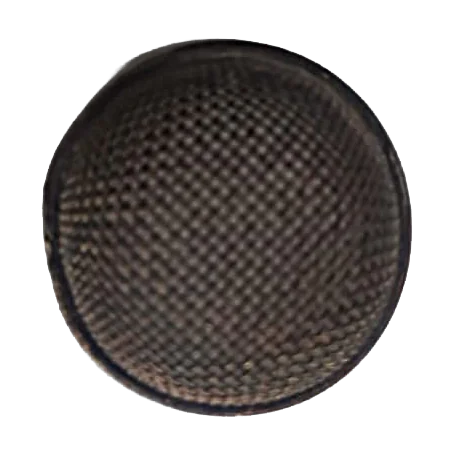

10.Air Strainer

ACE Part No OEM REFF NO
47112877
Rammer spare

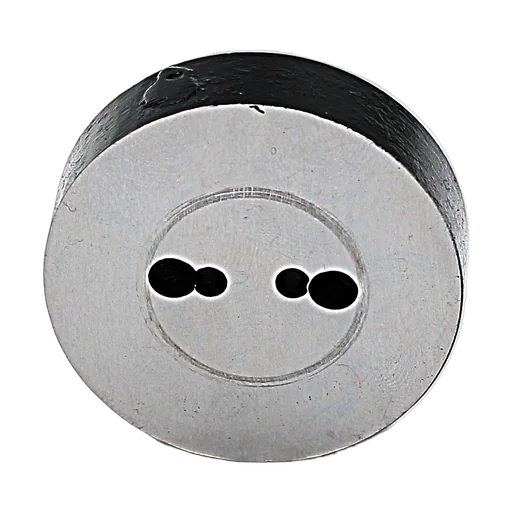

11.Upper Valve Case Lid

ACE Part No OEM REFF NO
47116877
Rammer spare

12.Valve Case Dowel

ACE Part No OEM REFF NO
47116877
Rammer spare

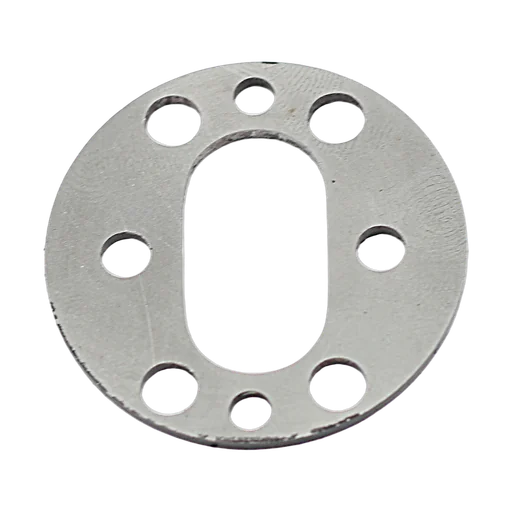

13.Valve Case

ACE Part No OEM REFF NO
47110677
Rammer spare

14.Valve

ACE Part No OEM REFF NO
47116405
Rammer spare

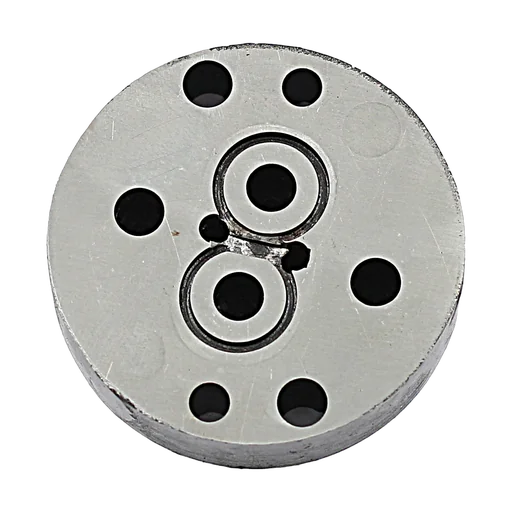

15.Lower Valve Case Lid

ACE Part No OEM REFF NO
47117877
Rammer spare

16.Cylinder Bushing

ACE Part No OEM REFF NO
47114877
Rammer spare

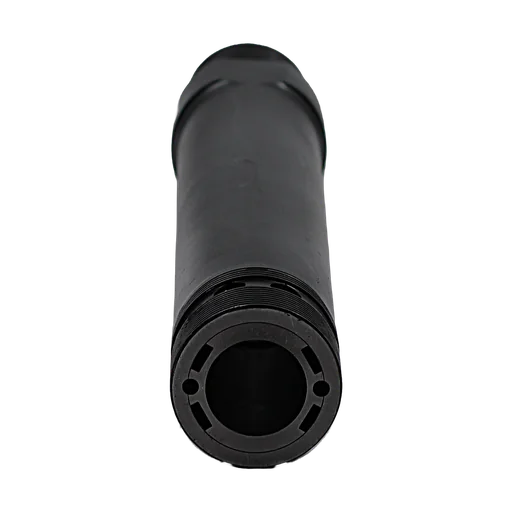

17.Cylinder

ACE Part No OEM REFF NO
47113877
Rammer spare

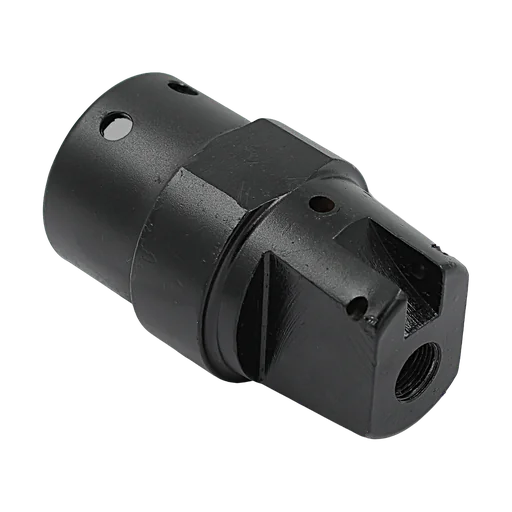

18.Cylinder Head

ACE Part No OEM REFF NO
47112877
Rammer spare

19.Piston Complete

ACE Part No OEM REFF NO
47114877
Rammer spare

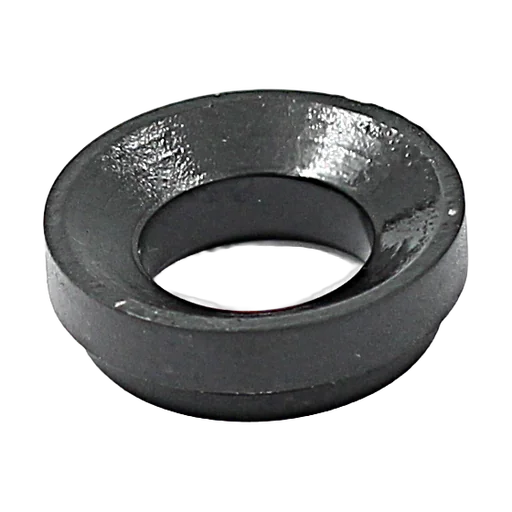

20.Piston Pack Bushing(SmaIIBush)

ACE Part No OEM REFF NO
47116877
Rammer spare

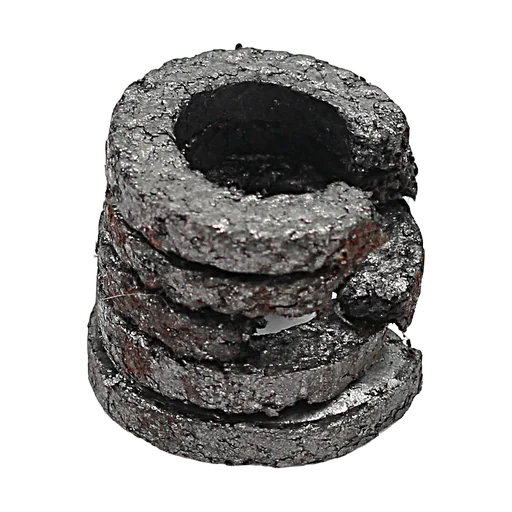

21.Piston Pack(Round-Rope)

ACE Part No OEM REFF NO
47115877
Rammer spare

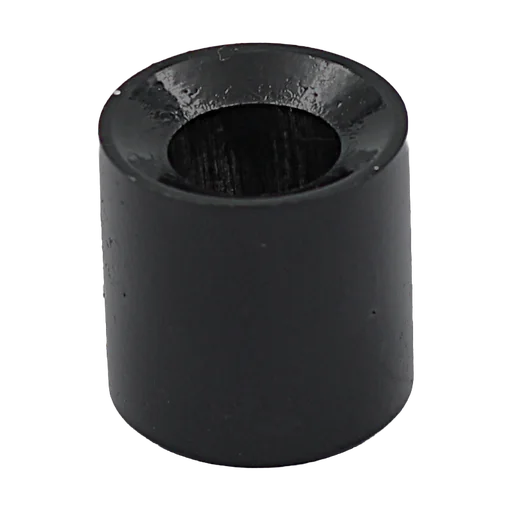

22.Piston Bushing(Round-Big Bush)

ACE Part No OEM REFF NO
47114877
Rammer spare

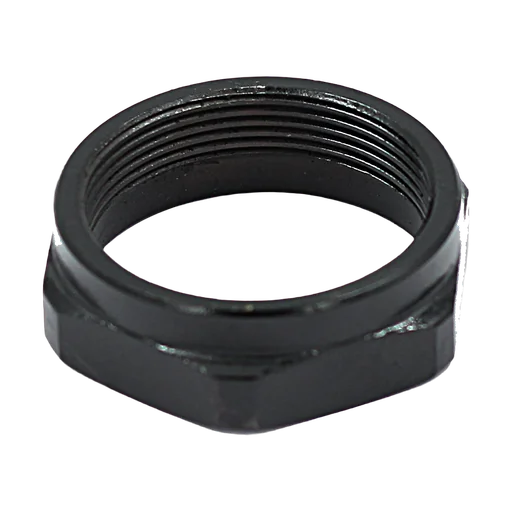

23.Piston Bushing Retainer Chuck Nut(Small Nut)

ACE Part No OEM REFF NO
472877
Rammer spare

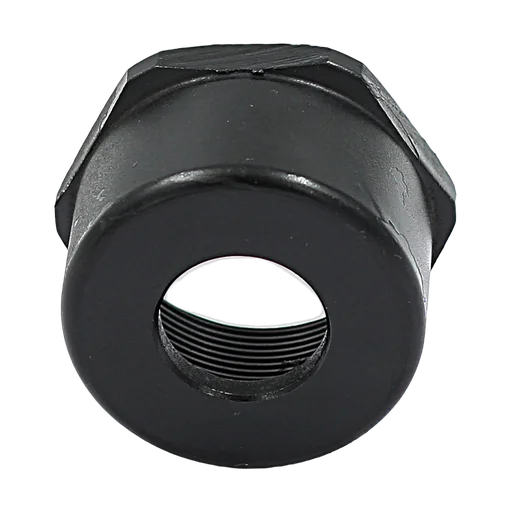

24.Piston Bushing Retainer (Big Nut)

ACE Part No OEM REFF NO
47110877
Rammer spare

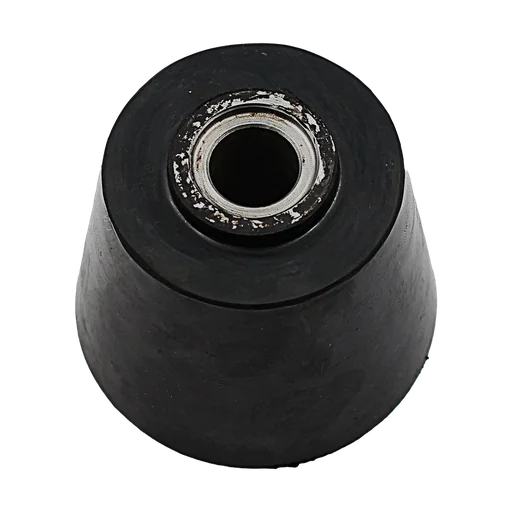

2S.Rubber Butt

ACE Part No OEM REFF NO
47112877
Rammer spare

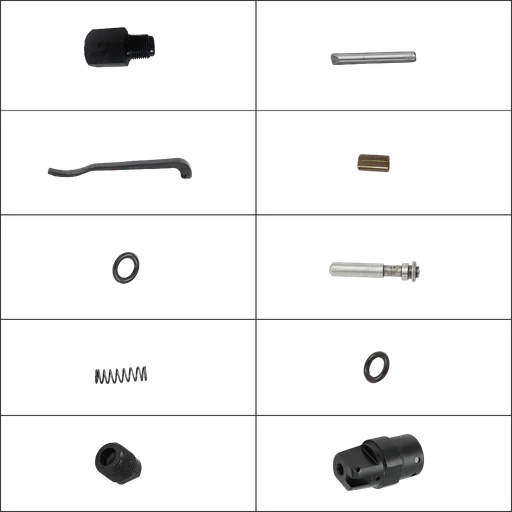

A(1-9 & 18).Cylinder Head Complete

ACE Part No OEM REFF NO
47119877
Rammer spare

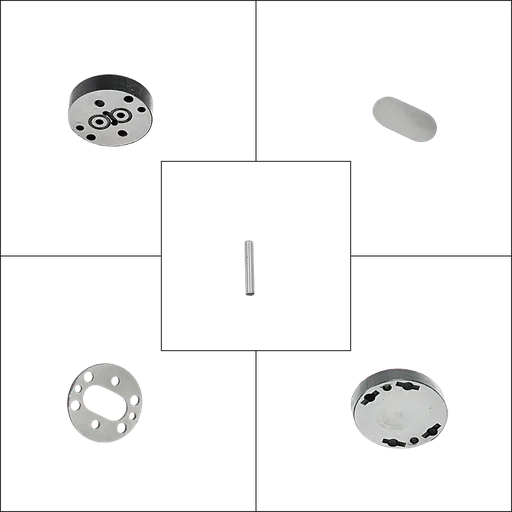

B (11-15).Valve Case Complete

ACE Part No OEM REFF NO
47112877
Rammer spare

30.THROTTLE VALVE SCREW CAP

ACE Part No OEM REFF NO
116887 40036887

SPARES AND ACCESSORIES

Accessories can be used for your products & prevents time loss in case of breakdown

0.580 HEX SHANK OVAL COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

0.580 HEX SHANK NON COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

0.680 ROUND SHANK NON COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

0.680 ROUND SHANK OVAL COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

Shank Hex 14.7 – Rd 17.3 x 60 mm (Hex 9/16 – Rd 11/16 x 23/8 in)

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

Shank Rd 17.3 mm (Rd .680 in)

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL
