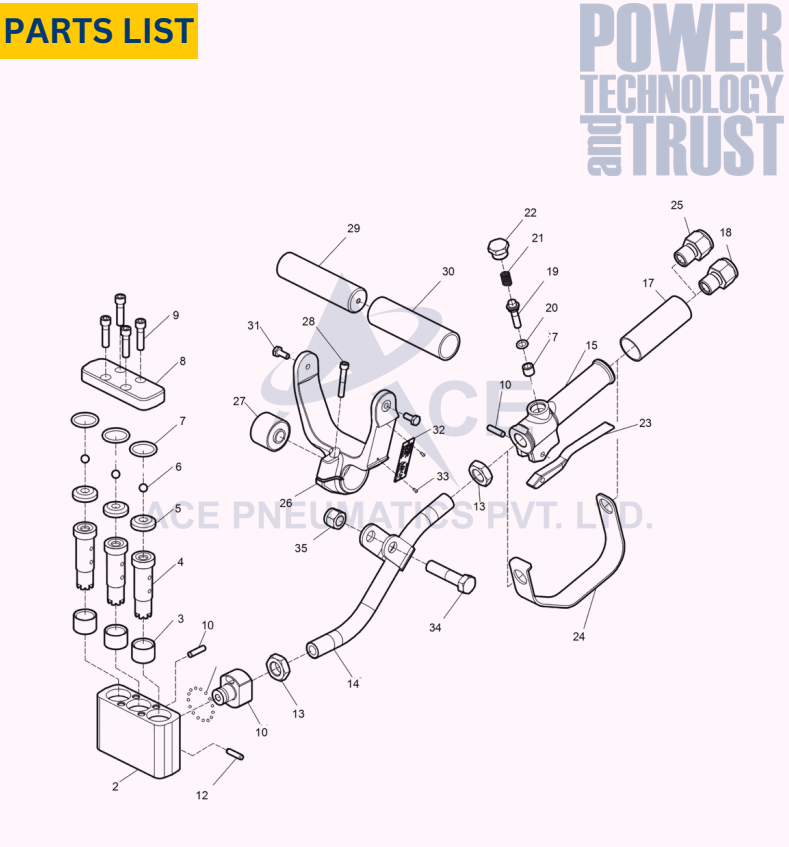

ACE 06 SVR

Spares

Scabbler spare

1.Cylinder

ACE Part No OEM REFF NO
63005 -
Scabbler spare

2.Cylinder bushing

ACE Part No OEM REFF NO
66808 F826 808
Scabbler spare

3.Piston

ACE Part No OEM REFF NO
64604 F064 604
Scabbler spare

4.Cylinder cap

ACE Part No OEM REFF NO
66706 F826 706
Scabbler spare

5.Ball valve

ACE Part No OEM REFF NO
61776 F061 776
Scabbler spare

6.O-ring

ACE Part No OEM REFF NO
62759 A082 759
Scabbler spare

7.Cylinder cover

ACE Part No OEM REFF NO
65192 3303 0051 92
Scabbler spare

8.Cap screw (Socket head)

ACE Part No OEM REFF NO
66516 F826 516
Scabbler spare

9.Pin - lever

ACE Part No OEM REFF NO
61921 P001 921
Scabbler spare

10.Adaptor bolt

ACE Part No OEM REFF NO
65193 3303 0051 93
Scabbler spare

11.Bearing ball ( 1⁄8 in. )

ACE Part No OEM REFF NO
60052 3303005242
Scabbler spare

12.Pin

ACE Part No OEM REFF NO
69500 3121 0595 00
Scabbler spare

13.Locknut

ACE Part No OEM REFF NO
64909 F064 909
Scabbler spare

14.Handle - Bent pipe

ACE Part No OEM REFF NO
65227 3303 0052 27
Scabbler spare

15.Throttle body

ACE Part No OEM REFF NO
63303 -
Scabbler spare

16.Throttle handle grip

ACE Part No OEM REFF NO
65201 3303 0052 01
Scabbler spare

17.Throttle valve bushing

ACE Part No OEM REFF NO
61814 P001 814
Scabbler spare

18.Air inlet nipple (7 in. BSP)

ACE Part No OEM REFF NO
65204 3303 0052 04
Scabbler spare

19.Body valve

ACE Part No OEM REFF NO
65245 -
Scabbler spare

20.O-ring

ACE Part No OEM REFF NO
68844 P088 844
Scabbler spare

21.Spring

ACE Part No OEM REFF NO
61858 P001 858
Scabbler spare

22.Cap valve screw

ACE Part No OEM REFF NO
61964 P001 964
Scabbler spare

23.Throttle valve lever

ACE Part No OEM REFF NO
65202 3303 0052 02
Scabbler spare

24.Handle bow

ACE Part No OEM REFF NO
65203 3303 0052 03
Scabbler spare

25.Air inlet nipple (optional, 7 in. NPTF)

ACE Part No OEM REFF NO
65220 3303 0052 20
Scabbler spare

26.Front handle

ACE Part No OEM REFF NO
65238 3303 0052 38
Scabbler spare

27.Bushing

ACE Part No OEM REFF NO
65196 3303 0051 96
Scabbler spare

28.Screw (7 in.)

ACE Part No OEM REFF NO
60900 0211 5209 00
Scabbler spare

29.Handle bar

ACE Part No OEM REFF NO
65244 -
Scabbler spare

30.Front handle grip

ACE Part No OEM REFF NO
65200 3303 0052 00
Scabbler spare

31.Hexagon screw (7 in.)

ACE Part No OEM REFF NO
60500 0144 3205 00
Scabbler spare

32.Data plate

ACE Part No OEM REFF NO
605001 -
Scabbler spare

33.Drive screw

ACE Part No OEM REFF NO
64400 0244 4144 00
Scabbler spare

34.Hexagon screw

ACE Part No OEM REFF NO
64403 0147 1444 03
Scabbler spare

35.Locknut

ACE Part No OEM REFF NO
62841 0291 1128 41
Scabbler spare

36.Safety label

ACE Part No OEM REFF NO
60200 3310 1602 00
Scabbler spare

A (1-2).Cylinder, complete

ACE Part No OEM REFF NO
65241 3303 0052 41
Scabbler spare

B (15-17).Throttle body, complete

ACE Part No OEM REFF NO
65245 3303 0052 45
Scabbler spare

D (19-20).Body valve, complete

ACE Part No OEM REFF NO
65244 3303 0052 44
Scabbler spare

E (29-30).Handle bar, complete

ACE Part No OEM REFF NO
65243 3303 0052 43
