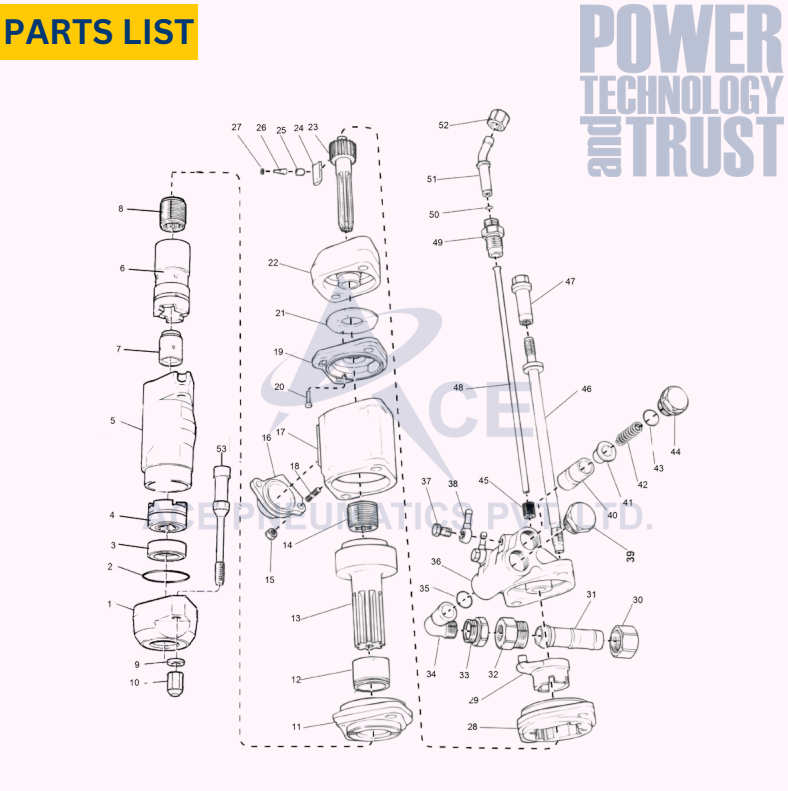

ACE 120FZ

Spares

Drifter spares

1.Cover

ACE Part No OEM REFF NO
1203900 3115223900
Drifter spares

2.O-Ring

ACE Part No OEM REFF NO
1204500 0663614500
Drifter spares

3.Stop Ring

ACE Part No OEM REFF NO
1201500 3161021500
Drifter spares

4.Rotation Chuck

ACE Part No OEM REFF NO
1201600 3161021600
Drifter spares

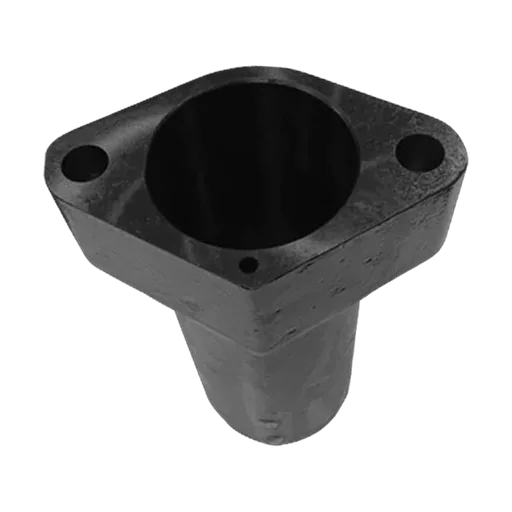

5.Front Head

ACE Part No OEM REFF NO
1209100 3115229100
Drifter spares

6.– Rotation Chuck

ACE Part No OEM REFF NO
1202881
Drifter spares

7.– Rotation Chuck Bushing

ACE Part No OEM REFF NO
1201800 3161021800
Drifter spares

8.– Guide Nut

ACE Part No OEM REFF NO
1202900 3161032900
Drifter spares

9.Washer

ACE Part No OEM REFF NO
1208700 3115028700
Drifter spares

10.Nut

ACE Part No OEM REFF NO
1208600 3115028600
Drifter spares

–.Nut (0072 & 0071)

ACE Part No OEM REFF NO
1207101
Drifter spares

–.Intermediate part, compl

ACE Part No OEM REFF NO
1201980 3161081980
Drifter spares

12.– Bushing

ACE Part No OEM REFF NO
1203500 3161023500
Drifter spares

13.– Piston

ACE Part No OEM REFF NO
1200781
Drifter spares

14.– Rifle nut

ACE Part No OEM REFF NO
1200800 3161030800
Drifter spares

15.Nut

ACE Part No OEM REFF NO
1201400 291111400
Drifter spares

16.Exhaust guard

ACE Part No OEM REFF NO
1202200 3115012200
Drifter spares

17.– Cylinder

ACE Part No OEM REFF NO
1202481
Drifter spares

18.– Stud

ACE Part No OEM REFF NO
1208100 196148100
Drifter spares

19.– Cover

ACE Part No OEM REFF NO
1208781
Drifter spares

20.– Guide pin

ACE Part No OEM REFF NO
1208800 3141008800
Drifter spares

21.Main Valve

ACE Part No OEM REFF NO
1203300 3161033300
Drifter spares

22.Rifle bar bearing

ACE Part No OEM REFF NO
1209000 3141009000
Drifter spares

23.Rifle bar

ACE Part No OEM REFF NO
1206900 3161036900
Drifter spares

24.Pawl

ACE Part No OEM REFF NO
1207000 3161037000
Drifter spares

25.Pawl pin

ACE Part No OEM REFF NO
1208300 3141008300
Drifter spares

26.Pawl spring

ACE Part No OEM REFF NO
1207400 3115077400
Drifter spares

27.Damper

ACE Part No OEM REFF NO
1202500 3161052500
Drifter spares

28.Ratchet box

ACE Part No OEM REFF NO
1207700 3161037700
Drifter spares

29.Pawl lifting ring

ACE Part No OEM REFF NO
1207800 3161037800
Drifter spares

30.Coupling nut

ACE Part No OEM REFF NO
1203500 9000033500
Drifter spares

31.Hose Nipple

ACE Part No OEM REFF NO
1207700 9000017700
Drifter spares

32.Adapter

ACE Part No OEM REFF NO
1208500 9000048500
Drifter spares

33.Adapter

ACE Part No OEM REFF NO
1202200 3000992200
Drifter spares

34.Inlet nipple

ACE Part No OEM REFF NO
1207000 3161007000
Drifter spares

35.O-Ring

ACE Part No OEM REFF NO
1203200 663213200
Drifter spares

36.Back head

ACE Part No OEM REFF NO
1209300 3141009300
Drifter spares

37.Pressure screw

ACE Part No OEM REFF NO
1202000 3161082000
Drifter spares

38.Banjo connection

ACE Part No OEM REFF NO
1202900 3161022900
Drifter spares

39.Plug

ACE Part No OEM REFF NO
1206900 3161006900
Drifter spares

40.Operating piston

ACE Part No OEM REFF NO
1209500 3141009500
Drifter spares

41.Spring guide

ACE Part No OEM REFF NO
1209600 3141009600
Drifter spares

42.Pressure spring

ACE Part No OEM REFF NO
1209700 3141009700
Drifter spares

43.O-Ring

ACE Part No OEM REFF NO
1203200 663213200
Drifter spares

44.Plug

ACE Part No OEM REFF NO
1209800 3141009800
Drifter spares

45.Gasket

ACE Part No OEM REFF NO
1207700 3121047700
Drifter spares

46.Side bolt

ACE Part No OEM REFF NO
1204000 3115224000
Drifter spares

47.Nut

ACE Part No OEM REFF NO
1202400 3141022400
Drifter spares

48.Water flushing tube

ACE Part No OEM REFF NO
1207600 3161037600
Drifter spares

49.Adapter

ACE Part No OEM REFF NO
1202100 3161082100
Drifter spares

50.O-Ring

ACE Part No OEM REFF NO
1202400 663212400
Drifter spares

51.Hose Nipple

ACE Part No OEM REFF NO
1202200 3161082200
Drifter spares

52.Coupling nut

ACE Part No OEM REFF NO
1202300 3161082300
Drifter spares

53.Side Bolt

ACE Part No OEM REFF NO
1204000 3115224000
Drifter spares

.

ACE Part No OEM REFF NO
Drifter spares

A (6-8).Rotation Chuck Complete

ACE Part No OEM REFF NO
1202880 3161032880
Drifter spares

B (11-12).– Intermediate part,

ACE Part No OEM REFF NO
1201981
Drifter spares

C (13-14).Piston with rifle nut, complete

ACE Part No OEM REFF NO
1200780 3161030780
Drifter spares

D (17-18).Cylinder, complete

ACE Part No OEM REFF NO
1202480 3161052480
Drifter spares

E (19-20).Cover with guide pin, complete

ACE Part No OEM REFF NO
1208780 3141008780
