Airline Lubricator

Models

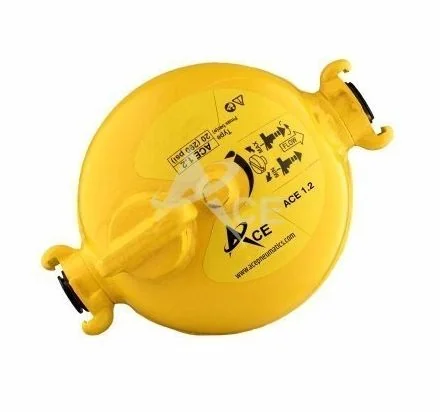

ACE 1.2 AIR LINE LUBRICATORS (LINE OILER)

ACE 1.2 Air Line Lubricators (Line Oiler) are heavy-duty in-line lubricators to be installed 6-8 feet from tool. it is designed to use with tools being used too far away from compressor to be lubricated by A permanently mounted unit. It's technically equivalent to GME GL 30, ML 130.

Tecnical Details

Specifications	metric	imperial
Weight	3 Kg	6.6 Lb
Oil Volume	1.3 Ltr	0.33 Gallon
Air Flow	25-130 I/s	53-275 cfm
Hose Diameter	25 mm	1”
Max Air Pressure	20 Bar	290 PSI

Downloads

PDF

Leaflet Changes

PDF

Exploded View

PDF

Safety Instructions

ACE 1.2 AIR LINE LUBRICATORS (LINE OILER)

Standard Features

Rugged And Reliable
Extend Tool Life, Reduce Down Time
Unique Design For All Type Tools

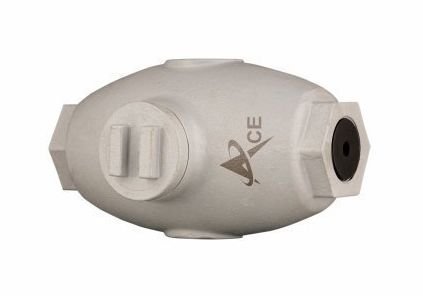

ACE 50 AIR LINE LUBRICATOR

ACE 50 Is 0.71 Ltr are well known lubricator in underground mining operations in North & Latin america. Its rotating nozzle design makes this lubricator unique. It's technically equivalent to GME GL 30, JOY Football Style Lubricator.

Tecnical Details

Specifications	metric	imperial
Weight Empty	3.5 kg	8 lb
Weight Full	5.5 kg	11.5 lb
Length	200 mm	8"
Oil Volume	0.71 Ltr	0.19 Gallon
Safety Fill Cap Diameter	48 mm	1 7/8"
Air Flow	48 I/s	102 Cfm
Hose Diameter	25 mm	1"
Max Air Pressure	17.5 Bar	250 PSI
