PLUG DRILLS/ TCT RODS/ CARBIDE HOLLOW PLUG DRILLS

We Ace Pneumatics Pvt.Ltd are manufacturer exporter and supplier of The Plug Hole drills / TCT Rods that is a carbide inserted Chisel tip accessory tool designed for dowel hole drilling. Drilling hole size range from 1/2” to 1”, with drilling depths made to your requirements. Plug hole drills are available in both the Shanked Steel Plug hole drills and the C-9 Plug Hole drills.

Models

Plug drills/ TCT Rods/ Carbide hollow plug drills

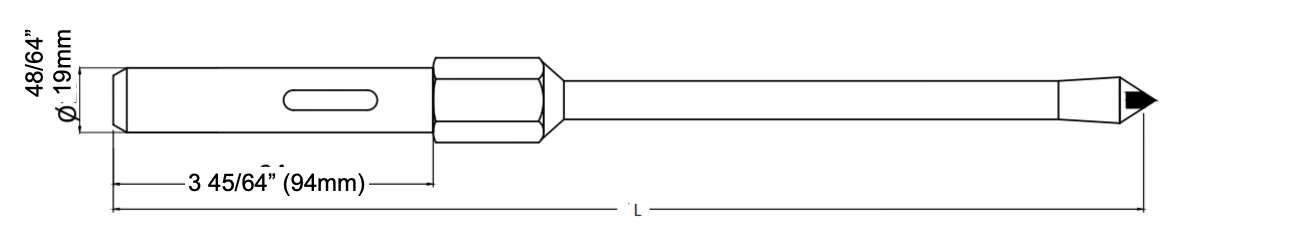

Tecnical Details

Point Type	Part No	Drill Depth		Bit Diameter (B)		Length (L)		Weight (kg)
Point Type	Part No	mm	inch	mm	inch	mm	inch	kg	lb
Plug Drills/ TCT Rods	TCT-C9-13-203	203	8"	13	1/2"	330	13	0.7	1.5
	TCT-C9-16-203	203	8"	16	5/8"	330	13	0.7	1.5
	TCT-C9-19-203	203	8"	19	3/4"	330	13	0.7	1.5
	TCT-C9-22-203	203	8"	22	7/8"	330	13	0.7	1.5
	TCT-C9-25-203	203	8"	25	1"	330	13	0.7	1.5
	TCT-C9-13-305	305	12"	13	1/2"	430	17	1.2	2.5
	TCT-C9-16-305	305	12"	16	5/8"	430	17	1.2	2.5
	TCT-C9-19-305	305	12"	19	3/4"	430	17	1.2	2.5
	TCT-C9-22-305	305	12"	22	7/8"	430	17	1.2	2.5
	TCT-C9-25-305	305	12"	25	1"	430	17	1.2	2.5

Application

The Plug hole drills is a carbide Inserted chisel tip accessory tool designed for dowel hole drilling. Drilling Hole size range from 1/2” to 1”, with drilling depths made to your requirements. Plug hole drills are available in both the Shanked Steel Plug Hole drills and the C-9 Plug Hole drills.

Suitable

Ace PLUG DRILLS/ TCT RODS Chiesels are suitable for CP-9A >> Sullair: MRD-9, Thor: 5LHD, APT: 109

Downloads

PDF

Leaflet Changes

PDF

Safety Instructions

Plug Hole Drills (TCT Rods) - Construction Tools Accessories by Ace Pneumatics

Ace Pneumatics is a trusted manufacturer, exporter and supplier of construction tools accessories known for delivering premium-grade products across the globe. Among its specialized range, the Plug Hole Drills (TCT Rods) are designed with superior craftsmanship to meet the toughest demands of mining, quarrying, construction and demolition applications. Built using high-quality raw materials and precision engineering, these drills ensure long service life, excellent penetration and superior performance even in extreme working conditions.

The Plug Hole Drills (TCT Rods) are specifically developed for drilling blast holes and plug holes in mining and construction projects. They are equipped with Tungsten Carbide Tipped (TCT) bits, which enhance cutting strength, reduce wear and deliver clean, precise drilling. The rods are available in different drill depths, diameters and lengths, making them suitable for a wide range of applications, from small-scale jobs to large industrial operations.

Key Features of Plug Hole Drills (TCT Rods)

Durable TCT Tips: Enhanced cutting efficiency and wear resistance.
Multiple Size Options: Available in 1/2", 5/8", 3/4", 7/8" and 1” diameters.
Different Drill Depths: Offered in 8” (203 mm) and 12” (305 mm) depths for varied drilling needs.
Optimized Lengths: Lengths of 13” (330 mm) and 17” (430 mm) ensure compatibility across applications.
Lightweight & Strong: Weights range from 0.7 kg to 1.2 kg, balancing efficiency with ease of handling.
Industrial Applications: Perfect for mining, construction, quarrying and demolition projects.

Ace Pneumatics combines state-of-the-art manufacturing, premium materials and strict quality assurance to create drilling accessories that professionals can rely on. The Plug Hole Drills (TCT Rods) are designed not only to maximize drilling speed and accuracy but also to minimize tool wear and operator fatigue. Their global acceptance is a testament to their durability, efficiency and excellent return on investment.

By choosing Ace Pneumatics, industries gain access to a partner committed to delivering tools that enhance productivity, reduce downtime and ensure safety in every drilling project.
