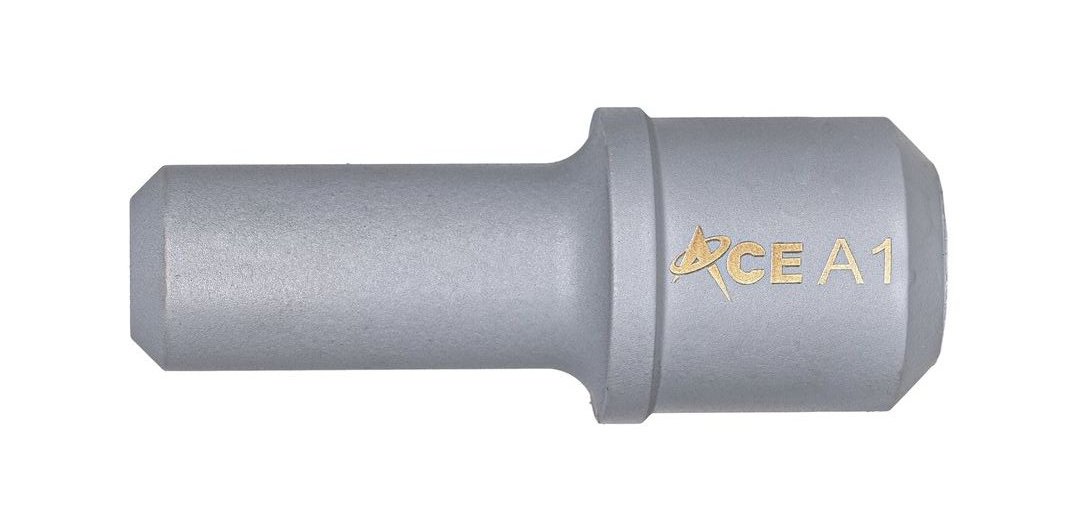

RIVET BOYER SNAP / RIVET SETS

Ace Pneumatics is manufacturer of Rivet Snap & Rivet sets for the Rivet Buster, 4689 Rivet Boyer .Rivet sets are recommended for riveting work on tanks, steel cars and light structural steel. ACE Rivet sets are six types FLUSH SNAP, BUTTON SNAP SHALLOW BUTTON SNAP, LIVERPOOL HEAD SNAP and PAN SNAP CONE SNAP.

Models

Jumbo Rivet Buster Tools

Tecnical Details

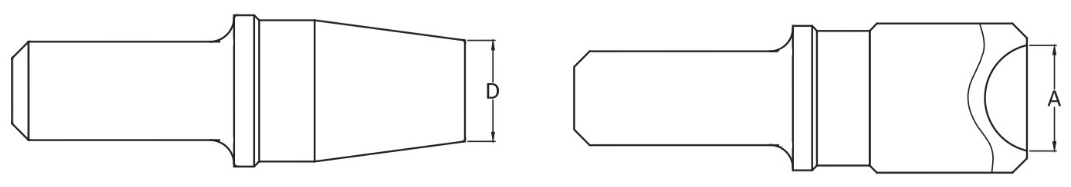

Rivet Boyer Snap Type	Size Of Rivet	3/8"	1/2"	5/8"	3/4"	7/8"	1"	1 1/8"	1 1/4"
Flush Type Snap	D	7/8"	1"	1 1/8"	1 1/4"	1 3/8"	1 1/2"	1 6/8"	1 3/4"
Button Type Snap	A	21/32"	13/16"	1"	1 3/16"	1 3/8"	1 19/32"	1 25/32"	2"

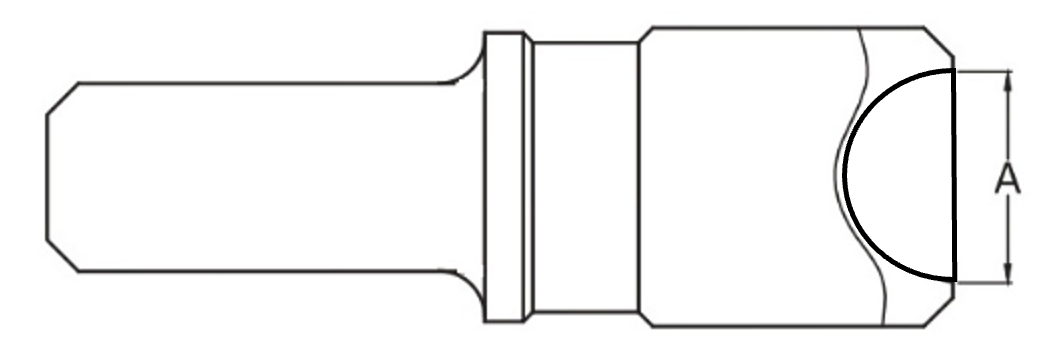

Shallow Button Type Snap	A	21/32"	13/16"	1"	1 3/16"	1 3/8"	1 19/32"	1 25/32"	2"
Liverpool Type Snap	A	3/4"	1"	1 1/4"	1 1/2"	1 3/4"	2"	2 1/4"	2 1/2"
PAN Type Snap	A	5/8"	13/16"	1"	1 3/16"	1 5/16"	1 1/2"	1 11/16"	1 7/8"
Cone Type Snap	A	41/64"	55/64"	1 3/32"	1 19/64"	1 33/64"	1 47/64"	1 61/64"
