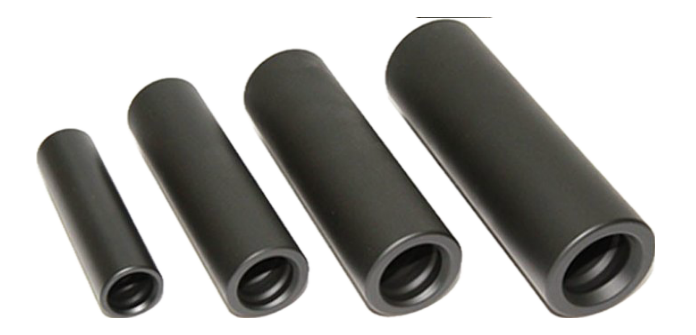

Coupling Sleeves

Coupling Sleeve used for attaching all types of Drifter & Extension Rods Coupling is used for connecting shank adapter and extension drill rod together, or for connecting two extension rods together. Besides normal equal couplings, Coupling sleeves are used for connecting drill rods and shank adaptors, with the common threads R38, T38, T45 and T51. Couplings are available as sleeve, semi-bridge, full-bridge or conversion types, with all popular international thread forms.

Models

    Clay Digger
    Zoomed View
    Thumbnail

    Coupling Sleeves

    Tecnical Details

    ACE Part No Thread Type Dia (OD) Length OEM REFF NO
    mm Inch mm Inch
    CS2222-140-31 R22 31 1.22 140 5.5 7991-2031
    CS2525-160-35 R25 35 1.38 160 6.2 -
    CS3232-150-44 R32 44 1.75 150 5.9 7993-3644
    CS3838-170-55 R38 55 2.16 170 6.6 7994-3655
    CS3838-191-55 T38 55 2.16 191 7.50 7314-3652
    CS4545-210-63 T45 63 2.50 210 8.2 7315-3663
    CS4545-235-45 T45 77 3.03 235 9.2 -
    CS5151-235-51 T51 71 2.80 235 9.2 7316-3671

    Downloads

    PDF

    Leaflet Changes

    Applications

    • It is widely used in open-pit mining
    • Underground mining, tunneling, anchoring, furnace tapping
    • Tunnel construction, hydropower projects
    • Quarrying and construction

    COUPLING SLEEVES

    Coupling Sleeves for Mining Equipment Accessories by Ace Pneumatics

    Ace Pneumatics is a renowned manufacturer, exporter and supplier of Coupling Sleeves, serving industries across the USA, Canada, UK, Peru, Colombia, UAE, South Africa, Germany, Spain, Saudi Arabia, Australia and many other countries. Designed with precision and manufactured using premium-grade alloy steel, our coupling sleeves are built to perform in demanding mining, quarrying, tunneling and construction applications.

    Coupling sleeves play a critical role in connecting drill rods securely, ensuring smooth drilling operations and maximum efficiency. At Ace Pneumatics, we focus on durability, accuracy and consistent performance, helping operators minimize downtime and achieve better productivity in every project.

    Key Features of Coupling Sleeves

    • Manufactured from high-quality alloy steel

    • Accurate threading for secure and stable rod connections

    • Excellent resistance to wear, tear and corrosion

    • Available in multiple diameters and lengths for various applications

    • Precision-engineered for smooth and efficient drilling

    • Easy to install, replace and maintain

    • Increases drilling efficiency while reducing downtime

    • Reliable for mining, construction and demolition projects

    Ace Pneumatics has built a strong reputation as a global leader in mining equipment accessories. Our coupling sleeves undergo strict quality checks to ensure they meet international standards for strength and reliability. By choosing Ace Pneumatics, you are assured of products that provide long service life, high performance and cost-effectiveness.

    With a strong commitment to customer satisfaction, Ace Pneumatics coupling sleeves offer durability, precision and trust - making them the preferred choice for mining and construction professionals globally.
