ACE SD0014RR

Spares

Rotary hammer drill spares

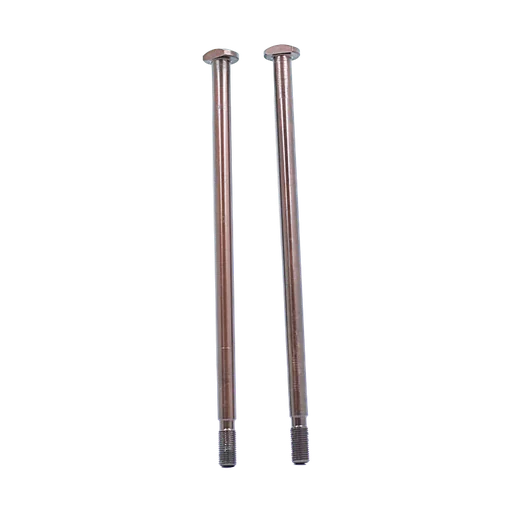

1.Bolt - Thru

ACE Part No OEM REFF NO
141000 F061564
Rotary hammer drill spares

2.Throttle Lever

ACE Part No OEM REFF NO
141010 F064534
Rotary hammer drill spares

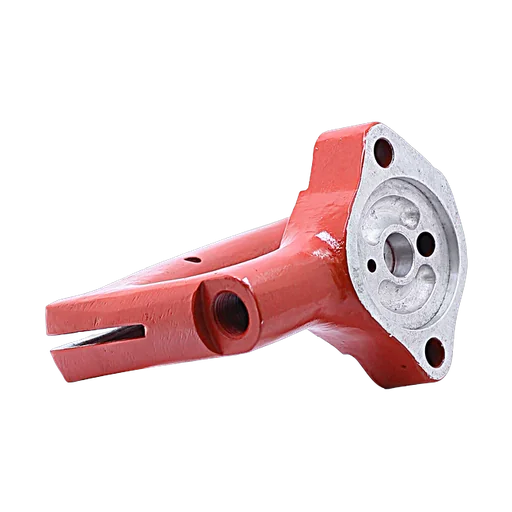

3.Handle

ACE Part No OEM REFF NO
142010 -
Rotary hammer drill spares

4.Plug - pipe, Ø 3/8 in., Ø 9.5 mm

ACE Part No OEM REFF NO
142015 C077941
Rotary hammer drill spares

5.Tube - Oil regulating

ACE Part No OEM REFF NO
142020 R085580
Rotary hammer drill spares

6.Plug - pipe, Ø 1/4 in., Ø 6.5 mm

ACE Part No OEM REFF NO
142025 C068799
Rotary hammer drill spares

7.Throttle Valve Bushing

ACE Part No OEM REFF NO
142030 R085599
Rotary hammer drill spares

8.Throttle Valve Seat

ACE Part No OEM REFF NO
142035 R086098
Rotary hammer drill spares

9.Valve stem

ACE Part No OEM REFF NO
143010 -
Rotary hammer drill spares

10.Throttle valve head

ACE Part No OEM REFF NO
143015 -
Rotary hammer drill spares

11.Throttle Valve Spring

ACE Part No OEM REFF NO
143020 R085596
Rotary hammer drill spares

12.Air inlet bushing 3/8" NPT (Nipple)

ACE Part No OEM REFF NO
143025 R085595
Rotary hammer drill spares

13.Throttle Lever Stop Pin

ACE Part No OEM REFF NO
143030 H082555
Rotary hammer drill spares

14.Throttle Lever Pin

ACE Part No OEM REFF NO
143035 A043627
Rotary hammer drill spares

15.Rubber Tube

ACE Part No OEM REFF NO
143040 R085934
Rotary hammer drill spares

16.Tube - Air (Dry Blower)

ACE Part No OEM REFF NO
143045 R079223
Rotary hammer drill spares

17.Plunger - Oil regulating

ACE Part No OEM REFF NO
143050 R085582
Rotary hammer drill spares

18.O-ring

ACE Part No OEM REFF NO
143055 C069083
Rotary hammer drill spares

19.Seat

ACE Part No OEM REFF NO
143060 R085935
Rotary hammer drill spares

20.Valve

ACE Part No OEM REFF NO
143065 R085591
Rotary hammer drill spares

21.Seat - Front valve

ACE Part No OEM REFF NO
143070 R085592
Rotary hammer drill spares

22.Piston

ACE Part No OEM REFF NO
143075 R000120
Rotary hammer drill spares

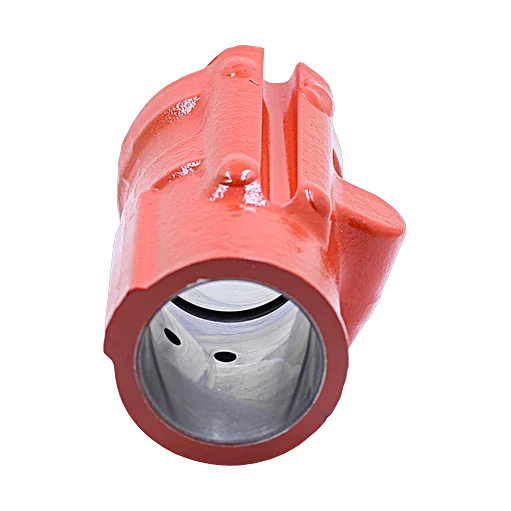

23.Cylinder

ACE Part No OEM REFF NO
143080 R085575
Rotary hammer drill spares

24.Bushing - Cylinde (With rotation rel.)

ACE Part No OEM REFF NO
143085 R041684
Rotary hammer drill spares

25.Sleeve - Shifter

ACE Part No OEM REFF NO
143090 R051350
Rotary hammer drill spares

26.Ratchet Ring

ACE Part No OEM REFF NO
143095 R093154
Rotary hammer drill spares

27.Sleeve - Chuck

ACE Part No OEM REFF NO
143100 R085601
Rotary hammer drill spares

28.Chuck 7/8" x 3/4" shank

ACE Part No OEM REFF NO
143105 R085600
Rotary hammer drill spares

29.Plug - Pipe 1/8"

ACE Part No OEM REFF NO
143110 C068064
Rotary hammer drill spares

30.Spring - plunger

ACE Part No OEM REFF NO
143115 R051353
Rotary hammer drill spares

31.Plunger - Detent

ACE Part No OEM REFF NO
143120 R051349
Rotary hammer drill spares

32.Pawl

ACE Part No OEM REFF NO
143125 R085588
Rotary hammer drill spares

33.Spring - Pawl

ACE Part No OEM REFF NO
143130 R086654
Rotary hammer drill spares

34.Front head

ACE Part No OEM REFF NO
143135 R041685
Rotary hammer drill spares

35.Plunger - Shifter

ACE Part No OEM REFF NO
143140 R051348
Rotary hammer drill spares

36.Nut - Thru bolt

ACE Part No OEM REFF NO
143145 P070438
Rotary hammer drill spares

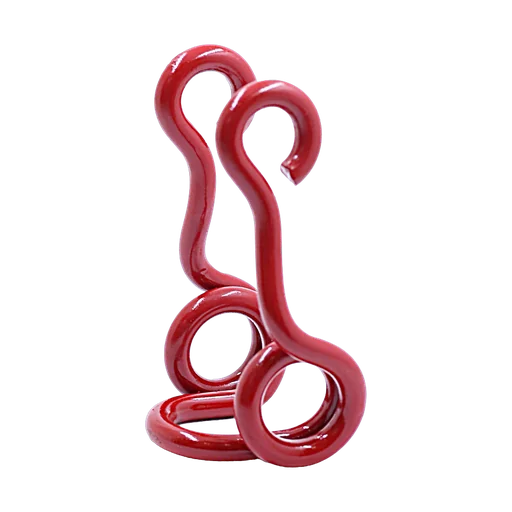

37.Retainer Wire

ACE Part No OEM REFF NO
143150 R050584
Rotary hammer drill spares

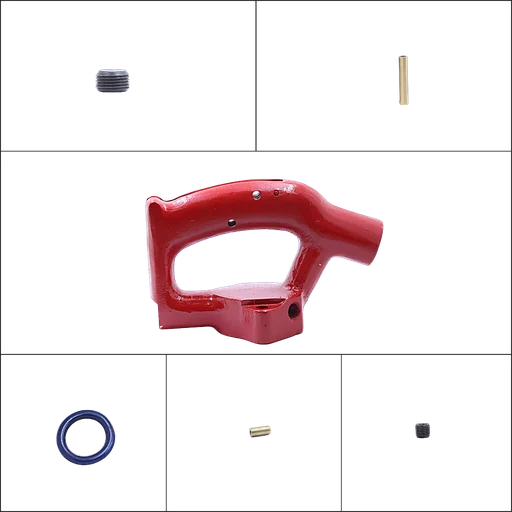

A(3-8).HANDLE COMPLETE

ACE Part No OEM REFF NO
142000 R119157
Rotary hammer drill spares

B(9-10).VALVE-THROTTLE COMPLETE

ACE Part No OEM REFF NO
143000 R086329
