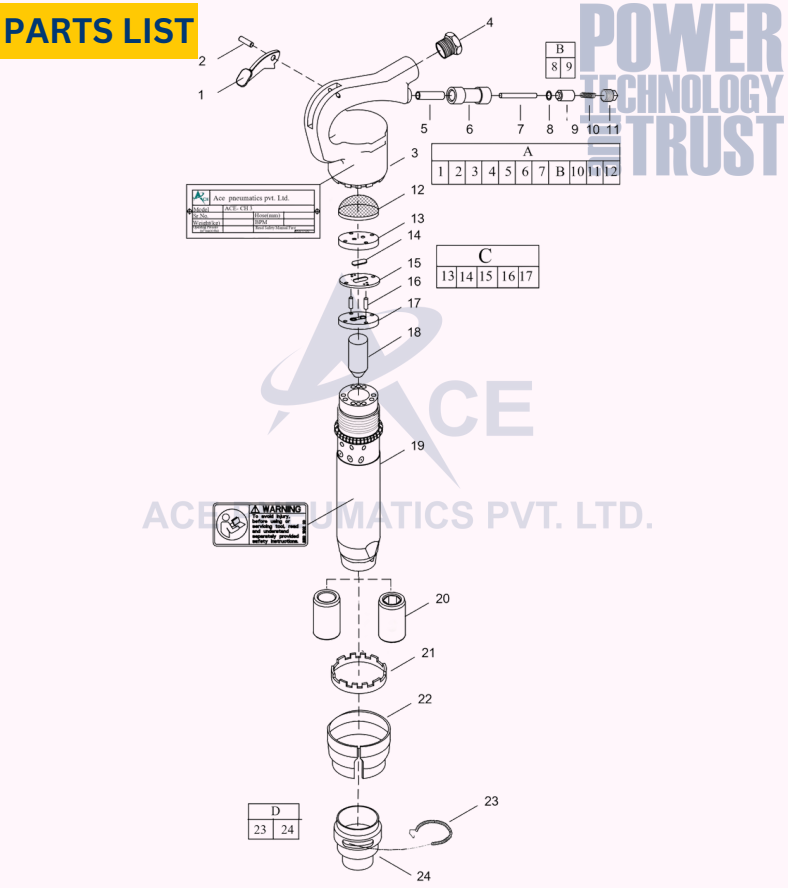

ACE CH 4123

Spares

Chipping hammer spare

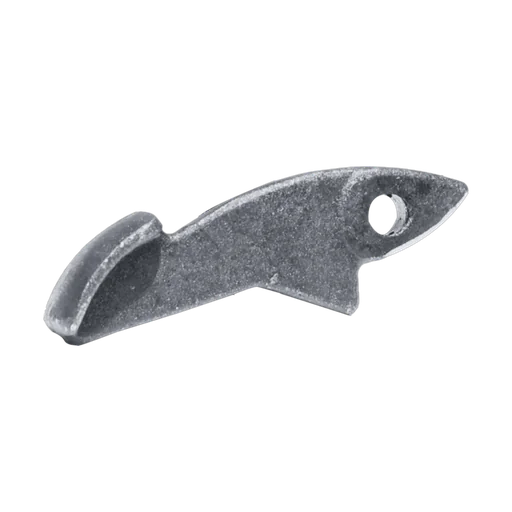

1.Throttle Lever

ACE Part No OEM REFF NO
031010 P009818
Chipping hammer spare

2.Throttle Lever Pin

ACE Part No OEM REFF NO
031015 A043627
Chipping hammer spare

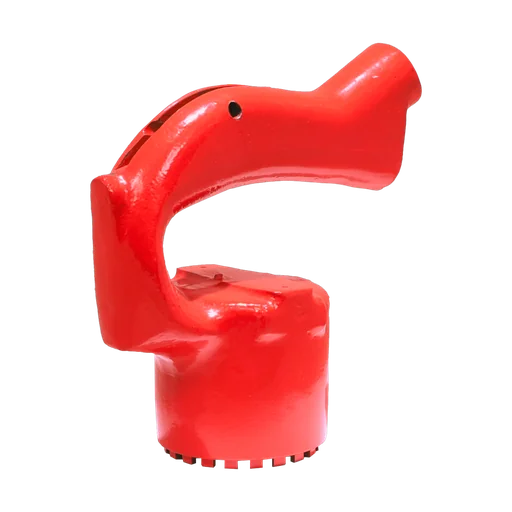

3.Handle

ACE Part No OEM REFF NO
031020 -
Chipping hammer spare

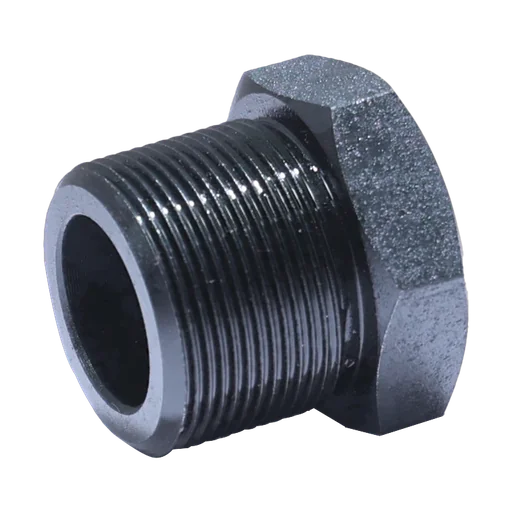

4.Air Inlet Bushing

ACE Part No OEM REFF NO
031025 P009585
Chipping hammer spare

.Air Inlet Bushing ( Inside Hex Type)

ACE Part No OEM REFF NO
Chipping hammer spare

5.Brass Bush

ACE Part No OEM REFF NO
031030 P070733
Chipping hammer spare

6.Throttle Valve Tube

ACE Part No OEM REFF NO
031035 P071318
Chipping hammer spare

7.Throttle Valve Push Pin

ACE Part No OEM REFF NO
031040 P070719
Chipping hammer spare

8.O Ring T.V

ACE Part No OEM REFF NO
113015 P083071
Chipping hammer spare

9.Throttle Valve

ACE Part No OEM REFF NO
113020 -
Chipping hammer spare

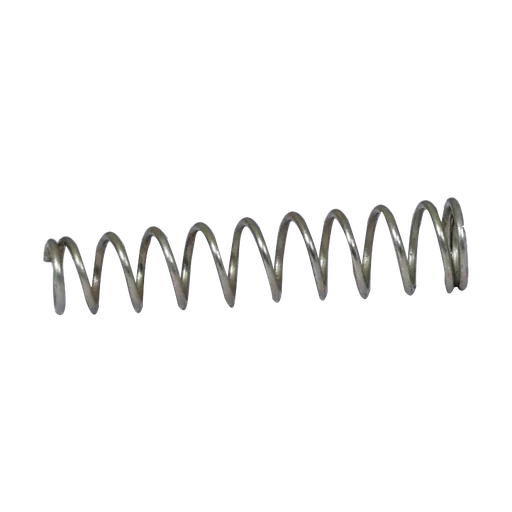

10.Throttle Valve Spring

ACE Part No OEM REFF NO
032020 P001853
Chipping hammer spare

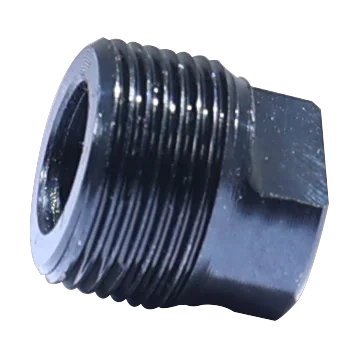

11.Throttle Valve Plug

ACE Part No OEM REFF NO
113030 P001873
Chipping hammer spare

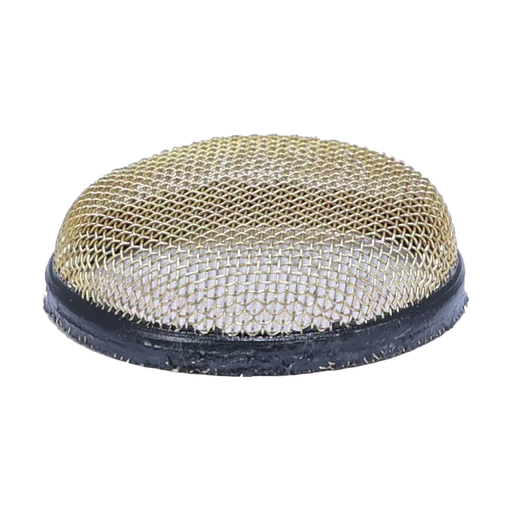

12.Screen (Filter)

ACE Part No OEM REFF NO
032030 P092485
Chipping hammer spare

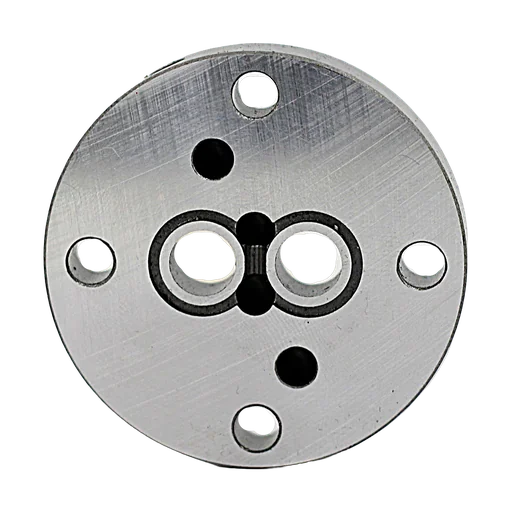

13.Upper Valve Case lid

ACE Part No OEM REFF NO
033010 P071350
Chipping hammer spare

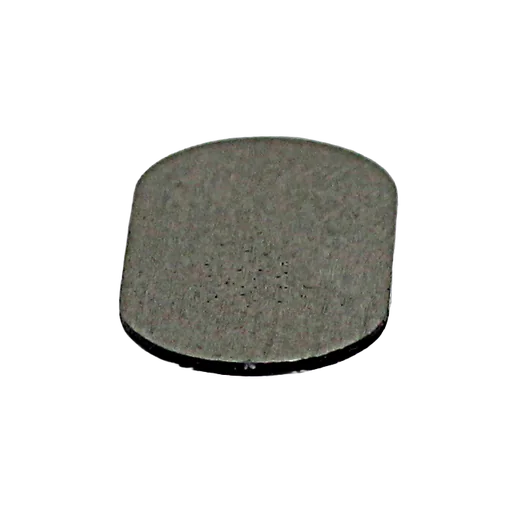

14.Valve

ACE Part No OEM REFF NO
033015 P071358
Chipping hammer spare

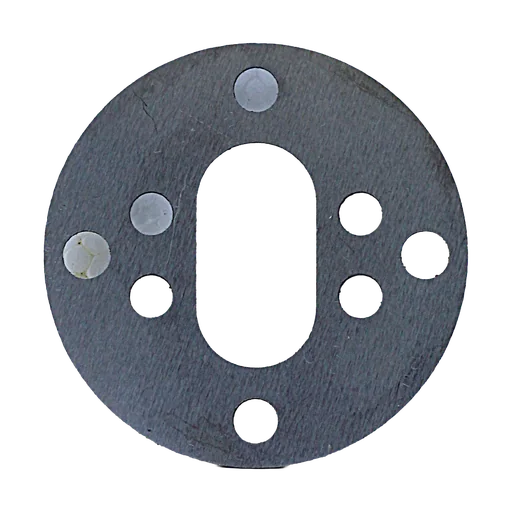

15.Valve Case

ACE Part No OEM REFF NO
033020 P071352
Chipping hammer spare

16.Dowel Pin

ACE Part No OEM REFF NO
033025 A041797
Chipping hammer spare

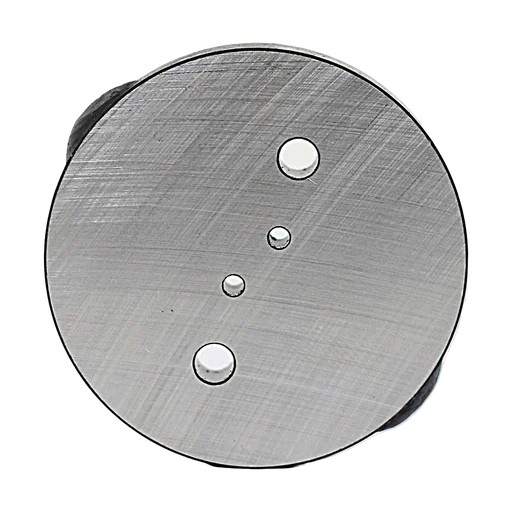

17.Lower valve case lid

ACE Part No OEM REFF NO
033030 P071351
Chipping hammer spare

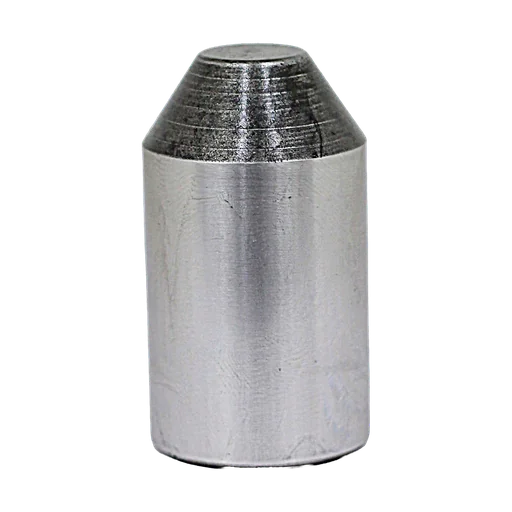

18.Piston 1"

ACE Part No OEM REFF NO
033035 -
Chipping hammer spare

18A.Piston 2"

ACE Part No OEM REFF NO
033040 P118662
Chipping hammer spare

18B.Piston 3"

ACE Part No OEM REFF NO
033045 P118662
Chipping hammer spare

18C.Piston 4"

ACE Part No OEM REFF NO
033050 P118678
Chipping hammer spare

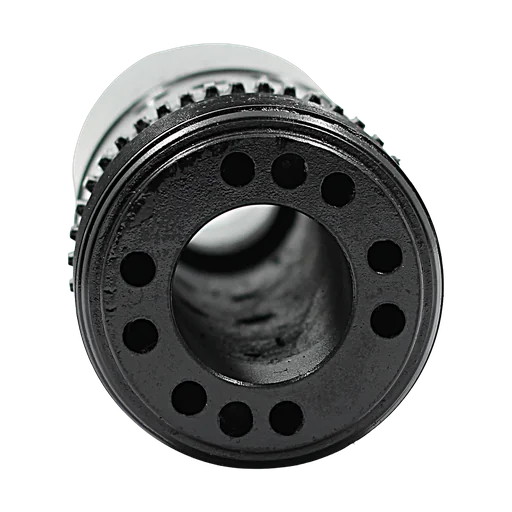

19.Cylinder 1" Stroke

ACE Part No OEM REFF NO
033055 -
Chipping hammer spare

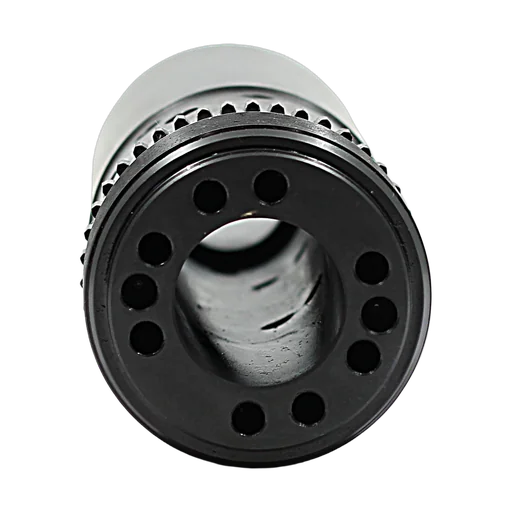

19A.Cylinder 2" Stroke

ACE Part No OEM REFF NO
033060 -
Chipping hammer spare

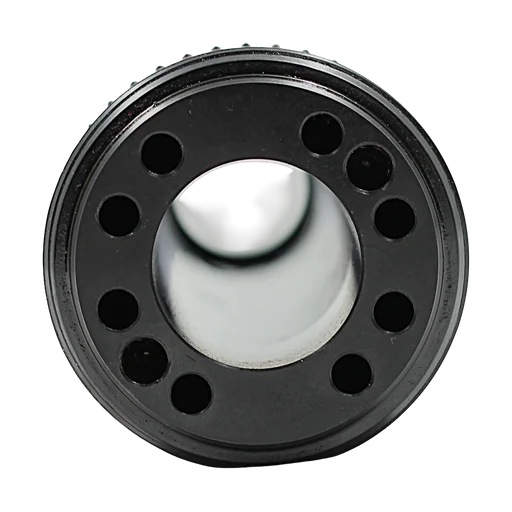

19B.Cylinder 3" Stroke

ACE Part No OEM REFF NO
033065 -
Chipping hammer spare

19C.Cylinder 4" Stroke

ACE Part No OEM REFF NO
033070 -
Chipping hammer spare

20.Chisel Bushing Hex

ACE Part No OEM REFF NO
033075 P001551
Chipping hammer spare

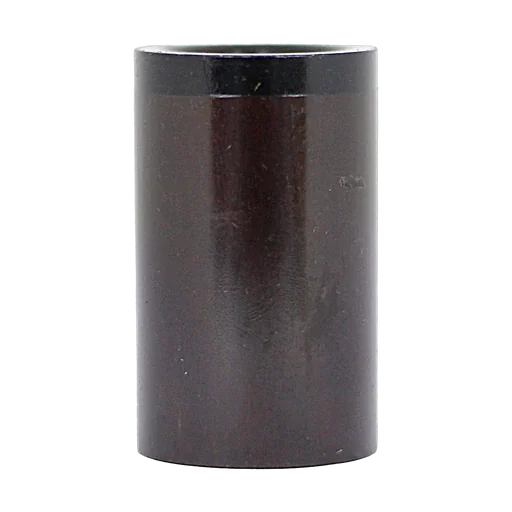

20A.Chisel Bushing Round

ACE Part No OEM REFF NO
033080 P001550
Chipping hammer spare

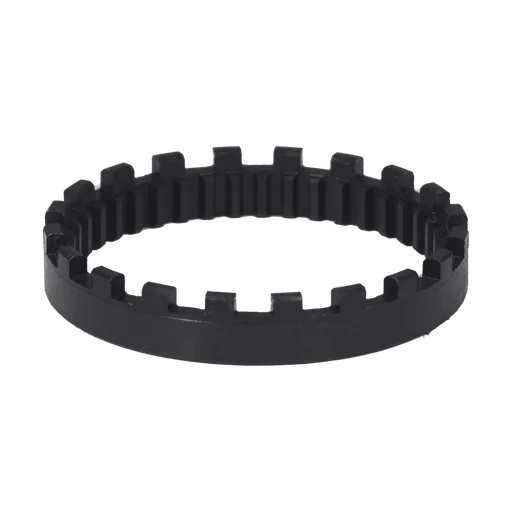

21.Lock Collar

ACE Part No OEM REFF NO
033085 P128247
Chipping hammer spare

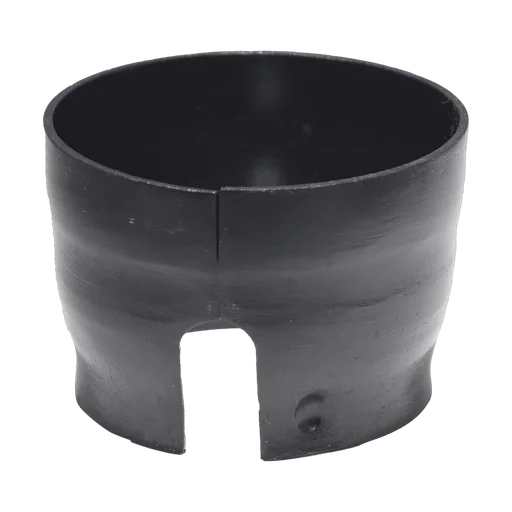

22.Exhaust Deflector

ACE Part No OEM REFF NO
033090 P071355
Chipping hammer spare

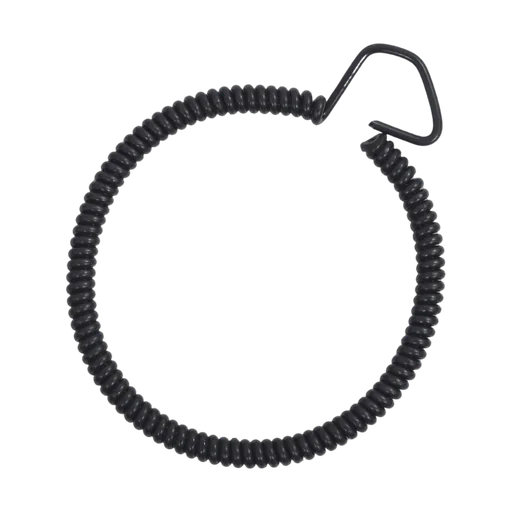

23.Retainer Lock Coil Spring

ACE Part No OEM REFF NO
034010 P070994
Chipping hammer spare

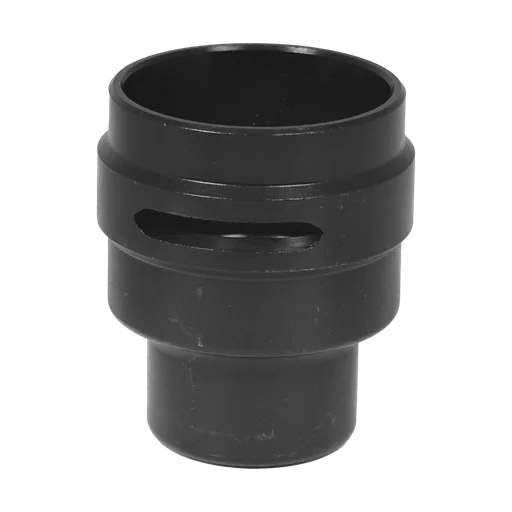

24.Retainer Sleeve

ACE Part No OEM REFF NO
034015 -
Chipping hammer spare

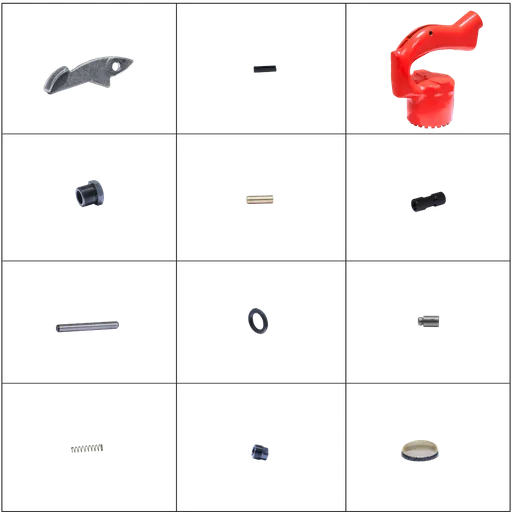

A (1-12).Handle Complete

ACE Part No OEM REFF NO
031000 Z9983830
Chipping hammer spare

B (8-11).Throttle Valve Complete

ACE Part No OEM REFF NO
032000 P001768
Chipping hammer spare

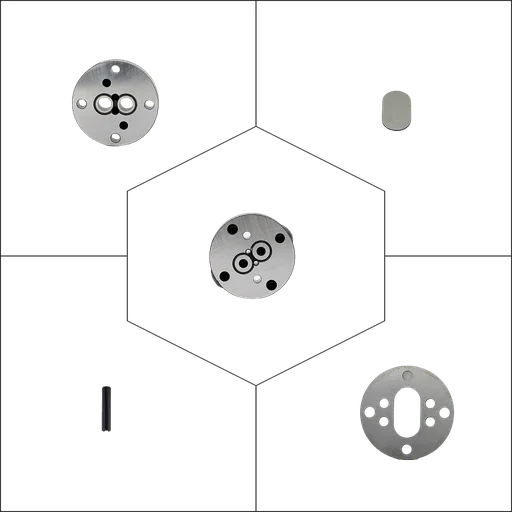

C (13-17).Valve Complete

ACE Part No OEM REFF NO
033000 P077013
Chipping hammer spare

D (23-24).Retainer Complete

ACE Part No OEM REFF NO
034000 P107243
