Rotary Drill

Rotary Drill is work both as drill and chipping hammer.ACE 09 and ACE 0014RR are useful for variety of construction and maintenance applications as driving or setting masonry anchors and drilling holes in concrete, bricks or rock. As a hammer, these tools can be used for chipping, scarifying, scaling and cleaning welds. These tools are also known as rotary hammers, Plughole Drills, Hand Drill, Rotary Drill, Handheld pneumatic drills.

Variants

Rotary Drill

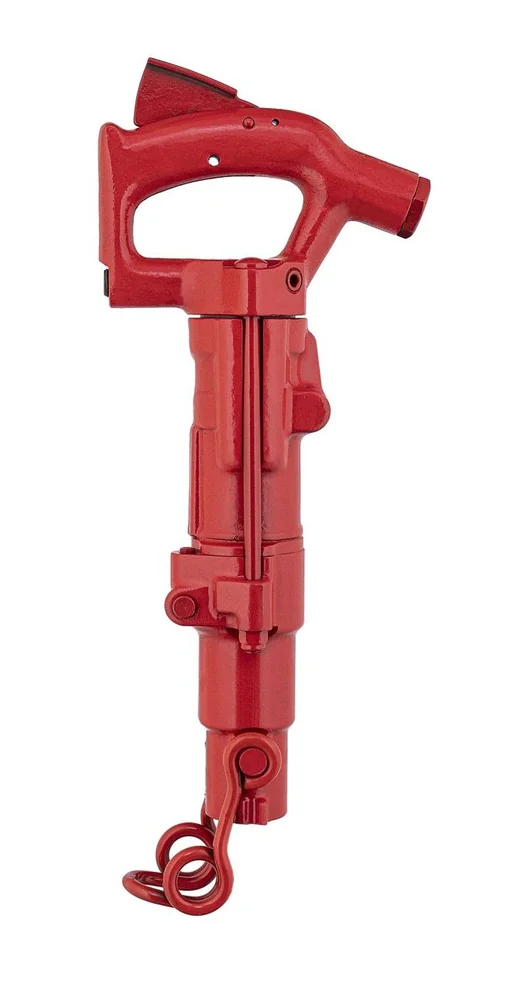

ACE SD 0014RR

The ACE SD 0014RR rotary hammers are designed for a wide variety of construction and maintenance applications such as driving or setting masonry anchors and drilling holes in concrete, bricks or rock. As a hammer, these tools can be used for chipping, scarifying, scaling and cleaning welds. It’s well known as the Rock Drill, Hand Drill, Handheld pneumatic rotary hammers it is perfect for drilling holes from 8 up to 44 mm.

Tecnical Details

Specification	Metric	Imperial
Weight with Silencer	7 kg	15.4 lb
Weight without Silencer	6.5 kg	14.3 lb
Length	480 mm	19”
Blow per Minute	2520 bpm
Piston Stroke	35 mm	1.38”
Air Inlet	9.5 mm	3/8”
Air Pressure	6 bar	87 psi
Air Consumption	22 l/s	47 cfm
Retainer Type	Spring
Shank Size (Hex)	22 x 82.5 mm	7/8" x 3¼”
OEM REFF NO	8900002010

Downloads

PDF

Leaflet Changes

PDF

Exploded View

PDF

Safety Instructions

Applications

Bolting Application such as foundation bolting,
Drilling, chipping or chasing in concrete walls
Demolition shots and sign-hanging
Quarry pop shot, Foundation bolts
Construction & Maintenance works

Rotary Drill

Standard Features

D” Handles with outside trigger
High power-to-weight ratio helps drill holes fast
Built-in oiler provides continuous lubrication
Teasing throttle for precise control
Rotation release button converts tool to a hammer

SPARES AND ACCESSORIES

Accessories can be used for your products & prevents time loss in case of breakdown

HEX Shank Chisels 7/8" X 3-1/4" (22 X 82.5 mm)

CONTRACTOR TOOLS / PAVMENT BREAKER STEEL

AIR LINE LUBRICATOR

Category : Spares & Accessories

Hose Pipe

HOSE PIPE

Rotary Drill

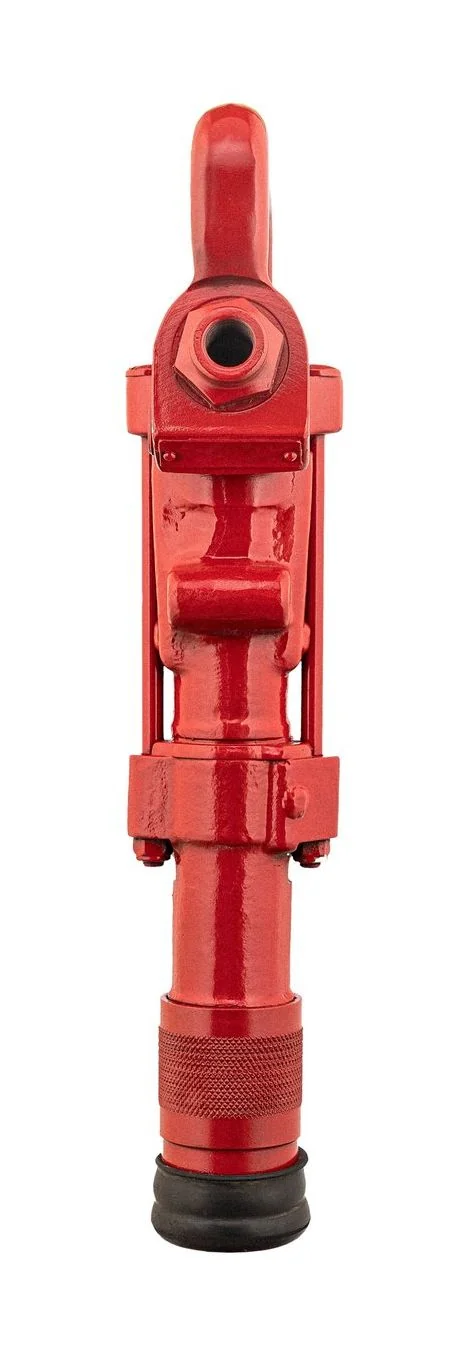

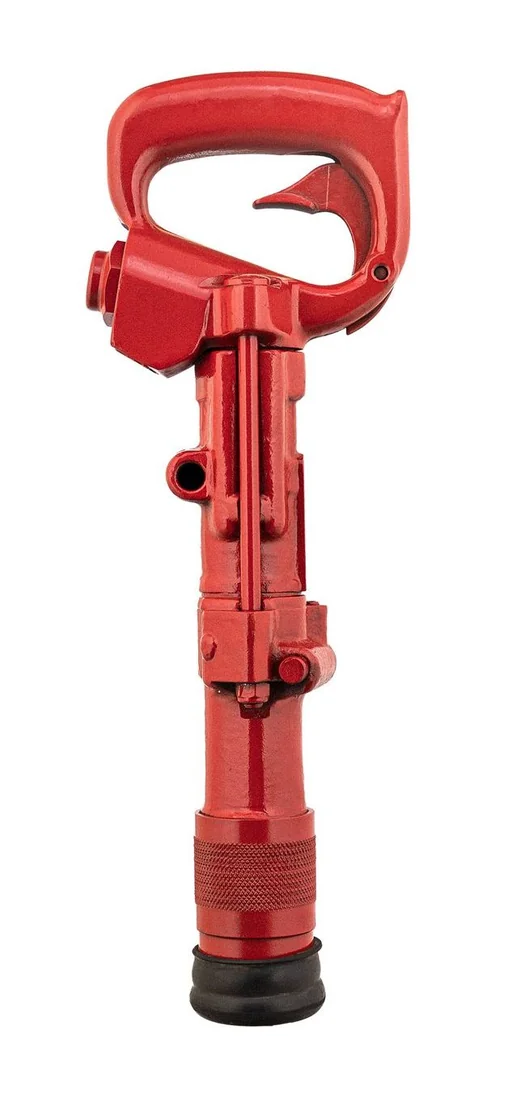

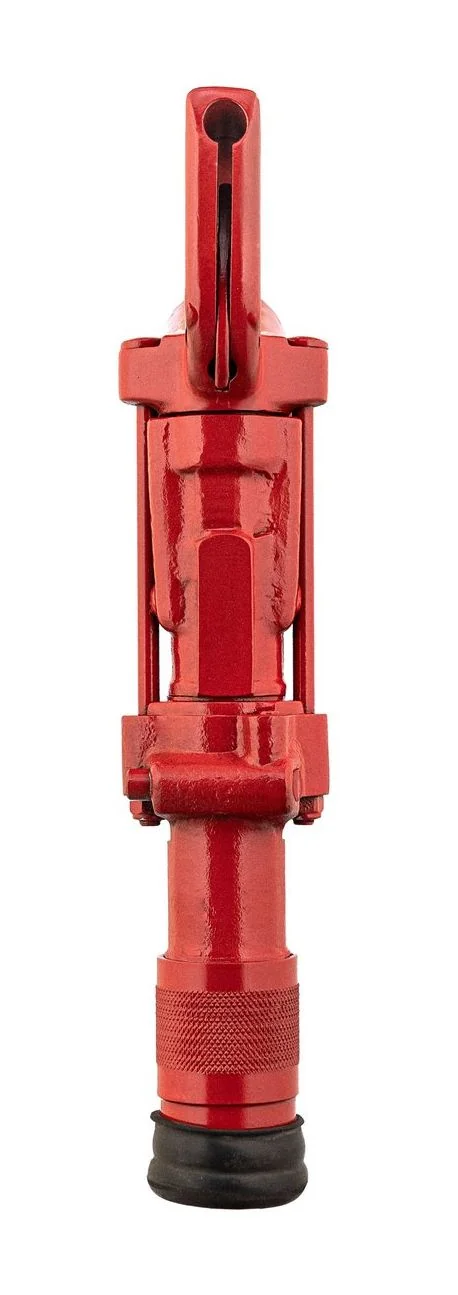

ACE SD009

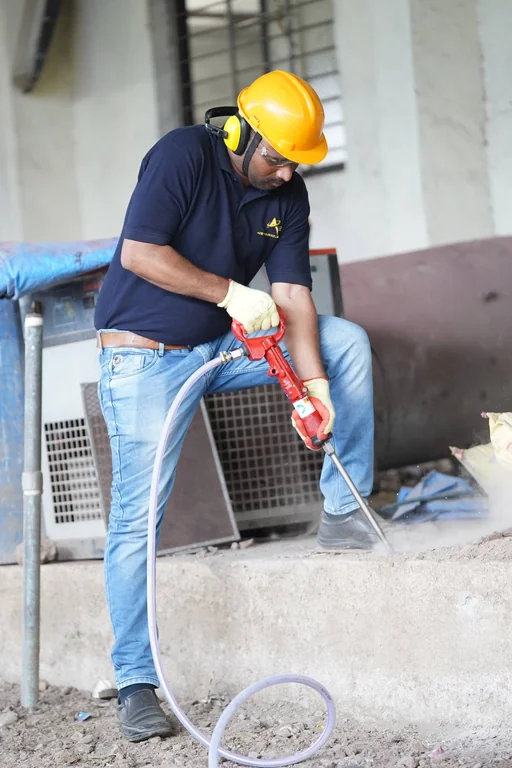

ACE SD009 Rotary hammer are combined drilling and breaking machines, designed for horizontal and vertical use. ACE 09B is equipped with a quick-change retainer and has right-hand rotation. This is capable of drilling holes from 8 up to 44 mm.ACE 09B is perfect tool for drilling holes from 8 up to 25 mm diameter, up to 300 mm in depth.
