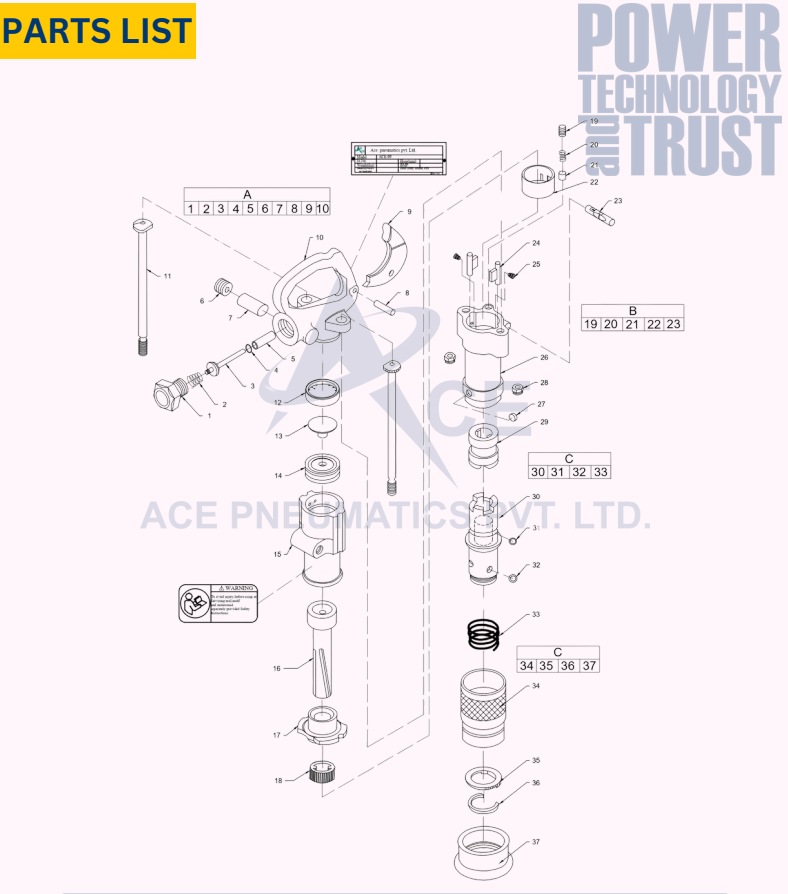

ACE SD 09B

Spares

Rotary hammer drill spares

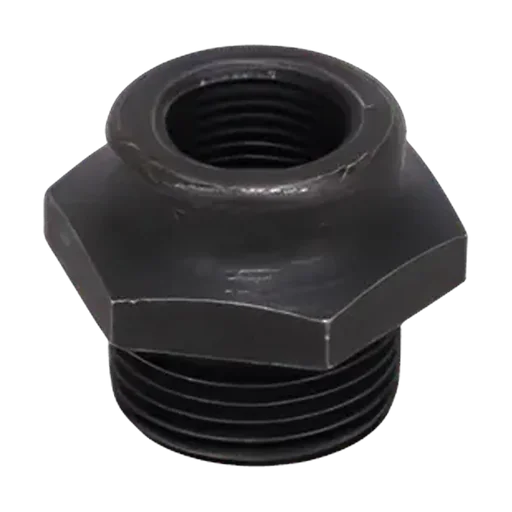

1.Bushing - air inlet, 3/8 in. NPTF (conical head)

ACE Part No OEM REFF NO
91005 R085893
Rotary hammer drill spares

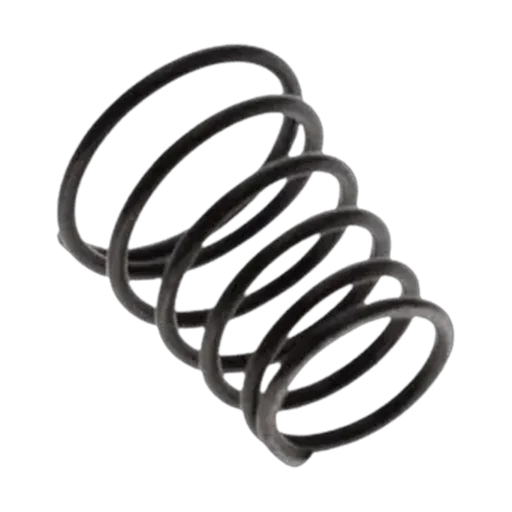

2.Throttle valve spring

ACE Part No OEM REFF NO
91010 R085596
Rotary hammer drill spares

3.Throttle valve

ACE Part No OEM REFF NO
91015 R086329
Rotary hammer drill spares

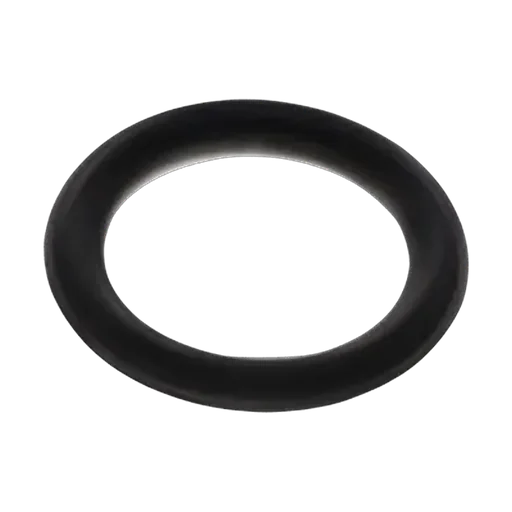

4.Throttle valve seat

ACE Part No OEM REFF NO
91020 R086098
Rotary hammer drill spares

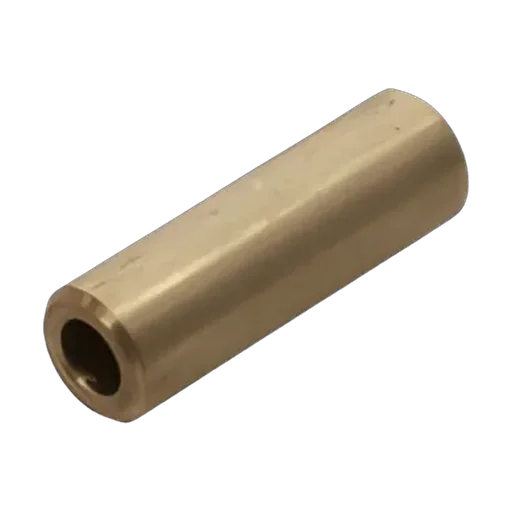

5.Throttle valve bushing

ACE Part No OEM REFF NO
91025 R085599
Rotary hammer drill spares

6.Plug - pipe, 0 3/8 in., 0 9.5 mm

ACE Part No OEM REFF NO
91030
Rotary hammer drill spares

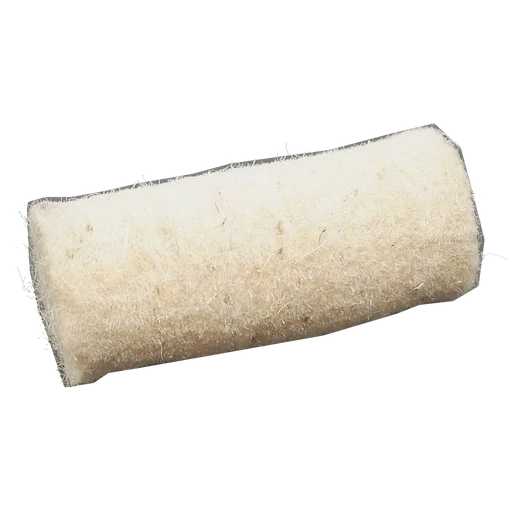

7.Felt - oil chamber

ACE Part No OEM REFF NO
91035
Rotary hammer drill spares

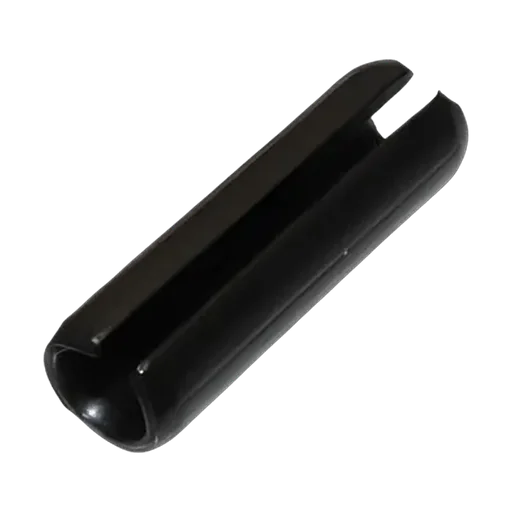

8.Throttle lever Pin

ACE Part No OEM REFF NO
91040
Rotary hammer drill spares

9.Throttle lever

ACE Part No OEM REFF NO
91045
Rotary hammer drill spares

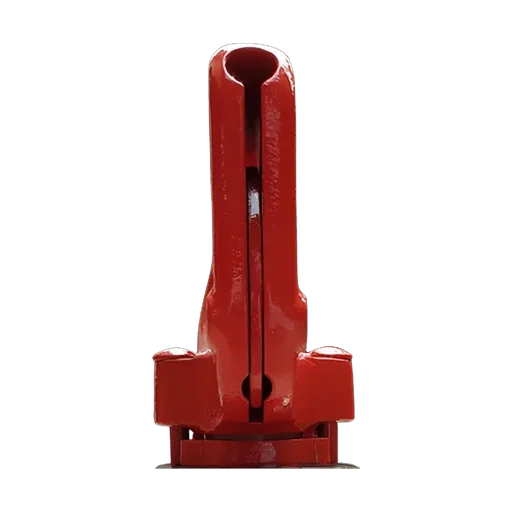

10.Handle

ACE Part No OEM REFF NO
91050
Rotary hammer drill spares

11.Bolt - thru

ACE Part No OEM REFF NO
91055
Rotary hammer drill spares

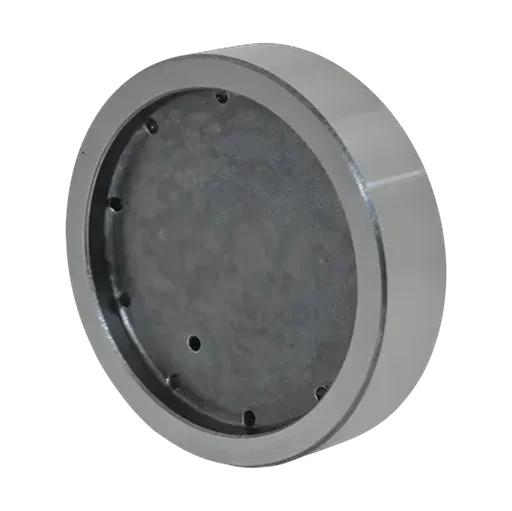

12.Rear valve seat

ACE Part No OEM REFF NO
91060
Rotary hammer drill spares

13.Valve

ACE Part No OEM REFF NO
91065
Rotary hammer drill spares

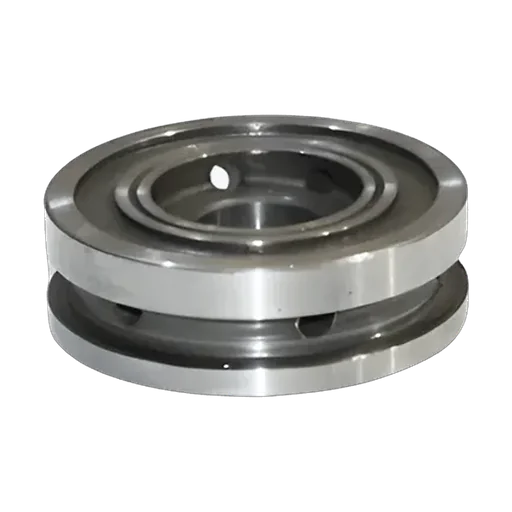

14.Front valve seat

ACE Part No OEM REFF NO
91070
Rotary hammer drill spares

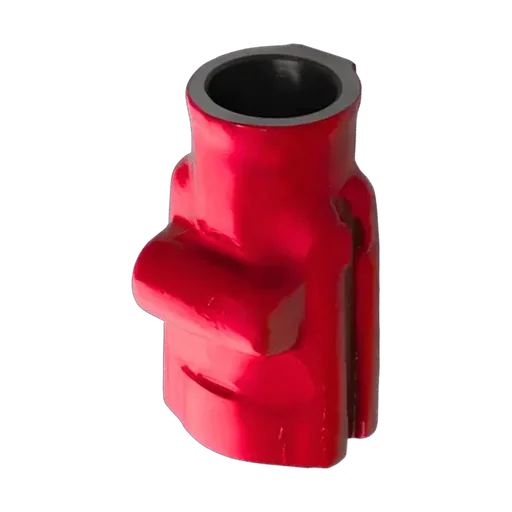

15.Cylinder

ACE Part No OEM REFF NO
91075
Rotary hammer drill spares

16.Piston

ACE Part No OEM REFF NO
91080
Rotary hammer drill spares

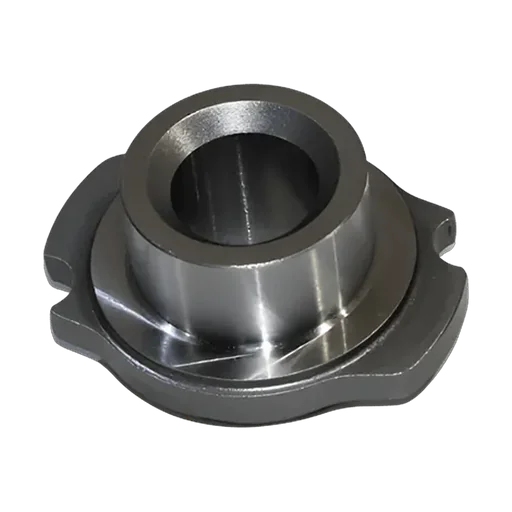

17.Cylinder bushing

ACE Part No OEM REFF NO
91085
Rotary hammer drill spares

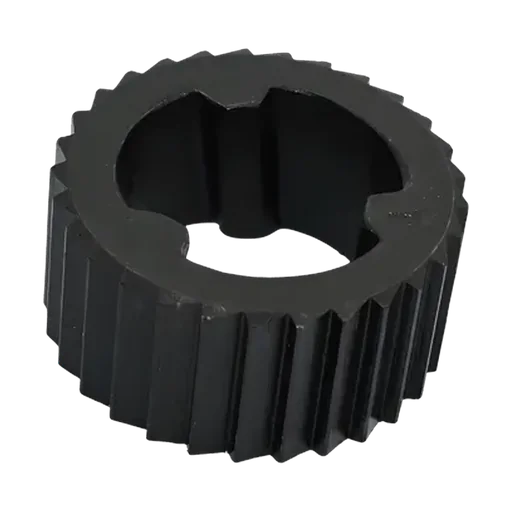

18.Ratchet ring

ACE Part No OEM REFF NO
91090
Rotary hammer drill spares

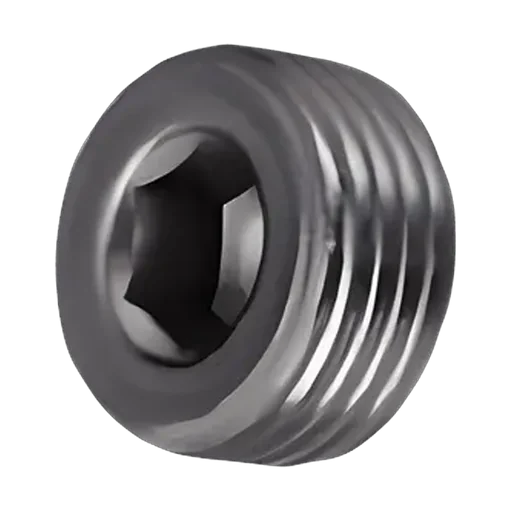

19.Plug - pipe, 1/16 in. NPTF

ACE Part No OEM REFF NO
92005
Rotary hammer drill spares

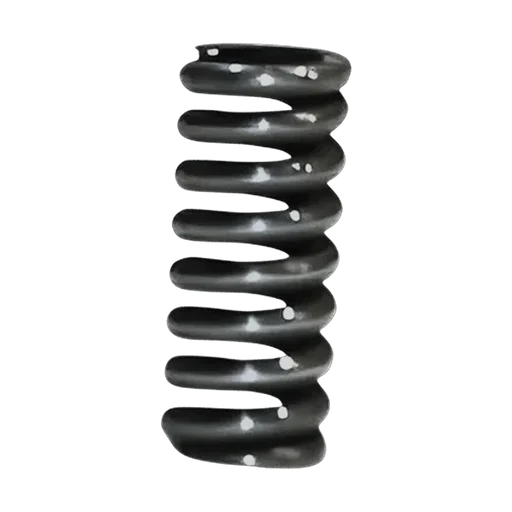

20.Spring - plunger

ACE Part No OEM REFF NO
92010
Rotary hammer drill spares

21.Plunger - shifter detent

ACE Part No OEM REFF NO
92015
Rotary hammer drill spares

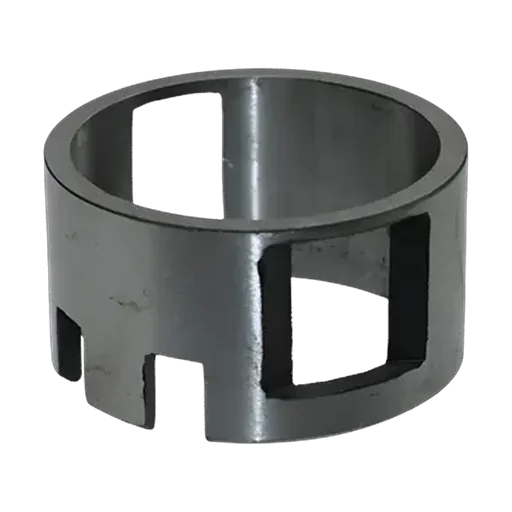

22.Sleeve - shifter

ACE Part No OEM REFF NO
92020
Rotary hammer drill spares

23.Plunger - shifter

ACE Part No OEM REFF NO
92025
Rotary hammer drill spares

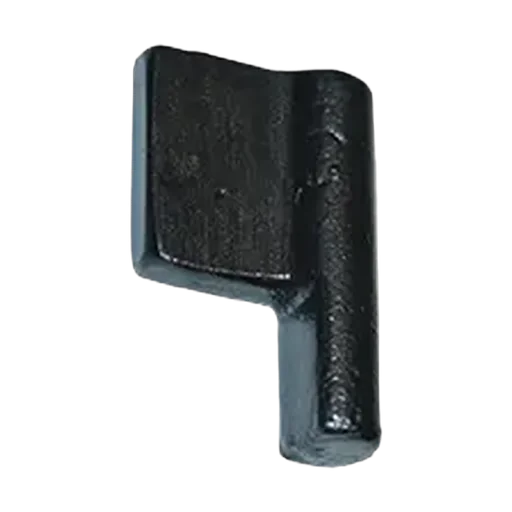

24.Pawl

ACE Part No OEM REFF NO
92030
Rotary hammer drill spares

25.Spring - pawl

ACE Part No OEM REFF NO
92035
Rotary hammer drill spares

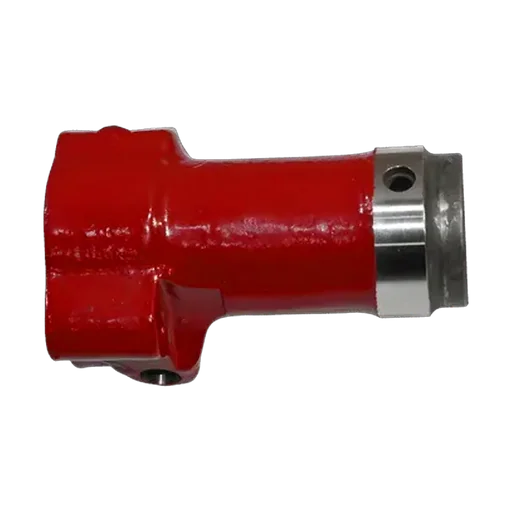

26.Fronthead

ACE Part No OEM REFF NO
92040
Rotary hammer drill spares

27.Plug - ball retainer

ACE Part No OEM REFF NO
92045
Rotary hammer drill spares

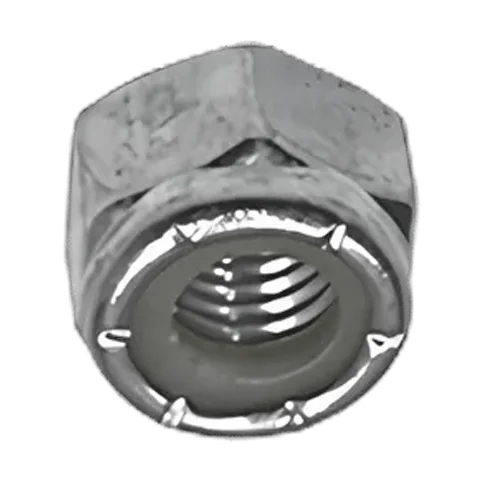

28.Nut - thru bolt

ACE Part No OEM REFF NO
92050
Rotary hammer drill spares

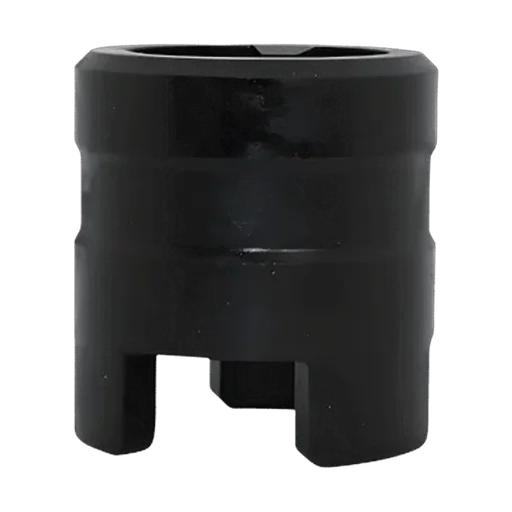

29.Chuck sleeve

ACE Part No OEM REFF NO
92055
Rotary hammer drill spares

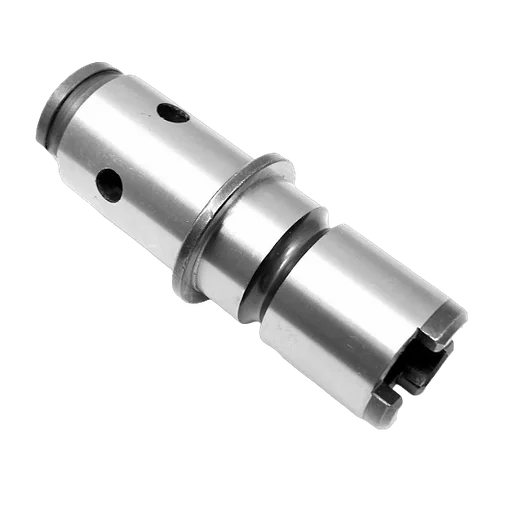

30.Chuck

ACE Part No OEM REFF NO
93005
Rotary hammer drill spares

31.Chuck retainer ball, complete

ACE Part No OEM REFF NO
93010
Rotary hammer drill spares

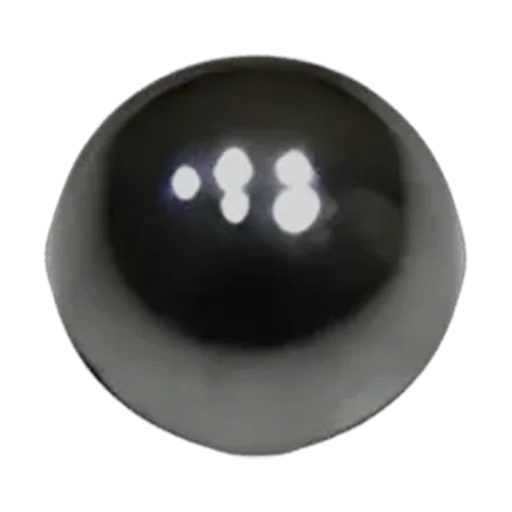

32.Ball - steel, complete,05/16 in. (7.9 mm).

ACE Part No OEM REFF NO
93015
Rotary hammer drill spares

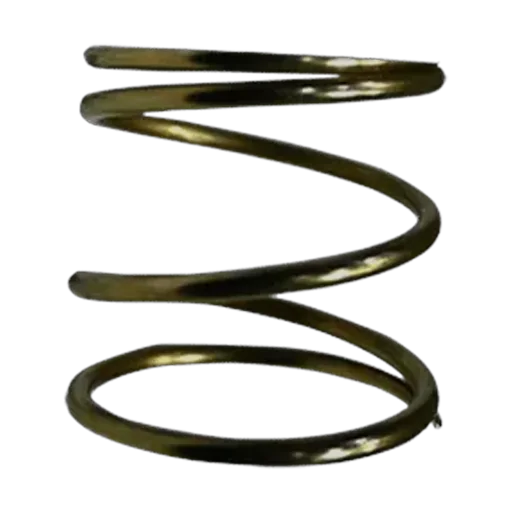

33.Spring - Retainer sleeve

ACE Part No OEM REFF NO
93020
Rotary hammer drill spares

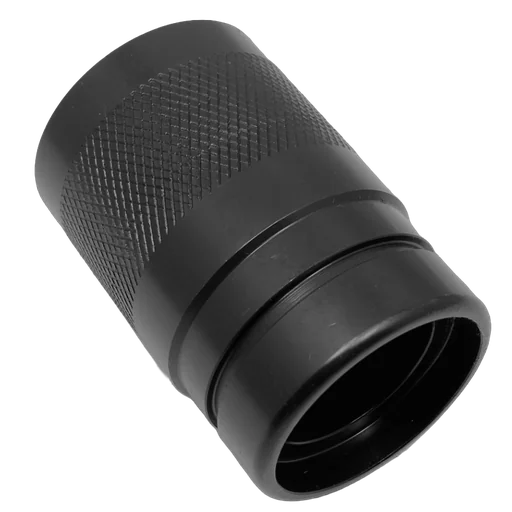

34.Retainer

ACE Part No OEM REFF NO
94005
Rotary hammer drill spares

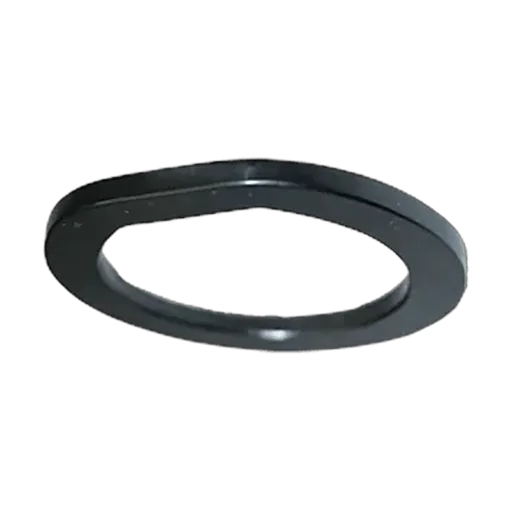

35.Retainer plate

ACE Part No OEM REFF NO
94010
Rotary hammer drill spares

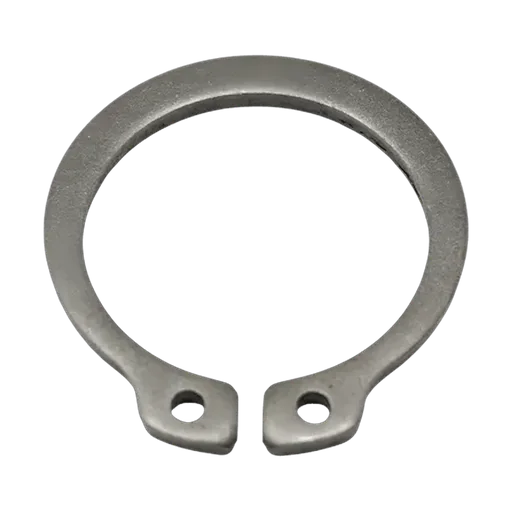

36.Retainer ring

ACE Part No OEM REFF NO
94015
Rotary hammer drill spares

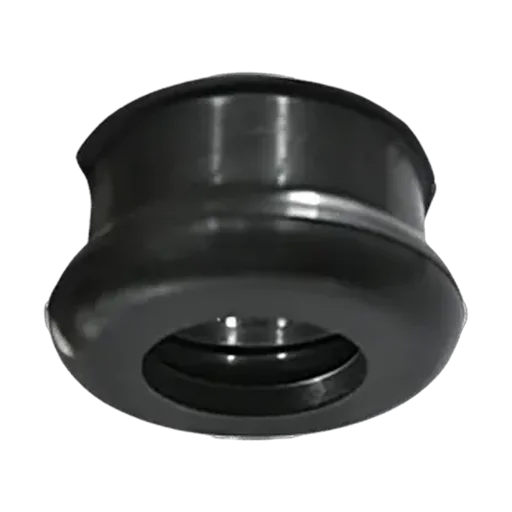

37.Dust excluder

ACE Part No OEM REFF NO
94020
Rotary hammer drill spares

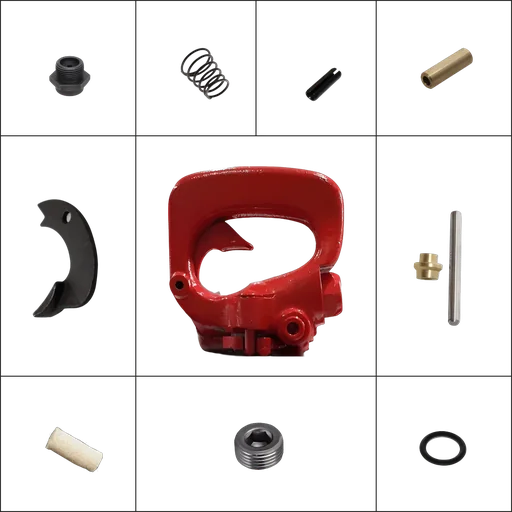

A(1-10).Handle, complete

ACE Part No OEM REFF NO
91000
Rotary hammer drill spares

B(19-23).Rotation release, complete

ACE Part No OEM REFF NO
92000
Rotary hammer drill spares

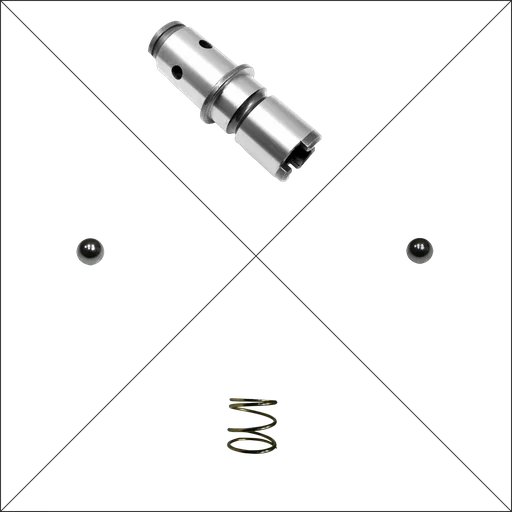

C(30-33).Round chuck, complete

ACE Part No OEM REFF NO
93000
Rotary hammer drill spares

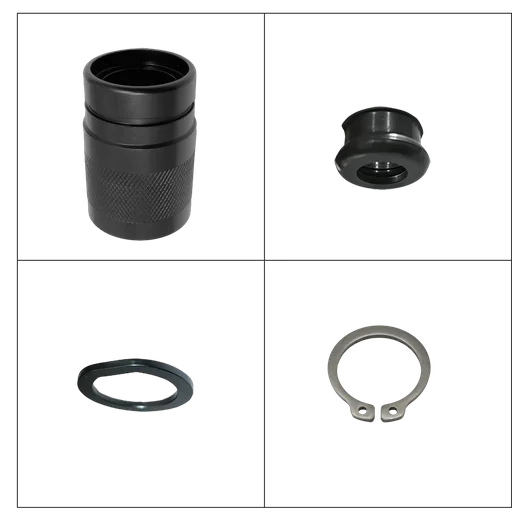

D(34-37).Retainer sleeve, complete

ACE Part No OEM REFF NO
94000
