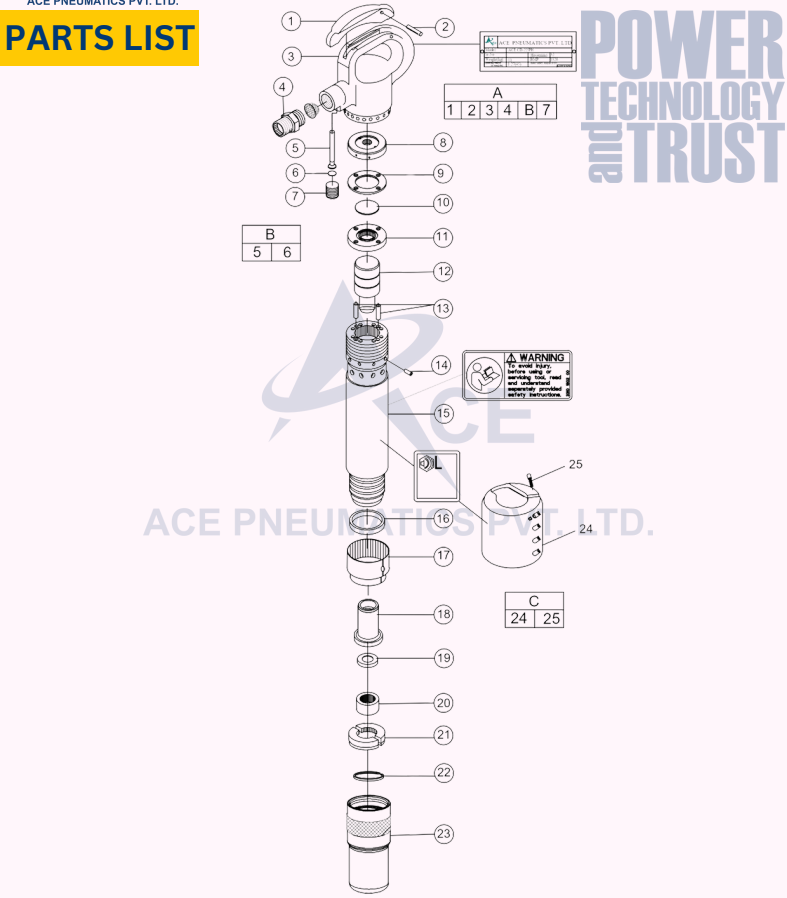

ACE CD FL 22

Spares

Clay digger spare

1.Throttle Lever

ACE Part No OEM REFF NO
221010 F011471
Clay digger spare

2.Throttle Lever Pin

ACE Part No OEM REFF NO
221015 F011472
Clay digger spare

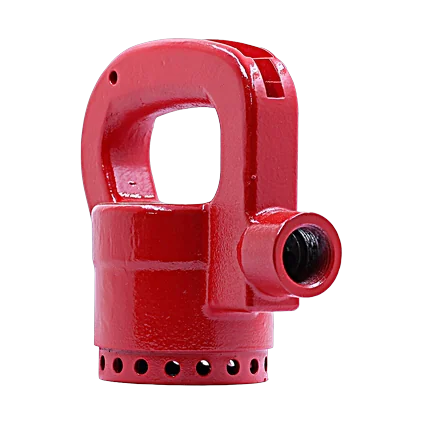

3.Handle

ACE Part No OEM REFF NO
221020 -
Clay digger spare

4.Air Intel Bush (Nipple)

ACE Part No OEM REFF NO
221025 F035769
Clay digger spare

5.Throttle Valve

ACE Part No OEM REFF NO
222010 -
Clay digger spare

6.Throttle Valve O Ring

ACE Part No OEM REFF NO
222015 CA088867
Clay digger spare

7.Throttle Plug

ACE Part No OEM REFF NO
222020 C059643
Clay digger spare

8.Upper Valve Case LID

ACE Part No OEM REFF NO
222025 F012657
Clay digger spare

9.Valve Case

ACE Part No OEM REFF NO
222030 F012658
Clay digger spare

10.Valve

ACE Part No OEM REFF NO
222035 F012659
Clay digger spare

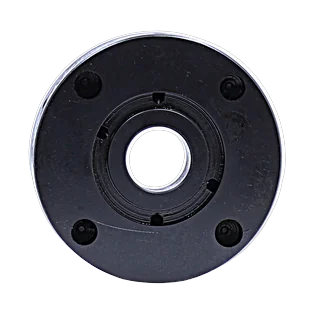

11.Lower Valve Case LID

ACE Part No OEM REFF NO
222040 F012656
Clay digger spare

12.Piston

ACE Part No OEM REFF NO
222045 F026357
Clay digger spare

13.Dowel Pin

ACE Part No OEM REFF NO
222050 F012670
Clay digger spare

14.Lock Pin-Handle

ACE Part No OEM REFF NO
222055 F001919
Clay digger spare

15.Cylinder

ACE Part No OEM REFF NO
222060 -
Clay digger spare

16.Retainer Locking Ring

ACE Part No OEM REFF NO
222065 F035269
Clay digger spare

17.Exhaust Deflector

ACE Part No OEM REFF NO
222070 F012747
Clay digger spare

18.Tool bushing

ACE Part No OEM REFF NO
222075 F026354
Clay digger spare

19.Leather Buffer

ACE Part No OEM REFF NO
222080 P006346
Clay digger spare

20.Rubber Buffer

ACE Part No OEM REFF NO
222085 F814522
Clay digger spare

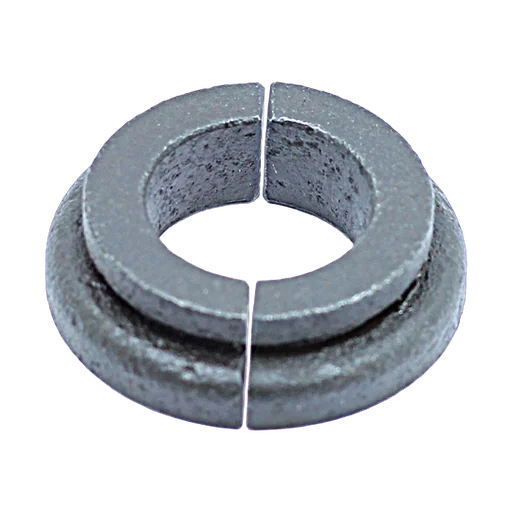

21.Spade Retainer(Cut Washer)

ACE Part No OEM REFF NO
222090 -
Clay digger spare

22.Retainer Ring (Spring)

ACE Part No OEM REFF NO
222095 -
Clay digger spare

23.Retainer

ACE Part No OEM REFF NO
222100 F035274
Clay digger spare

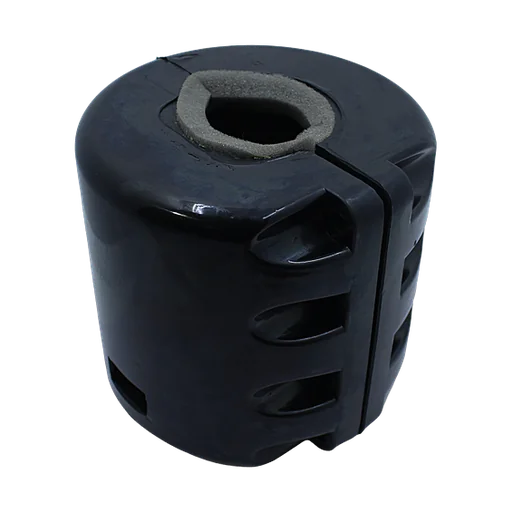

24.Muffler

ACE Part No OEM REFF NO
223010 -
Clay digger spare

25.Screw

ACE Part No OEM REFF NO
223015 R140630
Clay digger spare

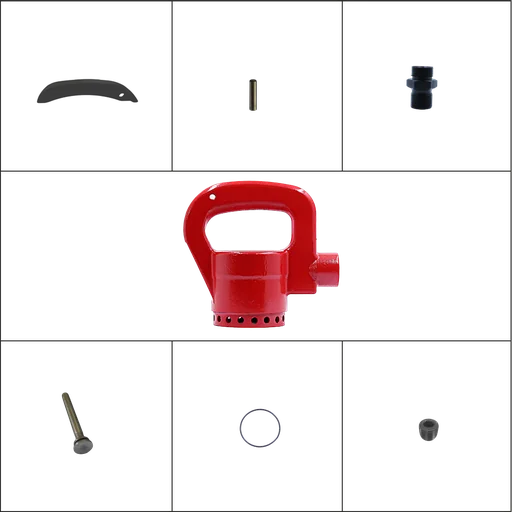

A ( 1-7 ).Handle Complete

ACE Part No OEM REFF NO
221000 F027831
Clay digger spare

B (5-6).Throttle Valve Complete

ACE Part No OEM REFF NO
222000 F011476
Clay digger spare

C (24-25).Muffler Complete

ACE Part No OEM REFF NO
222300 F814201
