ACE 3050

Spares

Die Grinder spare

1.AIR INLET BUSHING

ACE Part No	OEM REFF NO
30500005

Die Grinder spare

2.STRAINER

ACE Part No	OEM REFF NO
30500010

Die Grinder spare

3.THROTTLE SPRING

ACE Part No	OEM REFF NO
30500015

Die Grinder spare

4.THROTTLE VALVE

ACE Part No	OEM REFF NO
30500020

Die Grinder spare

5.O RING

ACE Part No	OEM REFF NO
30500025

Die Grinder spare

6.GOVERNOR THROTTLE HOUSING

ACE Part No	OEM REFF NO
30500030

Die Grinder spare

7.THROTTLE SLEEVE

ACE Part No	OEM REFF NO
30500035

Die Grinder spare

8.ROTOR HOUSING

ACE Part No	OEM REFF NO
30500040

Die Grinder spare

9.EXHAUST DEFLECTOR

ACE Part No	OEM REFF NO
30500045

Die Grinder spare

10.SPINDLE (METRIC)

ACE Part No	OEM REFF NO
30500050

Die Grinder spare

11.BALL BEARING SET

ACE Part No	OEM REFF NO
30500055

Die Grinder spare

12.BEARING CLAMP NUT

ACE Part No	OEM REFF NO
30500060

Die Grinder spare

13.COLLET BODY 1/4'' / 6MM

ACE Part No	OEM REFF NO
30500065

Die Grinder spare

14.COLLET NUT 1/4''

ACE Part No	OEM REFF NO
30500070

Die Grinder spare

15.LOWER / UPPER END PLATE

ACE Part No	OEM REFF NO
30500075

Die Grinder spare

16.BALL BEARING (8000 & 12000 RPM)

ACE Part No	OEM REFF NO
30500080

Die Grinder spare

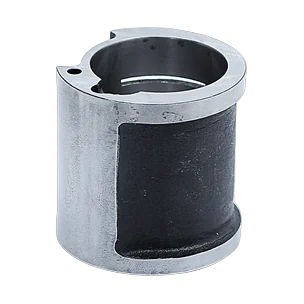

17.CYLINDER LINER

ACE Part No	OEM REFF NO
30500085

Die Grinder spare

18.CYLINDER DOWEL PIN

ACE Part No	OEM REFF NO
30500090

Die Grinder spare

19.ROTOR

ACE Part No	OEM REFF NO
30500095

Die Grinder spare

20.ROTOR BLADE

ACE Part No	OEM REFF NO
30500100

Die Grinder spare

21.SPINDLE COUPLING

ACE Part No	OEM REFF NO
30500105

Die Grinder spare

22.ROTOR KEY

ACE Part No	OEM REFF NO
30500115

Die Grinder spare

23.BALL DIA (Ø 3/16 SIZE)

ACE Part No	OEM REFF NO
30500120

Die Grinder spare

24.THROTTLE VALVE PIN

ACE Part No	OEM REFF NO
30500125

Die Grinder spare

25.SET SCREW

ACE Part No	OEM REFF NO
30500130

Die Grinder spare

26.INNER WHEEL COLLAR

ACE Part No	OEM REFF NO
30500135

Die Grinder spare

27.THROTTLE SPRING(3/15x10MM)

ACE Part No	OEM REFF NO
30500140
