ACE PB 112

Spares

Paving breaker spares

1.Throttle lever

ACE Part No OEM REFF NO
1121010 R070110
Paving breaker spares

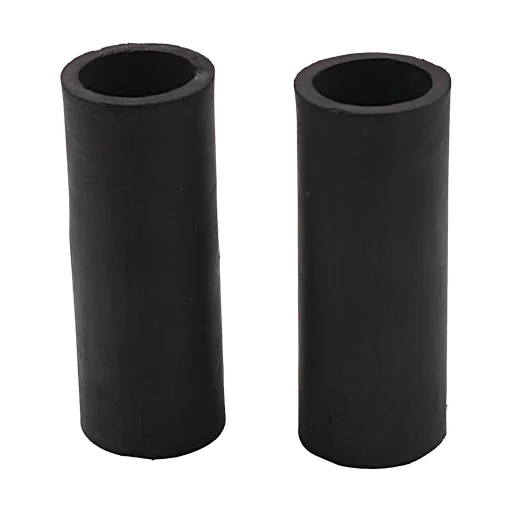

2.Backhead grip

ACE Part No OEM REFF NO
1121015 R005716
Paving breaker spares

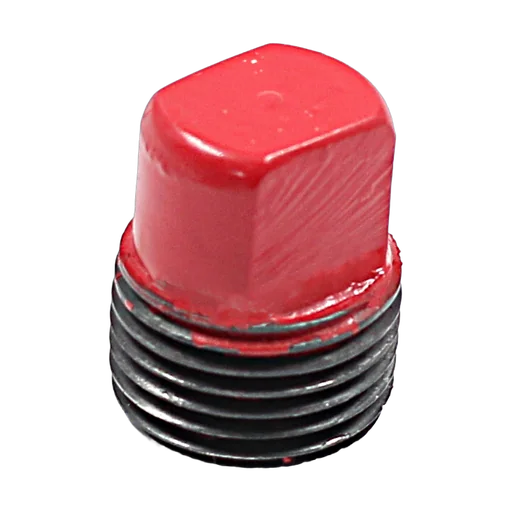

3.Oil plug

ACE Part No OEM REFF NO
1121020 R000560
Paving breaker spares

4.Roll pin (lever pin)

ACE Part No OEM REFF NO
1121025 R133433
Paving breaker spares

5.Air inlet bushing (Nipple)

ACE Part No OEM REFF NO
1121030 R075227
Paving breaker spares

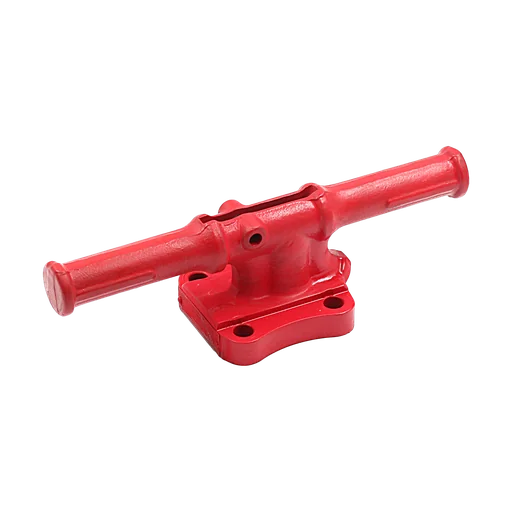

6.Backhead

ACE Part No OEM REFF NO
1121035
Paving breaker spares

7.Throttle valve bushing

ACE Part No OEM REFF NO
1121040 R070106
Paving breaker spares

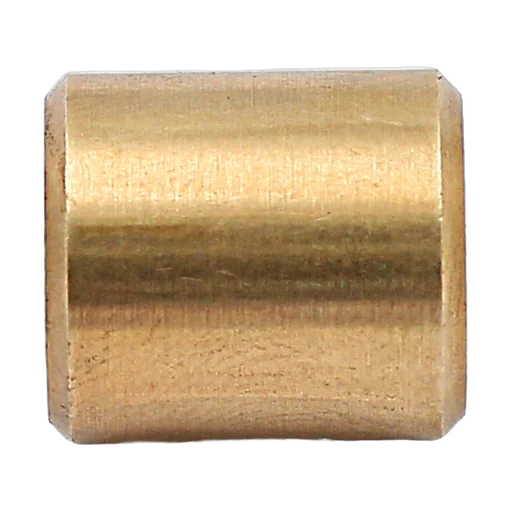

8.Throttle valve bushing stem

ACE Part No OEM REFF NO
1121045 R070109
Paving breaker spares

9.Throttle valve

ACE Part No OEM REFF NO
1122010
Paving breaker spares

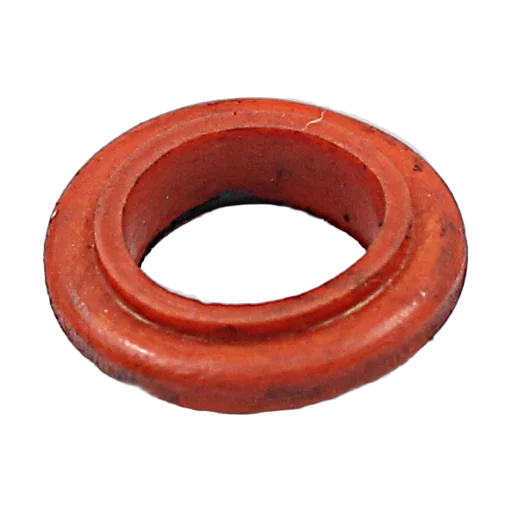

10.Throttle valve seal

ACE Part No OEM REFF NO
1122015
Paving breaker spares

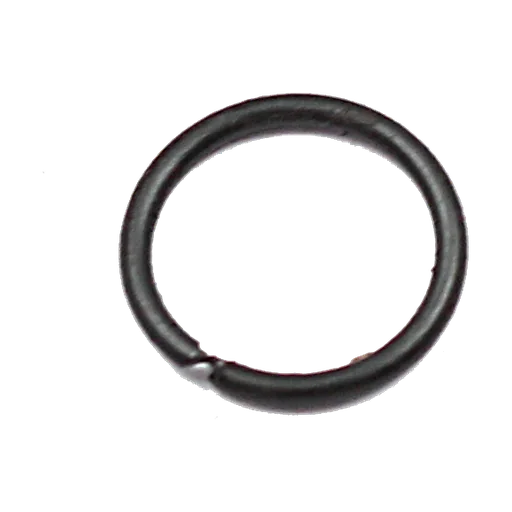

11.Throttle velve Retainer ring(seal)

ACE Part No OEM REFF NO
1122020
Paving breaker spares

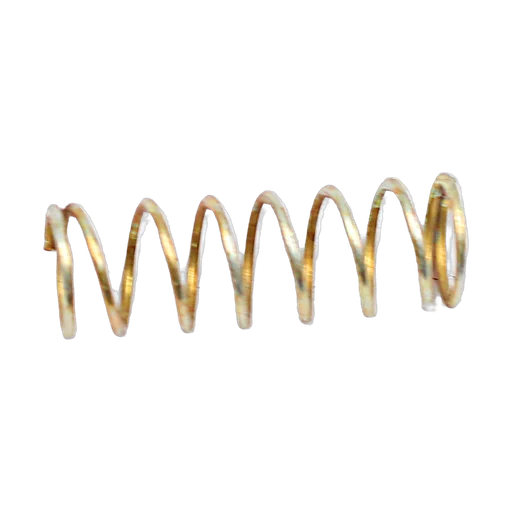

12.Throttle valve spring

ACE Part No OEM REFF NO
1122025
Paving breaker spares

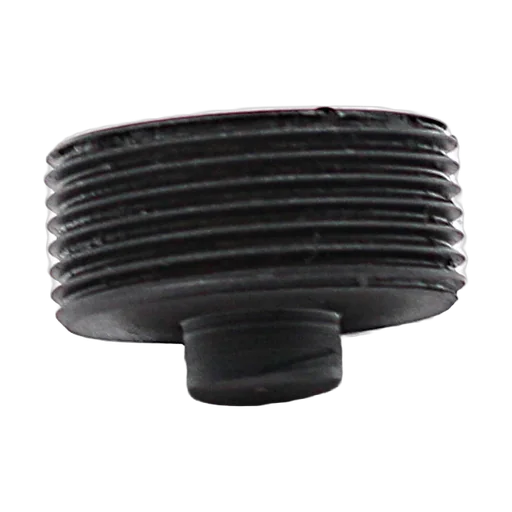

13.Plug - throttle valve bushing

ACE Part No OEM REFF NO
1122030 R070108
Paving breaker spares

14.Velve

ACE Part No OEM REFF NO
1122035 R070103
Paving breaker spares

15.Block - valve

ACE Part No OEM REFF NO
1122040 3303 0051 35
Paving breaker spares

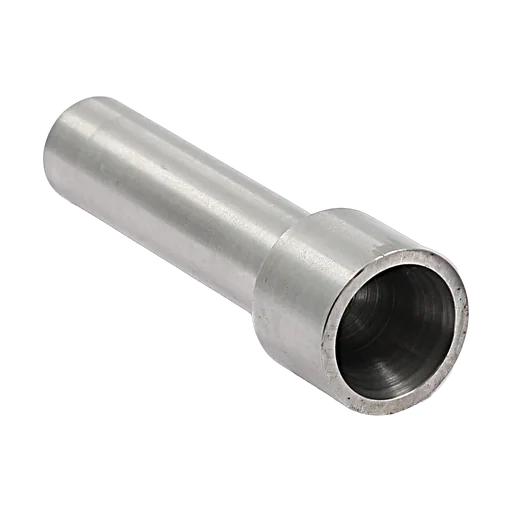

16.Piston

ACE Part No OEM REFF NO
1122045 R070102
Paving breaker spares

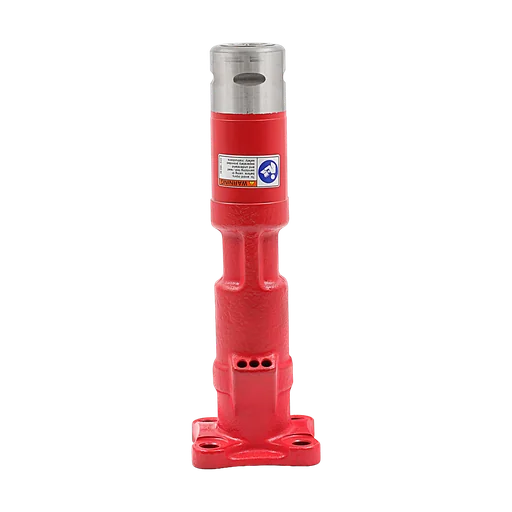

17.Cylinder

ACE Part No OEM REFF NO
1122050
Paving breaker spares

18.Bushing Hexagon 1" x 4 1/4"

ACE Part No OEM REFF NO
1122055 R070112
Paving breaker spares

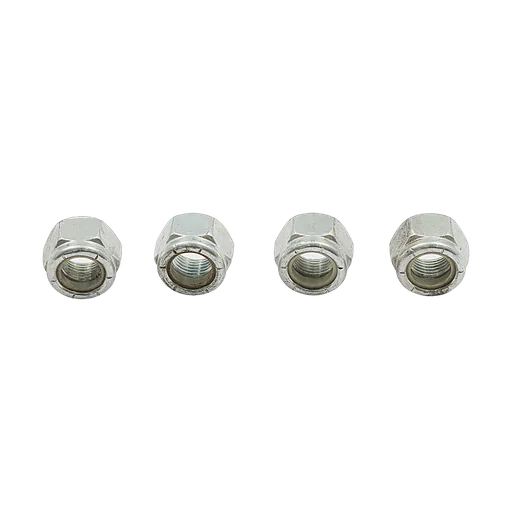

19.Backhead Bolt Nut 9 / 16 in. - 18

ACE Part No OEM REFF NO
1122060 P006099
Paving breaker spares

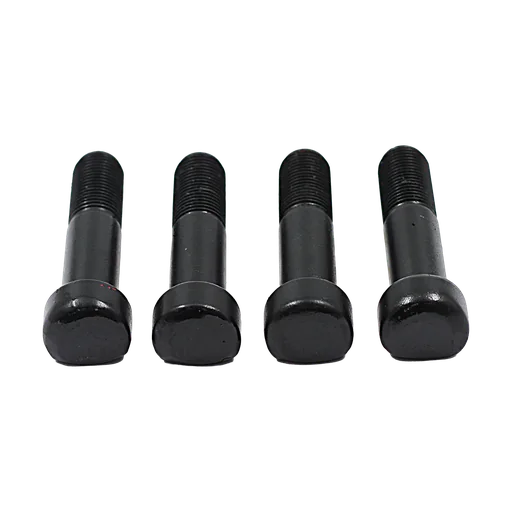

20.Backhead Bolt 9/16 in. - 18

ACE Part No OEM REFF NO
1122065 R070111
Paving breaker spares

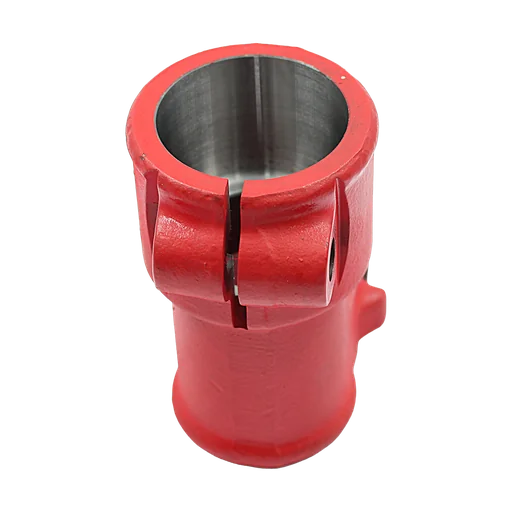

21.Head - letch retainer

ACE Part No OEM REFF NO
1123010
Paving breaker spares

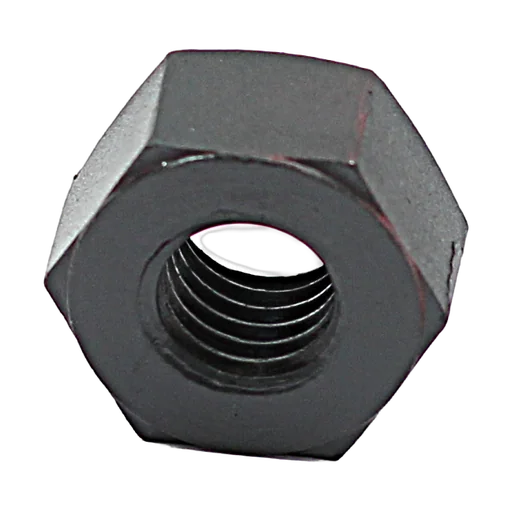

22.Nut - Head Latch Y 1/2" - 13

ACE Part No OEM REFF NO
1123015 R000555
Paving breaker spares

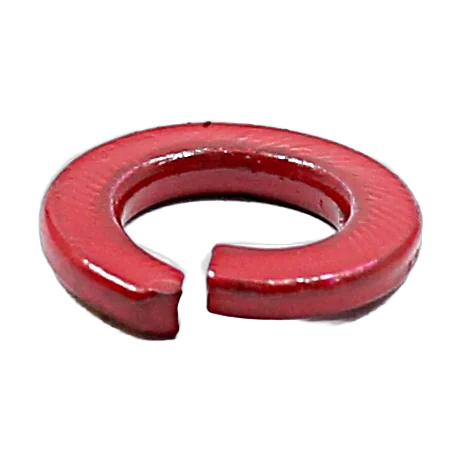

23.Lockwasher - Head Latch

ACE Part No OEM REFF NO
1123020 C036717
Paving breaker spares

24.Bolt - Head latch y -13 x 2 3/4"

ACE Part No OEM REFF NO
1123025 P002123
Paving breaker spares

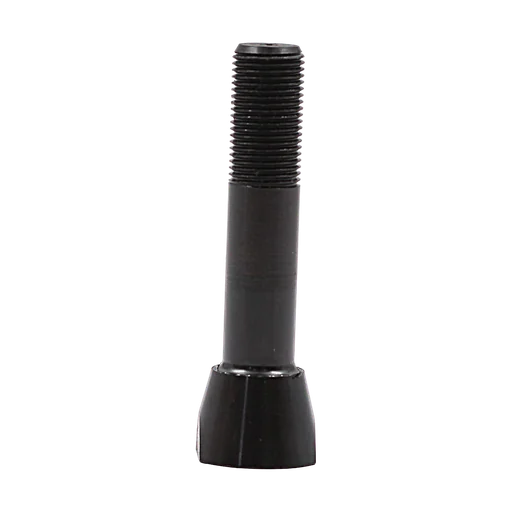

25.Bolt-Latch retainer i -18 x 3 1/2"

ACE Part No OEM REFF NO
1123030 R092498
Paving breaker spares

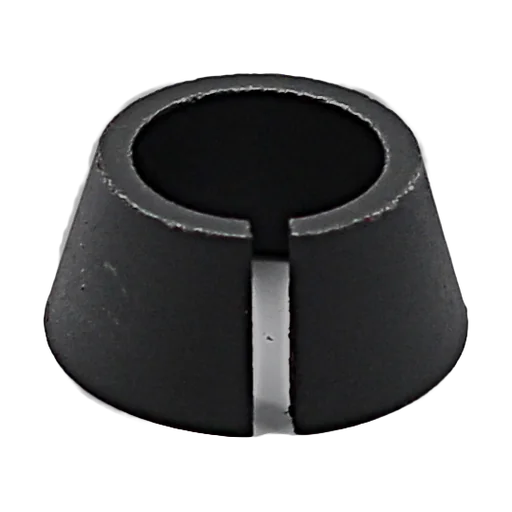

26.Bushing - Latch retainer bolt

ACE Part No OEM REFF NO
1123035 R092499
Paving breaker spares

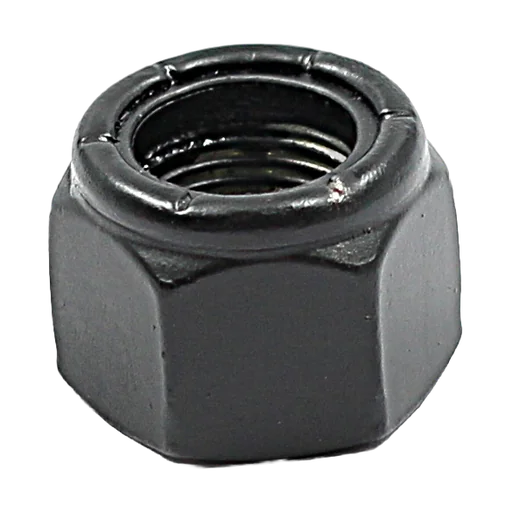

27.Nut - Self locking i" - UNF - 3B

ACE Part No OEM REFF NO
1123040 P081091
Paving breaker spares

28.Spring - plunger

ACE Part No OEM REFF NO
1123045 R086982
Paving breaker spares

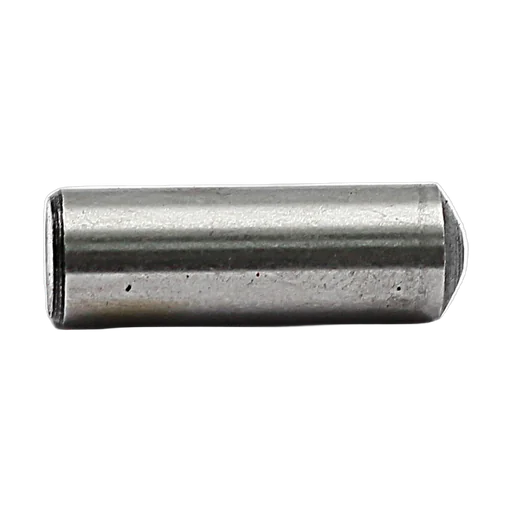

29.Plunger - latch

ACE Part No OEM REFF NO
1123050 R092497
Paving breaker spares

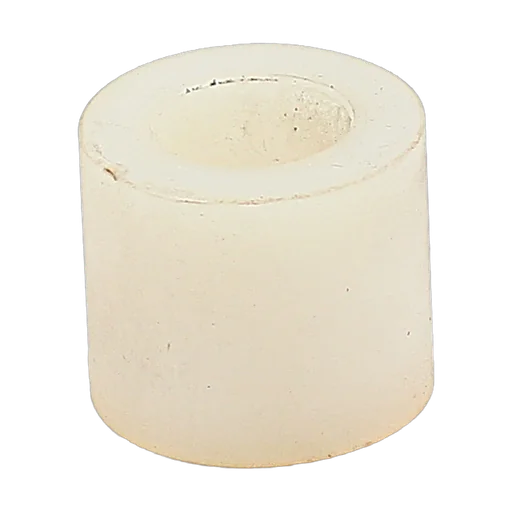

30.Latch bushing

ACE Part No OEM REFF NO
1123060 R048540
Paving breaker spares

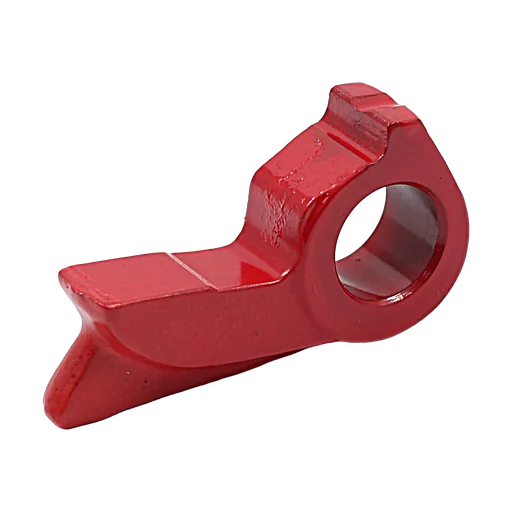

31.Retainer latch

ACE Part No OEM REFF NO
1123065 R092493
Paving breaker spares

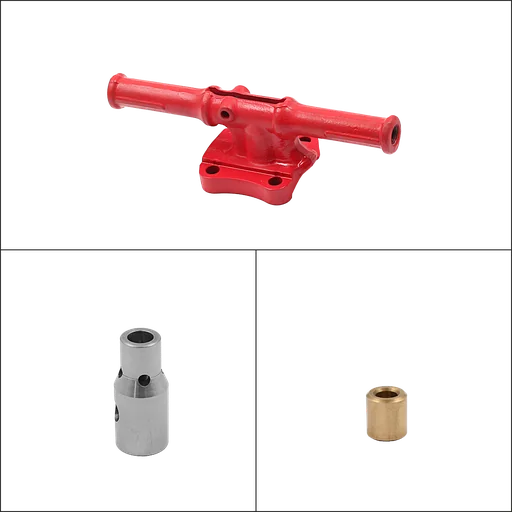

A(1-8).Backhead Complete

ACE Part No OEM REFF NO
1121000 R070105
Paving breaker spares

B(9-12).Throttle Valve Complete

ACE Part No OEM REFF NO
1122000 R045370
Paving breaker spares

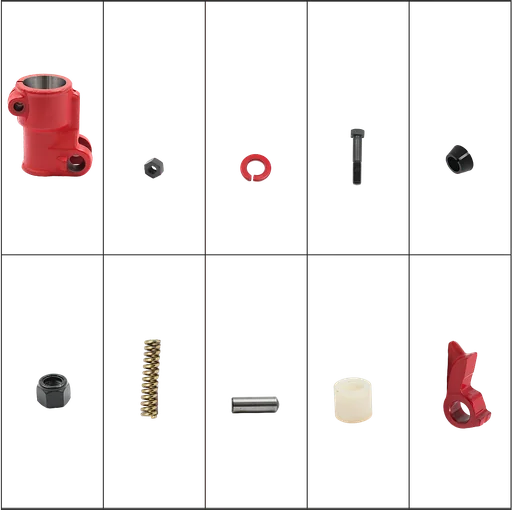

C(21-31).Latch Retainer Complete

ACE Part No OEM REFF NO
1123000 R092500
