ACE PB 117L

Spares

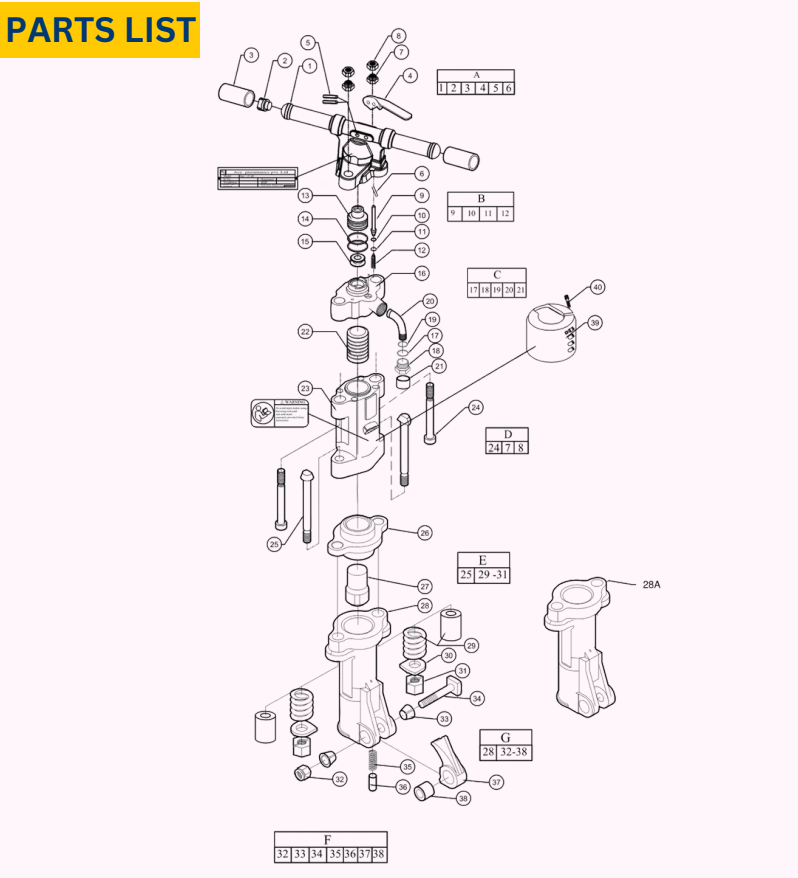

Paving breaker spare

1.Back Head

ACE Part No OEM REFF NO
211010 -
Paving breaker spare

2.Oil Plug

ACE Part No OEM REFF NO
211015 R000560
Paving breaker spare

3.Backhead Handle Grip

ACE Part No OEM REFF NO
211020 R005716
Paving breaker spare

4.Throttle Lever

ACE Part No OEM REFF NO
211025 R005712
Paving breaker spare

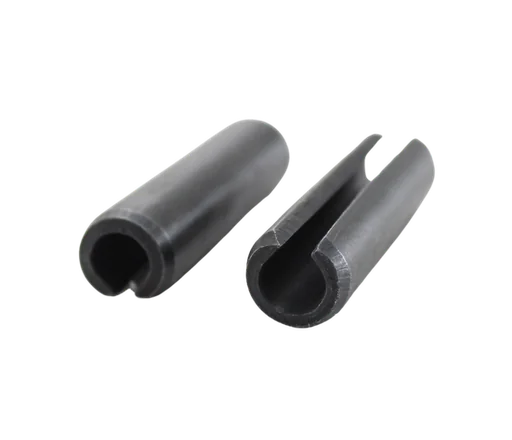

5.Throttle Lever Pin

ACE Part No OEM REFF NO
211030 R133433
Paving breaker spare

6.Oil Regulating Plug

ACE Part No OEM REFF NO
211035 R004976
Paving breaker spare

7.Back Head Bolt-Nut (Male)

ACE Part No OEM REFF NO
211040 R005689
Paving breaker spare

8.Head Bolt-Nut (Female)

ACE Part No OEM REFF NO
211045 Back
Paving breaker spare

9.Throttle Valve

ACE Part No OEM REFF NO
212010 -
Paving breaker spare

10.Throttle Valve Seat

ACE Part No OEM REFF NO
212015 R098368
Paving breaker spare

11.Throttle Valve Retaining Ring

ACE Part No OEM REFF NO
212020 R098369
Paving breaker spare

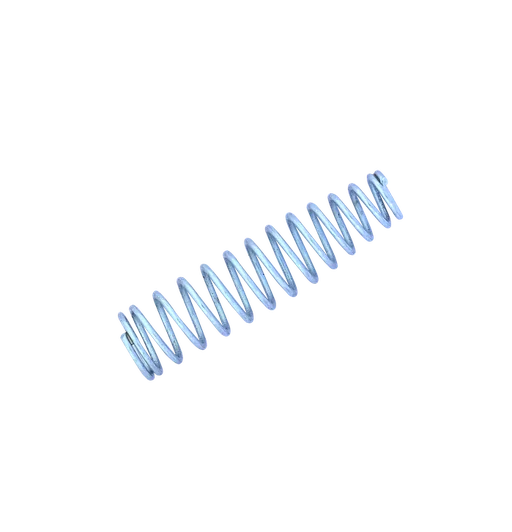

12.Throttle Valve Spring

ACE Part No OEM REFF NO
212025 R005717
Paving breaker spare

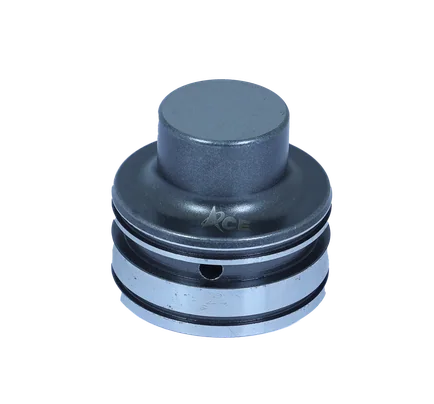

13.Inside Valve Bushing

ACE Part No OEM REFF NO
212030 D7414441
Paving breaker spare

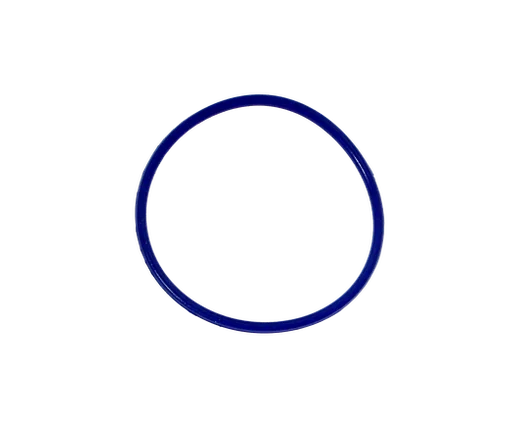

14.O ring I.V.Bushing

ACE Part No OEM REFF NO
212035 H0364441
Paving breaker spare

15.Valve

ACE Part No OEM REFF NO
212040 D7305441
Paving breaker spare

16.Back Head Cylinder Spacer

ACE Part No OEM REFF NO
212045 R075193
Paving breaker spare

17.O Ring- (Adaptor)

ACE Part No OEM REFF NO
212050 P103521
Paving breaker spare

18.Air Swivel Nut

ACE Part No OEM REFF NO
212055 R000530
Paving breaker spare

19.O RING (Air Inlet Swivel)

ACE Part No OEM REFF NO
212060 R110317
Paving breaker spare

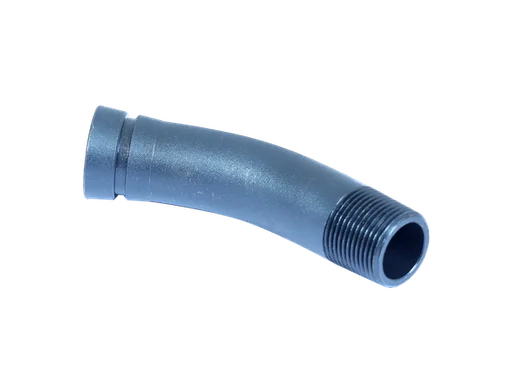

20.Air Inlet Swivel

ACE Part No OEM REFF NO
212065 R085269
Paving breaker spare

21.(Air Swivel Nut)

ACE Part No OEM REFF NO
212070 Cap
Paving breaker spare

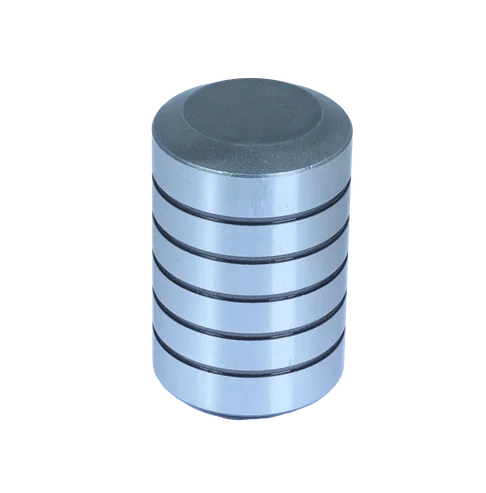

22.Piston

ACE Part No OEM REFF NO
212075 R000040
Paving breaker spare

23.Cylinder

ACE Part No OEM REFF NO
212080 R075185
Paving breaker spare

24.Back Head Bolt

ACE Part No OEM REFF NO
212085 R075189
Paving breaker spare

25.Front Head Bolt

ACE Part No OEM REFF NO
405010 F037790
Paving breaker spare

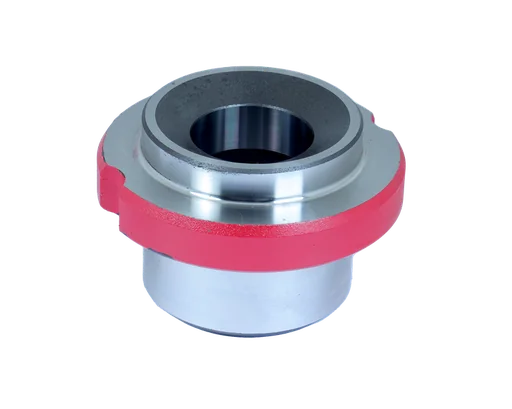

26.Anvil Block Bushing

ACE Part No OEM REFF NO
403075 R092907
Paving breaker spare

27.Anvil Block

ACE Part No OEM REFF NO
403080 R096123
Paving breaker spare

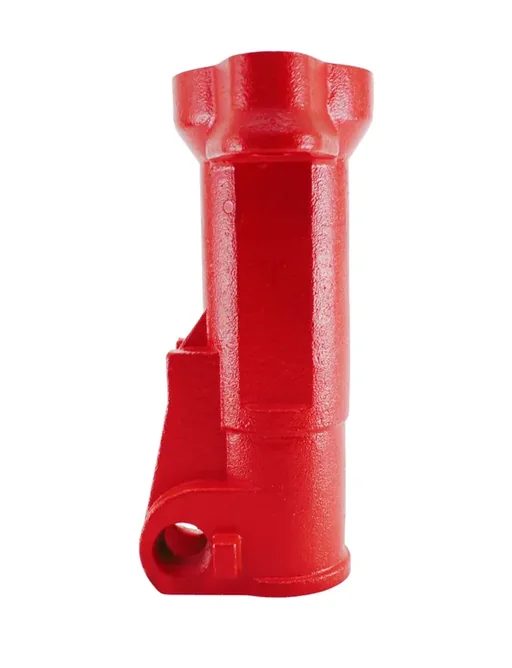

28.Front Head 1-1/8"

ACE Part No OEM REFF NO
404020 R092917
Paving breaker spare

28A.Front Head 1-1/4"

ACE Part No OEM REFF NO
404025 R092918
Paving breaker spare

29.Front Head Bolt Spring

ACE Part No OEM REFF NO
405015 R092915
Paving breaker spare

29A.Front Head Bolt PU Bush

ACE Part No OEM REFF NO
405016 -
Paving breaker spare

30.Lock Washer Front Head Bolt

ACE Part No OEM REFF NO
405020 R096059
Paving breaker spare

31.Nut Front Head Bolt

ACE Part No OEM REFF NO
405025 F037789
Paving breaker spare

32.Lock Nut

ACE Part No OEM REFF NO
406010 P008999
Paving breaker spare

33.Taper Bush

ACE Part No OEM REFF NO
406015 R076562
Paving breaker spare

34.Latch Bolt

ACE Part No OEM REFF NO
406020 R076853
Paving breaker spare

35.Spring Plunger

ACE Part No OEM REFF NO
406025 R092911
Paving breaker spare

36.Plunger Latch

ACE Part No OEM REFF NO
406030 R092910
Paving breaker spare

37.Latch Retainer

ACE Part No OEM REFF NO
406035 R092909
Paving breaker spare

38.Latch Bushing

ACE Part No OEM REFF NO
406040 R050894
Paving breaker spare

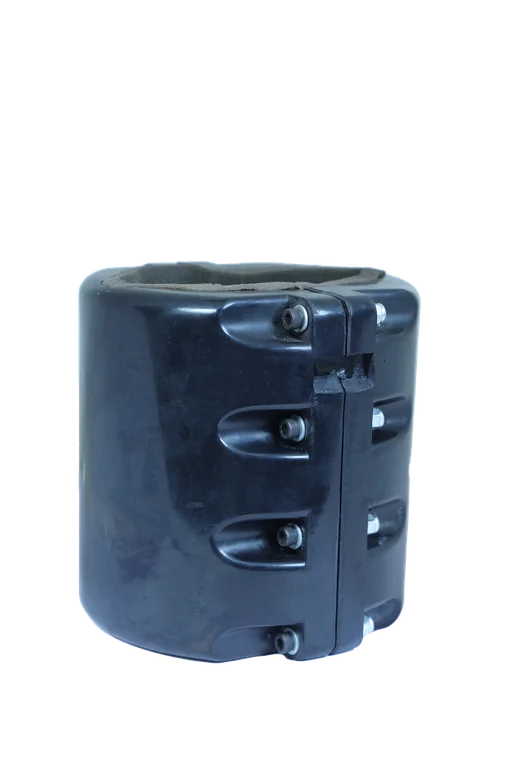

39.Muffler Optional

ACE Part No OEM REFF NO
213055 -
Paving breaker spare

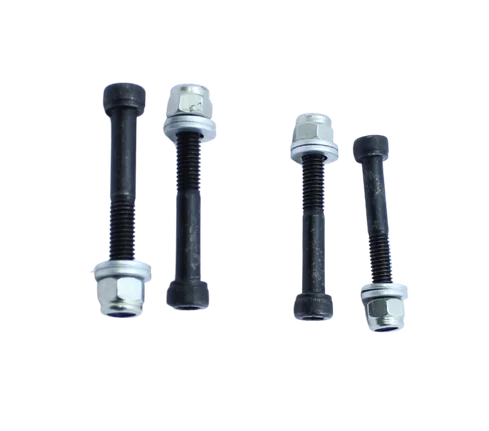

40.Screw (Allen Bolt) With Nut

ACE Part No OEM REFF NO
213060 -
Paving breaker spare

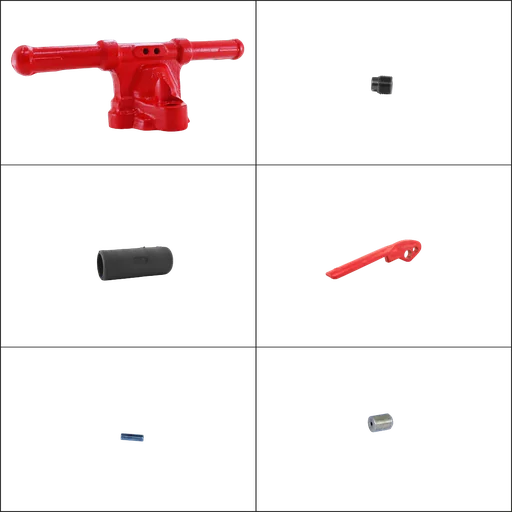

A (1-6).Backhead Complete

ACE Part No OEM REFF NO
211000 Z8415441
Paving breaker spare

B (9-12).Throttle Volve Complete

ACE Part No OEM REFF NO
212000 R045373
Paving breaker spare

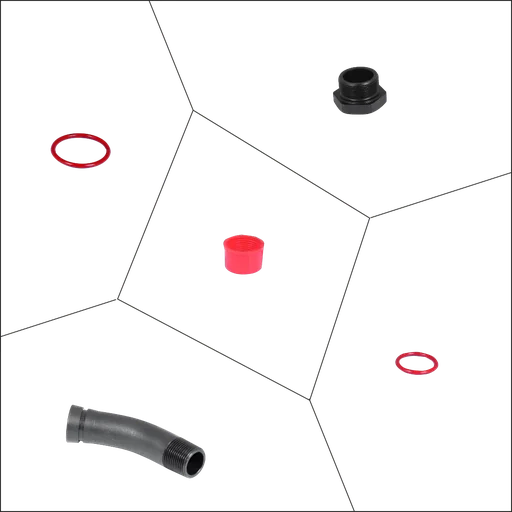

C (17-21).Swivel Assembly

ACE Part No OEM REFF NO
213000 -
Paving breaker spare

D (24-7,8).Back Head Bolt Complete

ACE Part No OEM REFF NO
214000 Z8415441
Paving breaker spare

E (25,29-31).Front Head Bolt Complete

ACE Part No OEM REFF NO
405000 3303 50 58
Paving breaker spare

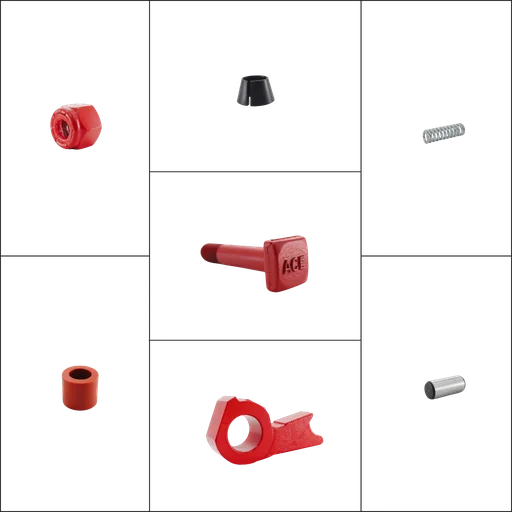

F (32-38).Latch Complete

ACE Part No OEM REFF NO
406000 -
Paving breaker spare

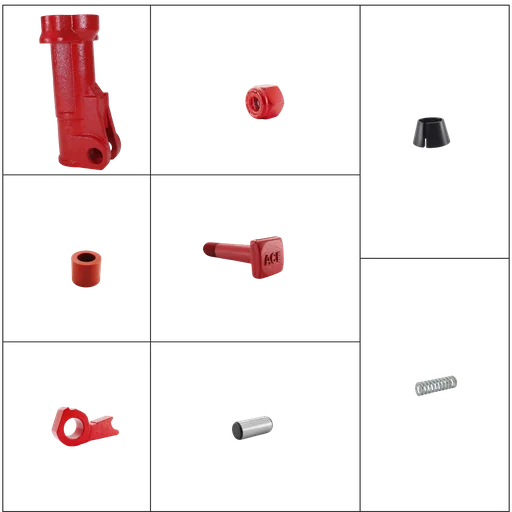

G (28,32-38).Front Head Complete

ACE Part No OEM REFF NO
404000 R077682
Paving breaker spare

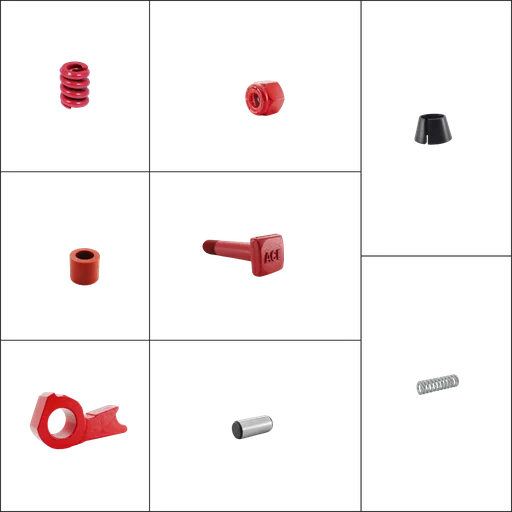

H (29,32-38).Head Complete

ACE Part No OEM REFF NO
404001 Front
