ACE PNEUMATICS PVT LTD

Manufacturer & Suppliers of High-Quality Mining, Construction, Demolition Tools

ACE PB 1210 SVR

Spares

Paving breaker spare

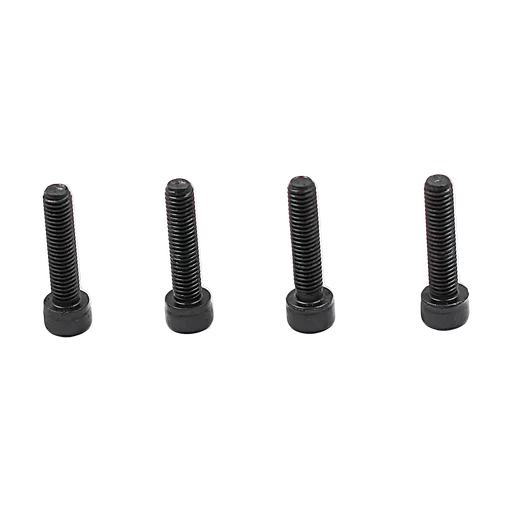

1.Socket head cap screw (M8)

ACE Part No OEM REFF NO
182700 211 1327 0
Paving breaker spare

2.Washer - top cover

ACE Part No OEM REFF NO
183500 301 2335 0
Paving breaker spare

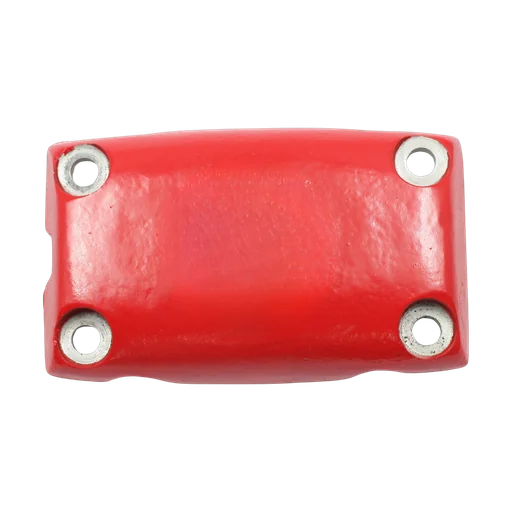

3.Top cover

ACE Part No OEM REFF NO
185019 3303 50 19
Paving breaker spare

4.Buffer pad assembly

ACE Part No OEM REFF NO
15026 3303 50 26
Paving breaker spare

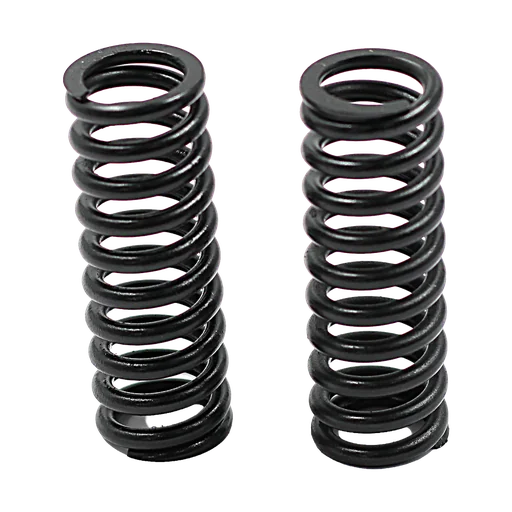

5.Spring - handle

ACE Part No OEM REFF NO
185025 3303 50 25
Paving breaker spare

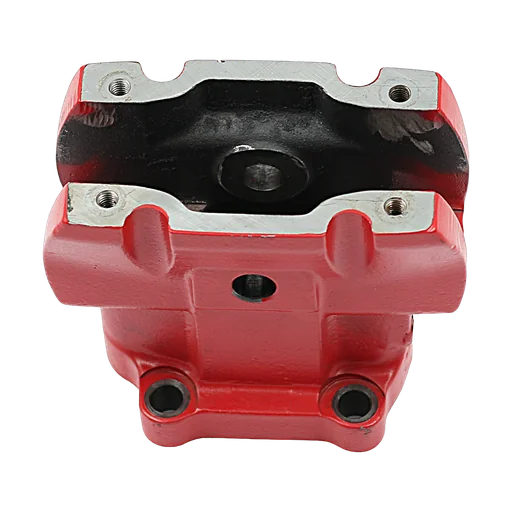

6.Backhead ( Vibration reduced)

ACE Part No OEM REFF NO
185015 3303 50 15
Paving breaker spare

7.Pin - lever

ACE Part No OEM REFF NO
185866 R145866
Paving breaker spare

8.Trigger (start and stop device)

ACE Part No OEM REFF NO
185021 3303 50 21
Paving breaker spare

9.Handle

ACE Part No OEM REFF NO
185017 3303 50 17
Paving breaker spare

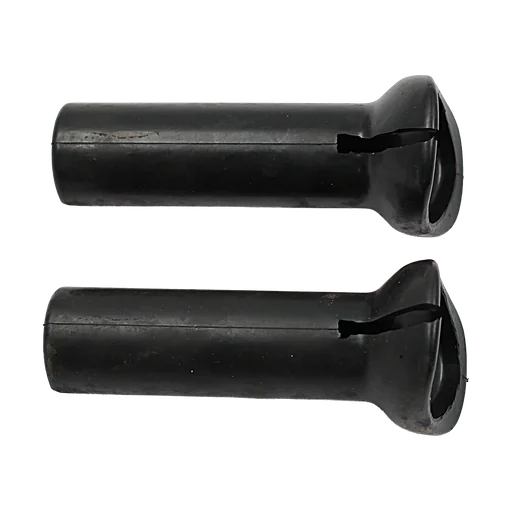

10.Grip

ACE Part No OEM REFF NO
185022 3303 50 22
Paving breaker spare

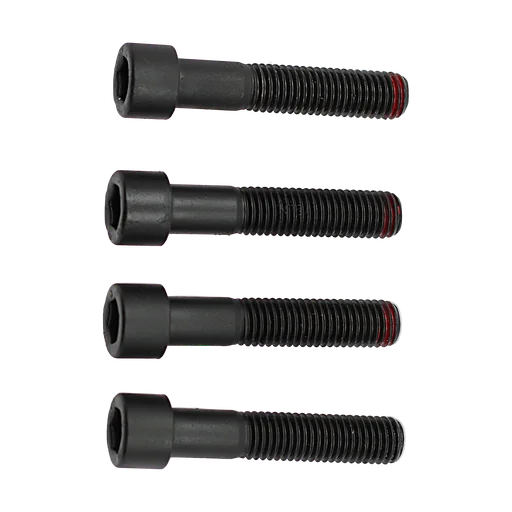

11.Socket head cap screw (M12 x 1.75)

ACE Part No OEM REFF NO
180700 211 1407 0
Paving breaker spare

12.Roll pin (16 DIA x 65 L)

ACE Part No OEM REFF NO
183500 108 1535 0
Paving breaker spare

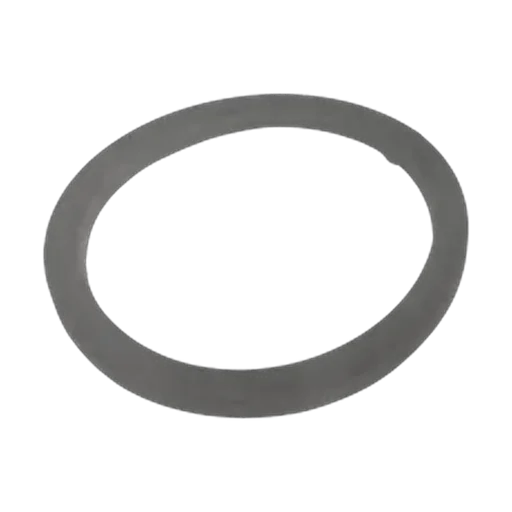

13.Gasket

ACE Part No OEM REFF NO
185031 3303 50 31
Paving breaker spare

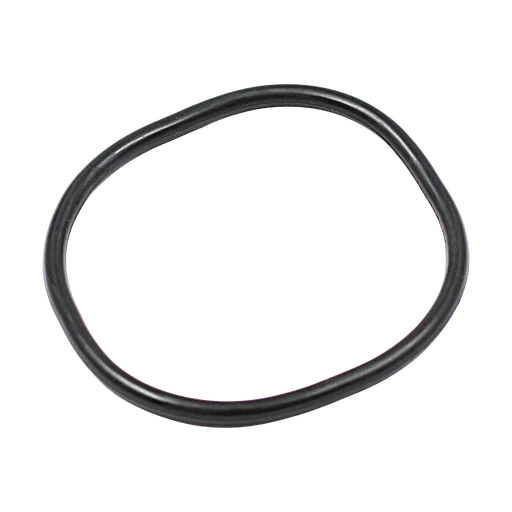

14.O-ring

ACE Part No OEM REFF NO
182642 C102642
Paving breaker spare

15.Upper valve lid

ACE Part No OEM REFF NO
188096 R138096
Paving breaker spare

16.Valve

ACE Part No OEM REFF NO
188094 R138094
Paving breaker spare

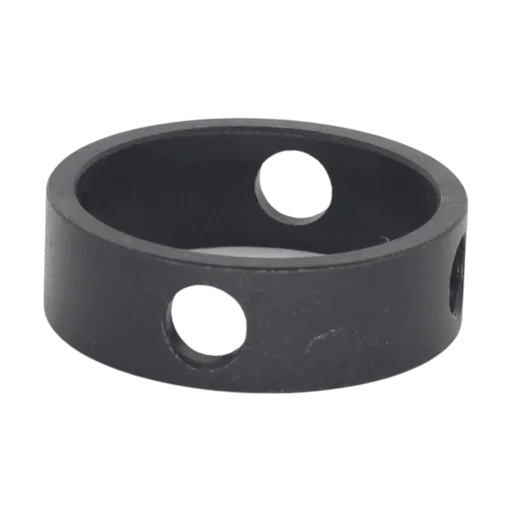

17.Valve case

ACE Part No OEM REFF NO
188095 R138095
Paving breaker spare

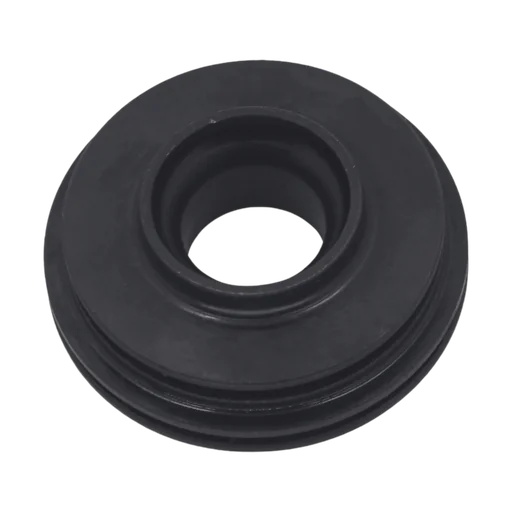

18.Lower valve case lid

ACE Part No OEM REFF NO
185024 3303 50 24
Paving breaker spare

19.O-ring

ACE Part No OEM REFF NO
180447 H0310447
Paving breaker spare

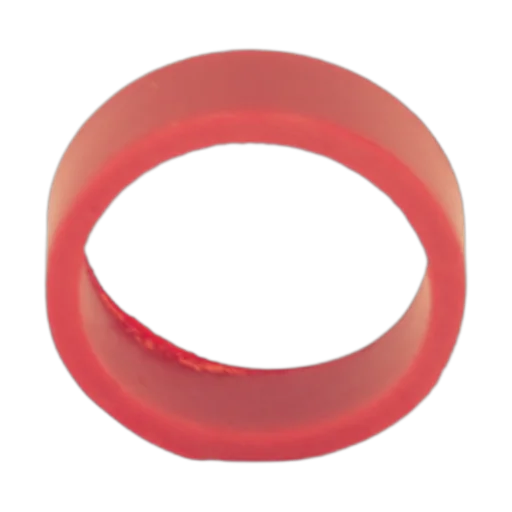

20.Seal - cylinder

ACE Part No OEM REFF NO
180215 R110215
Paving breaker spare

21.Throttle valve

ACE Part No OEM REFF NO
180216 -
Paving breaker spare

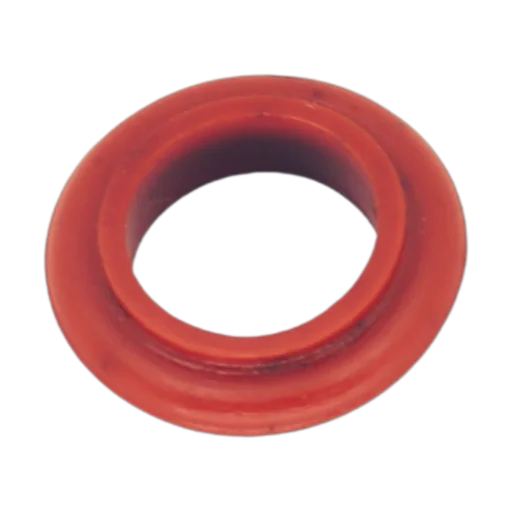

22.Seal - throttle valve

ACE Part No OEM REFF NO
212015 R098368
Paving breaker spare

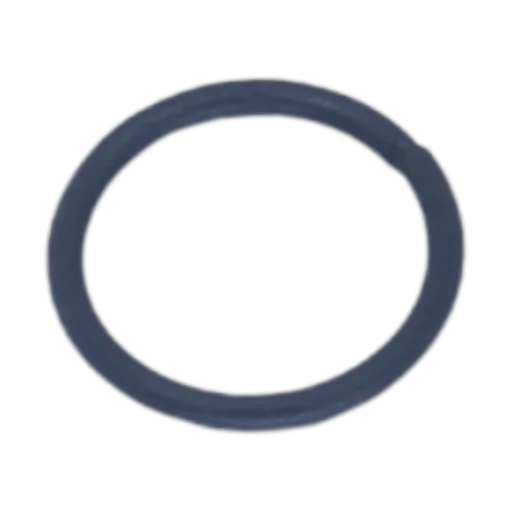

23.Ring - valve seal retaining

ACE Part No OEM REFF NO
212025 R098369
Paving breaker spare

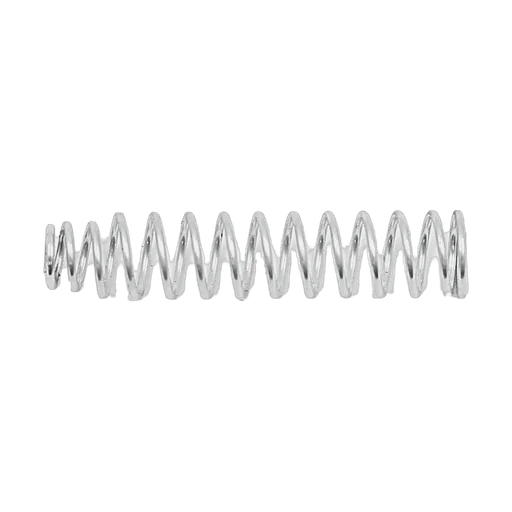

24.Spring - throttle valve

ACE Part No OEM REFF NO
212025 R005717
Paving breaker spare

25.O-ring

ACE Part No OEM REFF NO
187010 R056605
Paving breaker spare

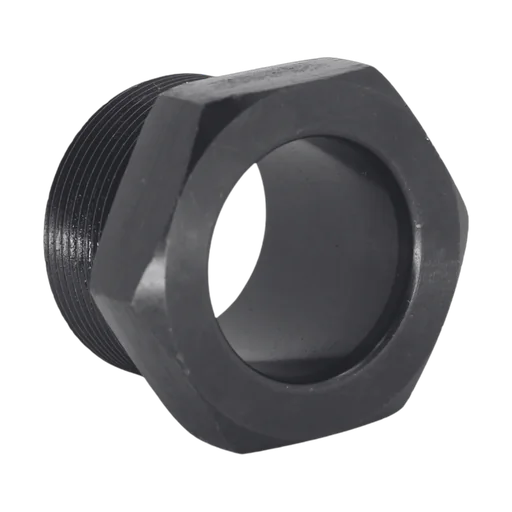

26.Nut - air inlet swivel

ACE Part No OEM REFF NO
187015 3303 50 13
Paving breaker spare

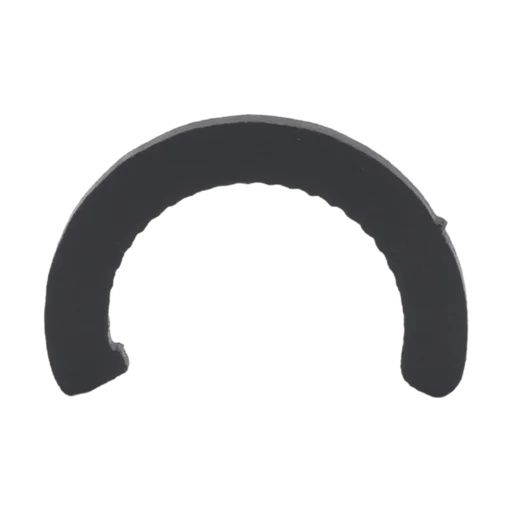

27.Lock washer - swivel

ACE Part No OEM REFF NO
187020 3310 1059 0
Paving breaker spare

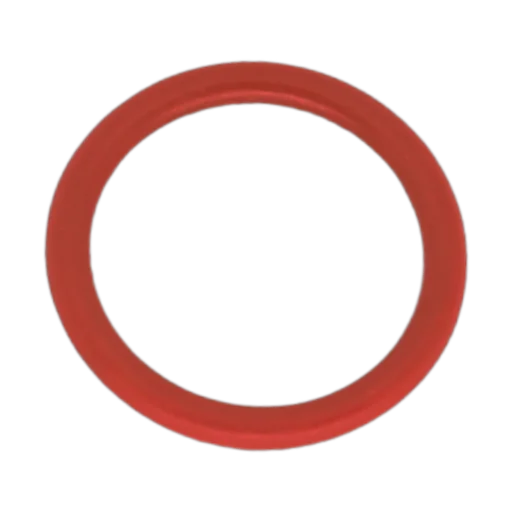

28.O-ring - swivel

ACE Part No OEM REFF NO
187025 663 2126 0
Paving breaker spare

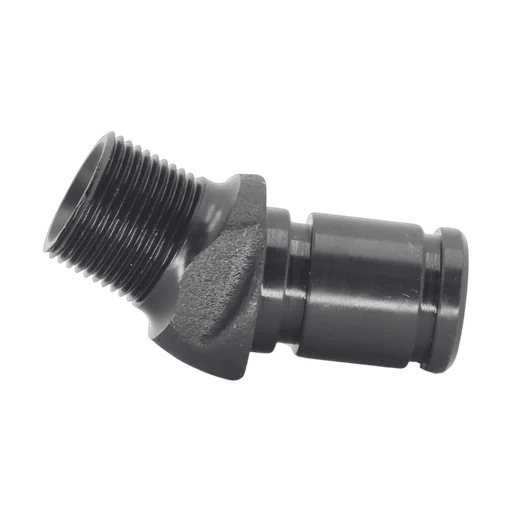

29.Swivel - air inlet

ACE Part No OEM REFF NO
187030 3303 50 12
Paving breaker spare

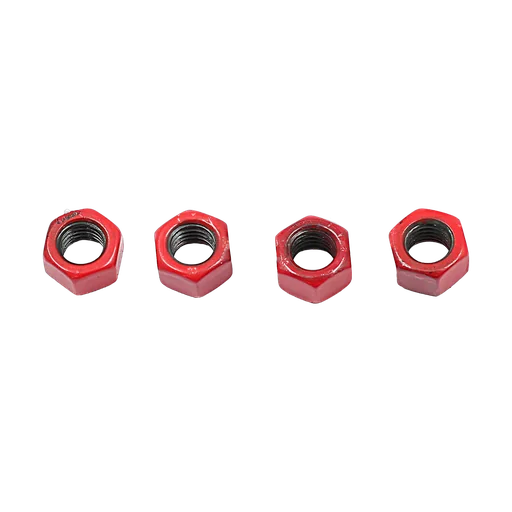

30.Nut (M12)

ACE Part No OEM REFF NO
181030 3303 50 30
Paving breaker spare

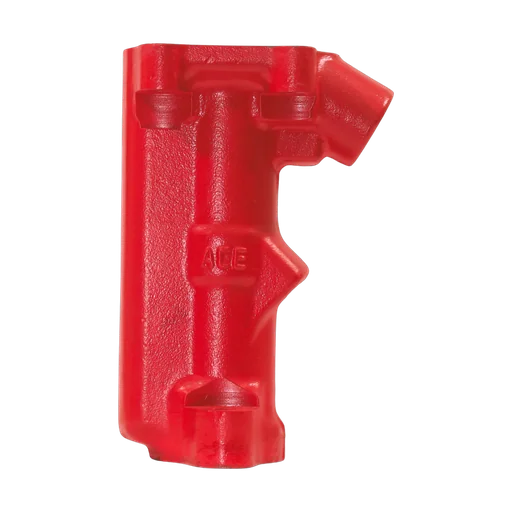

31.Cylinder

ACE Part No OEM REFF NO
183072 3303 50 29
Paving breaker spare

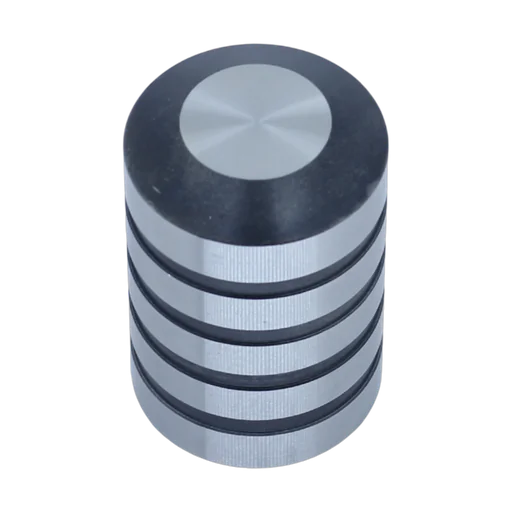

32.Piston

ACE Part No OEM REFF NO
184015 R110212
Paving breaker spare

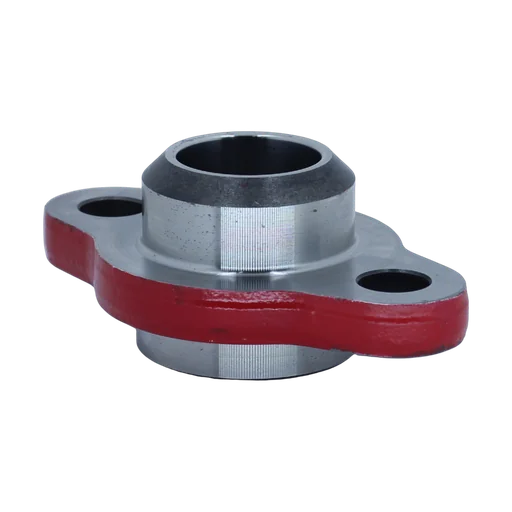

33.Bushing - anvil block

ACE Part No OEM REFF NO
184020 R110203
Paving breaker spare

34.Block - anvil

ACE Part No OEM REFF NO
184025 R085427
Paving breaker spare

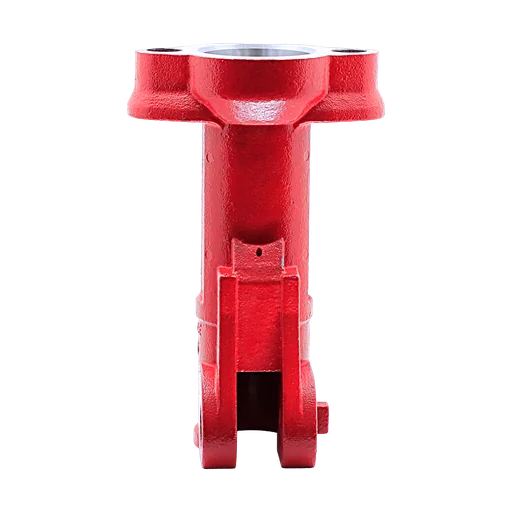

35.Fronthead

ACE Part No OEM REFF NO
185035 F814719
Paving breaker spare

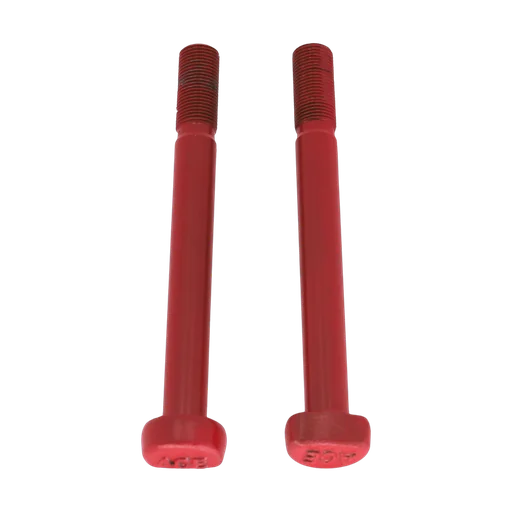

36.Bolt - fronthead

ACE Part No OEM REFF NO
184017 R110217
Paving breaker spare

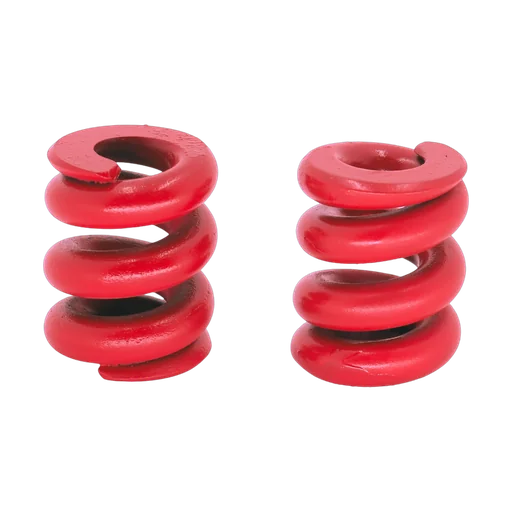

37.Spring - steel

ACE Part No OEM REFF NO
185046 R093698
Paving breaker spare

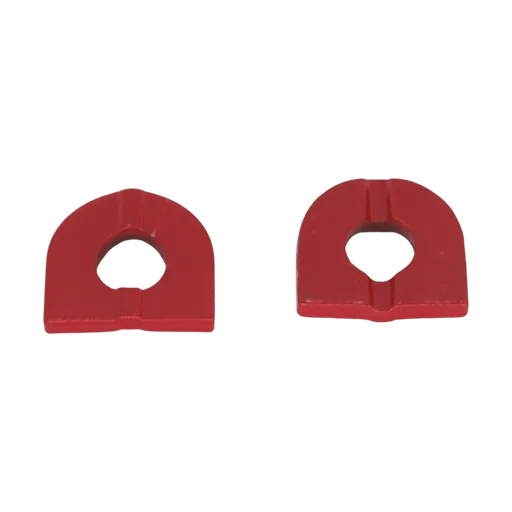

38.Lock - fronthead nut

ACE Part No OEM REFF NO
185050 R041073
Paving breaker spare

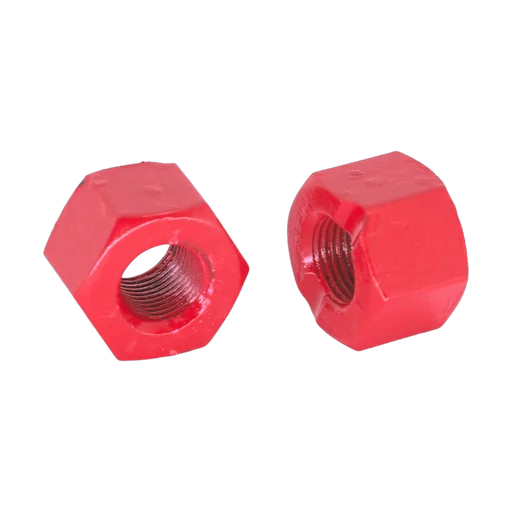

39.Nut - fronthead bolt

ACE Part No OEM REFF NO
185055 R110218
Paving breaker spare

40.Roll pin (16 DIA x 55 L)

ACE Part No OEM REFF NO
185020 108 1103 4
Paving breaker spare

41.Roll pin (10 DIA x 55 L)

ACE Part No OEM REFF NO
185020A 108 1395 0
Paving breaker spare

42.Spring - plunger

ACE Part No OEM REFF NO
295020 R086982
Paving breaker spare

43.Plunger - latch

ACE Part No OEM REFF NO
185030 R092497
Paving breaker spare

44.Retainer latch bush

ACE Part No OEM REFF NO
185015 R048540
Paving breaker spare

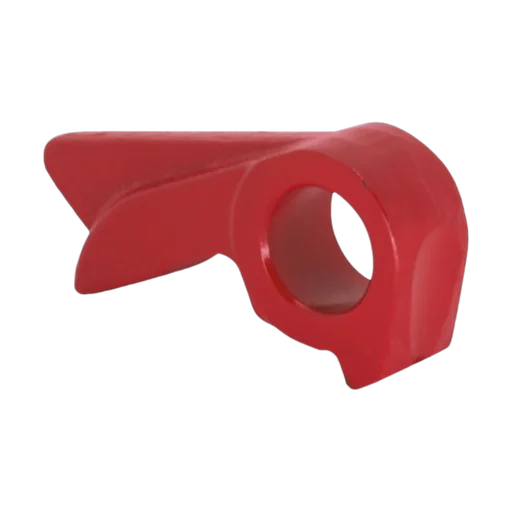

45.Retainer - latch

ACE Part No OEM REFF NO
185010 R092493
Paving breaker spare

46.Muffler

ACE Part No OEM REFF NO
185016 -
Paving breaker spare

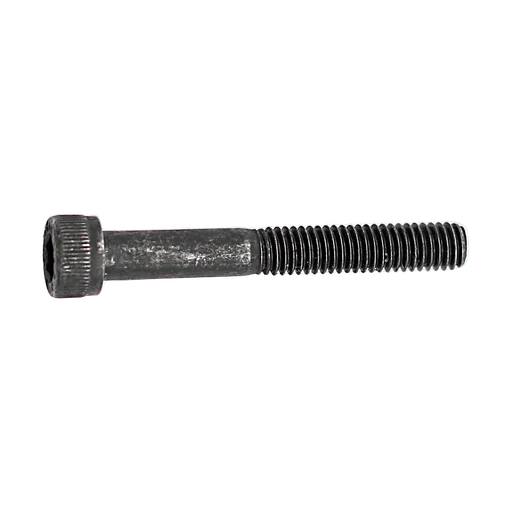

47.Socket head cap screw (M6 x 1 -

ACE Part No OEM REFF NO
185300 211 1253 0
Paving breaker spare

48.Washer

ACE Part No OEM REFF NO
186979 F826979
Paving breaker spare

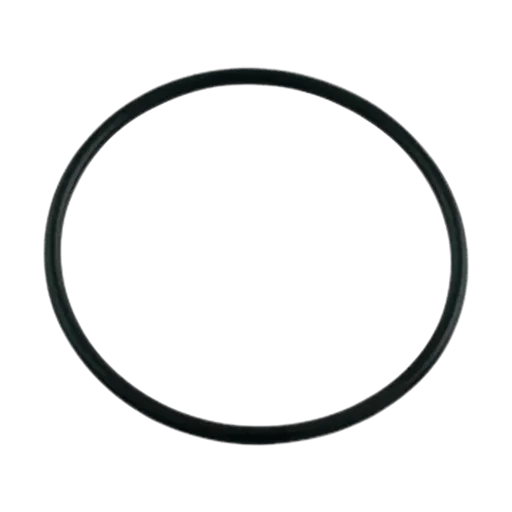

49.O-ring - muffler (Bottom)

ACE Part No OEM REFF NO
184600 663 2146 0
Paving breaker spare

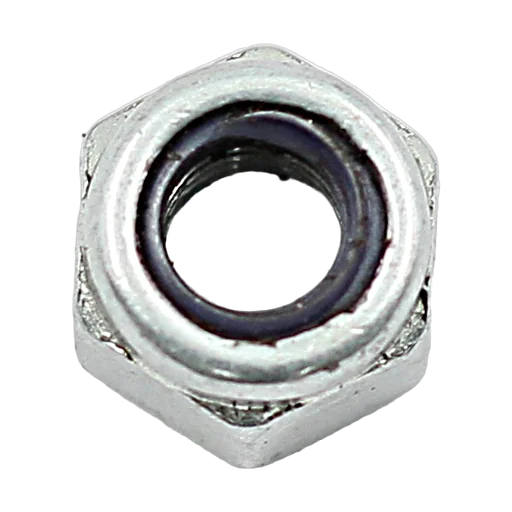

50.Nyloc nut (M6 x 1)

ACE Part No OEM REFF NO
182815 291 1128 15
Paving breaker spare

51.Sealing pad - muffler (LEFT)

ACE Part No OEM REFF NO
1850010 3303 50 10
Paving breaker spare

52.O-ring - muffler (Top)

ACE Part No OEM REFF NO
184300 663 2143 0
Paving breaker spare

53.Sealing pad - muffler (Right)

ACE Part No OEM REFF NO
185011 3303 50 11
Paving breaker spare

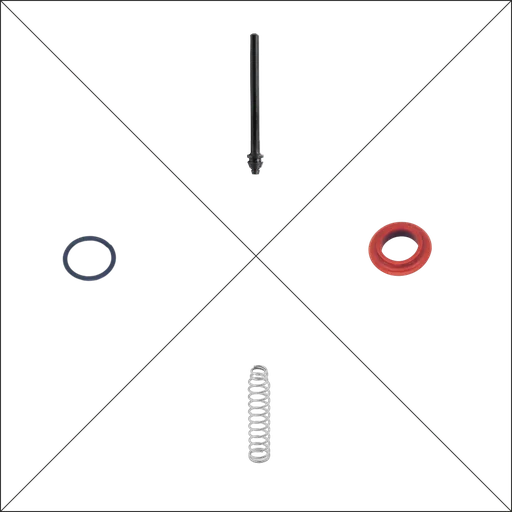

A (21-23).Throttle valve, complete

ACE Part No OEM REFF NO
185036 3303 50 36
Paving breaker spare

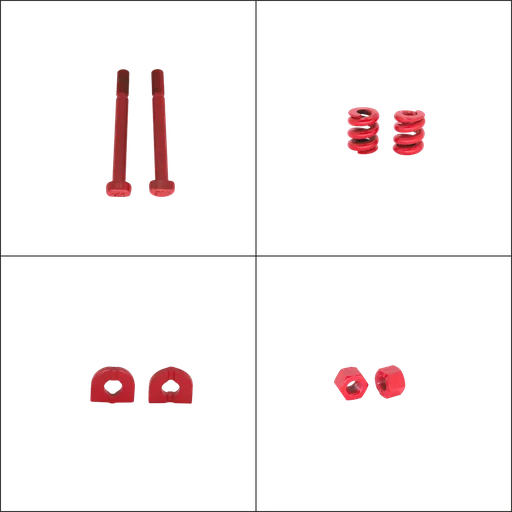

B (36-39).Side bolt, complete

ACE Part No OEM REFF NO
185044 3303 50 44
Paving breaker spare

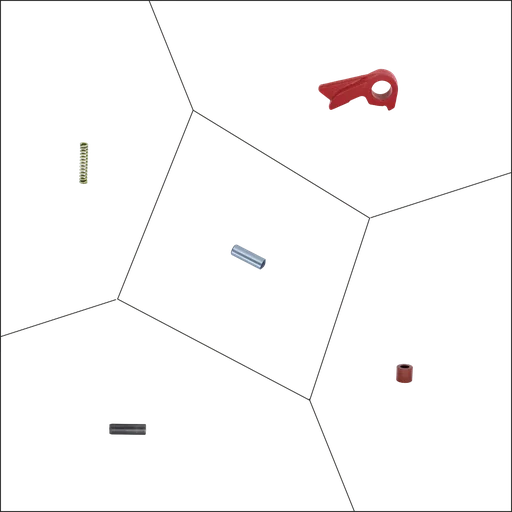

C (40-45).Latch, complete

ACE Part No OEM REFF NO
185043 3303 50 43
Paving breaker spare

D (53-60).Muffler, complete

ACE Part No OEM REFF NO
185042 3303 50 42
