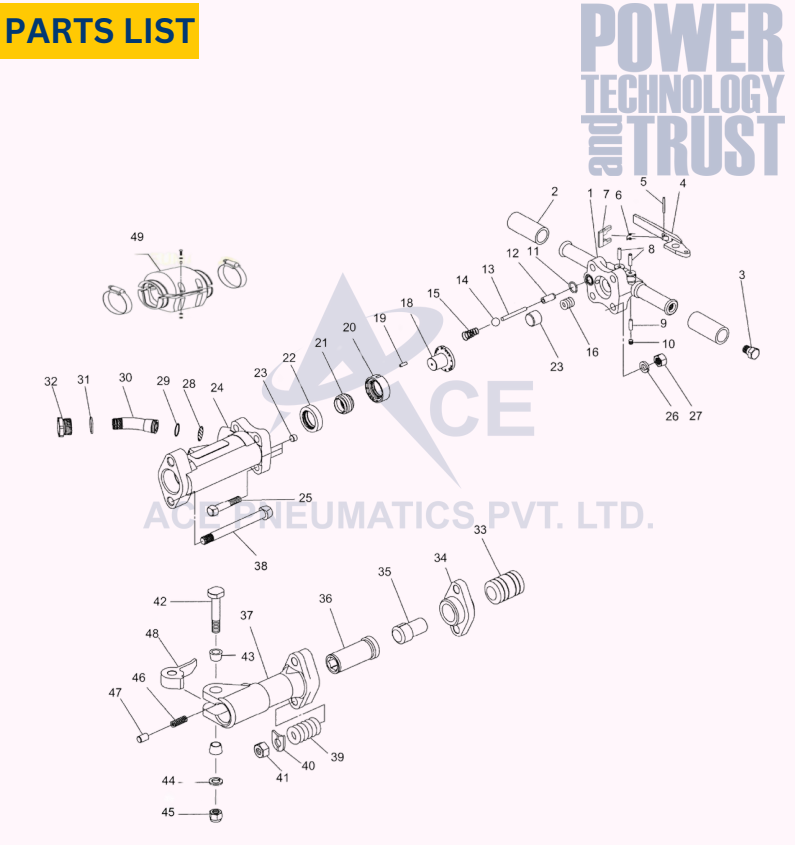

ACE TPB 60

Spares

Paving breaker spare

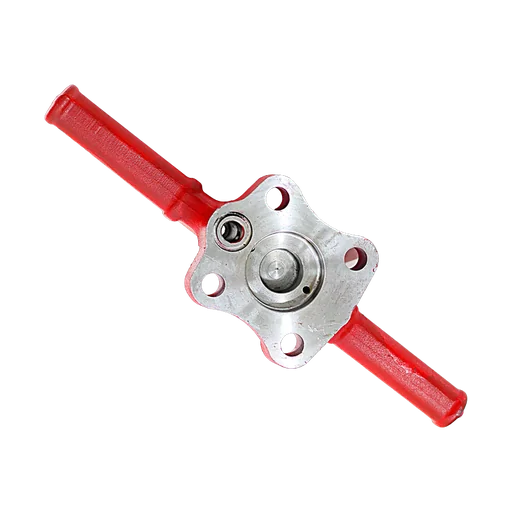

1.BACK HEAD

ACE Part No OEM REFF NO
601010 410241480
Paving breaker spare

2.BACK HEAD GRIP

ACE Part No OEM REFF NO
601015 136601011
Paving breaker spare

3.OIL PLUG NPTF 1/2

ACE Part No OEM REFF NO
601020 134905010
Paving breaker spare

4.THROTTLE LEVER

ACE Part No OEM REFF NO
601025 410241311
Paving breaker spare

5.SPRING PIN 4X40 (Pin Safety Lever)

ACE Part No OEM REFF NO
601030 130604040
Paving breaker spare

6.STOP LEVER SPRING (Spring Safety Lever)

ACE Part No OEM REFF NO
601035 130801046
Paving breaker spare

7.STOP LEVER (Lever Safety)

ACE Part No OEM REFF NO
601040 410241761
Paving breaker spare

8.THROTTLE LEVER PIN

ACE Part No OEM REFF NO
601045 410201330
Paving breaker spare

9.FELT OILER

ACE Part No OEM REFF NO
601055 136101011
Paving breaker spare

10.PIPE PLUG PP-2

ACE Part No OEM REFF NO
601060 134901001
Paving breaker spare

11.O RING 6227-17

ACE Part No OEM REFF NO
601070 131105017
Paving breaker spare

12.THROTTLE VALVE STEM GUIDE

ACE Part No OEM REFF NO
601065 410201300
Paving breaker spare

13.THROTTLE PIN

ACE Part No OEM REFF NO
601075 410241300
Paving breaker spare

14.POLYURETHENE RUBBER BALL 3/4"

ACE Part No OEM REFF NO
601080 130505048
Paving breaker spare

15.THROTTLE VALVE SPRING

ACE Part No OEM REFF NO
601085 130801047
Paving breaker spare

16.PLUNGER SPRING

ACE Part No OEM REFF NO
601090 130801040
Paving breaker spare

17.PLUNGER

ACE Part No OEM REFF NO
601095 410241660
Paving breaker spare

18.VALVE GUIDE

ACE Part No OEM REFF NO
602010 410241200
Paving breaker spare

19.VALVE CHEST DOWEL PIN

ACE Part No OEM REFF NO
602015 130401035
Paving breaker spare

20.VALVE CHEST

ACE Part No OEM REFF NO
602020 410241190
Paving breaker spare

21.VALVE

ACE Part No OEM REFF NO
602025 410241150
Paving breaker spare

22.VALVE SEAT

ACE Part No OEM REFF NO
602030 410241170
Paving breaker spare

23.CYLINDER PLUG

ACE Part No OEM REFF NO
602035 136301011
Paving breaker spare

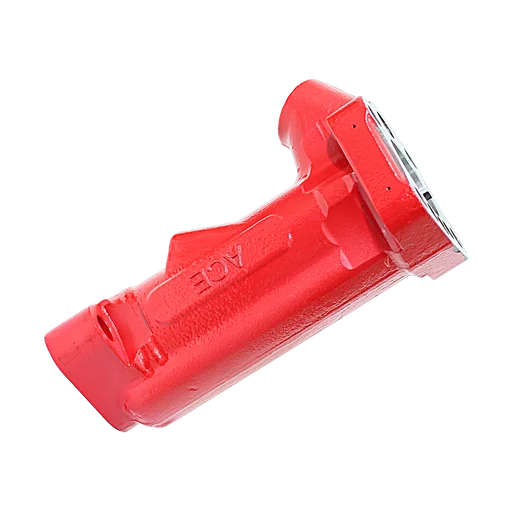

24.CYLINDER

ACE Part No OEM REFF NO
602040 410241010
Paving breaker spare

25.BACK HEAD BOLT

ACE Part No OEM REFF NO
602045 131501015
Paving breaker spare

26.SPRING WASHER M16

ACE Part No OEM REFF NO
602050 131301116
Paving breaker spare

27.BACK HEAD BOLT NUT

ACE Part No OEM REFF NO
602055 410241510
Paving breaker spare

28.AIR INLET SCREEN

ACE Part No OEM REFF NO
602060 136801007
Paving breaker spare

29.O-RING S-29

ACE Part No OEM REFF NO
602065 131103023
Paving breaker spare

30.AIR INLET SWIVEL

ACE Part No OEM REFF NO
602070 410271370
Paving breaker spare

31.O-RING G-30

ACE Part No OEM REFF NO
602075 131102002
Paving breaker spare

32.AIR INLET SWIVEL NUT

ACE Part No OEM REFF NO
602080 410271390
Paving breaker spare

33.PISTON

ACE Part No OEM REFF NO
602085 410241041
Paving breaker spare

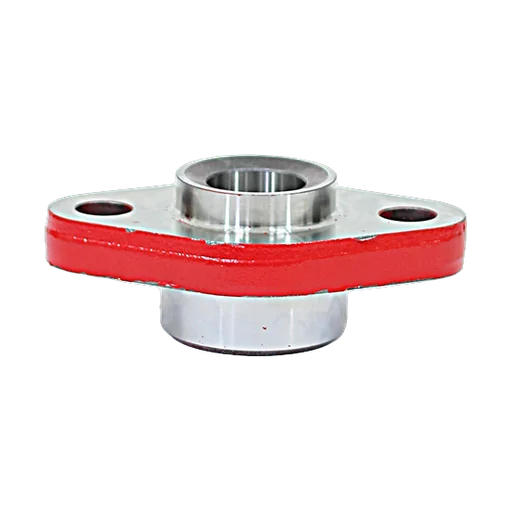

34.ANVIL BLOCK BUSHING (Tappet Seat)

ACE Part No OEM REFF NO
602090 410241591
Paving breaker spare

35.ANVIL BLOCK (Tappet)

ACE Part No OEM REFF NO
602095 410241581
Paving breaker spare

36.FRONT HEAD BUSHING 1-1/8''

ACE Part No OEM REFF NO
603010 410241572
Paving breaker spare

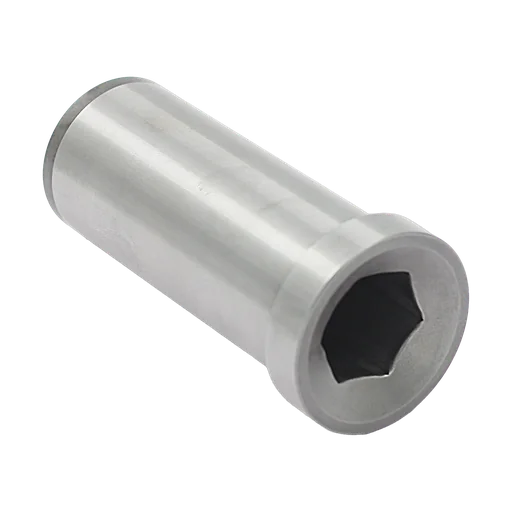

36A.FRONT HEAD BUSHING 1-1/4"

ACE Part No OEM REFF NO
603010A 410245572
Paving breaker spare

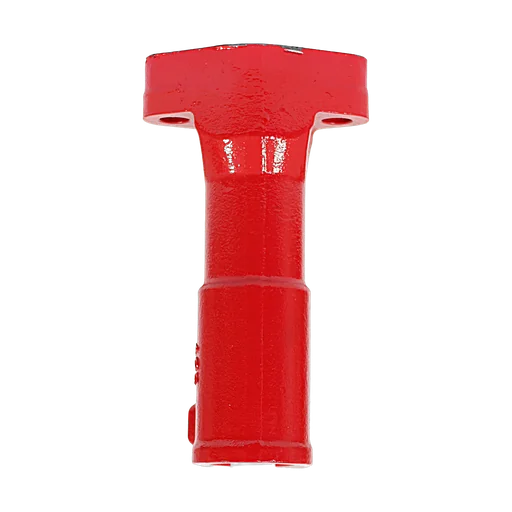

37.FRONT HEAD 1-1/8"

ACE Part No OEM REFF NO
603015 -
Paving breaker spare

37A.FRONT HEAD 1-1/4"

ACE Part No OEM REFF NO
603015A 410241531
Paving breaker spare

38.FRONT HEAD BOLT

ACE Part No OEM REFF NO
603025 131501016
Paving breaker spare

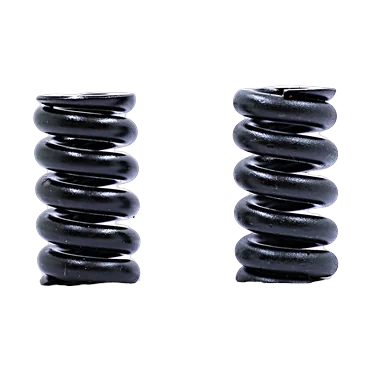

39.FRONT HEAD BOLT SPRING

ACE Part No OEM REFF NO
603030 130801043
Paving breaker spare

40.FRONT HEAD BOLT LOCK WASHER

ACE Part No OEM REFF NO
603035 410241560
Paving breaker spare

41.FRONT HEAD BOLT NUT

ACE Part No OEM REFF NO
603040 410241550
Paving breaker spare

42.LATCH BOLT (Retainer Bolt)

ACE Part No OEM REFF NO
603045 10241620
Paving breaker spare

43.TAPER BUSH

ACE Part No OEM REFF NO
603050 136301010
Paving breaker spare

44.SPRING WASHER (Plunger Spring)

ACE Part No OEM REFF NO
603055 131303048
Paving breaker spare

45.LATCH NUT (Retainer Bolt Nut)

ACE Part No OEM REFF NO
603060 134601019
Paving breaker spare

46.SPRING PLUNGER

ACE Part No OEM REFF NO
603065 130801042
Paving breaker spare

47.PLUNGER LATCH (Plunger Retainer Latch)

ACE Part No OEM REFF NO
603070 410241650
Paving breaker spare

48.LATCH RETAINER (Retainer Latch)

ACE Part No OEM REFF NO
603075 410239610
Paving breaker spare

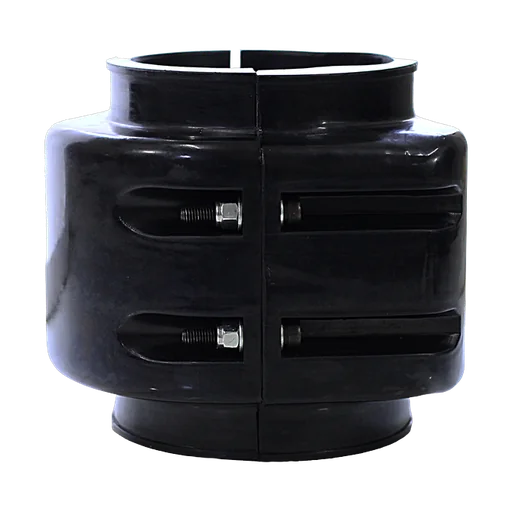

49.MUFFLER 1

ACE Part No OEM REFF NO
603080 41024187G
Paving breaker spare

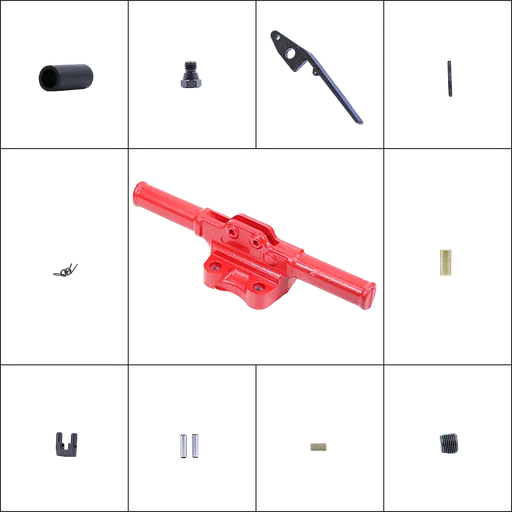

A (1 - 10 & 12).HEAD COMPLETE

ACE Part No OEM REFF NO
60101000 BACK
Paving breaker spare

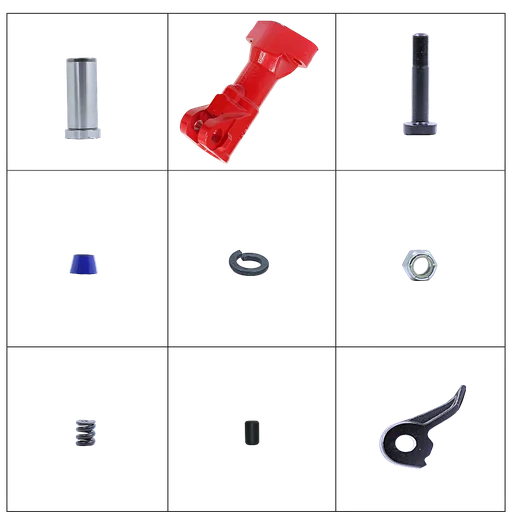

B (36,37,42 - 48).HEAD 1-1/4'

ACE Part No OEM REFF NO
60101010 FRONT
Paving breaker spare

C (36A,37A,42-48).HEAD 1-1/8'

ACE Part No OEM REFF NO
60101020 FRONT
