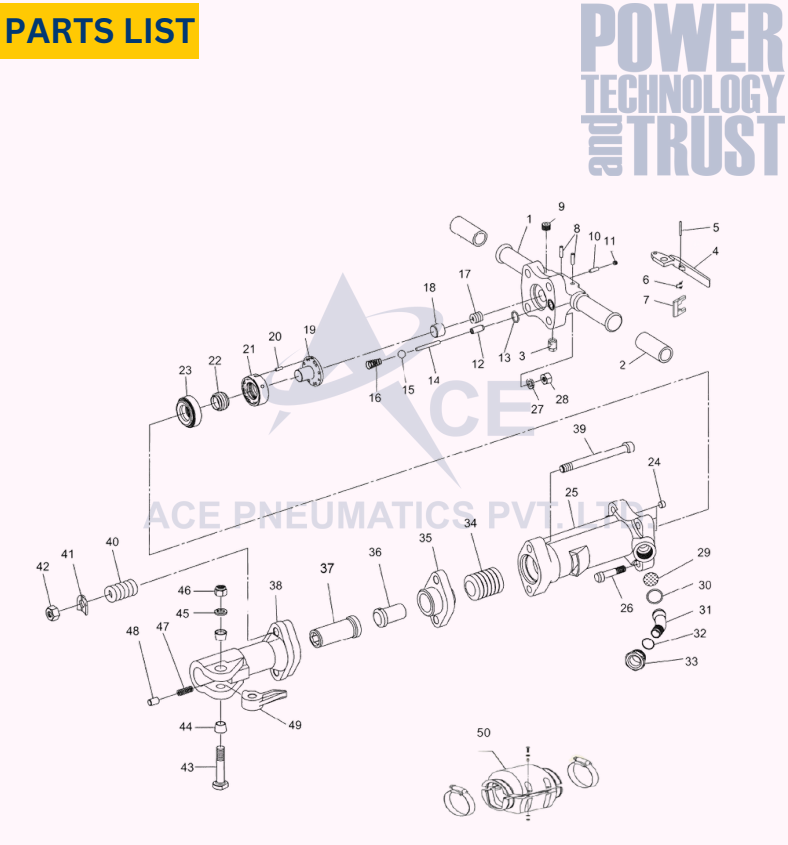

ACE TPB 90

Spares

Paving breaker spare

1.BACK HEAD

ACE Part No OEM REFF NO
901010 410271480
Paving breaker spare

2.BACK HEAD GRIP

ACE Part No OEM REFF NO
901015 136601011
Paving breaker spare

3.OIL PLUG NPTF 1/2

ACE Part No OEM REFF NO
901020 134905012
Paving breaker spare

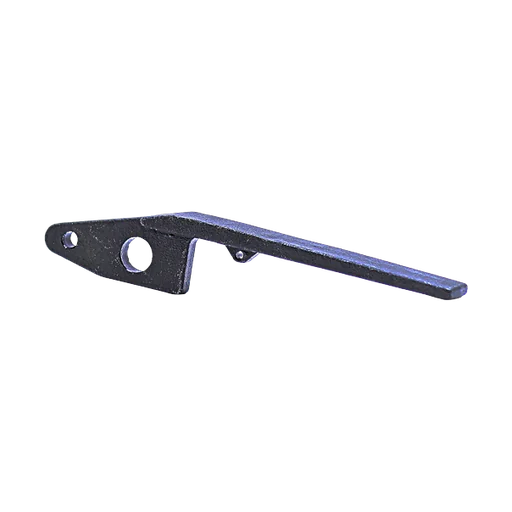

4.THROTTLE LEVER

ACE Part No OEM REFF NO
901025 410241311
Paving breaker spare

5.SPRING PIN 4X40 (Pin Safety Lever)

ACE Part No OEM REFF NO
901030 130604040
Paving breaker spare

6.STOP LEVER SPRING (Spring Safety Lever)

ACE Part No OEM REFF NO
901035 130801046
Paving breaker spare

7.STOP LEVER (Lever Safety)

ACE Part No OEM REFF NO
901040 410241761
Paving breaker spare

8.THROTTLE LEVER PIN

ACE Part No OEM REFF NO
901045 410201330
Paving breaker spare

9.GDL PLUG NPTF 1/2

ACE Part No OEM REFF NO
901050 134903004
Paving breaker spare

10.FELT OILER

ACE Part No OEM REFF NO
901055 136101011
Paving breaker spare

11.PIPE PLUG PP-2 PT 1/8

ACE Part No OEM REFF NO
901060 134901001
Paving breaker spare

12.THROTTLE VALVE STEM GUIDE

ACE Part No OEM REFF NO
901065 410201300
Paving breaker spare

13.O RING 6227-17

ACE Part No OEM REFF NO
901070 131105017
Paving breaker spare

14.THROTTLE PIN

ACE Part No OEM REFF NO
901075 410241E00.
Paving breaker spare

15.POLYURETHENE RUBBER BALL 3/4"

ACE Part No OEM REFF NO
901080 130505048
Paving breaker spare

16.THROTTLE VALVE SPRING

ACE Part No OEM REFF NO
901085 130801047
Paving breaker spare

17.PLUNGER SPRING

ACE Part No OEM REFF NO
901090 130801040
Paving breaker spare

18.PLUNGER

ACE Part No OEM REFF NO
901095 410241660
Paving breaker spare

19.VALVE GUIDE

ACE Part No OEM REFF NO
902010 410271200
Paving breaker spare

20.VALVE CHEST DOWEL (Valve Chest Pin)

ACE Part No OEM REFF NO
902015 130401035
Paving breaker spare

21.VALVE CHEST

ACE Part No OEM REFF NO
902020 410271190
Paving breaker spare

22.VALVE (Auto Valve)

ACE Part No OEM REFF NO
902025 410241150
Paving breaker spare

23.VALVE SEAT

ACE Part No OEM REFF NO
902030 410271170
Paving breaker spare

24.CYLINDER PLUG

ACE Part No OEM REFF NO
902035 136301011
Paving breaker spare

25.CYLINDER

ACE Part No OEM REFF NO
902040 410271010
Paving breaker spare

26.BACK HEAD BOLT

ACE Part No OEM REFF NO
902045 131501018
Paving breaker spare

27.SPRING WASHER M16

ACE Part No OEM REFF NO
902050 131301116
Paving breaker spare

28.BACK HEAD BOLT NUT

ACE Part No OEM REFF NO
902055 410241510
Paving breaker spare

29.AIR INLET SCREEN

ACE Part No OEM REFF NO
902060 136801007
Paving breaker spare

30.O-RING S-29

ACE Part No OEM REFF NO
902065 131103023
Paving breaker spare

31.AIR INLET SWIVEL

ACE Part No OEM REFF NO
902070 410271370
Paving breaker spare

32.O-RING G-30

ACE Part No OEM REFF NO
902075 131102002
Paving breaker spare

33.AIR INLET SWIVEL NUT

ACE Part No OEM REFF NO
902080 410271390
Paving breaker spare

34.PISTON

ACE Part No OEM REFF NO
902085 410271040
Paving breaker spare

35.ANVIL BLOCK BUSHING (Teppet Seat)

ACE Part No OEM REFF NO
902090 410271591
Paving breaker spare

36.ANVIL BLOCK (Teppet)

ACE Part No OEM REFF NO
902095 410271581
Paving breaker spare

37.FRONT HEAD BUSHING 1-1/8''

ACE Part No OEM REFF NO
903010 410241572
Paving breaker spare

37A.FRONT HEAD BUSHING 1-1/4"

ACE Part No OEM REFF NO
903015 410245572
Paving breaker spare

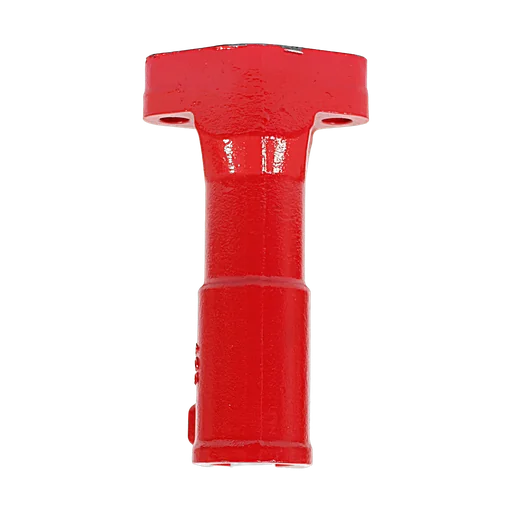

38.FRONT HEAD 1- 1/4"

ACE Part No OEM REFF NO
903020 410271531
Paving breaker spare

38A.FRONT HEAD 1- 1/8"

ACE Part No OEM REFF NO
903021
Paving breaker spare

39.FRONT HEAD BOLT

ACE Part No OEM REFF NO
903025 131501017
Paving breaker spare

40.FRONT HEAD BOLT SPRING

ACE Part No OEM REFF NO
903030 130801043
Paving breaker spare

41.FRONT HEAD BOLT LOCK WASHER

ACE Part No OEM REFF NO
903035 410241560
Paving breaker spare

42.FRONT HEAD BOLT NUT

ACE Part No OEM REFF NO
903040 410241550
Paving breaker spare

43.LATCH BOLT (Retainer Bolt)

ACE Part No OEM REFF NO
903045 410241620
Paving breaker spare

44.TAPER BUSH (Con Bushing Rubber)

ACE Part No OEM REFF NO
903050 136301010
Paving breaker spare

45.SPRING WASHER (Retainer Bolt Washer)

ACE Part No OEM REFF NO
903055 131303048
Paving breaker spare

46.LATCH NUT (Retainer Bolt Nut)

ACE Part No OEM REFF NO
903060 134601019
Paving breaker spare

47.SPRING PLUNGER

ACE Part No OEM REFF NO
903065 130801042
Paving breaker spare

48.PLUNGER LATCH (Plunger Retainer Latch)

ACE Part No OEM REFF NO
903070 410241650
Paving breaker spare

49.LATCH RETAINER (Retainer Latch)

ACE Part No OEM REFF NO
903075 410239610
Paving breaker spare

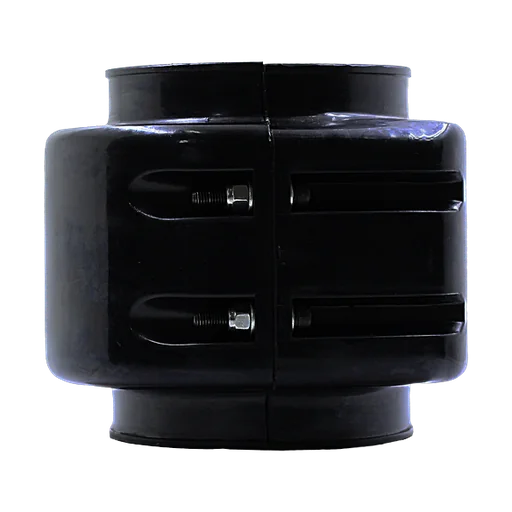

50.MUFFLER

ACE Part No OEM REFF NO
903080
Paving breaker spare

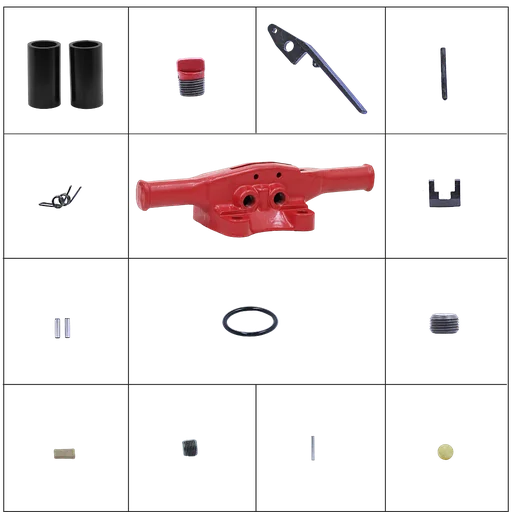

A (1 -14).BACK HEAD

ACE Part No OEM REFF NO
90101000
Paving breaker spare

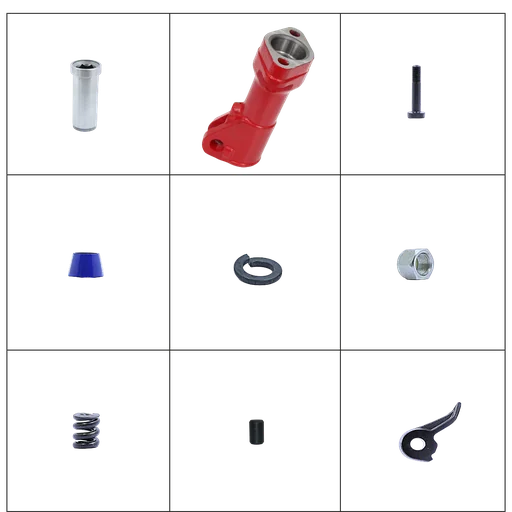

C (37A & 38 43-49).FRONT HEAD 1-1/4"

ACE Part No OEM REFF NO
90101010
Paving breaker spare

D (37 & 38,43-49).FRONT HEAD 1-1/8"'

ACE Part No OEM REFF NO
90101020
