ACE 33

Spares

Pick hammer spare

1.Handle Empuñadura sencilla

ACE Part No OEM REFF NO
331010 490001
Pick hammer spare

2.3/4" Air Connection Nipple Mamelón

ACE Part No OEM REFF NO
331015 401035
Pick hammer spare

3.Cap - Air Nipple Casquete

ACE Part No OEM REFF NO
331020 410977
Pick hammer spare

4.Guide Bushing Camisa

ACE Part No OEM REFF NO
331025 405530
Pick hammer spare

5.Valve Pusher (Push Pin) Varilla de admisión

ACE Part No OEM REFF NO
331030 D6325-006060
Pick hammer spare

6.Ball admission valve Bola de admisión

ACE Part No OEM REFF NO
331035 000007
Pick hammer spare

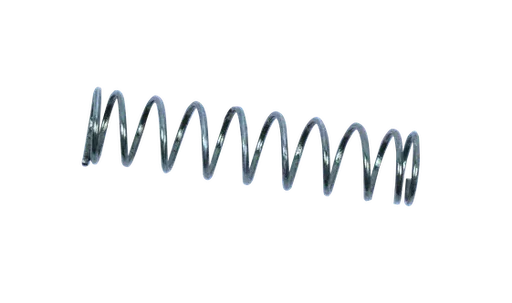

7.Push Spring Of The Ball Muelle de admisión

ACE Part No OEM REFF NO
331040 400008
Pick hammer spare

8.1/2" Stop Plug Spring Tapón

ACE Part No OEM REFF NO
331045 410977
Pick hammer spare

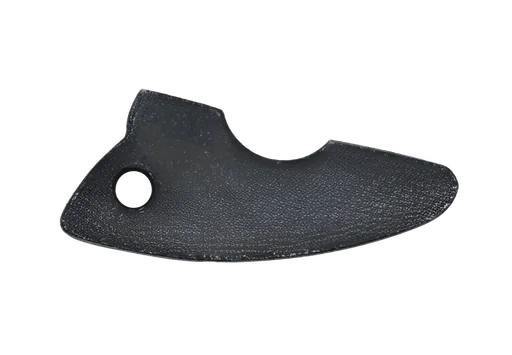

9.Throttle Lever Gatillo

ACE Part No OEM REFF NO
331050 400033
Pick hammer spare

10.Throttle Lever Pin Eje del gatillo

ACE Part No OEM REFF NO
331055 D6325-006030
Pick hammer spare

11.Pin - Sleeve Pasador de la camisa

ACE Part No OEM REFF NO
331884 40884
Pick hammer spare

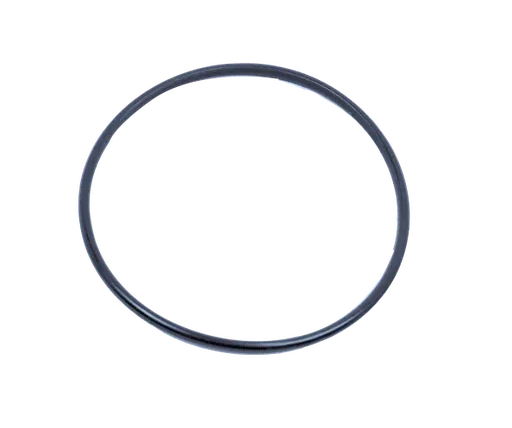

12.Rubber Gasket Anillo de goma entre cilindro-portapicas

ACE Part No OEM REFF NO
331060 400335
Pick hammer spare

13.Rubber Shock Junta de goma del cilindrico

ACE Part No OEM REFF NO
331065 400343
Pick hammer spare

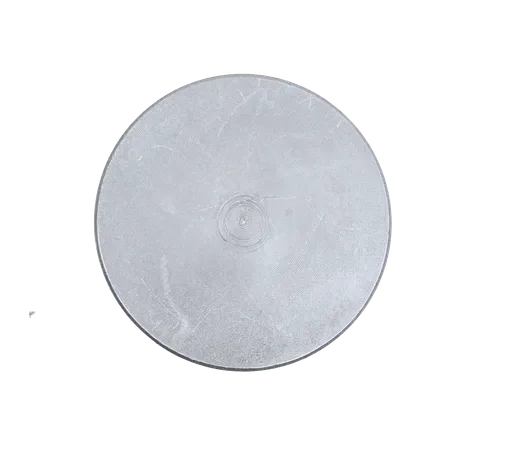

14.Absorber Disco metálico amortiguador

ACE Part No OEM REFF NO
331070 400338
Pick hammer spare

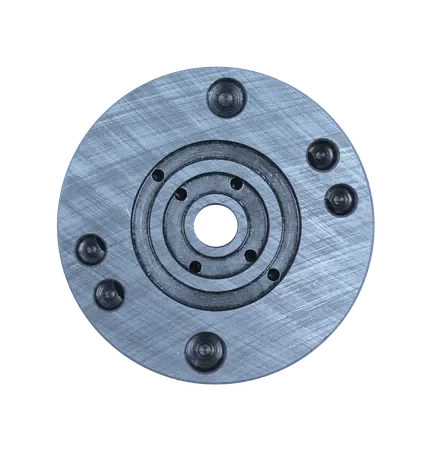

15.Upper Distribution Box Placa de distribución

ACE Part No OEM REFF NO
331075 400339
Pick hammer spare

16.Valve (Pallet) Pastilla

ACE Part No OEM REFF NO
331080 400329
Pick hammer spare

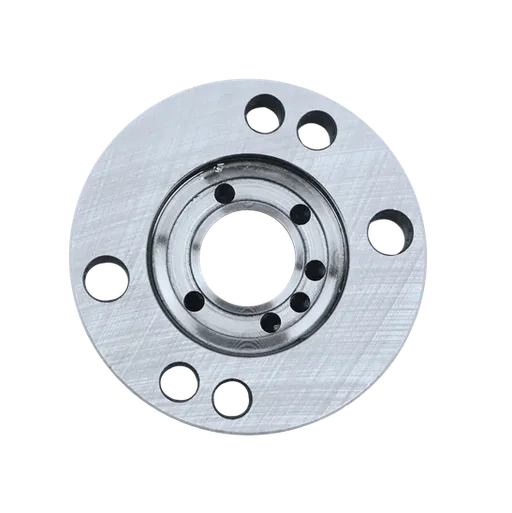

17.Lower Distribution Box Caja de distribución

ACE Part No OEM REFF NO
331085 400328
Pick hammer spare

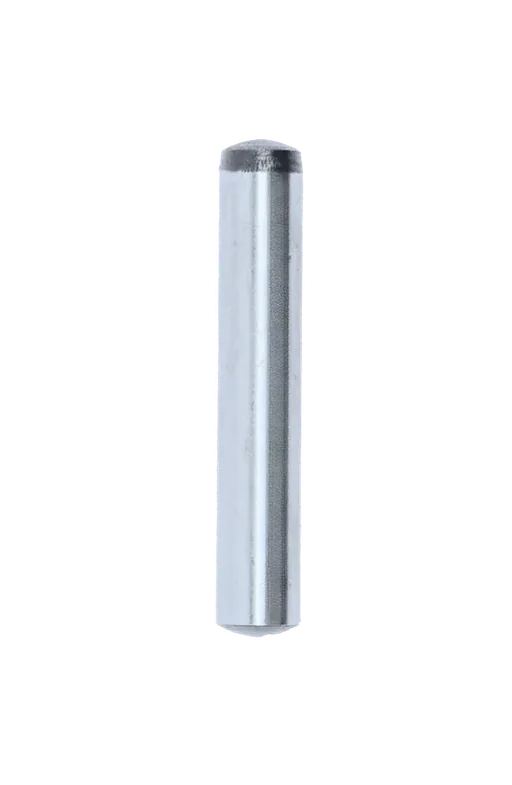

18.Alignment Pin ( V.Dowel Pin) Pasador guía

ACE Part No OEM REFF NO
331090 D0007-006036
Pick hammer spare

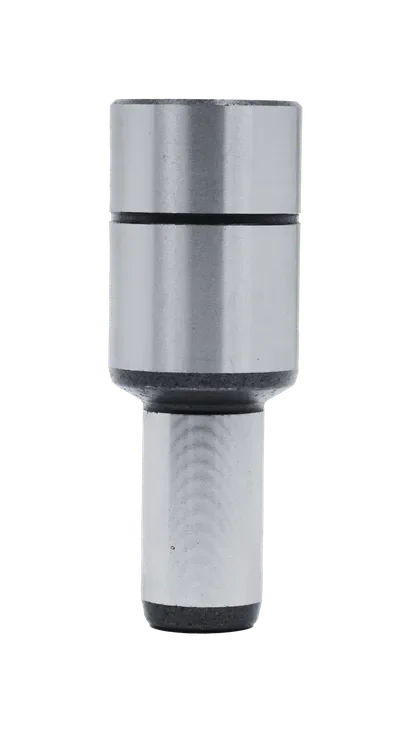

19.Piston Pistón

ACE Part No OEM REFF NO
331095 400333
Pick hammer spare

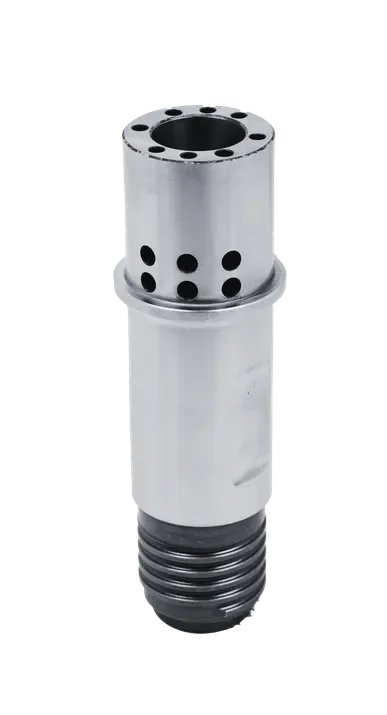

20.Cylinder Cilindro

ACE Part No OEM REFF NO
331100 443822
Pick hammer spare

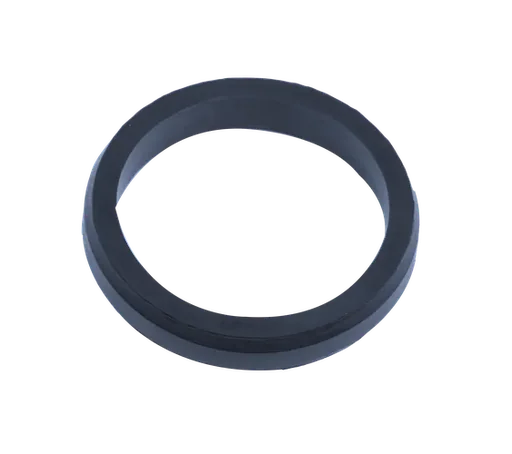

21.Cylinder Rubber Washer Arendela del cilindro

ACE Part No OEM REFF NO
331105 400344
Pick hammer spare

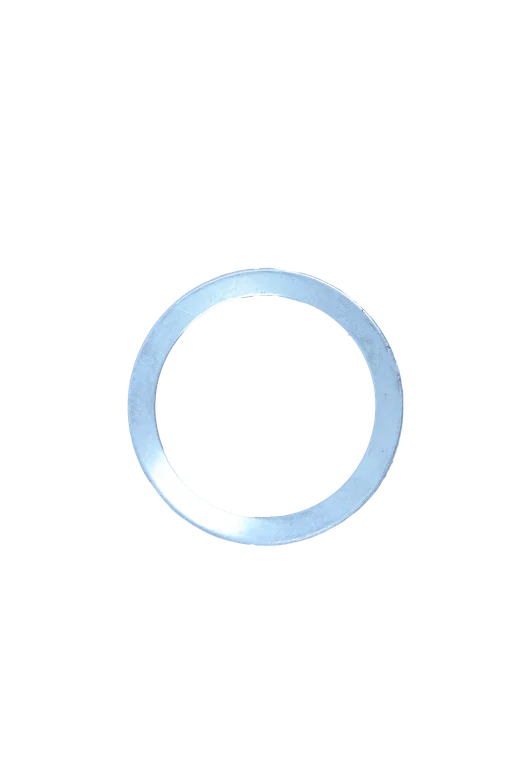

22.Cylinder Washer 3 Article Junta de goma del cilindrico

ACE Part No OEM REFF NO
331115 400343
Pick hammer spare

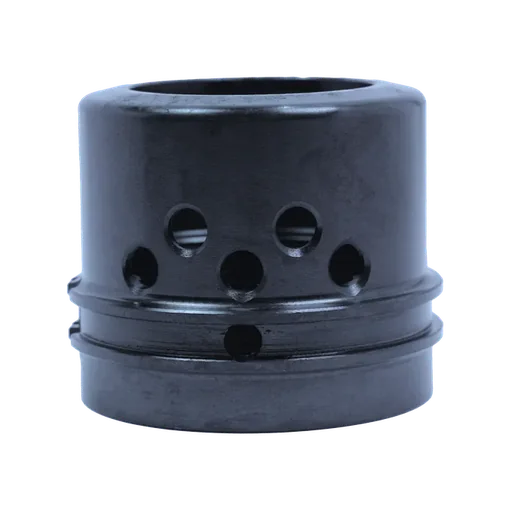

23.Deflector Tuerca de retención

ACE Part No OEM REFF NO
331120 400873
Pick hammer spare

24.Deflector Lock Key Fijador de Tuerca de retención

ACE Part No OEM REFF NO
331125
Pick hammer spare

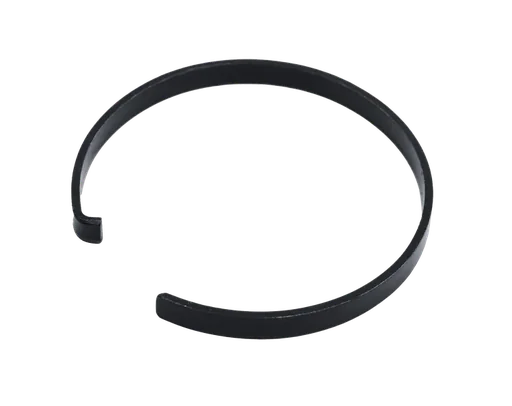

25.Deflector Lock Clip Anillo de retención

ACE Part No OEM REFF NO
331130 400874
Pick hammer spare

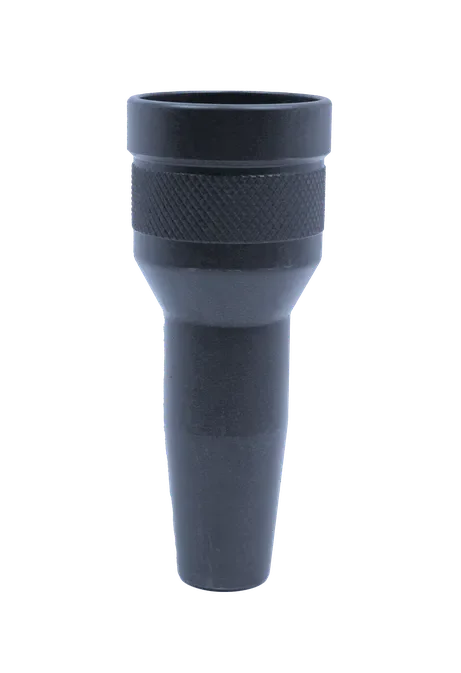

26.Pick Holder (Retainer) Porta-pica

ACE Part No OEM REFF NO
331135 400334
Pick hammer spare

27.Muffler

ACE Part No OEM REFF NO
331140

SPARES AND ACCESSORIES

Accessories can be used for your products & prevents time loss in case of breakdown

0.580 HEX SHANK OVAL COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

0.580 HEX SHANK NON COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

0.680 ROUND SHANK NON COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

0.680 ROUND SHANK OVAL COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

Shank Hex 14.7 – Rd 17.3 x 60 mm (Hex 9/16 – Rd 11/16 x 23/8 in)

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

Shank Rd 17.3 mm (Rd .680 in)

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL
