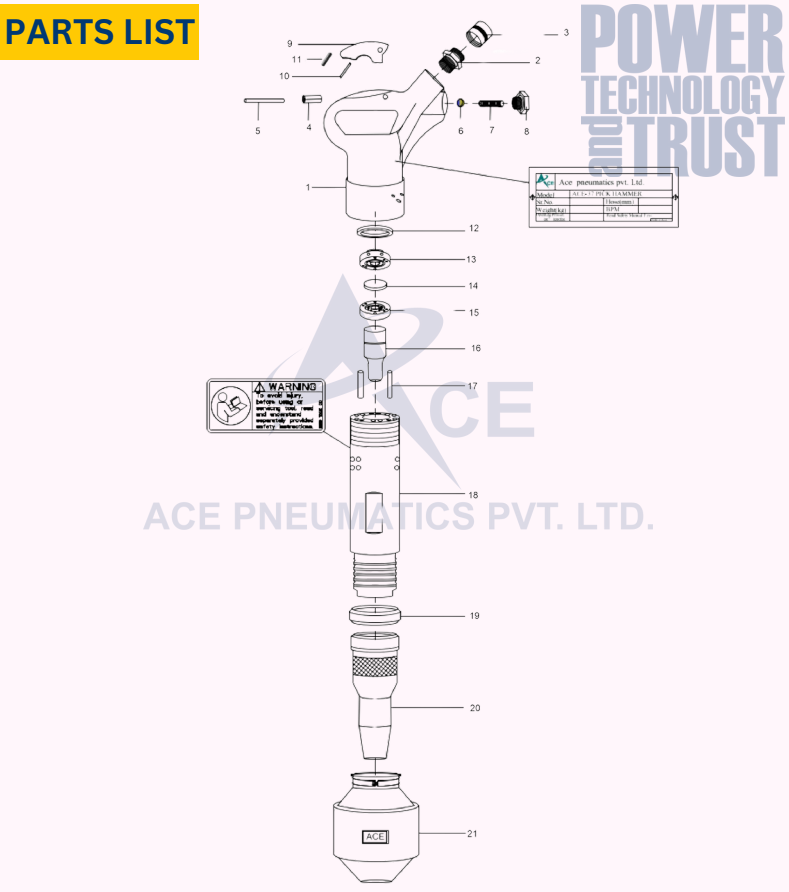

ACE 37

Spares

Pick hammer spare

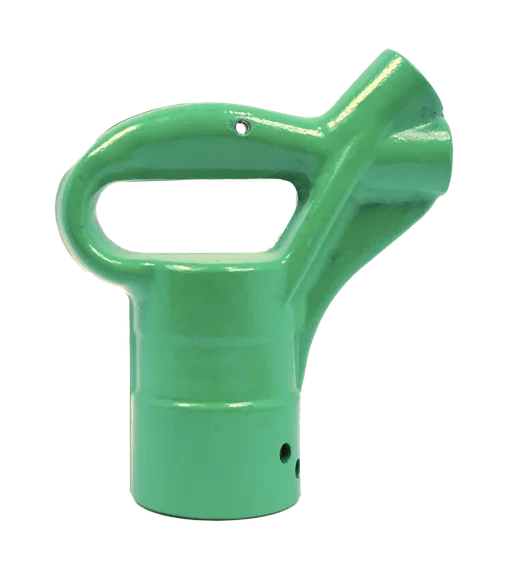

1.Handle Empuñadura sencilla

ACE Part No OEM REFF NO
371010 470422
Pick hammer spare

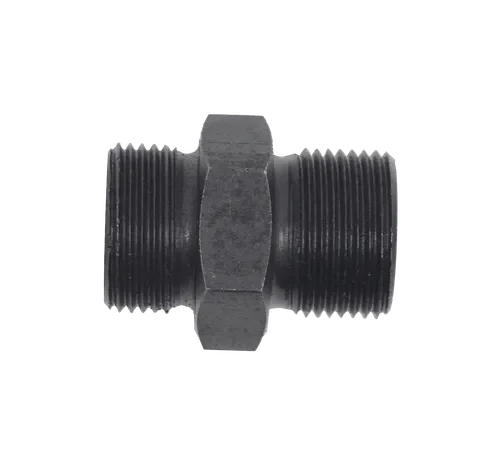

2.3/4" Air Connection Nipple Mamelón

ACE Part No OEM REFF NO
371015 401035
Pick hammer spare

3.Cap - Air Nipple Casquete

ACE Part No OEM REFF NO
371020 13339
Pick hammer spare

4.Guide Bushing Camisa

ACE Part No OEM REFF NO
371025 400037
Pick hammer spare

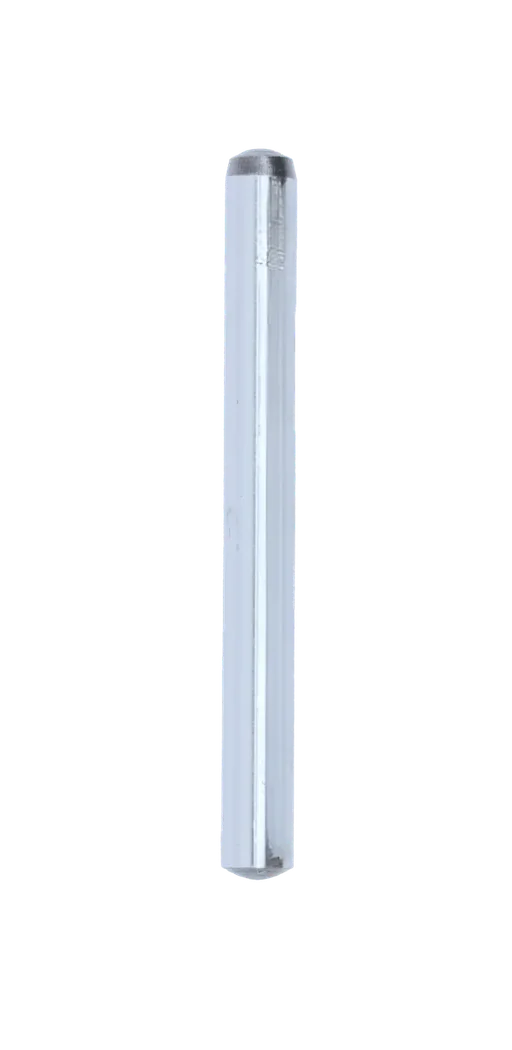

5.Valve Pusher (Push Pin) Varilla de admisión

ACE Part No OEM REFF NO
371030 D6325-006060
Pick hammer spare

6.Ball admission valve Bola de admisión

ACE Part No OEM REFF NO
371035 000007
Pick hammer spare

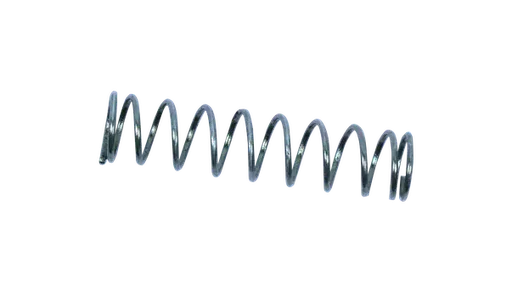

7.Push Spring Of The Ball Muelle de admisión

ACE Part No OEM REFF NO
371040 400185
Pick hammer spare

8.1/2" Stop Plug Spring Tapón

ACE Part No OEM REFF NO
371045 400036
Pick hammer spare

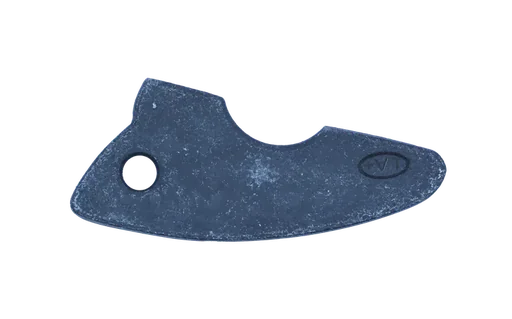

9.Throttle Lever Gatillo

ACE Part No OEM REFF NO
371050 400033
Pick hammer spare

10.Throttle Lever Pin Pasador de la camisa

ACE Part No OEM REFF NO
371055 400004
Pick hammer spare

11.Pin - Sleeve

ACE Part No OEM REFF NO
371056 D6325-6024
Pick hammer spare

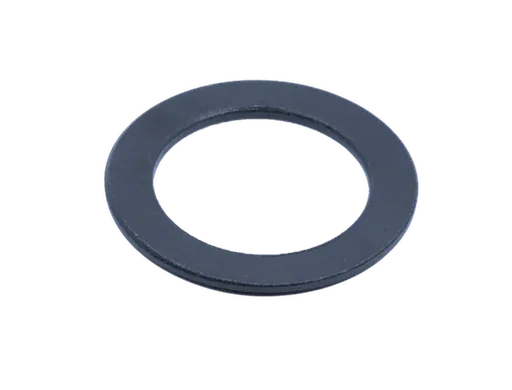

12.Fixing Washer Anillo de goma entre cilindro-portapicas

ACE Part No OEM REFF NO
371060 400048
Pick hammer spare

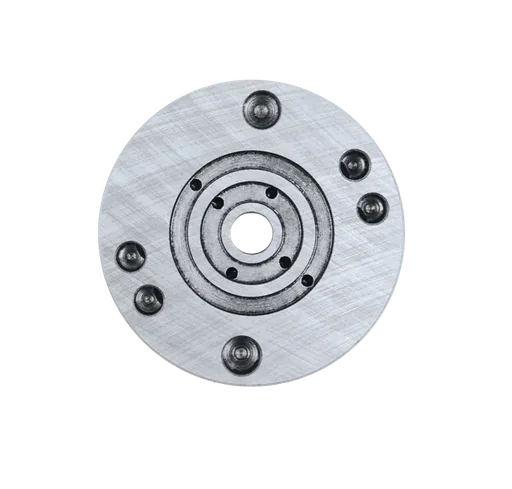

13.Upper Distribution Plate Placa de distribución

ACE Part No OEM REFF NO
371065 400038
Pick hammer spare

14.Valve (Pallet) Pastilla

ACE Part No OEM REFF NO
371070 400027
Pick hammer spare

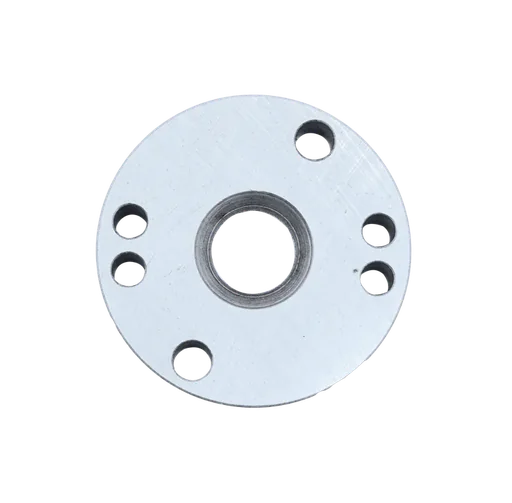

15.Lower Distribution (Box) Caja de distribución

ACE Part No OEM REFF NO
371075 400040
Pick hammer spare

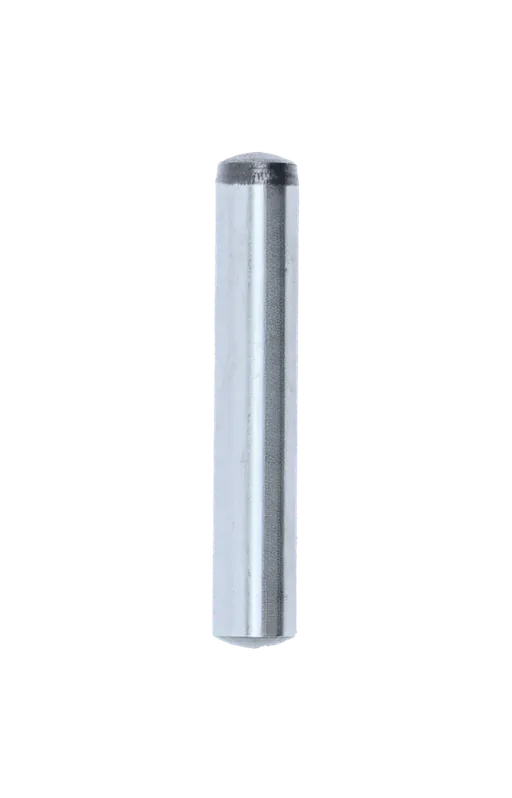

16.Alignment Pin ( Dowel Pin) Pasador guía x 2u

ACE Part No OEM REFF NO
371080 400041
Pick hammer spare

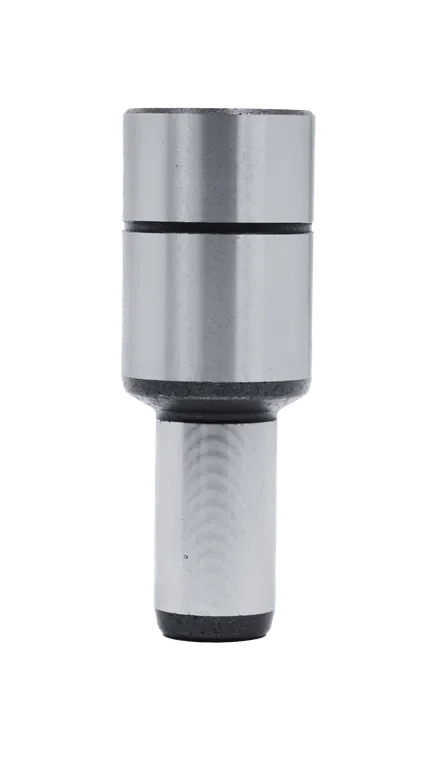

17.Piston Pistón

ACE Part No OEM REFF NO
371085 400044
Pick hammer spare

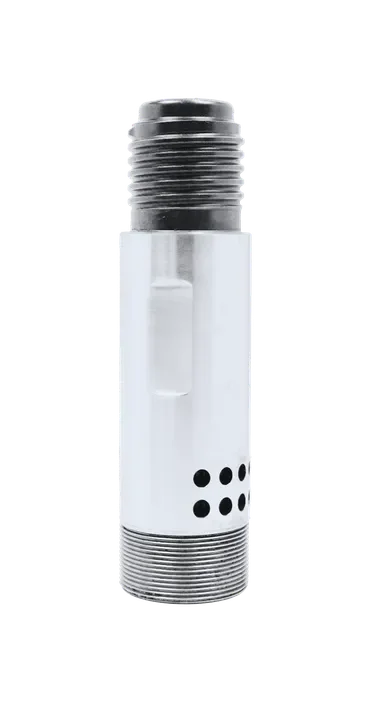

18.Cylinder Cilindro

ACE Part No OEM REFF NO
371090 400043
Pick hammer spare

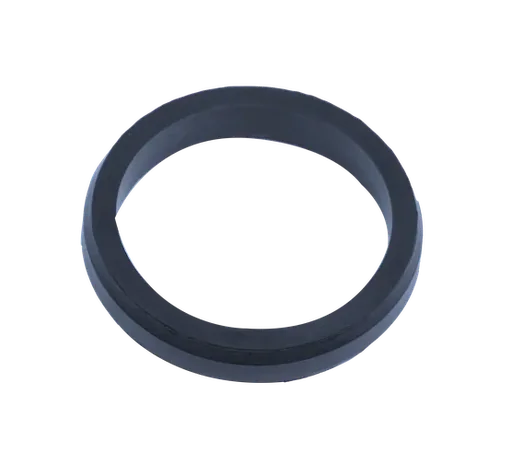

19.Cylinder Rubber Washer Resorte de sujeción

ACE Part No OEM REFF NO
371095 400042
Pick hammer spare

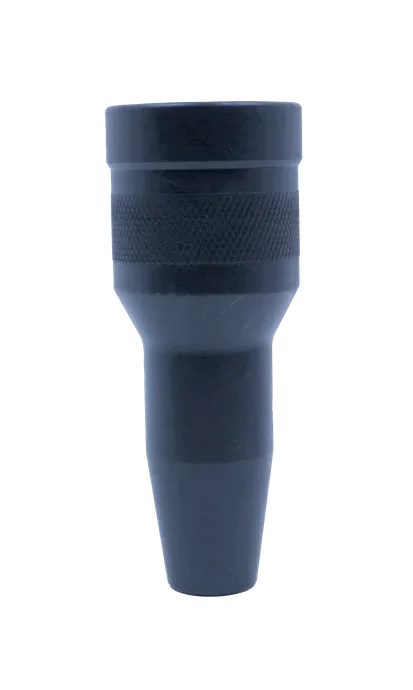

20.Pick Holder (Retainer) Porta-pica

ACE Part No OEM REFF NO
371100 438212
Pick hammer spare

21.Muffler Silenciador

ACE Part No OEM REFF NO
371105 -

SPARES AND ACCESSORIES

Accessories can be used for your products & prevents time loss in case of breakdown

0.580 HEX SHANK OVAL COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

0.580 HEX SHANK NON COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

0.680 ROUND SHANK NON COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

0.680 ROUND SHANK OVAL COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

Shank Hex 14.7 – Rd 17.3 x 60 mm (Hex 9/16 – Rd 11/16 x 23/8 in)

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

Shank Rd 17.3 mm (Rd .680 in)

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL
