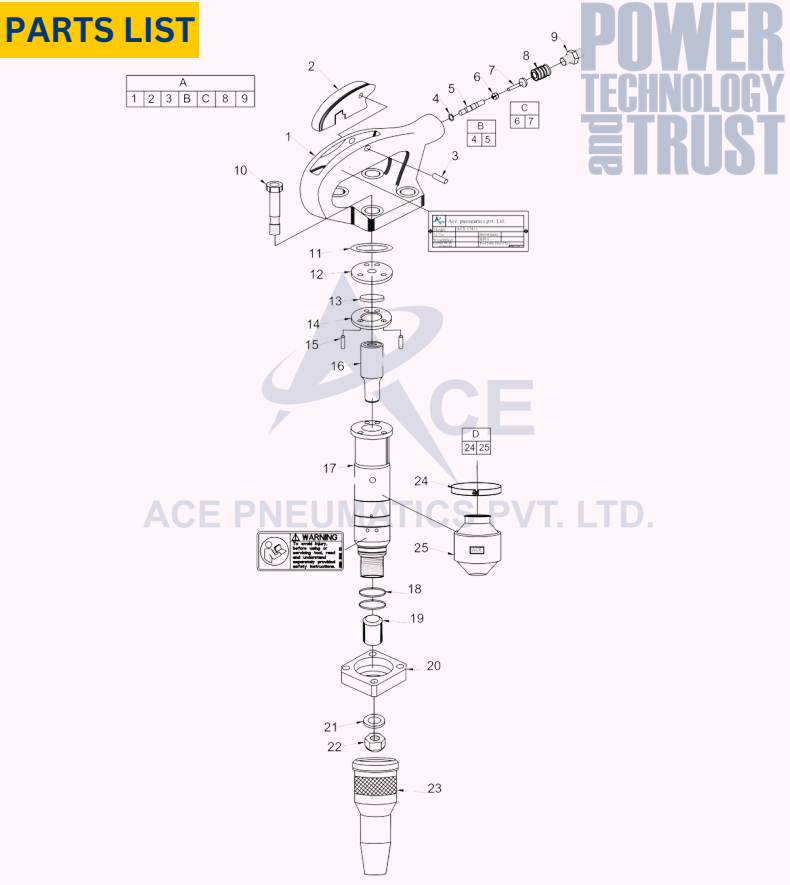

ACE K 13

Spares

Pick hammer spare

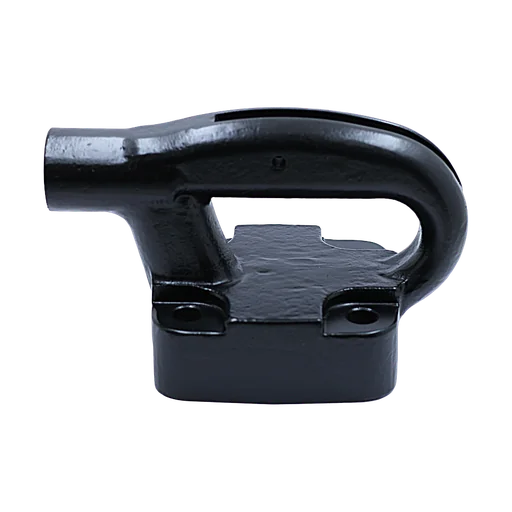

1.Handle

ACE Part No OEM REFF NO
131010
Pick hammer spare

2.Throttle Lever

ACE Part No OEM REFF NO
131015
Pick hammer spare

3.Throttle Lever Pin

ACE Part No OEM REFF NO
131020
Pick hammer spare

4.Push Rod Seal

ACE Part No OEM REFF NO
132010
Pick hammer spare

5.Push Rod

ACE Part No OEM REFF NO
132015
Pick hammer spare

6.Throttle Valve Seat

ACE Part No OEM REFF NO
133010
Pick hammer spare

7.Throttle Valve

ACE Part No OEM REFF NO
133015
Pick hammer spare

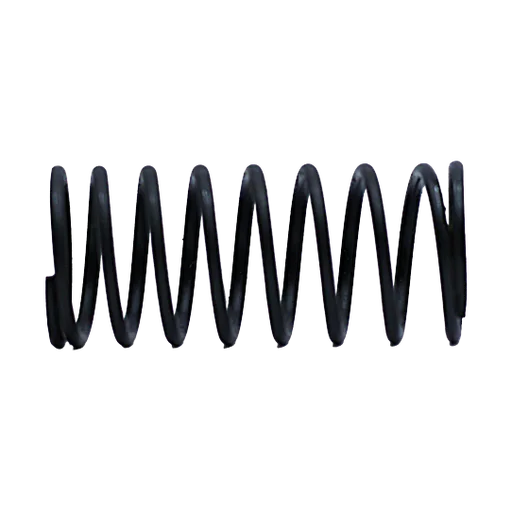

8.Throttle Valve Spring

ACE Part No OEM REFF NO
133020
Pick hammer spare

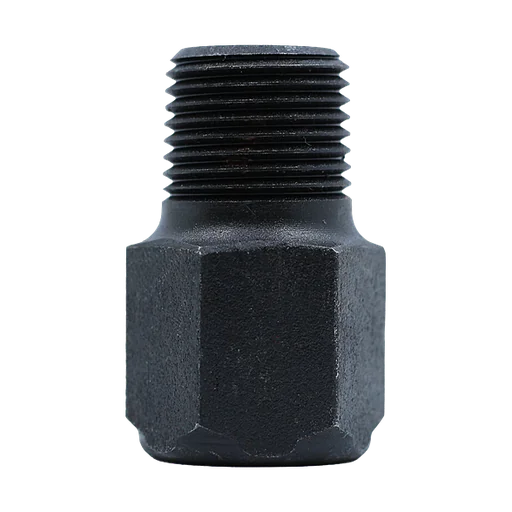

9.Air Inlet Bush

ACE Part No OEM REFF NO
133025
Pick hammer spare

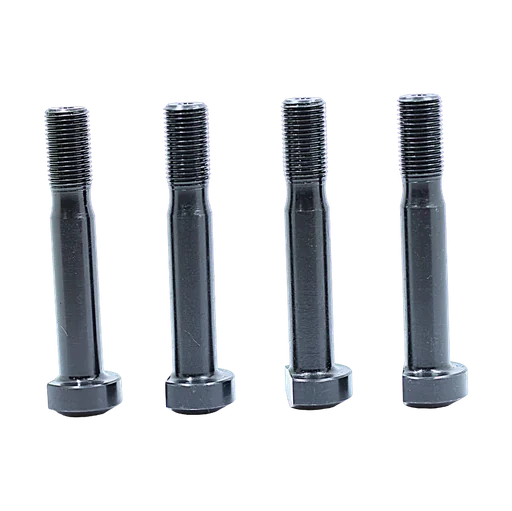

10.Handle Bolt

ACE Part No OEM REFF NO
133030
Pick hammer spare

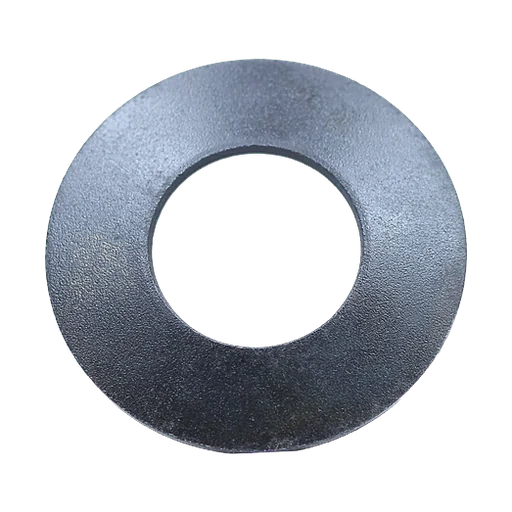

11.Spring Washer

ACE Part No OEM REFF NO
133035
Pick hammer spare

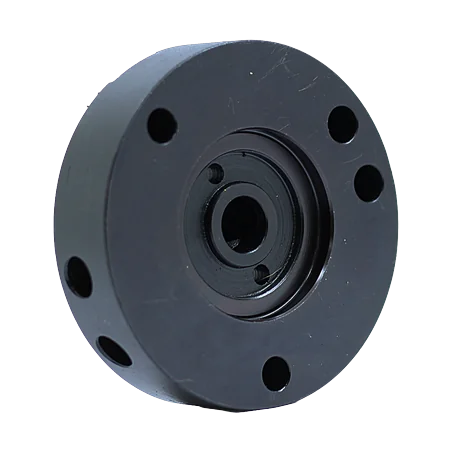

12.Upper Valve Seat

ACE Part No OEM REFF NO
133040
Pick hammer spare

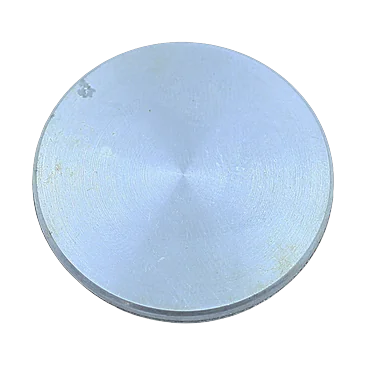

13.Valve

ACE Part No OEM REFF NO
133045
Pick hammer spare

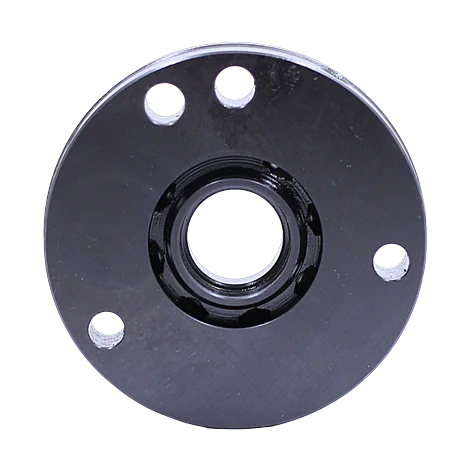

14.Lower Valve Seat

ACE Part No OEM REFF NO
133050
Pick hammer spare

15.Dowel Pin

ACE Part No OEM REFF NO
133055
Pick hammer spare

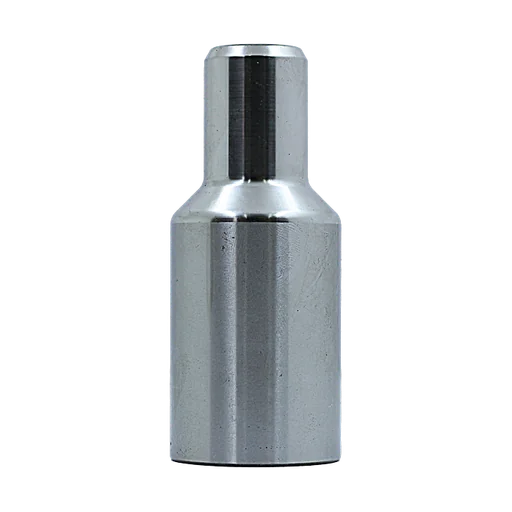

16.Piston 26 X 70

ACE Part No OEM REFF NO
133060
Pick hammer spare

16A.Piston 25 X 75

ACE Part No OEM REFF NO
133060A
Pick hammer spare

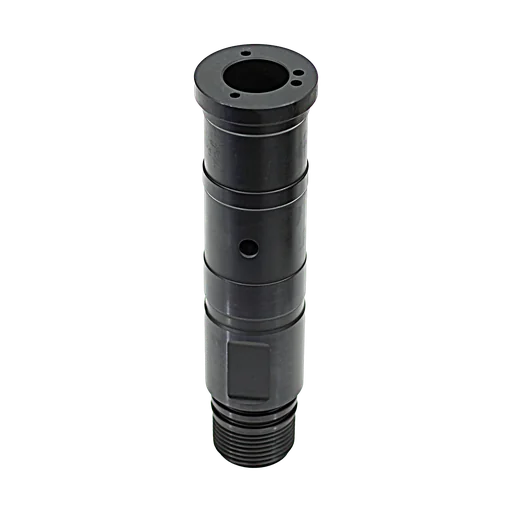

17.Cylinder

ACE Part No OEM REFF NO
133065
Pick hammer spare

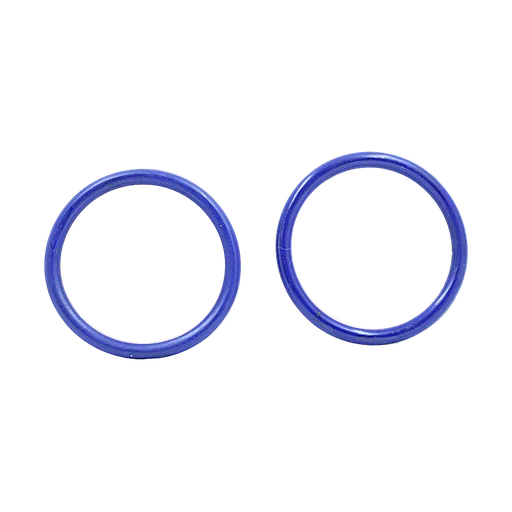

18.O Ring

ACE Part No OEM REFF NO
133070
Pick hammer spare

19.Chisel Bushing 26 X 70

ACE Part No OEM REFF NO
133075
Pick hammer spare

19A.Chisel Bushing 25 X 75

ACE Part No OEM REFF NO
133075A
Pick hammer spare

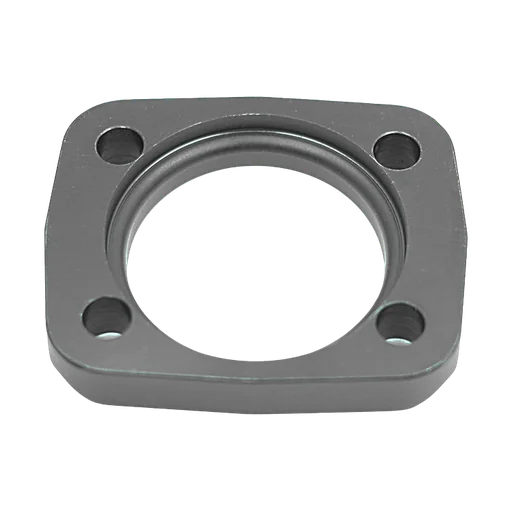

20.Flange Cylinder

ACE Part No OEM REFF NO
133080
Pick hammer spare

21.Bolt Spacer

ACE Part No OEM REFF NO
133085
Pick hammer spare

22.Nylock Nut

ACE Part No OEM REFF NO
133090
Pick hammer spare

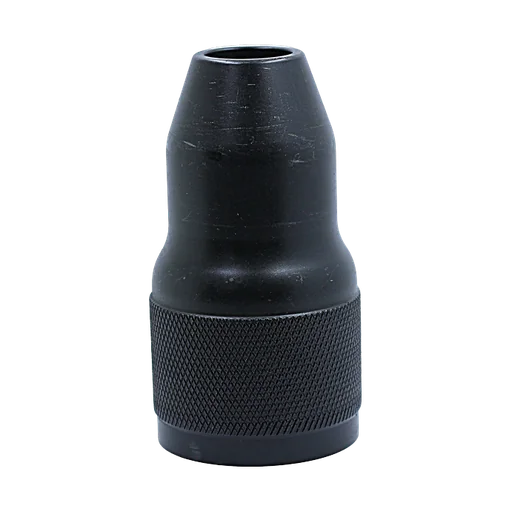

23.Retainer

ACE Part No OEM REFF NO
133095
Pick hammer spare

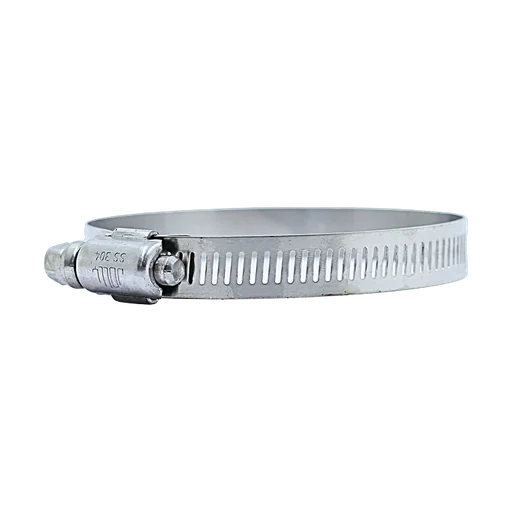

24.Clip-Muffler

ACE Part No OEM REFF NO
134010
Pick hammer spare

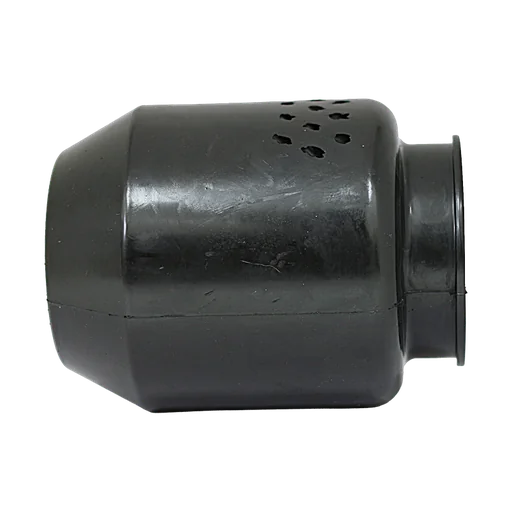

25.Muffler

ACE Part No OEM REFF NO
134015
Pick hammer spare

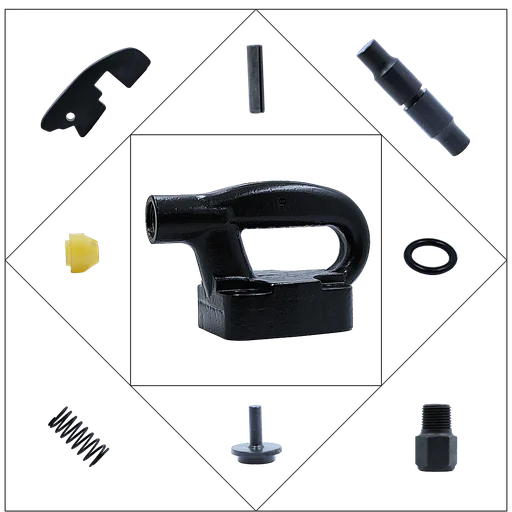

A(1-9).HANDLE,COMPLETE

ACE Part No OEM REFF NO
131000
Pick hammer spare

B(4-5).PUSH ROD,COMPLETE

ACE Part No OEM REFF NO
132000
Pick hammer spare

C(6-7).THROTTLE VALVE,COMPLETE

ACE Part No OEM REFF NO
133000
Pick hammer spare

D(24-25).MUFFLER,COMPLETE

ACE Part No OEM REFF NO
134000
