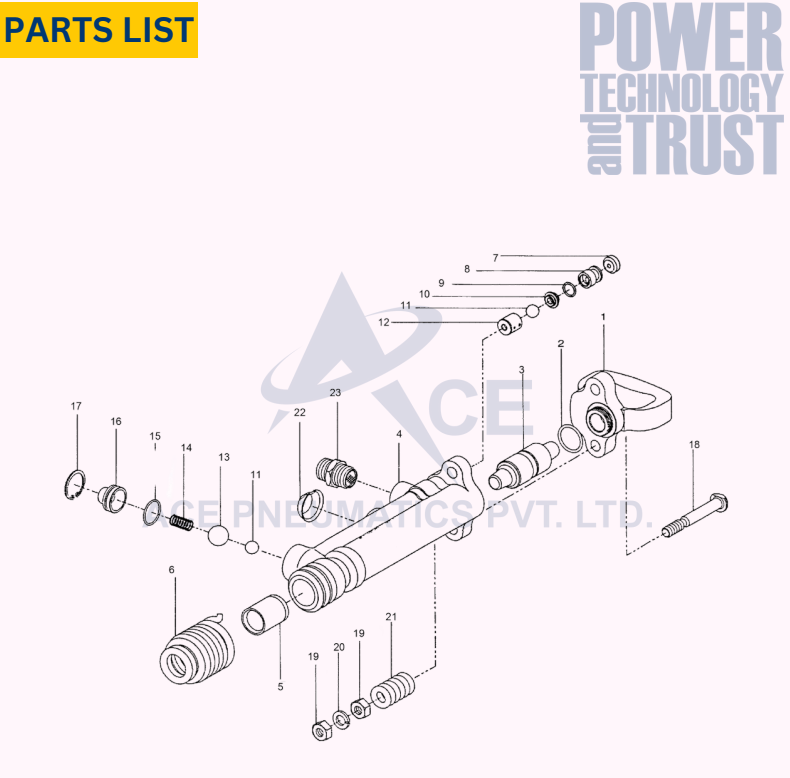

ACE TPB 7

Spares

Pick hammer spare

1.Handle

ACE Part No	OEM REFF NO
TP71070	410001070

Pick hammer spare

2.O-Ring G-30

ACE Part No	OEM REFF NO
TP72002	131102002

Pick hammer spare

3.Piston

ACE Part No	OEM REFF NO
TP71040	410001040

Pick hammer spare

4.Cylinder

ACE Part No	OEM REFF NO
TP71011	410001011

Pick hammer spare

5.Shank Bushing

ACE Part No	OEM REFF NO
TP71260	410001260

Pick hammer spare

6.Retaining Spring

ACE Part No	OEM REFF NO
TP71002	130801002

Pick hammer spare

7.Rubber Washer

ACE Part No	OEM REFF NO
TP71001	136301001

Pick hammer spare

8.Valve Bushing Cover (N)

ACE Part No	OEM REFF NO
TP71222	410001222

Pick hammer spare

9.O Ring 6227-11

ACE Part No	OEM REFF NO
TP75011	131105011

Pick hammer spare

10.Valave Seat (N)

ACE Part No	OEM REFF NO
TP71170	410001170

Pick hammer spare

11.Steel Ball 19/32

ACE Part No	OEM REFF NO
TP72038	130502038

Pick hammer spare

12.Valve Bushing (N)

ACE Part No	OEM REFF NO
TP71211	410001211

Pick hammer spare

13.Steel Ball 15/16

ACE Part No	OEM REFF NO
TP72060	130502060

Pick hammer spare

14.Pressure Spring

ACE Part No	OEM REFF NO
TP71003	130801003

Pick hammer spare

15.O-Ring S-28

ACE Part No	OEM REFF NO
TP73022	131103022

Pick hammer spare

16.Valve Cover

ACE Part No	OEM REFF NO
TP71180	410001180

Pick hammer spare

17.Snap Ring H-34

ACE Part No	OEM REFF NO
TP71034	130301034

Pick hammer spare

18.Side Bolt

ACE Part No	OEM REFF NO
TP71001	131501001

Pick hammer spare

19.Hex Nut W 1/2

ACE Part No	OEM REFF NO
TP71820	410001820

Pick hammer spare

20.Side Bolt Spring W 1/2

ACE Part No	OEM REFF NO
TP73032	131303032

Pick hammer spare

21.Side Bolt Spring

ACE Part No	OEM REFF NO
TP71001	130901001

Pick hammer spare

22.Exhaust Cap

ACE Part No	OEM REFF NO
TP71700	410001700

Pick hammer spare

23.Nipple CP (W 3/4 Screen)

ACE Part No	OEM REFF NO
TP7136B	41000136B

SPARES AND ACCESSORIES

Accessories can be used for your products & prevents time loss in case of breakdown

0.580 HEX SHANK OVAL COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

0.580 HEX SHANK NON COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

0.680 ROUND SHANK NON COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

0.680 ROUND SHANK OVAL COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

Shank Hex 14.7 – Rd 17.3 x 60 mm (Hex 9/16 – Rd 11/16 x 23/8 in)

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

Shank Rd 17.3 mm (Rd .680 in)

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL
