ACE PNEUMATICS PVT LTD

Manufacturer & Suppliers of High-Quality Mining, Construction, Demolition Tools

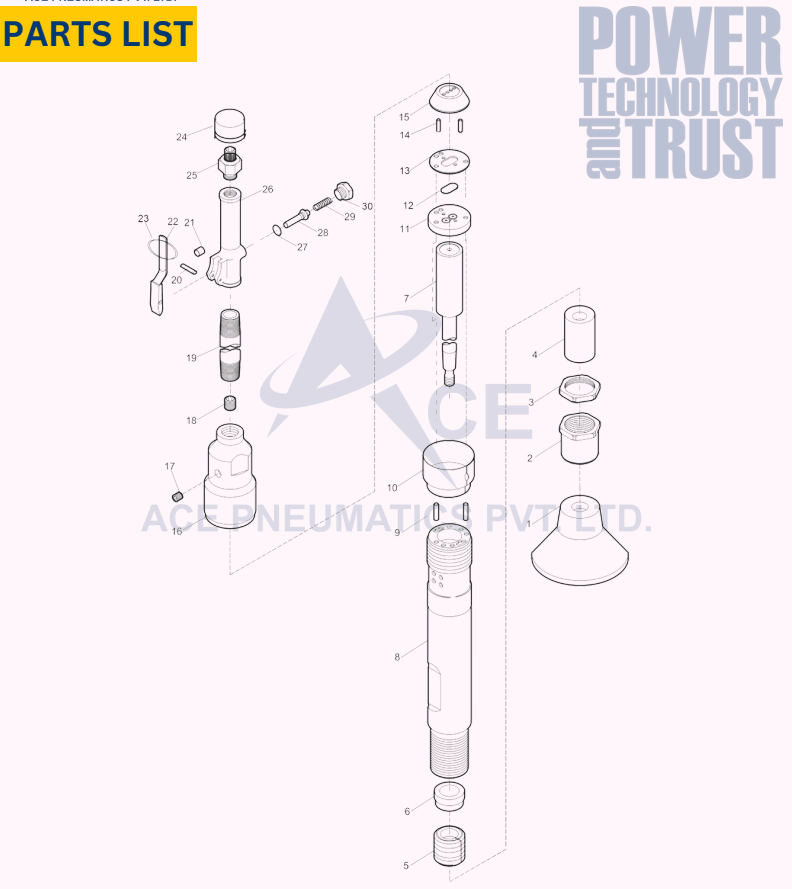

ACE 03

Spares

Rammer spare

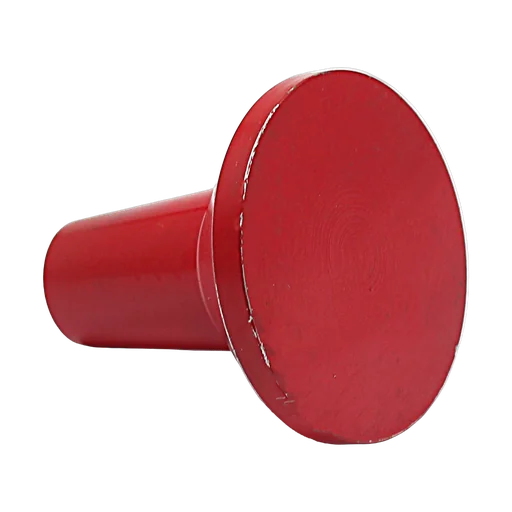

1.STEEL BUTT

ACE Part No OEM REFF NO
40031887 P089008
Rammer spare

2.RETAINER FOR PISTON BUSHING

ACE Part No OEM REFF NO
40033887 P070651
Rammer spare

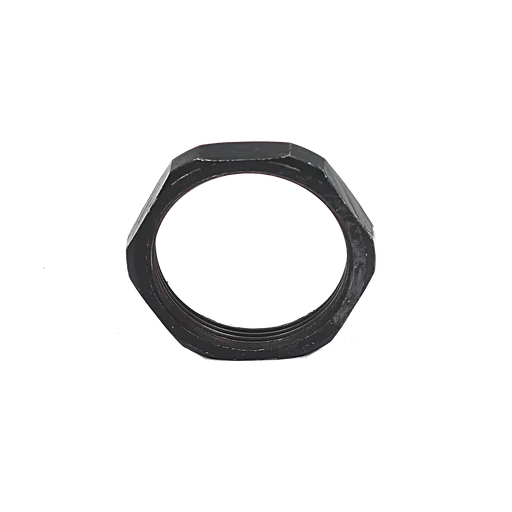

3.RETAINER LOCK NUT

ACE Part No OEM REFF NO
40037887 P070931
Rammer spare

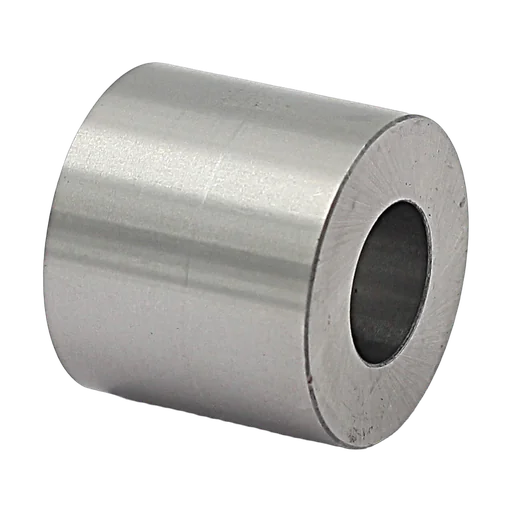

4.PISTON BUSHING

ACE Part No OEM REFF NO
40032887 P070648
Rammer spare

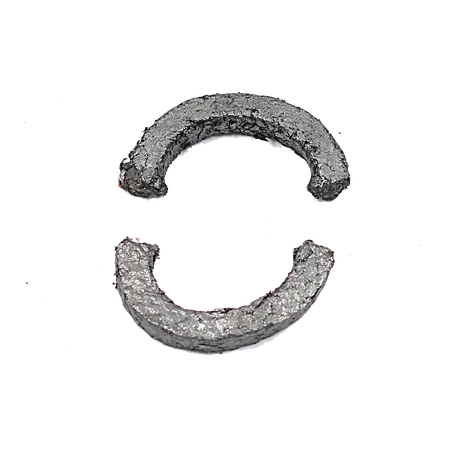

5.PISTON PACKING

ACE Part No OEM REFF NO
40038887 P071390
Rammer spare

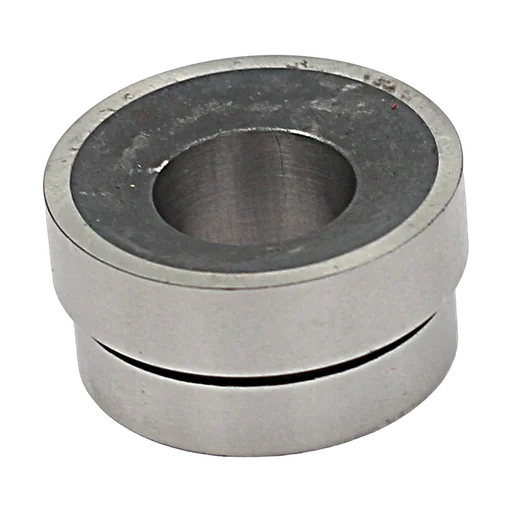

6.PISTON PACKING BUSHING

ACE Part No OEM REFF NO
40037887 P070649
Rammer spare

7.PISTON COMP. WITH PLUG

ACE Part No OEM REFF NO
40035887
Rammer spare

8.CYLINDER

ACE Part No OEM REFF NO
40035887
Rammer spare

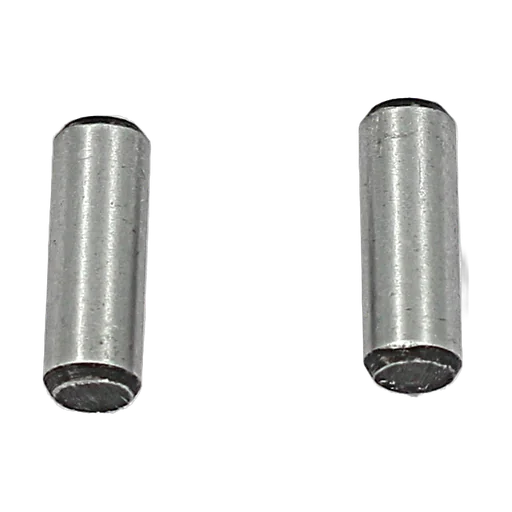

9.CYLINDER VALVE CASE DOWEL

ACE Part No OEM REFF NO
40033887 P073119
Rammer spare

10.EXHAUST DEFLECTOR

ACE Part No OEM REFF NO
40035887
Rammer spare

11.LOWER VALVE CASE LID

ACE Part No OEM REFF NO
40039887 P073118
Rammer spare

12.VALVE

ACE Part No OEM REFF NO
40036405 P071358
Rammer spare

13.VALVE CASE

ACE Part No OEM REFF NO
40031887 P073187
Rammer spare

14.VALVE CASE DOWEL

ACE Part No OEM REFF NO
40034887 P073120
Rammer spare

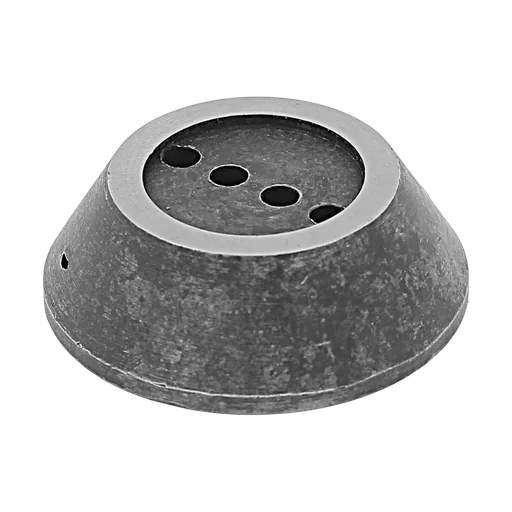

15.UPPER VALVE CASE LID

ACE Part No OEM REFF NO
40030887 P073185
Rammer spare

16.CYLINDER HEAD WITH OILER STEM

ACE Part No OEM REFF NO
40035887
Rammer spare

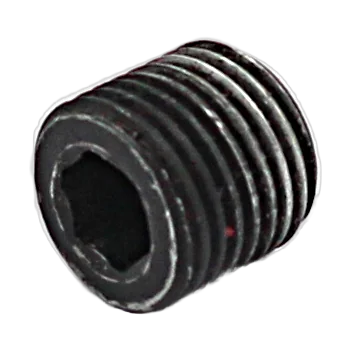

17.PLUG

ACE Part No OEM REFF NO
40030887 C068799
Rammer spare

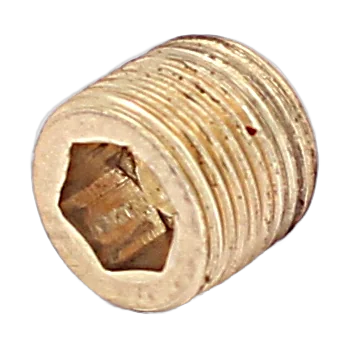

18.OIL REGULATING PLUG

ACE Part No OEM REFF NO
40035887 P084132
Rammer spare

19.PIPE EXTENTION

ACE Part No OEM REFF NO
40034882 P07147
Rammer spare

20.THROTTLE VALVE LEVER PIN

ACE Part No OEM REFF NO
40035887 P001921
Rammer spare

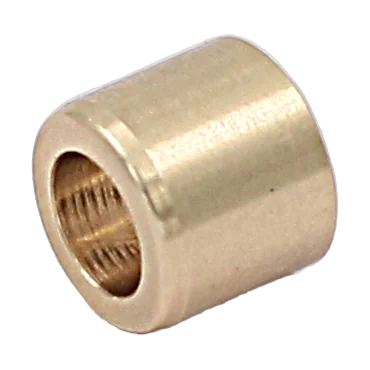

21.THROTTLE VALVE BUSHING

ACE Part No OEM REFF NO
40034887 P001814
Rammer spare

22.THROTTLE VALVE LEVER

ACE Part No OEM REFF NO
40037887 P001903
Rammer spare

23.THROTTLE VALVE LOCK RING

ACE Part No OEM REFF NO
40037880
Rammer spare

24.PROTECTION CAP

ACE Part No OEM REFF NO
40031705
Rammer spare

25.AIR INLET NIPPLE

ACE Part No OEM REFF NO
40037887 3303005220
Rammer spare

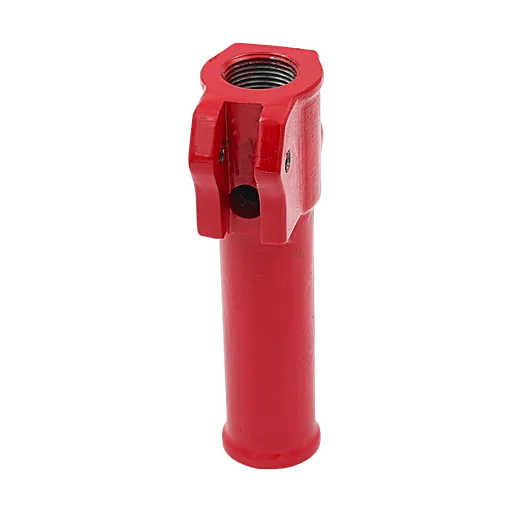

26.THROTTLE VALVE BODY WITH BUSHING

ACE Part No OEM REFF NO
40030887
Rammer spare

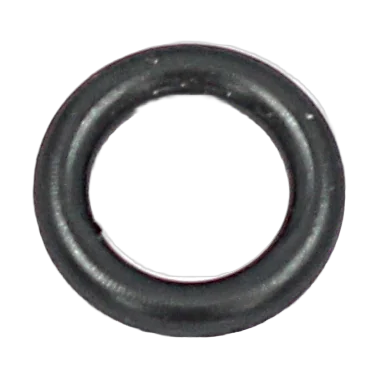

U.THROTTLE VALVE O RING

ACE Part No OEM REFF NO
40032887 CA088867
Rammer spare

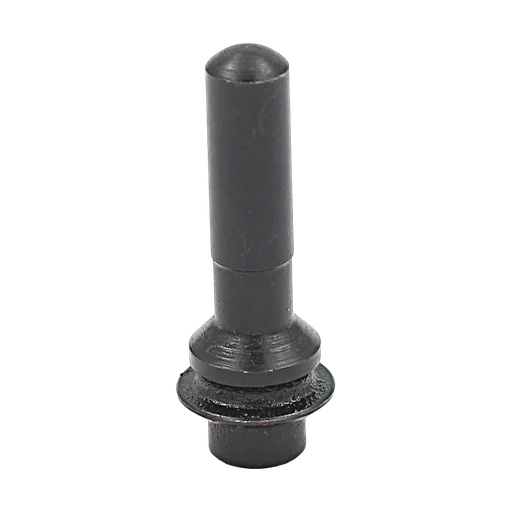

28.THROTTLE VALVE

ACE Part No OEM REFF NO
40030887
Rammer spare

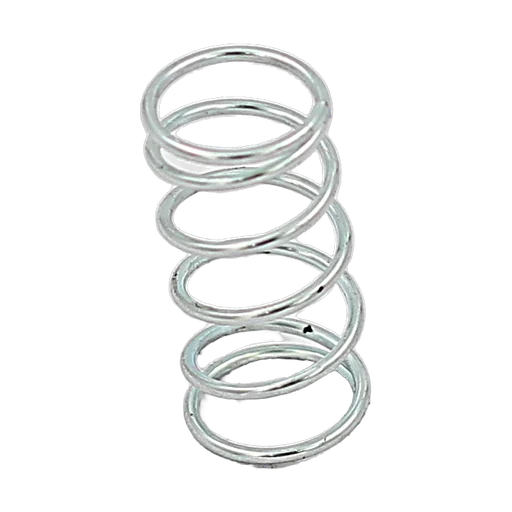

29.THROTTLE VALVE SPRING

ACE Part No OEM REFF NO
40038887 P001858
Rammer spare

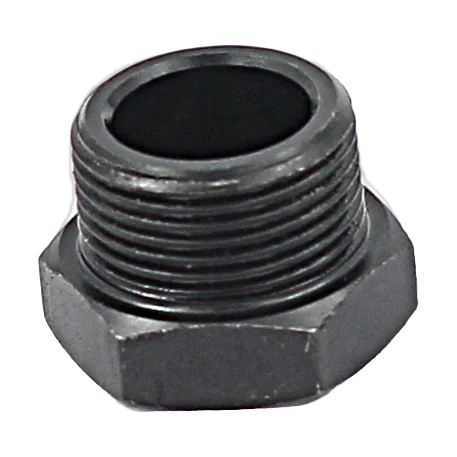

30.TH ROTTLE VALVE SCREW CAP

ACE Part No OEM REFF NO
40036887 P001904
Rammer spare

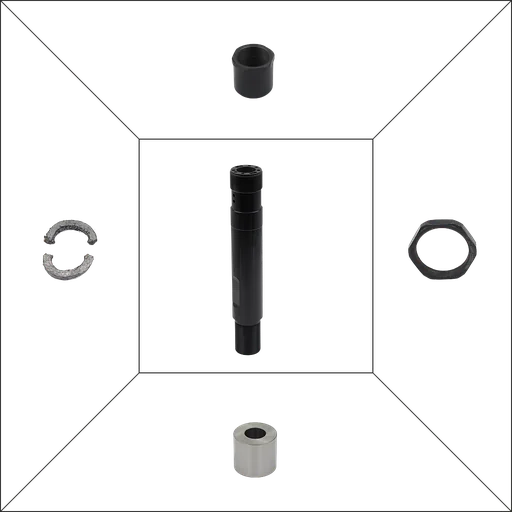

A ( 2-6 & 8).CYLINDER ASSYEMBLY

ACE Part No OEM REFF NO
40030001
Rammer spare

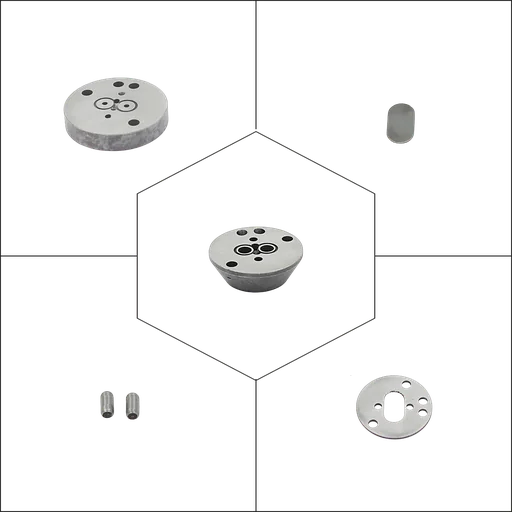

B (11-15).VALVE CASE ASSYEMBLY

ACE Part No OEM REFF NO
40030002
Rammer spare

C (16-18).CYLINDER HEAD ASSYEMBLY

ACE Part No OEM REFF NO
40030003

SPARES AND ACCESSORIES

Accessories can be used for your products & prevents time loss in case of breakdown

0.580 HEX SHANK OVAL COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

0.580 HEX SHANK NON COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

0.680 ROUND SHANK NON COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

0.680 ROUND SHANK OVAL COLLAR

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

Shank Hex 14.7 – Rd 17.3 x 60 mm (Hex 9/16 – Rd 11/16 x 23/8 in)

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL

Shank Rd 17.3 mm (Rd .680 in)

CHIPPING HAMMER STEEL / PNEUMATIC CHISEL
