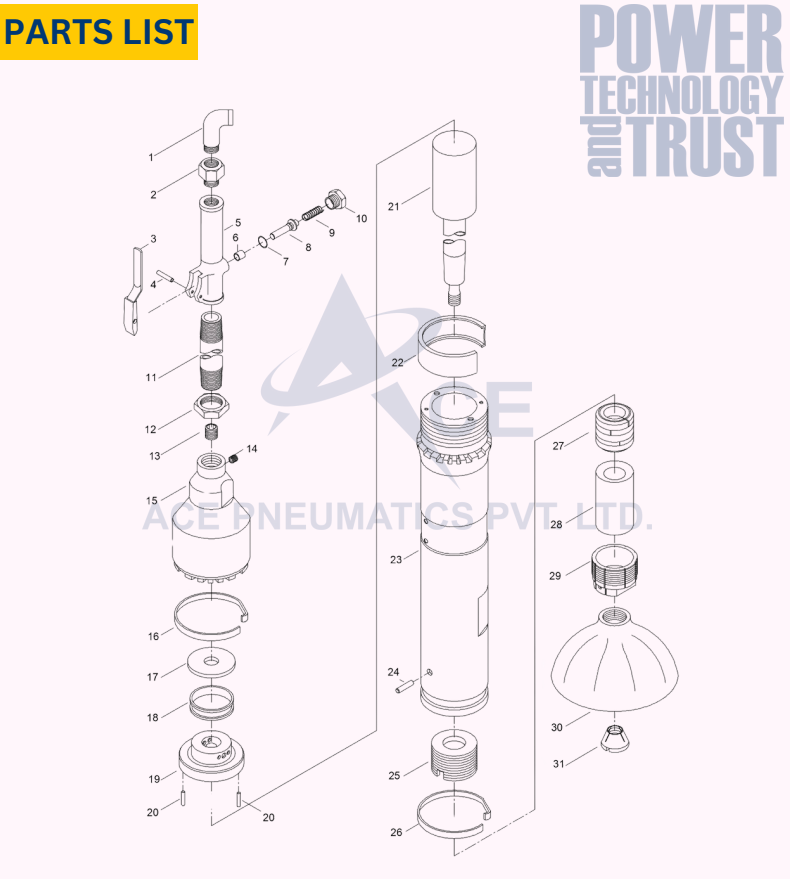

ACE 04 RV Tamper

Spares

Rammer spare

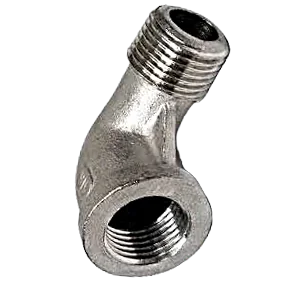

1.Elbow -Street (1/2 ”-90)

ACE Part No OEM REFF NO
42457 R072457
Rammer spare

2.Strainer - Air

ACE Part No OEM REFF NO
41995 P001995
Rammer spare

3.Lever - Valve

ACE Part No OEM REFF NO
41903 P001903
Rammer spare

4.Pin - Lever

ACE Part No OEM REFF NO
41921 P001921
Rammer spare

5.Body - Throttle valve

ACE Part No OEM REFF NO
47351
Rammer spare

6.Bushing - Throttle valve

ACE Part No OEM REFF NO
41814 P001814
Rammer spare

7.O-ring

ACE Part No OEM REFF NO
48867 CA088867
Rammer spare

8.Valve -Throttle

ACE Part No OEM REFF NO
48868
Rammer spare

9.Spring - Throttle valve

ACE Part No OEM REFF NO
41858 P001858
Rammer spare

10.Cap - Valve

ACE Part No OEM REFF NO
41964 P001964
Rammer spare

11.Pipe - Extension

ACE Part No OEM REFF NO
41147 P071147
Rammer spare

12.Locknut - Pipe

ACE Part No OEM REFF NO
43087 F003087
Rammer spare

13.Plug - Oil regulating

ACE Part No OEM REFF NO
44132 P084132
Rammer spare

14.Plug - Filler

ACE Part No OEM REFF NO
48799 C068799
Rammer spare

15.Cylinder - Head

ACE Part No OEM REFF NO
48800
Rammer spare

16.Clip - Cylinder head lock

ACE Part No OEM REFF NO
44464 P084464
Rammer spare

17.Lid - Valve

ACE Part No OEM REFF NO
49667 P009667
Rammer spare

18.Valve

ACE Part No OEM REFF NO
49665 P009665
Rammer spare

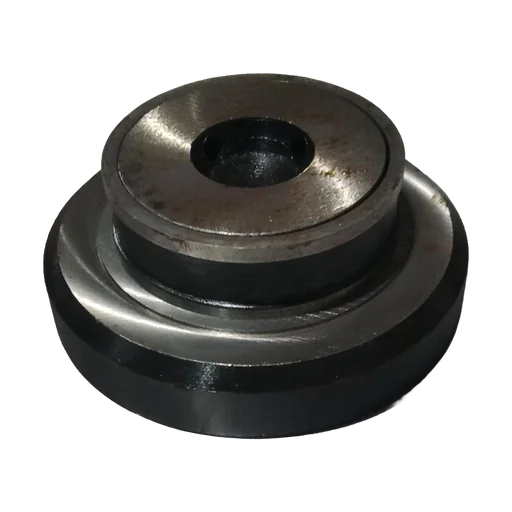

19.Block - Valve

ACE Part No OEM REFF NO
49666 P009666
Rammer spare

20.Pin - Block dowel

ACE Part No OEM REFF NO
43627 A043627
Rammer spare

21.Piston (Threaded end)

ACE Part No OEM REFF NO
49043 P089043
Rammer spare

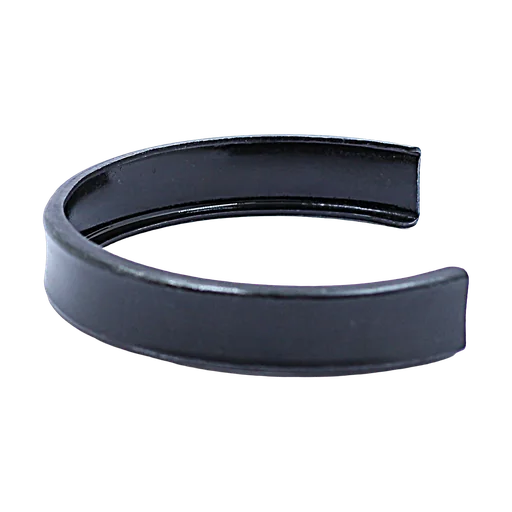

22.Clip - Exhaust

ACE Part No OEM REFF NO
49674 P009674
Rammer spare

23.Cylinder

ACE Part No OEM REFF NO
44464
Rammer spare

24.Pin - Cylinder bushing

ACE Part No OEM REFF NO
41157 S001157
Rammer spare

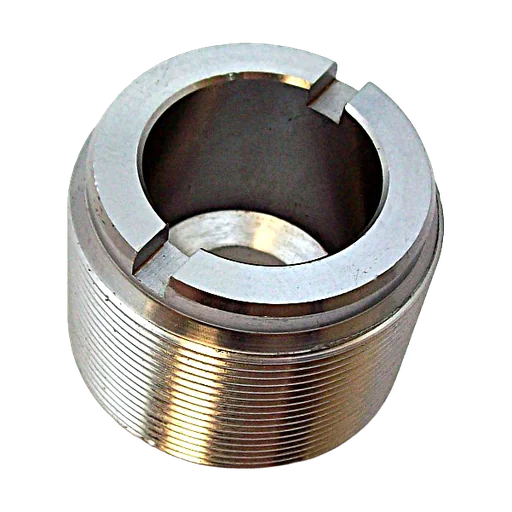

25.Bushing - Cylinder

ACE Part No OEM REFF NO
44473 P074473
Rammer spare

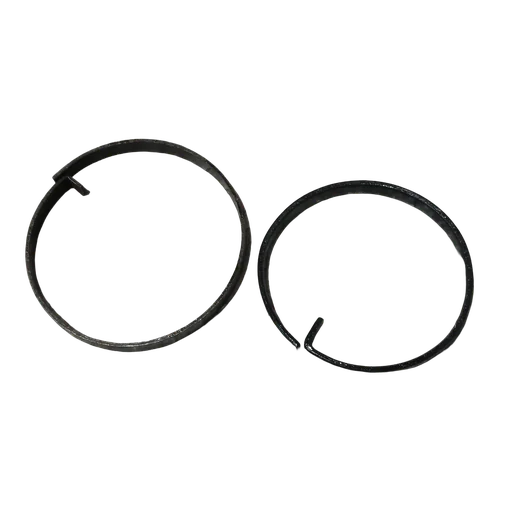

26.Clip - Lock nut

ACE Part No OEM REFF NO
44466 P084466
Rammer spare

27.Packing - Piston

ACE Part No OEM REFF NO
49320 P089320
Rammer spare

28.Sleeve - Piston gland

ACE Part No OEM REFF NO
49678 P009678
Rammer spare

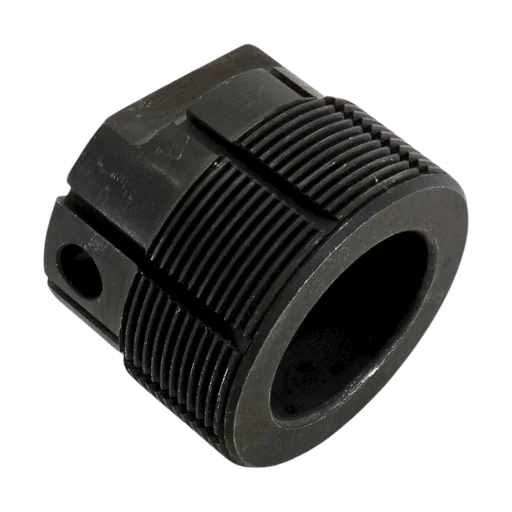

29.Nut - Piston gland

ACE Part No OEM REFF NO
44465 P084465
Rammer spare

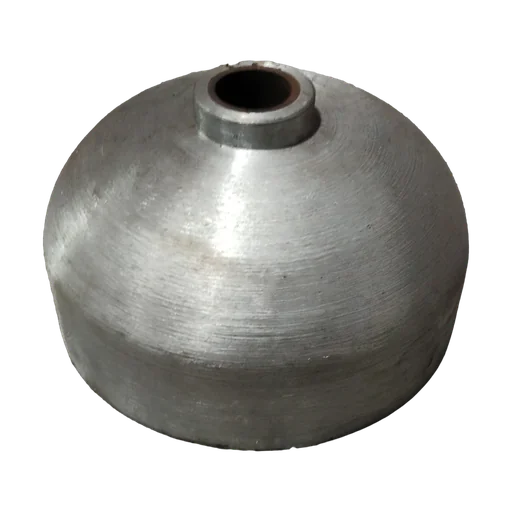

30.Butt -6 1/4 " diameter

ACE Part No OEM REFF NO
49050 P089050
Rammer spare

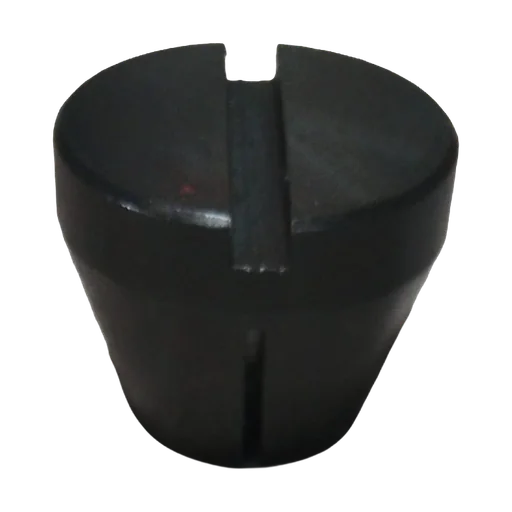

31.Locknut - Butt

ACE Part No OEM REFF NO
49045 P089045
Rammer spare

A (5-6).Body - Throttle valve (Includes item No. 6 & 7)

ACE Part No OEM REFF NO
47350 P007350
Rammer spare

B(7-8).Valve -Throttle (Includes item No. 9 & 10)

ACE Part No OEM REFF NO
47671 P087671
Rammer spare

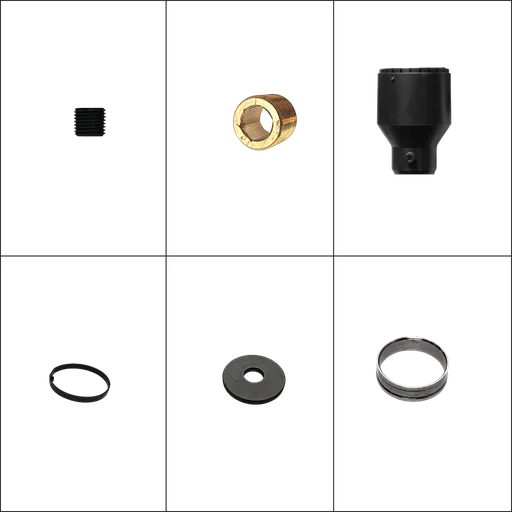

C(13-15).Cylinder - Head assembly (Includes item No. 16, 17 & 18)

ACE Part No OEM REFF NO
49695 P079695
Rammer spare

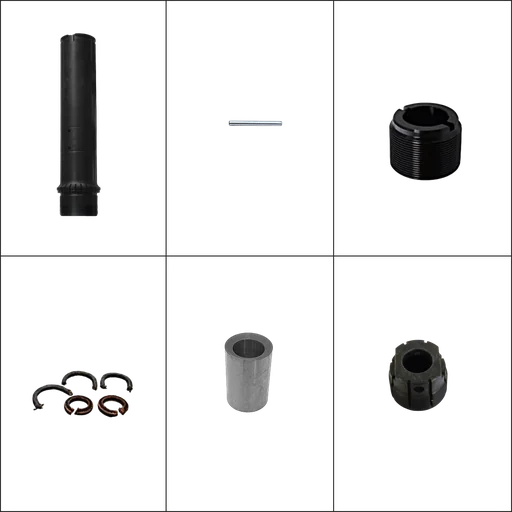

D (23-25).Cylinder bushing assembly (Includes item No. 27, 28 & 29)

ACE Part No OEM REFF NO
44463 P084463
