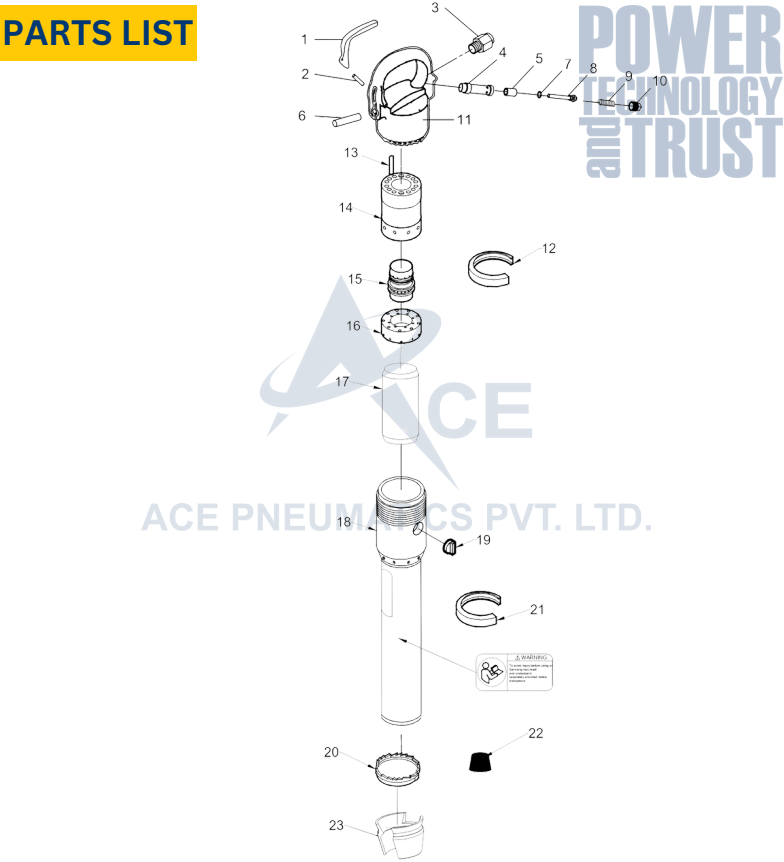

ACE RH 4689 D 50/60/80

Spares

Rivet Buste spares

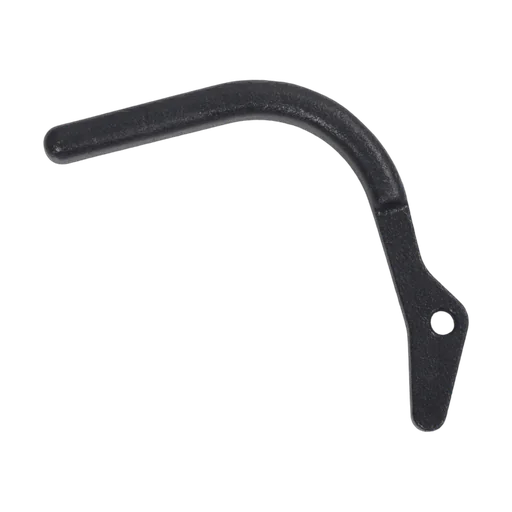

1.Throttle lever

ACE Part No OEM REFF NO
111010D P001982
Rivet Buste spares

2.Throttle lever pin

ACE Part No OEM REFF NO
121015D P001915
Rivet Buste spares

3.Air inlet bush (1/2" npt)

ACE Part No OEM REFF NO
111020D P001983
Rivet Buste spares

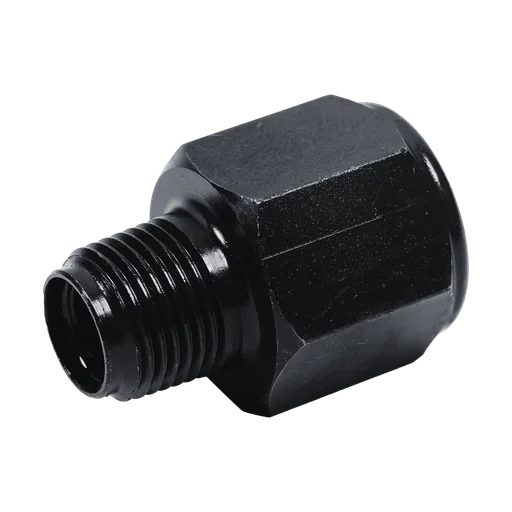

.Air inlet bush (3/8" npt)

ACE Part No OEM REFF NO
Rivet Buste spares

4.Throttle valve Bush

ACE Part No OEM REFF NO
121025D P004839
Rivet Buste spares

5.Throttle valve push pin

ACE Part No OEM REFF NO
121030D P004834
Rivet Buste spares

6.Throttle valve tube

ACE Part No OEM REFF NO
121035D P007198
Rivet Buste spares

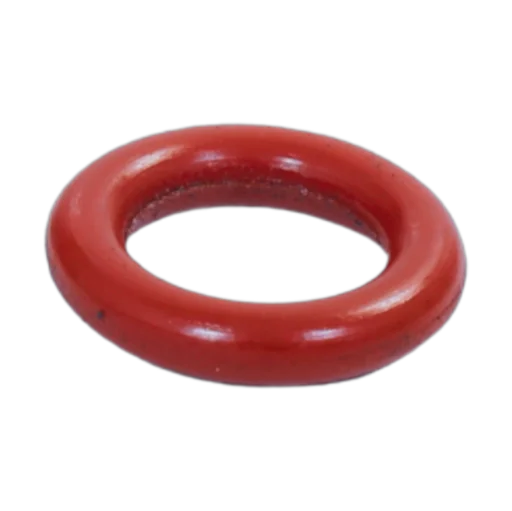

7.Throttle valve "o" ring

ACE Part No OEM REFF NO
113015D P083071
Rivet Buste spares

8.Throttle valve

ACE Part No OEM REFF NO
113020D P001799
Rivet Buste spares

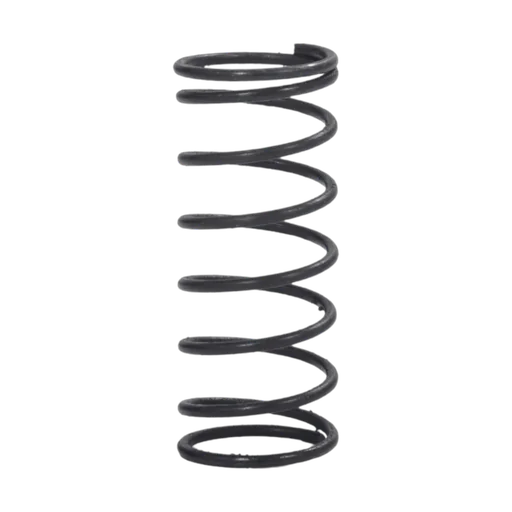

9.Throttle valve Spring

ACE Part No OEM REFF NO
121050D P001853
Rivet Buste spares

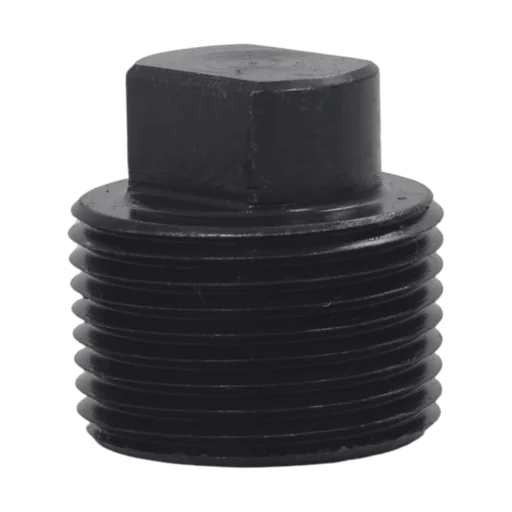

10.Throttle valve Plug

ACE Part No OEM REFF NO
113030D P001873
Rivet Buste spares

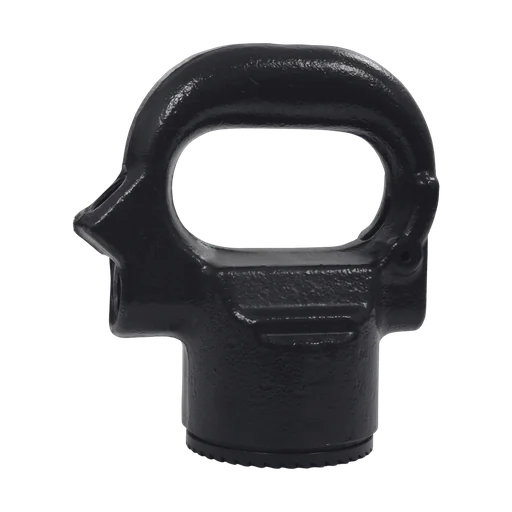

11.Handle

ACE Part No OEM REFF NO
121060D P007155
Rivet Buste spares

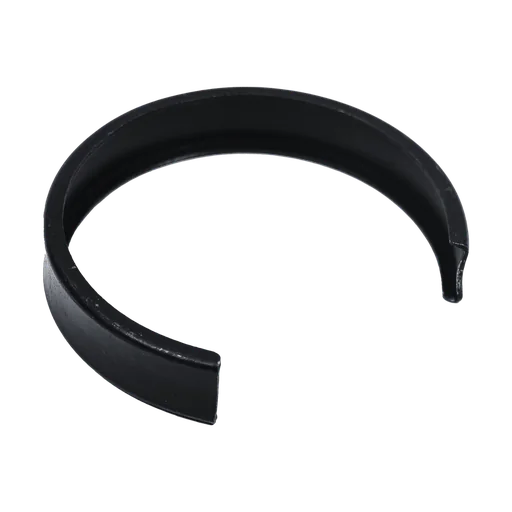

12.Spring clip

ACE Part No OEM REFF NO
121065 P070006
Rivet Buste spares

13.Valve case plug

ACE Part No OEM REFF NO
122010 -
Rivet Buste spares

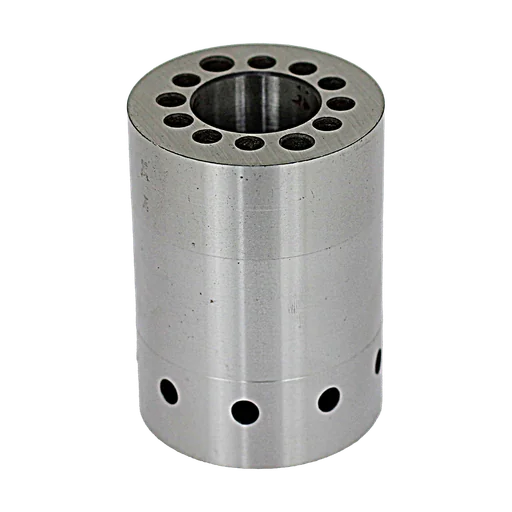

14.Valve case

ACE Part No OEM REFF NO
122015 P006583
Rivet Buste spares

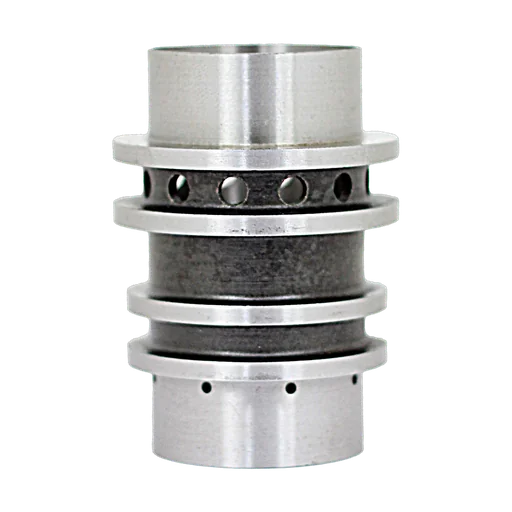

15.Valve

ACE Part No OEM REFF NO
122020 P001535
Rivet Buste spares

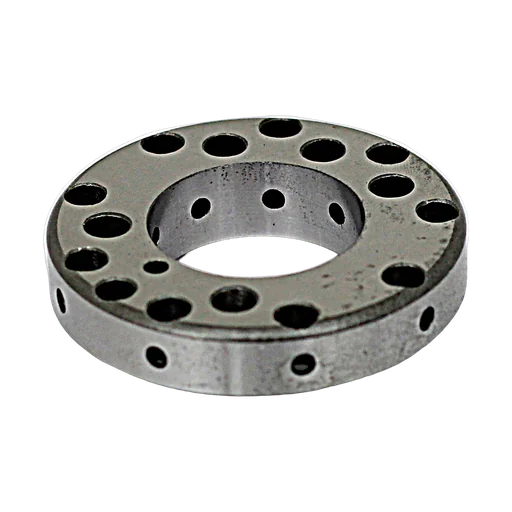

16.Valve case lid

ACE Part No OEM REFF NO
122025 P006584
Rivet Buste spares

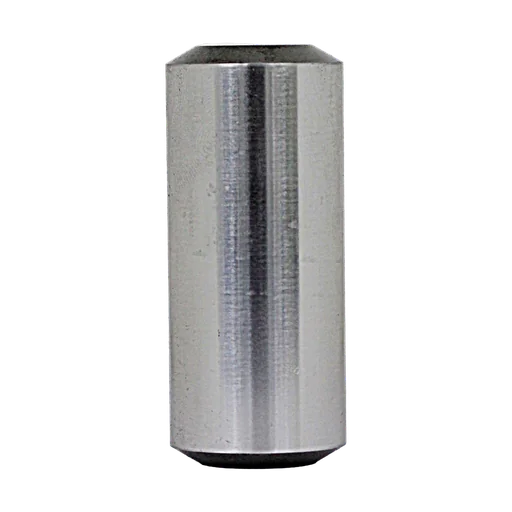

17.Piston 4689 (50)

ACE Part No OEM REFF NO
122030 P001212
Rivet Buste spares

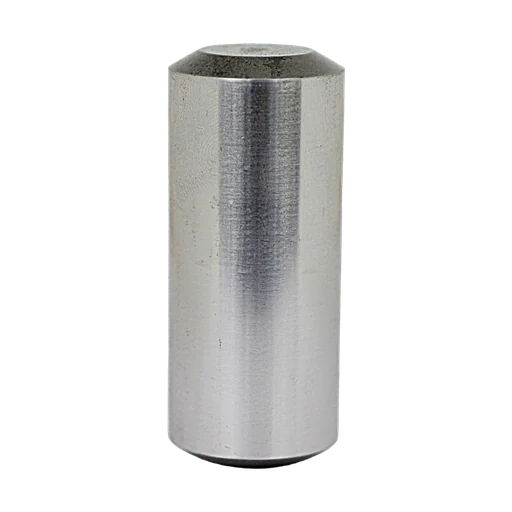

17A.Piston 4689 (60)

ACE Part No OEM REFF NO
122035 -
Rivet Buste spares

17B.Piston 4689 (80)

ACE Part No OEM REFF NO
122040 -
Rivet Buste spares

18.Cylinder 4689 (50)

ACE Part No OEM REFF NO
122045 -
Rivet Buste spares

18A.Cylinder 4689 (60)

ACE Part No OEM REFF NO
121050 -
Rivet Buste spares

18B.Cylinder 4689 (80)

ACE Part No OEM REFF NO
122055 -
Rivet Buste spares

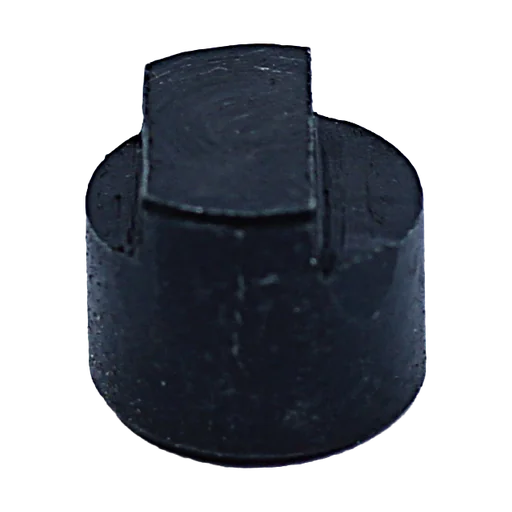

19.Key lock coller

ACE Part No OEM REFF NO
122060 P001419
Rivet Buste spares

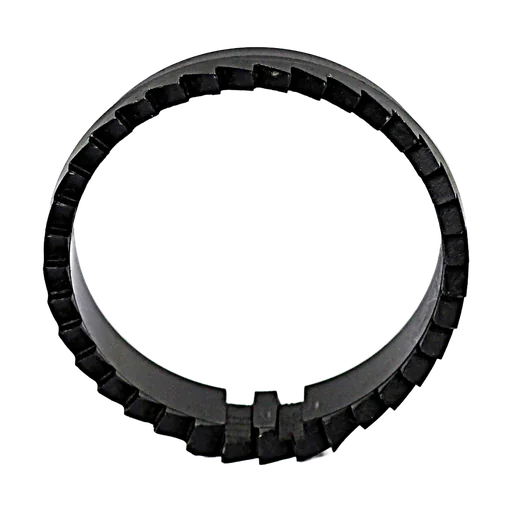

20.Lock collar

ACE Part No OEM REFF NO
122065 P001398
Rivet Buste spares

21.Exhaust deflector

ACE Part No OEM REFF NO
122070 P001386
Rivet Buste spares

22.Supporter

ACE Part No OEM REFF NO
122075 -
Rivet Buste spares

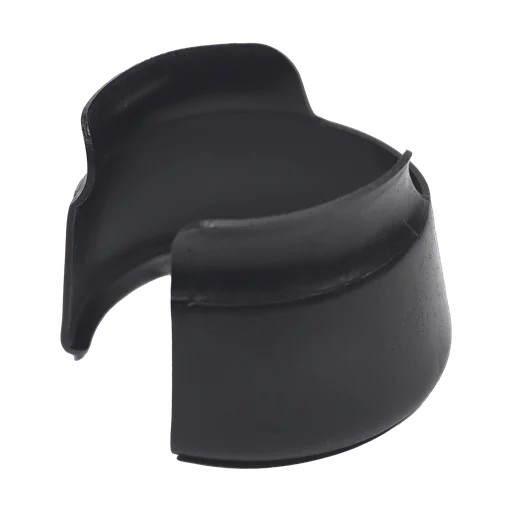

23.Snap clip

ACE Part No OEM REFF NO
122080 -
Rivet Buste spares

A(1-11).Handle,complete

ACE Part No OEM REFF NO
121000 P007155
Rivet Buste spares

B(13-16).Valve case,complete

ACE Part No OEM REFF NO
122000 P007180
