ACE SD 09A

Spares

Rotary hammer drill spares

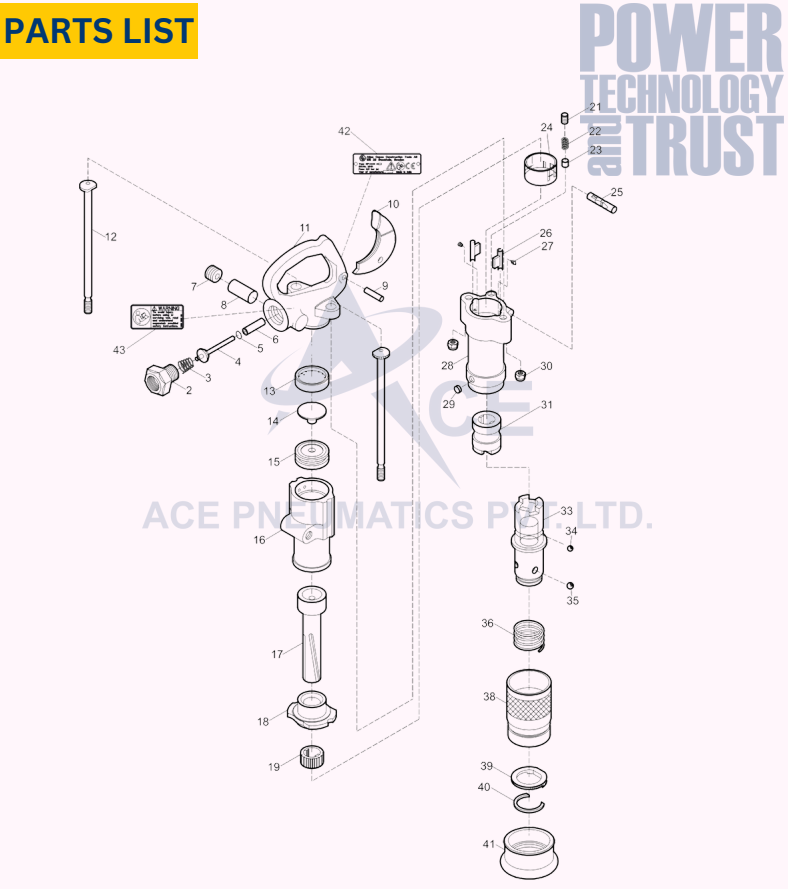

1.Handle, complete

ACE Part No OEM REFF NO
08018 R278018
Rotary hammer drill spares

2.Bushing - air inlet, 3/8 in. NPTF (conical head)

ACE Part No OEM REFF NO
05893 R085893
Rotary hammer drill spares

3.Spring - throttle valve

ACE Part No OEM REFF NO
05596 R085596
Rotary hammer drill spares

4.Valve - throttle

ACE Part No OEM REFF NO
06329 R086329
Rotary hammer drill spares

5.Seat - throttle valve

ACE Part No OEM REFF NO
06098 R086098
Rotary hammer drill spares

6.Bushing - throttle valve

ACE Part No OEM REFF NO
05599 R085599
Rotary hammer drill spares

7.Plug - pipe, 0 3/8 in., 0 9.5 mm

ACE Part No OEM REFF NO
9C7941 C077941
Rotary hammer drill spares

8.Felt - oil chamber

ACE Part No OEM REFF NO
9C5895 R085895
Rotary hammer drill spares

9.Pin - Trigger

ACE Part No OEM REFF NO
9C3627 A043627
Rotary hammer drill spares

10.Lever - throttle

ACE Part No OEM REFF NO
9C7853 F027853
Rotary hammer drill spares

11.Handle

ACE Part No OEM REFF NO
9C7854 -
Rotary hammer drill spares

12.Bolt - thru

ACE Part No OEM REFF NO
9C4249 F034249
Rotary hammer drill spares

13.Rear valve seat

ACE Part No OEM REFF NO
9C5896 R085896
Rotary hammer drill spares

14.Valve

ACE Part No OEM REFF NO
9C5897 R085897
Rotary hammer drill spares

15.Front valve seat

ACE Part No OEM REFF NO
9C5898 R085898
Rotary hammer drill spares

16.Cylinder

ACE Part No OEM REFF NO
9C5886 R085886
Rotary hammer drill spares

17.Piston

ACE Part No OEM REFF NO
9C6122 F816122
Rotary hammer drill spares

18.Cylinder bushing

ACE Part No OEM REFF NO
01356 R051356
Rotary hammer drill spares

19.Ratchet ring

ACE Part No OEM REFF NO
06123 F816123
Rotary hammer drill spares

20.Rotation release, complete

ACE Part No OEM REFF NO
04412 Z8294412
Rotary hammer drill spares

21.Plug -pipe, 1/16 in. NPTF

ACE Part No OEM REFF NO
02507 C102507
Rotary hammer drill spares

22.Spring - plunger

ACE Part No OEM REFF NO
01353 R051353
Rotary hammer drill spares

23.Plunger - shifter detent

ACE Part No OEM REFF NO
01352 R051352
Rotary hammer drill spares

24.Sleeve - shifter

ACE Part No OEM REFF NO
06124 F816124
Rotary hammer drill spares

25.Plunger - shifter

ACE Part No OEM REFF NO
01351 R051351
Rotary hammer drill spares

26.Pawl

ACE Part No OEM REFF NO
01355 R051355
Rotary hammer drill spares

27.Spring - pawl

ACE Part No OEM REFF NO
05890 R085890
Rotary hammer drill spares

28.Fronthead

ACE Part No OEM REFF NO
06120 F816120
Rotary hammer drill spares

29.Plug - ball retainer

ACE Part No OEM REFF NO
01888 F061888
Rotary hammer drill spares

30.Nut - thru bolt

ACE Part No OEM REFF NO
03073 S013073
Rotary hammer drill spares

31.Chuck sleeve

ACE Part No OEM REFF NO
05900 R085900
Rotary hammer drill spares

32.Round chuck, complete

ACE Part No OEM REFF NO
9C6412 Z8366412
Rotary hammer drill spares

33.Chuck

ACE Part No OEM REFF NO
9C6413 -
Rotary hammer drill spares

34.Chuck retainer ball, complete

ACE Part No OEM REFF NO
9C7412 Z8767412
Rotary hammer drill spares

35.Ball - steel, complete, 05/16 in. (7.9 mm). Only avaible as kit with 4 balls

ACE Part No OEM REFF NO
9C8412 Z8768412
Rotary hammer drill spares

36.Spring - sleeve retainer

ACE Part No OEM REFF NO
9C8413 R086605
Rotary hammer drill spares

37.Retainer sleeve, complete

ACE Part No OEM REFF NO
9C6605 Z8375412
Rotary hammer drill spares

38.Retainer

ACE Part No OEM REFF NO
9C5412 -
Rotary hammer drill spares

39.Retainer plate

ACE Part No OEM REFF NO
9C5413 F826683
Rotary hammer drill spares

40.Retainer ring

ACE Part No OEM REFF NO
9C6683 F826893
Rotary hammer drill spares

41.Dust excluder

ACE Part No OEM REFF NO
9C6893 F815343
Rotary hammer drill spares

42.Data plate (Not available separately)

ACE Part No OEM REFF NO
9C5343 -
Rotary hammer drill spares

43.Safety Label

ACE Part No OEM REFF NO
9C0200 3310160200
