ACE SD 09C

Spares

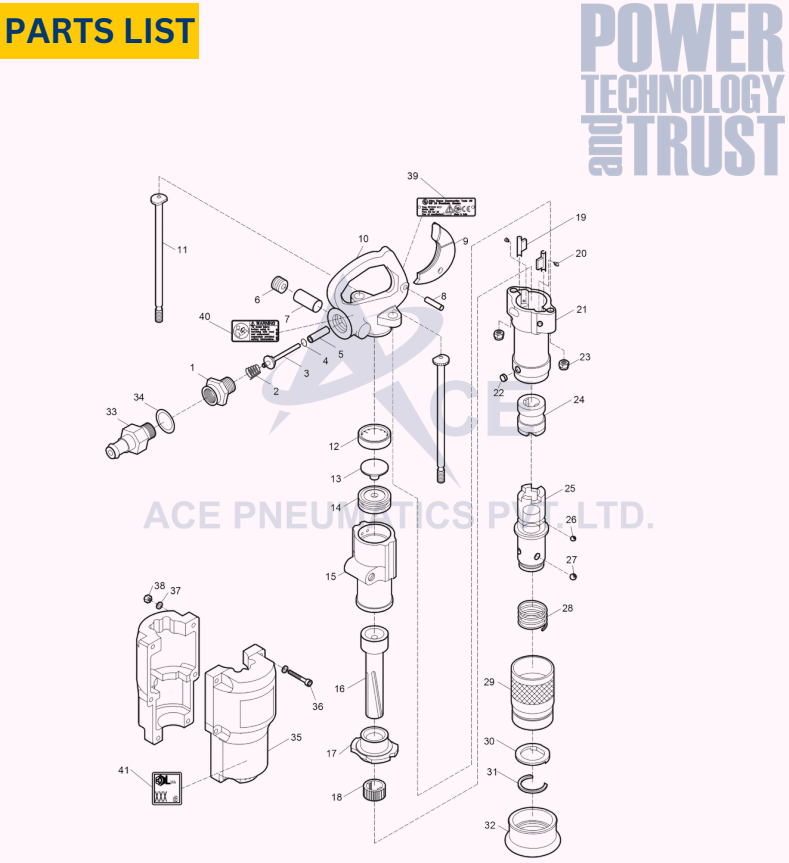

Rotary hammer drill spares

1.Bushing - air inlet

ACE Part No OEM REFF NO
04697 F064697
Rotary hammer drill spares

2.Spring - throttle valve

ACE Part No OEM REFF NO
05596 R085596
Rotary hammer drill spares

3.Valve - throttle

ACE Part No OEM REFF NO
06329 R086329
Rotary hammer drill spares

4.O-ring

ACE Part No OEM REFF NO
06098 R086098
Rotary hammer drill spares

5.Bushing - throttle valve

ACE Part No OEM REFF NO
05599 R085599
Rotary hammer drill spares

6.Oil plug

ACE Part No OEM REFF NO
07941 C077941
Rotary hammer drill spares

7.Felt - oil chamber

ACE Part No OEM REFF NO
05895 R085895
Rotary hammer drill spares

8.Pin - throttle lever

ACE Part No OEM REFF NO
03627 A043627
Rotary hammer drill spares

9.Lever - throttle

ACE Part No OEM REFF NO
07853 F027853
Rotary hammer drill spares

10.Handle

ACE Part No OEM REFF NO
9C7854 -
Rotary hammer drill spares

11.Bolt - thru

ACE Part No OEM REFF NO
04249 F034249
Rotary hammer drill spares

12.Rear valve seat

ACE Part No OEM REFF NO
05896 R085896
Rotary hammer drill spares

13.Valve

ACE Part No OEM REFF NO
05897 R085897
Rotary hammer drill spares

14.Front valve seat

ACE Part No OEM REFF NO
05898 R085898
Rotary hammer drill spares

15.Cylinder

ACE Part No OEM REFF NO
05886 R085886
Rotary hammer drill spares

16.Piston

ACE Part No OEM REFF NO
06122 F816122
Rotary hammer drill spares

17.Cylinder bushing

ACE Part No OEM REFF NO
05887 R085887
Rotary hammer drill spares

18.Ratchet ring

ACE Part No OEM REFF NO
06123 F816123
Rotary hammer drill spares

19.Pawl

ACE Part No OEM REFF NO
04066 F034066
Rotary hammer drill spares

20.Spring - pawl

ACE Part No OEM REFF NO
05890 R085890
Rotary hammer drill spares

21.Fronthead

ACE Part No OEM REFF NO
06592 R136592
Rotary hammer drill spares

22.Plug - ball retainer

ACE Part No OEM REFF NO
01888 F061888
Rotary hammer drill spares

23.Nut - thru bolt

ACE Part No OEM REFF NO
03073 S013073
Rotary hammer drill spares

24.Chuck sleeve

ACE Part No OEM REFF NO
05900 R085900
Rotary hammer drill spares

25.Chuck

ACE Part No OEM REFF NO
9C6413 -
Rotary hammer drill spares

26.Chuck retainer ball, complete

ACE Part No OEM REFF NO
07412 Z8767412
Rotary hammer drill spares

27.Ball - steel, complete

ACE Part No OEM REFF NO
08412 Z8768412
Rotary hammer drill spares

28.Spring - sleeve retainer

ACE Part No OEM REFF NO
06605 R086605
Rotary hammer drill spares

29.Retainer

ACE Part No OEM REFF NO
9C5413 -
Rotary hammer drill spares

30.Retainer plate

ACE Part No OEM REFF NO
06683 F826683
Rotary hammer drill spares

31.Retainer ring

ACE Part No OEM REFF NO
06893 F826893
Rotary hammer drill spares

32.Dust excluder

ACE Part No OEM REFF NO
05343 F815343
Rotary hammer drill spares

33.Hose tail

ACE Part No OEM REFF NO
04695 F064695
Rotary hammer drill spares

34.Gasket

ACE Part No OEM REFF NO
04696 F064696
Rotary hammer drill spares

35.Muffler

ACE Part No OEM REFF NO
9C6973 -
Rotary hammer drill spares

36.Capscrew

ACE Part No OEM REFF NO
9C1413 -
Rotary hammer drill spares

37.Washer

ACE Part No OEM REFF NO
9C1414 -
Rotary hammer drill spares

38.Nut

ACE Part No OEM REFF NO
9C1415 -
Rotary hammer drill spares

39.Data plate

ACE Part No OEM REFF NO
9C1416 -
Rotary hammer drill spares

40.Safety label

ACE Part No OEM REFF NO
00200 3310160200
Rotary hammer drill spares

41.Noise level label

ACE Part No OEM REFF NO
9C0201 -
Rotary hammer drill spares

A(1-10).Handle, complete

ACE Part No OEM REFF NO
04496 F034496
Rotary hammer drill spares

B(25-28).Round chuck, complete

ACE Part No OEM REFF NO
06412 Z8366412
Rotary hammer drill spares

C(29-32).Retainer sleeve, complete

ACE Part No OEM REFF NO
05412 Z8375412
Rotary hammer drill spares

38(35,38).Muffler, complete

ACE Part No OEM REFF NO
06972 F826972
Rotary hammer drill spares

D(36-38).Screw, complete

ACE Part No OEM REFF NO
01412 Z3631412
