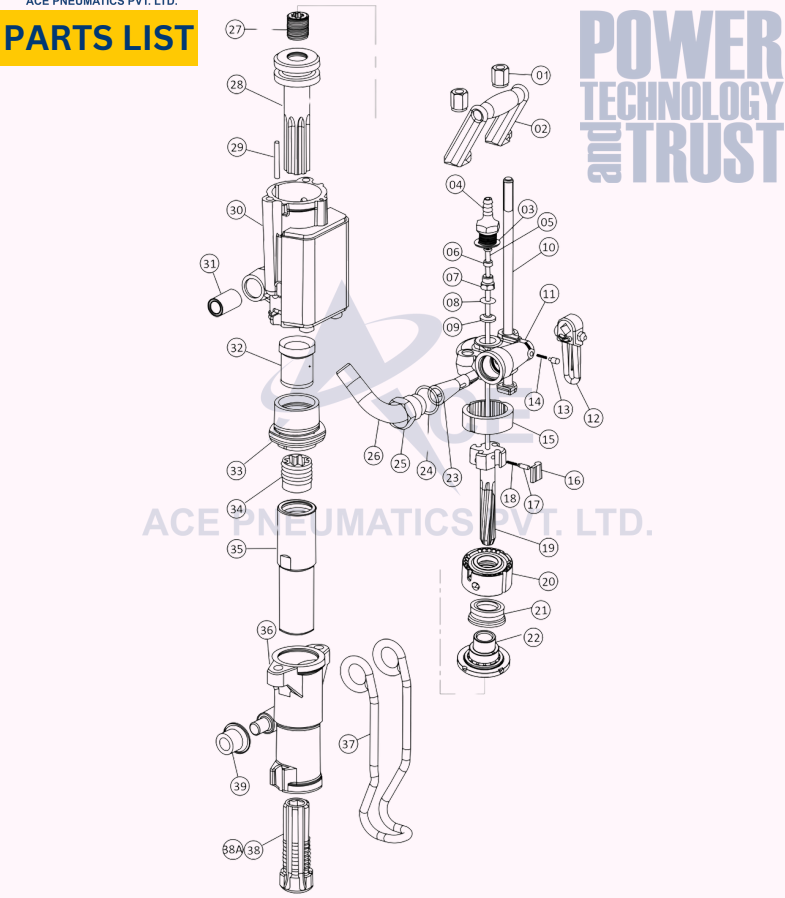

ACE S215

Spares

Jackleg drill spare

1.Side Rod Nut

ACE Part No OEM REFF NO
2150005 D2130
Jackleg drill spare

2.Spade Handle

ACE Part No OEM REFF NO
2150010 B2154-2
Jackleg drill spare

3.Washer

ACE Part No OEM REFF NO
2150015
Jackleg drill spare

4.Backhead Spud-10mm thread

ACE Part No OEM REFF NO
2150020 HF-7860-231
Jackleg drill spare

4A.Spud-12mm thread

ACE Part No OEM REFF NO
HF-7581-231
Jackleg drill spare

5.Water Tube

ACE Part No OEM REFF NO
2150025 S19-39
Jackleg drill spare

6.Water Tube Rubber Small

ACE Part No OEM REFF NO
2150030 S21-45
Jackleg drill spare

7.Water Tube Cap Screw

ACE Part No OEM REFF NO
2150035 S21-42
Jackleg drill spare

8.Thrust Washer

ACE Part No OEM REFF NO
2150040 S24-46
Jackleg drill spare

9.Tube Rubber Large

ACE Part No OEM REFF NO
2150045
Jackleg drill spare

10.Rod

ACE Part No OEM REFF NO
2150050
Jackleg drill spare

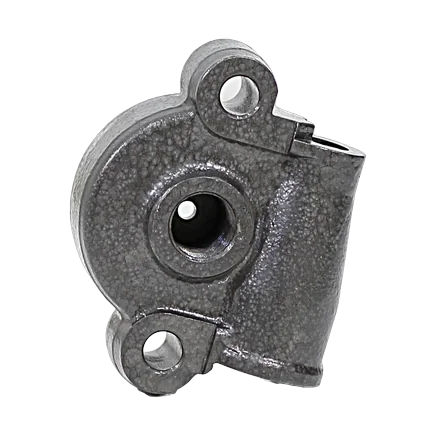

11.Backhead

ACE Part No OEM REFF NO
2150055 A1406
Jackleg drill spare

12.Throttle valve Handle (Plastic)

ACE Part No OEM REFF NO
2150060 S21-24P
Jackleg drill spare

13.Throttle valve Plunger

ACE Part No OEM REFF NO
2150065 S21-29
Jackleg drill spare

14.Throttle valve Spring

ACE Part No OEM REFF NO
2150070 S21-30
Jackleg drill spare

15.Ratchet Ring

ACE Part No OEM REFF NO
2150075 C2698L
Jackleg drill spare

16.Pawl

ACE Part No OEM REFF NO
2150080 S21-33
Jackleg drill spare

17.Pawl Plunger (Plastic)

ACE Part No OEM REFF NO
2150085 S21-34
Jackleg drill spare

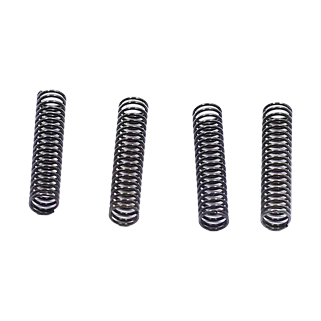

18.Pawl Plunger Spring

ACE Part No OEM REFF NO
2150090 D1611
Jackleg drill spare

19.Rifal Bar

ACE Part No OEM REFF NO
2150095 C2023L
Jackleg drill spare

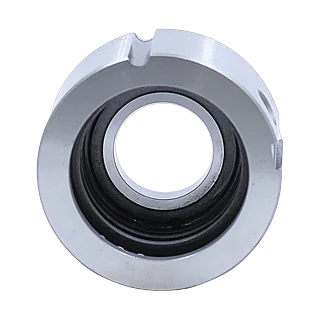

20.Valve Box

ACE Part No OEM REFF NO
2150100 A1446A
Jackleg drill spare

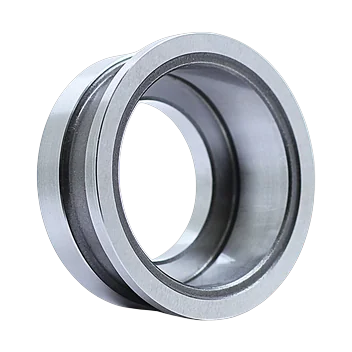

21.Valve

ACE Part No OEM REFF NO
2150105 C2697A
Jackleg drill spare

22.Valve Plug

ACE Part No OEM REFF NO
2150110 B2108A
Jackleg drill spare

23.Throttle valve

ACE Part No OEM REFF NO
2150115 B2147
Jackleg drill spare

24.Copper Washer

ACE Part No OEM REFF NO
2150120 143-M10
Jackleg drill spare

25.Air Stem Nut

ACE Part No OEM REFF NO
2150125 S21-38
Jackleg drill spare

26.Bend

ACE Part No OEM REFF NO
2150130
Jackleg drill spare

27.Rifle Nut

ACE Part No OEM REFF NO
2150135 D1623
Jackleg drill spare

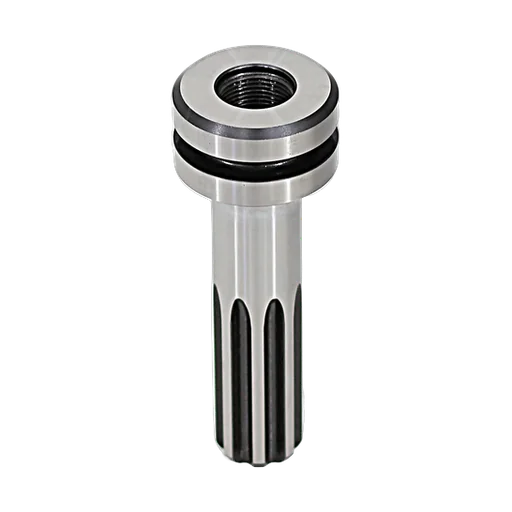

28.Piston

ACE Part No OEM REFF NO
2150140 B2107
Jackleg drill spare

29.Valve Box Locating Pin

ACE Part No OEM REFF NO
2150145 D2482
Jackleg drill spare

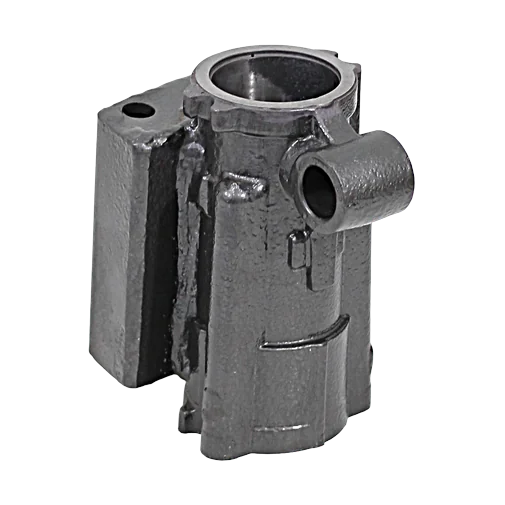

30.Muffled Cylinder

ACE Part No OEM REFF NO
2150150 A1404M
Jackleg drill spare

31.Cylinder Lug Bush

ACE Part No OEM REFF NO
2150155 C1101M
Jackleg drill spare

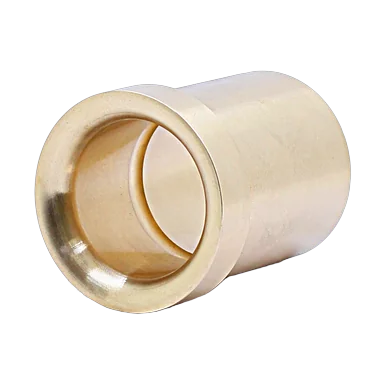

32.Front Cylinder Washer Liner

ACE Part No OEM REFF NO
2150160 C6521
Jackleg drill spare

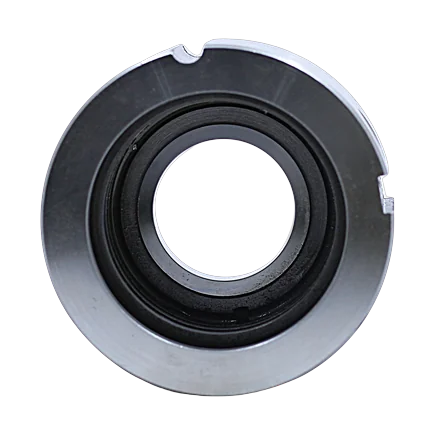

33.Front Cylinder Washer

ACE Part No OEM REFF NO
2150165 B5474
Jackleg drill spare

34.Chuck Nut

ACE Part No OEM REFF NO
2150170 S19-7
Jackleg drill spare

35.Chuck

ACE Part No OEM REFF NO
2150175 B2148
Jackleg drill spare

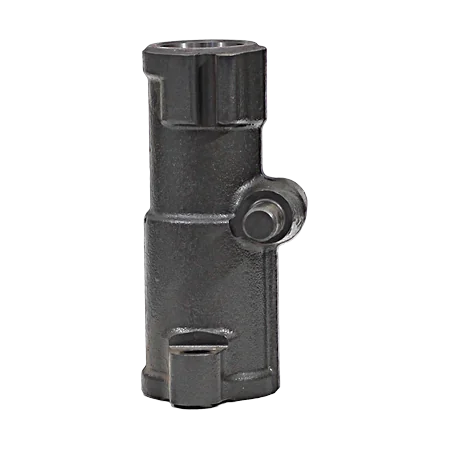

36.Fronthead

ACE Part No OEM REFF NO
2150180
Jackleg drill spare

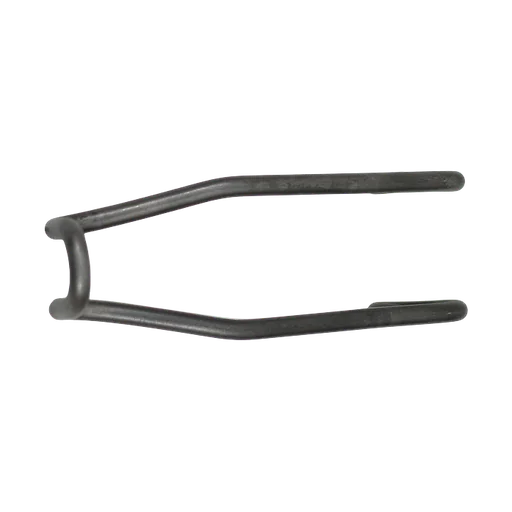

37.Steel Retainer

ACE Part No OEM REFF NO
2150185 B2798
Jackleg drill spare

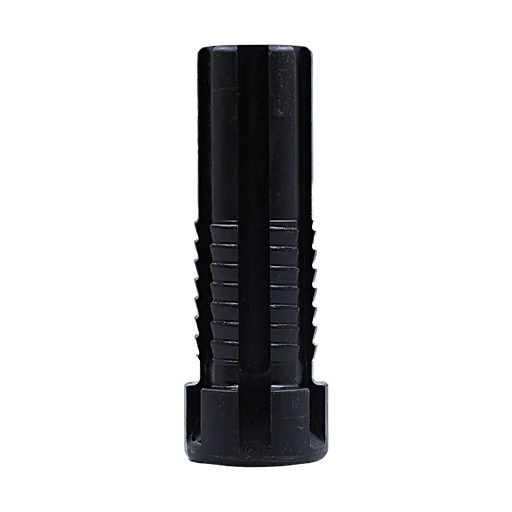

38.Chuck Bush (22 mm)

ACE Part No OEM REFF NO
2150190 C2701
Jackleg drill spare

38A.Chuck Bush (25 mm)

ACE Part No OEM REFF NO
2150195 C2846
Jackleg drill spare

39.Steel Retainer Bush

ACE Part No OEM REFF NO
2150200 D2146A
