ACE S250Spares

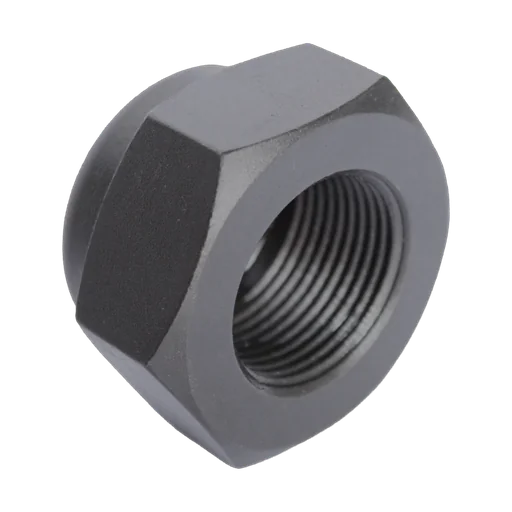

OPERATING HANDLE NUT

1.OPERATING HANDLE NUT

ACE Part No OEM REFF NO
G 5608539 D 8247

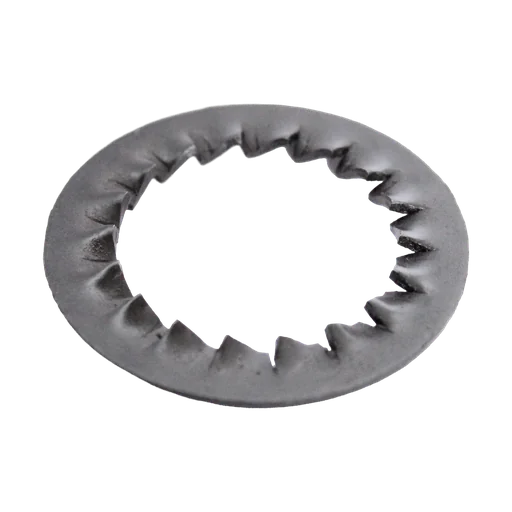

WASHER INTERNAL SERRATED

2.WASHER INTERNAL SERRATED

ACE Part No OEM REFF NO
G 5601453 145 M30

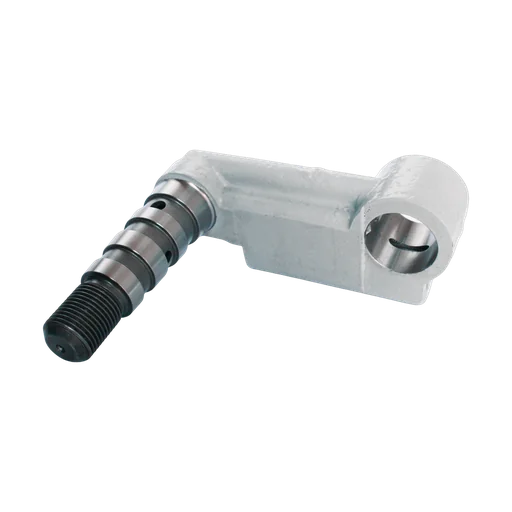

ADAPTER , HANDLE TAPERED

3.ADAPTER , HANDLE TAPERED

ACE Part No OEM REFF NO
G 5602817 A 697B

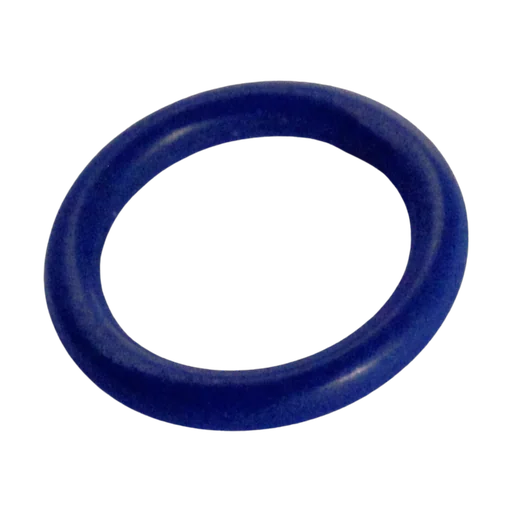

O RING 1

4.O RING 1

ACE Part No OEM REFF NO
G 5603224 1646503\164811
CONTROL SPINDLE

5.CONTROL SPINDLE

ACE Part No OEM REFF NO
G 5604922 B 1183B
CONTROL BODY

6.CONTROL BODY

ACE Part No OEM REFF NO
G 5601922 B 1180B
FRICTION RING BLACK

7.FRICTION RING BLACK

ACE Part No OEM REFF NO
G 5602475 164 631 (164631A)

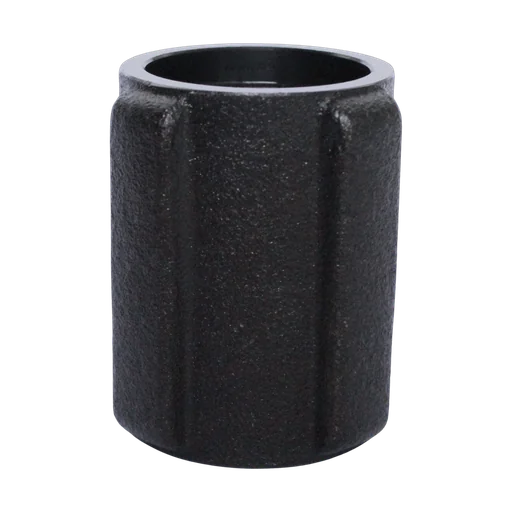

TWIST GRIP

8.TWIST GRIP

ACE Part No OEM REFF NO
G 5609262 C 1518

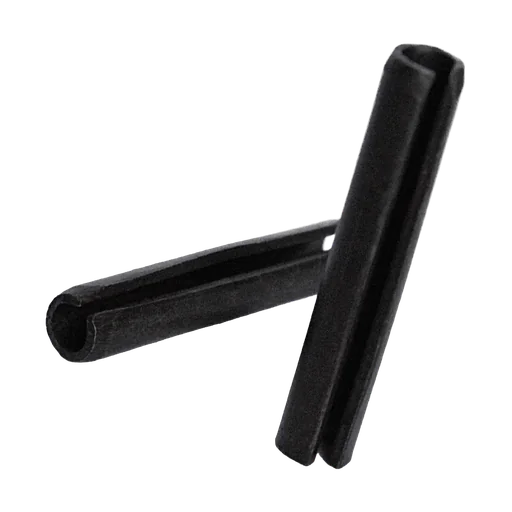

SEL-LOC PIN INNER

9.SEL-LOC PIN INNER

ACE Part No OEM REFF NO
G 5600522 0300 8 22

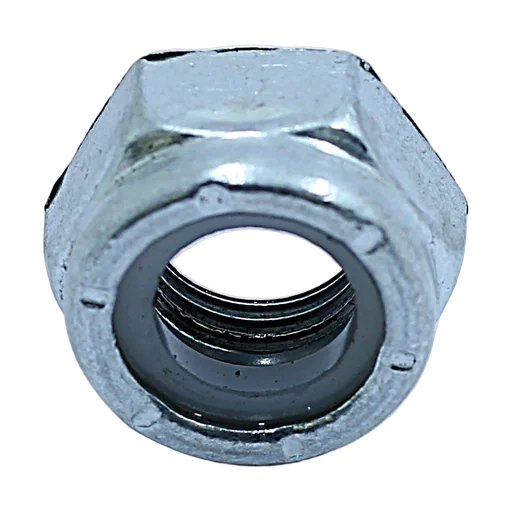

SPINDLE NUT 1

10.SPINDLE NUT 1

ACE Part No OEM REFF NO
G 5605972 D 1218UF(D1684)

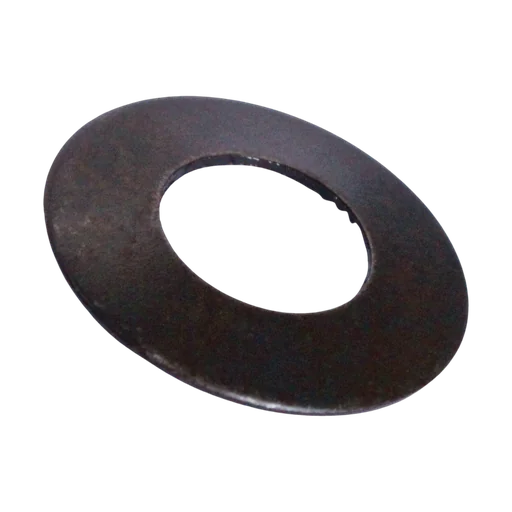

WASHER SPRING DISC

11.WASHER SPRING DISC

ACE Part No OEM REFF NO
G 5601561 149122MT
SEL -LOC PIN OUTER

12.SEL -LOC PIN OUTER

ACE Part No OEM REFF NO
G 5600822 300822
Sel-LOC PIN

13.Sel-LOC PIN

ACE Part No OEM REFF NO
G 5600088 30088

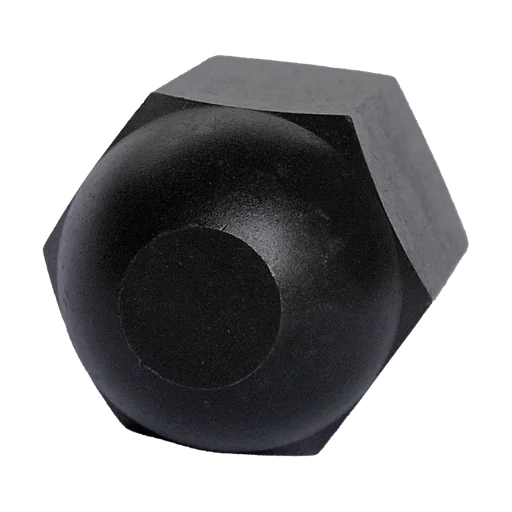

DOMED NUT

14.DOMED NUT

ACE Part No OEM REFF NO
G 5605652 D 1454D

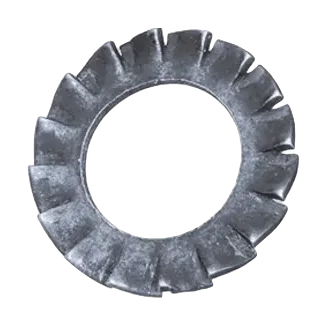

WASHER EXTERNAL SERRATED

15.WASHER EXTERNAL SERRATED

ACE Part No OEM REFF NO
G 5601442 5601442

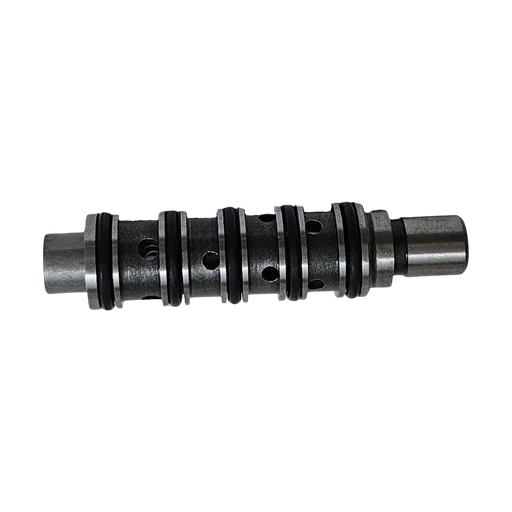

VALVE AMS,RETRACT (O RING INCLUDED)

16.VALVE AMS,RETRACT (O RING INCLUDED)

ACE Part No OEM REFF NO
G 5608576 C 1514 1515
VALVE AMS,RETRACT (O RING INCLUDED)1

16.1.VALVE AMS,RETRACT (O RING INCLUDED)1

ACE Part No OEM REFF NO
G 5608576.1 C 1514
VALVE AMS,RETRACT (O RING INCLUDED)2

16.2.VALVE AMS,RETRACT (O RING INCLUDED)2

ACE Part No OEM REFF NO
G 5608576.2 C 1515
O RING 2

17.O RING 2

ACE Part No OEM REFF NO
G 5603224 164811/1646503

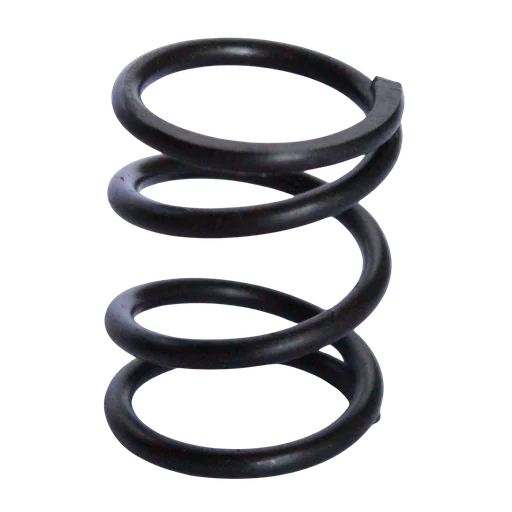

RETRACT VALVE SPRING

18.RETRACT VALVE SPRING

ACE Part No OEM REFF NO
G 5605152 D 1424

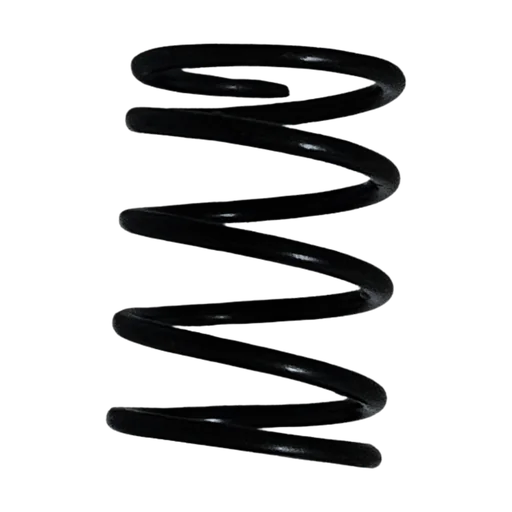

VALVE SLEEVE SPRING

19.VALVE SLEEVE SPRING

ACE Part No OEM REFF NO
G 5605153 D 1425

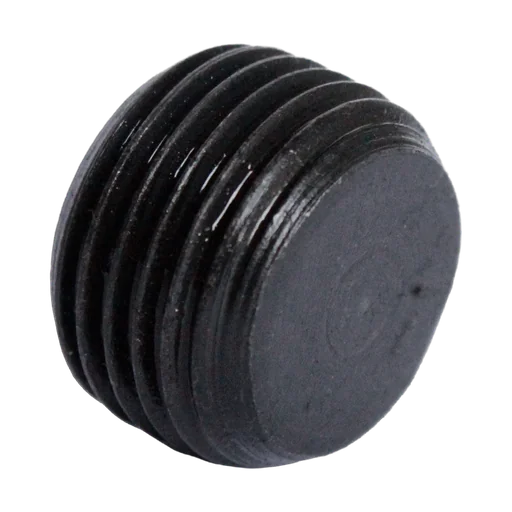

PLUNGER PLUG

20.PLUNGER PLUG

ACE Part No OEM REFF NO
G 5605155 D 1427

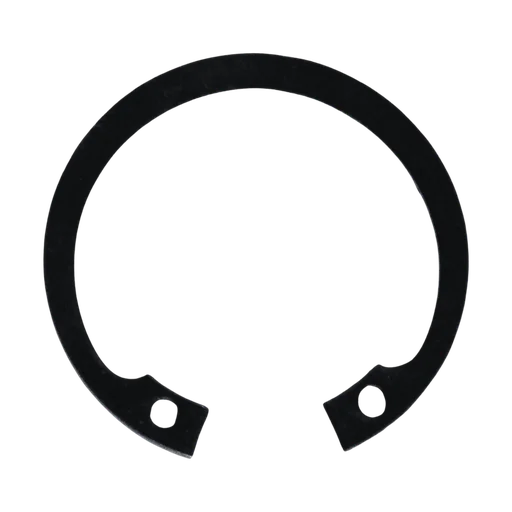

INTERNAL CIRCLIP

21.INTERNAL CIRCLIP

ACE Part No OEM REFF NO
G 5605529 20015 (200 29MM)

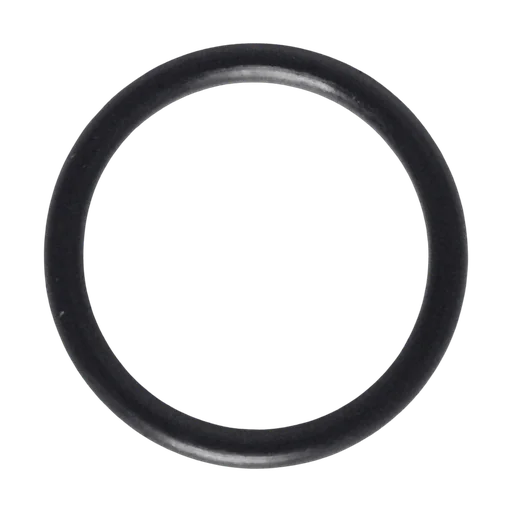

O RING 3

22.O RING 3

ACE Part No OEM REFF NO
G 5600224 164231/1643903

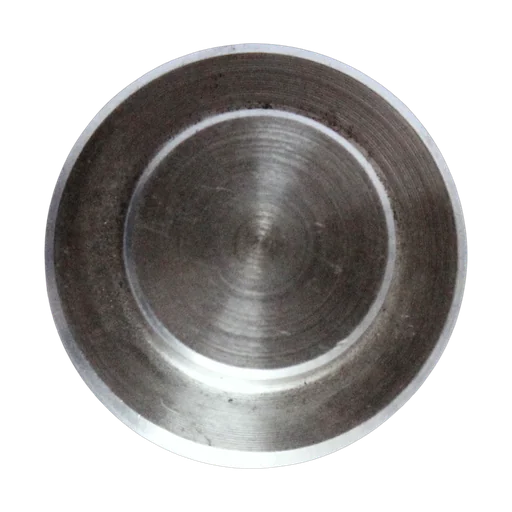

SPRING CAP

23.SPRING CAP

ACE Part No OEM REFF NO
G 5602462 C 1521 PC1

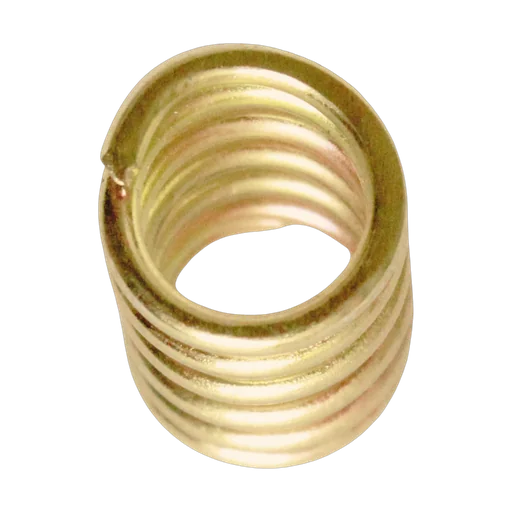

SPRING

24.SPRING

ACE Part No OEM REFF NO
G 5607152 D 1406

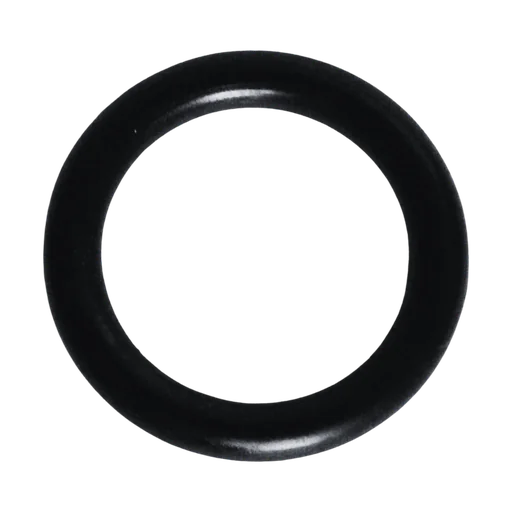

O RING 4

25.O RING 4

ACE Part No OEM REFF NO
G 5601244 164521/1645704

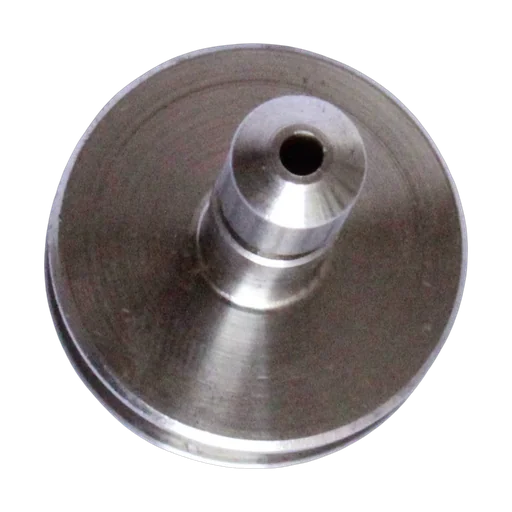

WATER CONTROL VALVE

26.WATER CONTROL VALVE

ACE Part No OEM REFF NO
G 5604463 C 1522 PC1

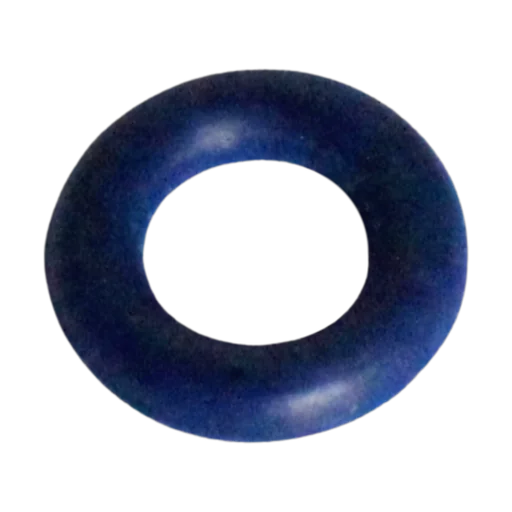

O RING 5

27.O RING 5

ACE Part No OEM REFF NO
G 5603119 164301/1648102

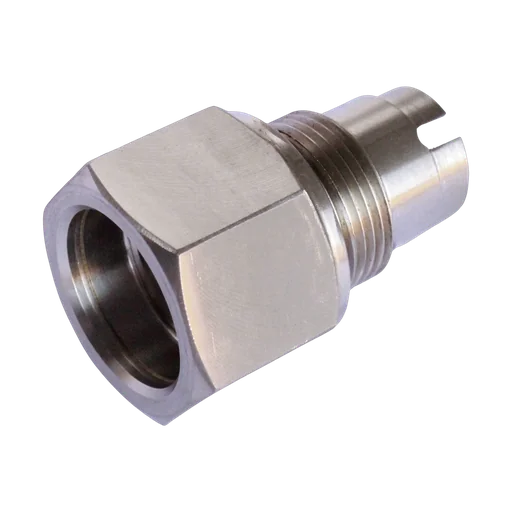

WATER CONTROL VALVE BODY

28.WATER CONTROL VALVE BODY

ACE Part No OEM REFF NO
G 5602922 B 1181 PC4

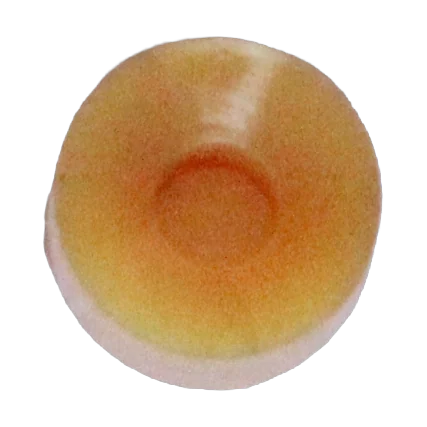

SEAT, WATER VALVE

29.SEAT, WATER VALVE

ACE Part No OEM REFF NO
G 5604872 D 1673

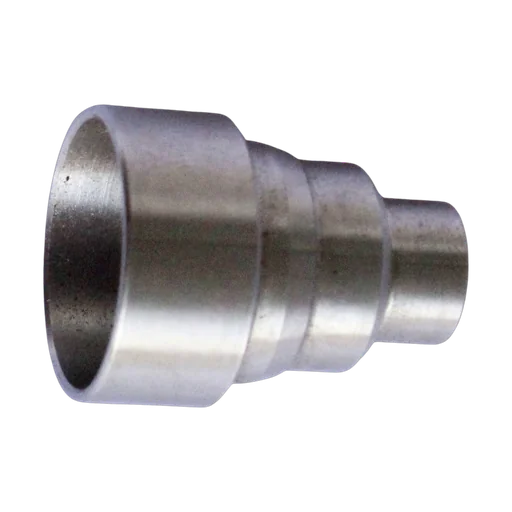

WATER VALVE SEAT RETAINER

30.WATER VALVE SEAT RETAINER

ACE Part No OEM REFF NO
G 5605523 C 2144
WATER TUBE

31.WATER TUBE

ACE Part No OEM REFF NO
G 5604218 C 1574A

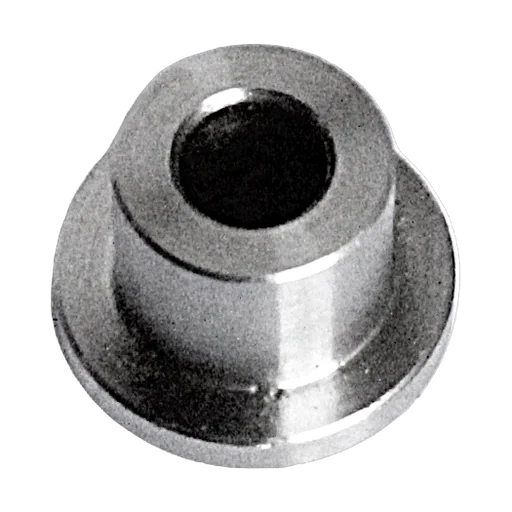

WATER TUBE SPACER

32.WATER TUBE SPACER

ACE Part No OEM REFF NO
G5601864 D 1674

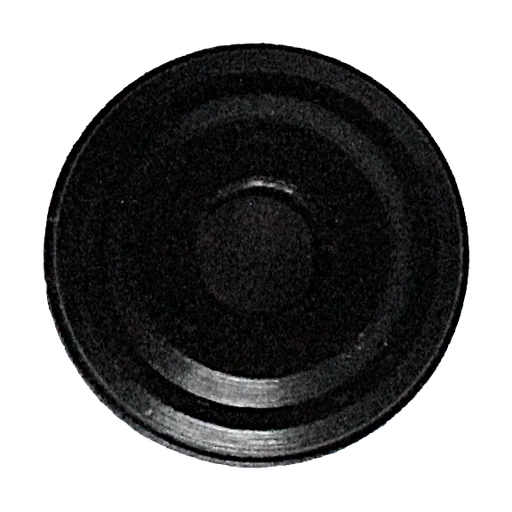

WATER TUBE SEAL

33.WATER TUBE SEAL

ACE Part No OEM REFF NO
G 5601866 D 1675

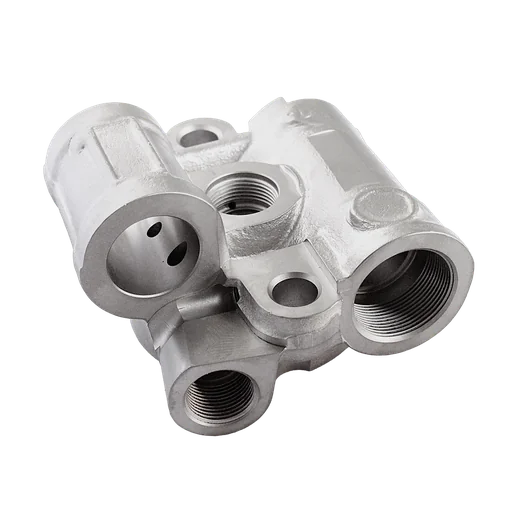

BACKHEAD, JACKLEG

34.BACKHEAD, JACKLEG

ACE Part No OEM REFF NO
G 5604430 A 660
O RING, STOPER

35.O RING, STOPER

ACE Part No OEM REFF NO
G 5603122 -

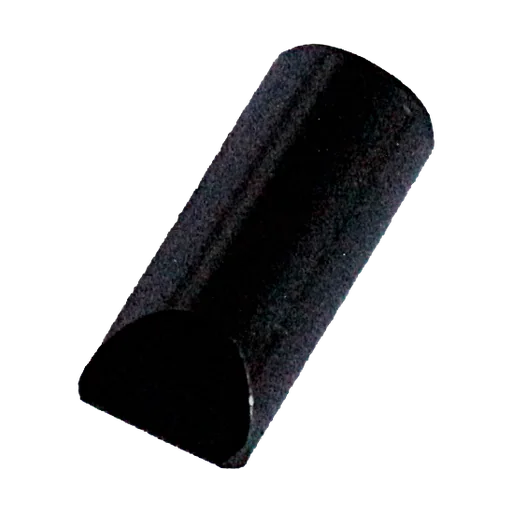

THROTTLE VALVE PLUNGER

36.THROTTLE VALVE PLUNGER

ACE Part No OEM REFF NO
G 5604096 D 1383

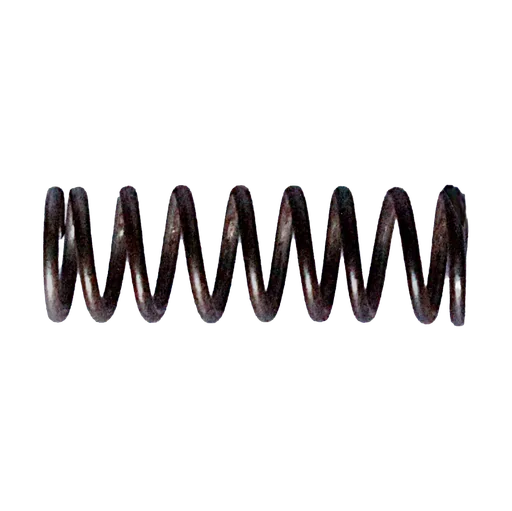

THROTTLE PLUNGER SPRING

37.THROTTLE PLUNGER SPRING

ACE Part No OEM REFF NO
G 5602993 D 1382

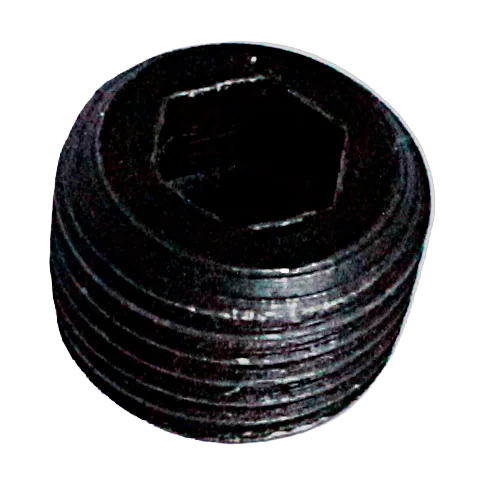

PLUG, THROTTLE DETENT

38.PLUG, THROTTLE DETENT

ACE Part No OEM REFF NO
G 5602887 C 2422P

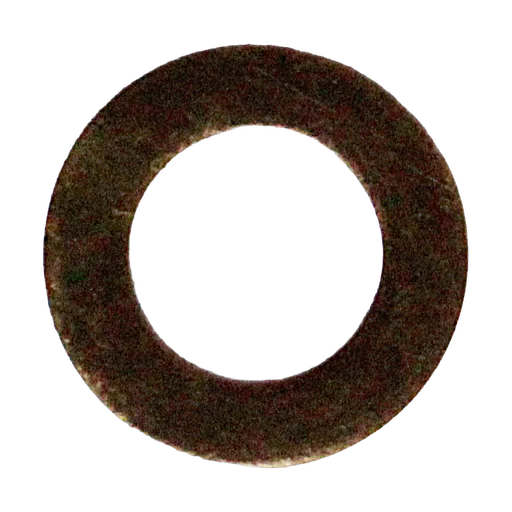

THRUST WASHER

39.THRUST WASHER

ACE Part No OEM REFF NO
G 5603667 2487

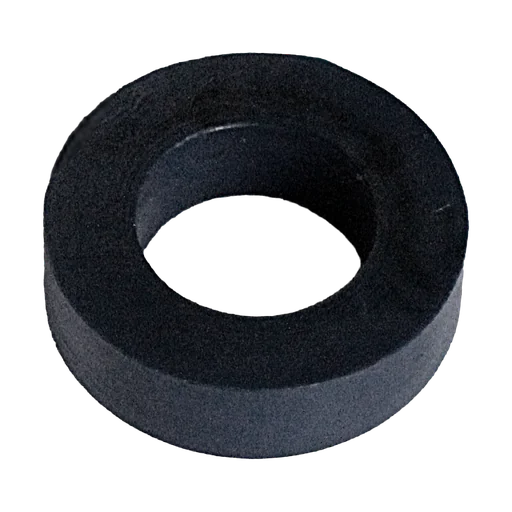

WATER INLET RUBBER

40.WATER INLET RUBBER

ACE Part No OEM REFF NO
G 5603545 D 1402

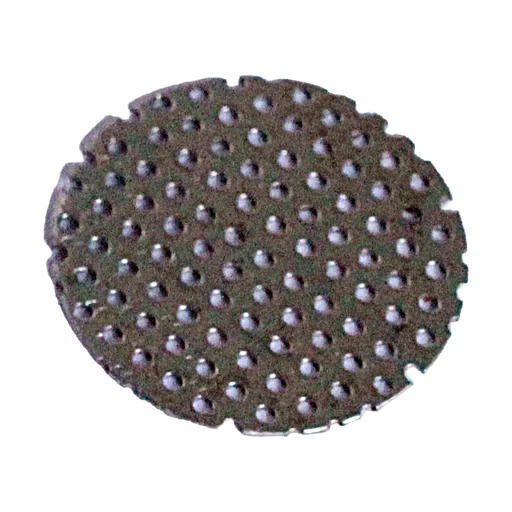

WATER INLET SCREEN

41.WATER INLET SCREEN

ACE Part No OEM REFF NO
G5604380 C 1272
THROTTLE VALVE KEY

42.THROTTLE VALVE KEY

ACE Part No OEM REFF NO
G 5602995 D 1384

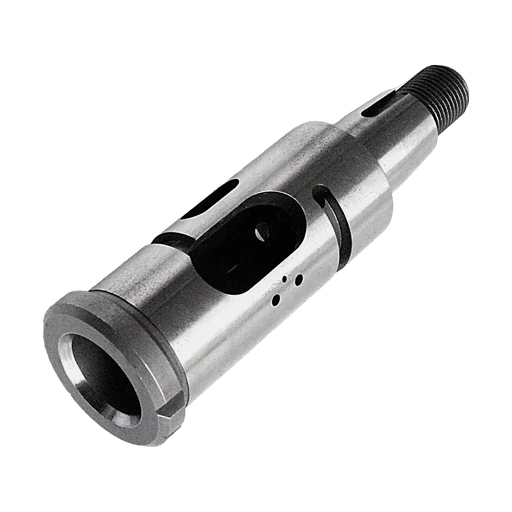

THROTTLE VALVE JACKLEG

43.THROTTLE VALVE JACKLEG

ACE Part No OEM REFF NO
G 5601665 B 1176
HANDLE, THROTTLE JACKLEG

44.HANDLE, THROTTLE JACKLEG

ACE Part No OEM REFF NO
G 5601633 C 1509
WASHER, SPRING DISC

45.WASHER, SPRING DISC

ACE Part No OEM REFF NO
G 5601562 149163MT

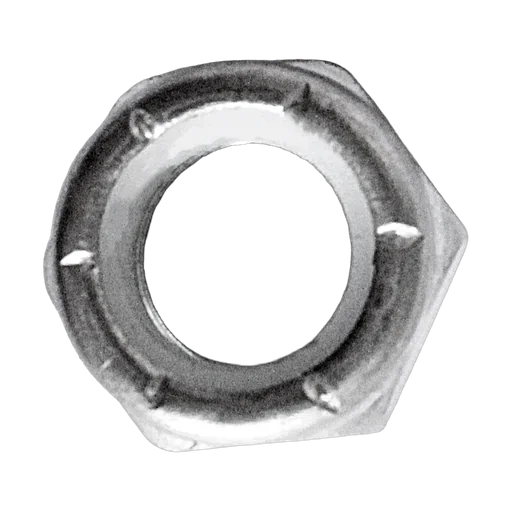

THROTTLE VALVE NUT

46.THROTTLE VALVE NUT

ACE Part No OEM REFF NO
G 5602997 D 1385
SIDE ROD, JACKLEG

47.SIDE ROD, JACKLEG

ACE Part No OEM REFF NO
G 5601631 C 1572C
Washer side rod nut

48.Washer side rod nut

ACE Part No OEM REFF NO
G 5602027 -
Side rod nut open

49.Side rod nut open

ACE Part No OEM REFF NO
G 5601900 D 1388
Side rod nut domed

49B.Side rod nut domed

ACE Part No OEM REFF NO
G 5601905 -

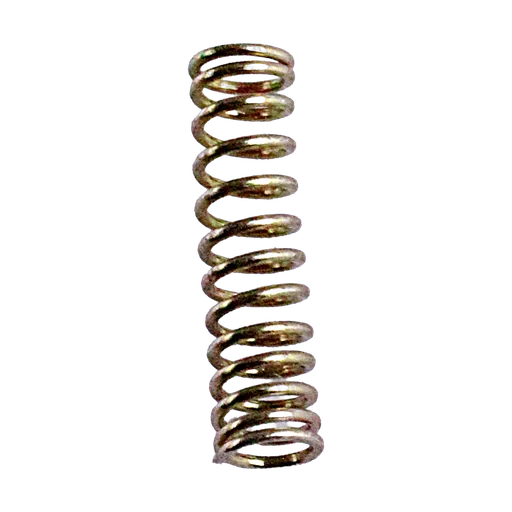

PAWL SPRING

50.PAWL SPRING

ACE Part No OEM REFF NO
G 5602272 D 1611C

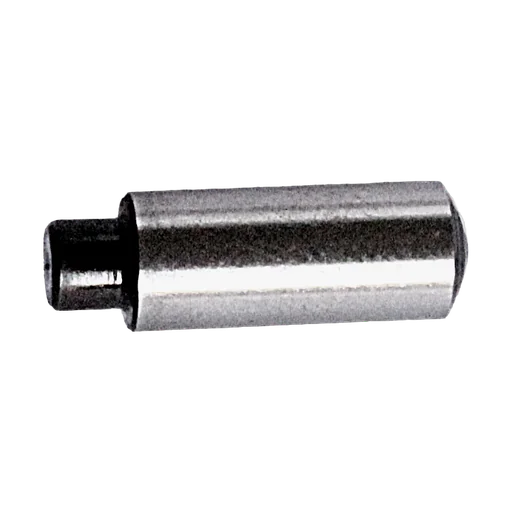

PLUNGER, PLASTIC

51.PLUNGER, PLASTIC

ACE Part No OEM REFF NO
G 5605422 S 2134

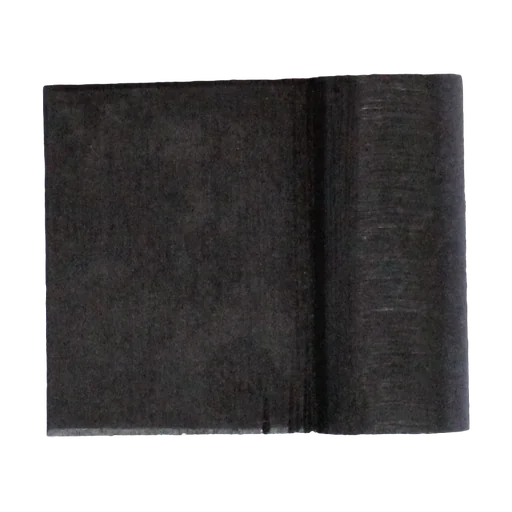

PAWL, RATCHET REVERSIBLE

52.PAWL, RATCHET REVERSIBLE

ACE Part No OEM REFF NO
G 5600027 D 6177
RIFLE BAR

53.RIFLE BAR

ACE Part No OEM REFF NO
G 5600038 B5053/B1173R

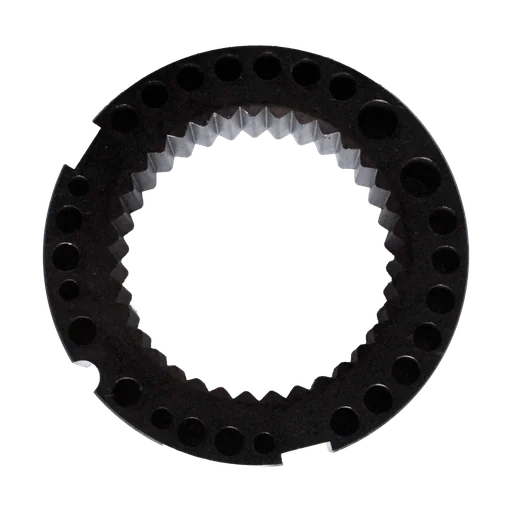

RACHET RING

54.RACHET RING

ACE Part No OEM REFF NO
G 5601822 B 1170

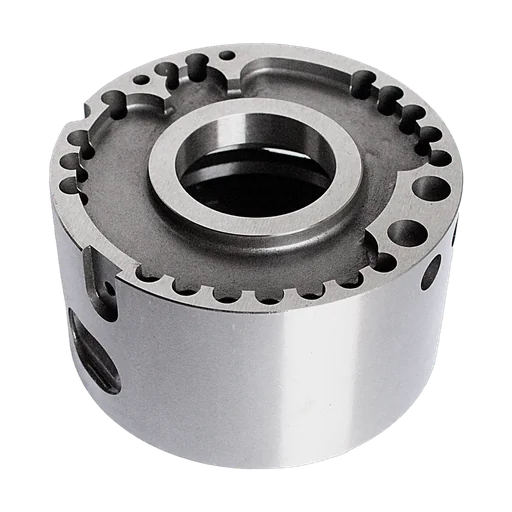

VALVE BOX

55.VALVE BOX

ACE Part No OEM REFF NO
G 5600658 A 745

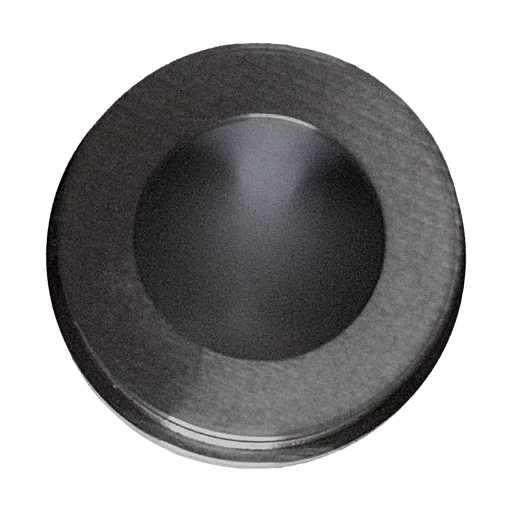

VALVE

56.VALVE

ACE Part No OEM REFF NO
G 5609572 C 1648

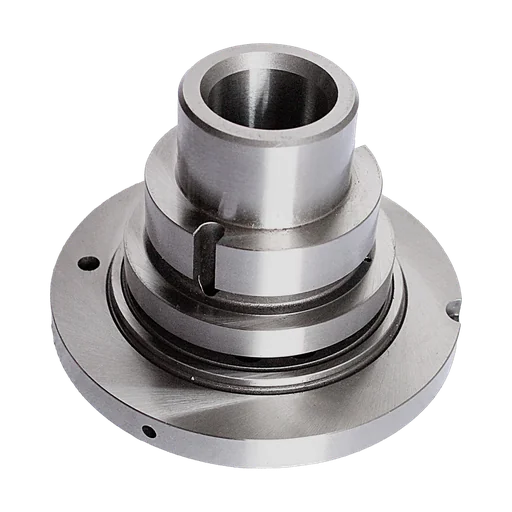

VALVE PLUG

57.VALVE PLUG

ACE Part No OEM REFF NO
G 5600558 A 744
LOCATING PIN

58.LOCATING PIN

ACE Part No OEM REFF NO
G 5604747 S 2128

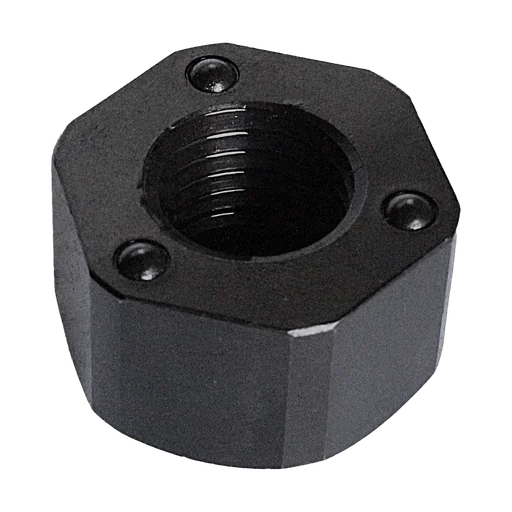

SPINDLE NUT 2

59.SPINDLE NUT 2

ACE Part No OEM REFF NO
G 5608449 C 1527

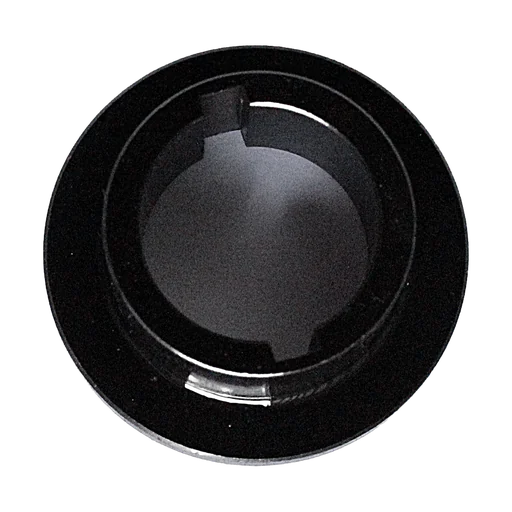

SPINDLE LOCK WASHER

60.SPINDLE LOCK WASHER

ACE Part No OEM REFF NO
G 5601262 C 1519

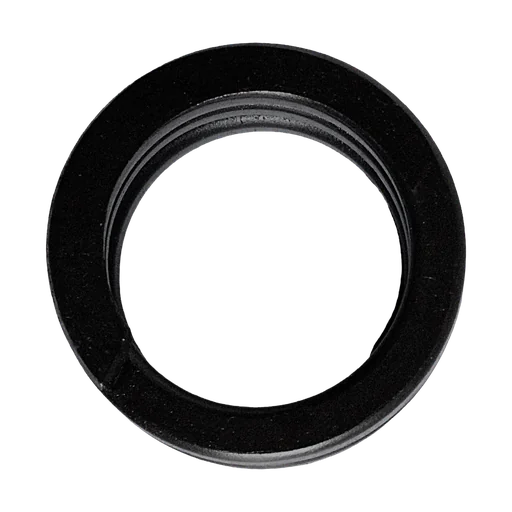

SPRING 1

61.SPRING 1

ACE Part No OEM REFF NO
G 5602862 C 1571

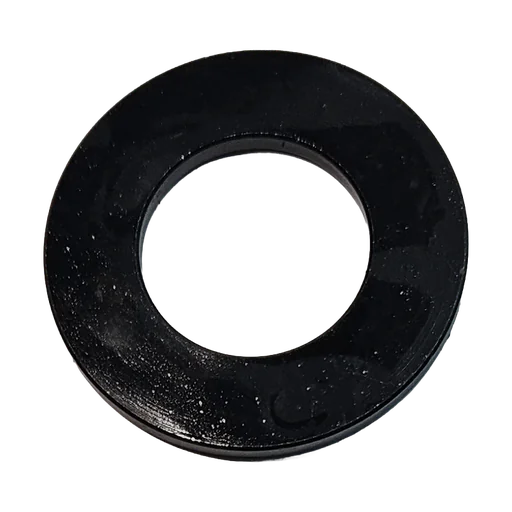

SPINDLE THRUST WASHER

62.SPINDLE THRUST WASHER

ACE Part No OEM REFF NO
G 5603144 D 1392

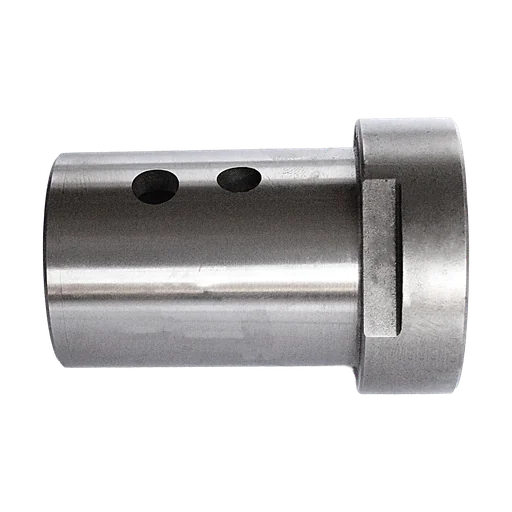

CYLINDER LUG BUSH

63.CYLINDER LUG BUSH

ACE Part No OEM REFF NO
G 5604362 C 1523
LOCK WASHER KEY

64.LOCK WASHER KEY

ACE Part No OEM REFF NO
G5607352 D 1426
CLEVIS BODY SPINDLE

65.CLEVIS BODY SPINDLE

ACE Part No OEM REFF NO
G 5603922 B 1182A
PIN

65A.PIN

ACE Part No OEM REFF NO
G 5604938 0300 6 6

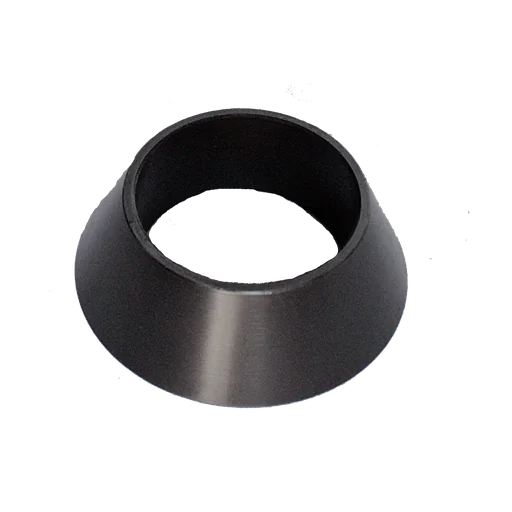

SPINDLE CONE

66.SPINDLE CONE

ACE Part No OEM REFF NO
G 5609042 D 1398

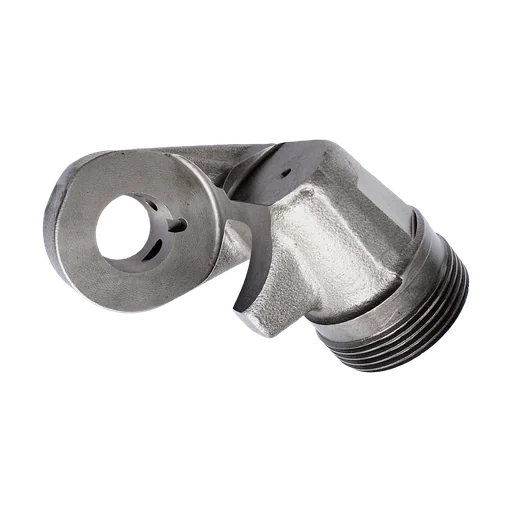

CLEVIS BODY

67.CLEVIS BODY

ACE Part No OEM REFF NO
G 5601417 A 693A

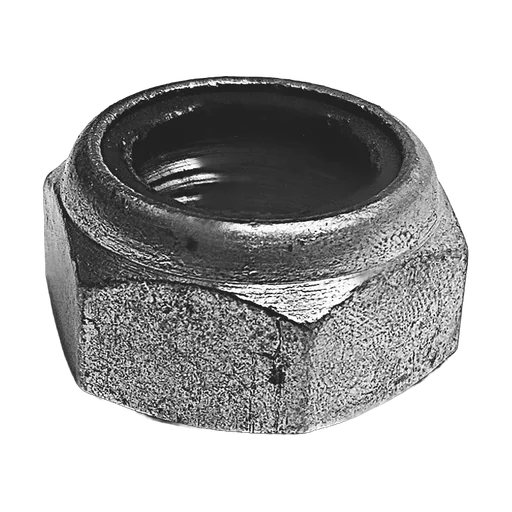

CLEVIS BODY SPINDLE NUT

68.CLEVIS BODY SPINDLE NUT

ACE Part No OEM REFF NO
G 5603912 D 1982

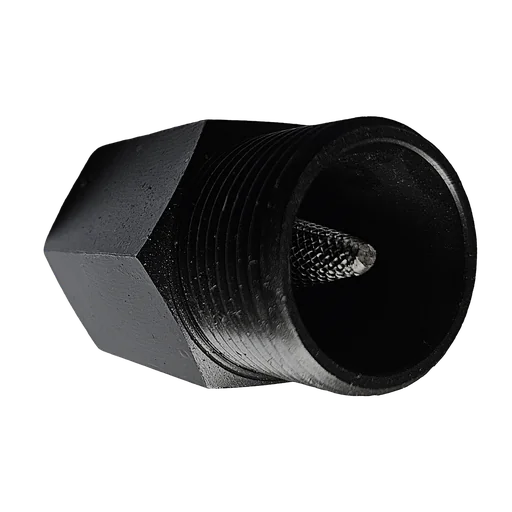

AIR FILTER ASSEMBLY

69.AIR FILTER ASSEMBLY

ACE Part No OEM REFF NO
G 5609708 1356588

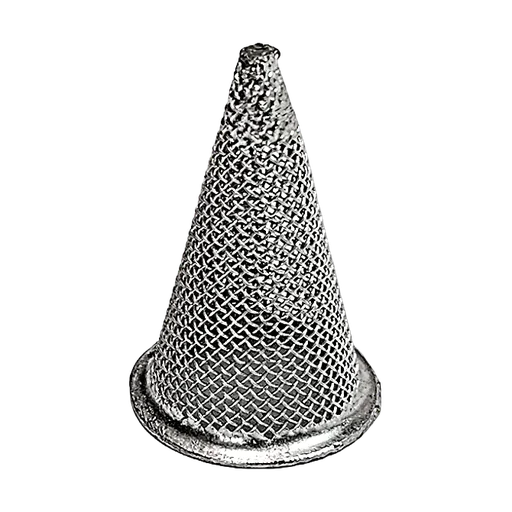

CONICAL FILTER

70.CONICAL FILTER

ACE Part No OEM REFF NO
G 5605079 S 355538A

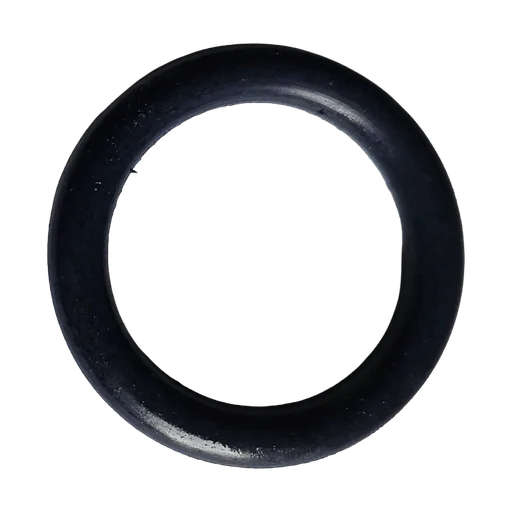

O RING 6

71.O RING 6

ACE Part No OEM REFF NO
G 5600253 164999
CAP AIR

72.CAP AIR

ACE Part No OEM REFF NO
G 5604625 C 1811A
AIR BEND

73.AIR BEND

ACE Part No OEM REFF NO
G 5606362 C 1525N

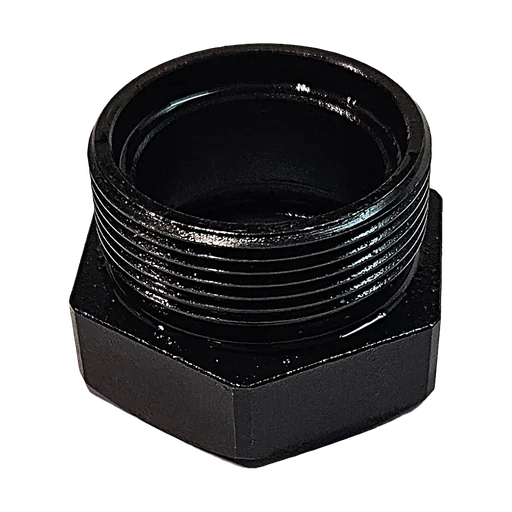

AIR BEND NUT

74.AIR BEND NUT

ACE Part No OEM REFF NO
G 5606372 C 1526
COPPER WASHER

75.COPPER WASHER

ACE Part No OEM REFF NO
G 5602172 D 1601

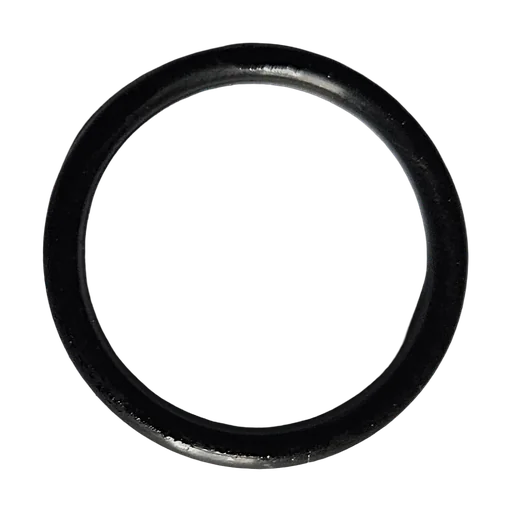

O RING 7

76.O RING 7

ACE Part No OEM REFF NO
G 5608233 D 164731/1648114

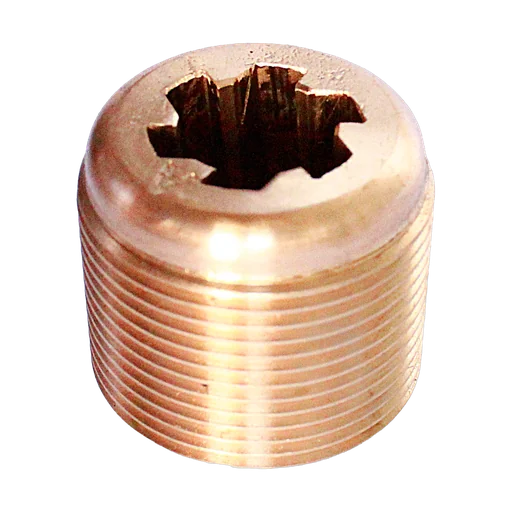

RIFLE NUT

77.RIFLE NUT

ACE Part No OEM REFF NO
G 5609162 C 1508

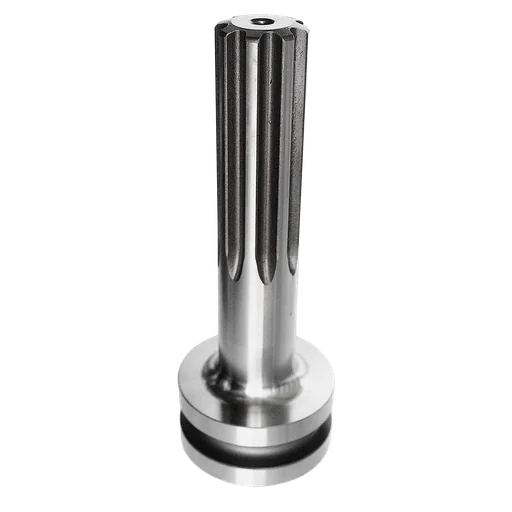

PISTON

78.PISTON

ACE Part No OEM REFF NO
G 5605443 B 2334
FERRULE, JACKLEG CYLINDER

79.FERRULE, JACKLEG CYLINDER

ACE Part No OEM REFF NO
G 5604012 D2105/9001093

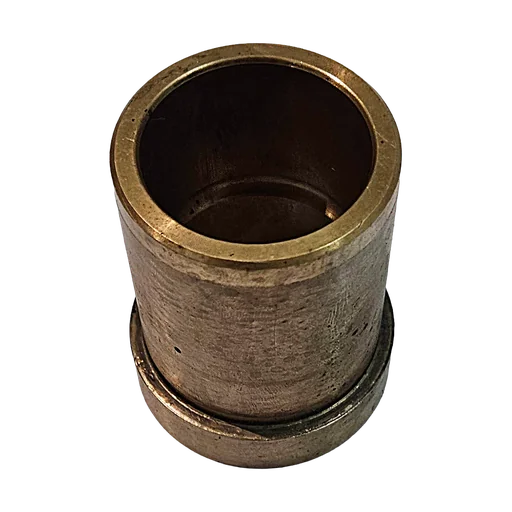

FRONT CYLINDER LINER

80.FRONT CYLINDER LINER

ACE Part No OEM REFF NO
G 5608252 C 1517

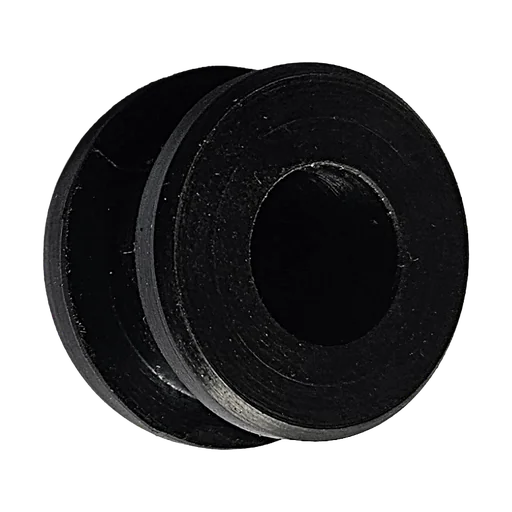

PLUG, MUFFLED CYLINDER EXHAUST

81A.PLUG, MUFFLED CYLINDER EXHAUST

ACE Part No OEM REFF NO
G 5603889 D 8345/5603889
PLUG, CYLINDER EXHAUST

81B.PLUG, CYLINDER EXHAUST

ACE Part No OEM REFF NO
G 5604387 D 8345/5604387

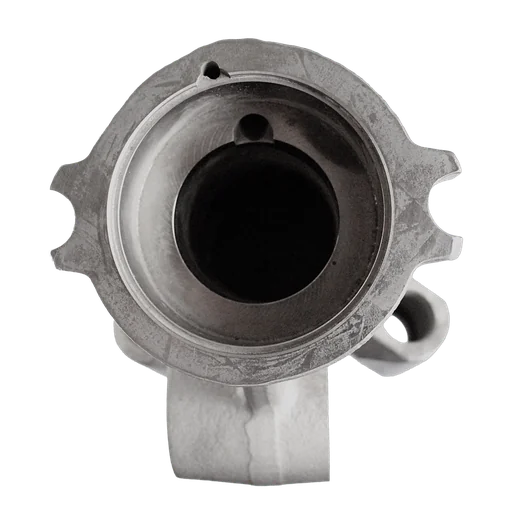

CYLINDER S250 MUFFLED

82A.CYLINDER S250 MUFFLED

ACE Part No OEM REFF NO
G 5603890 E 393M

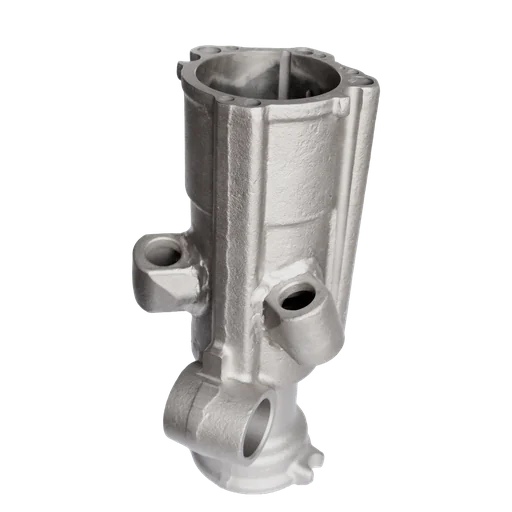

CYLINDER S250 STANDARD

82B.CYLINDER S250 STANDARD

ACE Part No OEM REFF NO
G 5608023 E393X

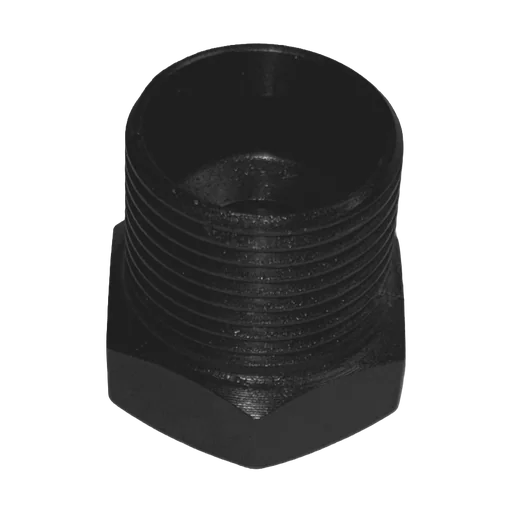

SPUD , S250 WATER INLET

83.SPUD , S250 WATER INLET

ACE Part No OEM REFF NO
G 5603993 D 2441/1558356
CAP, WATER

84.CAP, WATER

ACE Part No OEM REFF NO
G 5604626 C 1811W
STEM, WATER THREADED

85A.STEM, WATER THREADED

ACE Part No OEM REFF NO
G 5608192 C 1809
STEM, WATER BARBED

85B.STEM, WATER BARBED

ACE Part No OEM REFF NO
G 5604378 5604378
O RING 8

86.O RING 8

ACE Part No OEM REFF NO
G 5603224 164811
NUT, WATER STEM

87.NUT, WATER STEM

ACE Part No OEM REFF NO
G 5602823 S 2141

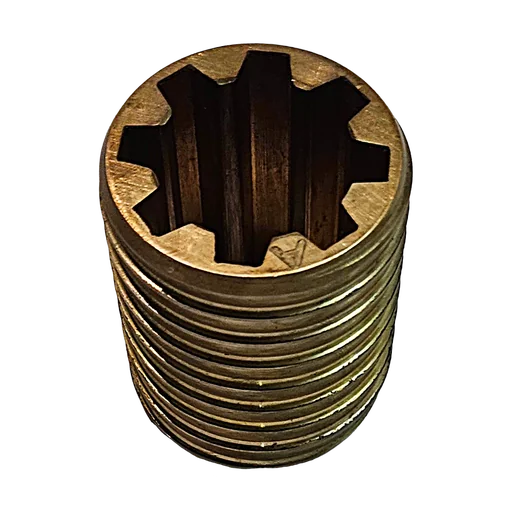

CHUCK NUT

88.CHUCK NUT

ACE Part No OEM REFF NO
G 5603262 C 1512
CHUCK

89.CHUCK

ACE Part No OEM REFF NO
G 5609822 B 1178

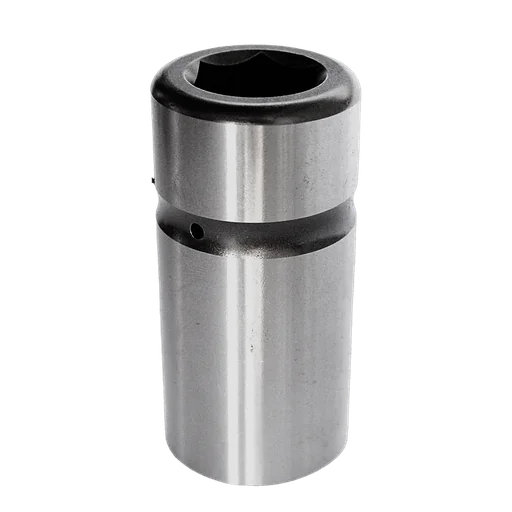

CHUCK INSERT 7/8 HEX

90A.CHUCK INSERT 7/8 HEX

ACE Part No OEM REFF NO
G 5609282 C 1418A

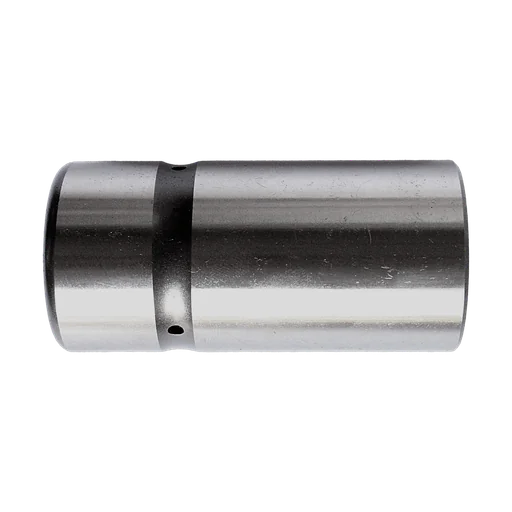

CHUCK INSERT 7/8 HEX 1

90B.CHUCK INSERT 7/8 HEX 1

ACE Part No OEM REFF NO
G 5604382 C 1532A

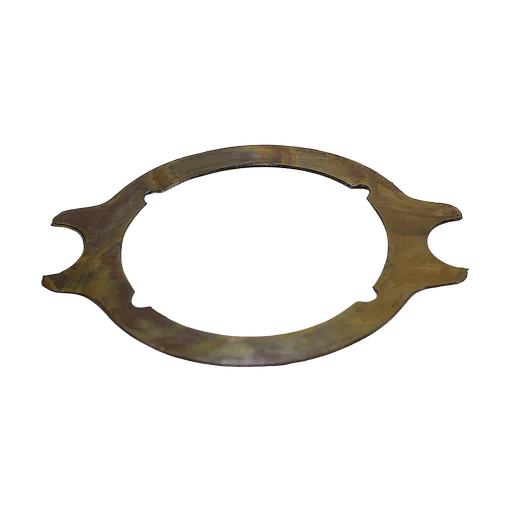

Gasket, fronthead/cylinder copper (service only

91.Gasket, fronthead/cylinder copper (service only

ACE Part No OEM REFF NO
G 5600769 SNB500

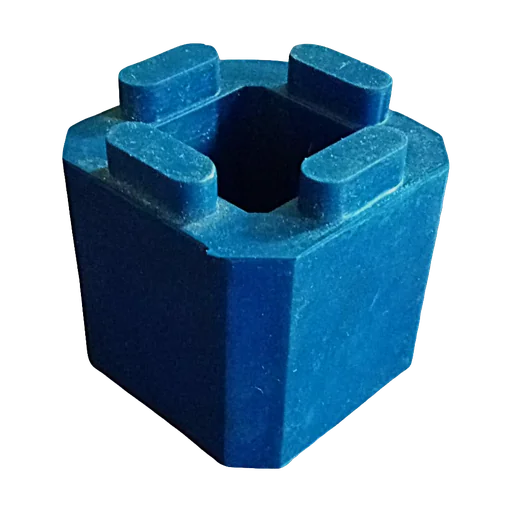

Steel retainer bush

92.Steel retainer bush

ACE Part No OEM REFF NO
G 5606137 D 6205

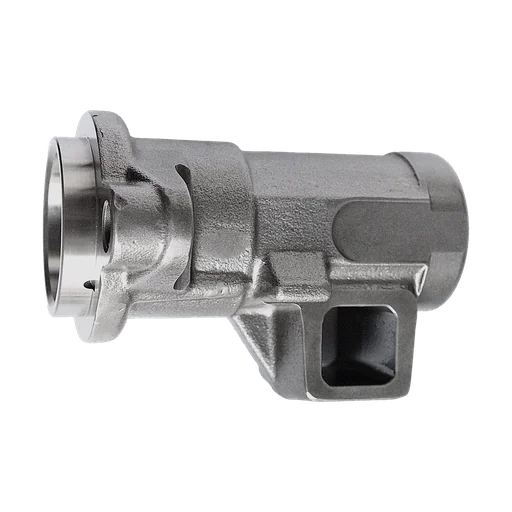

FRONT HEAD

93.FRONT HEAD

ACE Part No OEM REFF NO
G 5609063 A 2598A
PIN STIL RETAINER

94.PIN STIL RETAINER

ACE Part No OEM REFF NO
G 5609107 C 6908

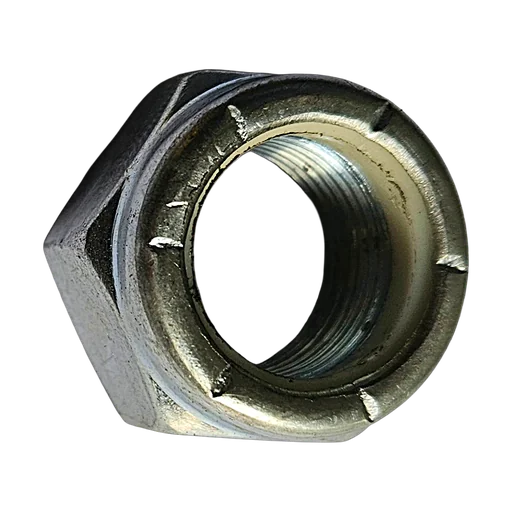

LOCK NUTM20 NYLOCK NUT

95.LOCK NUTM20 NYLOCK NUT

ACE Part No OEM REFF NO
G5603402 12812UF (D1932)
STEEL RETAINER

96A.STEEL RETAINER

ACE Part No OEM REFF NO
G 5600064 A 2599
STEEL RETAINER 1

96B.STEEL RETAINER 1

ACE Part No OEM REFF NO
G 5602663 A 2663
