ACE 51

Spares

Jackleg pusherleg spares

1.End piece

ACE Part No OEM REFF NO
3122030500 510500
Jackleg pusherleg spares

2.Nut

ACE Part No OEM REFF NO
3122015900 515900
Jackleg pusherleg spares

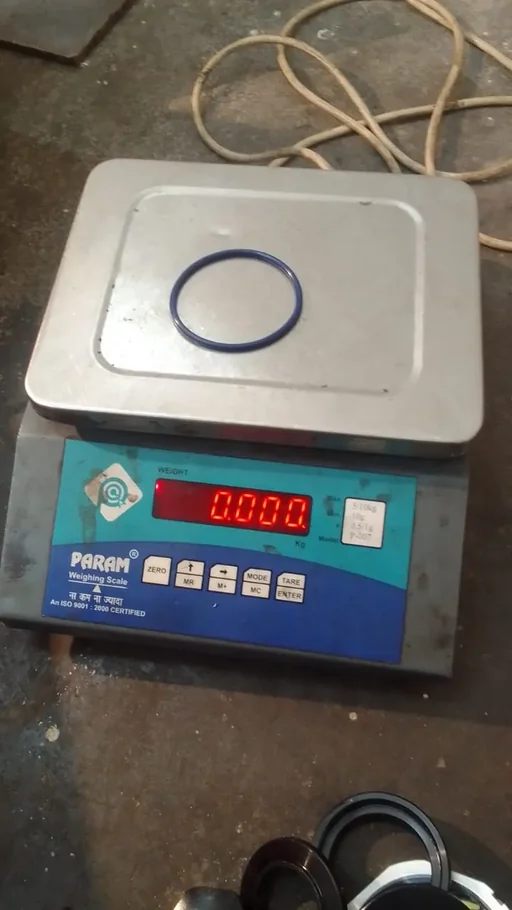

3.O-ring (61.9 x 3.5 mm 70 Shore 2.44 x 0.14 in.)

ACE Part No OEM REFF NO
0663920600 510600
Jackleg pusherleg spares

4.Nut

ACE Part No OEM REFF NO
3122016900 516900
Jackleg pusherleg spares

5.Brake ring

ACE Part No OEM REFF NO
3132001800 511800
Jackleg pusherleg spares

6.Piston

ACE Part No OEM REFF NO
514881
Jackleg pusherleg spares

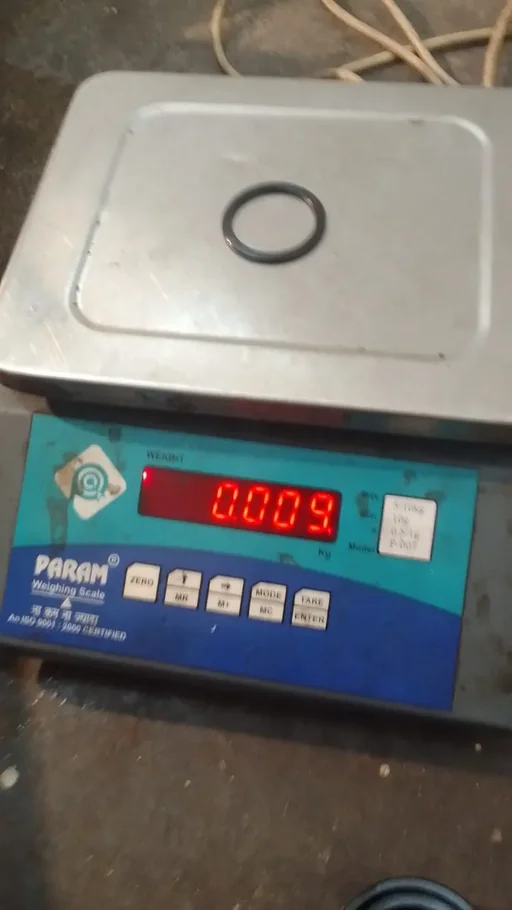

7.Washer

ACE Part No OEM REFF NO
514882
Jackleg pusherleg spares

8.Packing

ACE Part No OEM REFF NO
3122016700 5161700
Jackleg pusherleg spares

9.Washer

ACE Part No OEM REFF NO
3122016800 516800
Jackleg pusherleg spares

10.Cylinder

ACE Part No OEM REFF NO
3122016100 516100
Jackleg pusherleg spares

11.Tube

ACE Part No OEM REFF NO
3122016000 511400
Jackleg pusherleg spares

12.Handle (Ø60-75 mm Ø2.36-2.95 in.)

ACE Part No OEM REFF NO
3115199400 519400
Jackleg pusherleg spares

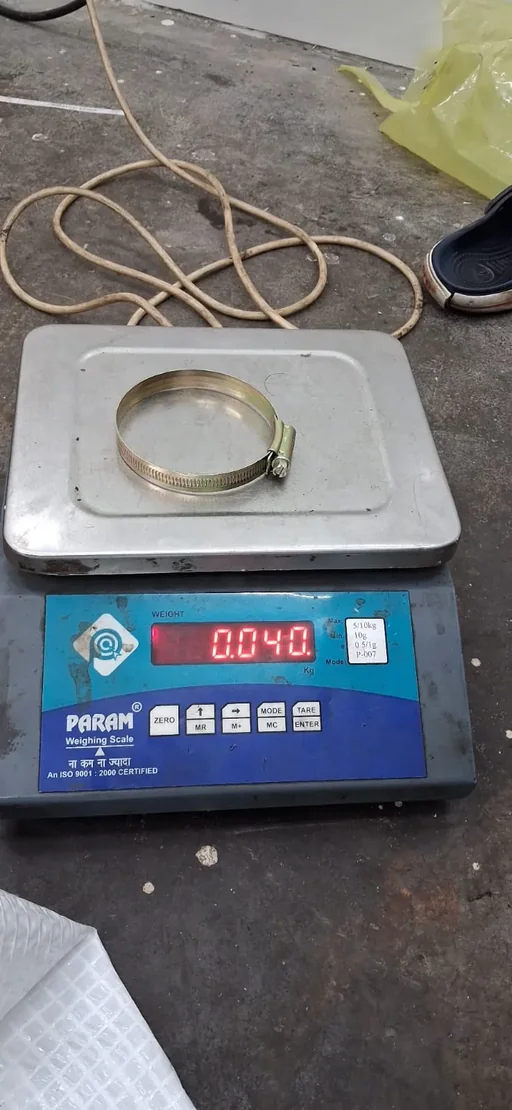

13.Hose clip

ACE Part No OEM REFF NO
347611400 511400
Jackleg pusherleg spares

14.Guide ring

ACE Part No OEM REFF NO
3122017500 517500
Jackleg pusherleg spares

15.Packing

ACE Part No OEM REFF NO
3122017600 517600
Jackleg pusherleg spares

16.Guide socket

ACE Part No OEM REFF NO
517781
Jackleg pusherleg spares

17.Bushing

ACE Part No OEM REFF NO
3122017800 517800
Jackleg pusherleg spares

18.Piston rod

ACE Part No OEM REFF NO
3122016200 516200
Jackleg pusherleg spares

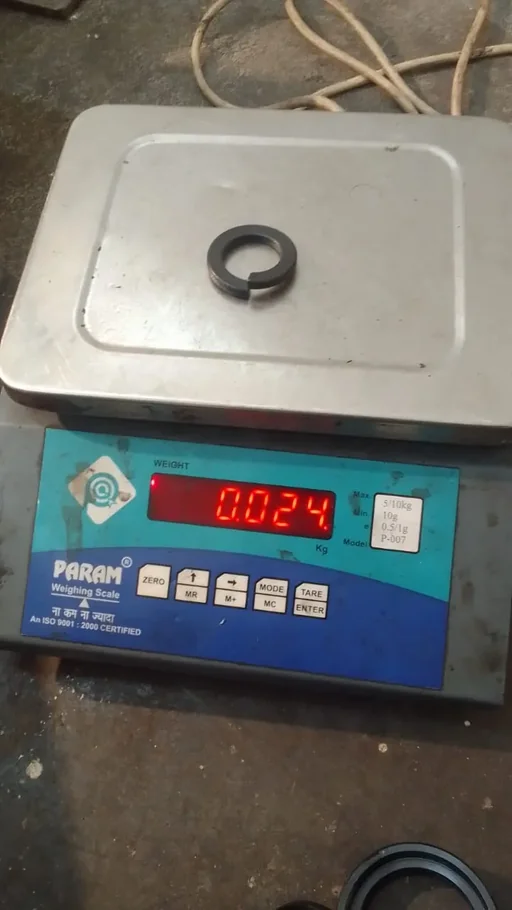

19.Spring washer (25.5/42 x 5.2 mm DIN 127 1/1.65 x 0.20 in.)

ACE Part No OEM REFF NO
0333217414 517414
Jackleg pusherleg spares

20.Foot

ACE Part No OEM REFF NO
3121511100 511100
Jackleg pusherleg spares

21.Nut (plug)

ACE Part No OEM REFF NO
3122049300 519300
Jackleg pusherleg spares

22.Pin

ACE Part No OEM REFF NO
3122030600 510600
Jackleg pusherleg spares

23.Liner

ACE Part No OEM REFF NO
3122033400 513400
Jackleg pusherleg spares

24.O-ring (Ø36.2 x 3 mm 70 Shore Ø1.43 x 0.12 in.)

ACE Part No OEM REFF NO
663213200 513200
Jackleg pusherleg spares

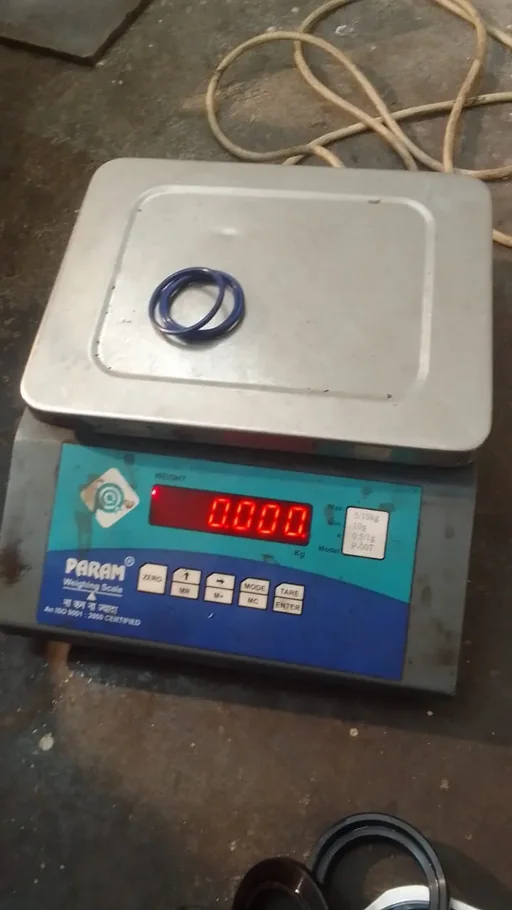

25.O-ring (26.2 x 3 mm 70 Shore Ø1.03 x 0.12 in.)

ACE Part No OEM REFF NO
663212800 512800
Jackleg pusherleg spares

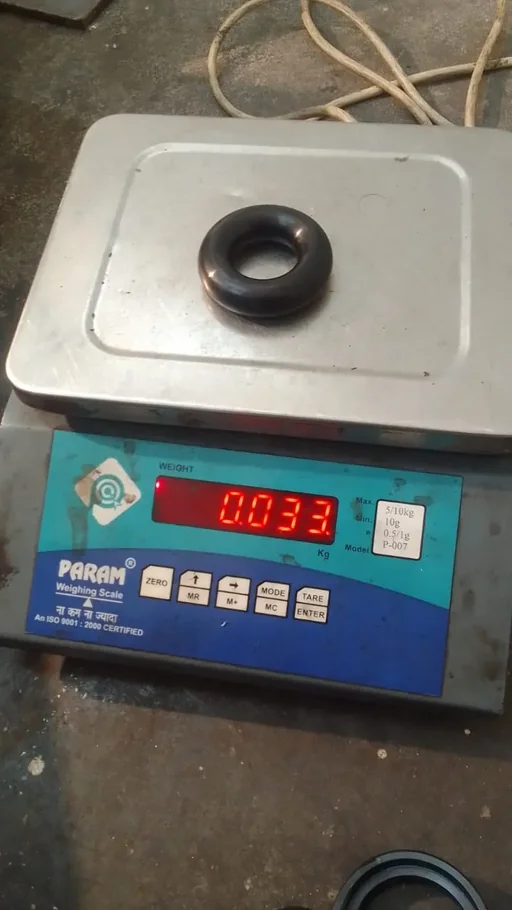

26.Rubber ring

ACE Part No OEM REFF NO
3122030900 510900
Jackleg pusherleg spares

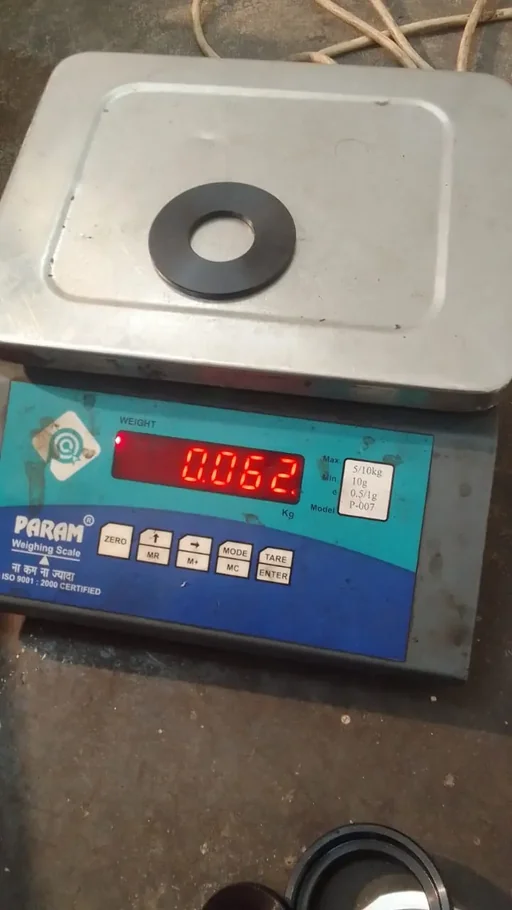

27.Washer

ACE Part No OEM REFF NO
3122037100 517100
Jackleg pusherleg spares

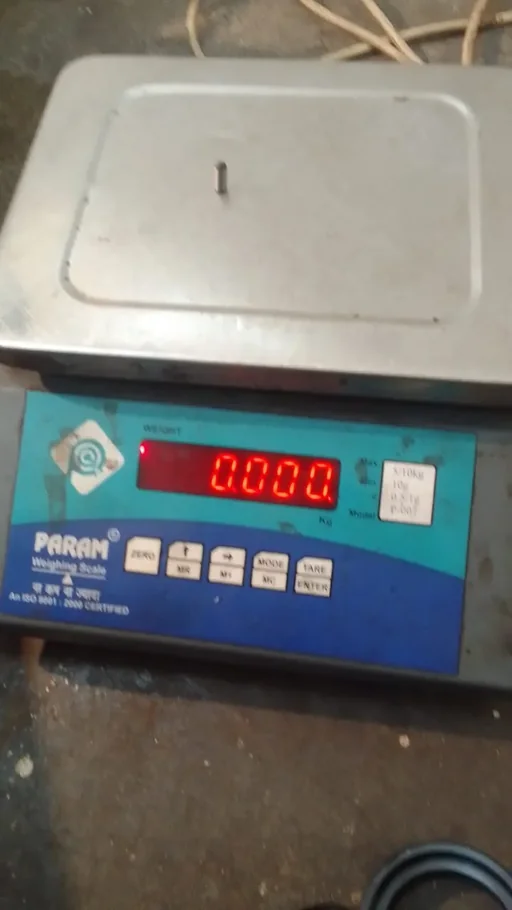

28.Pin

ACE Part No OEM REFF NO
101127400 517400
Jackleg pusherleg spares

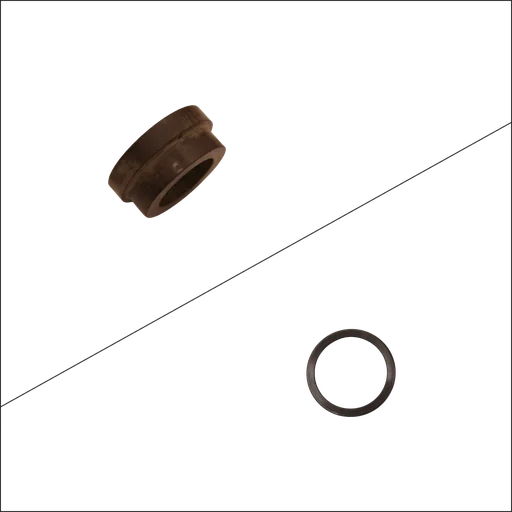

A (6-7).Piston, complete

ACE Part No OEM REFF NO
3122034880 514880
Jackleg pusherleg spares

B (16-17).Guide socket, complete

ACE Part No OEM REFF NO
3122017780 517780
