ACE 12 T

Spares

Rock drill spares

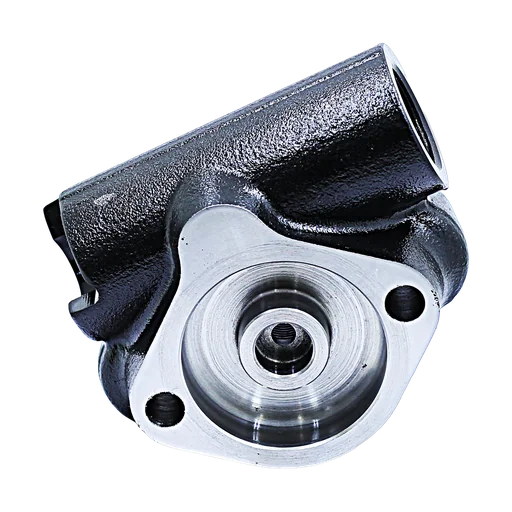

1.THROTTLE HOUSING

ACE Part No OEM REFF NO
121010T 3115209600
Rock drill spares

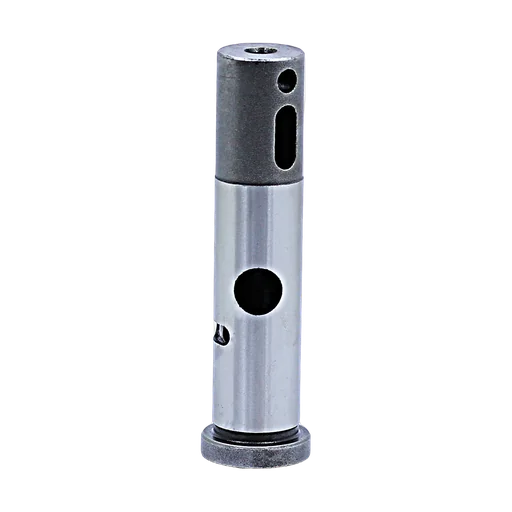

2.VALVE

ACE Part No OEM REFF NO
121015T 3115196700
Rock drill spares

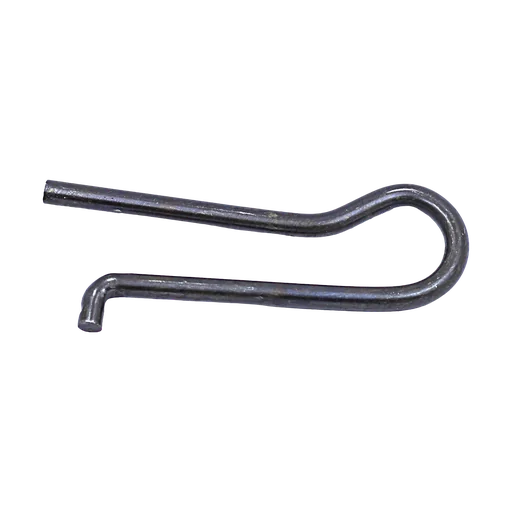

3.THROTTLE LEVER

ACE Part No OEM REFF NO
121020T 3115208600
Rock drill spares

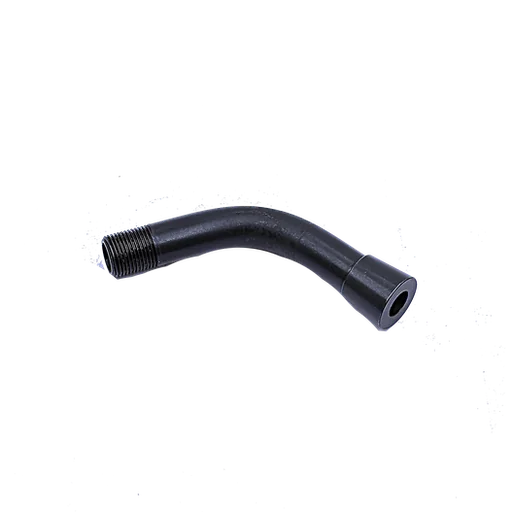

4.INLET NIPPLE

ACE Part No OEM REFF NO
121025T 3111004400
Rock drill spares

5.ADAPTER

ACE Part No OEM REFF NO
121030T 3111004300
Rock drill spares

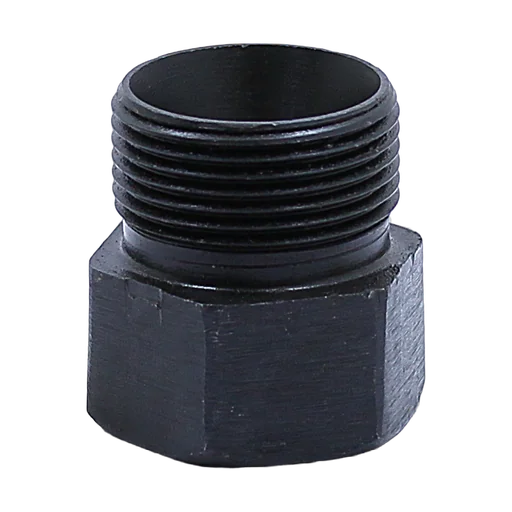

6.ADAPTER

ACE Part No OEM REFF NO
121035T 3000582502
Rock drill spares

7.HOSE NIPPLE,3/4''

ACE Part No OEM REFF NO
121040T 3115154300
Rock drill spares

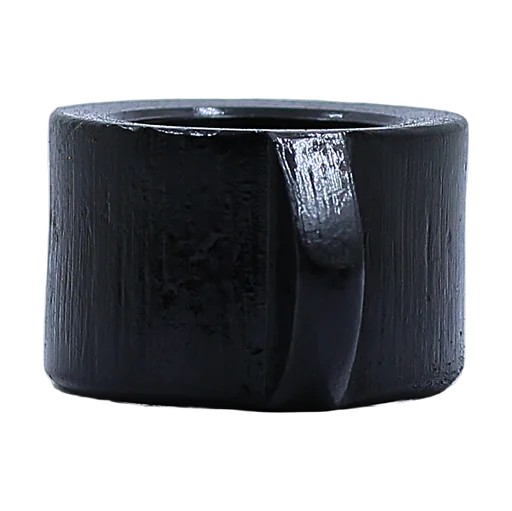

8.WING NUT

ACE Part No OEM REFF NO
121045T 9000033800
Rock drill spares

9.HANDLE BRACKET

ACE Part No OEM REFF NO
121050T 3115081100
Rock drill spares

10.BUSHING

ACE Part No OEM REFF NO
122010T 3310057200
Rock drill spares

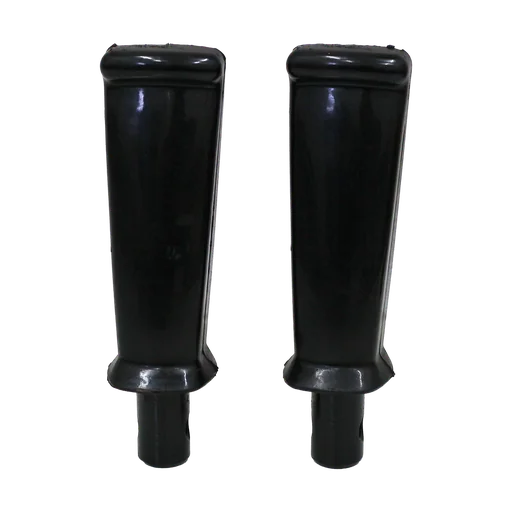

11.HANDLE

ACE Part No OEM REFF NO
122015T 3115 0811 00
Rock drill spares

12.PIN (Dia. 8x36)

ACE Part No OEM REFF NO
122020T 108136000
Rock drill spares

13.SIDE BOLT

ACE Part No OEM REFF NO
122025T 3111006100
Rock drill spares

14.PLUG

ACE Part No OEM REFF NO
122030T 3111004600
Rock drill spares

15.O-RING(17.3X2.4mm)

ACE Part No OEM REFF NO
122035T 663212400
Rock drill spares

16.FLUSHING TUBE

ACE Part No OEM REFF NO
122040T 3111004500
Rock drill spares

17.RUBBER GASKET

ACE Part No OEM REFF NO
122045T 3000012100
Rock drill spares

18.MAIN VALVE

ACE Part No OEM REFF NO
122050T 3111004900
Rock drill spares

19.PIN (dia4x22mm)

ACE Part No OEM REFF NO
123010T 108324100
Rock drill spares

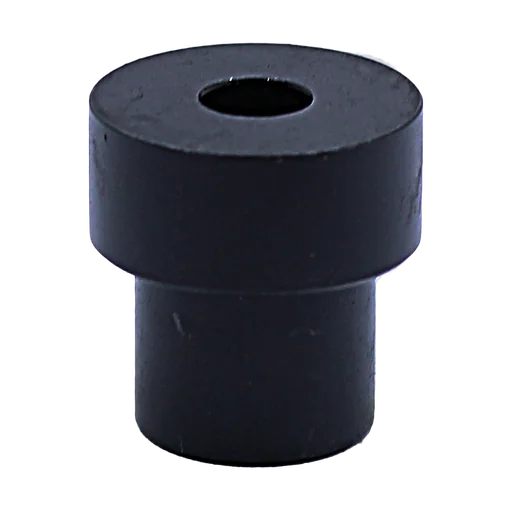

20.BUSHING

ACE Part No OEM REFF NO
123015T 3111004800
Rock drill spares

21.VALVE COVER

ACE Part No OEM REFF NO
123020T -
Rock drill spares

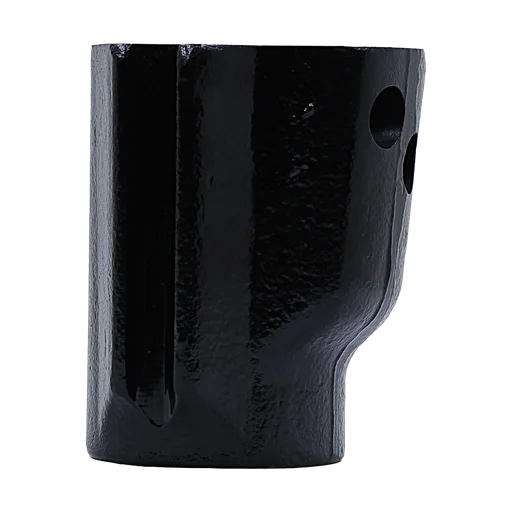

22.CYLINDER

ACE Part No OEM REFF NO
123025T 3111001500
Rock drill spares

23.PISTON

ACE Part No OEM REFF NO
123030T 3111005000
Rock drill spares

24.INTERMEDIATE PART

ACE Part No OEM REFF NO
123035T 3111001700
Rock drill spares

25.RACHET WHEEL

ACE Part No OEM REFF NO
123040T 3111001900
Rock drill spares

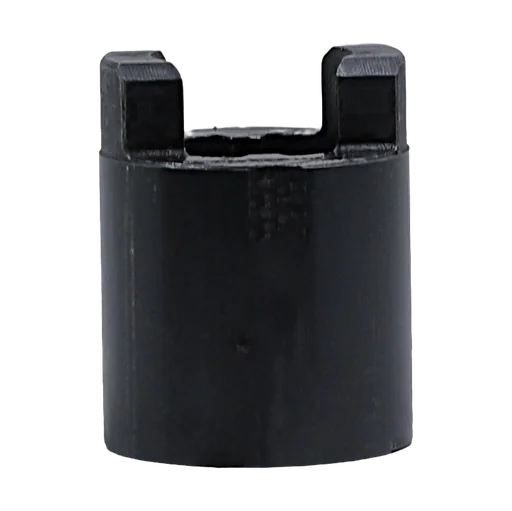

26.DRIVER

ACE Part No OEM REFF NO
123045T 3111002400
Rock drill spares

27.DRILL CHUCK

ACE Part No OEM REFF NO
123050T 3111006600
Rock drill spares

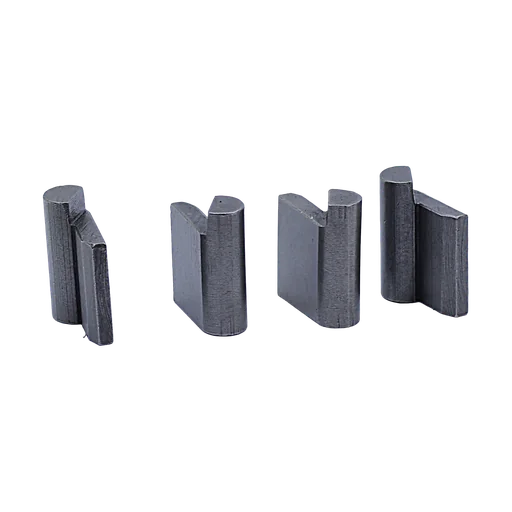

28.PAWL

ACE Part No OEM REFF NO
123055T 3111002000
Rock drill spares

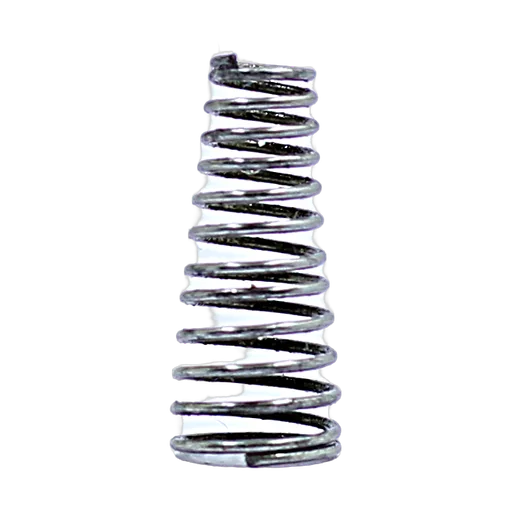

29.CONICAL SPRING

ACE Part No OEM REFF NO
123060T 3111002300
Rock drill spares

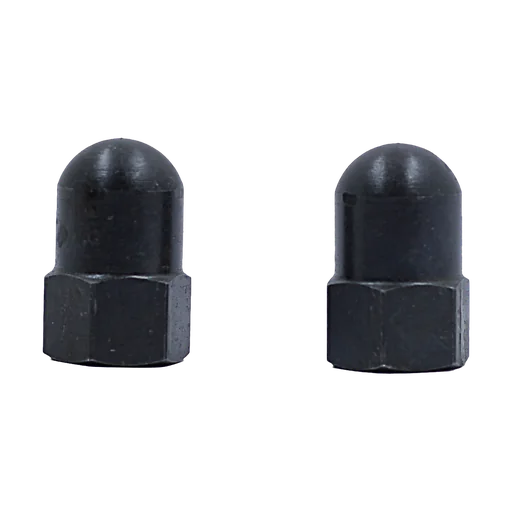

30.CAP NUT

ACE Part No OEM REFF NO
123065T 3111006200
Rock drill spares

31.FRONT HEAD

ACE Part No OEM REFF NO
123070T 3111005300
Rock drill spares

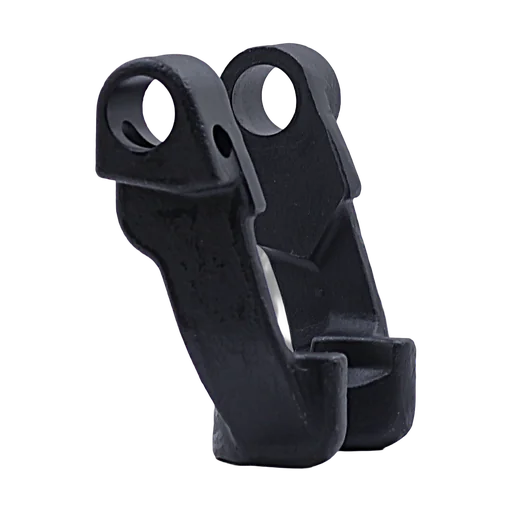

32.DRILL RETAINER

ACE Part No OEM REFF NO
123075T 3115247500
Rock drill spares

33.RETAINER PIN

ACE Part No OEM REFF NO
123080T 3115206800
Rock drill spares

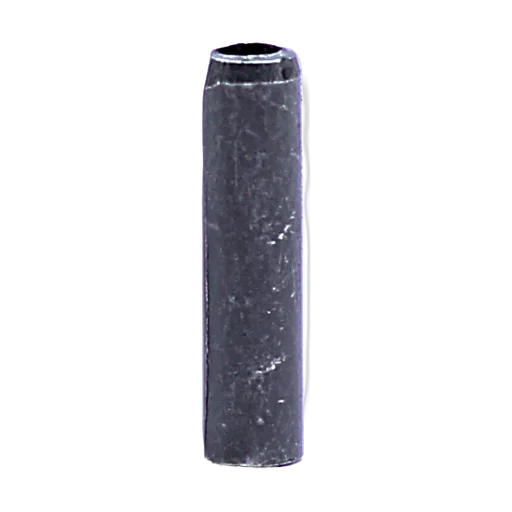

34.SLOTTED SPRING PIN

ACE Part No OEM REFF NO
123085T 108135900
Rock drill spares

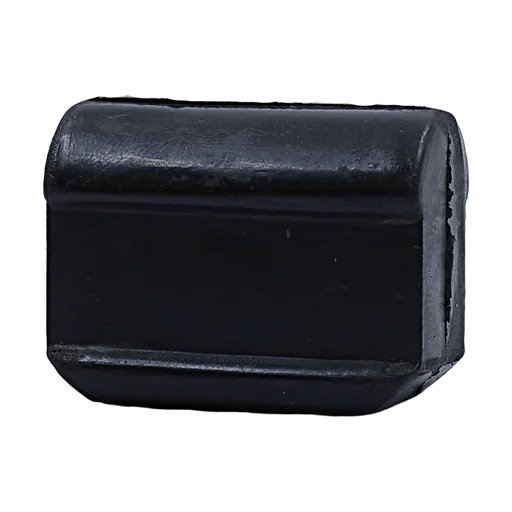

35.RUBBER BUFFER

ACE Part No OEM REFF NO
123090T 3111005700
Rock drill spares

36.BUFFER PLATE

ACE Part No OEM REFF NO
123095T 3111005600
Rock drill spares

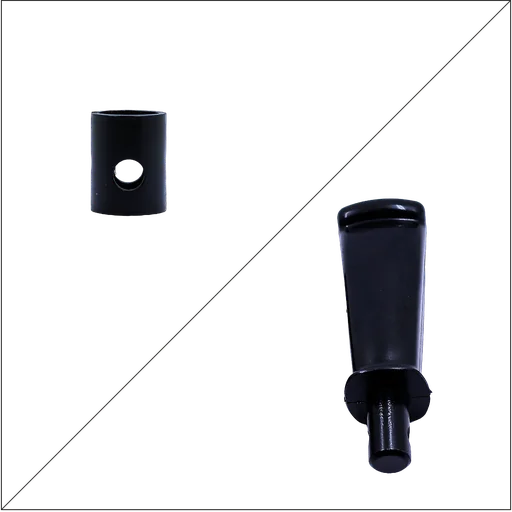

A(10-11).Ace 12 T HANDLE COMPLETE

ACE Part No OEM REFF NO
122000T
Rock drill spares

B(19-21).Ace 12 T COVER COMPLETE

ACE Part No OEM REFF NO
123000T
