ACE 12D

Spares

Rock drill spares

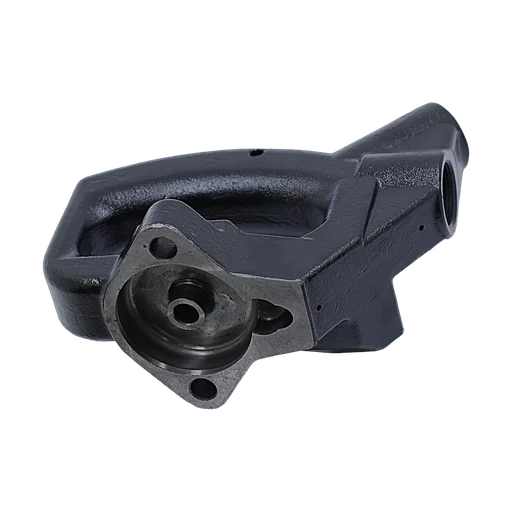

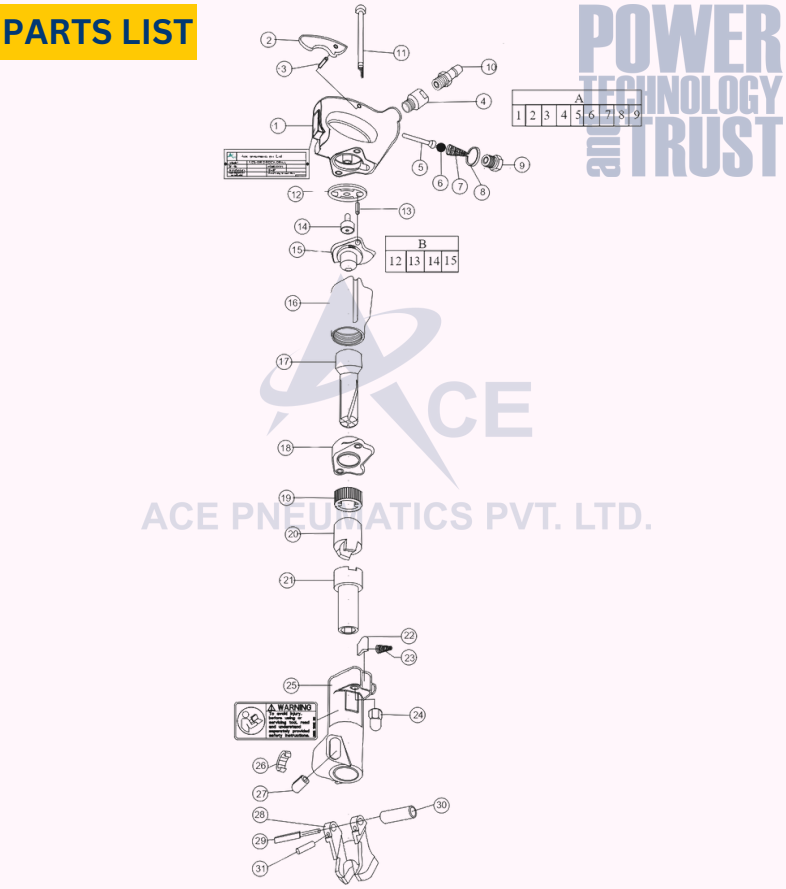

1.Handle

ACE Part No OEM REFF NO
101010 -
Rock drill spares

2.Throttle Lever

ACE Part No OEM REFF NO
101015 3111 0002 00
Rock drill spares

3.Throttle Lever Pin

ACE Part No OEM REFF NO
101020 0108 1327 00
Rock drill spares

4.Adopter

ACE Part No OEM REFF NO
101025 3510 0143 00
Rock drill spares

5.Valve Pin

ACE Part No OEM REFF NO
101030 3111 0003 00
Rock drill spares

6.Rubber Ball

ACE Part No OEM REFF NO
101035 3111 0196 00
Rock drill spares

7.Conical Spring

ACE Part No OEM REFF NO
101040 3111 0004 00
Rock drill spares

8.Washer

ACE Part No OEM REFF NO
101045 3111 0010 00
Rock drill spares

9.Ball Retainer

ACE Part No OEM REFF NO
101050 3111 0005 00
Rock drill spares

10.Hose Adoptor (Nipple)

ACE Part No OEM REFF NO
101055 9000 0243 00
Rock drill spares

11.Side Bolt

ACE Part No OEM REFF NO
101060 3111 0197 00
Rock drill spares

12.Main Valve

ACE Part No OEM REFF NO
102010 3111 0012 00
Rock drill spares

13.Pin

ACE Part No OEM REFF NO
102015 0108 3241 00
Rock drill spares

14.Guide Pin

ACE Part No OEM REFF NO
102020 3111 0014 00
Rock drill spares

15.Valve Cover

ACE Part No OEM REFF NO
102025 -
Rock drill spares

16.Cylinder

ACE Part No OEM REFF NO
102030 3111 0015 00
Rock drill spares

17.Piston

ACE Part No OEM REFF NO
102035 3111 0016 00
Rock drill spares

18.Intermediate Part

ACE Part No OEM REFF NO
102040 3111 0017 00
Rock drill spares

19.Ratchet Ring

ACE Part No OEM REFF NO
102045 3111 0019 00
Rock drill spares

20.Driver

ACE Part No OEM REFF NO
102050 3111 0024 00
Rock drill spares

21.Drill Chuck (22 X 108 MM)

ACE Part No OEM REFF NO
102055 3111 0051 00
Rock drill spares

22.Pawl

ACE Part No OEM REFF NO
102060 3111 0020 00
Rock drill spares

23.Conical Spring

ACE Part No OEM REFF NO
102065 3111 0023 00
Rock drill spares

24.Side Bolt Nut (Cap Nut)

ACE Part No OEM REFF NO
102070 3111 0031 00
Rock drill spares

25.Front Head

ACE Part No OEM REFF NO
102075 3111 0053 00
Rock drill spares

26.Buffer Plate

ACE Part No OEM REFF NO
102080 3111 0056 00
Rock drill spares

27.Rubber Buffer

ACE Part No OEM REFF NO
102085 3111 0057 00
Rock drill spares

28.Retainer

ACE Part No OEM REFF NO
102090 3115 2475 00
Rock drill spares

29.Retainer Pin

ACE Part No OEM REFF NO
102095 3115 2480 00
Rock drill spares

30.Sleeve

ACE Part No OEM REFF NO
102100 3115 2481 00
Rock drill spares

31.Slotted Spring Pin

ACE Part No OEM REFF NO
102110 0108 1359 00
Rock drill spares

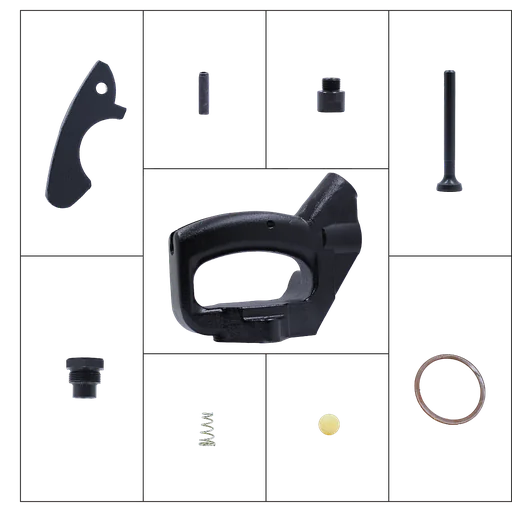

A (1-9).Handle Complete

ACE Part No OEM REFF NO
101000
Rock drill spares

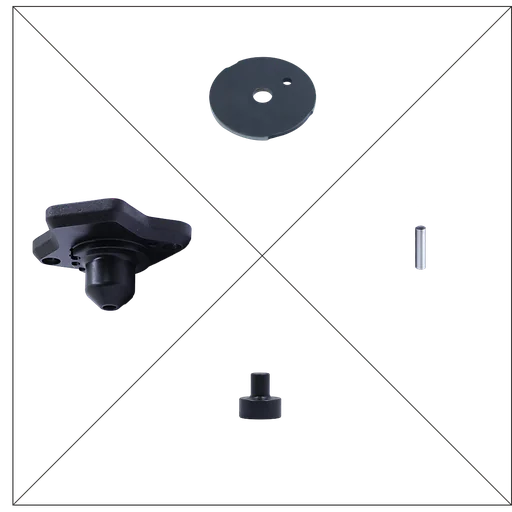

B (12-15).COVER COMPLETE

ACE Part No OEM REFF NO
102000
