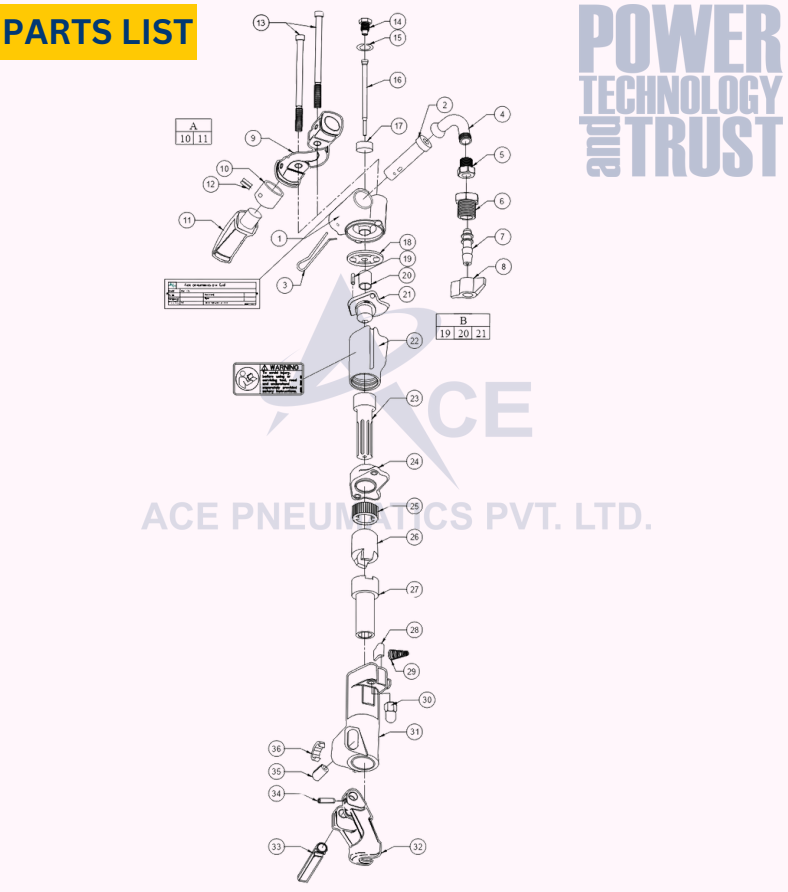

ACE RD 32A

Spares

Rock drill spares

1.BOLT - THRU

ACE Part No OEM REFF NO
326623 R086623
Rock drill spares

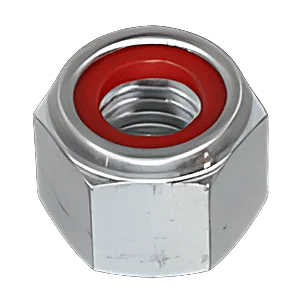

2.NUT - ELASTIC STOP

ACE Part No OEM REFF NO
325742 R005742
Rock drill spares

3.GRIP - HANDLE

ACE Part No OEM REFF NO
325419 R075419
Rock drill spares

4.BRACKET - HANDLE

ACE Part No OEM REFF NO
326608 R086608
Rock drill spares

5.LINER - HANDLE

ACE Part No OEM REFF NO
326172 R076172
Rock drill spares

6.WASHER - HANDLE BOLT KEY

ACE Part No OEM REFF NO
320142 R000142
Rock drill spares

7.BOLT - HANDLE

ACE Part No OEM REFF NO
326173 R076173
Rock drill spares

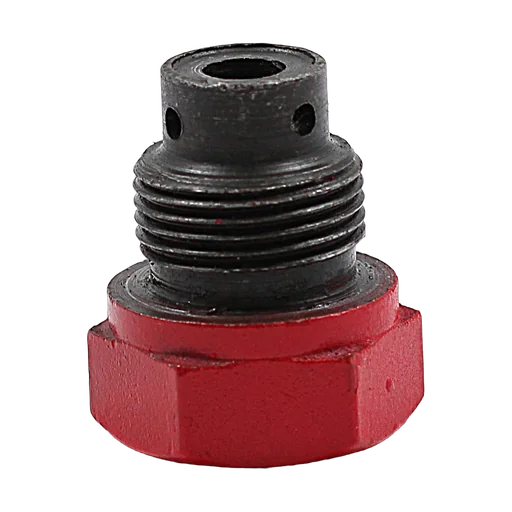

8.PLUG - AIR TUBE

ACE Part No OEM REFF NO
326793 R076793
Rock drill spares

9.GASKET - PLUG TUBE

ACE Part No OEM REFF NO
320537 R000537
Rock drill spares

10.TUBE - AIR

ACE Part No OEM REFF NO
327184 R077184
Rock drill spares

11.WASHER - AIR TUBE

ACE Part No OEM REFF NO
325449 R075449
Rock drill spares

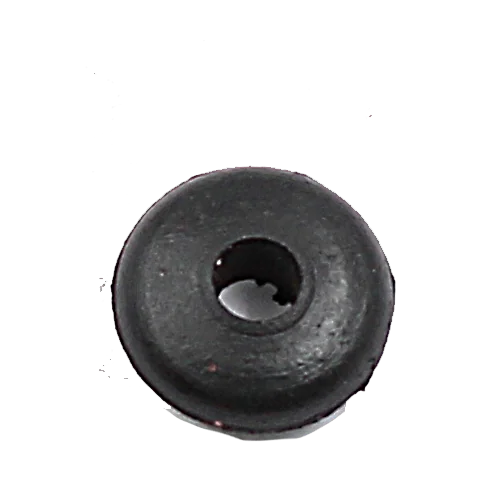

12.RUBBER - AIR TUBE

ACE Part No OEM REFF NO
325099 R075099
Rock drill spares

13.PIN - VALVE PLUNGER

ACE Part No OEM REFF NO
325802 R075802
Rock drill spares

14.PLUG - WATER VALVE

ACE Part No OEM REFF NO
326372 R076372
Rock drill spares

15.WATER VALVE PORT PLUG

ACE Part No OEM REFF NO
329131 -
Rock drill spares

16.O - RING

ACE Part No OEM REFF NO
329489 C079489
Rock drill spares

17.BUSHING - WATER VALVE

ACE Part No OEM REFF NO
328054 R098054
Rock drill spares

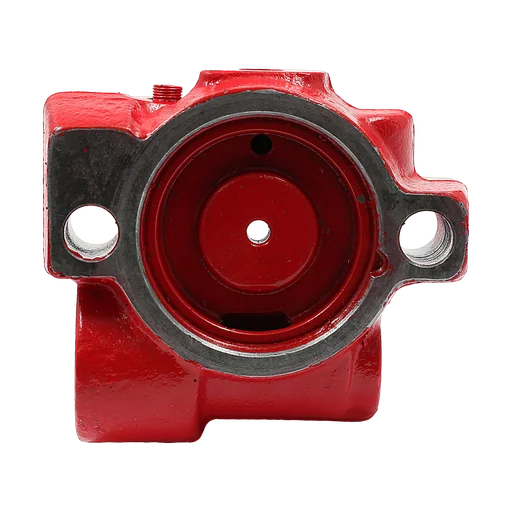

18.BACKHEAD

ACE Part No OEM REFF NO
328055 -
Rock drill spares

19.BUSHING - BLOW TUBE

ACE Part No OEM REFF NO
327738 R137738
Rock drill spares

20.PLUG - PIPE

ACE Part No OEM REFF NO
328064 C068064
Rock drill spares

21.SPRING - VALVE PLUNGER

ACE Part No OEM REFF NO
325671 R085671
Rock drill spares

22.PLUNGER - THROTTLE VALVE

ACE Part No OEM REFF NO
326627 R086627
Rock drill spares

23.PLUG - PIPE

ACE Part No OEM REFF NO
328799 C068799
Rock drill spares

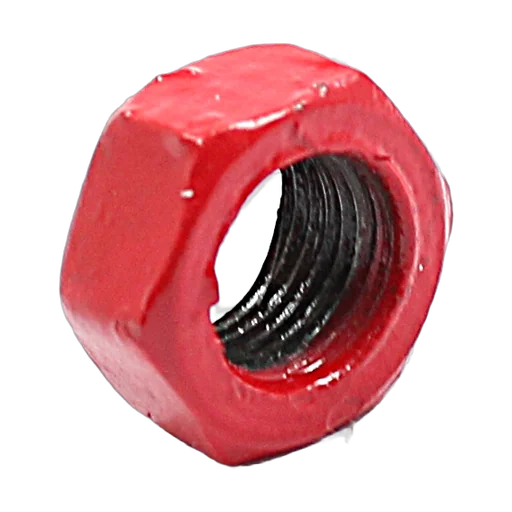

24.NUT - HEXAGON

ACE Part No OEM REFF NO
322149 P002149
Rock drill spares

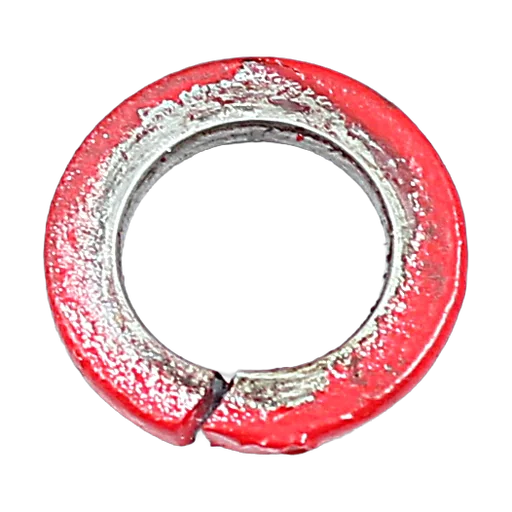

25.LOCK WASHER - VALVE HANDLE

ACE Part No OEM REFF NO
326717 C036717
Rock drill spares

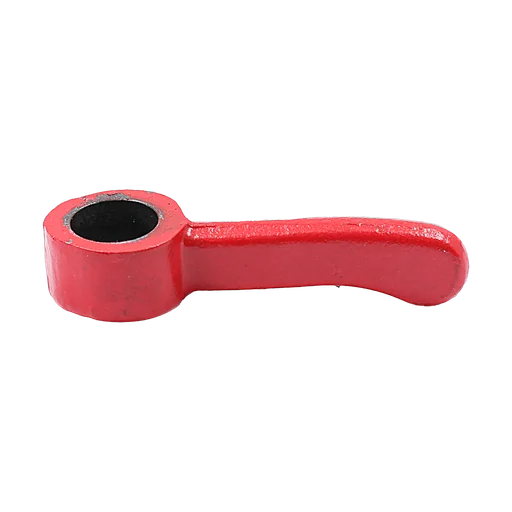

26.HANDLE - THROTTLE VALVE

ACE Part No OEM REFF NO
329124 R079124
Rock drill spares

27.GASKET

ACE Part No OEM REFF NO
329432 H0979432
Rock drill spares

28.VALVE - THROTTLE

ACE Part No OEM REFF NO
326628 R086628
Rock drill spares

29.O - RING

ACE Part No OEM REFF NO
323521 P103521
Rock drill spares

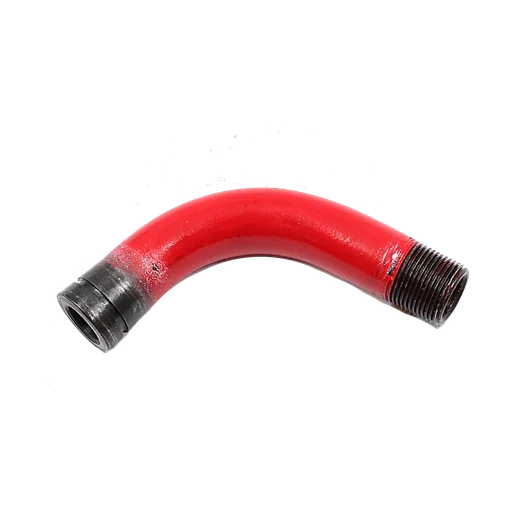

30.SWIVEL - AIR INLET

ACE Part No OEM REFF NO
325265 R075265
Rock drill spares

31.SCREEN - AIR INLET

ACE Part No OEM REFF NO
325584 R005584
Rock drill spares

32.O - RING

ACE Part No OEM REFF NO
320317 R110317
Rock drill spares

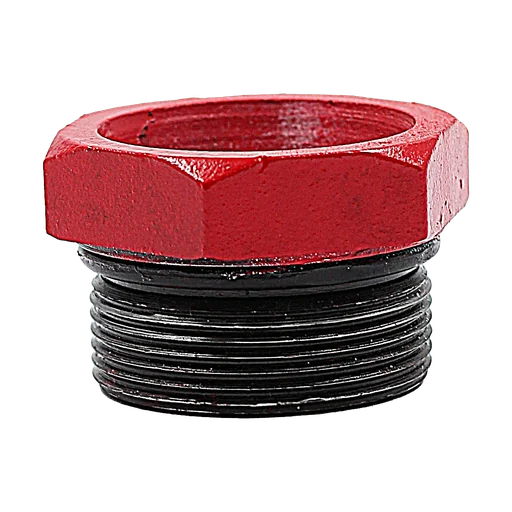

33.NUT - AIR INLET

ACE Part No OEM REFF NO
320530 R000530
Rock drill spares

34.PAWL

ACE Part No OEM REFF NO
325267 R075267
Rock drill spares

35.SPRING - PAWL

ACE Part No OEM REFF NO
326654 R086654
Rock drill spares

36.BAR - RIFLE

ACE Part No OEM REFF NO
326622 R086622
Rock drill spares

37.RING - RATCHET

ACE Part No OEM REFF NO
326194 R076194
Rock drill spares

38.BUSHING - VALVE GUIDE

ACE Part No OEM REFF NO
328085 R098085
Rock drill spares

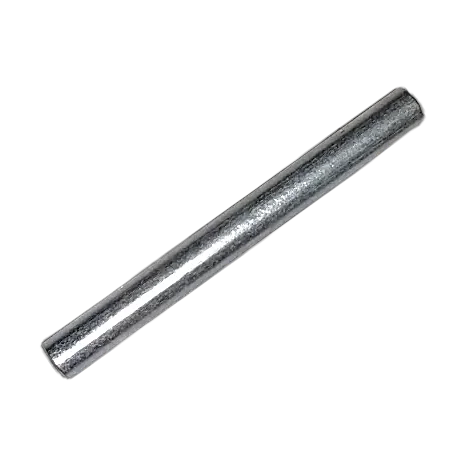

39.PIN - VALVE CASE DOWEL

ACE Part No OEM REFF NO
325772 R075772
Rock drill spares

40.VALVE

ACE Part No OEM REFF NO
326263 R076263
Rock drill spares

41.CASE - VALVE

ACE Part No OEM REFF NO
326264 R076264
Rock drill spares

42.PLUG - OIL REGULATING

ACE Part No OEM REFF NO
328084 R098084
Rock drill spares

43.STEM - OIL REGULATING

ACE Part No OEM REFF NO
325625 R085625
Rock drill spares

44.NUT - RIFLE BAR (STEEL)

ACE Part No OEM REFF NO
325839 R075839
Rock drill spares

45.NUT - RIFLE BAR (BRONZE)

ACE Part No OEM REFF NO
325826 R075826
Rock drill spares

46.PISTON

ACE Part No OEM REFF NO
320088 R000088
Rock drill spares

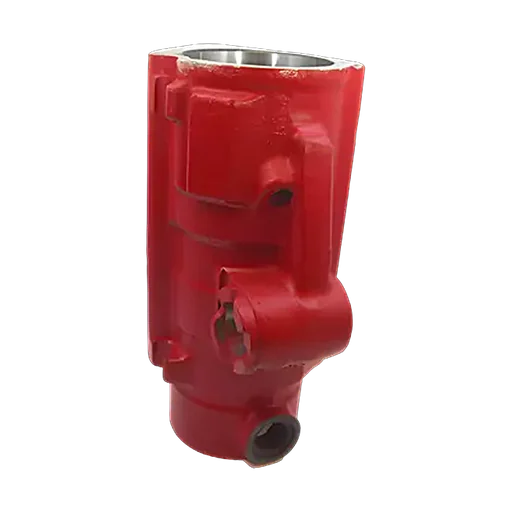

47.CYLINDER

ACE Part No OEM REFF NO
327991 -
Rock drill spares

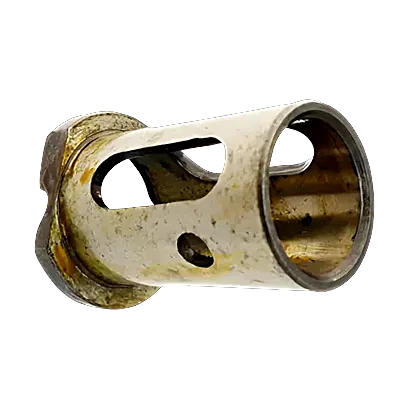

48.BUSHING - BLOWER VALVE

ACE Part No OEM REFF NO
326611 R086611
Rock drill spares

49.VALVE - BLOWER

ACE Part No OEM REFF NO
326612 R086612
Rock drill spares

50.WASHER - BLOWER VALVE

ACE Part No OEM REFF NO
325777 R075777
Rock drill spares

51.SPRING - BLOWER VALVE

ACE Part No OEM REFF NO
325778 R075778
Rock drill spares

52.WASHER - VALVE SPRING

ACE Part No OEM REFF NO
325780 R075780
Rock drill spares

53.PIN - SPRING

ACE Part No OEM REFF NO
326266 R076266
Rock drill spares

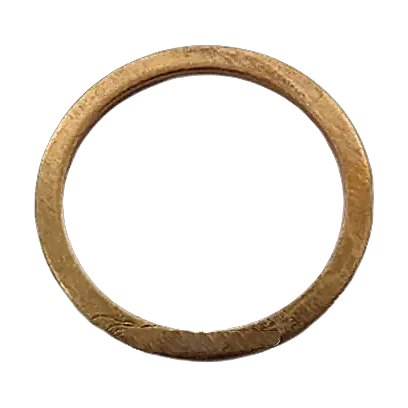

54.GASKET - OIL PLUG

ACE Part No OEM REFF NO
321176 R091176
Rock drill spares

55.OIL PLUG

ACE Part No OEM REFF NO
321177 -
Rock drill spares

56.BUSHING - CYLINDER

ACE Part No OEM REFF NO
322161 R042161
Rock drill spares

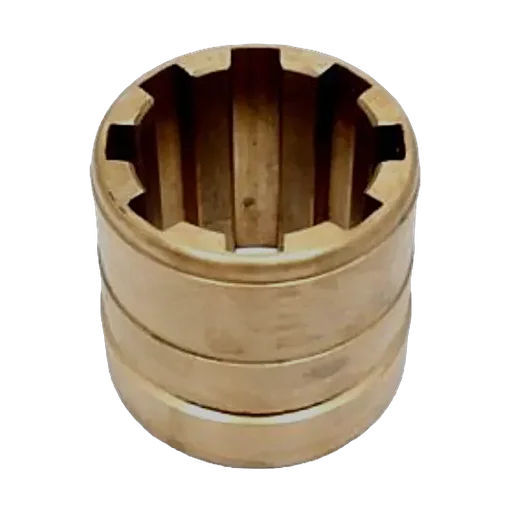

57.NUT - CHUCK ROTATION

ACE Part No OEM REFF NO
326733 R086733
Rock drill spares

58.CHUCK

ACE Part No OEM REFF NO
329374 R099374
Rock drill spares

59.SLEEVE - CHUCK

ACE Part No OEM REFF NO
321321 R041321
Rock drill spares

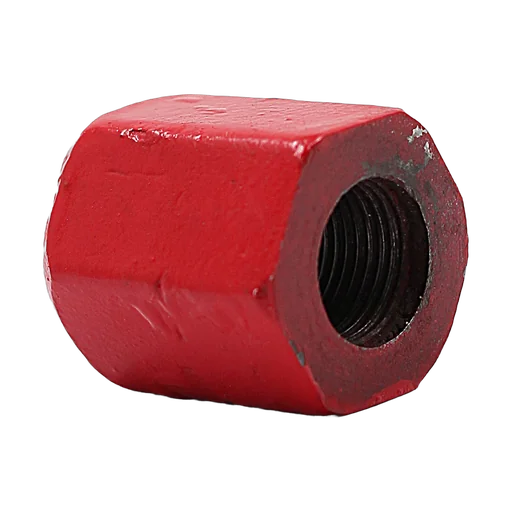

60.NUT - THRU BOLT

ACE Part No OEM REFF NO
325756 R085756
Rock drill spares

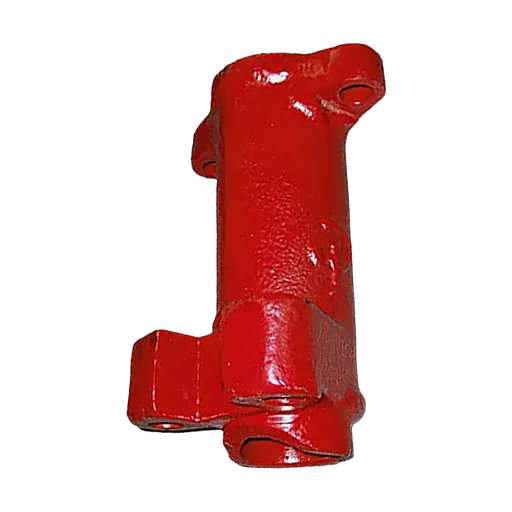

61.FRONTHEAD

ACE Part No OEM REFF NO
321320 R041320
Rock drill spares

62.TUNNION - RETAINER

ACE Part No OEM REFF NO
323896 R093896
Rock drill spares

63.BUFFER - RETAINER

ACE Part No OEM REFF NO
323897 R093897
Rock drill spares

64.RETAINER - LATCH SHOE

ACE Part No OEM REFF NO
323898 R093898
Rock drill spares

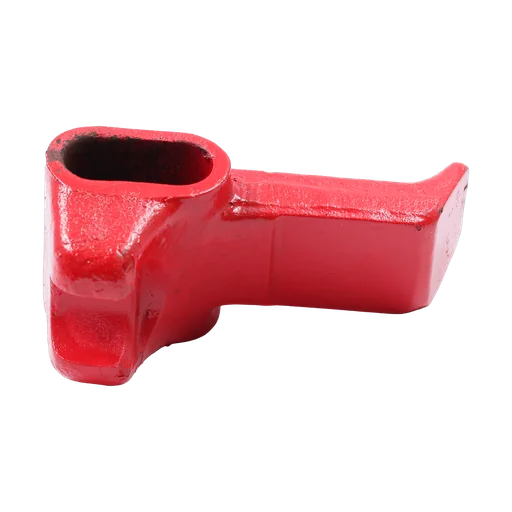

65.RETAINER

ACE Part No OEM REFF NO
323913 R093913
Rock drill spares

A (15-16).WATER VALVE PORT PLUG

ACE Part No OEM REFF NO
329130 R079130
Rock drill spares

B (17-19).BACKHEAD COMPLETE (19-21)

ACE Part No OEM REFF NO
327948 R087948
Rock drill spares

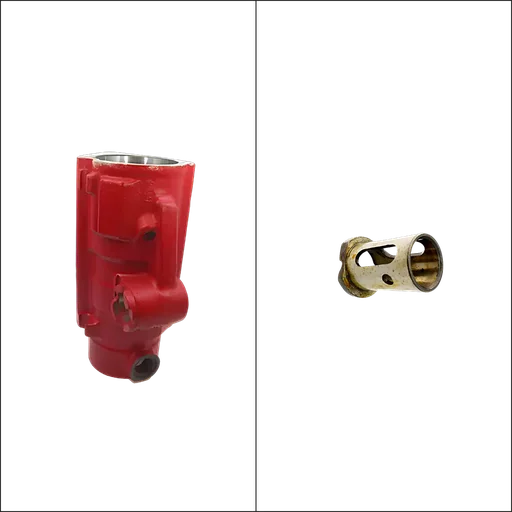

C (47-48).CYLINDER COMPLETE (50-51)

ACE Part No OEM REFF NO
327990 R087990
Rock drill spares

D (54-55).OIL PLUG COMPLETE (58-59)

ACE Part No OEM REFF NO
325611 R085611
