ACE PNEUMATICS PVT LTD

Manufacturer & Suppliers of High-Quality Mining, Construction, Demolition Tools

ACE RD 571Spares

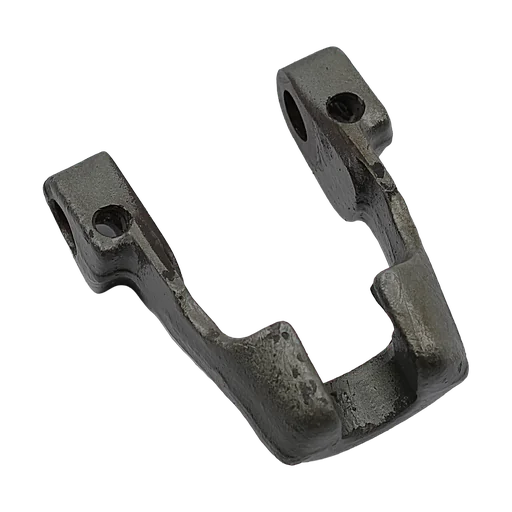

Drill steel retainer

1.Drill steel retainer

ACE Part No OEM REFF NO
575100 3121 0851 00

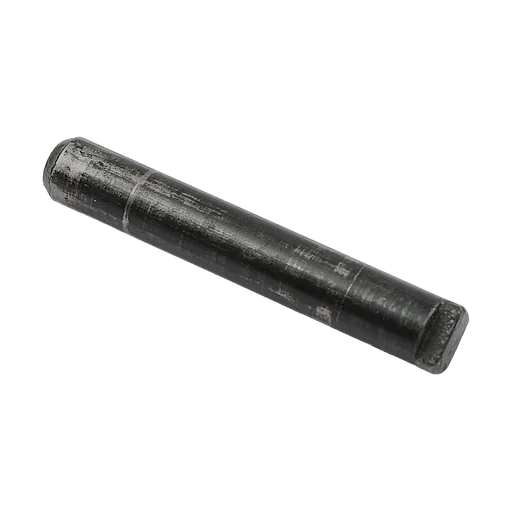

Retainer pin

2.Retainer pin

ACE Part No OEM REFF NO
575200 3121 0852 00

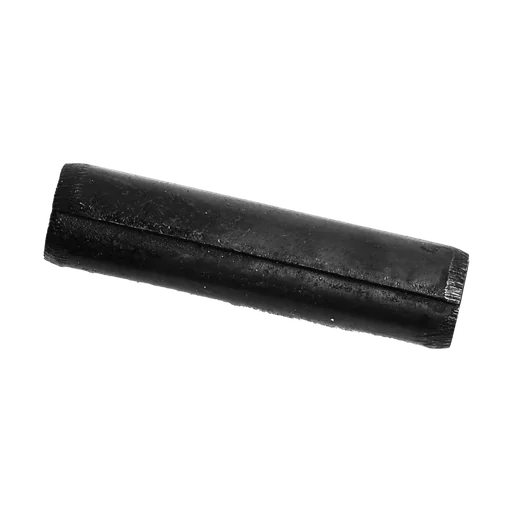

Tension pin Ø 10 x 40 mm & Ø 0.39 x 1.57 in.

3.Tension pin Ø 10 x 40 mm & Ø 0.39 x 1.57 in.

ACE Part No OEM REFF NO
579200 0108 3392 00

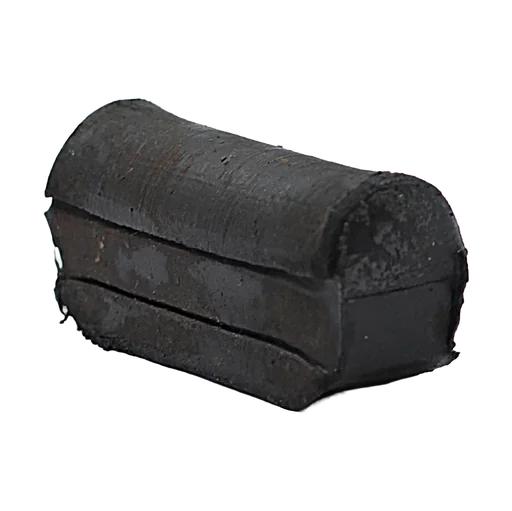

Rubber buffer

4.Rubber buffer

ACE Part No OEM REFF NO
573000 3121 0030 00

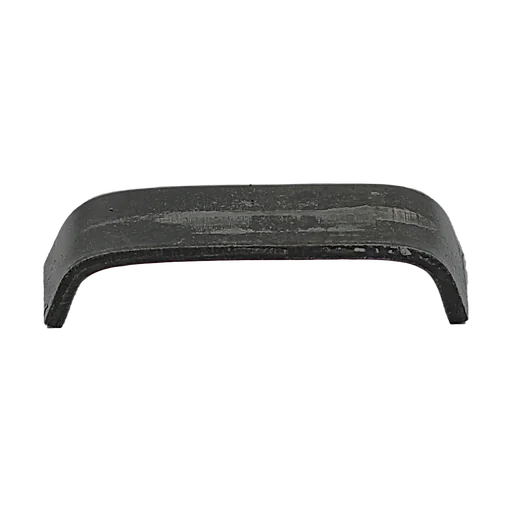

Buffer plate

5.Buffer plate

ACE Part No OEM REFF NO
572900 3121 0029 00

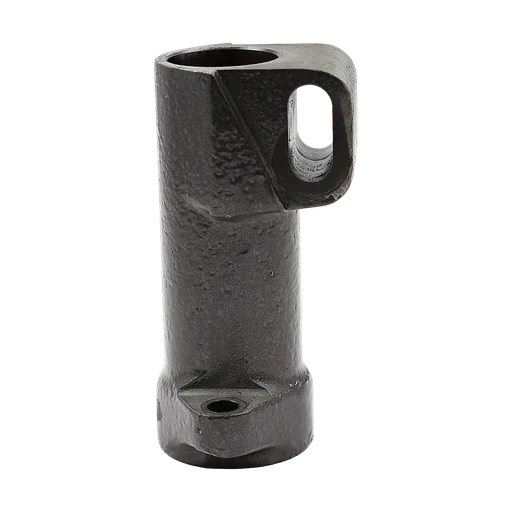

Front head

6.Front head

ACE Part No OEM REFF NO
574100 3111 0141 00

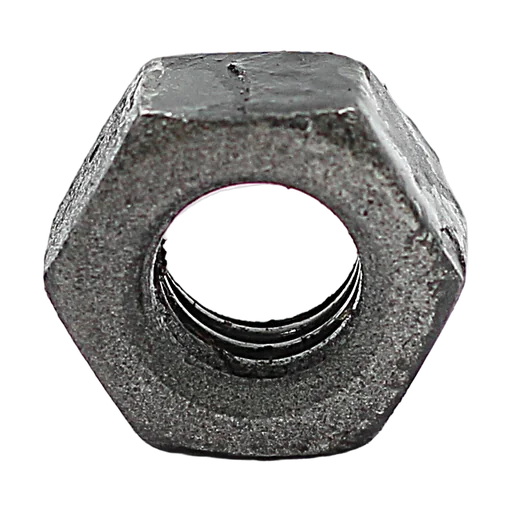

Nut

7.Nut

ACE Part No OEM REFF NO
570800 0266 1208 00
Rotation chuck

8.Rotation chuck

ACE Part No OEM REFF NO
570801 -

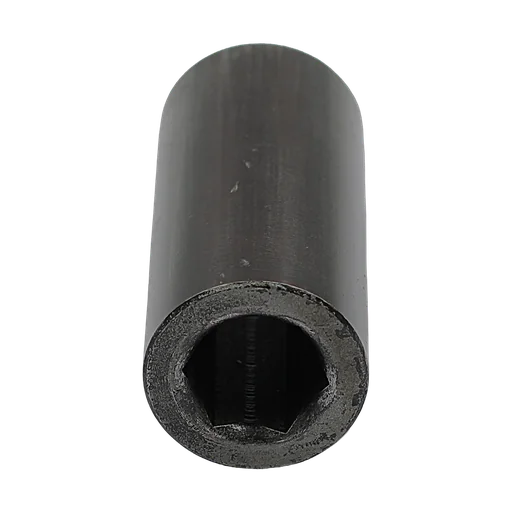

Chuck bushing Hexagon 22 x 108 mm

9.Chuck bushing Hexagon 22 x 108 mm

ACE Part No OEM REFF NO
578600 3111 0186 00

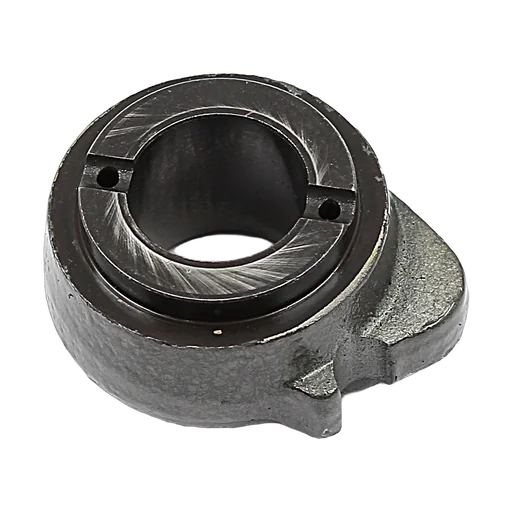

Intermediate part

10.Intermediate part

ACE Part No OEM REFF NO
574300 3111 0143 00

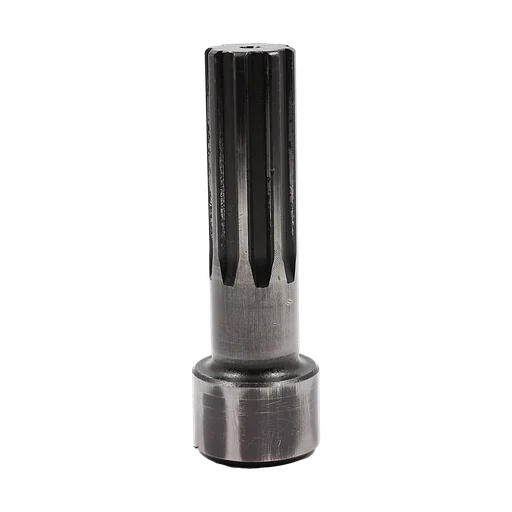

Piston

11.Piston

ACE Part No OEM REFF NO
574301 -

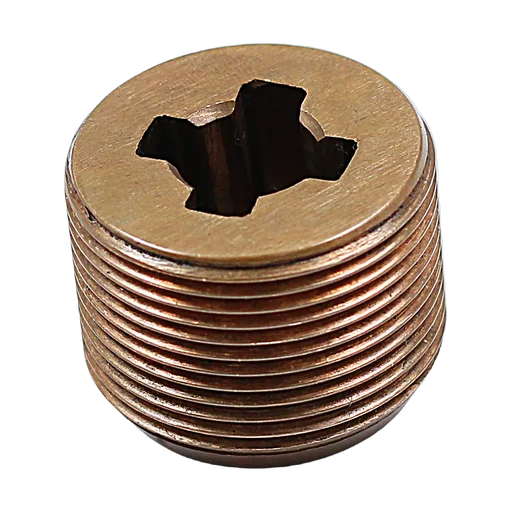

Rifle nut

12.Rifle nut

ACE Part No OEM REFF NO
579908 3100 9299 08

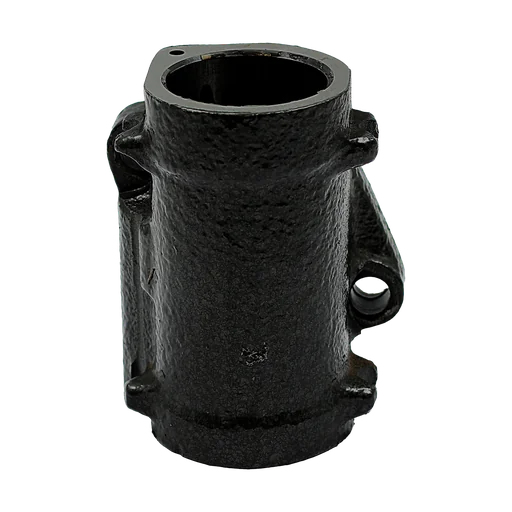

Cylinder

13.Cylinder

ACE Part No OEM REFF NO
572500 3106 0825 00
Spring pin Ø 0.16 x 0.63 in. Ø 4 x 16 mm

14.Spring pin Ø 0.16 x 0.63 in. Ø 4 x 16 mm

ACE Part No OEM REFF NO
573800 0108 1238 00

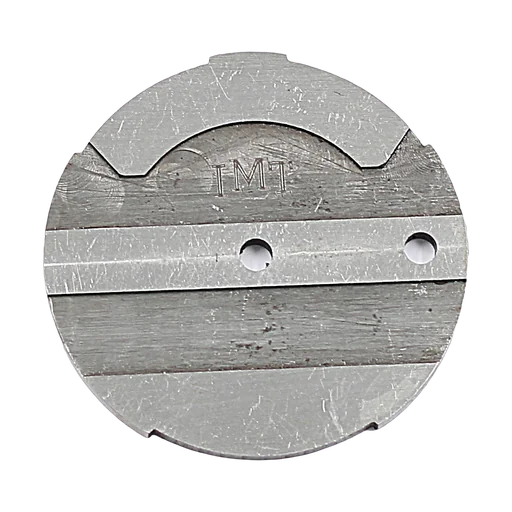

Main valve

15.Main valve

ACE Part No OEM REFF NO
578601 3101 1586 01

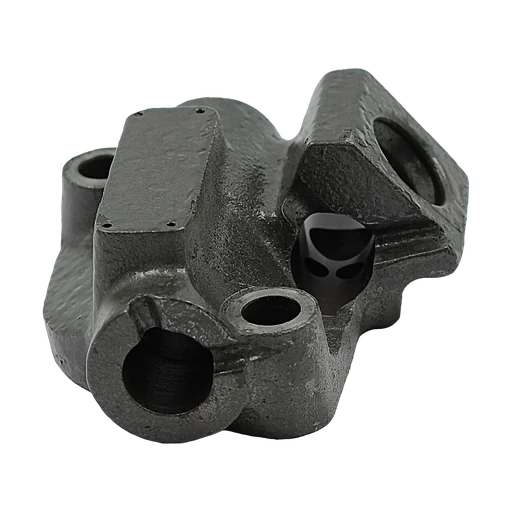

Throttle housing

16.Throttle housing

ACE Part No OEM REFF NO
578602 -
Lever

17.Lever

ACE Part No OEM REFF NO
579100 3115 1191 00

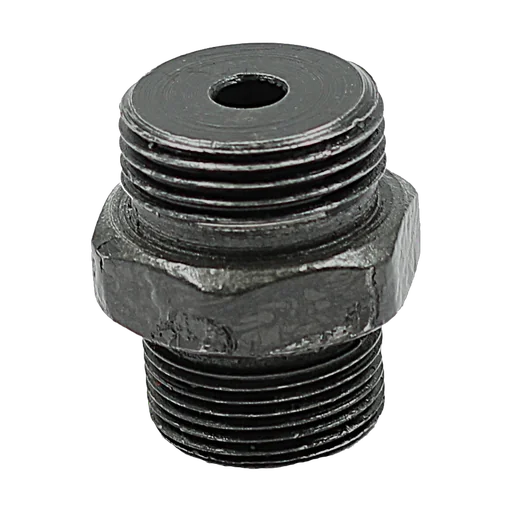

Hexagon nipple

18.Hexagon nipple

ACE Part No OEM REFF NO
574500 9000 0345 00
Throttle valve

19.Throttle valve

ACE Part No OEM REFF NO
579000 3115 1190 00

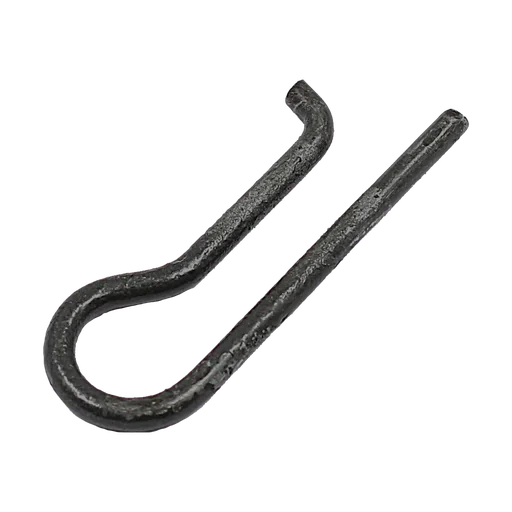

Lever 1

20.Lever 1

ACE Part No OEM REFF NO
576400 3101 3664 00

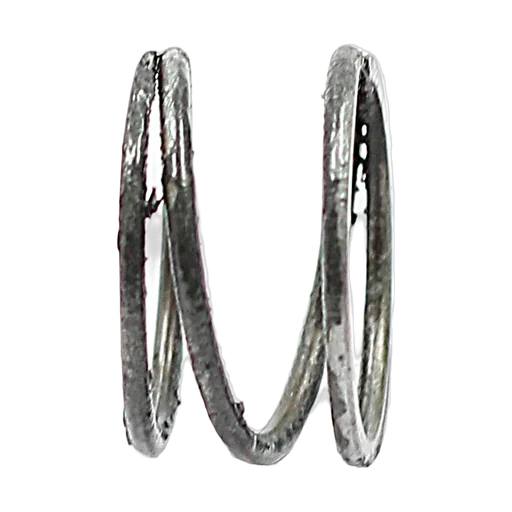

Coil spring

21.Coil spring

ACE Part No OEM REFF NO
575701 3001 3957 01

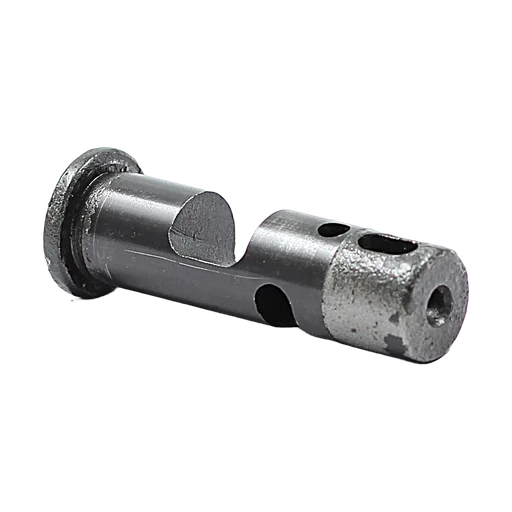

Exhaust valve

22.Exhaust valve

ACE Part No OEM REFF NO
578800 3101 4988 00

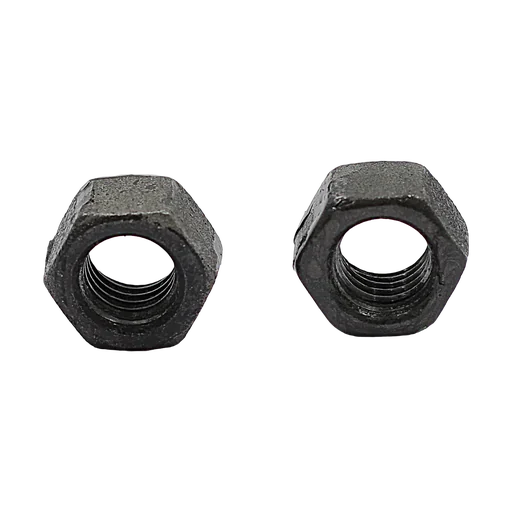

Nut 1

23.Nut 1

ACE Part No OEM REFF NO
574500 3000 1345 00

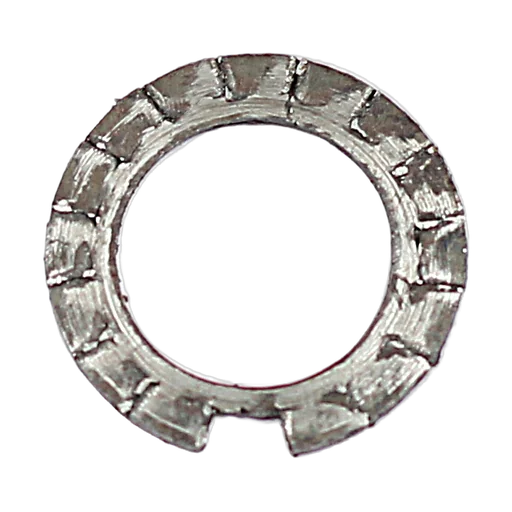

Lock washer

24.Lock washer

ACE Part No OEM REFF NO
573900 0333 3139 00

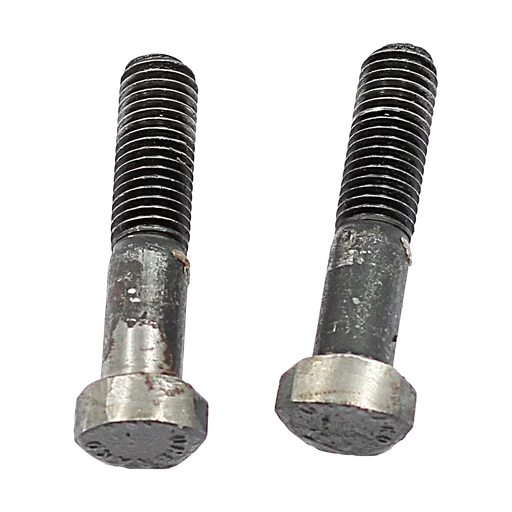

Bolt

25.Bolt

ACE Part No OEM REFF NO
579406 3100 0194 06

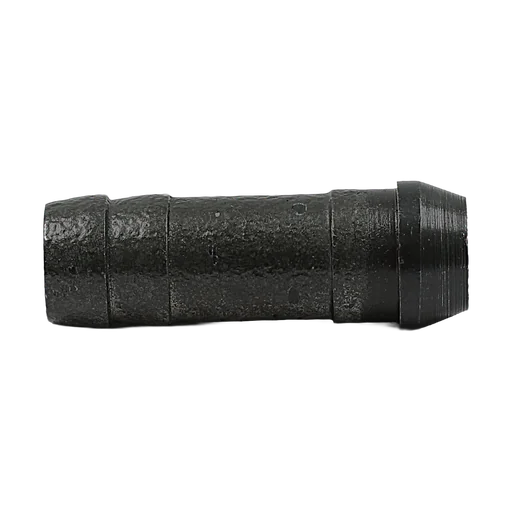

Hose nipple 3⁄4 in.

26.Hose nipple 3⁄4 in.

ACE Part No OEM REFF NO
574300 3115 1543 00

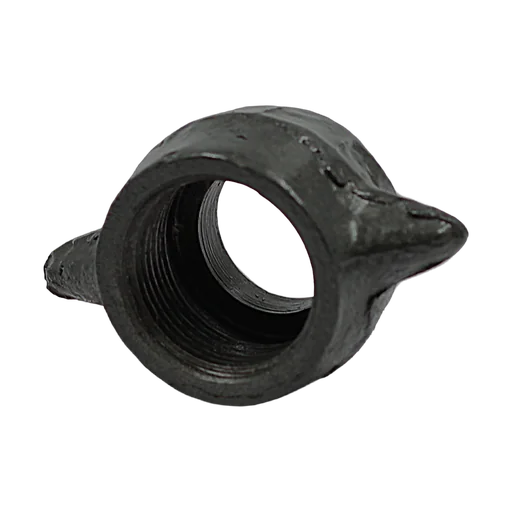

Wing nut

27.Wing nut

ACE Part No OEM REFF NO
573800 9000 0338 00
Cover

28.Cover

ACE Part No OEM REFF NO
572700 3106 0827 00
Rifle bar

29.Rifle bar

ACE Part No OEM REFF NO
574500 3111 0145 00

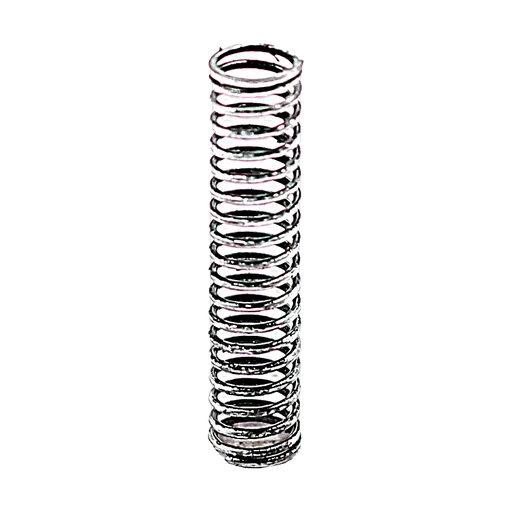

Pressure spring

30.Pressure spring

ACE Part No OEM REFF NO
574002 3100 9140 02
Pawl pin

31.Pawl pin

ACE Part No OEM REFF NO
574101 3100 9641 01

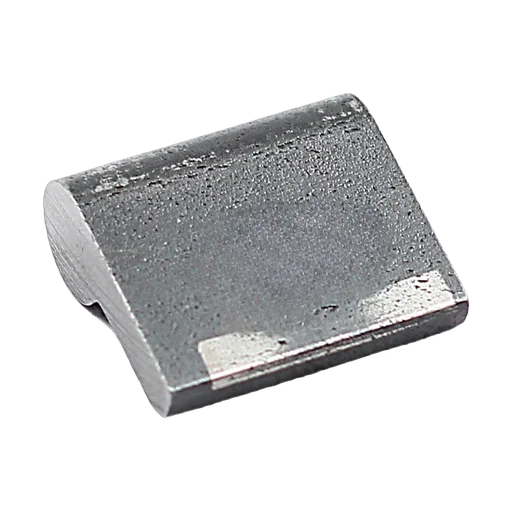

Pawl

32.Pawl

ACE Part No OEM REFF NO
575900 3101 3159 00

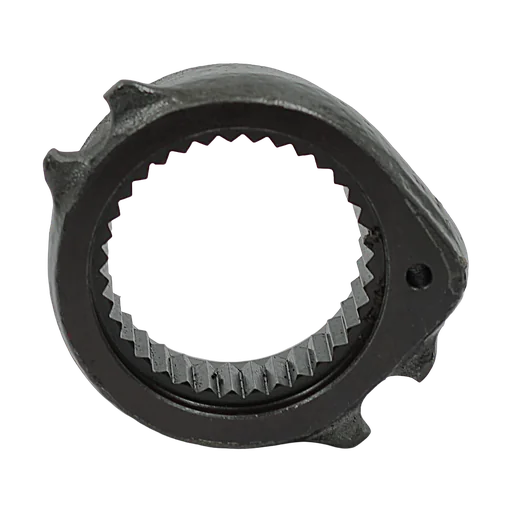

Ratchet ring

33.Ratchet ring

ACE Part No OEM REFF NO
576700 3115 1167 00

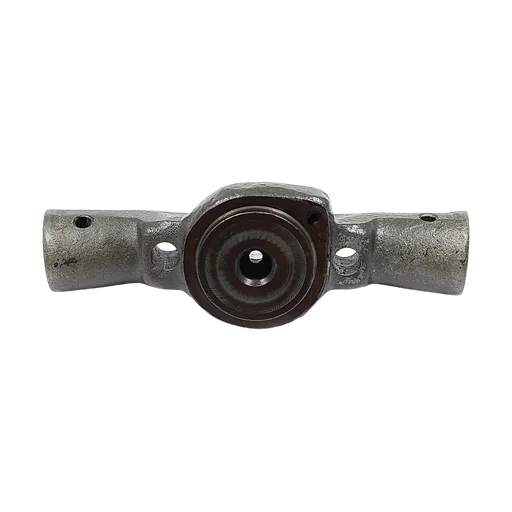

Back head

34.Back head

ACE Part No OEM REFF NO
576600 3115 1166 00

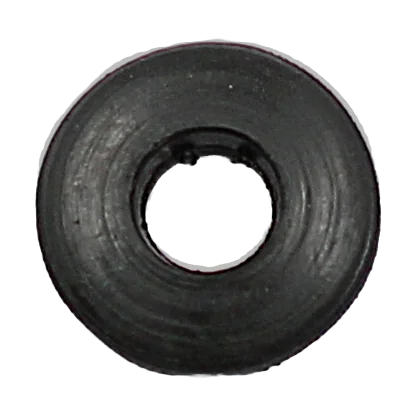

Rubber packing

35.Rubber packing

ACE Part No OEM REFF NO
572100 3000 0121 00

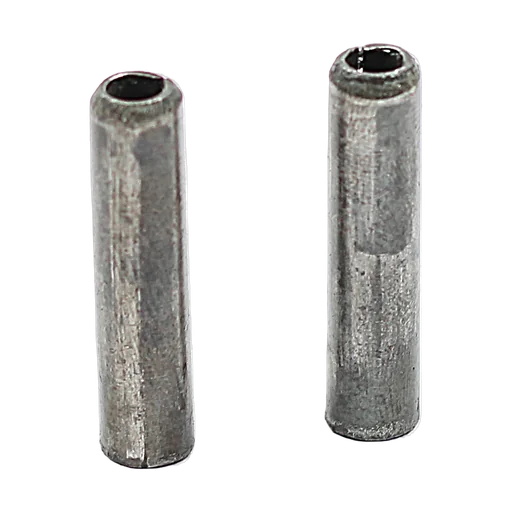

Spring pin Ø 0.31 x 1.42 in. Ø 8 x 36 mm

36.Spring pin Ø 0.31 x 1.42 in. Ø 8 x 36 mm

ACE Part No OEM REFF NO
576000 0108 1360 00
Handle

37.Handle

ACE Part No OEM REFF NO
576001 -
Bushing

38.Bushing

ACE Part No OEM REFF NO
577200 3310 0572 00
Air flushing tube

39.Air flushing tube

ACE Part No OEM REFF NO
574000 3111 0140 00

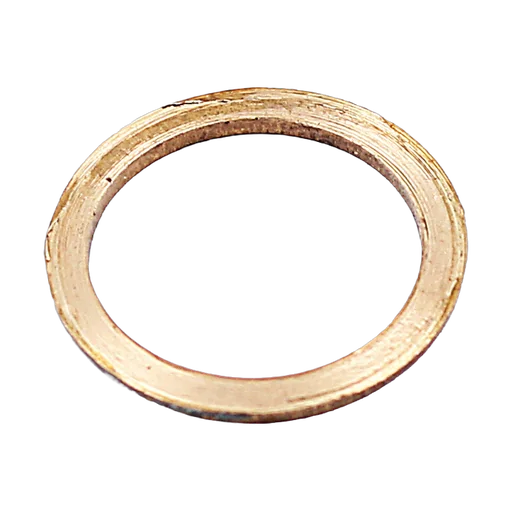

Seal washer

40.Seal washer

ACE Part No OEM REFF NO
574100 3100 9341 00
Side bolt

41.Side bolt

ACE Part No OEM REFF NO
574400 3111 0144 00
Plug

42.Plug

ACE Part No OEM REFF NO
572000 3100 0120 00
Rotation chuck, complete

A (8-9).Rotation chuck, complete

ACE Part No OEM REFF NO
578580 3111 0185 80
Piston, complete

B (11-12).Piston, complete

ACE Part No OEM REFF NO
576280 3111 0162 80
Throttle housing, complete

C (19-22).Throttle housing, complete

ACE Part No OEM REFF NO
576380 3115 1163 80
Pawl, complete

D (30-32).Pawl, complete

ACE Part No OEM REFF NO
570090 3115 9200 90
Handle, complete

E (37-38).Handle, complete

ACE Part No OEM REFF NO
576980 3310 0569 80
