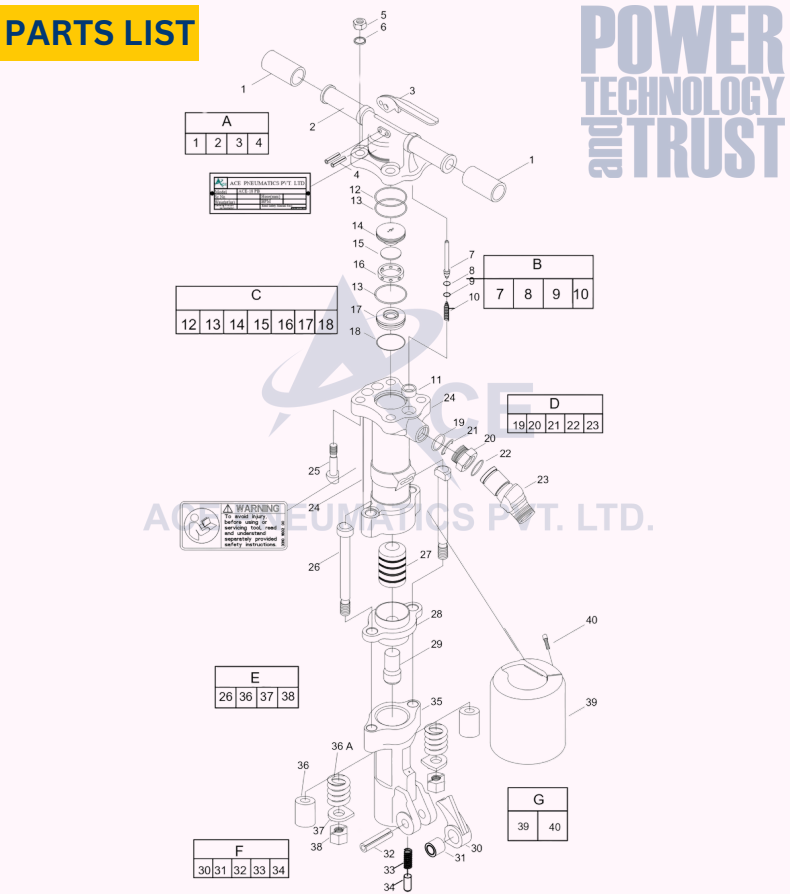

ACE PB 1210

Spares

Paving breaker spare

1.Back Head Grip

ACE Part No OEM REFF NO
211020 F816345
Paving breaker spare

2.Back Head

ACE Part No OEM REFF NO
181015 3303 50 0
Paving breaker spare

3.Throttle Lever

ACE Part No OEM REFF NO
211025 F814725
Paving breaker spare

4.Throttle Lever Pin

ACE Part No OEM REFF NO
211030 R133433
Paving breaker spare

5.Nut Back Head Bolt

ACE Part No OEM REFF NO
181030 3303 50 30
Paving breaker spare

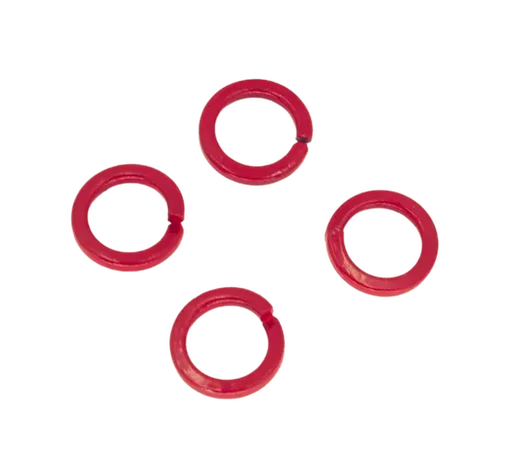

6.Washer Back Head Bolt

ACE Part No OEM REFF NO
181035 -
Paving breaker spare

7.Throttle Valve

ACE Part No OEM REFF NO
182010 -
Paving breaker spare

8.Throttle Valve Seat

ACE Part No OEM REFF NO
212015 R098368
Paving breaker spare

9.Throttle Valve Retainer Ring

ACE Part No OEM REFF NO
212020 R098369
Paving breaker spare

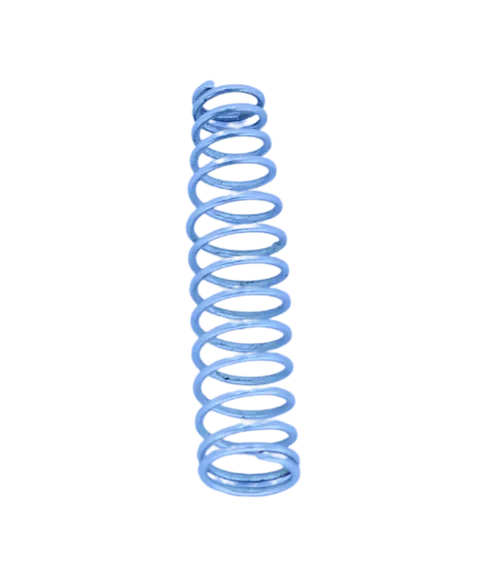

10.Throttle Valve Spring

ACE Part No OEM REFF NO
212025 R005717
Paving breaker spare

11.Seal-Cylinder

ACE Part No OEM REFF NO
182030 R110215
Paving breaker spare

12.Slack Ring

ACE Part No OEM REFF NO
183010 3303 50 31
Paving breaker spare

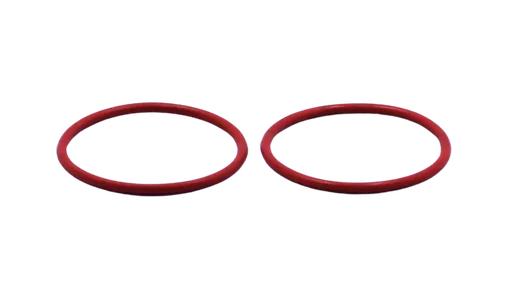

13.O-Ring - Upper Valve Lid

ACE Part No OEM REFF NO
183015 C102642
Paving breaker spare

14.Upper Valve Lid

ACE Part No OEM REFF NO
183020 R138096
Paving breaker spare

15.Valve

ACE Part No OEM REFF NO
183025 R138094
Paving breaker spare

16.Valve Case

ACE Part No OEM REFF NO
183030 R138095
Paving breaker spare

17.Lower Valve Case Lid

ACE Part No OEM REFF NO
183035 3303 50 24
Paving breaker spare

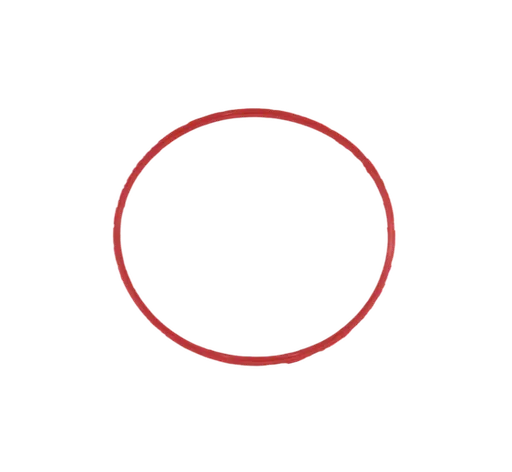

18.O-Ring

ACE Part No OEM REFF NO
183040 H0310447
Paving breaker spare

19.O Ring ( Swivel Nut)

ACE Part No OEM REFF NO
187010 R056605
Paving breaker spare

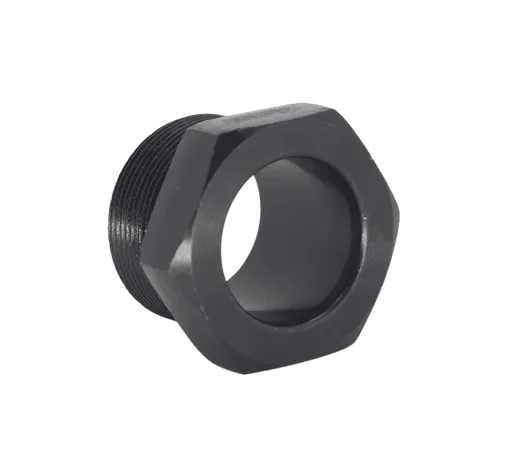

20.Nut-Air Inlet Swivel

ACE Part No OEM REFF NO
187015 3303 50 13
Paving breaker spare

21.Lock Washer-Swivel

ACE Part No OEM REFF NO
187020 3310 1059 0
Paving breaker spare

22.O Ring (Air Inlet Swivel)

ACE Part No OEM REFF NO
187025 663 2126 0
Paving breaker spare

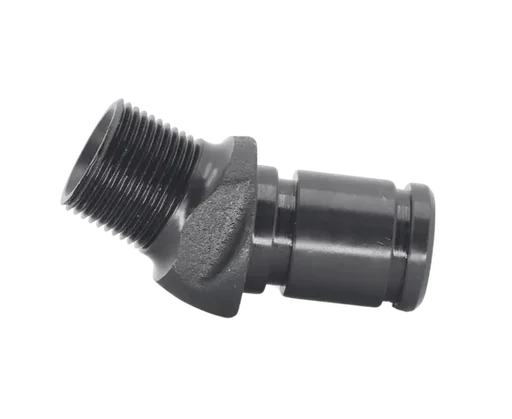

23.Air Inlet Swivel

ACE Part No OEM REFF NO
187030 3303 50 12
Paving breaker spare

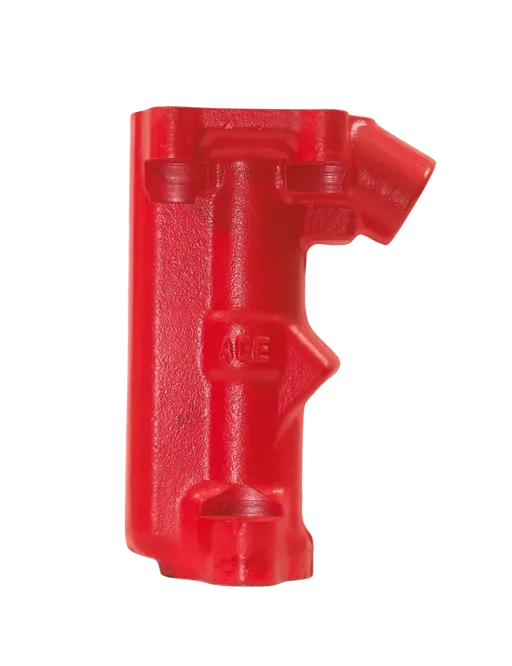

24.Cylinder

ACE Part No OEM REFF NO
183070 3303 50 29
Paving breaker spare

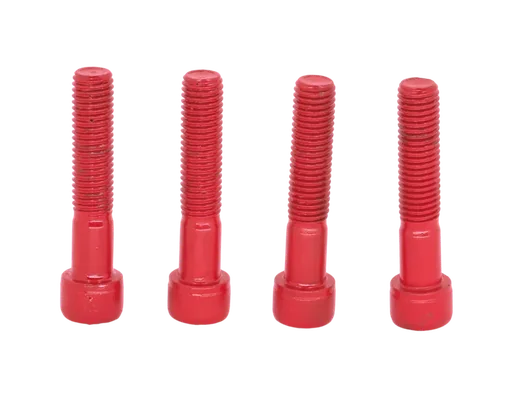

25.Allen Back Head Bolt

ACE Part No OEM REFF NO
183075 -
Paving breaker spare

25A.Forging Back Head Bolt

ACE Part No OEM REFF NO
183075A -
Paving breaker spare

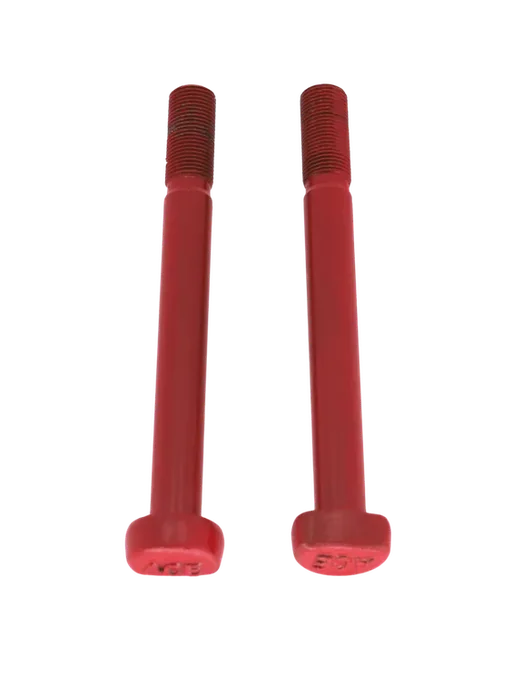

26.Front Head Bolt

ACE Part No OEM REFF NO
184010 R110217
Paving breaker spare

27.Piston

ACE Part No OEM REFF NO
184015 R110212
Paving breaker spare

28.Anvil Block Bushing

ACE Part No OEM REFF NO
184020 R110203
Paving breaker spare

29.Anvil Block

ACE Part No OEM REFF NO
184025 R085427
Paving breaker spare

30.Latch Retainer

ACE Part No OEM REFF NO
185010 R092493
Paving breaker spare

31.Latch Bushing

ACE Part No OEM REFF NO
185015 R048540
Paving breaker spare

32.Latch Pin 16 x 55

ACE Part No OEM REFF NO
185020 108 1103 4
Paving breaker spare

32A.Latch Pin 10 x 55

ACE Part No OEM REFF NO
185020A 108 1395 0
Paving breaker spare

33.Spring - Plunger

ACE Part No OEM REFF NO
295020 R086982
Paving breaker spare

34.Plunger-Latch

ACE Part No OEM REFF NO
185030 R092497
Paving breaker spare

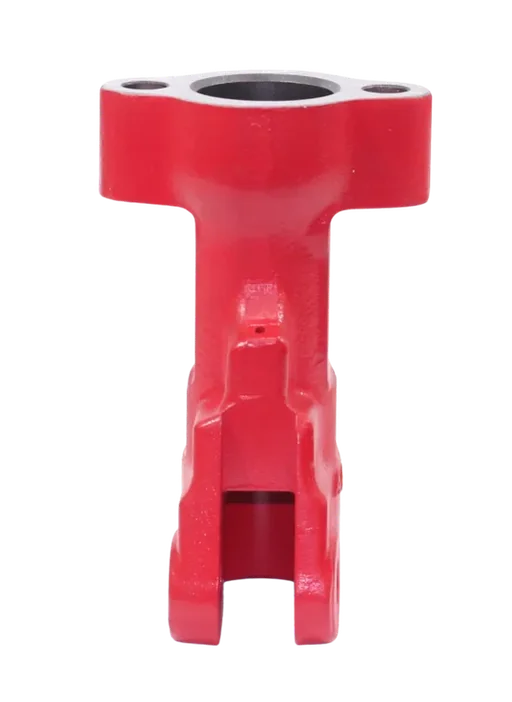

35.Front Head 1" 1"/8

ACE Part No OEM REFF NO
185035 F814719
Paving breaker spare

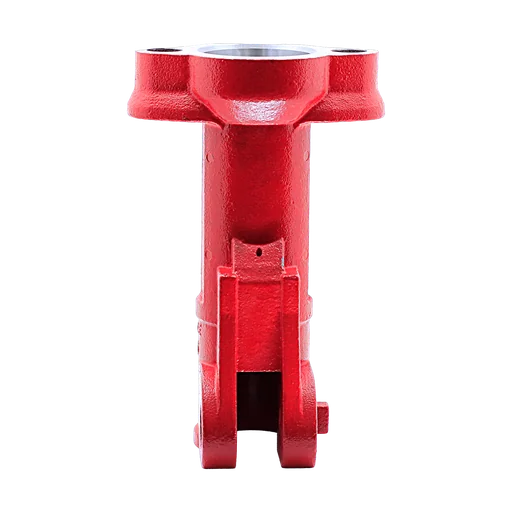

35A.Front Head 1" 1"/4

ACE Part No OEM REFF NO
185040 -
Paving breaker spare

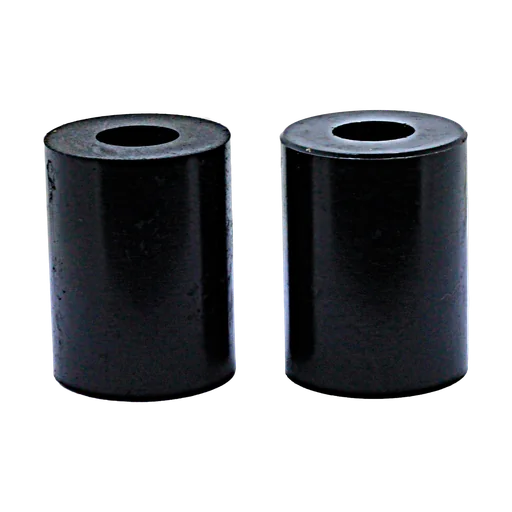

36.Front Head Bolt PU Bush

ACE Part No OEM REFF NO
185045 -
Paving breaker spare

36A.Front Head Bolt Spring

ACE Part No OEM REFF NO
185046 R093698
Paving breaker spare

37.Lock Washer Front Head Bolt

ACE Part No OEM REFF NO
185050 R041073
Paving breaker spare

38.Nut-Front Head Bolt

ACE Part No OEM REFF NO
185055 R110218
Paving breaker spare

39.Muffler (Optional)

ACE Part No OEM REFF NO
186010 -
Paving breaker spare

40.Screw (allen Cap) with nut

ACE Part No OEM REFF NO
186015 -
Paving breaker spare

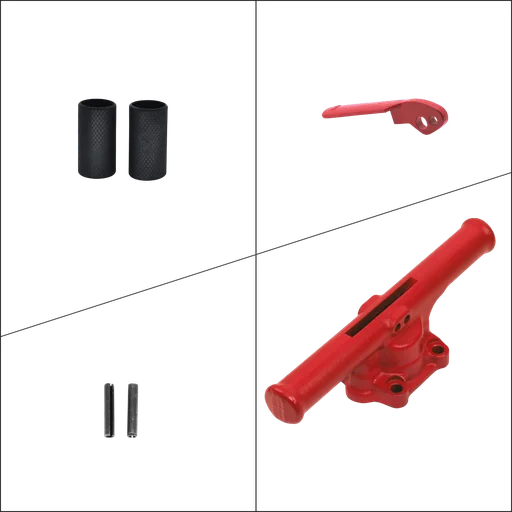

A (1-4).Backhead Complete

ACE Part No OEM REFF NO
181000 -
Paving breaker spare

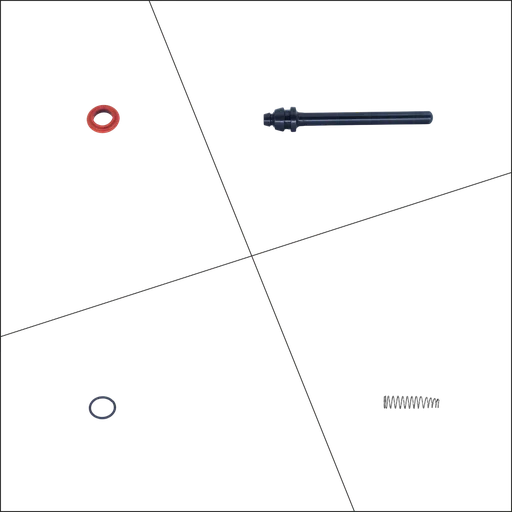

B (7-10).Throttle Valve Complete

ACE Part No OEM REFF NO
182000 R092894
Paving breaker spare

C (12-18).Valve Case Complete

ACE Part No OEM REFF NO
183000 -
Paving breaker spare

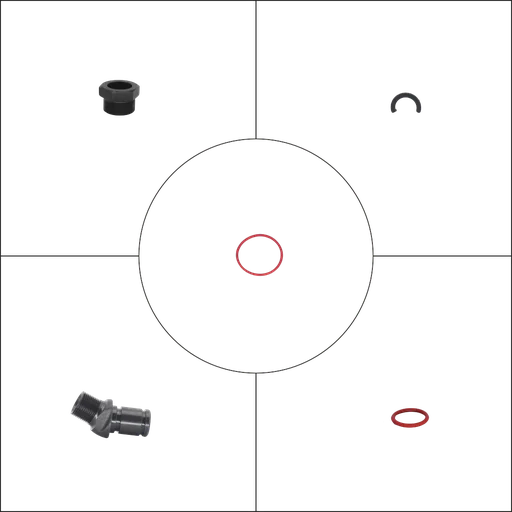

D (19-23).Swivel Assembly

ACE Part No OEM REFF NO
187000 -
Paving breaker spare

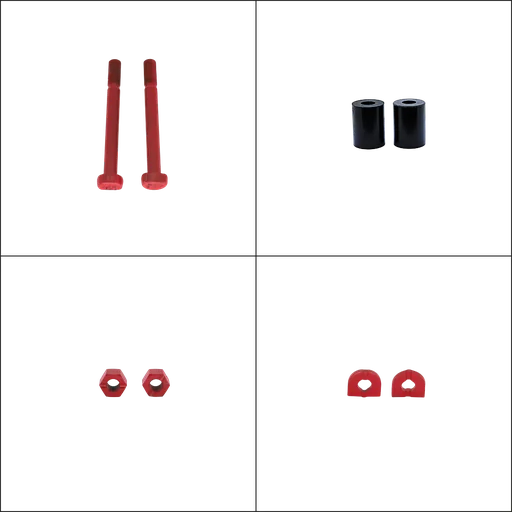

E (26,36-38).Front Head Bolt Complete

ACE Part No OEM REFF NO
184000 3303 50 44
Paving breaker spare

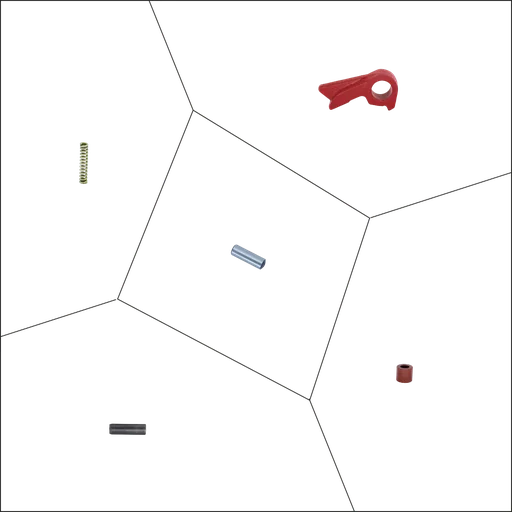

F (30-34).Latch Complete

ACE Part No OEM REFF NO
185000 3303 50 43
Paving breaker spare

G (39-40).Muffler Complete

ACE Part No OEM REFF NO
186000 -
