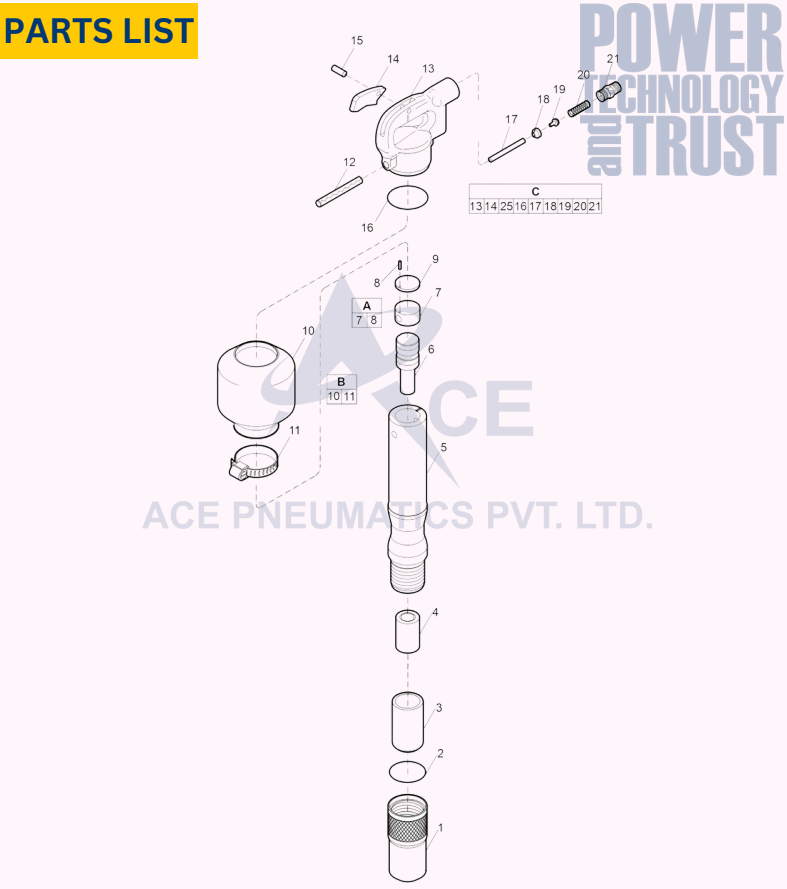

ACE 09 PS

Spares

Pick hammer spare

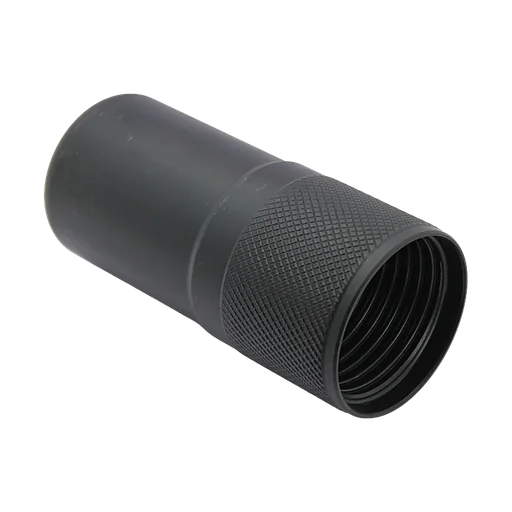

1.CAP

ACE Part No	OEM REFF NO
903700	3310 1137 0

Pick hammer spare

2.O RING

ACE Part No	OEM REFF NO
903701	-

Pick hammer spare

3.BUFFER RED H

ACE Part No	OEM REFF NO
900500	3310 705 0

Pick hammer spare

4.CHUCK (22x82.5)

ACE Part No	OEM REFF NO
902400	3310 1124 0

Pick hammer spare

5.CYLIDER

ACE Part No	OEM REFF NO
902500	3310 1125 0

Pick hammer spare

6.PISTON

ACE Part No	OEM REFF NO
902600	3310 1126 0

Pick hammer spare

7.COVER

ACE Part No	OEM REFF NO
903702	-

Pick hammer spare

8.GROOBED PIN

ACE Part No	OEM REFF NO
905102	106 951 2

Pick hammer spare

9.MAIN VALVE

ACE Part No	OEM REFF NO
901100	3310 811 0

Pick hammer spare

10.HOSE CLIP

ACE Part No	OEM REFF NO
901400	347 6114 0

Pick hammer spare

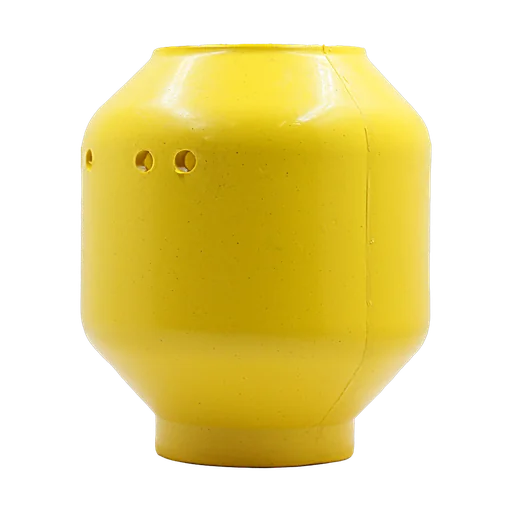

11.SILENCER

ACE Part No	OEM REFF NO
903703	-

Pick hammer spare

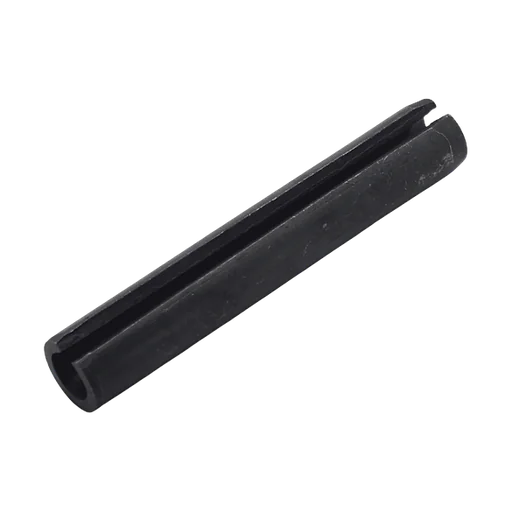

12.SPRING PIN

ACE Part No	OEM REFF NO
909017	108 1690 17

Pick hammer spare

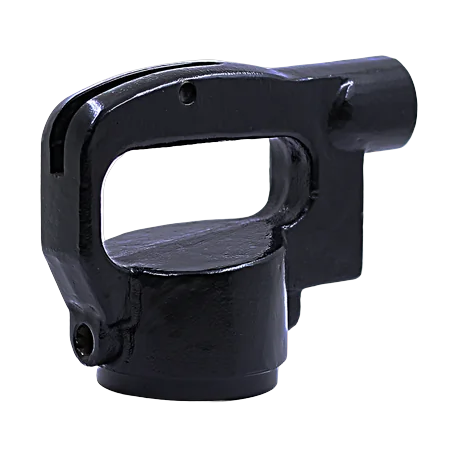

13.BACK HEAD HOUS

ACE Part No	OEM REFF NO
903705	-

Pick hammer spare

14.TRIGGER

ACE Part No	OEM REFF NO
902900	3310 1129 0

Pick hammer spare

15.SPRING PIN

ACE Part No	OEM REFF NO
905500	108 1355 0

Pick hammer spare

16.O RING (FILTER ELEMENT)

ACE Part No	OEM REFF NO
903706	-

Pick hammer spare

17.PAREALLEL PIN

ACE Part No	OEM REFF NO
908200	102 382 0

Pick hammer spare

18.INLET VALVE

ACE Part No	OEM REFF NO
903707	-

Pick hammer spare

19.INLET VALVE ROD

ACE Part No	OEM REFF NO
903400	3310 1134 0

Pick hammer spare

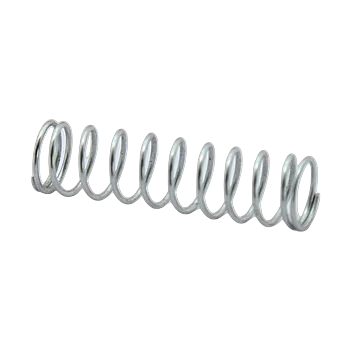

20.SPING

ACE Part No	OEM REFF NO
903708	-

Pick hammer spare

21.NIPPLE

ACE Part No	OEM REFF NO
903100	3310 1131 0

Pick hammer spare

A (7-8).COVER COMPLETE. 604

ACE Part No	OEM REFF NO
901080	3310 810 80

Pick hammer spare

B(10-11).SILENCER COMPLETE

ACE Part No	OEM REFF NO
902780	3310 1127 80

Pick hammer spare

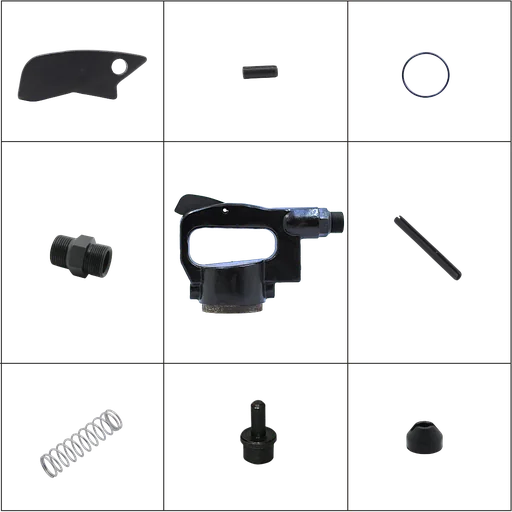

C (13-21).BACK HEAD COMPLETE 3114

ACE Part No	OEM REFF NO
902880	3310 1128 80
