ACE PB 117

Spares

Paving breaker spare

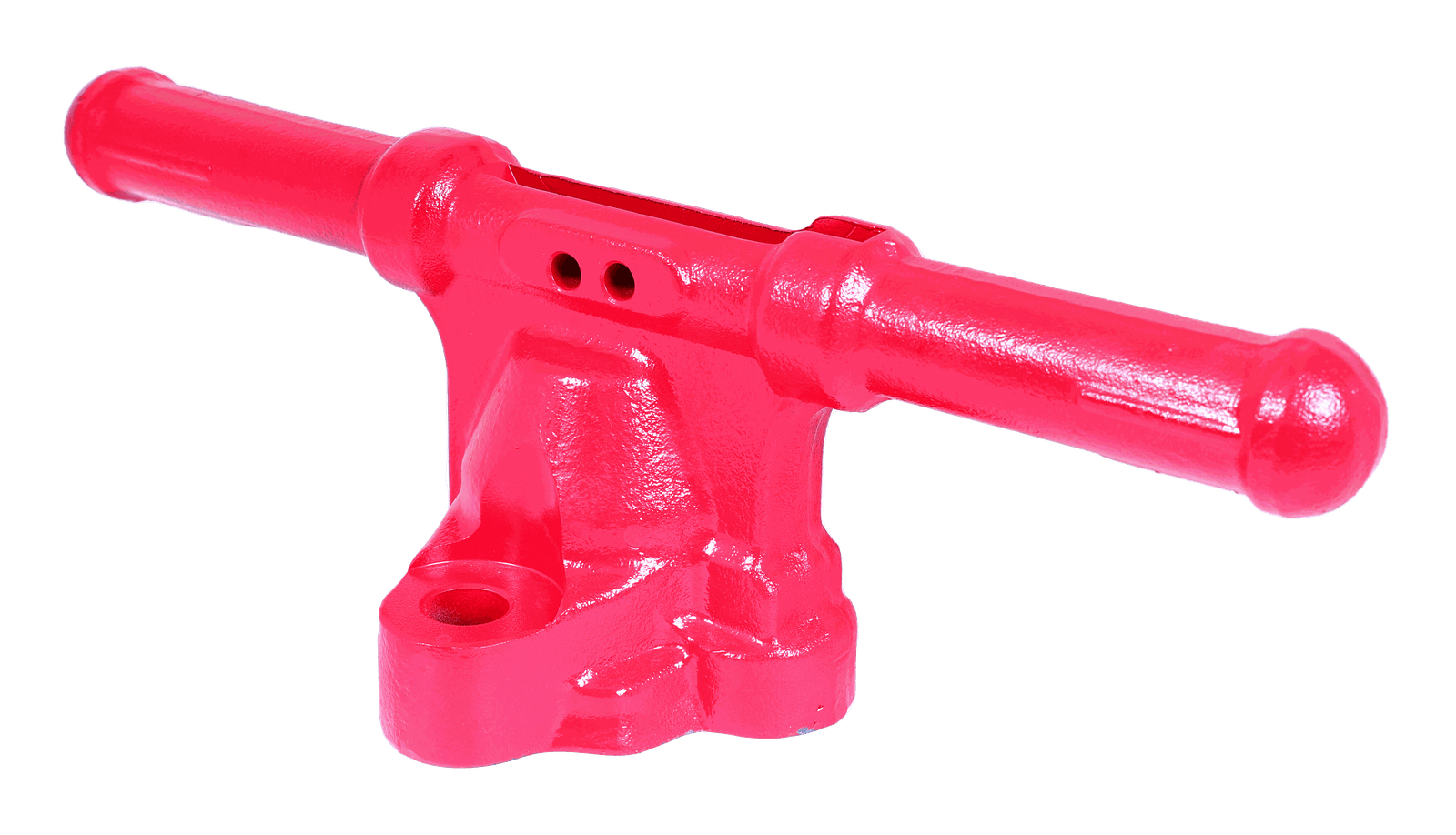

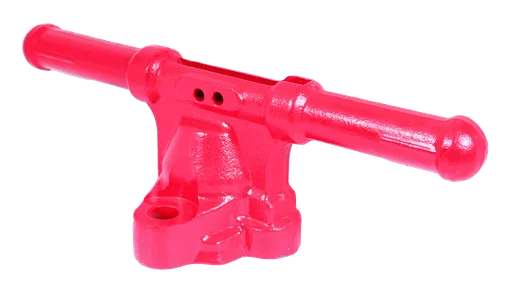

1.Back Head

ACE Part No OEM REFF NO
211010 -
Paving breaker spare

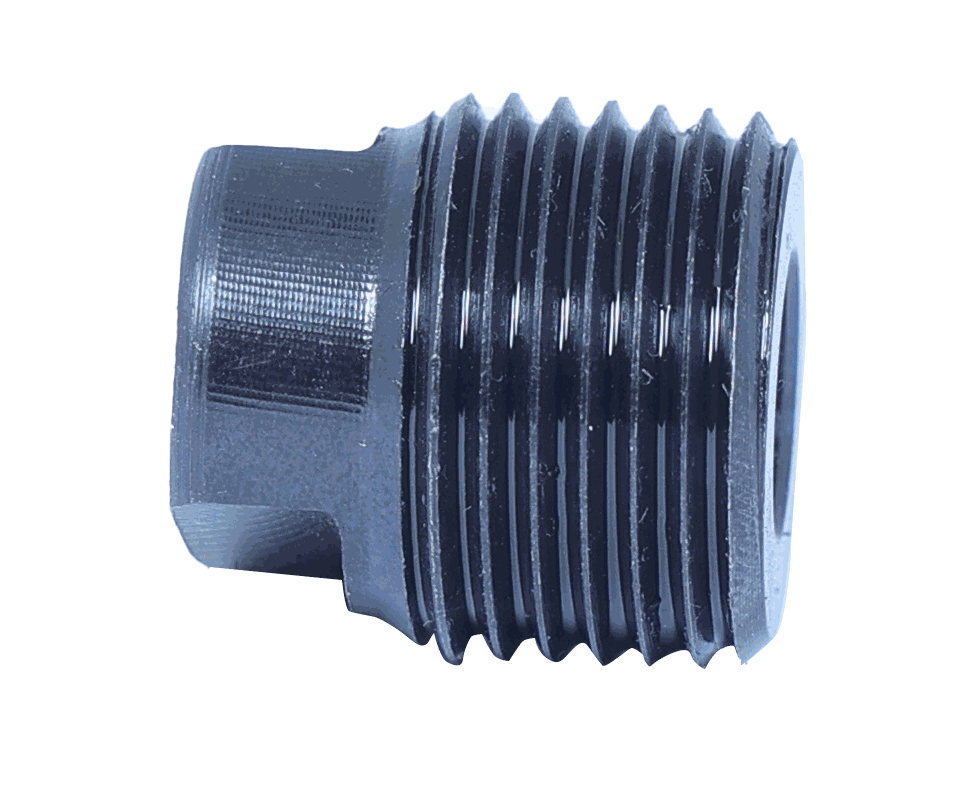

2.Oil Plug

ACE Part No OEM REFF NO
211015 R000560
Paving breaker spare

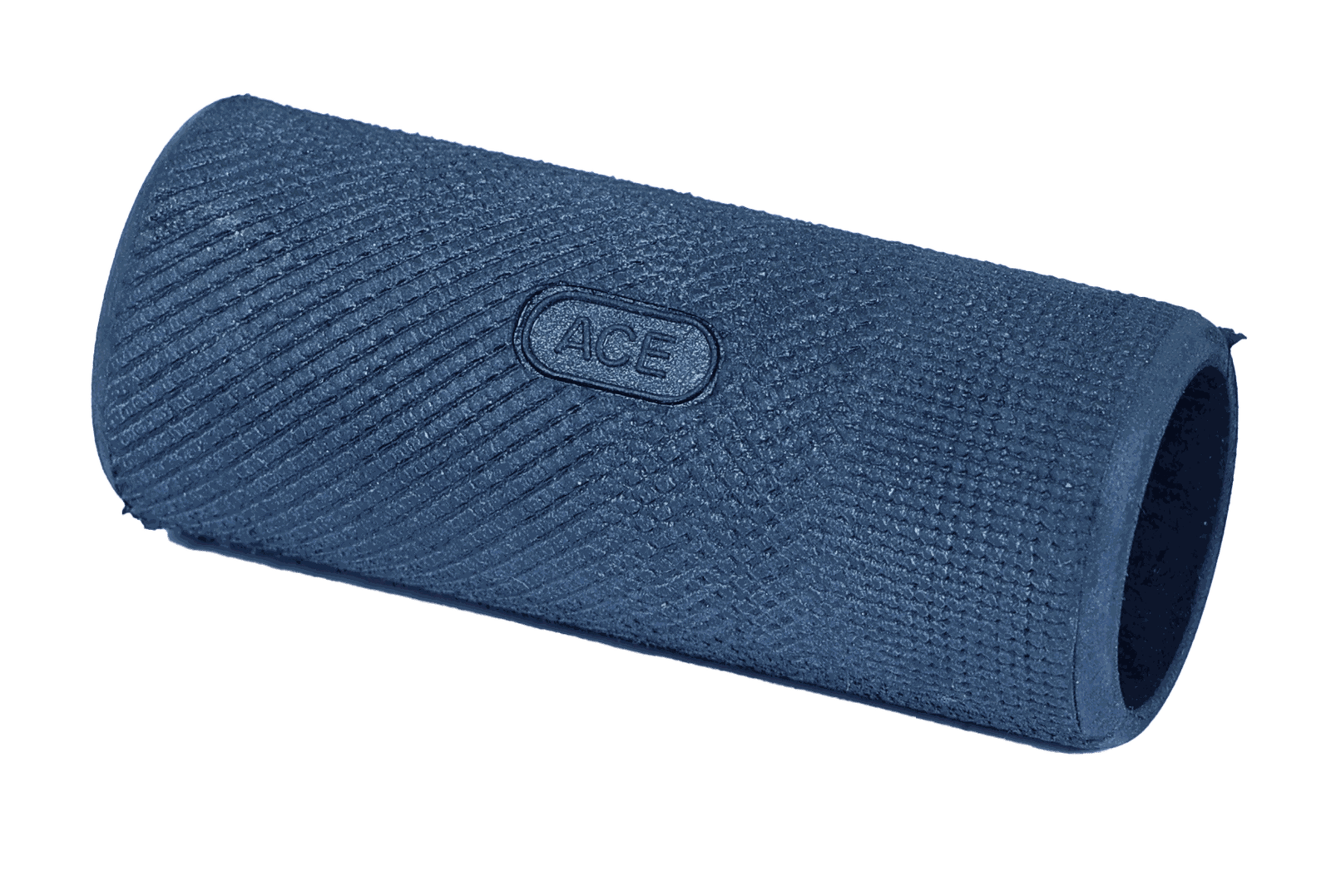

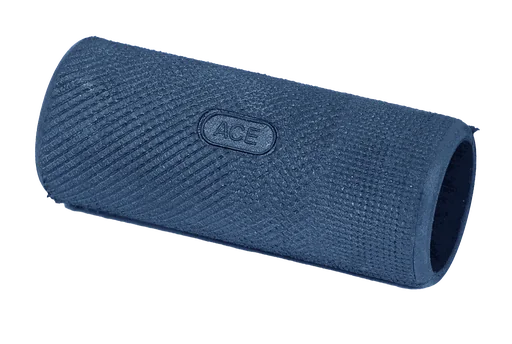

3.Backhead Handle Grip

ACE Part No OEM REFF NO
211020 R005716
Paving breaker spare

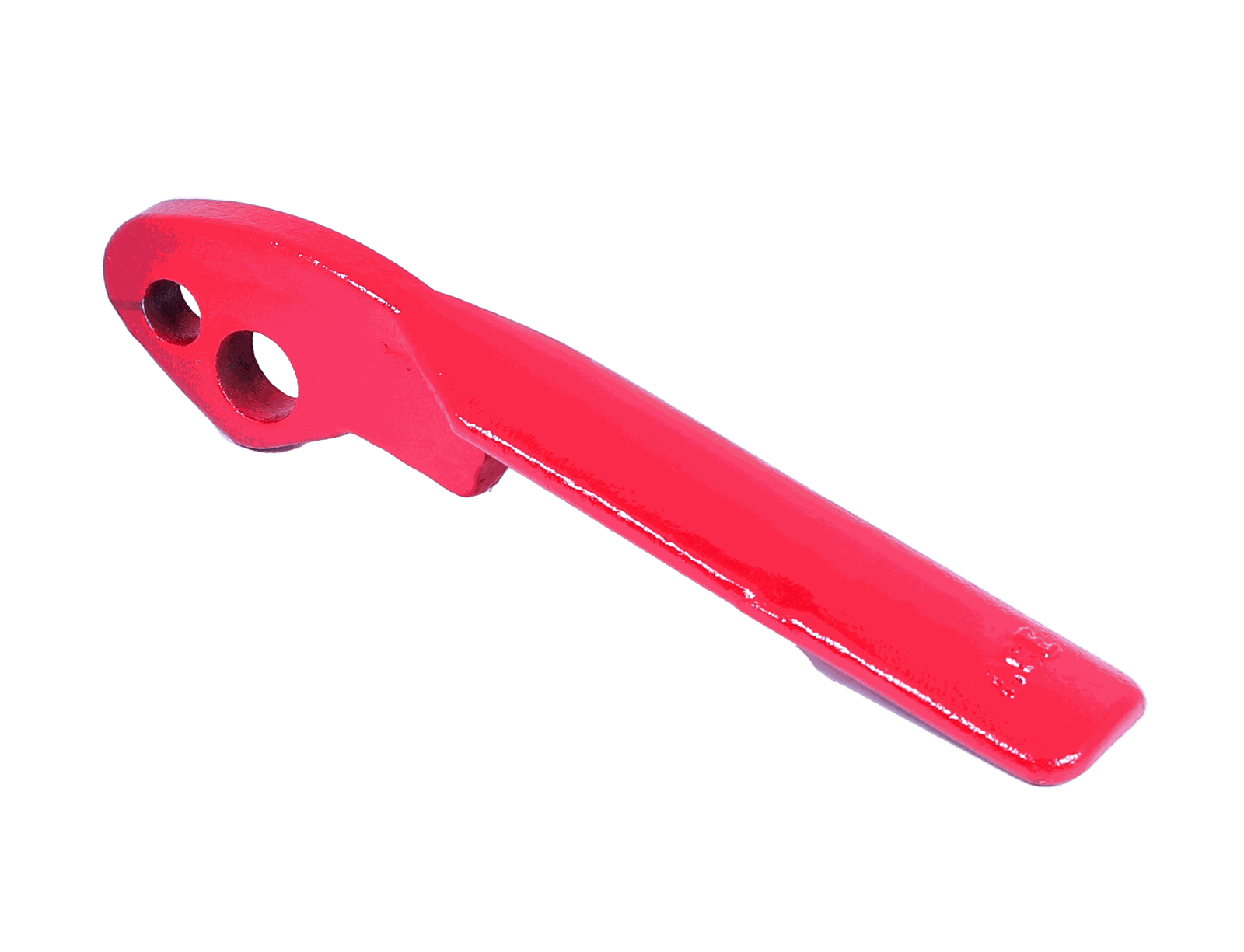

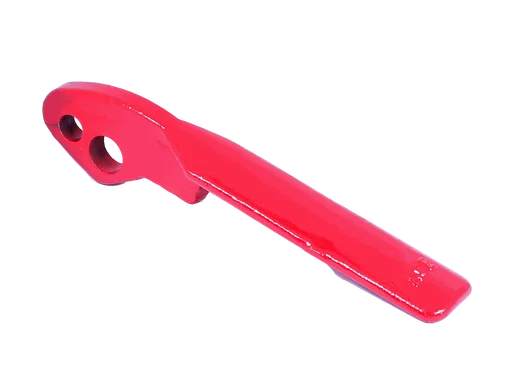

4.Throttle Lever

ACE Part No OEM REFF NO
211025 R005712
Paving breaker spare

5.Throttle Lever Pin

ACE Part No OEM REFF NO
211030 R133433
Paving breaker spare

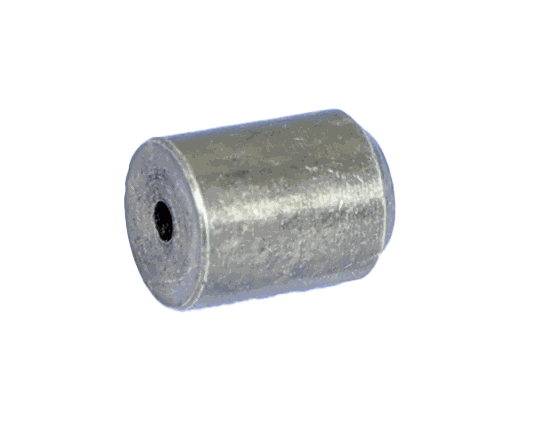

6.Oil Regulating Plug

ACE Part No OEM REFF NO
211035 R004976
Paving breaker spare

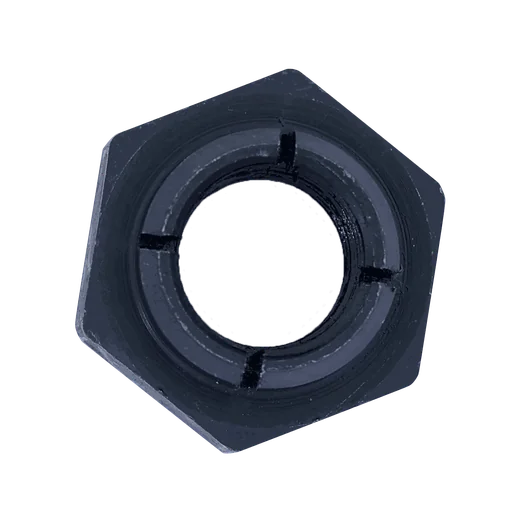

7.Back Head Bolt-Nut (Male)

ACE Part No OEM REFF NO
211040 R005689
Paving breaker spare

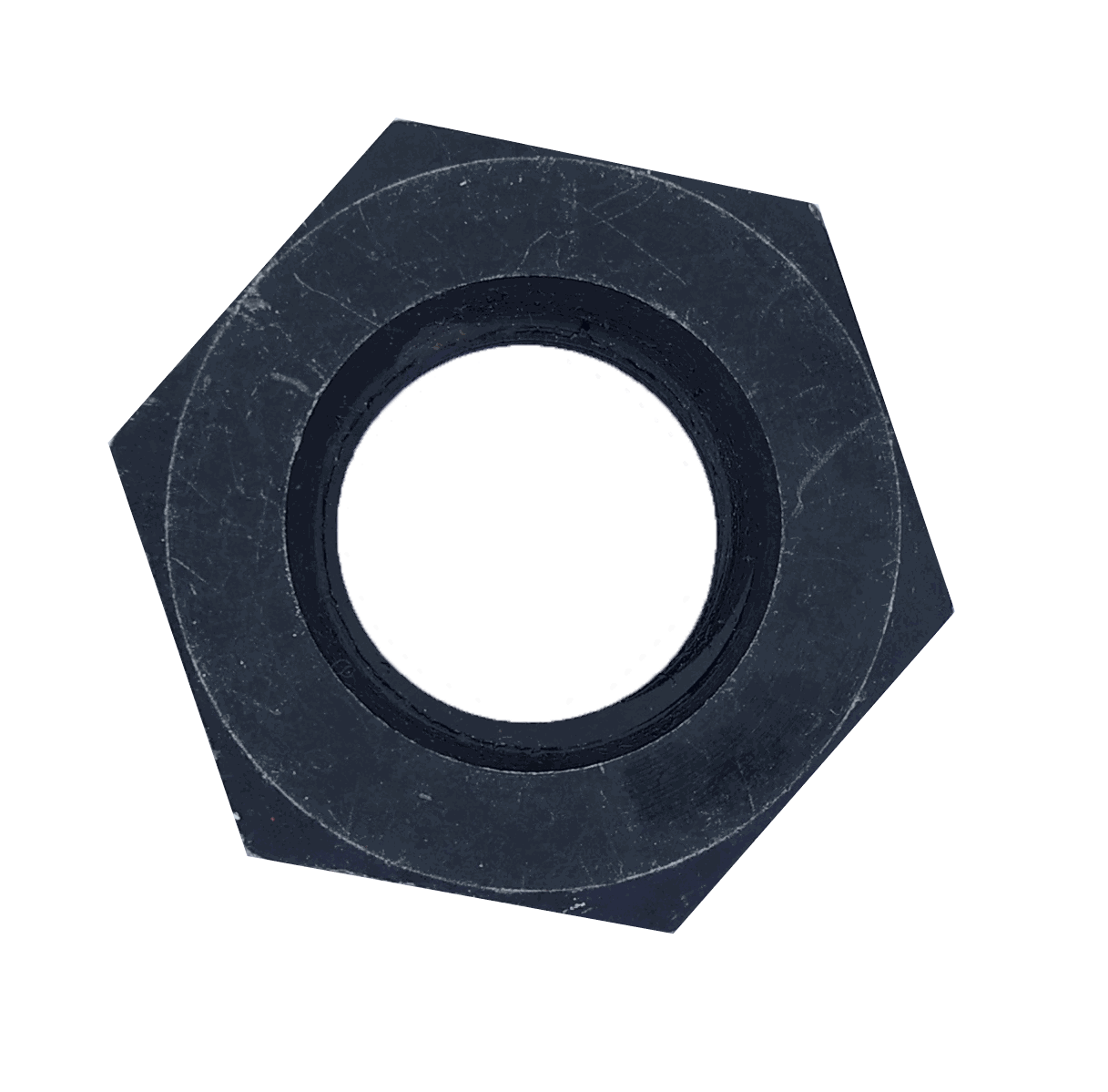

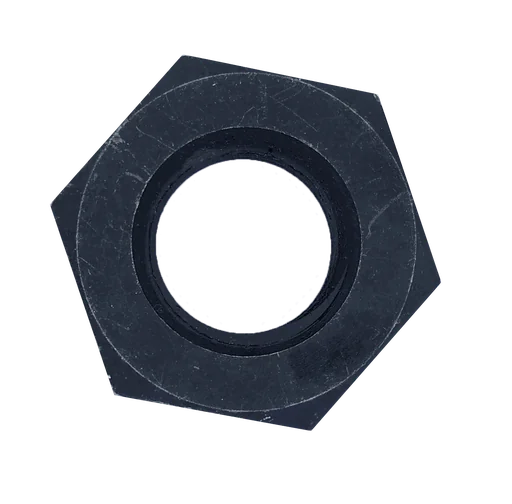

8.Back Head Bolt-Nut (Female)

ACE Part No OEM REFF NO
211045 R005689
Paving breaker spare

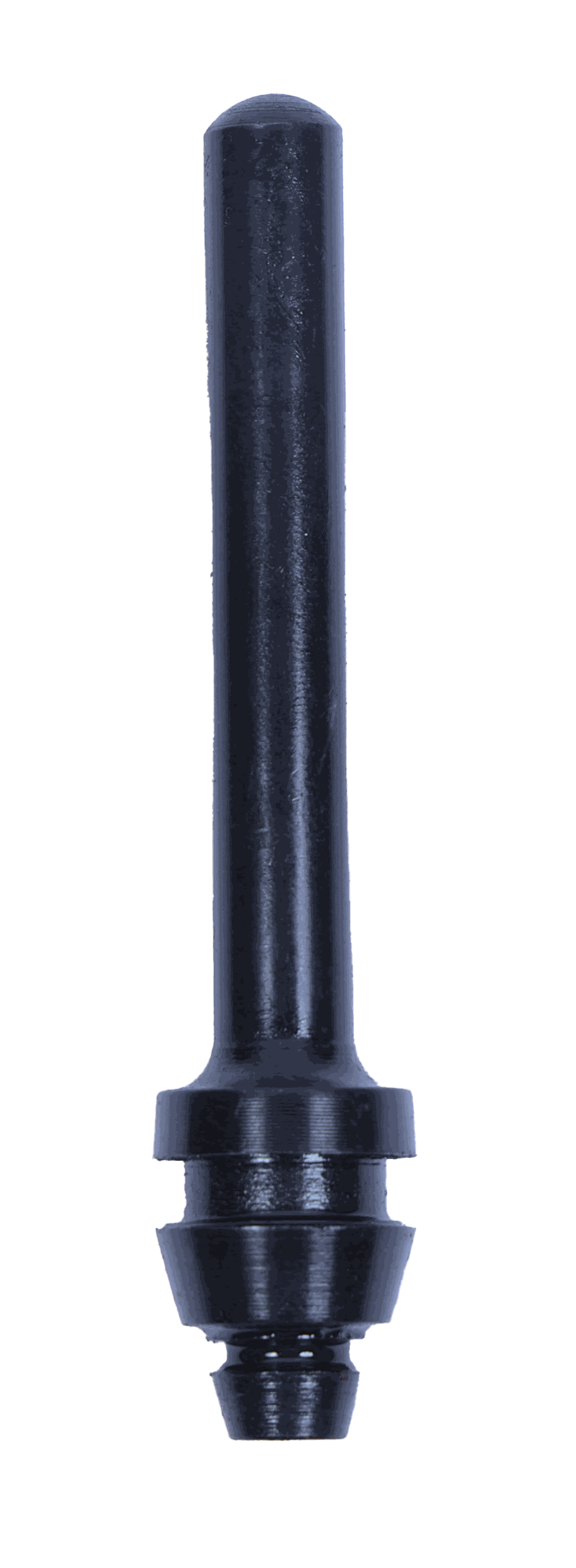

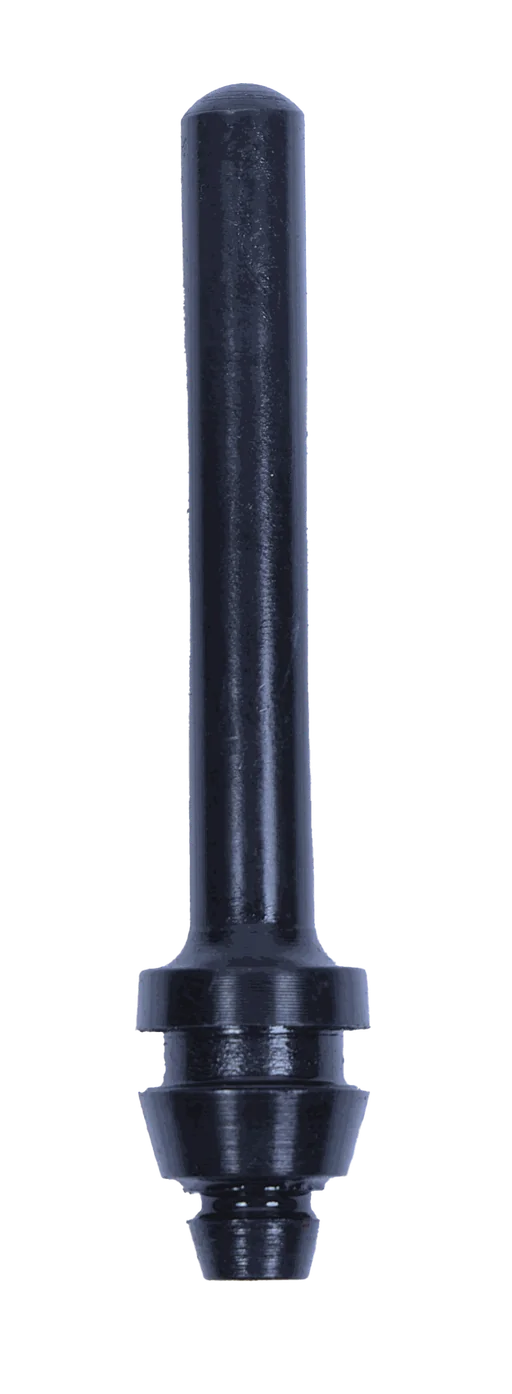

9.Throttle Valve

ACE Part No OEM REFF NO
212010 -
Paving breaker spare

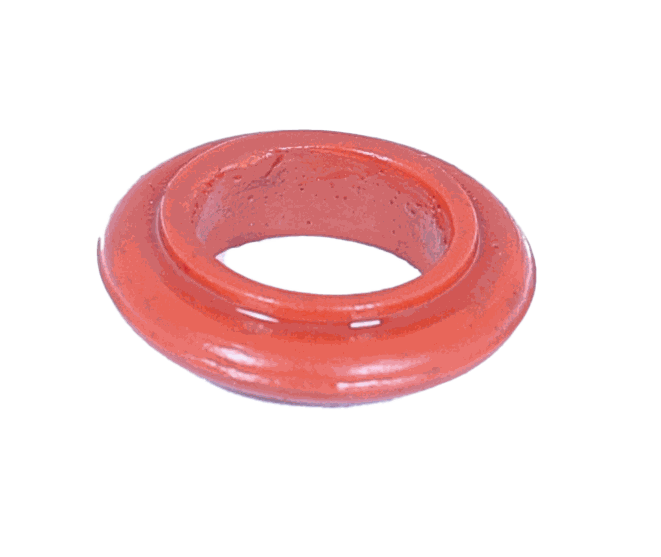

10.Throttle Valve Seat

ACE Part No OEM REFF NO
212015 R098368
Paving breaker spare

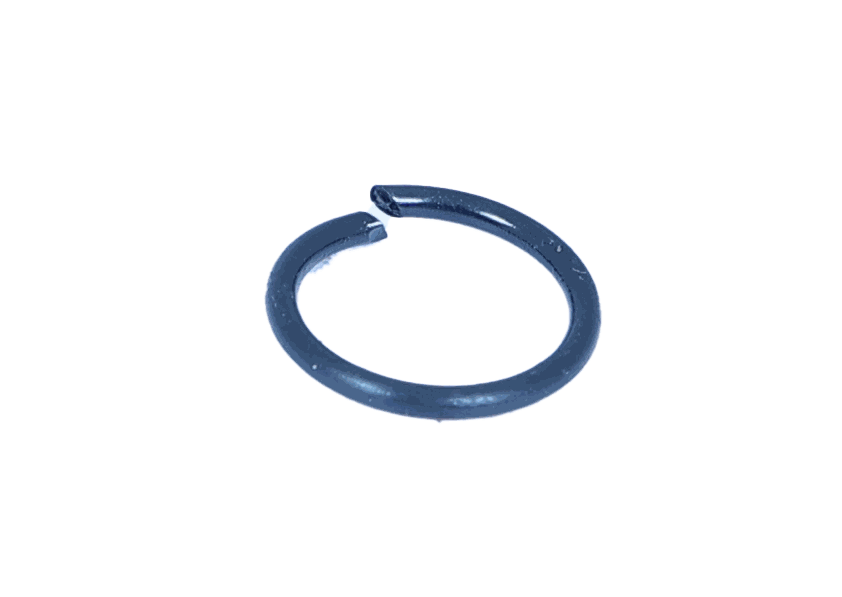

11.Throttle Valve Retaining Ring

ACE Part No OEM REFF NO
212020 R098369
Paving breaker spare

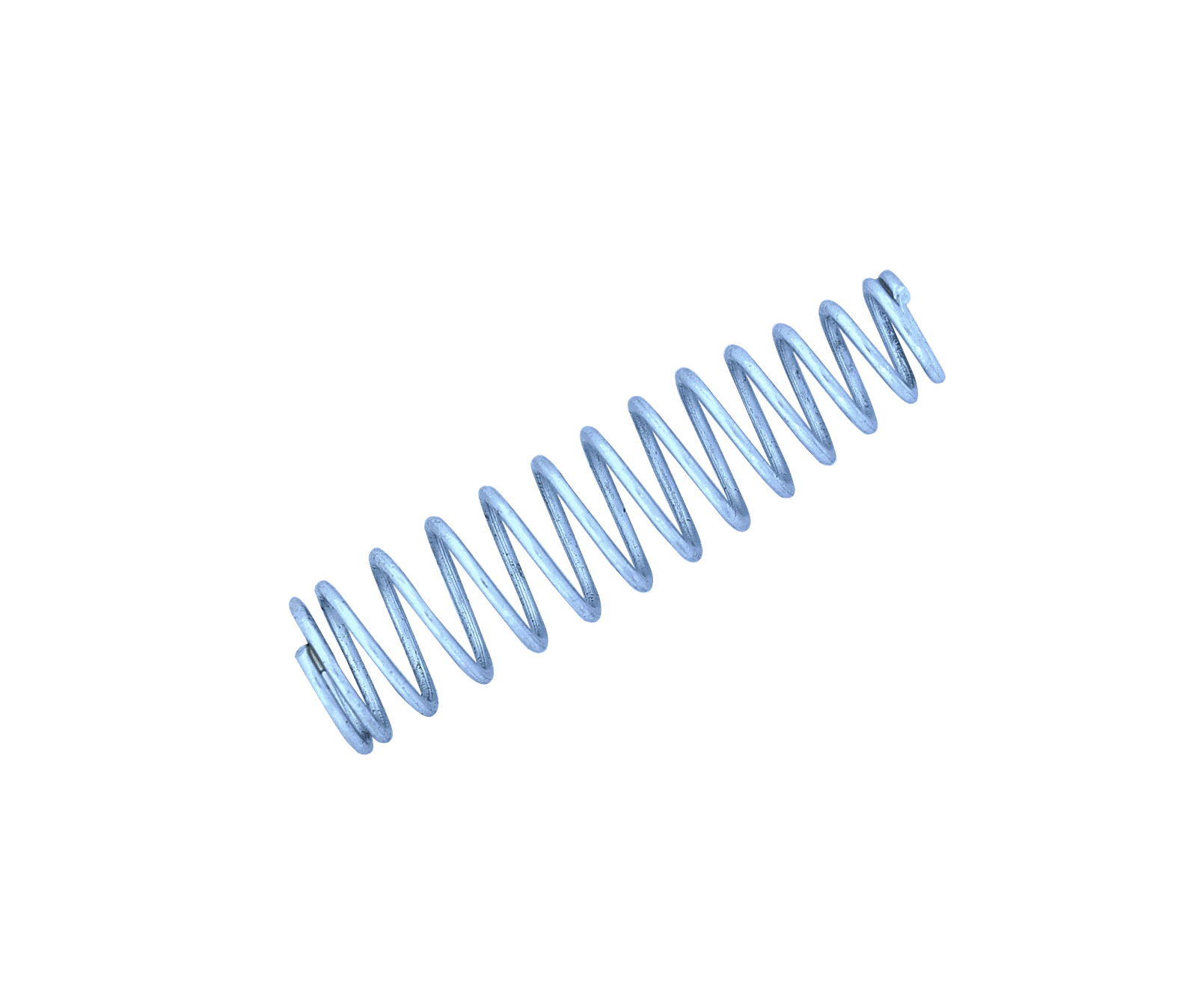

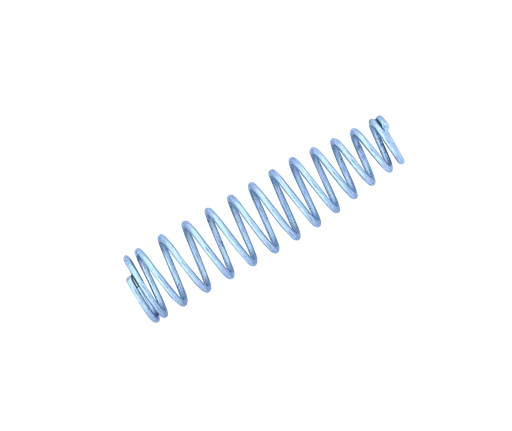

12.Throttle Valve Spring

ACE Part No OEM REFF NO
212025 R005717
Paving breaker spare

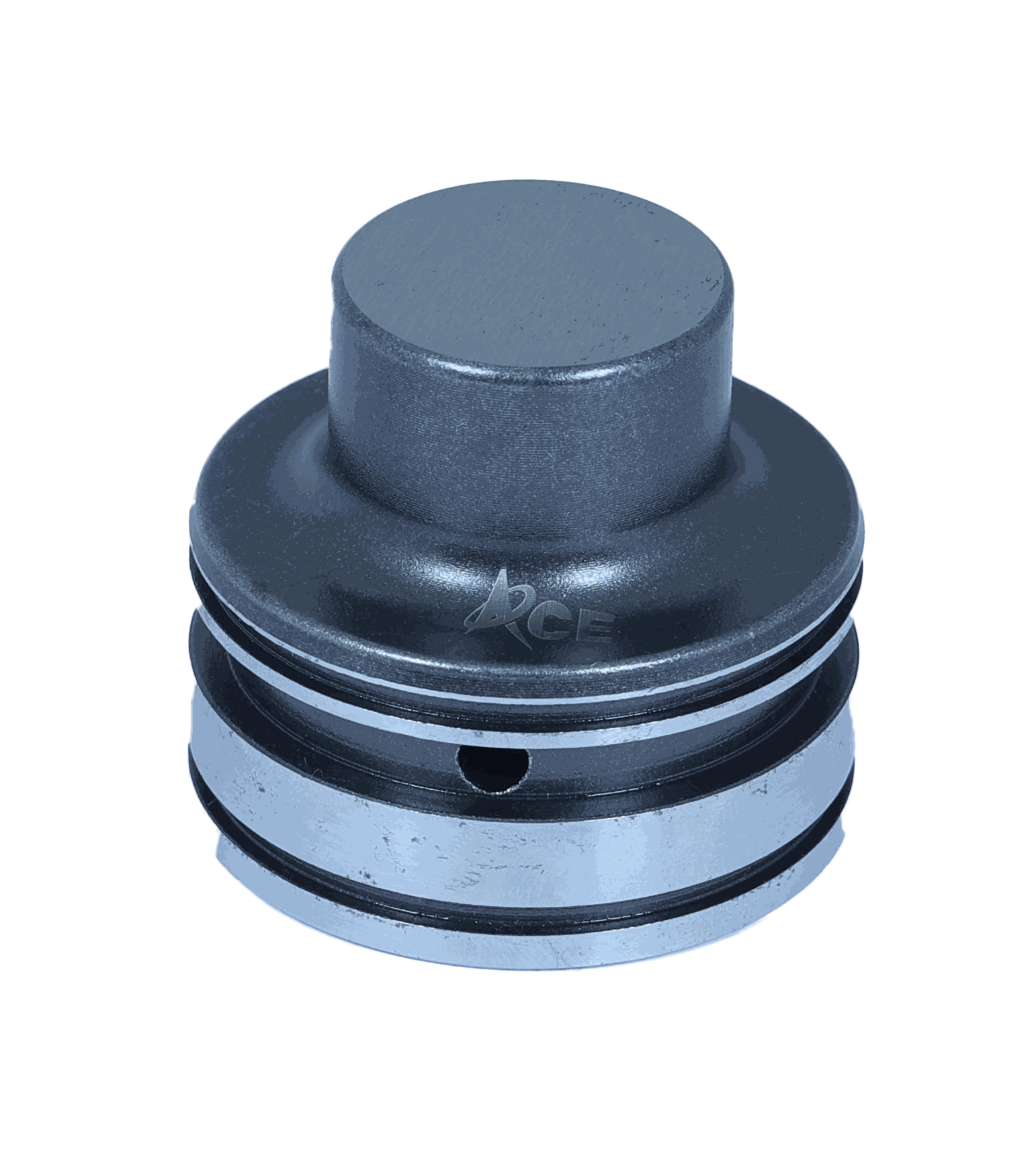

13.Inside Valve Bushing

ACE Part No OEM REFF NO
212030 D7414441
Paving breaker spare

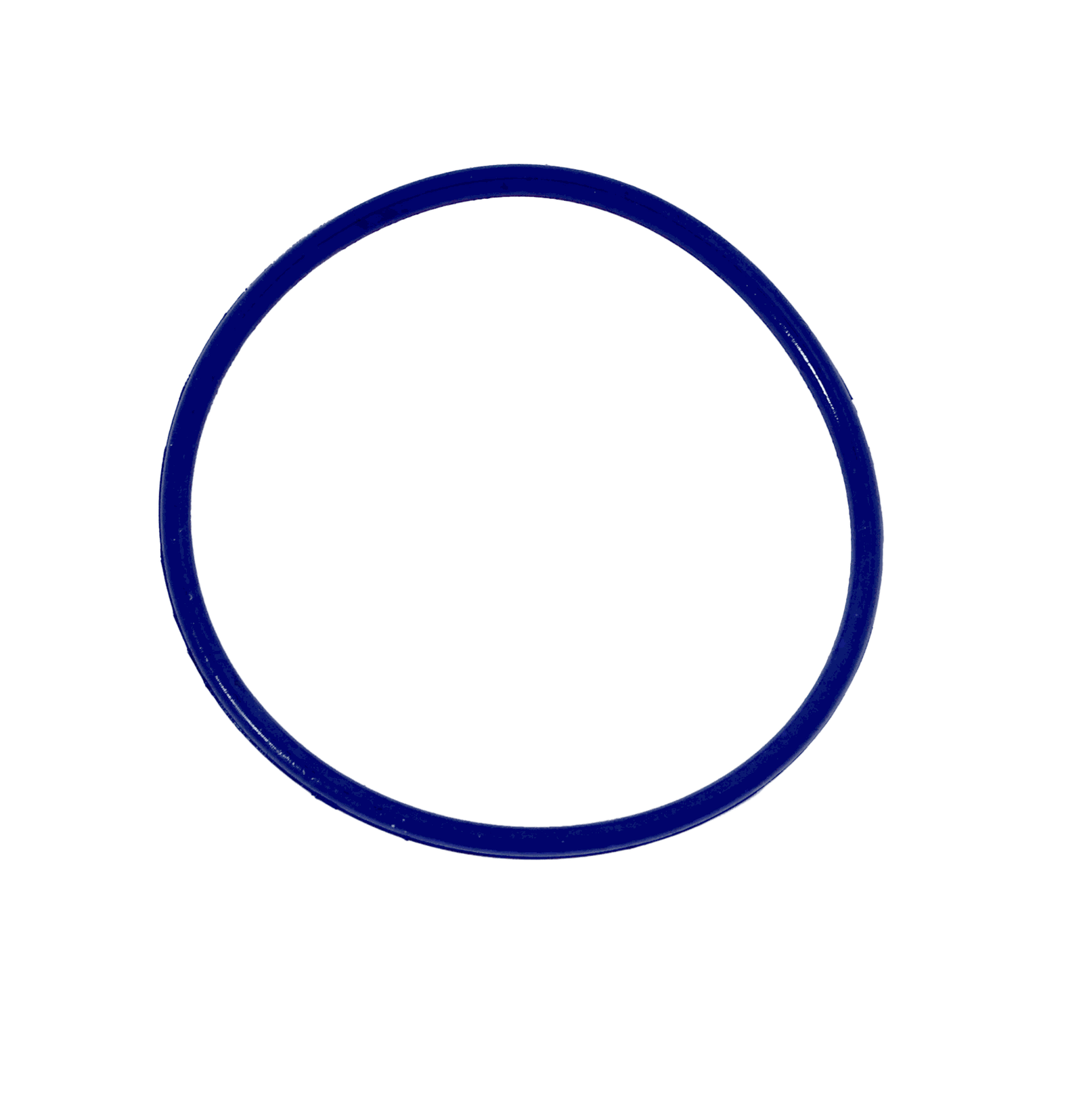

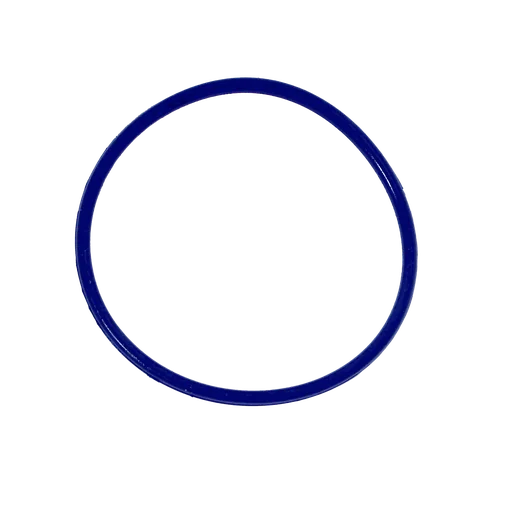

14.O ring I.V.Bushing

ACE Part No OEM REFF NO
212035 H0364441
Paving breaker spare

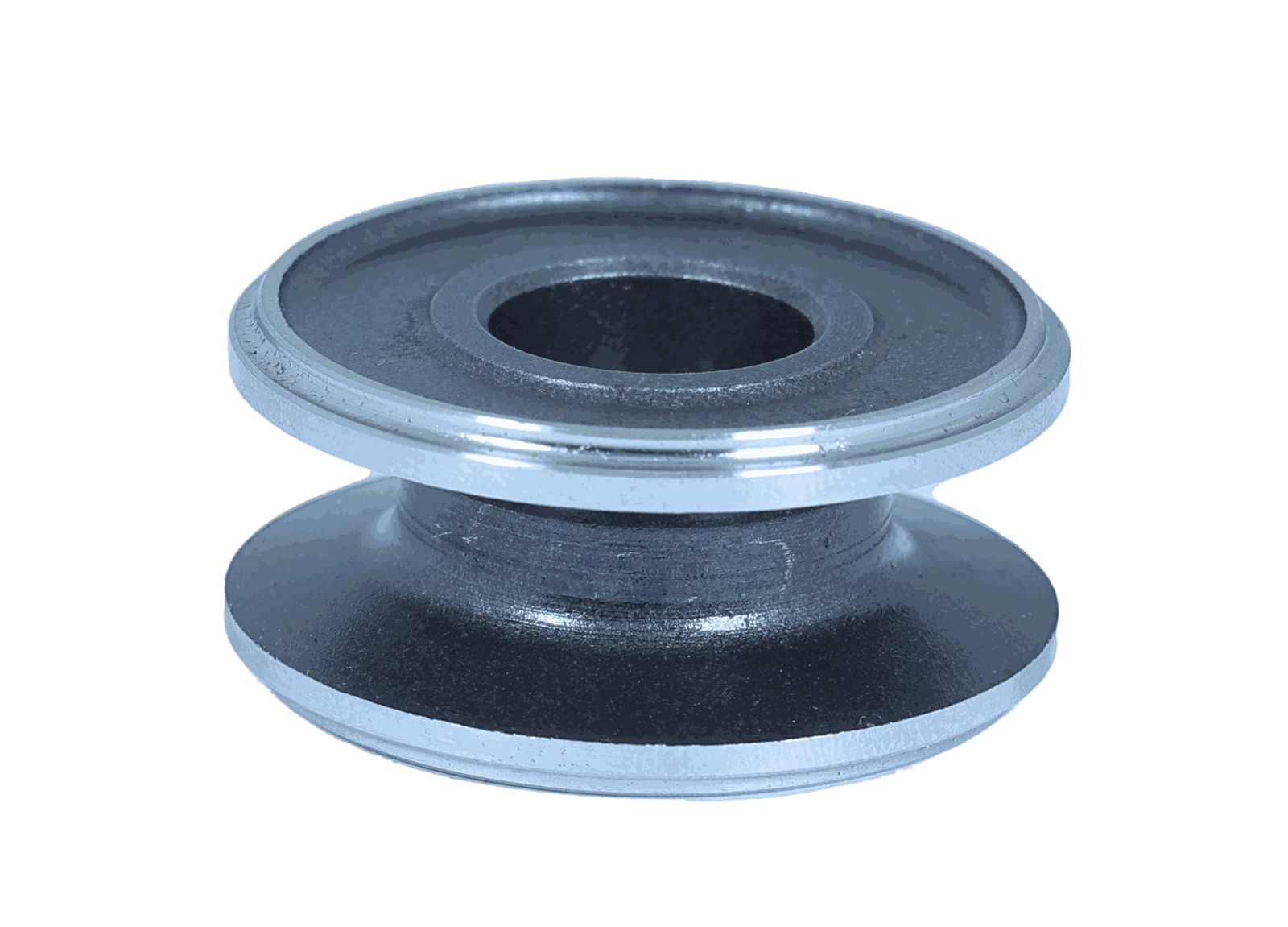

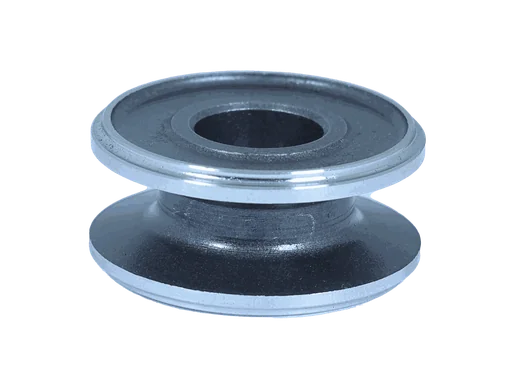

15.Valve

ACE Part No OEM REFF NO
212040 D7305441
Paving breaker spare

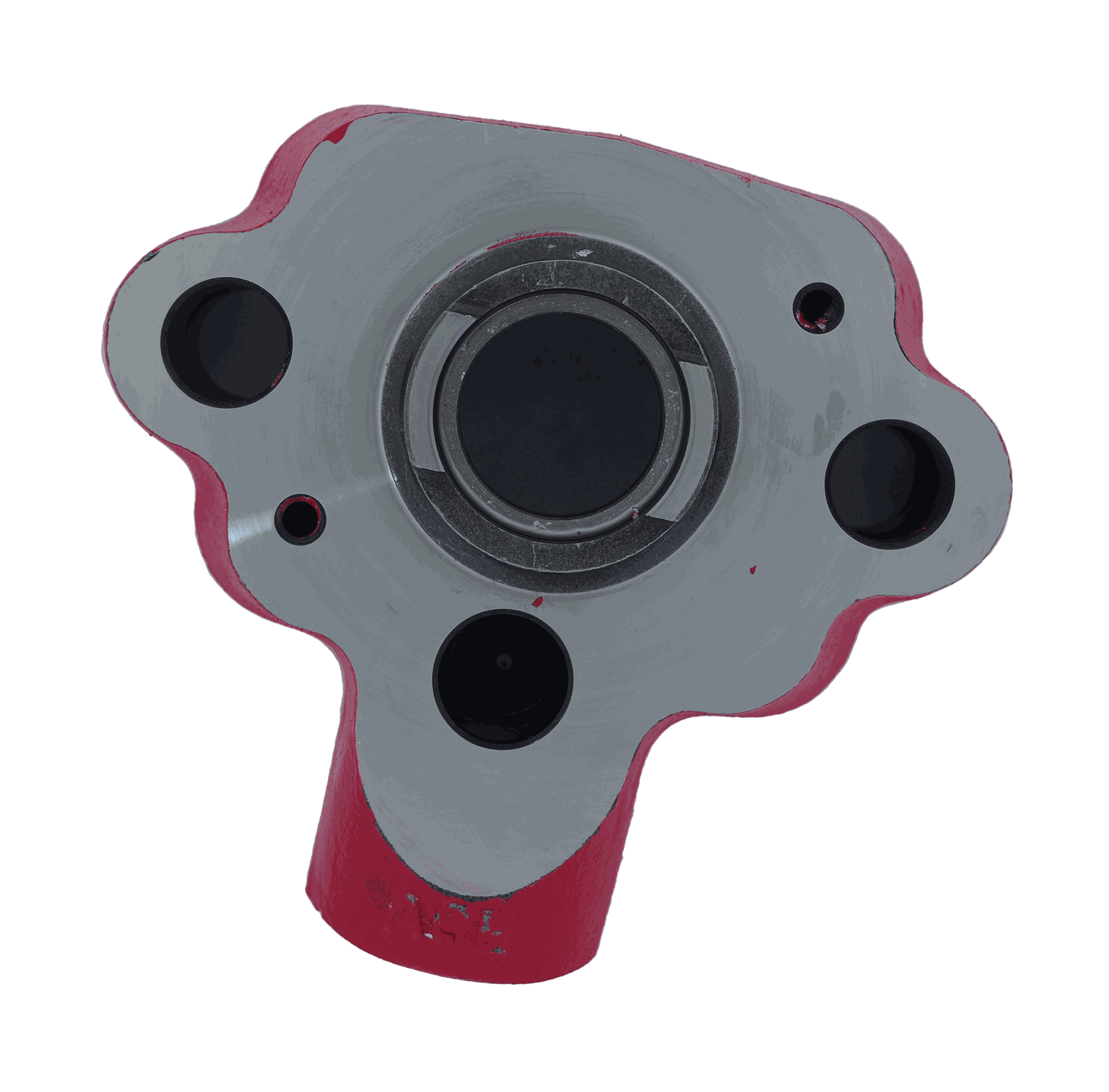

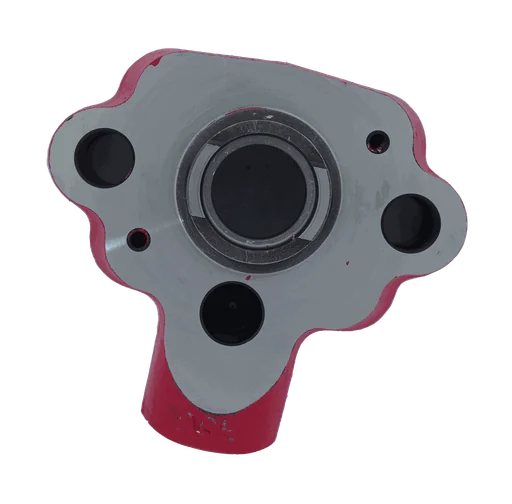

16.Back Head Cylinder Spacer

ACE Part No OEM REFF NO
212045 R075193
Paving breaker spare

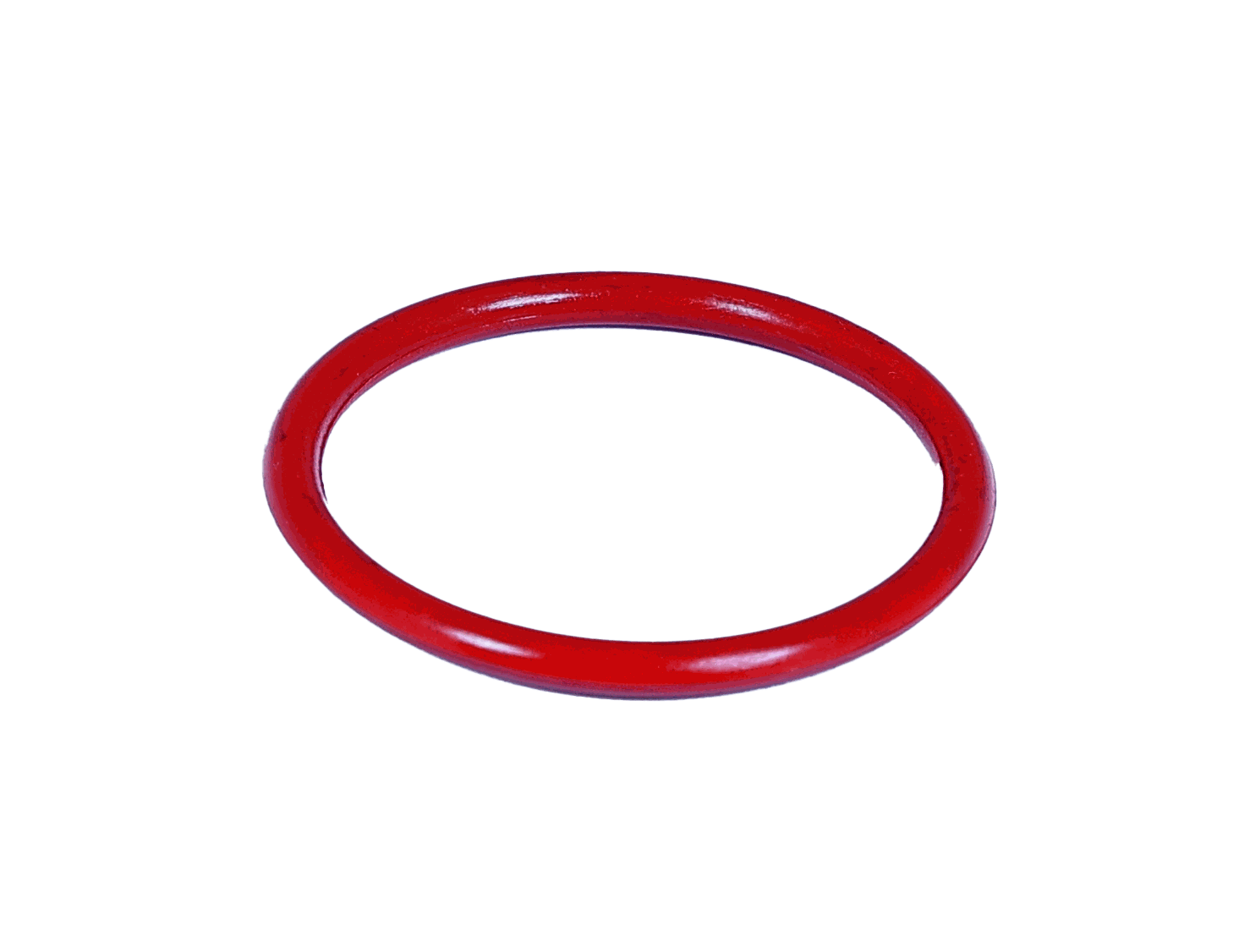

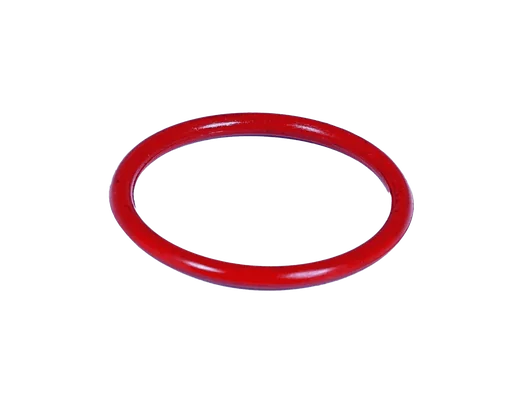

17.O Ring- (Adaptor)

ACE Part No OEM REFF NO
212050 P103521
Paving breaker spare

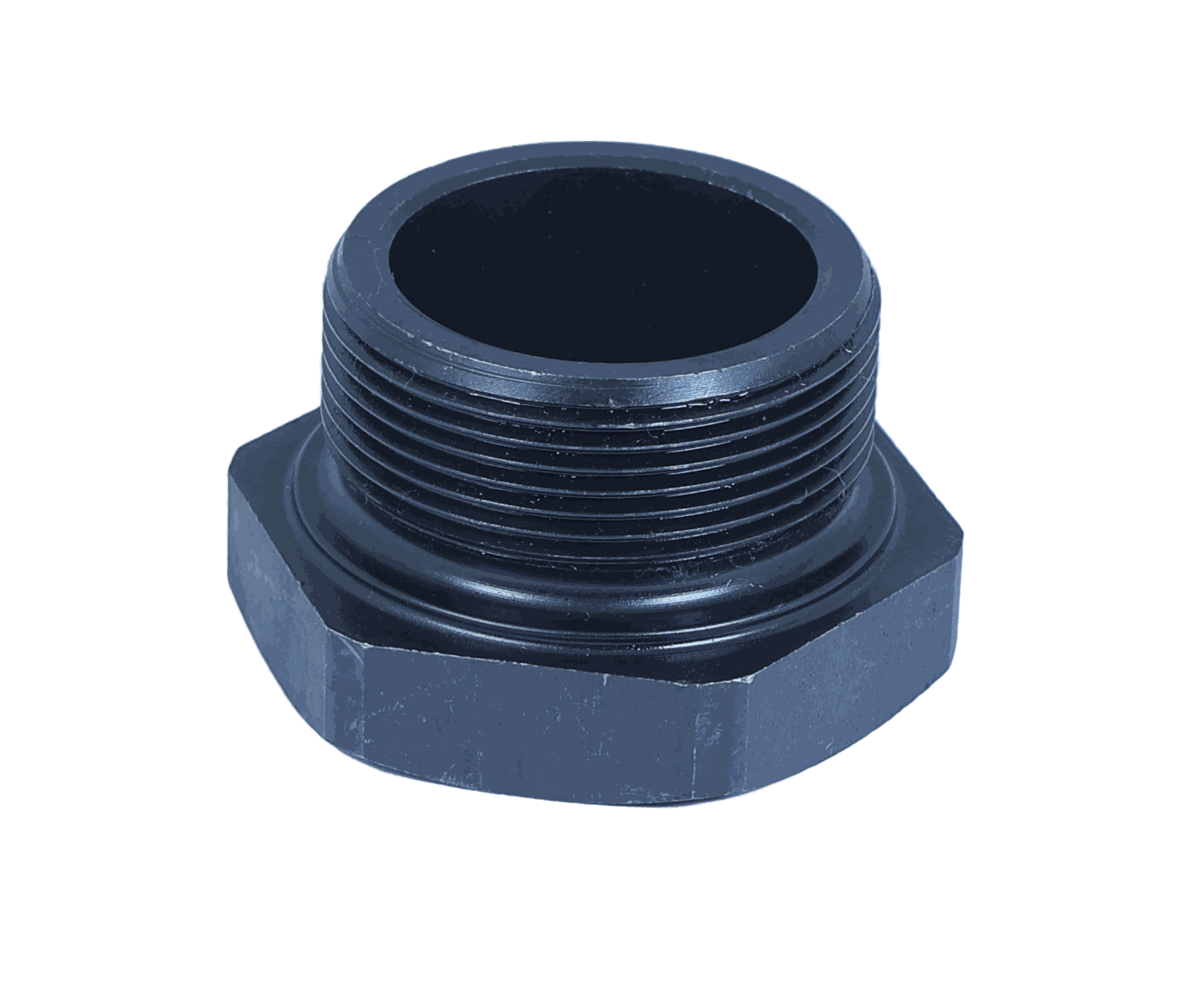

18.Air Swivel Nut

ACE Part No OEM REFF NO
212055 R000530
Paving breaker spare

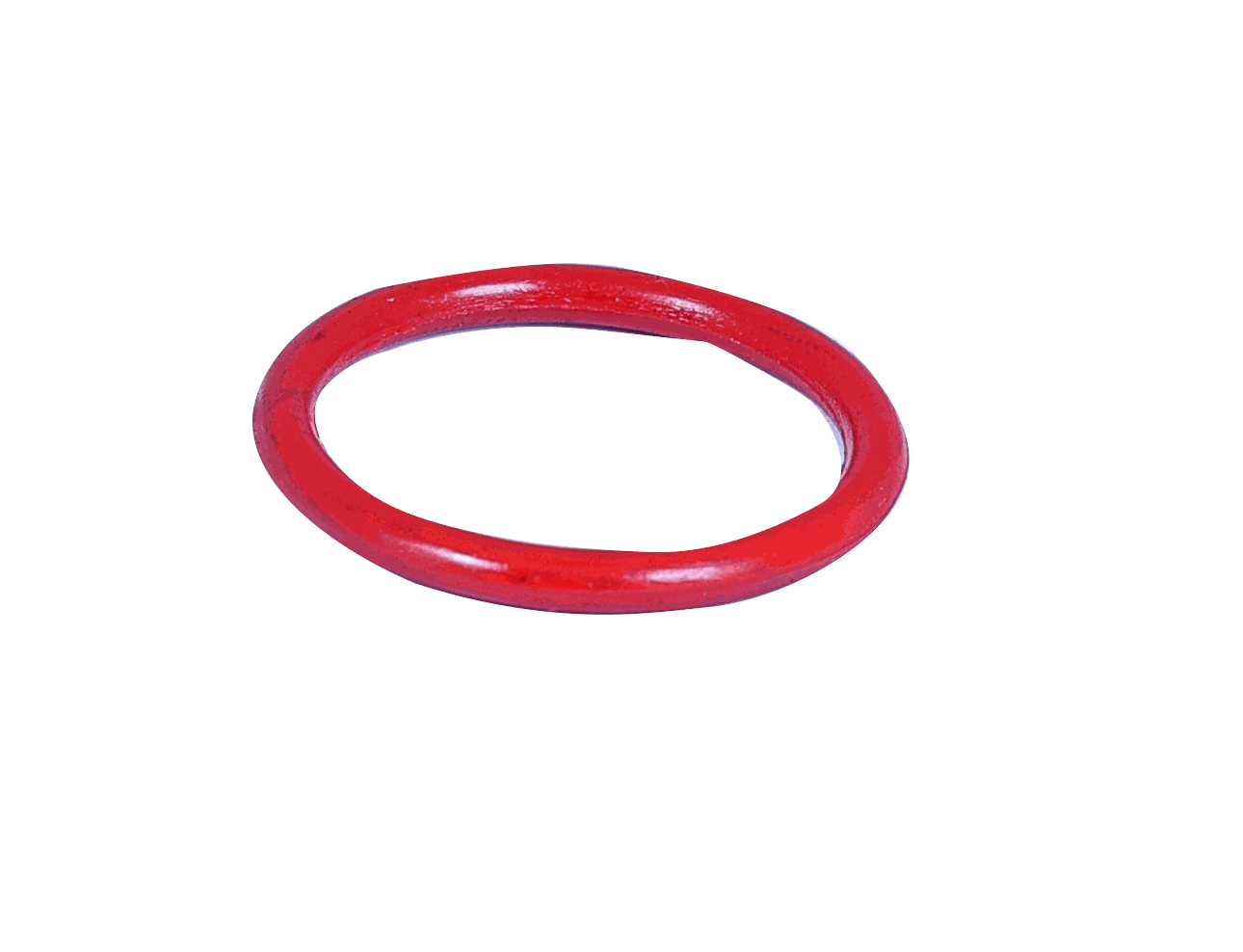

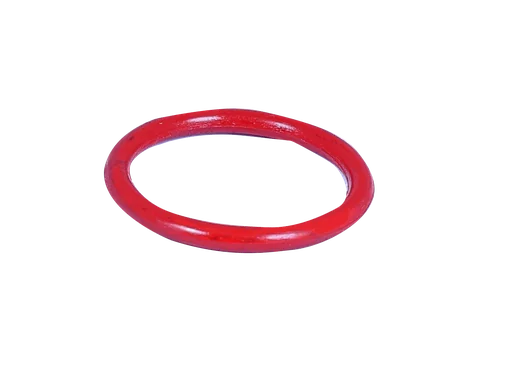

19.O RING (Air Inlet Swivel)

ACE Part No OEM REFF NO
212060 R110317
Paving breaker spare

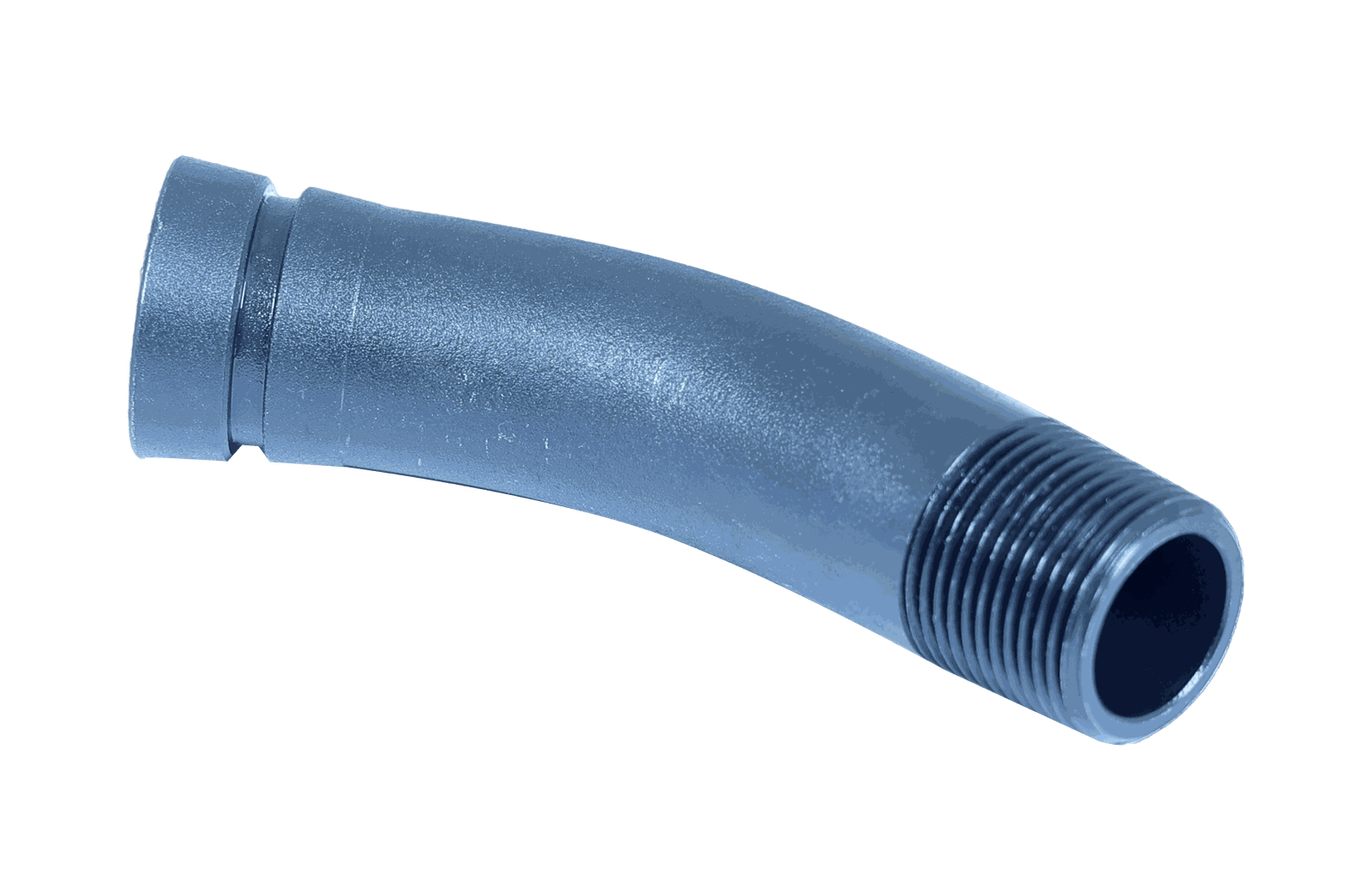

20.Air Inlet Swivel

ACE Part No OEM REFF NO
212065 R085269
Paving breaker spare

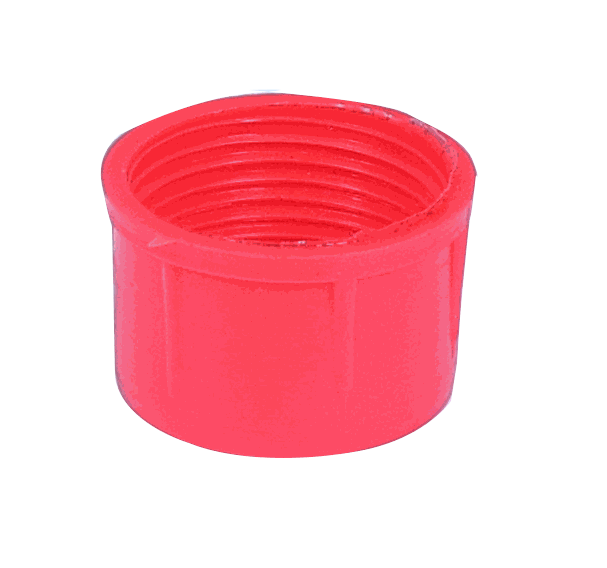

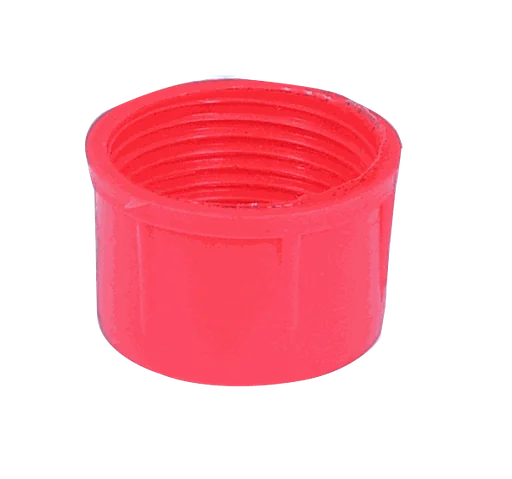

21.Cap (Air Swivel Nut)

ACE Part No OEM REFF NO
212070 -
Paving breaker spare

22.Piston

ACE Part No OEM REFF NO
212075 R000040
Paving breaker spare

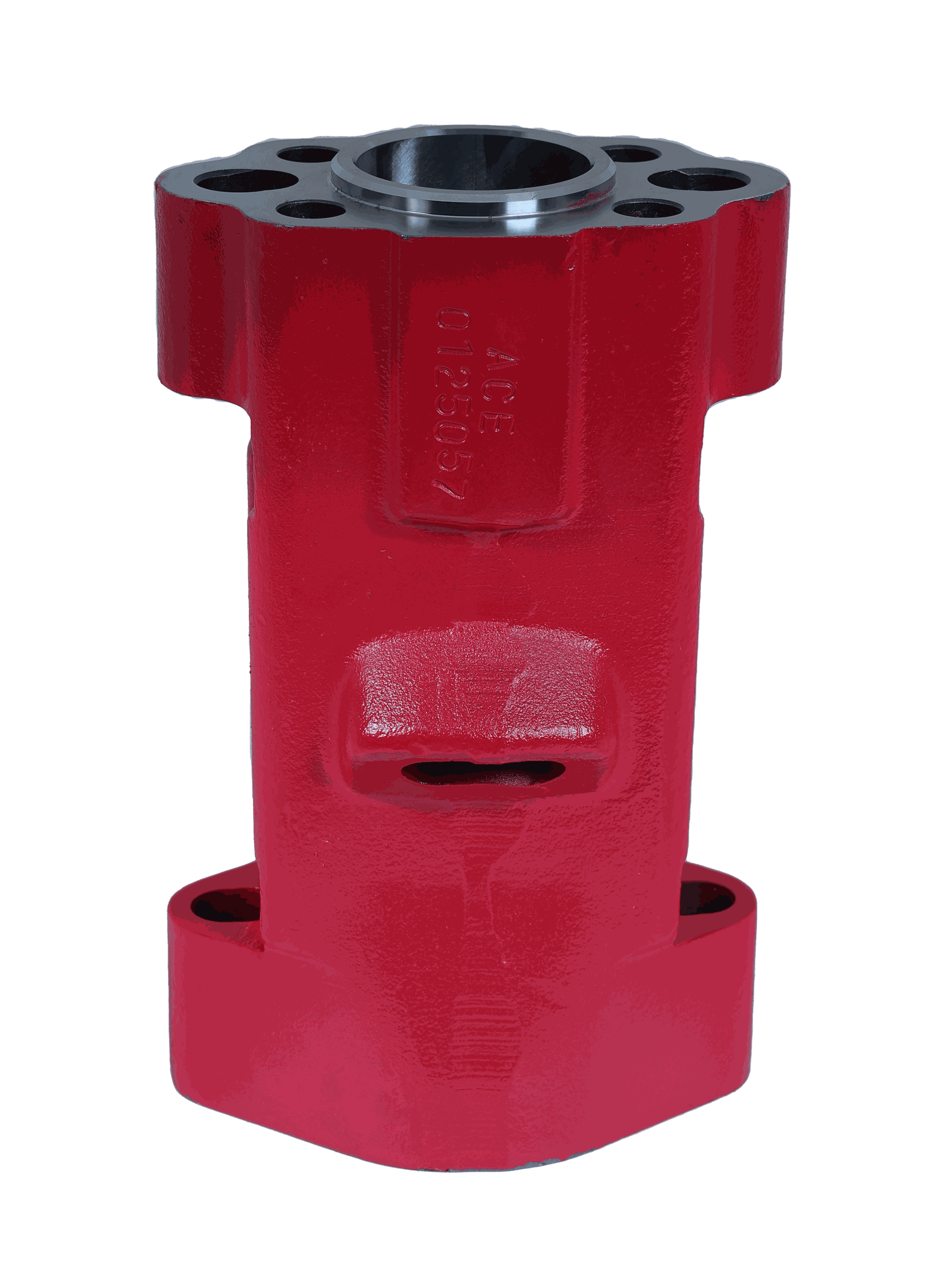

23.Cylinder

ACE Part No OEM REFF NO
212080 R075185
Paving breaker spare

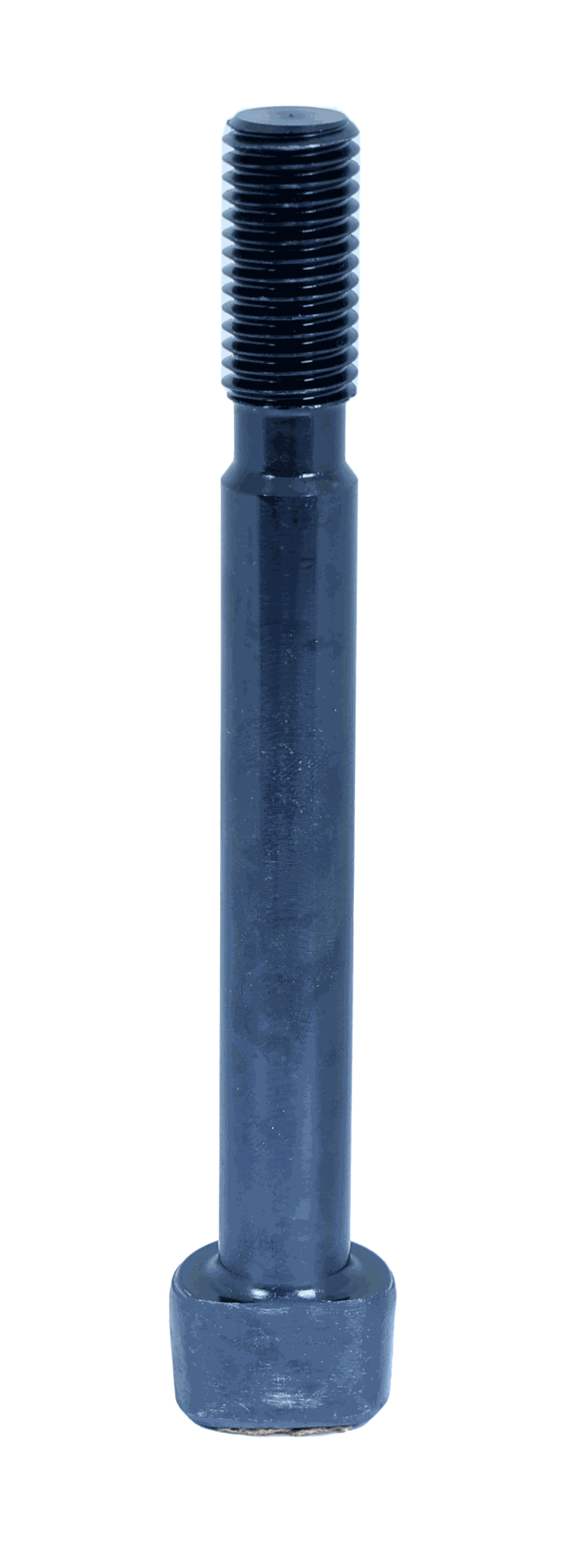

24.Back Head Bolt

ACE Part No OEM REFF NO
212085 R075189
Paving breaker spare

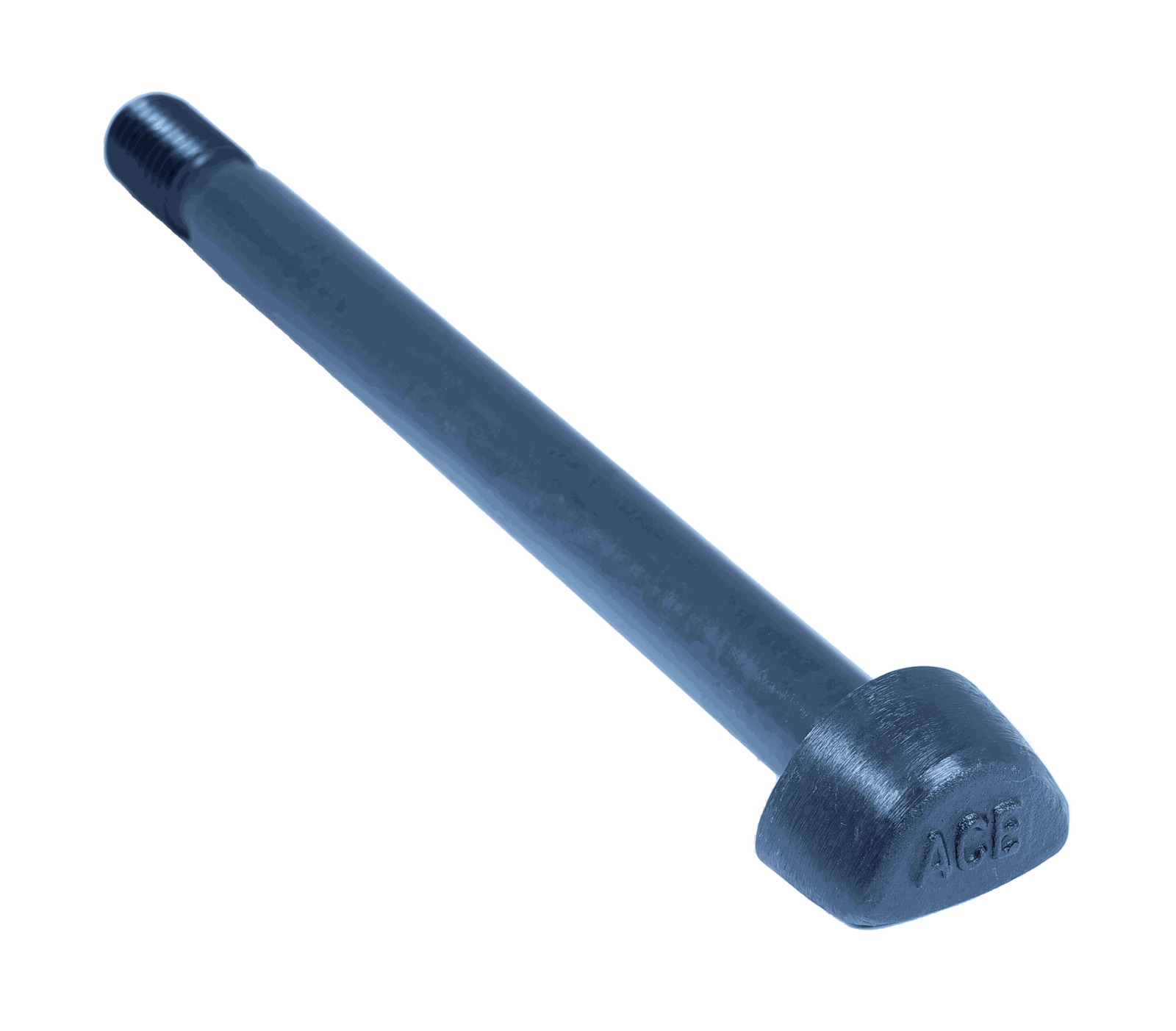

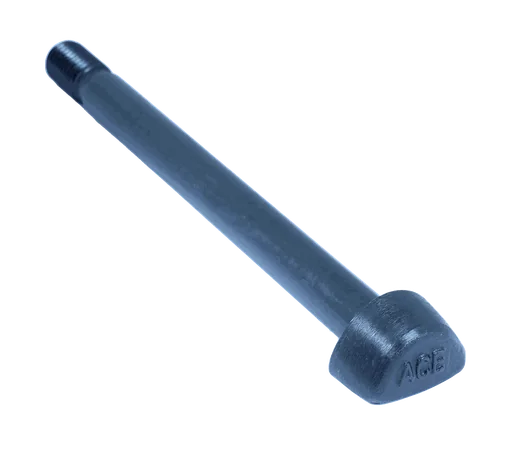

25.Front Head Bolt

ACE Part No OEM REFF NO
213010 R005684
Paving breaker spare

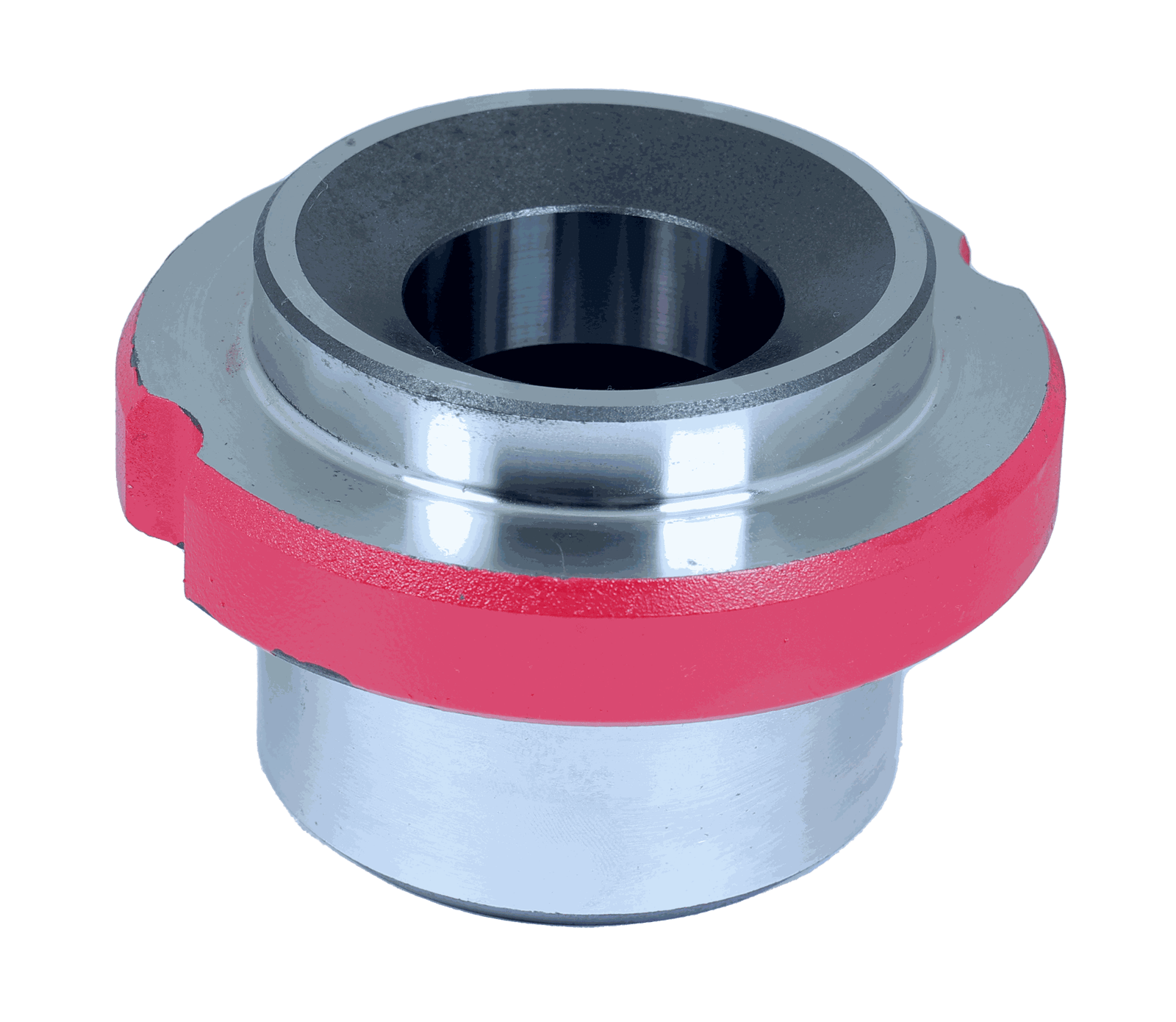

26.Anvil Block Bushing

ACE Part No OEM REFF NO
213015 R075187
Paving breaker spare

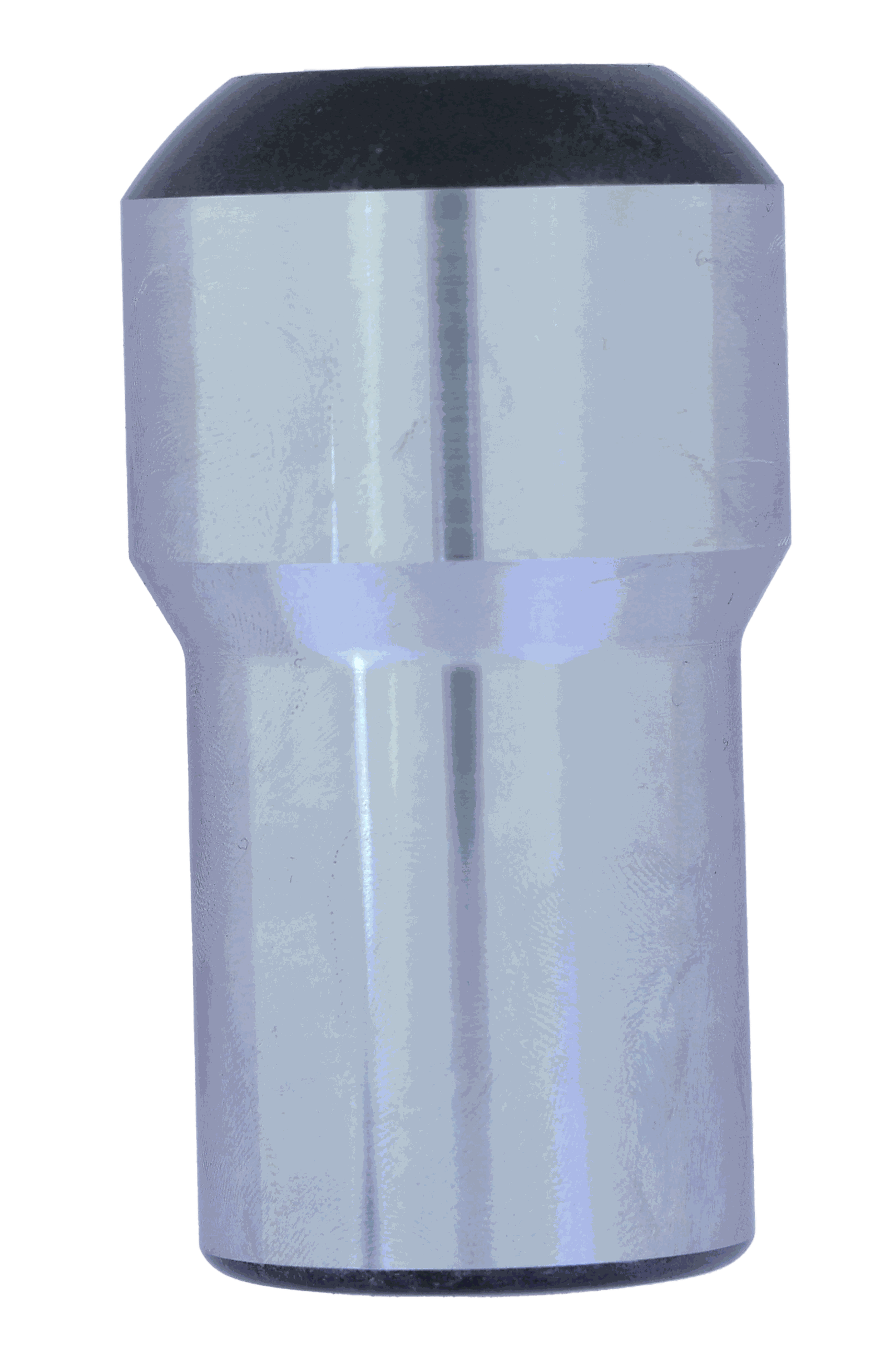

27.Anvil Block

ACE Part No OEM REFF NO
213020 R075186
Paving breaker spare

28.Front Head 1 1"/8 Hex

ACE Part No OEM REFF NO
213025 R005725
Paving breaker spare

28A.Front Head 1 1"/4 Hex

ACE Part No OEM REFF NO
213030 R005724
Paving breaker spare

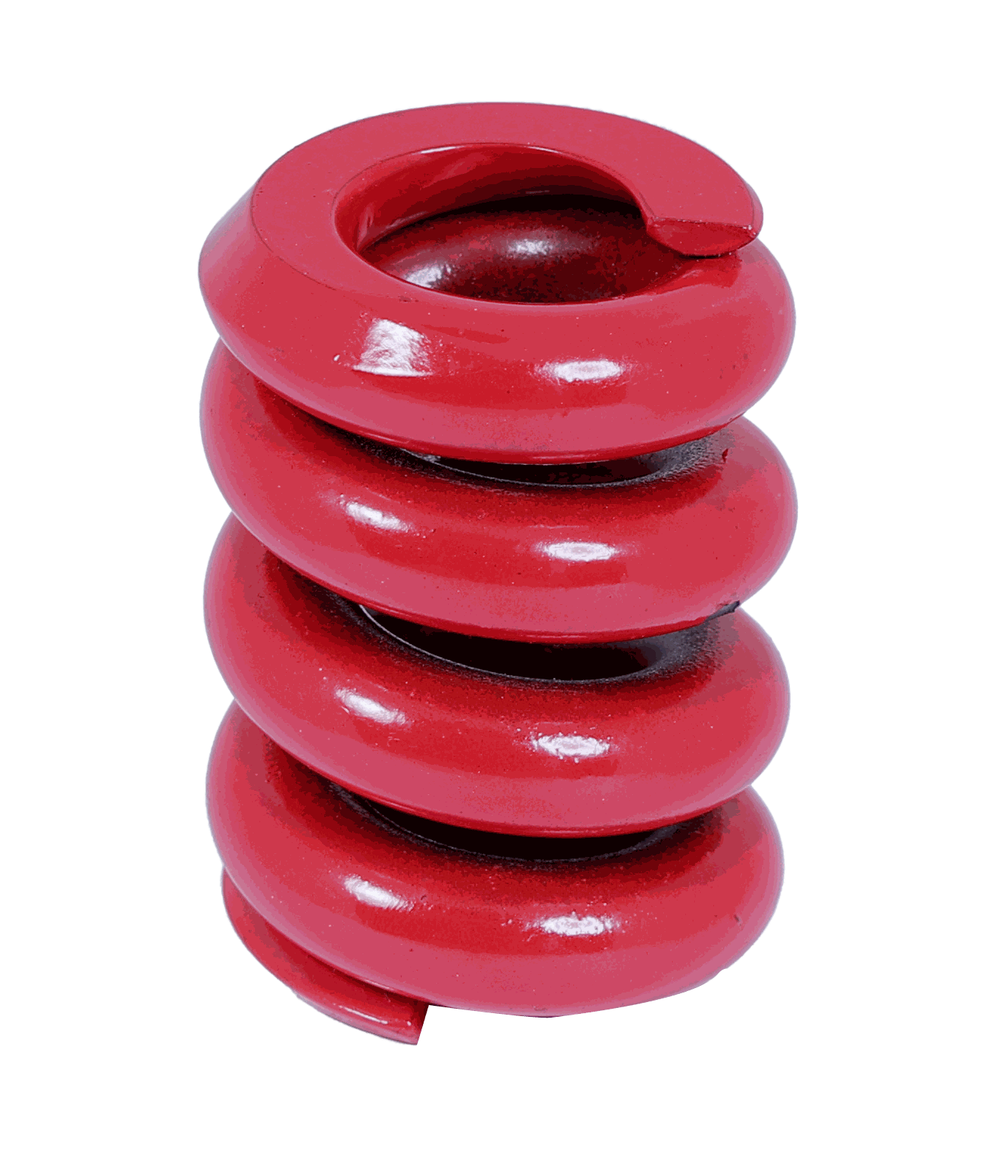

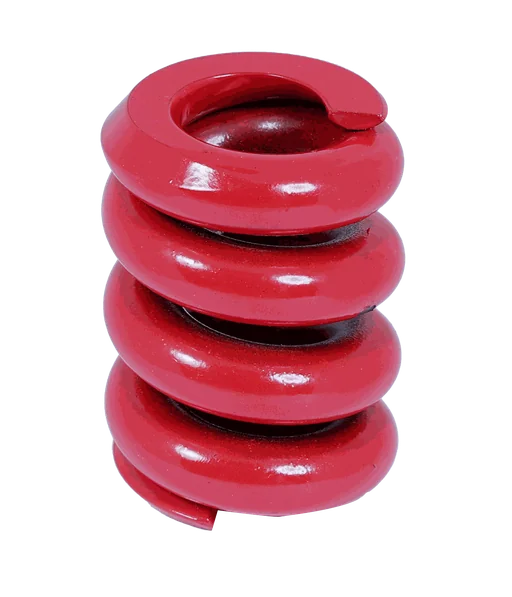

29.Front Head Bolt Spring

ACE Part No OEM REFF NO
213035 R005729
Paving breaker spare

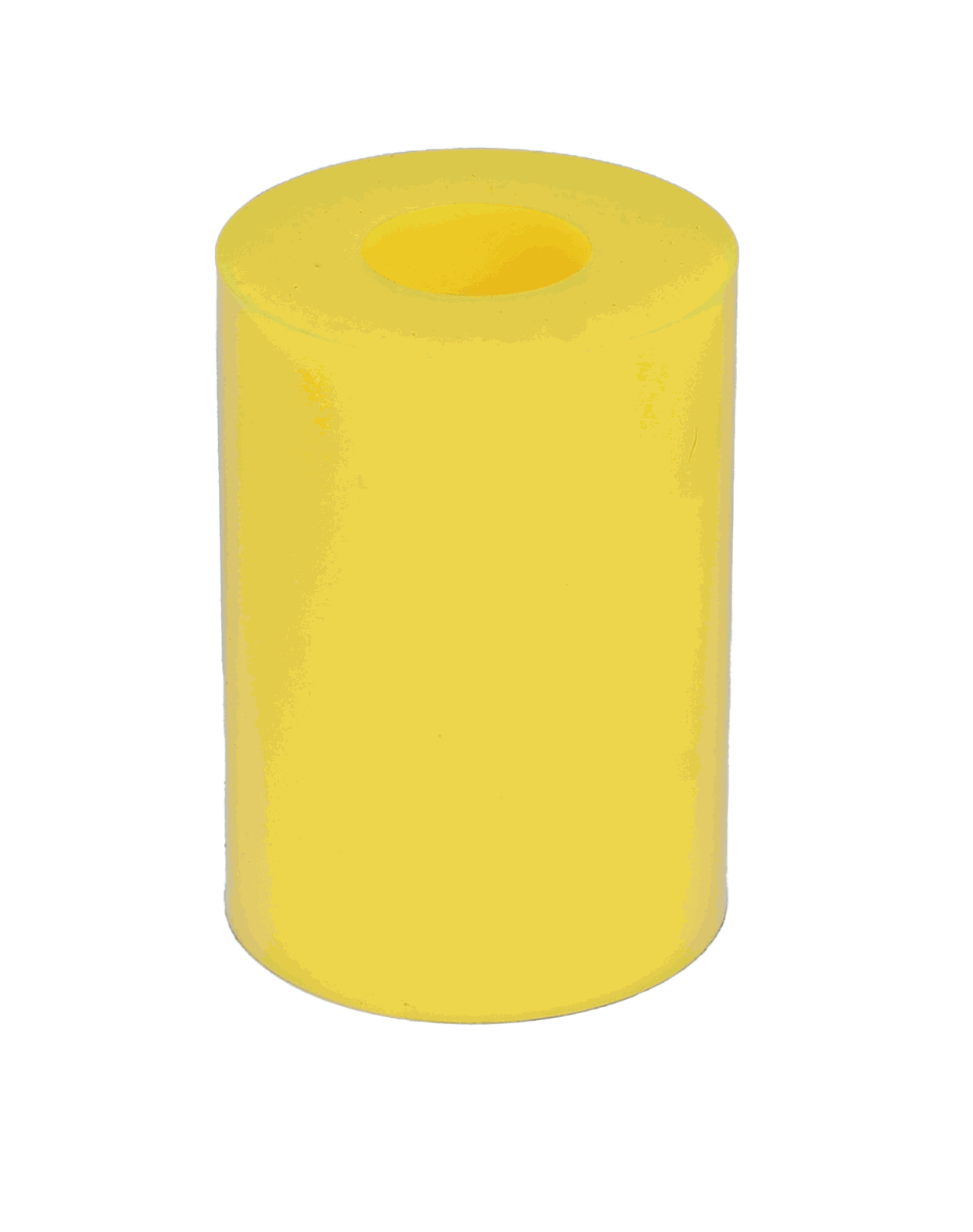

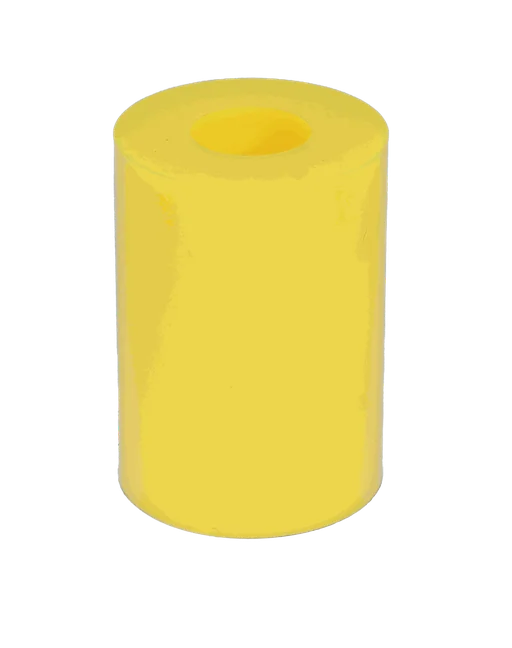

29A.Front Head Bolt PU Bush

ACE Part No OEM REFF NO
213036 -
Paving breaker spare

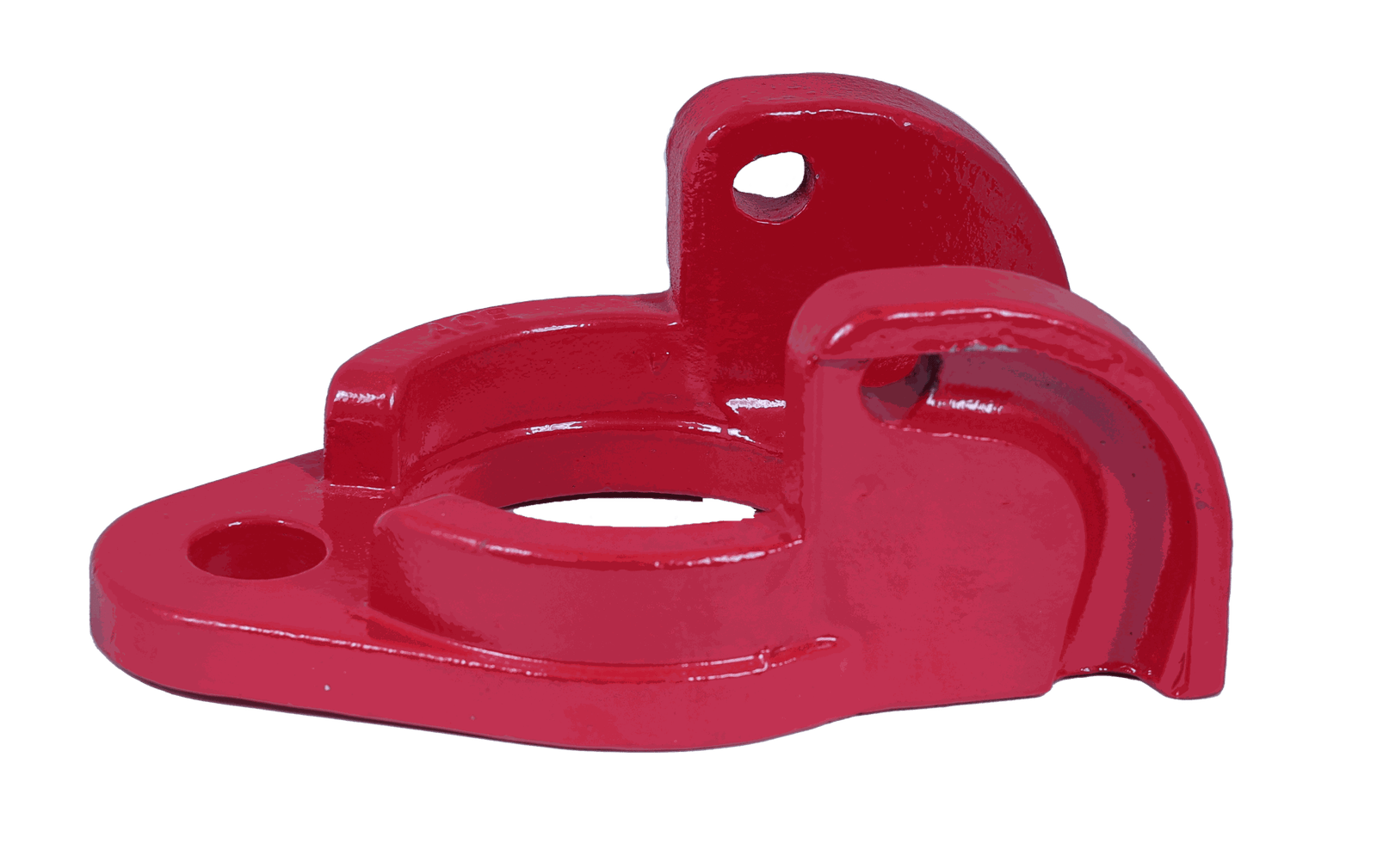

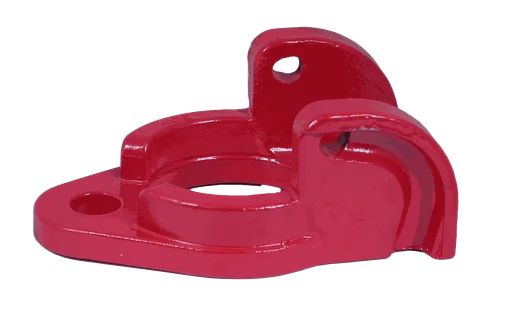

30.Steel Retainer Support

ACE Part No OEM REFF NO
213040 R005728
Paving breaker spare

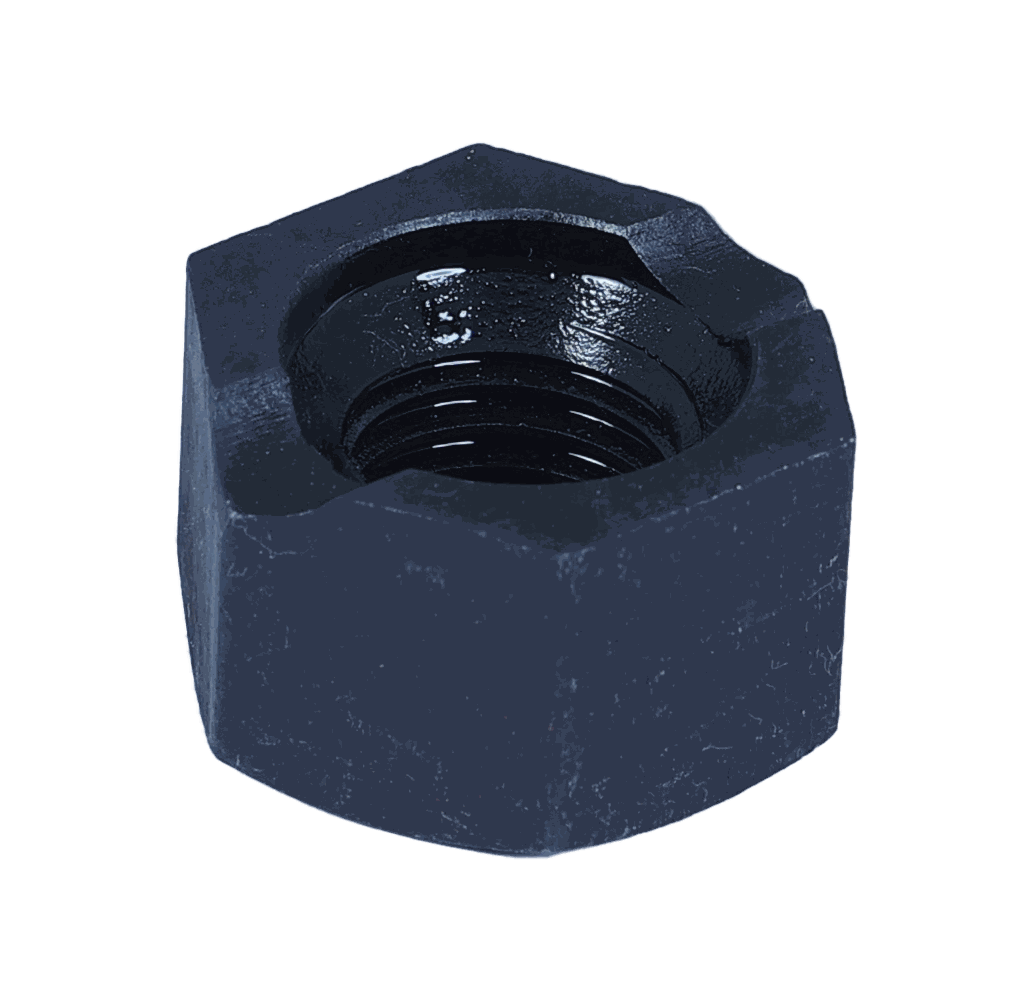

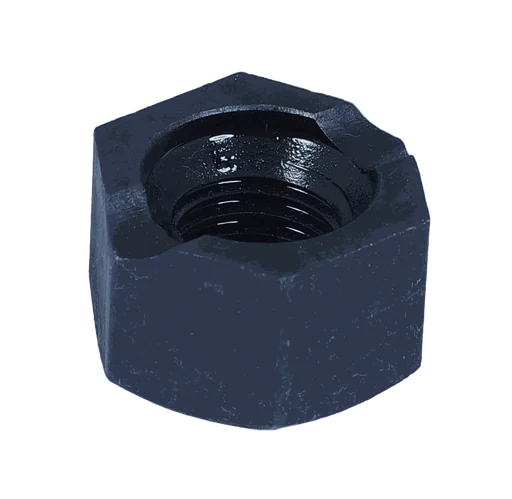

31.Front Head Bolt Nut

ACE Part No OEM REFF NO
213045 R005721
Paving breaker spare

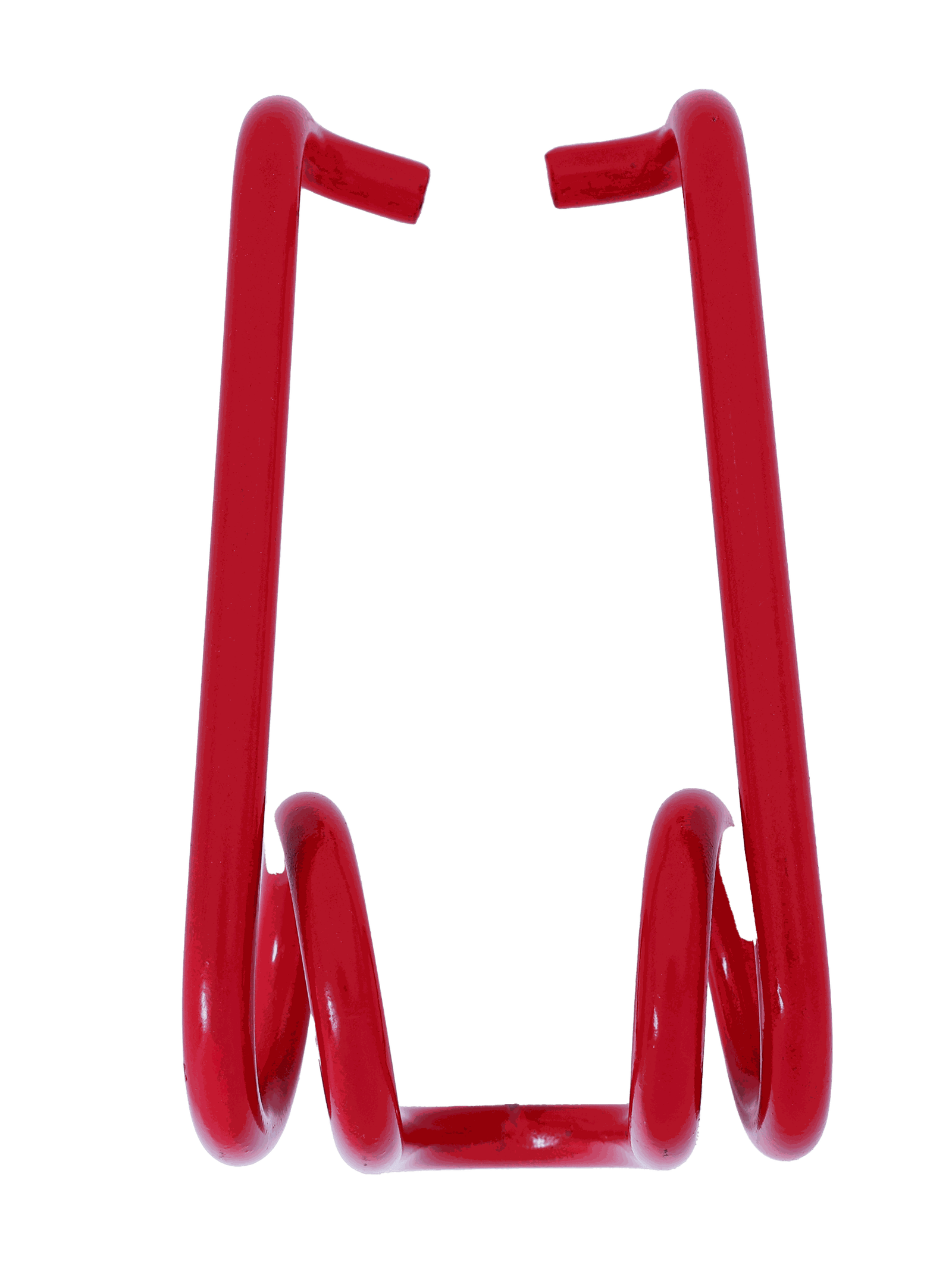

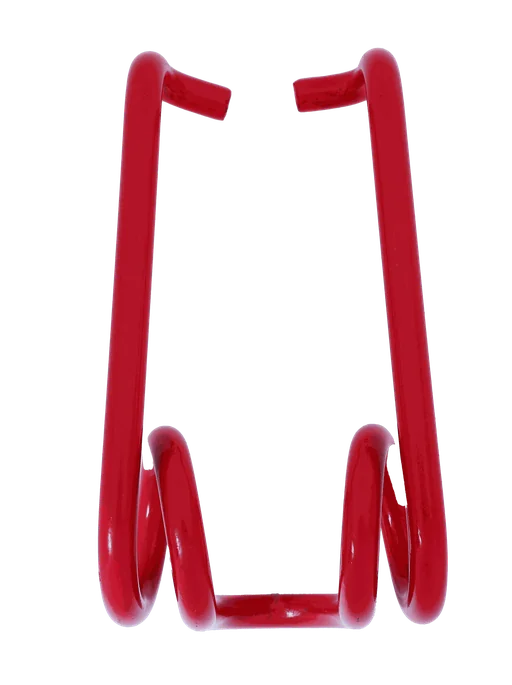

32.Steel Retainer

ACE Part No OEM REFF NO
213050 R005727
Paving breaker spare

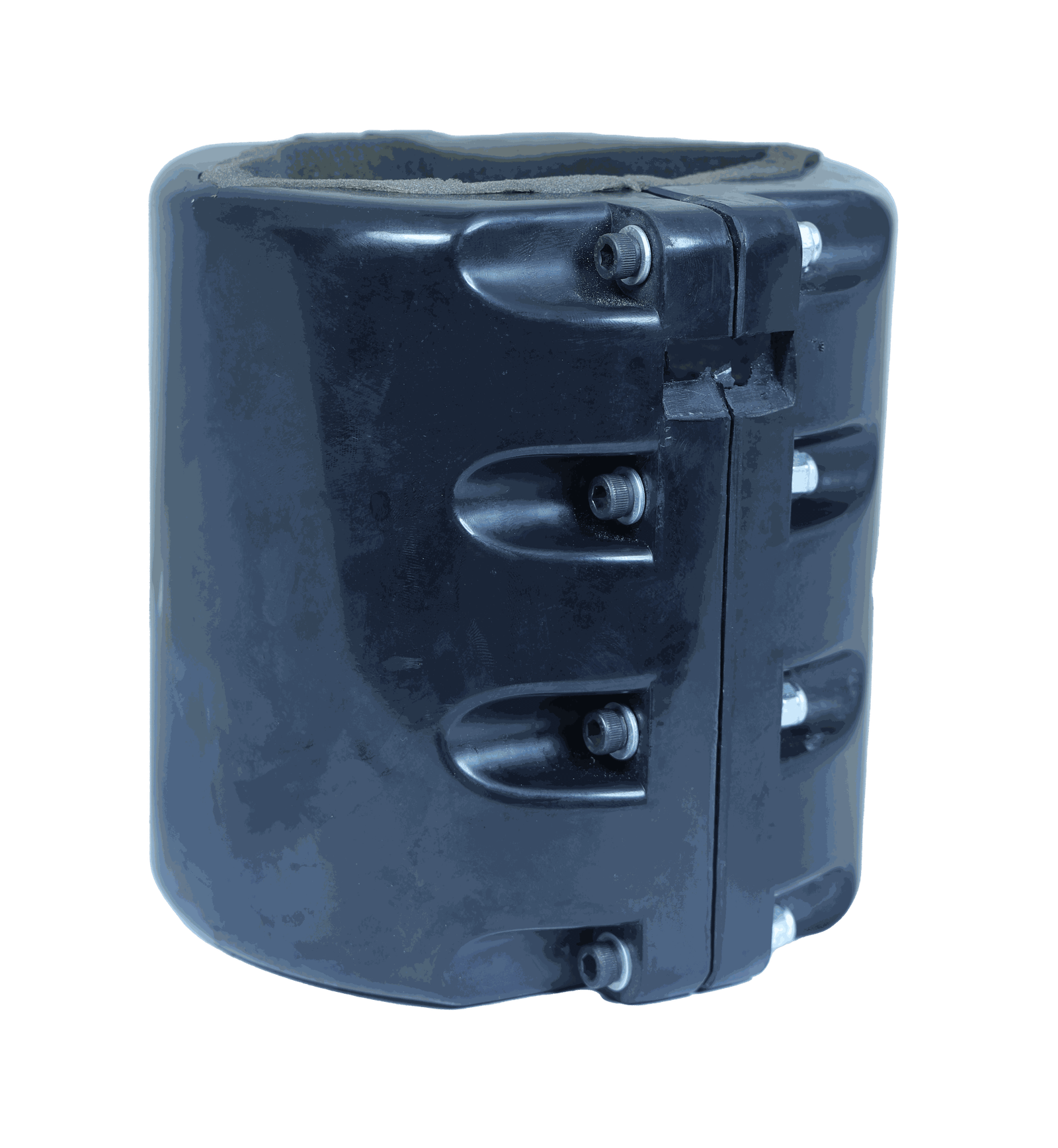

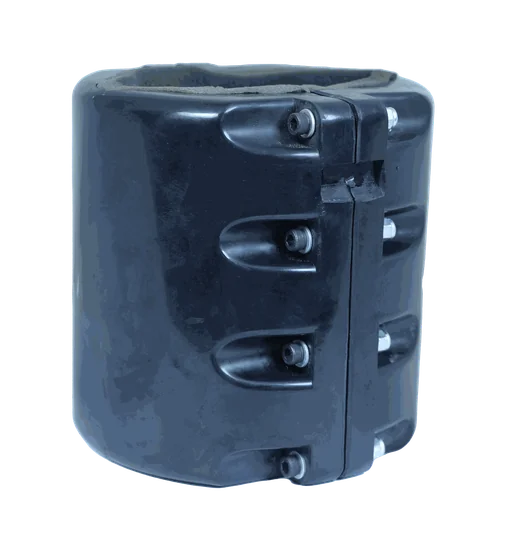

33.Muffler Optional

ACE Part No OEM REFF NO
213055 -
Paving breaker spare

34.Screw (Allen Bolt) With Nut

ACE Part No OEM REFF NO
213060 -
Paving breaker spare

A (1-6).Backhead Complete

ACE Part No OEM REFF NO
211000 Z8415441
Paving breaker spare

B (9-12).Throttle Valve Complete

ACE Part No OEM REFF NO
212000 R045373
Paving breaker spare

C (17-21).Swivel Assembly

ACE Part No OEM REFF NO
213000 -
Paving breaker spare

D (7,8 & 24).Back Head Bolt Complete

ACE Part No OEM REFF NO
214000 Z8415441
Paving breaker spare

E (25,31).Front Head Bolt Complete

ACE Part No OEM REFF NO
215000 3303 50 38
