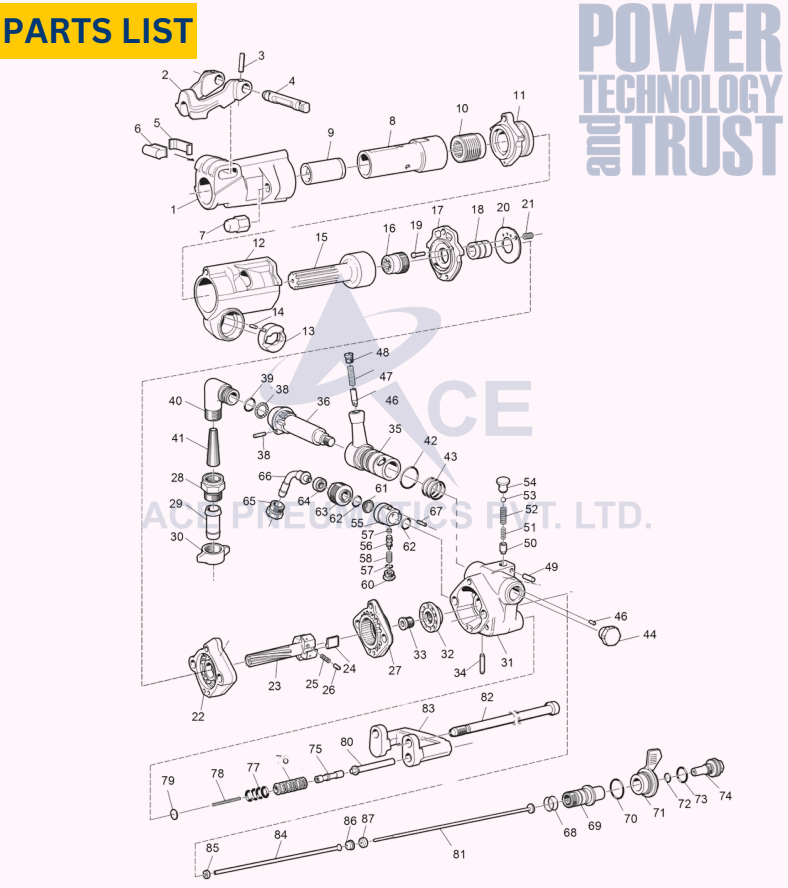

ACE RD 16W

Spares

Jackleg drill spare

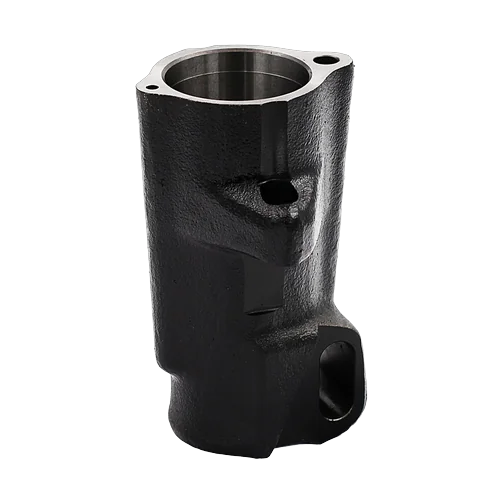

1.Front head housing

ACE Part No OEM REFF NO
165400 3121015400
Jackleg drill spare

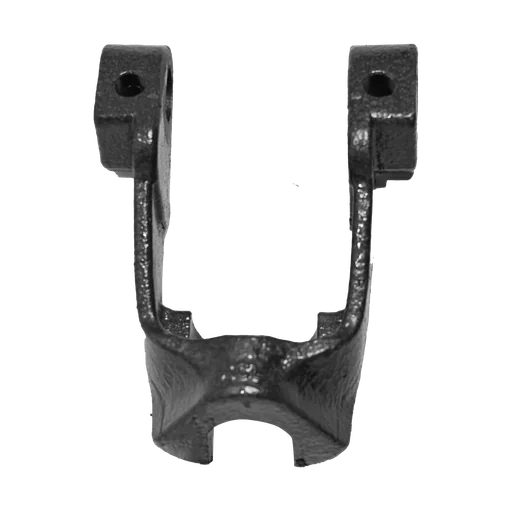

2.Drill steel retainer

ACE Part No OEM REFF NO
165100 3121085100
Jackleg drill spare

3.Tension pin

ACE Part No OEM REFF NO
169200 108339200
Jackleg drill spare

4.Retainer pin

ACE Part No OEM REFF NO
162500 3115292500
Jackleg drill spare

5.Buffer plate

ACE Part No OEM REFF NO
162900 3121002900
Jackleg drill spare

6.Buffer

ACE Part No OEM REFF NO
163000 3121003000
Jackleg drill spare

7.Side bolt nut

ACE Part No OEM REFF NO
167200 3121087200
Jackleg drill spare

8.Rotation chuck

ACE Part No OEM REFF NO
162681 -
Jackleg drill spare

9.Rotation chuck bushing (22 x 108 mm)

ACE Part No OEM REFF NO
162400 3121082400
Jackleg drill spare

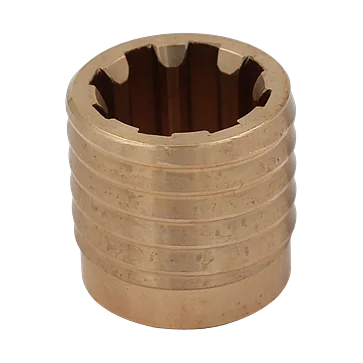

10.Chuck nut

ACE Part No OEM REFF NO
162000 3115122000
Jackleg drill spare

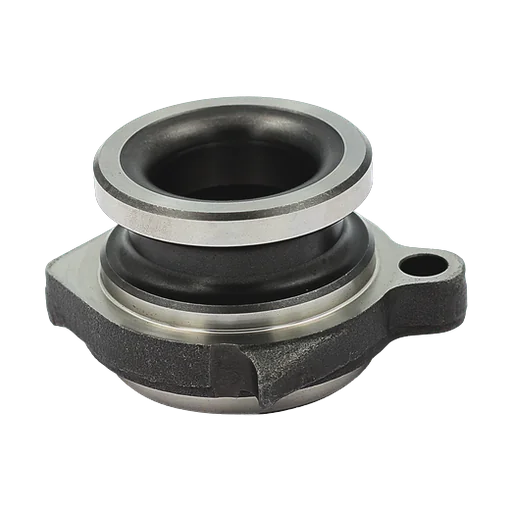

11.Intermediate part

ACE Part No OEM REFF NO
165800 3121015800
Jackleg drill spare

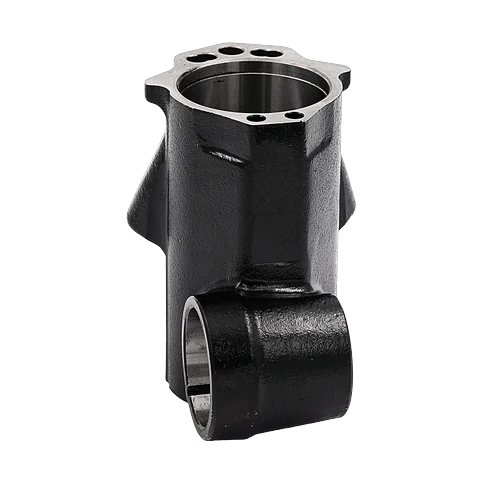

12.Cylinder

ACE Part No OEM REFF NO
168081 -
Jackleg drill spare

13.Washer

ACE Part No OEM REFF NO
169900 3121059900
Jackleg drill spare

14.Pin

ACE Part No OEM REFF NO
167400 101127400
Jackleg drill spare

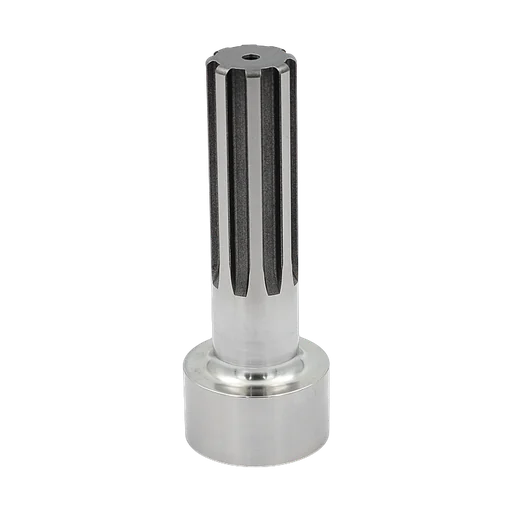

15.Piston

ACE Part No OEM REFF NO
165981 -
Jackleg drill spare

16.Rifle nut

ACE Part No OEM REFF NO
166000 3121016000
Jackleg drill spare

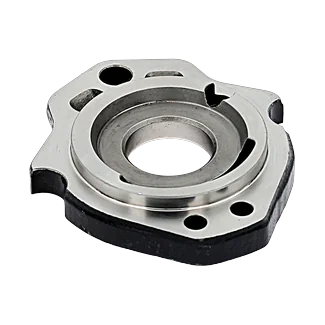

17.Cover

ACE Part No OEM REFF NO
166200 3121016200
Jackleg drill spare

18.Bushing

ACE Part No OEM REFF NO
166300 3121016300
Jackleg drill spare

19.Guide pin

ACE Part No OEM REFF NO
166400 3121016400
Jackleg drill spare

20.Main valve

ACE Part No OEM REFF NO
166600 3121016600
Jackleg drill spare

21.Pressure spring

ACE Part No OEM REFF NO
166500 3121016500
Jackleg drill spare

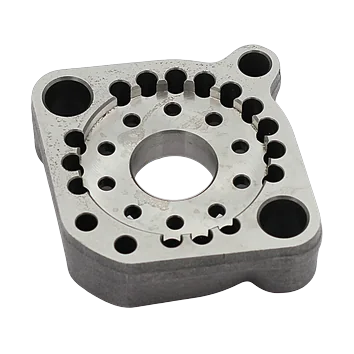

22.Valve casing

ACE Part No OEM REFF NO
166701 3121016701
Jackleg drill spare

23.Rifle bar

ACE Part No OEM REFF NO
167000 3121017000
Jackleg drill spare

24.Pawl

ACE Part No OEM REFF NO
160091 -
Jackleg drill spare

25.Pressure spring

ACE Part No OEM REFF NO
164002 3100914002
Jackleg drill spare

26.Pawl pin

ACE Part No OEM REFF NO
164101 3100964101
Jackleg drill spare

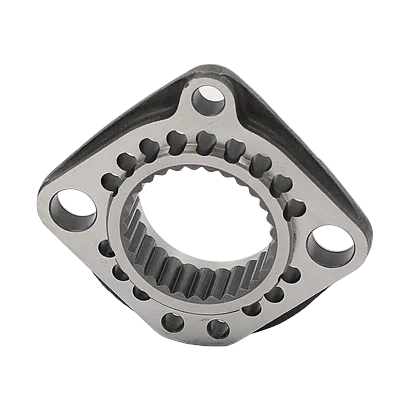

27.Ratchet box

ACE Part No OEM REFF NO
166800 3121016800
Jackleg drill spare

28.Adapter

ACE Part No OEM REFF NO
162503 3000582503
Jackleg drill spare

29.Hose nipple (25 mm)

ACE Part No OEM REFF NO
162600 9000032600
Jackleg drill spare

30.Wing nut

ACE Part No OEM REFF NO
163900 9000033900
Jackleg drill spare

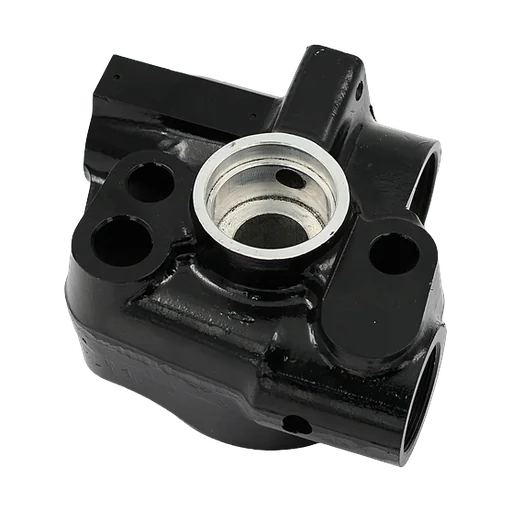

31.Back head housing

ACE Part No OEM REFF NO
169700 3121059700
Jackleg drill spare

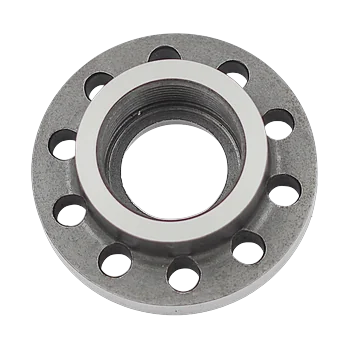

32.Guide ring

ACE Part No OEM REFF NO
169200 3121059200
Jackleg drill spare

33.Stop screw

ACE Part No OEM REFF NO
160400 3121060400
Jackleg drill spare

34.Valve pin

ACE Part No OEM REFF NO
168600 3121058600
Jackleg drill spare

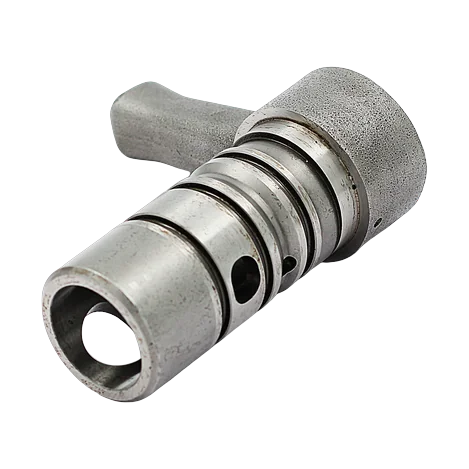

35.Throttle valve

ACE Part No OEM REFF NO
168981 -
Jackleg drill spare

36.Inlet plug

ACE Part No OEM REFF NO
168982 -
Jackleg drill spare

37.Pin

ACE Part No OEM REFF NO
169500 3121059500
Jackleg drill spare

38.Bearing ball

ACE Part No OEM REFF NO
160800 517110800
Jackleg drill spare

39.O-ring (26.2 x 3 mm (70 shore)

ACE Part No OEM REFF NO
162800 663212800
Jackleg drill spare

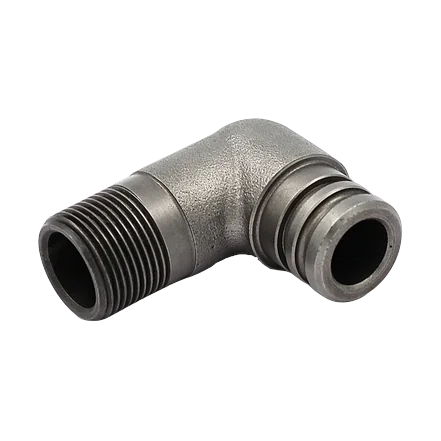

40.Inlet air nipple (25mm)

ACE Part No OEM REFF NO
162100 3121052100
Jackleg drill spare

41.Strainer 1

ACE Part No OEM REFF NO
161300 3121051300
Jackleg drill spare

42.O-ring (44.2 x 3 mm (70 shore)

ACE Part No OEM REFF NO
163500 663213500
Jackleg drill spare

43.O-ring (36.2 x 3 mm (70 shore)

ACE Part No OEM REFF NO
163200 663213200
Jackleg drill spare

44.Plug

ACE Part No OEM REFF NO
169300 3121049300
Jackleg drill spare

45.Pin

ACE Part No OEM REFF NO
167400 101127400
Jackleg drill spare

46.Ratchet pin

ACE Part No OEM REFF NO
169000 3121049000
Jackleg drill spare

47.Spring

ACE Part No OEM REFF NO
169100 3121049100
Jackleg drill spare

48.Plug

ACE Part No OEM REFF NO
169200 3121049200
Jackleg drill spare

49.Pin

ACE Part No OEM REFF NO
169500 3121059500
Jackleg drill spare

50.Pin

ACE Part No OEM REFF NO
165800 3121055800
Jackleg drill spare

51.Spring

ACE Part No OEM REFF NO
166400 3121056400
Jackleg drill spare

52.Spring

ACE Part No OEM REFF NO
163700 3121073700
Jackleg drill spare

53.Bearing ball

ACE Part No OEM REFF NO
161400 517141400
Jackleg drill spare

54.Valve seat

ACE Part No OEM REFF NO
163600 3121073600
Jackleg drill spare

55.Valve housing

ACE Part No OEM REFF NO
169581 3121049581
Jackleg drill spare

56.Valve body

ACE Part No OEM REFF NO
161381 -
Jackleg drill spare

57.O-ring (5.3 x 2.4 mm ( 70 shore)

ACE Part No OEM REFF NO
161200 663211200
Jackleg drill spare

58.Pressure spring

ACE Part No OEM REFF NO
169700 3121049700
Jackleg drill spare

59.O-ring (15.3 x 2.4 mm ( 70 shore)

ACE Part No OEM REFF NO
162200 663212200
Jackleg drill spare

60.Plug

ACE Part No OEM REFF NO
161400 3121071400
Jackleg drill spare

61.Water strainer

ACE Part No OEM REFF NO
160100 3121050100
Jackleg drill spare

62.O-ring (19.2 x 3 mm (70 shore)

ACE Part No OEM REFF NO
162500 663212500
Jackleg drill spare

63.Adapter

ACE Part No OEM REFF NO
161600 3121071600
Jackleg drill spare

64.Gasket

ACE Part No OEM REFF NO
165300 3100965300
Jackleg drill spare

65.Adapter

ACE Part No OEM REFF NO
165700 3121085700
Jackleg drill spare

66.Inlet water nipple ( 12.5 mm)

ACE Part No OEM REFF NO
165400 3121085400
Jackleg drill spare

67.Tubular pin

ACE Part No OEM REFF NO
169800 108129800
Jackleg drill spare

68.O-ring (27.1 x 1.6 mm ( 70 shore)

ACE Part No OEM REFF NO
162900 663612900
Jackleg drill spare

69.Flushing tube bushing

ACE Part No OEM REFF NO
163100 3121073100
Jackleg drill spare

70.O-ring (36.2 x 3 mm ( 70 shore)

ACE Part No OEM REFF NO
163200 663213200
Jackleg drill spare

71.Lever

ACE Part No OEM REFF NO
165700 3121055700
Jackleg drill spare

72.O-ring (15.3x2.4 mm ( 70 shore)

ACE Part No OEM REFF NO
162200 663212200
Jackleg drill spare

73.O-ring (26.6 x 3.5 mm ( 70 shore)

ACE Part No OEM REFF NO
168400 663918400
Jackleg drill spare

74.Plug

ACE Part No OEM REFF NO
168500 3121058500
Jackleg drill spare

75.Valve

ACE Part No OEM REFF NO
162681 -
Jackleg drill spare

76.Valve liner

ACE Part No OEM REFF NO
162682 -
Jackleg drill spare

77.O-ring (17.3 x 2.4 mm ( 70 shore)

ACE Part No OEM REFF NO
162400 663212400
Jackleg drill spare

78.Spring

ACE Part No OEM REFF NO
162500 3121072500
Jackleg drill spare

79.Washer

ACE Part No OEM REFF NO
162400 3121072400
Jackleg drill spare

80.Valve pin

ACE Part No OEM REFF NO
167500 3121067500
Jackleg drill spare

81.Water flushing tube

ACE Part No OEM REFF NO
169000 3121039000
Jackleg drill spare

82.Side bolt

ACE Part No OEM REFF NO
167900 3121017900
Jackleg drill spare

83.Handle

ACE Part No OEM REFF NO
167400 3121067400
Jackleg drill spare

84.Air flushing tube

ACE Part No OEM REFF NO
169000 3121059000
Jackleg drill spare

85.Rubber gasket

ACE Part No OEM REFF NO
162100 3000012100
Jackleg drill spare

86.Rubber gasket

ACE Part No OEM REFF NO
164600 3100964600
Jackleg drill spare

87.Guide ring

ACE Part No OEM REFF NO
167600 3121077600
Jackleg drill spare

88.Safety label

ACE Part No OEM REFF NO
160200 3310160200
Jackleg drill spare

A(8-10).Rotation chuck, complete

ACE Part No OEM REFF NO
162680 3121082680
Jackleg drill spare

B (12-14).Cylinder, complete

ACE Part No OEM REFF NO
168080 3121068080
Jackleg drill spare

C (15-16).Piston, complete

ACE Part No OEM REFF NO
165980 3121015980
Jackleg drill spare

D(24-26).Pawl, complete

ACE Part No OEM REFF NO
160090 3115920090
Jackleg drill spare

E (31-74).Back head, complete

ACE Part No OEM REFF NO
169783 3121059783
Jackleg drill spare

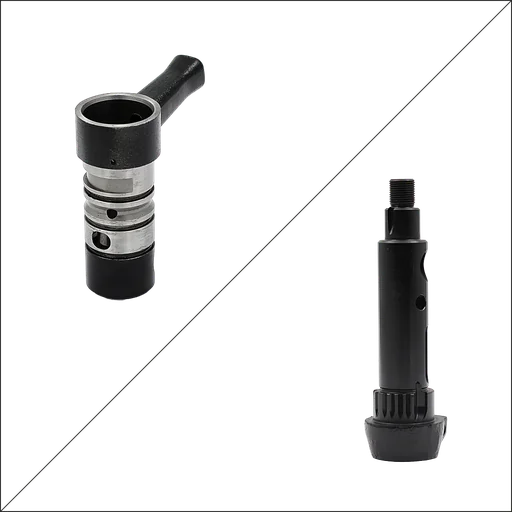

F(35-36).Throttle valve,complete

ACE Part No OEM REFF NO
168980 3121048980
Jackleg drill spare

G(56-57).Valve body, complete

ACE Part No OEM REFF NO
161380 3121071380
Jackleg drill spare

H(75-77).Valve, complete

ACE Part No OEM REFF NO
162680 3121072680
